Name that vintage crankset game...

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Name that vintage crankset game...

Old 03-28-20, 10:55 AM
  #1
jdawginsc
Edumacator
Thread Starter

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 820

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, Faggin Matrix thingy

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 242 Post(s)
Liked 150 Times in 98 Posts
Name that vintage crankset game...

Yeah, I don't know the answers except for one...with a slight clue about a second...






Obviously know this one...
__________________
What is wrong with me...I can't stop! 1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl somethingorother, 1980s Vanni Losa Cassani thingy, 19something Massi blob...
jdawginsc is offline
Old 03-28-20, 10:58 AM
  #2
jdawginsc
Edumacator
Thread Starter

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 820

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, Faggin Matrix thingy

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 242 Post(s)
Liked 150 Times in 98 Posts
Won't be selling them since one will be on the Bottechia deLuxe wall art bike and the other three decorations (until I can find a use for the 4th)
__________________
What is wrong with me...I can't stop! 1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl somethingorother, 1980s Vanni Losa Cassani thingy, 19something Massi blob...
jdawginsc is offline
Old 03-28-20, 11:21 AM
  #3
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 26,753

Bikes: Too many to list here check my signature.

Mentioned: 135 Post(s)
Tagged: 2 Thread(s)
Quoted: 1700 Post(s)
Liked 489 Times in 292 Posts
I believe the CampI one is early Gran Sport

Isn't a double headed eagle crest a Polish thing?
__________________
Bianchis '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, '93 Reparto Corse SBX

Others but still loved; '80 Batavus Professional, '87 Cornelo, '?? Jane Doe (still on the drawing board), '90ish Haro Escape SLX Bertoni "Speckled Trout"
Bianchigirll is offline
Old 03-28-20, 11:27 AM
  #4
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 10,590
Mentioned: 53 Post(s)
Tagged: 0 Thread(s)
Quoted: 466 Post(s)
Liked 128 Times in 102 Posts
No that one is a variation of the "Maxy" or "Maxi". Most common is the one made by Sugino but that one is (I believe) by Sakae Ringyo
unworthy1 is offline
Old 03-28-20, 12:35 PM
  #5
jdawginsc
Edumacator
Thread Starter

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 820

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, Faggin Matrix thingy

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 242 Post(s)
Liked 150 Times in 98 Posts
Originally Posted by unworthy1 View Post
No that one is a variation of the "Maxy" or "Maxi". Most common is the one made by Sugino but that one is (I believe) by Sakae Ringyo
I suspect it is SR, but I have found zero, zilch, nada with that engraving. The chainrings are weirdly textured chrome...very odd combination with the now polished (and I suspect it was originally polished) arm.
__________________
What is wrong with me...I can't stop! 1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl somethingorother, 1980s Vanni Losa Cassani thingy, 19something Massi blob...
jdawginsc is offline
Old 03-28-20, 12:43 PM
  #6
jdawginsc
Edumacator
Thread Starter

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 820

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, Faggin Matrix thingy

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 242 Post(s)
Liked 150 Times in 98 Posts
Originally Posted by Bianchigirll View Post
I believe the CampI one is early Gran Sport

Isn't a double headed eagle crest a Polish thing?
Campy one is definitely a Gran Sport...it had a nickname like "Baby", maybe? Supposedly the alloy ones are pretty rare, but also that there may be some chrome steel armed ones out there...? Not sure.

The eagle guy is made in Japan and my suspicion is early SR...it's on odd little guy.
__________________
What is wrong with me...I can't stop! 1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl somethingorother, 1980s Vanni Losa Cassani thingy, 19something Massi blob...
jdawginsc is offline
Old 03-28-20, 12:46 PM
  #7
jdawginsc
Edumacator
Thread Starter

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 820

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, Faggin Matrix thingy

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 242 Post(s)
Liked 150 Times in 98 Posts
The one at nine o'clock is the one that several folks thought might be a Williams, but could never confirm.

The one at six o'clock came from Poland, but was on a Bottecchia so I suspect it might be one of the Italian makes?

Went through every velobase crank and saw nothing on the SR and Bottecchia one.
__________________
What is wrong with me...I can't stop! 1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl somethingorother, 1980s Vanni Losa Cassani thingy, 19something Massi blob...
jdawginsc is offline
Old 03-28-20, 12:58 PM
  #8
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,215
Mentioned: 259 Post(s)
Tagged: 1 Thread(s)
Quoted: 2019 Post(s)
Liked 246 Times in 217 Posts
-----

This particular eagle crest on the crank arm indicates a set which is part of the Sakae Ringyo Custom 3 series.

There are other models of the Custom 3 with a forged 3-arm spider where the outer chanwheel is removable.

Three-arm SR sets had been discontinued by the late 1970's.

---

The cottered steel set with the lacy single chainwheel is Italian and was employed on the Bianchi planetary three-speeds of the late 1950's and early 1960's - typically marked "Bianchi." Do not know the maker. Usual suspects are Way-Assauto, Magistroni (Giostra). Gnutti and Agrati.


-----
juvela is offline
Likes For juvela:
Old 03-28-20, 01:26 PM
  #9
Kovkov
Senior Member

Kovkov's Avatar

Join Date: Nov 2017
Location: Switzerland
Posts: 343

Bikes: 1957 Alpa Special, 1963 Condor Delta, 1967 Tigra Sprint, 1977 Oltenia, 1987 Mondia, 1965 Staco de luxe, 1969 Amberg

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 100 Post(s)
Liked 55 Times in 29 Posts
The cottered one seems to be similar to the crankset that‘s installed on my Chiorda. Unfortunately there‘s no designation on it.


Kovkov is offline
Likes For Kovkov:
Old 03-28-20, 01:27 PM
  #10
jdawginsc
Edumacator
Thread Starter

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 820

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, Faggin Matrix thingy

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 242 Post(s)
Liked 150 Times in 98 Posts
Originally Posted by juvela View Post
-----

This particular eagle crest on the crank arm indicates a set which is part of the Sakae Ringyo Custom 3 series.

There are other models of the Custom 3 with a forged 3-arm spider where the outer chanwheel is removable.

Three-arm SR sets had been discontinued by the late 1970's.

---

The cottered steel set with the lacy single chainwheel is Italian and was employed on the Bianchi planetary three-speeds of the late 1950's and early 1960's - typically marked "Bianchi." Do not know the maker. Usual suspects are Way-Assauto, Magistroni (Giostra). Gnutti and Agrati.


-----
As always, your knowledge impresses...
1. The SR custom was the route I looked for, but I could not find anything with double fluting, nor the "BS" in the engraving. I found plenty of similar single flute, SR engraved cranks. Also the chainrings are oddities.
2. Good call with Way Assauto; I limited myself to Magistroni and Gnutti.
__________________
What is wrong with me...I can't stop! 1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl somethingorother, 1980s Vanni Losa Cassani thingy, 19something Massi blob...
jdawginsc is offline
Old 03-28-20, 01:58 PM
  #11
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,215
Mentioned: 259 Post(s)
Tagged: 1 Thread(s)
Quoted: 2019 Post(s)
Liked 246 Times in 217 Posts
-----

The BS marking on the eagle crest crank arm is an indication that it was produced for Bridgestone.

Bridgestone had quite an assortment of logos/crests which were employed through time.

I always recall their keystone one; think "HEINZ 57"

---

One minor check you can make on the Italian arm is to see if its dentition is intended for 1/8" or for 3/32" chain. The arm was employed on both planetary and derailleur geared drive trains.

There are Italian single plateau derailleur drive trains where 1/8" chain, chainwheel and gear block were employed.

Have in my workshop a 1972 Chiorda built derailleur five-speed berceau machine done for Kmart (AllPro brand) with this arrangement. Regina made multi-cog gear blocks for 1/8" chain.


-----

Last edited by juvela; 03-28-20 at 02:07 PM. Reason: addition
juvela is offline
Old 03-28-20, 03:51 PM
  #12
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: High Falls, NY, USA
Posts: 38,797

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 467 Post(s)
Tagged: 0 Thread(s)
Quoted: 6311 Post(s)
Liked 847 Times in 555 Posts
The Campagnolo Gran Sport crankset is from around 1982.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Old 03-28-20, 05:35 PM
  #13
jdawginsc
Edumacator
Thread Starter

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 820

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, Faggin Matrix thingy

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 242 Post(s)
Liked 150 Times in 98 Posts
Originally Posted by Kovkov View Post
The cottered one seems to be similar to the crankset that‘s installed on my Chiorda. Unfortunately there‘s no designation on it.


They are definitely twins. Hmm...
__________________
What is wrong with me...I can't stop! 1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl somethingorother, 1980s Vanni Losa Cassani thingy, 19something Massi blob...
jdawginsc is offline
Old 03-28-20, 07:45 PM
  #14
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,215
Mentioned: 259 Post(s)
Tagged: 1 Thread(s)
Quoted: 2019 Post(s)
Liked 246 Times in 217 Posts
------

addendum on the set with the eagle crest -

[often remind meslef of Lieutenant Columbo in that I think of "just one more thing" on the way out the door]

it bears a striking resemblance to the earliest Silstar sets. one thing unique regarding these is their use of the odd three degree taper. AFAIK there is no other manufacturer who has employed this taper. you can check your example there to see if it is two degree or three degree. if it is three degree it is definitely "a duck." one other odd thing about early Silstar series sets is their use of an unusually thick chainwheel spacer. evidently, the manufacturer wished riders to be able to run the small - small gear combination without the chain rubbing on the inner face of the outer chainwheel. this design unfortunately brings up the possibility of derailments where the chain wedges between the chainwheels.

---

Chiorda note -

this manufacturer had a many decades long close association with Agrati. their frames not only employed Agrati lugs, crown and shells. but also Agrati ends, bridges, headsets, bottom brackets & sometimes cranksets. so it is possible our mystery Italian chainset was indeed made by the firm. have an Agrati catalogue which illustrates five or six patterns of a single chainwheel swaged to a crankarm but does not show our subject pattern. only some Agrati products are marked with the name, most are not.

---

Way-Assauto note -

this maker ceased the manufacture of cycling fittings about 1972. they are still a going concern today but have not produced any cycle fittings in nearly fifty years.


-----
juvela is offline
Old 03-29-20, 01:55 AM
  #15
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,300

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 159 Post(s)
Tagged: 0 Thread(s)
Quoted: 688 Post(s)
Liked 324 Times in 214 Posts
Takagi Not SR Crank

jdawginsc Good guess on the Japanese cotterless crank but it's a very early Takagi brand not a SR Sakae Ringyo.

Here's the tell: Your crank has a double headed eagle and 2 flutes in the arm. The "BS" caught my eye too and can either stand for Bull S**t or Bridgestone???

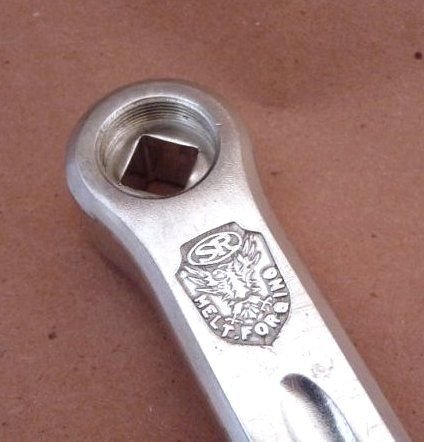

SR (Sakae Ringyo) cranks from that era had a single headed eagle and single flute.



Takagi (3 Arrows) was a Japanese crank manufacturer that made steel cottered cranks and single piece Astabula style cranks. In the early 70's they were part of the JBM Marketing Group and were later swallowed up by Shimano. They continued to market 2nd tier cranks under the Takagi brand and catered to the BMX and MTB market up into the late 1980's.

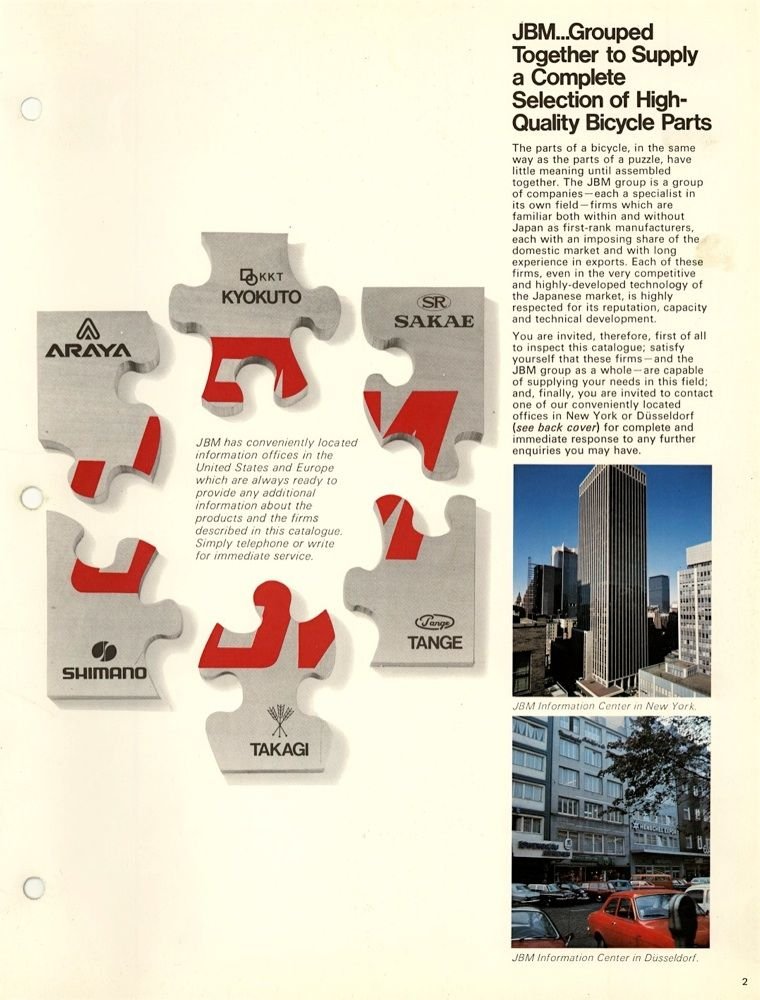

From the 1974 JBM Group Catalog.



Your cranks were some of the first Japanese made aluminum cotterless cranks from around 1972-73. The Japanese euphemistically called the process "Melt Forged" as cast into the SR crank arm... They were injection molded/pressure cast parts with no where near the strength of a forging.

The steel chainrings were swagged onto the cast aluminum crank arm.

The reason why I mention this is that these early cranks from Takagi, SR Sakae Ringyo, Sugino and Shimano all had a tendency to fail at the swagged attachment.

These cranks were made for the export market and used the same size swage as steel cottered cranks. Western riders were 25 to 50+% heavier than the average Japanese person and easily exceeded the strength of the swage which caused the rings to spin on the crank arm.

First generation Sugino Maxi crank with the small swagged area. In 1973 Gitane started using these cranks on their Interclub entry level racing model. Over half of those cranks failed and we had to pull cranks off of new bikes to use as replacements. It took Gitane over 6 months to get us updated replacement cranks!



By 1974-75 the Japanese manufacturers started using larger swage cross sections which mostly cured the problem.



noglider the Campy crank is the the 3320/A Sport model which was part of the Gran Sport gruppo.

They first appeared in the 1974 Campy catalog and were replaced by the 5 arm Grand Sport cranks with 144mm BCD rings in 1977.

I have a set of Sport alloy cranks on my 1973 Holdsworth Competetizone. The 116mm BCD chain rings came as either a riveted together set or bolted together like the OP's. They were listed as available in 49/42, 50/42, 51/42, 52/42 and 53/42 teeth but most were 52-42T



jdawginsc The chain rings on your cranks are mounted wrong. They're on the back side of the spider.

Before the alloy Sport cranks came out in 1974 Campy made an elegant steel cotterless model, the 3320 Sport introduced in 1971. They used the same 116mm BCD chainrings.

Good luck on your project...

BTW, the Polish Coat of Arms has a single headed eagle so there is no connection to Poland...

verktyg
__________________
Things aren't always what they seem... Don't believe everything you think!

Chas. ;-)

Last edited by verktyg; 03-29-20 at 03:41 AM.
verktyg is offline
Old 03-29-20, 08:25 AM
  #16
jdawginsc
Edumacator
Thread Starter

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 820

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, Faggin Matrix thingy

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 242 Post(s)
Liked 150 Times in 98 Posts
You guys amaze me with your knowledge.

Verktyg
Gransport definitely came mounted wrong. Haven't gotten a chance to break down and clean yet. I love it, though. Will be sure I do NOT repeat the seller's mistake...Maybe they were messing with the chainline.
I love my BS crank. It's so quirky and mismatched

Juvela
I am finding unbranded Italian vintage cranksets to be a crapshoot in searching. SOOOOOoooo many styles.
__________________
What is wrong with me...I can't stop! 1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl somethingorother, 1980s Vanni Losa Cassani thingy, 19something Massi blob...
jdawginsc is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
