Italian cartridge bb cups - available?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Italian cartridge bb cups - available?

Old 03-01-20, 07:11 AM
  #1
oneclick
Senior Member
Thread Starter

Join Date: Feb 2020
Posts: 140
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Likes: 0
Liked 31 Times in 21 Posts
Italian cartridge bb cups - available?

I'm looking for a decent cottered axle solution. Good axles have nice bearings, all of the new stuff on ebay looks bad even though new, used won't do, and NOS is dear.


Sunrace make a cartridge cottered BB. SJS has them with english BB cups. Ebay has them with 35/38/40 press-fit cups. Both are for 68mm shell.


It's got real bearings, not a pair of chrome-plated round-ish places on a forged-and-forgotten bit of steel.


I have an italian shell. SJS says theirs takes "Shimano style splined cups", and the bearing outer dimension is 31mm.


Are Shimano (or anybody's) cartridge cups 31mm id and available or salvageable - if the latter what is a good candidate.


I have pretty close to zero experience with cartridge BBs. I've lead a sheltered life.


I can deal with the 68 vs 70mm.
oneclick is offline
Old 03-01-20, 07:36 AM
  #2
J.Higgins
Senior Member

J.Higgins's Avatar

Join Date: Sep 2016
Location: New Hampshire
Posts: 1,973

Bikes: Bilenky Tourlite, Peter Mooney

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 970 Post(s)
Liked 180 Times in 130 Posts
Originally Posted by oneclick View Post
I'm looking for a decent cottered axle solution. Good axles have nice bearings, all of the new stuff on ebay looks bad even though new, used won't do, and NOS is dear.


Sunrace make a cartridge cottered BB. SJS has them with english BB cups. Ebay has them with 35/38/40 press-fit cups. Both are for 68mm shell.


It's got real bearings, not a pair of chrome-plated round-ish places on a forged-and-forgotten bit of steel.


I have an italian shell. SJS says theirs takes "Shimano style splined cups", and the bearing outer dimension is 31mm.


Are Shimano (or anybody's) cartridge cups 31mm id and available or salvageable - if the latter what is a good candidate.


I have pretty close to zero experience with cartridge BBs. I've lead a sheltered life.


I can deal with the 68 vs 70mm.
Not a problem. There are a few different sellers offering Italian or French bottom brackets. Right off, I like Velo Orange quite a lot. Their products are decent quality, and I've had no complaints about anything I have purchased from them. Reasonable pricing too. Secondly, if you want the best of the best, look no further than Phil Wood. Any combination of threads and widths can be had here. You will pay dearly for them, imho, but you'll never need another one - probably - for the life of the bike.

Cheers!
__________________
"I have never been lost, but I will admit to being confused for several weeks" -Daniel Boone

"You can't go back and change the beginning, but you can start where you are and change the ending" -C.S. Lewis

"Sobriety sucks." -Me
J.Higgins is offline
Old 03-01-20, 08:50 AM
  #3
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 6,168

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1078 Post(s)
Liked 429 Times in 310 Posts
So you'd like to take a sunrace COTTERED cartridge BB, pull off the pressed on english threaded cups it comes with, find a (used preferably) Shimano cartridge BB with Italian threaded cups, pull off the pressed on Italian cups and install them on the Sunrace cottered BB unit?

I'd find a bicycle co op or the LBS and have them give you a scrap shimano cartridge BB (any thread) to see if the ID of the cups will fit the sunrace. If it's good, or at least close enough to shim or bore, then start looking for an Italian threaded one.
dedhed is offline
Old 03-01-20, 08:52 AM
  #4
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,650

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 2044 Post(s)
Liked 244 Times in 186 Posts
Italian cottered BB in a modern sealed unit? That's not something there's a lot of demand for. Nobody makes one AFAIK. I'm surprised Sunrace even makes a BSC cartridge BB.

Unless you want to pay a machinist to make you one custom, I think you're best off looking for a clean used traditional BB with good bearing surfaces.

Edit: I was going to suggest something like dedhed said, but i deleted it. Might work, might not. Lots of time and money spent if it doesn't. And it the end there is very little gained over a traditional unit.

I can't remember if French and Italian cottered BB spindles even have the same OD as British. If they're different obviously it won't work. Anyone remember or know? It's been decades since I worked on this stuff regularly, and I don't have a Sutherlands to look it up on, or any parts to measure.

Last edited by Salamandrine; 03-01-20 at 09:00 AM.
Salamandrine is online now
Old 03-01-20, 09:04 AM
  #5
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 21,294

Bikes: Several, mostly not name brands.

Mentioned: 125 Post(s)
Tagged: 0 Thread(s)
Quoted: 2077 Post(s)
Liked 428 Times in 303 Posts
I've found that Phil mounting rings will fit on some other manufacturer's cartridges, e.g. SunTour, Edco. The Phil rings are available in Italian and even more obscure thread specs.
JohnDThompson is offline
Old 03-01-20, 09:15 AM
  #6
repechage
Senior Member

Join Date: Jun 2006
Posts: 14,322
Mentioned: 91 Post(s)
Tagged: 0 Thread(s)
Quoted: 1312 Post(s)
Liked 284 Times in 230 Posts
As I recall the differences are in the cotter flats. But cotters can be filed.

i was looking at this issue too, I have an old Italian cottered crankset and wanted to investigate finding a bottom bracket that did not break the bank. Tough. IRD makes Italian retainers for their cartridge BB’s, but don’t sell an Italian assembly. The cups are not cheap. Around $50.

where I stopped was needing to verify what length of spindle I needed. I will resume referencing when I have determined that.
the cottered era went through a number of dimensions depending on the number of cogs in back, single or double, brand of crank.

English was out unless you were willing to use later Nuovo Record cups or mismatch with one record cup,
that was all in regard to traditional assemblies.

Sutherland’s 3rd or 4th ed may have info, the earlier ones don’t
repechage is offline
Old 03-01-20, 09:18 AM
  #7
repechage
Senior Member

Join Date: Jun 2006
Posts: 14,322
Mentioned: 91 Post(s)
Tagged: 0 Thread(s)
Quoted: 1312 Post(s)
Liked 284 Times in 230 Posts
Originally Posted by JohnDThompson View Post
I've found that Phil mounting rings will fit on some other manufacturer's cartridges, e.g. SunTour, Edco. The Phil rings are available in Italian and even more obscure thread specs.
yes, I bought a French bike with what looked like a Phil bracket, only to find a stronglight spindle and bearings inside.
repechage is offline
Old 03-01-20, 10:22 AM
  #8
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,650

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 2044 Post(s)
Liked 244 Times in 186 Posts
It turns out Sheldon comes to the rescue again. The info is archived on his page. https://www.sheldonbrown.com/cotters.html

"French cottered spindles have a diameter of 15.5 mm (0.610") and most others, 0.625" (5/8")."

Does most others include Italian? I'm not sure. If it's just a few thou as above, then an 0.625" spindle could be sanded down easily enough if necessary. Best if done on a lathe though.

FYI British and Japanese cotter pins are 9.5mm. French are 9mm. IIRC Italian are also 9mm, but can't remember for sure. Fewer of those around BITD.

OP: if the goal here is an easy solution that you're familiar with, then you're barking up the wrong tree. As I said before, a traditional BB is going to be much easier to deal with than trying to customize a cartridge BB, especially if you're new to this.

Last edited by Salamandrine; 03-01-20 at 10:27 AM.
Salamandrine is online now
Old 03-01-20, 10:31 AM
  #9
oneclick
Senior Member
Thread Starter

Join Date: Feb 2020
Posts: 140
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Likes: 0
Liked 31 Times in 21 Posts
Originally Posted by dedhed View Post
So you'd like to take a sunrace COTTERED cartridge BB, pull off the pressed on english threaded cups it comes with, find a (used preferably) Shimano cartridge BB with Italian threaded cups, pull off the pressed on Italian cups and install them on the Sunrace cottered BB unit?
Exactly that.
oneclick is offline
Old 03-01-20, 10:51 AM
  #10
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,650

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 2044 Post(s)
Liked 244 Times in 186 Posts
Just to add some more info. Shimano shells are 31.0mm where the cups press on. Phil are 33.0mm. I just double checked. If Sunrace are 31.0 as you say, it could theoretically work.

That leaves only the issue of whether the width will match up closely enough. (and the spindle diameter, and the cotter pins... )

Unfortunately, Shimano don't AFAIK make a UN55 with Italian threads. IRD maybe?? It's also worth mentioning that the fixed side cup of a UN55 doesn't come off. I think Shimano used to make it in Italian, so perhaps you could find two of them used, and pilfer the removable cups. (since side cups are RH thread on Italian.)

Correction: Shimano still makes the UN55 with Italian threads. Probably fairly rare though.

Last EDIT: looks like that Sunrace is made like a Shimano, and the fixed side is fixed. Therefore the idea is a non starter. Sorry.

Last edited by Salamandrine; 03-01-20 at 11:46 AM.
Salamandrine is online now
Old 03-01-20, 11:13 AM
  #11
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 6,168

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1078 Post(s)
Liked 429 Times in 310 Posts
Originally Posted by oneclick View Post
Exactly that.
Seems like a reasonable experiment to me.

If a person could find out what bearing # the sunrace and shimano BBs use you could look up the OD of the bearing. That would tell you if the cup ID was the same (or close). Smaller on the shimano would be better than bigger. Should be easy enough to find a guy with access to a lathe to get a cup bored out for the universal currency of beer. I've knocked the cup off an old cartridge, it's not difficult, the problem is most people just toss them out so they're typically not just laying around.
dedhed is offline
Old 03-01-20, 11:17 AM
  #12
J.Higgins
Senior Member

J.Higgins's Avatar

Join Date: Sep 2016
Location: New Hampshire
Posts: 1,973

Bikes: Bilenky Tourlite, Peter Mooney

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 970 Post(s)
Liked 180 Times in 130 Posts
Originally Posted by oneclick View Post
Exactly that.
Aw sheesh. Disregard my comment. I mistakenly thought cotterless.
__________________
"I have never been lost, but I will admit to being confused for several weeks" -Daniel Boone

"You can't go back and change the beginning, but you can start where you are and change the ending" -C.S. Lewis

"Sobriety sucks." -Me
J.Higgins is offline
Old 03-01-20, 11:54 AM
  #13
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 6,168

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1078 Post(s)
Liked 429 Times in 310 Posts
The way I'm seeing it the problem is Shimano puts the bearing inside the cup and sunrace puts the cup outside the bearing.
While not a deal breaker, it complicates any easy peasy swapping like press on press off.
You might have to look at Italian alternatives to Shimano like Chin Haur.

http://www.chinhaur.com.tw/upload/1493277293_9473.pdf

Shimano does make them in Italian.
https://www.universalcycles.com/shop...s.php?id=44899




Last edited by dedhed; 03-01-20 at 12:01 PM.
dedhed is offline
Old 03-01-20, 12:19 PM
  #14
oneclick
Senior Member
Thread Starter

Join Date: Feb 2020
Posts: 140
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Likes: 0
Liked 31 Times in 21 Posts
Originally Posted by dedhed View Post
Seems like a reasonable experiment to me.

If a person could find out what bearing # the sunrace and shimano BBs use you could look up the OD of the bearing.
Sunrace is 31mm od (was in my first post).
oneclick is offline
Old 03-01-20, 12:26 PM
  #15
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 10,575
Mentioned: 53 Post(s)
Tagged: 0 Thread(s)
Quoted: 462 Post(s)
Liked 122 Times in 96 Posts
A little unclear about how the Sunrace model BBT 08 (pictured above) which appears to be sold as "40mm, 35mm or 38mm" differs from the BBT-08 1.37 model. They both seem to come in ONLY a 136mm spindle length and both intended for a 68mm BB shell, but if BOTH cups pull off the BBT 08 models then you might be in business. If the cup ID is same as Shimano (or another brand that has Italian thread units) just get TWO donor Italian NDS cups (since both shell sides are RH thread) and you just need to fix the cup (maybe both sides?) with something like Locktite assuming you won't have threads-room for a lockring. But if that DS "cup" on the BBT-08 models are not removable (as looks to be the case on the BBT-08 1.37) then you are out of luck I think.

Last edited by unworthy1; 03-01-20 at 12:30 PM.
unworthy1 is offline
Old 03-02-20, 08:07 PM
  #16
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 6,168

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1078 Post(s)
Liked 429 Times in 310 Posts

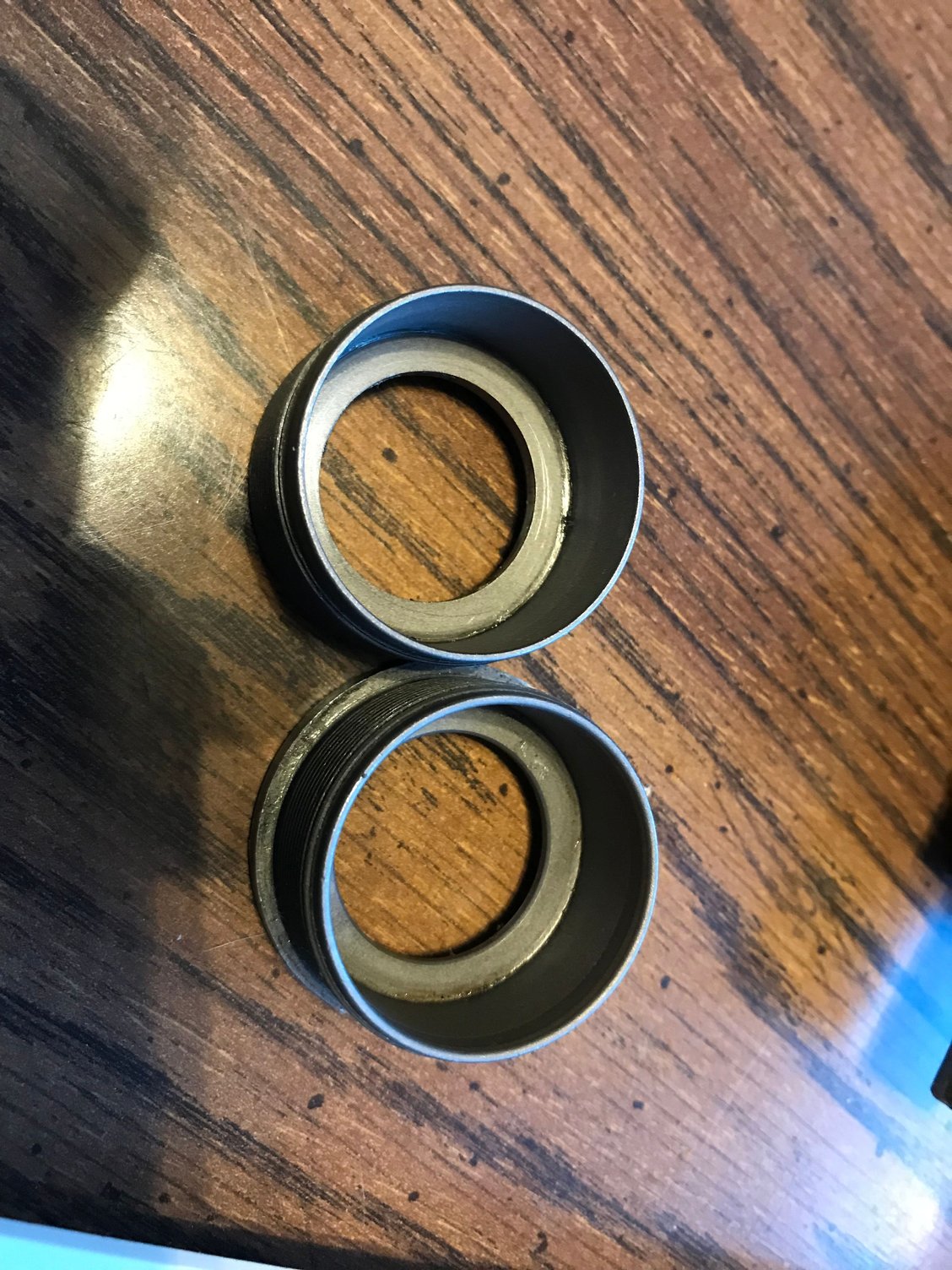

Dug through my "box o crap" and for some reason I kept the old Chin Haur CH 52 out of my hybrid. Knocked the cups off and measured them.
Big ID on the cups of 30.7mm - 30.9mm, small ID 23mm - both cups using my cheap Harbor Freight calipers. Bearings in it are marked 1583110-2RS which are listed as 15.8mmX31mmX10mm.



dedhed is offline
Old 03-03-20, 07:03 AM
  #17
oneclick
Senior Member
Thread Starter

Join Date: Feb 2020
Posts: 140
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Likes: 0
Liked 31 Times in 21 Posts
Originally Posted by dedhed View Post
Dug through my "box o crap" and for some reason I kept the old Chin Haur CH 52 out of my hybrid. Knocked the cups off and measured them.
Big ID on the cups of 30.7mm - 30.9mm, small ID 23mm - both cups using my cheap Harbor Freight calipers. Bearings in it are marked 1583110-2RS which are listed as 15.8mmX31mmX10mm.
Good, that's a Sunrace match. Can you measure something else - the depth of the well in the cup(s) that the races sit in; I'm hoping it is enough that I can put a 1mm spacer under each race and so use a 68 in a 70 shell.
oneclick is offline
Old 03-03-20, 08:26 AM
  #18
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 6,168

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1078 Post(s)
Liked 429 Times in 310 Posts
Originally Posted by oneclick View Post
Good, that's a Sunrace match. Can you measure something else - the depth of the well in the cup(s) that the races sit in; I'm hoping it is enough that I can put a 1mm spacer under each race and so use a 68 in a 70 shell.
I can do that tonight
dedhed is offline
Old 03-03-20, 05:50 PM
  #19
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 6,168

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1078 Post(s)
Liked 429 Times in 310 Posts
The HF calipers don't have a depth function but on my good Mitutoyo imperials they're both around 0.52-53" so approx 13+mm in depth to the step, which makes sense to completely cover the 10mm wide bearing. Caveat - The Chin Haur I have is English threaded. YMMV.

dedhed is offline
Old 03-04-20, 01:19 PM
  #20
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,126

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 765 Post(s)
Likes: 0
Liked 183 Times in 140 Posts
Cottered cartridge bb, who knew?
dddd is offline
Old 03-09-20, 10:08 AM
  #21
oneclick
Senior Member
Thread Starter

Join Date: Feb 2020
Posts: 140
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Likes: 0
Liked 31 Times in 21 Posts
Here's what I go - the cups pretty much slide off and the axle measures 15.75 to 15.80mm. The pin slot is wider (at the chord) than the 9mm pin hole in the crank I'll be using. Lots of clearance. It'll be a nice user solution for a cottered crank, decent replaceable bearings.


oneclick is offline
Old 03-09-20, 11:30 AM
  #22
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,650

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 2044 Post(s)
Liked 244 Times in 186 Posts
That's pretty cool. So both cups do come off. Now all you need to do is manage to scrounge two Shimano Italian threaded adjustable cups. Sounds difficult but not impossible. Did you verify the OD of the bearings is 31.0 mm?
Salamandrine is online now
Likes For Salamandrine:
Old 03-09-20, 04:49 PM
  #23
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 6,168

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1078 Post(s)
Liked 429 Times in 310 Posts
Looks like Chin Haur lists a part # for the cups separately. You just need to find how to get them.

********************
dedhed is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
