Vintage Road Bike I.D. (Campagnolo, Neon Fade)

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Vintage Road Bike I.D. (Campagnolo, Neon Fade)

Old 03-26-20, 08:04 AM
  #1
Wissahickon2
Junior Member
Thread Starter

Join Date: Mar 2019
Posts: 20
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 1 Time in 1 Post

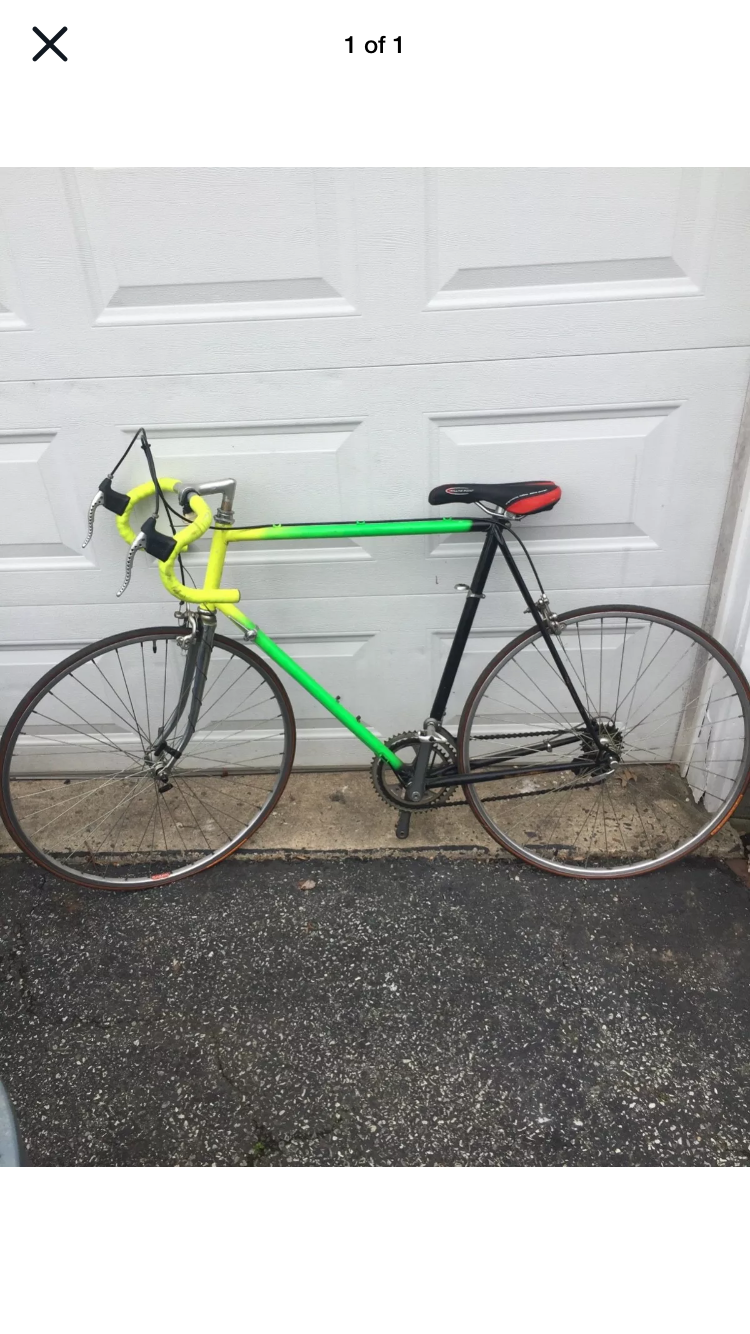

Vintage Road Bike I.D. (Campagnolo, Neon Fade)

Hello,
I recently picked up this bicycle for less than $100.00; however I am not well versed in road bicycles. I'm a long time Mountain Bike guy, who typically goes after the Fat Chance, Klein, etc 80s-90s bikes. Anyway, this had an interesting paint scheme similar to the bikes I just mentioned would typically had, and I knew that Campagnolo was generally a top end component group. That said, this bike has no branding or logos that would inform me of what I purchased. I've been googling and searching on how I could identify what this bike is, but have come up with nothing. Any help would be GREATLY appreciated!

Fork: Tange "TF"
Wheels: Araya rims
Hubs: Joytech
Headset: unmarked, I believe a Tange headset
Brake calipers: Modolo Corsa
Brake levers: Mafac
Handlebars: 3ttt
Stem: quill, SR Forged
Crank: Campagnolo, I believe "Victory" in a graphite finish
FD: Campagnolo
RD: Campagnolo
Seat appears to be new.

I think one of the interesting parts, or could be help in identifying, of the bike is the cable routing for the FD on the non-drive side (picture below).
Serial number starts with M2.
The bottom bracket lug/shell has a little more detail than the other lugs.
The seat stays seem like there wasn't much thought put into them.

Any thoghts? Thanks!













Wissahickon2 is offline
Old 03-26-20, 08:21 AM
  #2
Miele Man
Senior Member

Join Date: Jun 2014
Location: Ontario, Canada
Posts: 3,464

Bikes: Miele Latina, Miele Suprema, Miele Uno SL, Miele MTB, Bianchi Model Unknown, Fiori Venezia, VeloSport Adamas AX

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 874 Post(s)
Liked 446 Times in 308 Posts
I don't know about the bike but I do suggest you get a proper seat binder bolt as the one on there could give you a really nasty scratch or cut.

With those Campagnolo components you got a really good deal.

Cheers.
Miele Man is online now
Old 03-26-20, 08:35 AM
  #3
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 19,462
Mentioned: 507 Post(s)
Tagged: 1 Thread(s)
Quoted: 3131 Post(s)
Likes: 0
Liked 550 Times in 445 Posts
That's a Vitus rear dropout, so my initial reaction is French origin or a neighbouring country. I don't believe these dropouts were available earlier than the very late 1970s and they were used into at least the early 1980s.. It's probably no newer than that based on the cables routed over the BB shell. Workmanship is mass production level. Depending on the exact era, this could be upper entry level to lower mid-range. Seat post diameter? Seat tube outer diameter? Threading of BB cups?
T-Mar is offline
Likes For T-Mar:
Old 03-26-20, 09:35 AM
  #4
xiaoman1
Senior Member

xiaoman1's Avatar

Join Date: Mar 2014
Location: Weird Coast City of the Angeles
Posts: 2,766

Bikes: Paramounts, PX-10s, Mondias, Motobecane Grand Record, Specialized Allez Carbon, and Nishiki Tri-A

Mentioned: 26 Post(s)
Tagged: 1 Thread(s)
Quoted: 534 Post(s)
Liked 250 Times in 177 Posts
OP,
It looks like a respray with a mix of parts, agree with T-Mar about "mass production".... also I am wondering what that line on the TT is near the seat lug, tape or?
Ben
xiaoman1 is offline
Old 03-26-20, 09:56 AM
  #5
TenGrainBread
Senior Member

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 2,525

Bikes: Cherubim, Alps, a few Schwinns

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 1041 Post(s)
Liked 348 Times in 232 Posts
To me the steel seatpost in there seems a bit small. The binder ears look pinched together.
TenGrainBread is offline
Old 03-26-20, 10:21 AM
  #6
Wissahickon2
Junior Member
Thread Starter

Join Date: Mar 2019
Posts: 20
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 1 Time in 1 Post
The seatpost is small, it does not appear to be original, maybe replaced when they got a new seat? The paint seems like a respray, it's not a great paint job by any means. I'm going to have to look at the seat post diameter, seat tube outer diameter and threading of BB cups, as I did not have a chance to have close inspection of these yet! The line on the TT, I was picking at last night but I couldn't tell. I thought maybe from when they painted it but I couldn't tell. Will do some closer looking at that...

Thanks for the lead on vitus dropout, I'm going to look into that. Appreciate every ones help so far!
Wissahickon2 is offline
Old 03-26-20, 10:50 AM
  #7
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 21,321

Bikes: Several, mostly not name brands.

Mentioned: 125 Post(s)
Tagged: 0 Thread(s)
Quoted: 2083 Post(s)
Liked 434 Times in 308 Posts
It doesn't look like anything fancy. Triomphe crank and 980 derailleur were entry level offerings from Campagnolo. As are Modolo Corsa brakes. $100 is about right.

Could be a fun bike, if it fits you and you like the ride.
JohnDThompson is online now
Old 03-26-20, 10:53 AM
  #8
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,300

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 159 Post(s)
Tagged: 0 Thread(s)
Quoted: 688 Post(s)
Liked 324 Times in 214 Posts
Vitus Dropouts

Gitane used those Vitus dropouts until at least 1987:



There was a recent discussion about a Dutch bike that had those crimped seat stay tops. German and Austrian bikes used that style too.

Looks like a mishmash frankenbike rather than a production model. Rattlecan paint job... there appears to be some heat caused paint damage under the black on the top tube at the seat lug???

The frame was probably a mid range model. The Tange fork is probably a replacement???.

Have you ridden it yet? The seat is way to low for that size frame usually indicating that it was too big for someone who was riding it.

verktyg
__________________
Things aren't always what they seem... Don't believe everything you think!

Chas. ;-)
verktyg is offline
Old 03-26-20, 11:03 AM
  #9
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,212
Mentioned: 259 Post(s)
Tagged: 1 Thread(s)
Quoted: 2018 Post(s)
Liked 246 Times in 217 Posts
-----

headset Tange MA60

front mech Campag Nuovo Valentino

if dropouts Vitus then a Tange fork would be a replacement

------
juvela is offline
Old 03-26-20, 11:07 AM
  #10
Wissahickon2
Junior Member
Thread Starter

Join Date: Mar 2019
Posts: 20
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 1 Time in 1 Post
I inflated the tires, fixed a few minor things and took it for a ride last night -- it was a blast! I'll keep it and give it a little TLC. I found an image of this Meral bicycle that has similar creased stays:
Wissahickon2 is offline
Old 03-26-20, 11:08 AM
  #11
DMC707
Senior Member

DMC707's Avatar

Join Date: Jan 2013
Location: Oklahoma City
Posts: 3,735

Bikes: Too many to list

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 853 Post(s)
Liked 163 Times in 108 Posts
The elevated chainstay Nishiki in the background deserves its own pic thread !
DMC707 is offline
Old 03-26-20, 11:15 AM
  #12
Insidious C.
Crash Test Dummy

Join Date: Jan 2014
Location: PNW
Posts: 1,106

Bikes: Dawes, Williams, Raleigh, Daccordi, Scott, Univega, Mercier, Vitus, J. Anquetil, Specialized

Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 274 Post(s)
Liked 89 Times in 60 Posts
There will be a date code stamped on the cranks. Assuming they are original that will help you narrow down model year of the bike.
__________________
I.C.
Insidious C. is online now
Old 03-26-20, 11:17 AM
  #13
Wissahickon2
Junior Member
Thread Starter

Join Date: Mar 2019
Posts: 20
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 1 Time in 1 Post
Originally Posted by DMC707 View Post
The elevated chainstay Nishiki in the background deserves its own pic thread !
Ha! I love that bike. I had something like 15 vintage mountain bikes, all top quality, including a Nishiki Alien with full xt. Sold them all but kept that good old Nishiki Pinnacle!
Wissahickon2 is offline
Old 03-26-20, 11:25 AM
  #14
DMC707
Senior Member

DMC707's Avatar

Join Date: Jan 2013
Location: Oklahoma City
Posts: 3,735

Bikes: Too many to list

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 853 Post(s)
Liked 163 Times in 108 Posts
Originally Posted by Wissahickon2 View Post
Ha! I love that bike. I had something like 15 vintage mountain bikes, all top quality, including a Nishiki Alien with full xt. Sold them all but kept that good old Nishiki Pinnacle!

Did the Alien have the Bontrager Switchblade fork? --- that was the epitome of cool to me when I saw a new one in a bike shop back in 1989 or '90 and I was an impressionable 18 year old ---- I didn't have big bucks, but I ended up with a Bridgestone MB-6 , before knowing Bridgestone was anything special . I bought into the Bridgestone hype soon after though , --- rode that bike everywhere and had lots of fun
DMC707 is offline
Old 03-26-20, 11:30 AM
  #15
Wissahickon2
Junior Member
Thread Starter

Join Date: Mar 2019
Posts: 20
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 1 Time in 1 Post
Originally Posted by DMC707 View Post
Did the Alien have the Bontrager Switchblade fork? --- that was the epitome of cool to me when I saw a new one in a bike shop back in 1989 or '90 and I was an impressionable 18 year old ---- I didn't have big bucks, but I ended up with a Bridgestone MB-6 , before knowing Bridgestone was anything special . I bought into the Bridgestone hype soon after though , --- rode that bike everywhere and had lots of fun
Here it is; rode it many many times, and then I sold it to someone who would enjoy it as much as I did:

Wissahickon2 is offline
Old 03-26-20, 11:35 AM
  #16
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 19,462
Mentioned: 507 Post(s)
Tagged: 1 Thread(s)
Quoted: 3131 Post(s)
Likes: 0
Liked 550 Times in 445 Posts

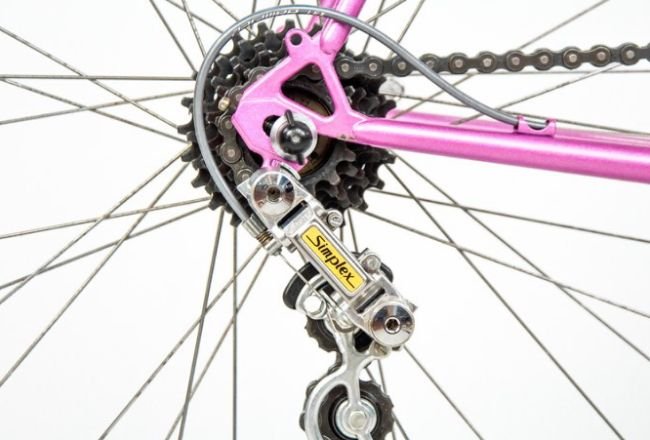

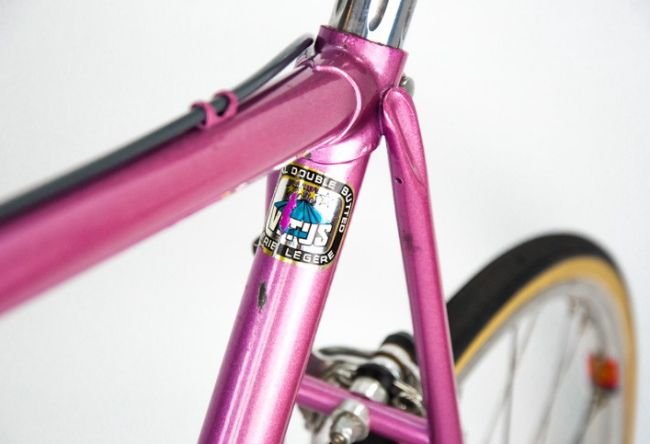

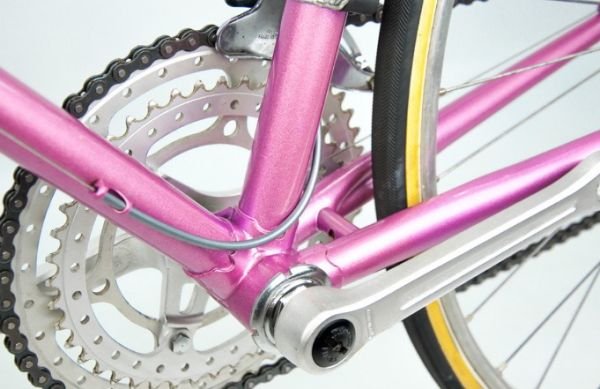

This is a almost perfect match for a Mercier. Same dropouts, crimped stay caps, lugs, BB shell, cable stop for front derailleur on down tube, lack of shift lever bosses, etc. I've seen this configuration with various tubesets. Serial number?



T-Mar is offline
Likes For T-Mar:
Old 03-26-20, 11:37 AM
  #17
Wissahickon2
Junior Member
Thread Starter

Join Date: Mar 2019
Posts: 20
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 1 Time in 1 Post
Originally Posted by T-Mar View Post
This is a almost perfect match for a Mercier. Same dropouts, crimped stay caps, lugs, BB shell, cable stop for front derailleur on down tube, lack of shift lever bosses, etc. I've seen this configuration with various tubesets. Serial number?




Woah, best match I've seen so far!!!! thank you
Wissahickon2 is offline
Old 03-26-20, 11:39 AM
  #18
Wissahickon2
Junior Member
Thread Starter

Join Date: Mar 2019
Posts: 20
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 1 Time in 1 Post
Serial is M28 something...I can't see rest in picture but will look tonight
Wissahickon2 is offline
Old 03-26-20, 11:53 AM
  #19
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 6,735

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 607 Post(s)
Liked 148 Times in 97 Posts
Looking at the crimped stay caps, they are different.
Note that the rings are unique to the crank BCD (not anywhere near standard).
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Old 03-26-20, 11:59 AM
  #20
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 19,462
Mentioned: 507 Post(s)
Tagged: 1 Thread(s)
Quoted: 3131 Post(s)
Likes: 0
Liked 550 Times in 445 Posts
Originally Posted by SJX426 View Post
Looking at the crimped stay caps, they are different.
Note that the rings are unique to the crank BCD (not anywhere near standard).
The length of the crimp is different but that's variable depending on the set-up of the tooling.
T-Mar is offline
Old 03-26-20, 12:01 PM
  #21
Insidious C.
Crash Test Dummy

Join Date: Jan 2014
Location: PNW
Posts: 1,106

Bikes: Dawes, Williams, Raleigh, Daccordi, Scott, Univega, Mercier, Vitus, J. Anquetil, Specialized

Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 274 Post(s)
Liked 89 Times in 60 Posts
It looks like the bike has a band on RD cable stop. Does that appear original or is there evidence of a braze on above or below the chain stay?
__________________
I.C.
Insidious C. is online now
Old 03-26-20, 12:05 PM
  #22
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 19,462
Mentioned: 507 Post(s)
Tagged: 1 Thread(s)
Quoted: 3131 Post(s)
Likes: 0
Liked 550 Times in 445 Posts
Originally Posted by Wissahickon2 View Post
Serial is M28 something...I can't see rest in picture but will look tonight
The M-prefix is consistent with Mercier manufacture. I believe the first numeral is the year of manufacture. However, take the tubing decal in the photo from my previous post with caution. Like I said, this frame design was manufactured with various tubesets. Here's one with with hi-tensile tubing.

The diameter of a proper fitting seat post will be the best indicator of the tubing grade. The post appears undersize because the ears are pressed together. This could just be deformation of the ears, as there appears to be a much wider gap in the cinch slot of the tube itself. For a proper sized post, the cinch slot in the seat tube will be about 0.6mm narrower at the top, than at the bottom.

T-Mar is offline
Old 03-26-20, 12:10 PM
  #23
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 19,462
Mentioned: 507 Post(s)
Tagged: 1 Thread(s)
Quoted: 3131 Post(s)
Likes: 0
Liked 550 Times in 445 Posts
Originally Posted by Insidious C. View Post
It looks like the bike has a band on RD cable stop. Does that appear original or is there evidence of a braze on above or below the chain stay?
The BB shell has the rear derailleur cable tunnel on top of the BB shell, so any drewed chainstay cable stop would also have been on the top.
T-Mar is offline
Old 03-26-20, 12:20 PM
  #24
Insidious C.
Crash Test Dummy

Join Date: Jan 2014
Location: PNW
Posts: 1,106

Bikes: Dawes, Williams, Raleigh, Daccordi, Scott, Univega, Mercier, Vitus, J. Anquetil, Specialized

Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 274 Post(s)
Liked 89 Times in 60 Posts

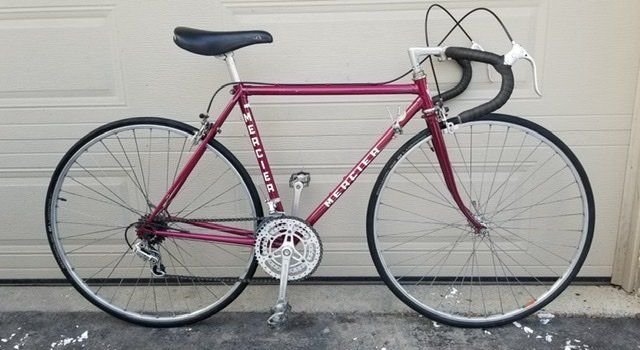

Here is a pic showing s/n from one on ebay that is similar to T-MAR's examples.

__________________
I.C.
Insidious C. is online now
Old 03-26-20, 12:30 PM
  #25
Wissahickon2
Junior Member
Thread Starter

Join Date: Mar 2019
Posts: 20
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 1 Time in 1 Post
Originally Posted by T-Mar View Post
The M-prefix is consistent with Mercier manufacture. I believe the first numeral is the year of manufacture. However, take the tubing decal in the photo from my previous post with caution. Like I said, this frame design was manufactured with various tubesets. Here's one with with hi-tensile tubing.

The diameter of a proper fitting seat post will be the best indicator of the tubing grade. The post appears undersize because the ears are pressed together. This could just be deformation of the ears, as there appears to be a much wider gap in the cinch slot of the tube itself. For a proper sized post, the cinch slot in the seat tube will be about 0.6mm narrower at the top, than at the bottom.
I'm going to get out my calipers and measure the tubes ID and OD tonight; thanks for your help!
Wissahickon2 is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
