Gaining fender clearance with longer reach Campagnolo brakes?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Gaining fender clearance with longer reach Campagnolo brakes?

Old 03-28-20, 12:14 PM
  #1
bark_eater
Senior Member
Thread Starter

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 806

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 279 Post(s)
Liked 72 Times in 49 Posts
Gaining fender clearance with longer reach Campagnolo brakes?

Boulder Bicycle has longer reach arms for Campagnlo Triomphe brakes. I have the short reach brakes on a Franken bike. The pads don't really need the extra reach but I was wondering if a wider fender would fit higher up in the long reach brakes? Thanks, Woody
bark_eater is offline
Old 03-28-20, 12:19 PM
  #2
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 26,748

Bikes: Too many to list here check my signature.

Mentioned: 135 Post(s)
Tagged: 2 Thread(s)
Quoted: 1698 Post(s)
Liked 485 Times in 291 Posts
I am pondering a similar question. I have two pair of shorty fendewrs I want to use and it dawned on the other day the reason they never seem to 'fit' is due to the Chorus brakes I keep trying to use. So will an older style caliper like a 600EX be wider? Reach is a issue too
__________________
Bianchis '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, '93 Reparto Corse SBX

Others but still loved; '80 Batavus Professional, '87 Cornelo, '?? Jane Doe (still on the drawing board), '90ish Haro Escape SLX Bertoni "Speckled Trout"
Bianchigirll is offline
Old 03-29-20, 07:47 AM
  #3
Miele Man
Senior Member

Join Date: Jun 2014
Location: Ontario, Canada
Posts: 3,383

Bikes: Miele Latina, Miele Suprema, Miele Uno SL, Miele MTB, Bianchi Model Unknown, Fiori Venezia, VeloSport Adamas AX

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 849 Post(s)
Liked 421 Times in 293 Posts
Aren't the short reach and the long reach caliper arms the same shape where they attach to the center pivot bolt? I think that the only difference between them would be the length of the caliper arms.

BTW, thanks for mentioning the longer arms are available. I'd like to get two pairs to put on my Triomphe calipers so I could use them on a bike I have that needs longer brake arms. I wonder how much two pairs of those arms cost?

CHeers
Miele Man is offline
Likes For Miele Man:
Old 03-29-20, 09:03 AM
  #4
bark_eater
Senior Member
Thread Starter

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 806

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 279 Post(s)
Liked 72 Times in 49 Posts
I haven't figured out how get accurate measurements of different calipers on bikes. The bikes all have different width rims so getting comparative widths is hard. As far as reach I may already have normal/ long reach brakes but need to figure out how to get a good number.
bark_eater is offline
Old 03-29-20, 09:22 AM
  #5
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 2,135

Bikes: 81 Medici, 84 Centurion Turbo, 2011 Richard Sachs, '90 Alpina Team, 85 TREK 620, 2011 Milwaukee Road

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 803 Post(s)
Liked 182 Times in 133 Posts
I think the long reach brake/fender clearance solution applies when you convert to a smaller wheel. If you are keeping your current wheels and want more clearance, look into centerpulls.
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is offline
Old 03-29-20, 09:33 AM
  #6
TenGrainBread
Senior Member

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 2,520

Bikes: Cherubim, Alps, a few Schwinns

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 1039 Post(s)
Liked 347 Times in 232 Posts
Yes, longer arms won't help unless you are moving the brake mounting point away from the wheel (aka use smaller wheels). This is the idea behind 650b conversions.

Why stick religiously to Campy? These brakes were simply not designed with fenders in mind. There are plenty of centerpull brakes (MAFAC, Weinmann, Dia Compe) that not only have more clearance, but work better than 99% of Campy sidepulls.
TenGrainBread is offline
Likes For TenGrainBread:
Old 03-29-20, 09:45 AM
  #7
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 26,748

Bikes: Too many to list here check my signature.

Mentioned: 135 Post(s)
Tagged: 2 Thread(s)
Quoted: 1698 Post(s)
Liked 485 Times in 291 Posts
Originally Posted by TenGrainBread View Post
Yes, longer arms won't help unless you are moving the brake mounting point away from the wheel (aka use smaller wheels). This is the idea behind 650b conversions.

Why stick religiously to Campy? These brakes were simply not designed with fenders in mind. There are plenty of centerpull brakes (MAFAC, Weinmann, Dia Compe) that not only have more clearance, but work better than 99% of Campy sidepulls.
__________________
Bianchis '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, '93 Reparto Corse SBX

Others but still loved; '80 Batavus Professional, '87 Cornelo, '?? Jane Doe (still on the drawing board), '90ish Haro Escape SLX Bertoni "Speckled Trout"
Bianchigirll is offline
Old 03-29-20, 10:40 AM
  #8
nlerner
Senior Member

Join Date: Dec 2005
Posts: 12,806
Mentioned: 283 Post(s)
Tagged: 0 Thread(s)
Quoted: 1425 Post(s)
Liked 438 Times in 267 Posts
Speaking of blasphemy, fenders on a Campy equipped bike?! Gesu Cristo!
nlerner is offline
Likes For nlerner:
Old 03-29-20, 10:48 AM
  #9
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 26,748

Bikes: Too many to list here check my signature.

Mentioned: 135 Post(s)
Tagged: 2 Thread(s)
Quoted: 1698 Post(s)
Liked 485 Times in 291 Posts
So to sort of bump my add on question, will a pair of 600EX sttyle brakes allow enough clearance for a pair of narrow ESGE 'shorty' fenders?



__________________
Bianchis '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, '93 Reparto Corse SBX

Others but still loved; '80 Batavus Professional, '87 Cornelo, '?? Jane Doe (still on the drawing board), '90ish Haro Escape SLX Bertoni "Speckled Trout"
Bianchigirll is offline
Old 03-29-20, 12:07 PM
  #10
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 5,708

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 126 Post(s)
Tagged: 0 Thread(s)
Quoted: 1668 Post(s)
Liked 571 Times in 419 Posts
Originally Posted by bark_eater View Post
I haven't figured out how get accurate measurements of different calipers on bikes. The bikes all have different width rims so getting comparative widths is hard. As far as reach I may already have normal/ long reach brakes but need to figure out how to get a good number.
This is like BB spindle fitting, hunt and peck, test fit, fiddle about and hope you get lucky before you lose your mind. tires and the shape of the caliper will have far more to do with it than the reach.

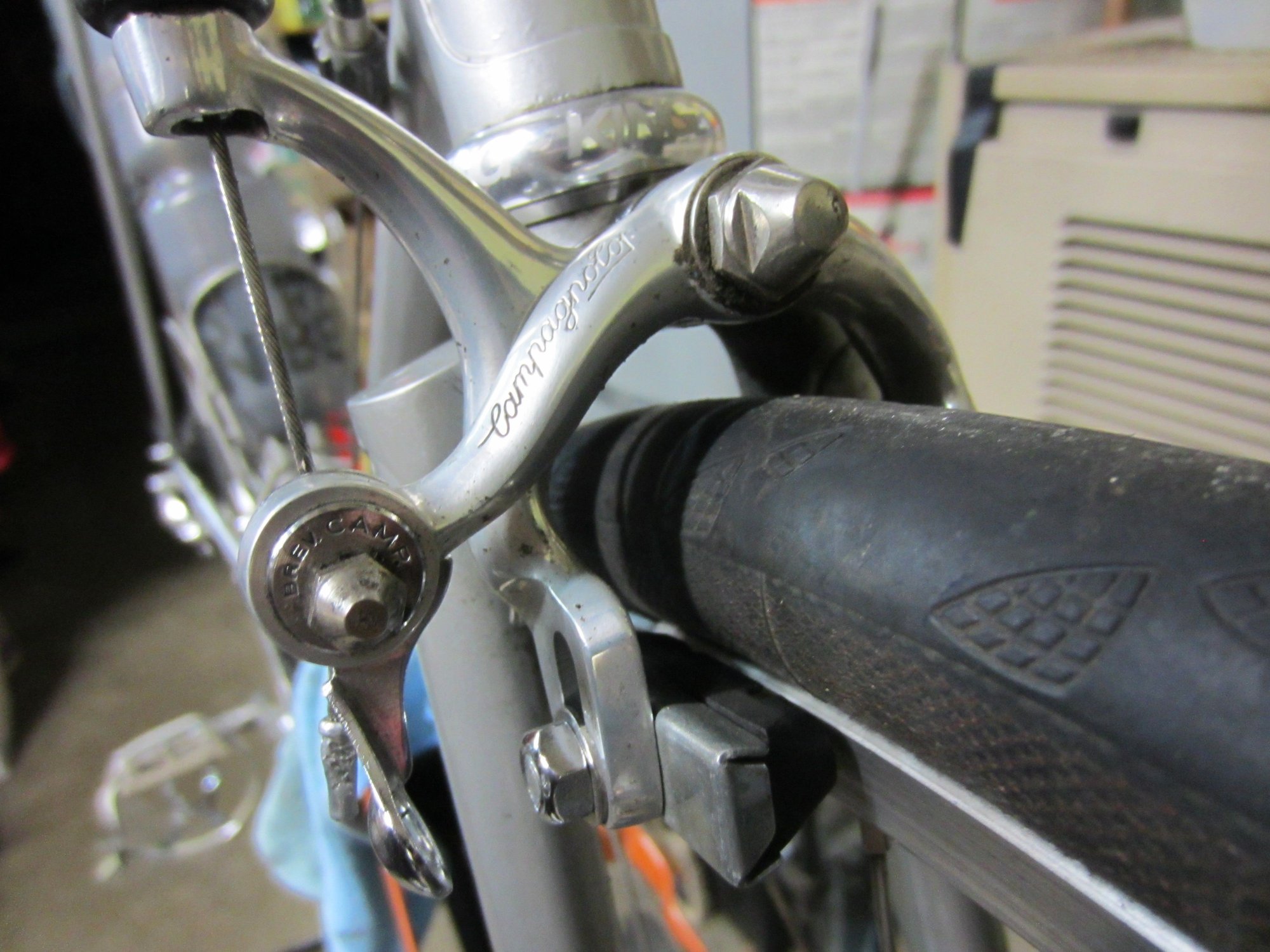

The frame is also a bigger factor. Here is the big Merz that I am pretty sure was built for fenders with 32's and a PX-10 that was probably not but has a ton of room for tires and fenders.

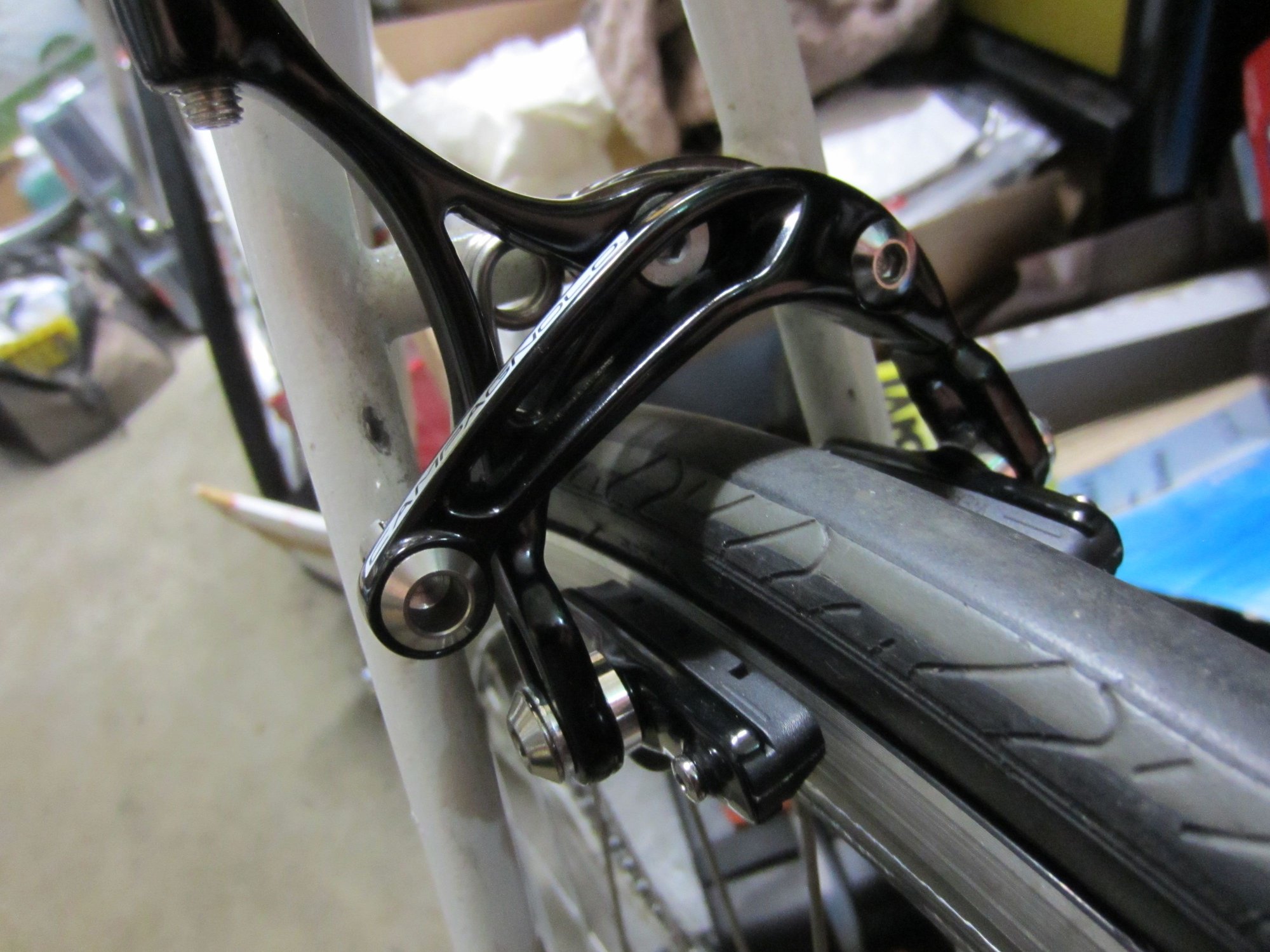

The Merz was used as an example for the new Strawberry I built but still was a huge challenge as the crowns on it were designed for 650b rando builds, not 700c builds with 32's but Dave made it happen.











merziac is offline
Old 03-29-20, 01:56 PM
  #11
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 26,748

Bikes: Too many to list here check my signature.

Mentioned: 135 Post(s)
Tagged: 2 Thread(s)
Quoted: 1698 Post(s)
Liked 485 Times in 291 Posts
Originally Posted by merziac View Post



oh my!!!
__________________
Bianchis '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, '93 Reparto Corse SBX

Others but still loved; '80 Batavus Professional, '87 Cornelo, '?? Jane Doe (still on the drawing board), '90ish Haro Escape SLX Bertoni "Speckled Trout"
Bianchigirll is offline
Old 03-29-20, 02:44 PM
  #12
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 5,708

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 126 Post(s)
Tagged: 0 Thread(s)
Quoted: 1668 Post(s)
Liked 571 Times in 419 Posts
Bianchigirll

Tx?

This was a huge challenge that Dave whipped on without breaking a sweat, still ruminating on if 35's will fit but I have little need for more and this is not likely to see any gravel if at all, there is very little clearance under the crown but with plenty of reach leftover there is wiggle room to work with I think.

Here's the thread.

https://www.bikeforums.net/classic-v...ou-decide.html
merziac is offline
Old 03-29-20, 02:47 PM
  #13
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 21,299

Bikes: Several, mostly not name brands.

Mentioned: 125 Post(s)
Tagged: 0 Thread(s)
Quoted: 2078 Post(s)
Liked 429 Times in 304 Posts
Changing the brake reach won't by itself affect fender clearance, but it may allow you to use smaller diameter wheels (e.g. 700C if your current wheels are 27" or 650B if your current wheels are 700C) and thus increase the distance between the tire and the fender. Whether or not this will actually work for you depends on your specific frame and brakes.
JohnDThompson is offline
Old 03-29-20, 07:36 PM
  #14
Miele Man
Senior Member

Join Date: Jun 2014
Location: Ontario, Canada
Posts: 3,383

Bikes: Miele Latina, Miele Suprema, Miele Uno SL, Miele MTB, Bianchi Model Unknown, Fiori Venezia, VeloSport Adamas AX

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 849 Post(s)
Liked 421 Times in 293 Posts
Originally Posted by bark_eater View Post
Boulder Bicycle has longer reach arms for Campagnlo Triomphe brakes. I have the short reach brakes on a Franken bike. The pads don't really need the extra reach but I was wondering if a wider fender would fit higher up in the long reach brakes? Thanks, Woody
Do you have a link to those long reach Triomphe brake caliper arms?

CHeers
Miele Man is offline
Old 03-29-20, 08:39 PM
  #15
repechage
Senior Member

Join Date: Jun 2006
Posts: 14,328
Mentioned: 91 Post(s)
Tagged: 0 Thread(s)
Quoted: 1315 Post(s)
Liked 284 Times in 230 Posts
Originally Posted by nlerner View Post
Speaking of blasphemy, fenders on a Campy equipped bike?! Gesu Cristo!
Cinelli did it all the time.

‘Long” reach Campagnolo brakes will provide a bit more room under the arch so to speak, but not tons more.
repechage is offline
Old 03-29-20, 09:28 PM
  #16
nlerner
Senior Member

Join Date: Dec 2005
Posts: 12,806
Mentioned: 283 Post(s)
Tagged: 0 Thread(s)
Quoted: 1425 Post(s)
Liked 438 Times in 267 Posts
Originally Posted by repechage View Post
Cinelli did it all the time.
Yeah, I always liked those models that came with the double rear Wald baskets. Classy.
nlerner is offline
Likes For nlerner:
Old 03-30-20, 05:06 PM
  #17
repechage
Senior Member

Join Date: Jun 2006
Posts: 14,328
Mentioned: 91 Post(s)
Tagged: 0 Thread(s)
Quoted: 1315 Post(s)
Liked 284 Times in 230 Posts
Originally Posted by nlerner View Post
Yeah, I always liked those models that came with the double rear Wald baskets. Classy.
I don't know about Wald baskets on a Cinelli product but-

1963 Cinelli S.C. Road w/ Fenders & Bi-Valent Hubs- Sold ? Velostuf
repechage is offline
Old 03-30-20, 09:01 PM
  #18
Andy Antipas
Senior Member

Join Date: Sep 2011
Location: Durango, CO
Posts: 228

Bikes: too many old steel bikes

Mentioned: 52 Post(s)
Tagged: 0 Thread(s)
Quoted: 53 Post(s)
Liked 50 Times in 20 Posts
Originally Posted by nlerner View Post
Speaking of blasphemy, fenders on a Campy equipped bike?! Gesu Cristo!
Fenders on a Campy equipped bike? Yes. What is the problem?



1985 Pinarello Gran Tourismo
Andy Antipas is offline
