Ultegra 6800 w/ 11-40 cassette?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Ultegra 6800 w/ 11-40 cassette?

Old 08-25-18, 06:43 AM
  #1
medic75
Senior Member
Thread Starter

medic75's Avatar

Join Date: Jun 2018
Location: NW Pennsylvania
Posts: 218

Bikes: '19 Trek Stache 5, '17 Diamondback Hannjo Trail, '09 Scott CR1 Pro, Schwinn Central (winter bike with studded tires)

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 98 Post(s)
Liked 38 Times in 18 Posts
Ultegra 6800 w/ 11-40 cassette?

I'm trying to get some better low end gearing for steep hills. I'm looking into my options. The bike is a stock Diamondback Haanjo Trail with the FSA Gossamer Pro 46/36 crank and a Ultegra R6800 with an 11-32 cassette on the rear. My original thought, due to the limitation of the Ultegra, was a to replace the inner chianring with a 30T. After some online shopping, this doesn't look possible. So, my next option, and the one suggested by my LBS, would be an 11-40 cassette with a derailleur hanger extension. I am now reading that the newer Ultegra R8000 can handle the 40T cog on the cassette. I have alot of faith in my LBS, but the idea of the extension concerns me a bit. Are there any issues created by using these extensions?
medic75 is offline
Old 08-25-18, 06:50 AM
  #2
Marcus_Ti
Frozen Solid.

Marcus_Ti's Avatar

Join Date: Sep 2014
Location: Lincoln, Nebraska
Posts: 4,872

Bikes: Roadie: Seven Axiom Race Ti w/Chorus 11s. CX/Adventure: Carver Gravel Grinder w/ Di2

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 2037 Post(s)
Liked 101 Times in 72 Posts
Sub-34T is not physically possible on 110BCD cranks*, is what the problem is. It is a geometrical one, the wheel circumference is too small for any fewer teeth for 1/2" pitch chain. To get a 30T, you need a non Hollowtech crankset (AKA one with a smaller BCD...or direct-mount rings with no BCD at all). Such as FSA Modular Energy (same price thereabouts), or Sugino OX, or White Industries, or IRD, etc.

*Mr. Asterisk, my old friend, is here due to Praxis cranks managing a 32T with some very intricate machining....they're the one exception.

R8000 officially supports up to 34T cassette. People do push the limits. You could do a WolfTooth, which is what your LBS is thinking. You'd of course need a new chain...and would have far wider gear spacing than your 11-32.
Marcus_Ti is offline
Old 08-25-18, 06:59 AM
  #3
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 31,657

Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 1215 Post(s)
Likes: 0
Liked 56 Times in 51 Posts
Originally Posted by Marcus_Ti View Post
To get a 30T, you need a non Hollowtech crankset.....
Some older Hollowtech II cranks support 30T and even smaller chainrings. 105 FC-5703 cranks have 130/74 bolt circles and the inner bolt circle allows down to a 24T chainring. Tiagra FC-4700 and Ultegra FC-6703 cranks have no inner bolt circle but the middle chainring has a auxiliary 92 mm bolt circle and takes a 30T chainring.
HillRider is offline
Old 08-25-18, 07:12 AM
  #4
Canker
Senior Member

Join Date: Aug 2005
Posts: 1,283
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 176 Post(s)
Liked 9 Times in 8 Posts
https://absoluteblack.cc/oval-road-c...-for-110-4bcd/
You can get a 30 on a 110BCD shimano crank but it isn't cheap

I know people have gotten away with running a 11-36 cassette with the Shimano Ultegra RX rd-rx800, the new one with a clutch, but even that one I think you would be pushing it to try a 11-40. If you don't want to run a road link and want a 11-40 cassette then you can switch to a shimano mtn RD and run a wolftooth tanpan
https://www.wolftoothcomponents.com/products/tanpan

Personally I'd just get one of the chinese $3 road links off ebay and try that first with your current RD and if it works great, if not you are out $3.
Canker is offline
Old 08-25-18, 10:21 AM
  #5
medic75
Senior Member
Thread Starter

medic75's Avatar

Join Date: Jun 2018
Location: NW Pennsylvania
Posts: 218

Bikes: '19 Trek Stache 5, '17 Diamondback Hannjo Trail, '09 Scott CR1 Pro, Schwinn Central (winter bike with studded tires)

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 98 Post(s)
Liked 38 Times in 18 Posts
So I am getting the impression that the hanger extension will likely not create any shifting issues? I have no idea what brand my LBS would be using, but from what I can tell, even the brand name ones aren't overly expensive.
medic75 is offline
Old 08-25-18, 11:06 AM
  #6
pennpaul
Senior Member

Join Date: Sep 2017
Location: Jerusalem
Posts: 159

Bikes: Diamondback Haanjo Trail

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Liked 23 Times in 11 Posts
Originally Posted by Canker View Post
https://absoluteblack.cc/oval-road-c...-for-110-4bcd/
You can get a 30 on a 110BCD shimano crank but it isn't cheap

I know people have gotten away with running a 11-36 cassette with the Shimano Ultegra RX rd-rx800, the new one with a clutch, but even that one I think you would be pushing it to try a 11-40. If you don't want to run a road link and want a 11-40 cassette then you can switch to a shimano mtn RD and run a wolftooth tanpan
https://www.wolftoothcomponents.com/products/tanpan

Personally I'd just get one of the chinese $3 road links off ebay and try that first with your current RD and if it works great, if not you are out $3.
Sorry for the hijack, but I was about to ask the same question for my DB Haanjo Trail except I want to keep the double chainring and get an 11-40 or 11-42 cassette. Any suggestions for which cassette will replace the stock Shimano 105 CS-5800 cogset? To do this upgrade, I'd need the following (and tools, of course)?

--RoadLink
--longer chain
--11-40/11-42 cassette

Is that it?

Thanks,
Paul
pennpaul is offline
Old 08-25-18, 11:11 AM
  #7
wgscott
Occam's Rotor

Join Date: Jul 2013
Posts: 4,921
Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 2366 Post(s)
Liked 236 Times in 146 Posts
I've gotten 11-36 working with a mid-cage Ultegra Di2 rear derailleur just by cranking in the B-screw.

I've put a 46/30T crank on the front.

I am told the wolf tooth adapter would allow for an even larger rear cassette, but I haven't tried it myself.
wgscott is offline
Old 08-25-18, 01:58 PM
  #8
zze86
Senior Member

Join Date: Oct 2016
Posts: 664
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 237 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I have a wolftooth adaptor on one of my bikes with an Ultrgra 6500 rear derailleur shifting a 11-36 cog. No issues with the adaptor.
zze86 is offline
Old 08-25-18, 02:27 PM
  #9
Stormsedge
Senior Member

Stormsedge's Avatar

Join Date: Jul 2017
Location: East Tennessee
Posts: 631

Bikes: 2017 Trek Domane SL6 Disc, 1990 Schwinn Crosscut Frankenroadbike, 2015 KHS Team 29 FS *NEW BIKE*, 2000 Gary Fisher Tassajara--gone but not forgotten

Mentioned: 4 Post(s)
Tagged: 1 Thread(s)
Quoted: 140 Post(s)
Liked 18 Times in 10 Posts
Originally Posted by medic75 View Post
So I am getting the impression that the hanger extension will likely not create any shifting issues? I have no idea what brand my LBS would be using, but from what I can tell, even the brand name ones aren't overly expensive.
A buddy of mine has the arrangement you are asking about with no issues (Ultegra).
Stormsedge is offline
Old 08-26-18, 09:25 AM
  #10
Canker
Senior Member

Join Date: Aug 2005
Posts: 1,283
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 176 Post(s)
Liked 9 Times in 8 Posts
Originally Posted by pennpaul View Post
Sorry for the hijack, but I was about to ask the same question for my DB Haanjo Trail except I want to keep the double chainring and get an 11-40 or 11-42 cassette. Any suggestions for which cassette will replace the stock Shimano 105 CS-5800 cogset? To do this upgrade, I'd need the following (and tools, of course)?

--RoadLink
--longer chain
--11-40/11-42 cassette

Is that it?

Thanks,
Paul
Any 11-40 cassette will work from shimano, sram, or sunrace. I'm sure people have done it but Wolftooth says the roadlink tops out at 11-40. You also need a spacer because the mtn 11 speed cassettes are made to work on 10 speed and less hubs. Somebody just asked about that in another post.

https://www.bikeforums.net/bicycle-m...onversion.html
Canker is offline
Old 08-26-18, 10:24 AM
  #11
pennpaul
Senior Member

Join Date: Sep 2017
Location: Jerusalem
Posts: 159

Bikes: Diamondback Haanjo Trail

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Liked 23 Times in 11 Posts
Originally Posted by Canker View Post
Any 11-40 cassette will work from shimano, sram, or sunrace. I'm sure people have done it but Wolftooth says the roadlink tops out at 11-40. You also need a spacer because the mtn 11 speed cassettes are made to work on 10 speed and less hubs. Somebody just asked about that in another post.

https://www.bikeforums.net/bicycle-m...onversion.html
That was me that asked that question

Bought the Sunrace MX8 11-40 and Roadlink online. Now I need to buy (another) chainwhip and (another) cassette removal tool--those got packed into storage. Also need to buy spacers.

Last edited by pennpaul; 08-26-18 at 10:27 AM.
pennpaul is offline
Old 08-29-18, 05:39 PM
  #12
medic75
Senior Member
Thread Starter

medic75's Avatar

Join Date: Jun 2018
Location: NW Pennsylvania
Posts: 218

Bikes: '19 Trek Stache 5, '17 Diamondback Hannjo Trail, '09 Scott CR1 Pro, Schwinn Central (winter bike with studded tires)

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 98 Post(s)
Liked 38 Times in 18 Posts
Quick update for the Haanjo Trail owners - my LBS called me. He found a 32T inner chainring for the FSA Gossamer ABS crank. While it isn't the 30T I had originally wanted, it seemed like a potentially viable option, giving me down to 1.00 gearing vs the 0.94 that I was trying to achieve and the 0.88 that I have on my hybrid. The stock low gear was 1.13. With 1.00 gearing and some good leg workouts over winter, I am hoping I will be all set. I see this as a win because it will not affect the gearing on the 46T ring which is what I use 90% of the time and 100% of the time on my daily commute.

This is a bit off of the original larger cassette topic, but a definite option for those of us with the crank in question and looking for a lower gear.
medic75 is offline
Old 04-12-19, 01:34 PM
  #13
TX Tandem
Newbie

Join Date: Apr 2019
Posts: 1
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by medic75 View Post
I'm trying to get some better low end gearing for steep hills. I'm looking into my options. The bike is a stock Diamondback Haanjo Trail with the FSA Gossamer Pro 46/36 crank and a Ultegra R6800 with an 11-32 cassette on the rear. My original thought, due to the limitation of the Ultegra, was a to replace the inner chianring with a 30T. After some online shopping, this doesn't look possible. So, my next option, and the one suggested by my LBS, would be an 11-40 cassette with a derailleur hanger extension. I am now reading that the newer Ultegra R8000 can handle the 40T cog on the cassette. I have alot of faith in my LBS, but the idea of the extension concerns me a bit. Are there any issues created by using these extensions?
I have a bike that came with 36/46 chain rings and found the same lack of options as you.. until I found Absolute Black oval rings in 32/48 that fit my 110 bcd shimano CX cranks. I wasn't looking for oval, but to be honest, I can't tell a difference now while riding them. And the gearing seems perfect. BTW, Absolute Black offered a 30/46 combo that also fits.
TX Tandem is offline
Old 04-12-19, 01:47 PM
  #14
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,396

Bikes: 8

Mentioned: 188 Post(s)
Tagged: 0 Thread(s)
Quoted: 6925 Post(s)
Liked 248 Times in 205 Posts
Not 'not any' but maybe an acceptable amount?

given its function is shoving the chain inward , all you do is move the whole thing downward
so it has a possibility of clearing a cassette cog the size of a front chainring.

A longer gap to the smaller cogs , may not be a super .. fast shift because the chains for faster shifting are laterally flexible..

and now the gap is bigger.. pulley to cog with a flexible chain ..





...
fietsbob is offline
Old 04-12-19, 02:20 PM
  #15
TimothyH
- Soli Deo Gloria -

Join Date: Aug 2015
Location: Northwest Georgia
Posts: 14,784

Bikes: 2018 Rodriguez Custom Fixed Gear, 2017 Niner RLT 9 RDO, 2015 Bianchi Pista, 2002 Fuji Robaix

Mentioned: 233 Post(s)
Tagged: 0 Thread(s)
Quoted: 6822 Post(s)
Liked 652 Times in 410 Posts
I'm running Absolute Black 46/30 chainrings on Ultegra cranks. Oval rings feel quite different to me and I'm not sure why others can't feel a difference. I love them.

The rear has an RX-805 GS derailleur and an 11-42 XT mountain bike cassette. A 1.85 mm spacer was used behind the cassette and the B screw was reversed.

Sizing the chain is easy as it uses all 116 links.

Low gear is 19.5 inches.

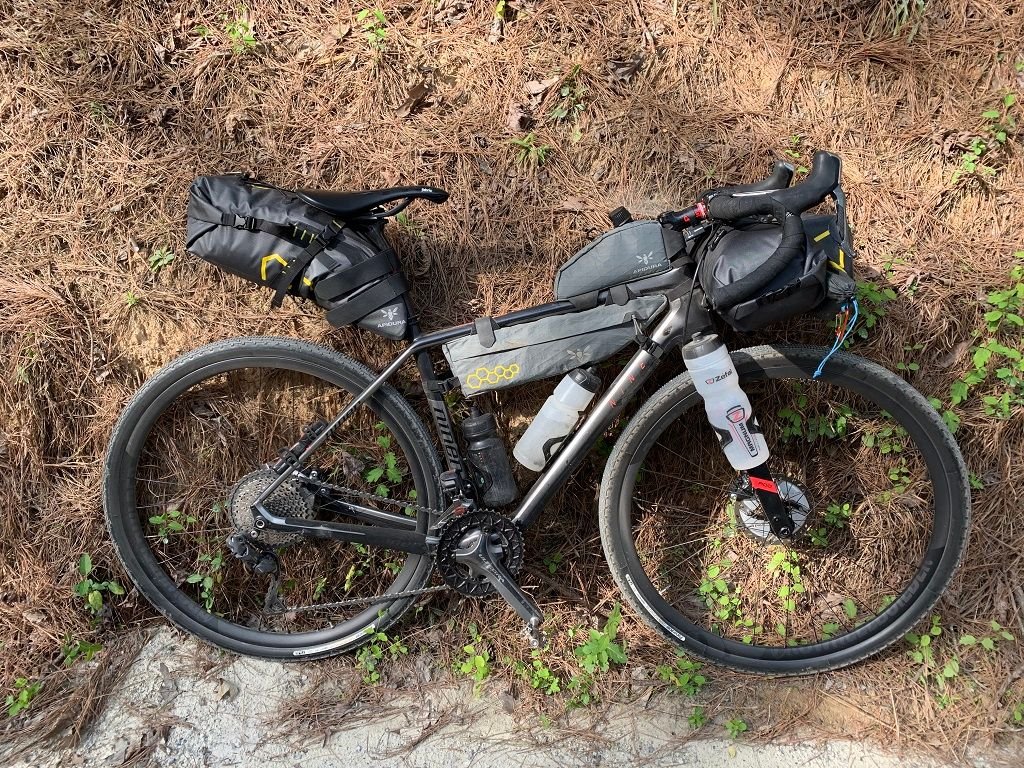

The photo below gives an idea of how it looks in the lowest gear as well as why it was done.




-Tim-

Last edited by TimothyH; 04-12-19 at 02:23 PM.
TimothyH is offline
Old 04-13-19, 07:38 AM
  #16
aggiegrads
Senior Member

Join Date: Oct 2009
Location: Sherwood, OR
Posts: 722
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Liked 5 Times in 5 Posts
Originally Posted by TimothyH View Post
I'm running Absolute Black 46/30 chainrings on Ultegra cranks. Oval rings feel quite different to me and I'm not sure why others can't feel a difference. I love them.

The rear has an RX-805 GS derailleur and an 11-42 XT mountain bike cassette. A 1.85 mm spacer was used behind the cassette and the B screw was reversed.

Sizing the chain is easy as it uses all 116 links.

Low gear is 19.5 inches.

The photo below gives an idea of how it looks in the lowest gear as well as why it was done.




-Tim-
how are you running 46/30? Is there some sort of adaptor or inner chainring mount that lets you run smaller than a 34 on the 110BCD?
aggiegrads is offline
Old 04-13-19, 07:43 AM
  #17
Marcus_Ti
Frozen Solid.

Marcus_Ti's Avatar

Join Date: Sep 2014
Location: Lincoln, Nebraska
Posts: 4,872

Bikes: Roadie: Seven Axiom Race Ti w/Chorus 11s. CX/Adventure: Carver Gravel Grinder w/ Di2

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 2037 Post(s)
Liked 101 Times in 72 Posts
Originally Posted by aggiegrads View Post
how are you running 46/30? Is there some sort of adaptor or inner chainring mount that lets you run smaller than a 34 on the 110BCD?
Oval rings+ 4-bolt mounting lets this work
Marcus_Ti is offline
Old 04-13-19, 08:52 PM
  #18
Canker
Senior Member

Join Date: Aug 2005
Posts: 1,283
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 176 Post(s)
Liked 9 Times in 8 Posts
Originally Posted by aggiegrads View Post
how are you running 46/30? Is there some sort of adaptor or inner chainring mount that lets you run smaller than a 34 on the 110BCD?
https://absoluteblack.cc/oval-road-c...-for-110-4bcd/

Rather expensive but compared to buying a whole new crank and BB to get 46/30 it isn't too bad, well that is how I justified them anyway.
Canker is offline
Old 04-14-19, 07:49 AM
  #19
aggiegrads
Senior Member

Join Date: Oct 2009
Location: Sherwood, OR
Posts: 722
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Liked 5 Times in 5 Posts
Originally Posted by Marcus_Ti View Post
Oval rings+ 4-bolt mounting lets this work
thanks guys. That is a cool solution, although Iím not ready to commit to oval chainrings.
aggiegrads is offline
Old 04-14-19, 09:07 PM
  #20
Wheever
Senior Member

Join Date: Jun 2014
Location: Stamford, CT; Pownal, VT
Posts: 1,141

Bikes: 2015 Trek Domane 6 disk, 2016 Scott Big Jon Fat Bike

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 147 Post(s)
Liked 5 Times in 4 Posts
I also have the absolute blacks 46/30, and I love them. I really like the feel of oval rings. I'm running them with an R8000 RD 11-32 with a wolf tooth, and all is smooth and functional.

Having the 30 means you spend less time on the biggest cogs. Awesome.
Wheever is offline
Old 04-14-19, 10:29 PM
  #21
Canker
Senior Member

Join Date: Aug 2005
Posts: 1,283
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 176 Post(s)
Liked 9 Times in 8 Posts
I can't tell any difference between oval and round, all feels the same to me. I really like having the 46 since it puts me in the tighter range of my cassette for normal cruising. Yeah I have to spin pretty fast at 40mph but I spend a little more time riding around at 15-22mph. The 30 comes in pretty handy too though. I don't think I'm getting up the super steep hills any faster with the 30 than my old 34, not any slower either, but when I get to the top my legs aren't as destroyed and I recover faster.
Canker is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
MTBaddict
Bicycle Mechanics
33
07-20-18 12:14 AM
RyFi69
Bicycle Mechanics
7
07-21-13 07:27 AM
smontanaro
Bicycle Mechanics
11
08-02-10 10:02 AM
signalnc
Bicycle Mechanics
6
06-20-10 11:38 AM
williamset
Road Cycling
7
04-12-10 08:04 AM

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
