New build from scratch
07-05-19, 05:22 PM
#1
Senior Member
Thread Starter
Old frame, New build
Hi folks !
I introduce you my new ride I just finished!
I found a nice old French frame from late 70's built in Reynolds 531 tubes.
very light : frame and fork 2,3kg
(sorry I don't know the weight in pounds , I'm French ^_^)
I striped down the paint and applied a rust converter from Fertan inside and outside to protect it
(great product)

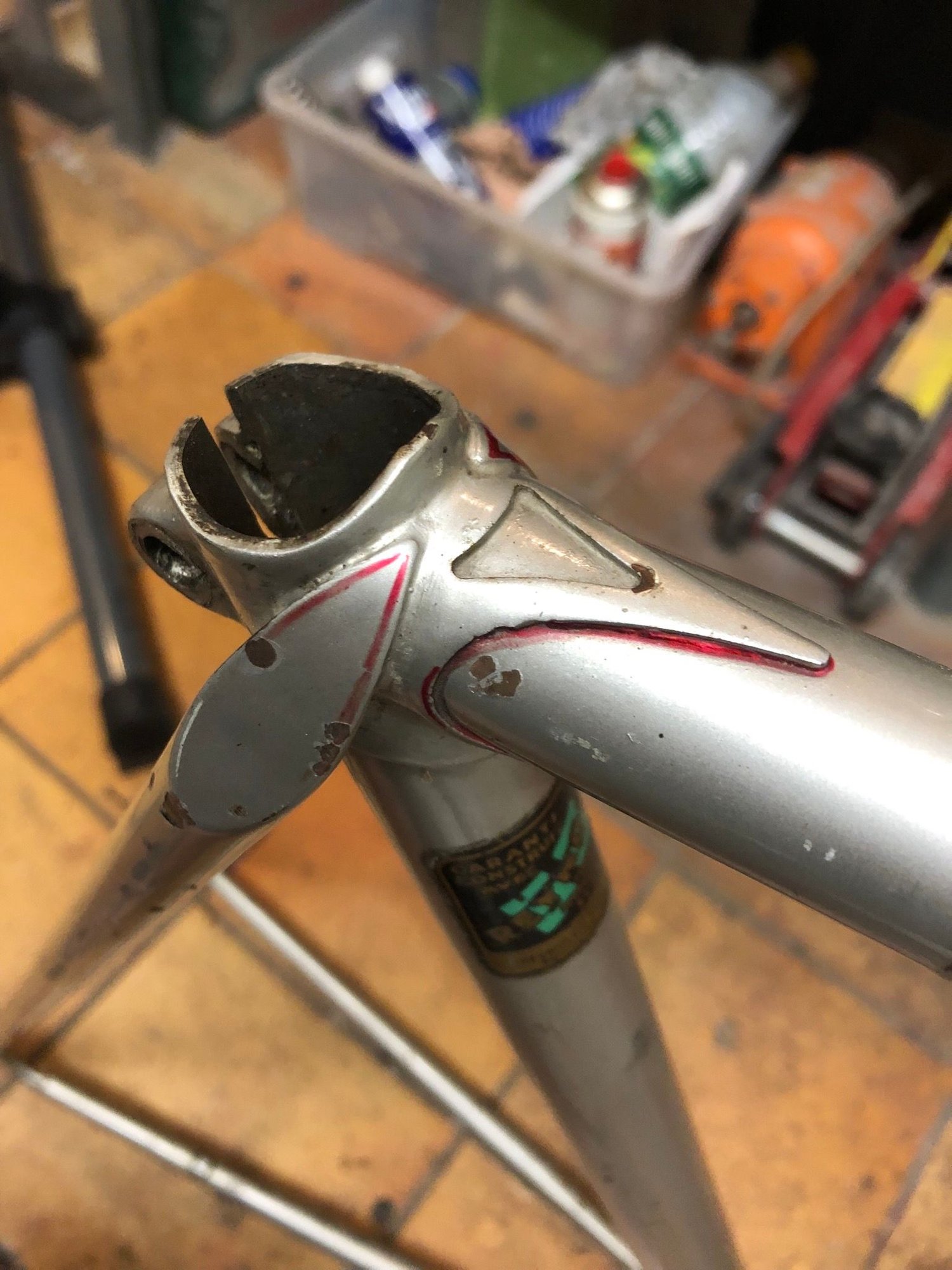

some pics before

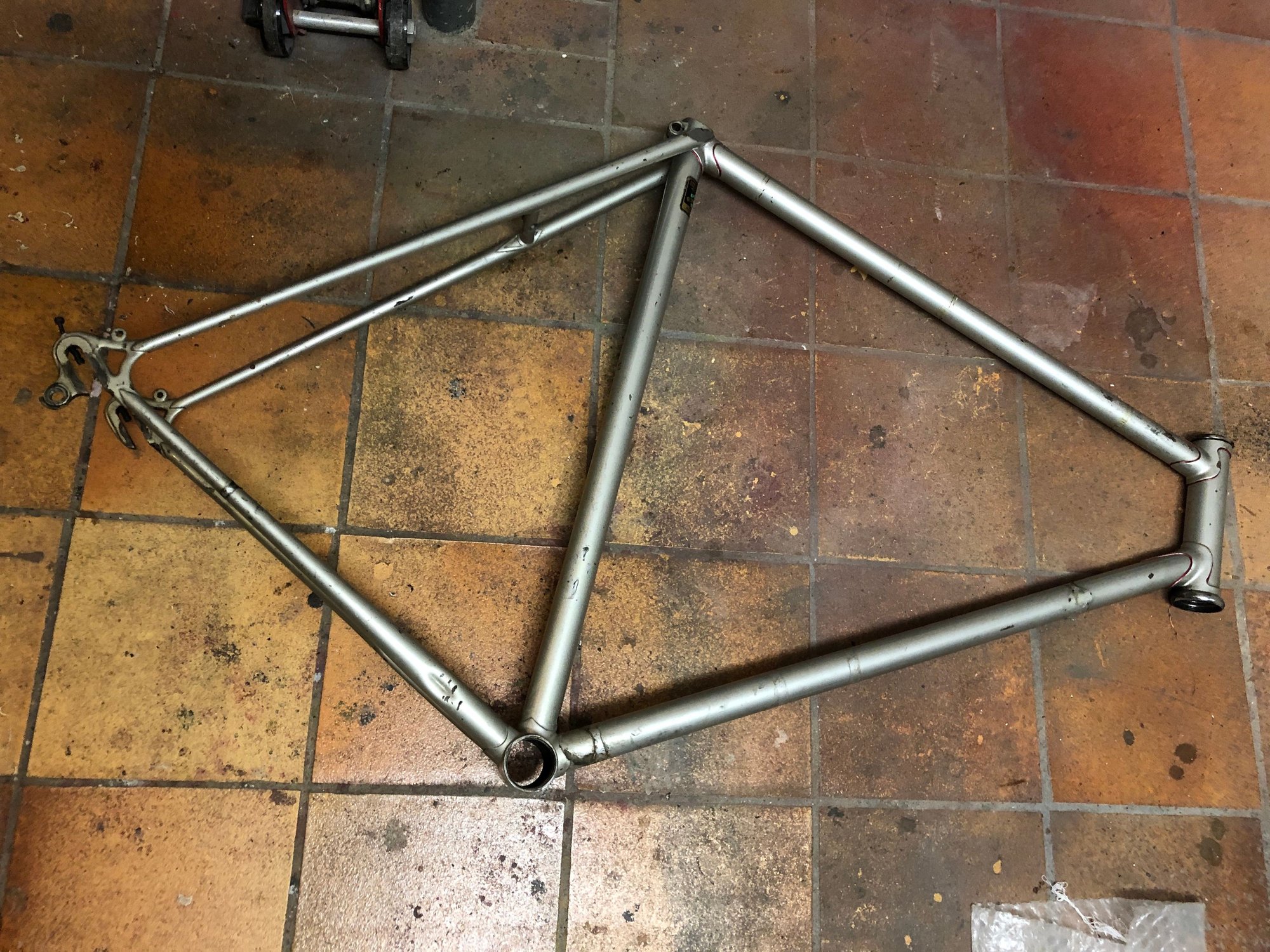

Frame is 3,5 lb

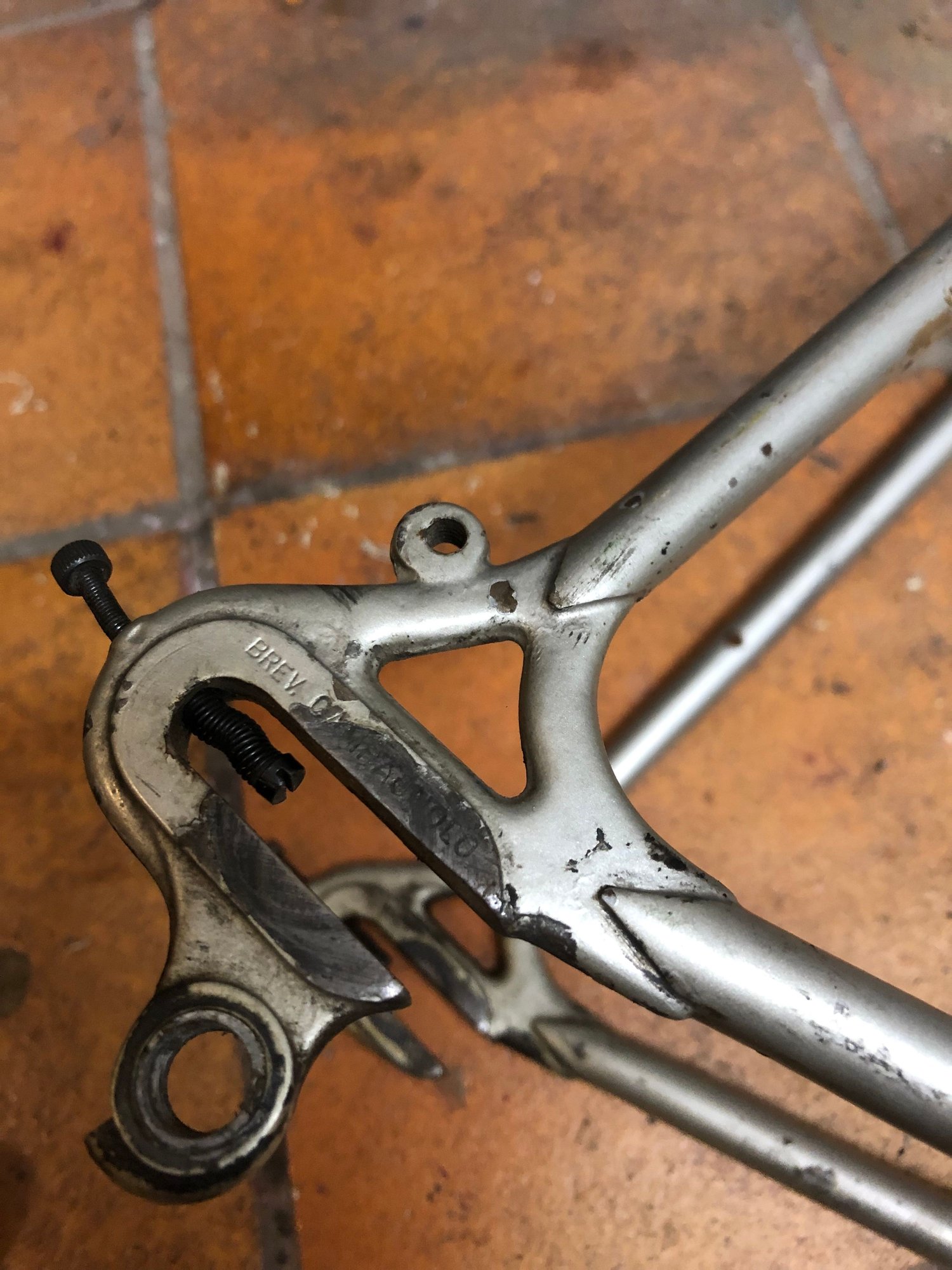

Campagnolo dropouts
I painted myself with spray cans (2k painting and lacquer)
Wet sanding to 1500 and 2000 then polishing with meguis compound paste.
result is great but not as resistant as epoxy coating
Then I assembled the pieces like a puzzle
here the parts list :
- Nitto NY3 stem and B245AA allrounder handlebar
- Brooks grips
- Tektro brakes levers
- Shimano Ultegra Shifters
- Velo Orange shifters adapters
- Campagnolo Gran Sport Headset
- Velo Orange seatpost SP UNO 26,4mm
- Brooks B17 Imperial saddle
- Stronglight 49d crankset 52/42
- Vélo Orange Bottom bracket 118mm
- Dura Ace 7700 F&R derailleurs
- 8 speeds Shimano cassette
- Mavic CXP10 rims
- Shimano 105 hubs
- Fairweather for travelers tires 700x28c
I still have to wiring the front derailleur ; I waiting for the right cable gear guide
I tried it like this for the moment and the rear shifting is pretty smooth
I'm really happy with the result
cheers
I introduce you my new ride I just finished!
I found a nice old French frame from late 70's built in Reynolds 531 tubes.
very light : frame and fork 2,3kg
(sorry I don't know the weight in pounds , I'm French ^_^)
I striped down the paint and applied a rust converter from Fertan inside and outside to protect it
(great product)
some pics before
Frame is 3,5 lb
Campagnolo dropouts
I painted myself with spray cans (2k painting and lacquer)
Wet sanding to 1500 and 2000 then polishing with meguis compound paste.
result is great but not as resistant as epoxy coating
Then I assembled the pieces like a puzzle
here the parts list :
- Nitto NY3 stem and B245AA allrounder handlebar
- Brooks grips
- Tektro brakes levers
- Shimano Ultegra Shifters
- Velo Orange shifters adapters
- Campagnolo Gran Sport Headset
- Velo Orange seatpost SP UNO 26,4mm
- Brooks B17 Imperial saddle
- Stronglight 49d crankset 52/42
- Vélo Orange Bottom bracket 118mm
- Dura Ace 7700 F&R derailleurs
- 8 speeds Shimano cassette
- Mavic CXP10 rims
- Shimano 105 hubs
- Fairweather for travelers tires 700x28c
I still have to wiring the front derailleur ; I waiting for the right cable gear guide
I tried it like this for the moment and the rear shifting is pretty smooth
I'm really happy with the result
cheers
Last edited by GeoffroyFromLux; 07-06-19 at 01:09 AM. Reason: Title edit
Likes For Kilroy1988:
07-05-19, 05:47 PM
#4
Senior Member
Thread Starter
After stripping the paint
Then anti rust coating
With the new paint
New Reynolds stickers from Cyclomondo
And the final result
I realised I forgot the Stronglight dust caps on the cranksets
Then anti rust coating
With the new paint
New Reynolds stickers from Cyclomondo
And the final result
I realised I forgot the Stronglight dust caps on the cranksets
Last edited by GeoffroyFromLux; 07-07-19 at 11:55 AM.
Likes For GeoffroyFromLux:
07-05-19, 06:32 PM
#6
Senior Member
Wow! Very nice...
07-05-19, 07:16 PM
#7
Senior Member
Join Date: Dec 2005
Location: Richmond, VA
Posts: 424
Bikes: Torelli Titanio; Serotta Atlanta Concept; Specialized Rockhopper, Raleigh Twenty, Velo Orange Polyvalent
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Likes: 0
Liked 6 Times
in
4 Posts
Nice, very sharp looking.
07-05-19, 09:19 PM
#10
Veteran, Pacifist
Join Date: Dec 2004
Location: Seattle area
Posts: 13,327
Bikes: Bikes??? Thought this was social media?!?
Mentioned: 284 Post(s)
Tagged: 0 Thread(s)
Quoted: 3897 Post(s)
Liked 4,827 Times
in
2,228 Posts
I like!
Light colored frames with silver components really pop.
The tires help set it off - somewhat uniquely.
Light colored frames with silver components really pop.
The tires help set it off - somewhat uniquely.
__________________
Vintage, modern, e-road. It is a big cycling universe.
Vintage, modern, e-road. It is a big cycling universe.
07-05-19, 09:36 PM
#11
Senior Member
Join Date: Aug 2014
Location: Bronx, NYC
Posts: 1,885
Bikes: '19 Fuji Gran Fondo 1.5, '72 Peugeot PX10, '71ish Gitane Super Corsa, '78 Fuji Newest, '89 Fuji Ace, '94 Cannondale R600, early '70s LeJeune Pro project
Mentioned: 87 Post(s)
Tagged: 0 Thread(s)
Quoted: 293 Post(s)
Liked 218 Times
in
101 Posts
Very nicely done and with such panache!
07-06-19, 01:14 AM
#12
Senior Member
Thread Starter
Thanks a lot everyone !
I love riding it, it feels so smooth that's perfect !
sorry for the title that's right, that's not really from scratch.
I tried to edit the title but apparently it's not possible
I love riding it, it feels so smooth that's perfect !
sorry for the title that's right, that's not really from scratch.
I tried to edit the title but apparently it's not possible
07-06-19, 01:38 AM
#13
Senior Member
I want to do a similar cockpit someday for the right candidate. Perfect classy looking grips that come in black as well.
Whats the transmission ?
Whats the transmission ?
07-06-19, 03:06 AM
#14
Senior Member
Thread Starter
Yes Brooks grips are incredibly confortable !
Transmission is 2x8 speeds Stronglight crankset 52/42 and shimano Hyperglide 8 speeds (I bought the wheels used I have to count the teeth on chainring cassette ^_^ )
Transmission is 2x8 speeds Stronglight crankset 52/42 and shimano Hyperglide 8 speeds (I bought the wheels used I have to count the teeth on chainring cassette ^_^ )
07-06-19, 03:33 AM
#15
Senior Member
Join Date: Jan 2019
Location: Ontario
Posts: 52
Bikes: Miele Latina, Worksman INB, Rapido Eska Folder, Raleigh Superbe, Raleigh Sprite, Soma Stanyan 650b, VeloSolex 3800, Raleigh Competition GS, CTC Supercycle, Raleigh Sports
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Liked 9 Times
in
6 Posts
Very beautiful. I love the colour. Thanks for posting, your bike provides inspiration for future builds.
Likes For Bomarc:
07-06-19, 04:29 AM
#16
Senior Member
Join Date: Nov 2015
Location: Dublin, Ireland
Posts: 1,256
Bikes: Bianchi Ti Megatube; Colnago Competition; Planet-X EC-130E; Klein Pulse; Amp Research B4; Litespeed Catalyst; Trek Y11
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 596 Post(s)
Liked 478 Times
in
258 Posts
Wow, beautiful. The colour is perfect.
07-06-19, 05:20 AM
#17
Senior Member
Join Date: Jun 2019
Location: British Columbia, Canada
Posts: 166
Bikes: 1970's Piasentin Super Vitus 971, 1979 Carlton Professional, 2005 Trek 5000, 2011 Niner EMD, 2018 Argon 18 XRoad, 1990 Diamondback Master TG Centurion
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 56 Post(s)
Liked 73 Times
in
55 Posts
Love it! Great job!
07-06-19, 05:32 AM
#19
Senior Member
Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 20,433
Bikes: A bunch of old bikes and a few new ones
Mentioned: 178 Post(s)
Tagged: 0 Thread(s)
Quoted: 5888 Post(s)
Liked 3,471 Times
in
2,079 Posts
C'est magnifique. I like it. You might want to swap those quill pedals out for a pair of Lyotard 460s if you want to keep it vintage looking. For a townie build like this, I'd seriously consider running a pair of BMX pedals or a pair of the MKS lambda pedals (very comfy with regular shoes)
Likes For bikemig:
07-06-19, 05:39 AM
#20
Senior Member
Thread Starter
Problem with pedals is that they have to be French thread
I have got some lyotard 460 but they're not in good shape
these one are Kyokuto Pro Vic II ; very smooth but not the most practical for an urban use that's true
I have got some lyotard 460 but they're not in good shape
these one are Kyokuto Pro Vic II ; very smooth but not the most practical for an urban use that's true
07-06-19, 09:32 PM
#21
Senior Member
Join Date: Jan 2004
Location: Madison, WI USA
Posts: 6,149
Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 2362 Post(s)
Liked 1,746 Times
in
1,190 Posts
That definition would also require riveting together the derailleurs, assembling the brake calipers from constituent parts, etc. Most components that go on a bike's "build" are themselves assembled by people handing it previous to us. Why is the frameset magically different?
Likes For madpogue:
07-06-19, 09:42 PM
#22
Senior Member
Join Date: Feb 2013
Location: Alta California
Posts: 14,244
Mentioned: 415 Post(s)
Tagged: 1 Thread(s)
Quoted: 3803 Post(s)
Liked 3,324 Times
in
2,170 Posts
-----
Is steerer Reynolds or NERVOR?
What was rear spacing at intake; was it necessary to cold set for present drive train?
-----
Is steerer Reynolds or NERVOR?
What was rear spacing at intake; was it necessary to cold set for present drive train?
-----
Last edited by juvela; 07-07-19 at 06:09 AM. Reason: addition
07-06-19, 11:58 PM
#23
Senior Member
Thread Starter
Not sure I understand correctly ; what do you mean for steerer ?
do you talking about the headset ?
sorry I'm French
do you talking about the headset ?
sorry I'm French
07-07-19, 12:25 AM
#24
Senior Member

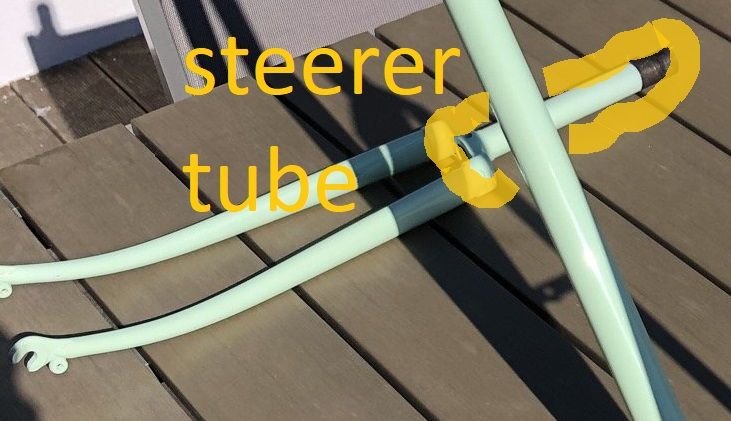

It is a beautiful bike Geoffroy! The steerer is the part of the fork that passes thru the headset.
__________________
I.C.
I.C.
07-07-19, 01:07 AM
#25
Senior Member
Thread Starter
Ok
thx!
cannot tell you for sure, but like the original stickers mentioned
I guess only scabbards are made in Reynolds steel
thx!
cannot tell you for sure, but like the original stickers mentioned
I guess only scabbards are made in Reynolds steel
