Filling those flutes!

Have to give our one and only Drillium Dude massive thanks for the inspiration (and the advice) on how to paint flutes. These early Dura-Ace cranks never quite looked right as-is, but they pop so much better with the black flute.

Now it's time to dig up some proper black chainrings for it (and ditch the half-heart shape of the second-gen 600EX-style rings).

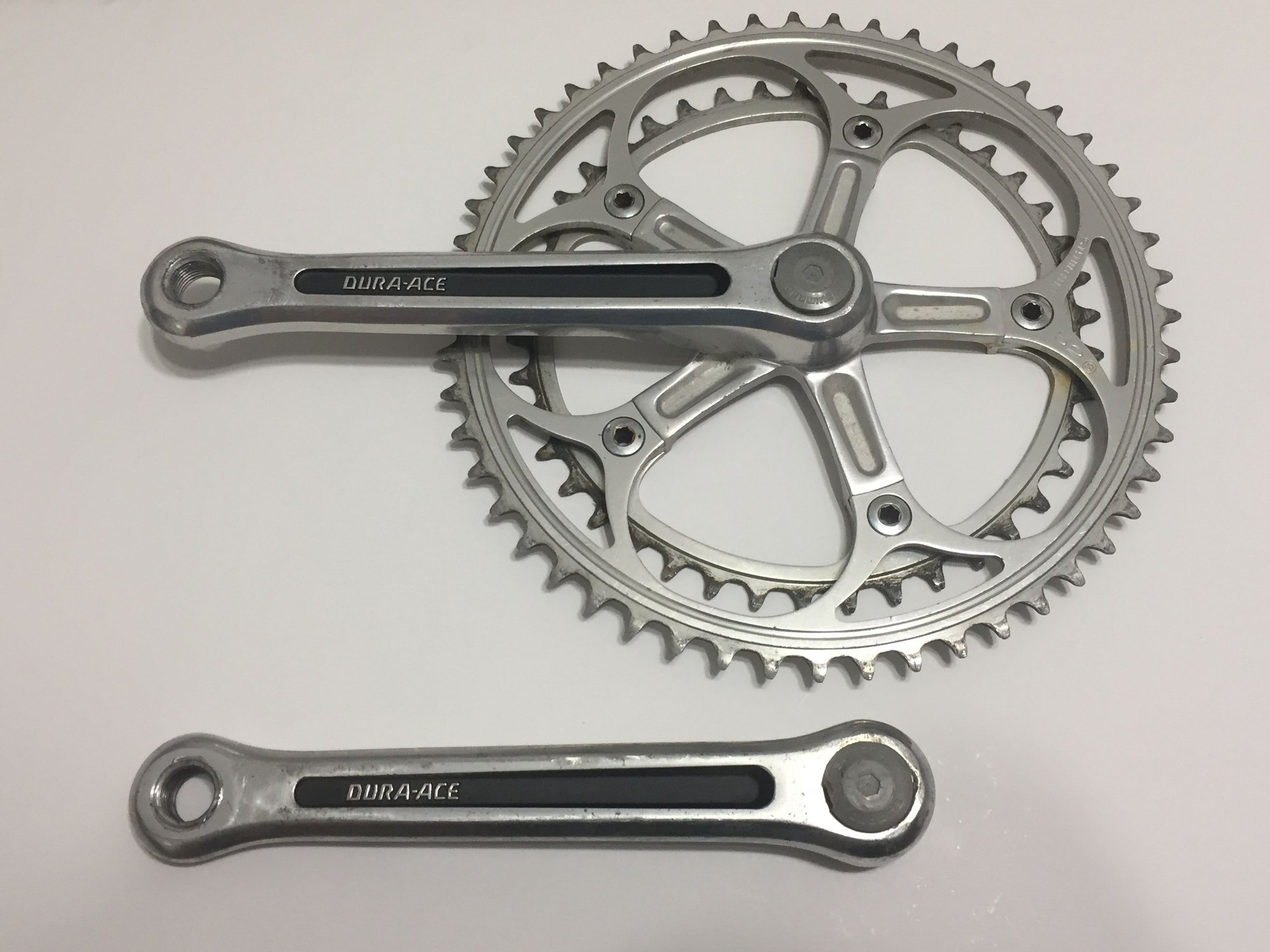

BEFORE:

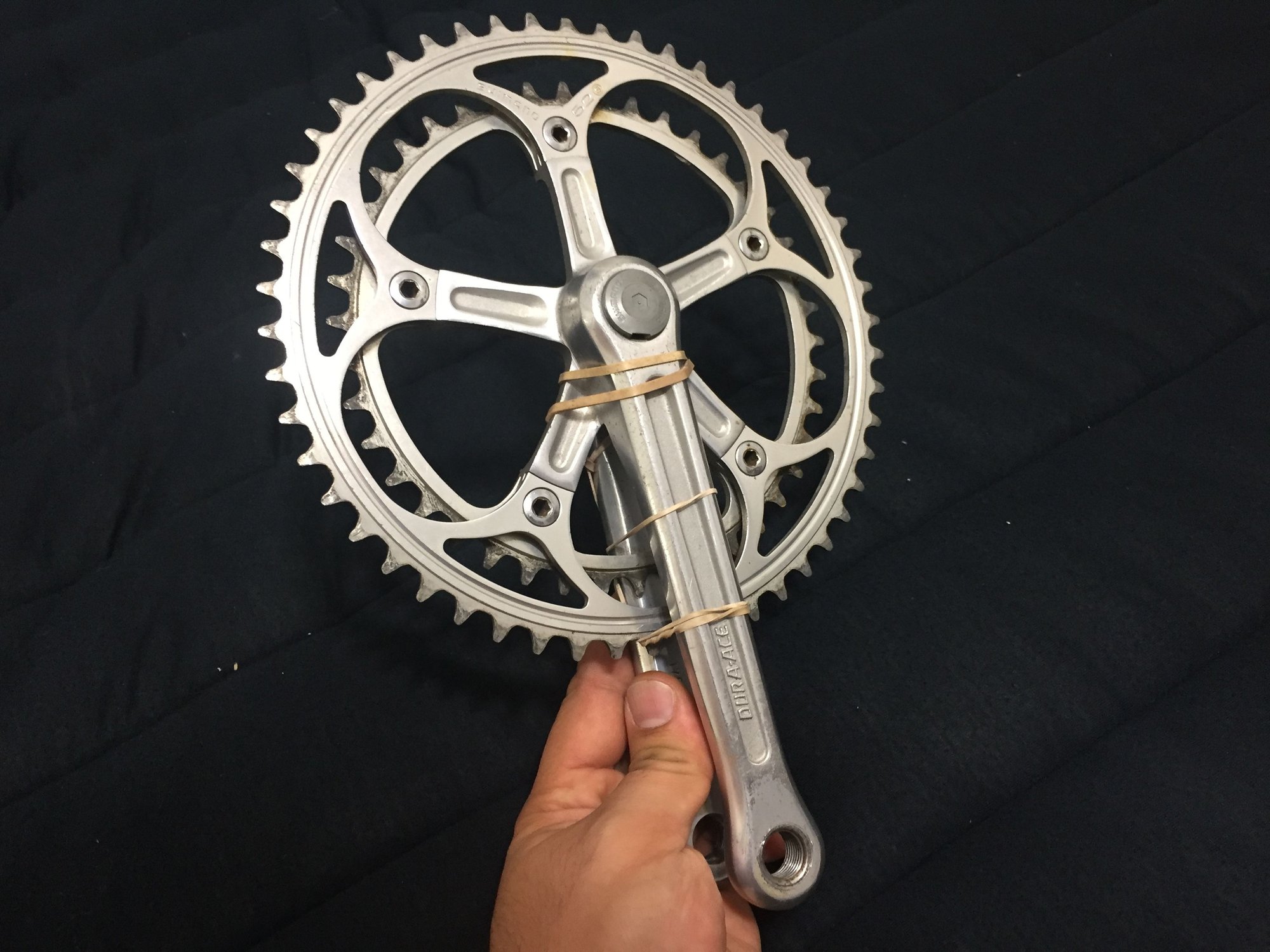

AFTER:


cudak888 is offline
Likes For cudak888:
Old 09-15-19, 03:01 AM
  #2
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: Ascending or Descending the NH Mountains NW of Concord!
Posts: 11,223

Bikes: Snazzy* Schwinns, Classy Cannondales, & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 88 Post(s)
Tagged: 0 Thread(s)
Quoted: 482 Post(s)
Liked 33 Times in 22 Posts
Beautiful!
__________________
Bob
Dreaming about riding in NH's summertime!

Visit my websites:
FreeWheelSpa.com orpastorbobnlnh.com
pastorbobnlnh is offline
Likes For pastorbobnlnh:
Old 09-15-19, 05:28 AM
  #3
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Fort Wayne, In
Posts: 25,878

Bikes: Too many to list here check my signature.

Mentioned: 108 Post(s)
Tagged: 2 Thread(s)
Quoted: 1340 Post(s)
Liked 100 Times in 74 Posts
They look great
__________________
Bianchis '87 Sport SX, '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, , '90 something Vento 603,

Others but still loved,; '80 RIGI, '80 Batavus Professional, '87 Cornelo, '09 Motobecane SOLD, '?? Jane Doe (still on the drawing board), '90ish Haro Escape
Bianchigirll is offline
Likes For Bianchigirll:
Old 09-15-19, 07:26 AM
  #4
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 23,996

Bikes: http://www.theheadbadge.com

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 519 Post(s)
Liked 241 Times in 178 Posts
Originally Posted by pastorbobnlnh View Post
Beautiful!
Originally Posted by Bianchigirll View Post
They look great
Thanks! Just won a first-gen, black outer ring on eBay for it. Hope to get an inner sometime - couldn't find any listed at the moment.




-Kurt
__________________
cudak888 is offline
Old 09-15-19, 08:58 AM
  #5
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 7,948

Bikes: Yes, please.

Mentioned: 203 Post(s)
Tagged: 0 Thread(s)
Quoted: 1130 Post(s)
Liked 117 Times in 84 Posts
Nice!
non-fixie is offline
Likes For non-fixie:
Old 09-15-19, 09:21 AM
  #6
conspiratemus1
Used to be Conspiratemus

Join Date: Jan 2009
Location: Hamilton ON Canada
Posts: 1,070
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 125 Post(s)
Liked 65 Times in 43 Posts
The low-lustre black (maybe even flat? -- can't tell for sure on my monitor) really suits. Well done.
conspiratemus1 is offline
Likes For conspiratemus1:
Old 09-15-19, 09:30 AM
  #7
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 11,541

Bikes: 1977 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 1789 Post(s)
Liked 101 Times in 82 Posts
A long time ago, I saw a video of a guy filling in the lower portions of a Cyclone derailleur- as I recall, he used a blade or a card to swipe off the paint off the raised portions. Is that how you did this- or were you just "careful?"
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 09-15-19, 10:11 AM
  #8
repechage
Senior Member

Join Date: Jun 2006
Posts: 13,455
Mentioned: 84 Post(s)
Tagged: 0 Thread(s)
Quoted: 994 Post(s)
Likes: 0
Liked 51 Times in 41 Posts
to fill the spider flutes you need a Leroy lettering pen, 1.5 or 2.0 tip. Often called a "mouse" It with very thinned paint will allow you to just paint the base of the indentation.
repechage is offline
Likes For repechage:
Old 09-15-19, 10:27 AM
  #9
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,109

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 113 Post(s)
Tagged: 0 Thread(s)
Quoted: 1811 Post(s)
Liked 92 Times in 69 Posts
Nice. I feel the 70s-ness of it.

The usual trick for filling flutes etc is to paint in with oil enamel reasonably carefully. Then take a folded up paper towel into a pad, and dampen it with mineral spirits. Wipe off the top of the painted part. Fold to expose a clean surface. Repeat as necessary.
Salamandrine is offline
Old 09-15-19, 10:32 AM
  #10
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 23,996

Bikes: http://www.theheadbadge.com

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 519 Post(s)
Liked 241 Times in 178 Posts
Originally Posted by The Golden Boy View Post
A long time ago, I saw a video of a guy filling in the lower portions of a Cyclone derailleur- as I recall, he used a blade or a card to swipe off the paint off the raised portions. Is that how you did this- or were you just "careful?"
I used the @Drillium20%Dude method: Paint, then hit the raised areas with a rag and Goof Off. Works perfectly.

Originally Posted by conspiratemus1 View Post
The low-lustre black (maybe even flat? -- can't tell for sure on my monitor) really suits. Well done.
It's flat black - not even satin. I roughly masked off the arm, sprayed it black, and used the method I mention above to remove the excess.

Originally Posted by repechage View Post
to fill the spider flutes you need a Leroy lettering pen, 1.5 or 2.0 tip. Often called a "mouse" It with very thinned paint will allow you to just paint the base of the indentation.
I'd do it on Campagnolo flutes, but not these. They're not defined enough to look good, IMO (and I don't think I'm good enough at it to get the edge defined below the beveled section).

-Kurt
__________________
cudak888 is offline
Old 09-15-19, 01:58 PM
  #11
Drillium Dude
NNNN

Drillium Dude's Avatar

Join Date: Jul 2009
Location: Bothell, WA
Posts: 9,608

Bikes: 1973 Colnago Super, 1973 Colnago Super concept, 1979 Medici Pro Strada, 1979 Dennis Sparrow, 1980 Alpina, 1981 Bianchi Super Leggera, 1983 Colnago Mexico, 1985 Casati Perfection, 1985 Somec Super Corsa, 2002 Bill Davidson custom

Mentioned: 173 Post(s)
Tagged: 0 Thread(s)
Quoted: 1150 Post(s)
Liked 239 Times in 132 Posts
Super job - the lettering pops like crazy! And I was wondering, too, about doing the spider flutes until I saw the "undefined edge" and then realized why you didn't go there.

That ring would look super-awesome with some golf-ball drillings; I think the original version was decorated that way?

DD
__________________
My Flickr pics: http://www.flickr.com/photos/30331021@N08/

Drillium Dude is offline
Likes For Drillium Dude:
Old 09-15-19, 02:53 PM
  #12
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 23,996

Bikes: http://www.theheadbadge.com

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 519 Post(s)
Liked 241 Times in 178 Posts
Originally Posted by Drillium Dude View Post
That ring would look super-awesome with some golf-ball drillings; I think the original version was decorated that way?
Some of them were...want a job?

-Kurt
__________________
cudak888 is offline
Old 09-15-19, 05:45 PM
  #13
P!N20
Senior Member

P!N20's Avatar

Join Date: Aug 2010
Posts: 591
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 228 Post(s)
Liked 45 Times in 39 Posts
Originally Posted by cudak888 View Post
These early Dura-Ace cranks never quite looked right as-is, but they pop so much better with the black flute.
Very nice. Love early Dura-Ace. Were those cranks available with back flutes out of the factory? I'm sure I've seen them before.
P!N20 is offline
Old 09-15-19, 06:09 PM
  #14
repechage
Senior Member

Join Date: Jun 2006
Posts: 13,455
Mentioned: 84 Post(s)
Tagged: 0 Thread(s)
Quoted: 994 Post(s)
Likes: 0
Liked 51 Times in 41 Posts
Originally Posted by cudak888 View Post
I used the @Drillium20%Dude method: Paint, then hit the raised areas with a rag and Goof Off. Works perfectly.



It's flat black - not even satin. I roughly masked off the arm, sprayed it black, and used the method I mention above to remove the excess.



I'd do it on Campagnolo flutes, but not these. They're not defined enough to look good, IMO (and I don't think I'm good enough at it to get the edge defined below the beveled section).

-Kurt
that is why the Leroy pen- only for the flat bottom area- the way the depression terminates on the Shimano crank you are correct, not enough definition.
repechage is offline
Likes For repechage:
Old 09-15-19, 06:13 PM
  #15
Drillium Dude
NNNN

Drillium Dude's Avatar

Join Date: Jul 2009
Location: Bothell, WA
Posts: 9,608

Bikes: 1973 Colnago Super, 1973 Colnago Super concept, 1979 Medici Pro Strada, 1979 Dennis Sparrow, 1980 Alpina, 1981 Bianchi Super Leggera, 1983 Colnago Mexico, 1985 Casati Perfection, 1985 Somec Super Corsa, 2002 Bill Davidson custom

Mentioned: 173 Post(s)
Tagged: 0 Thread(s)
Quoted: 1150 Post(s)
Liked 239 Times in 132 Posts
Originally Posted by cudak888 View Post
Some of them were...want a job?

-Kurt
Once I would've said yes, but I found out recently I don't have the precision required anymore

Oh, well - I had a brief, shining moment where I had skillz. Moving on

DD
__________________
My Flickr pics: http://www.flickr.com/photos/30331021@N08/

Drillium Dude is offline
Old 09-15-19, 06:20 PM
  #16
OldsCOOL
Senior Member

OldsCOOL's Avatar

Join Date: Jul 2004
Location: northern michigan
Posts: 12,472

Bikes: '77 Colnago Super, '76 Fuji The Finest, '88 Cannondale Criterium, '86 Trek 760, '87 Miyata 712

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 428 Post(s)
Liked 20 Times in 19 Posts
Very nice! A touch of class to classic.

I did similar with a Campy crank on the Colnago...

OldsCOOL is offline
Old 09-15-19, 06:30 PM
  #17
xiaoman1
Senior Member

xiaoman1's Avatar

Join Date: Mar 2014
Location: Weird Coast City of the Angeles
Posts: 2,263

Bikes: Paramounts, PX-10s, Mondias, Motobecane Grand Record, Specialized Allez Carbon, and Nishiki Tri-A

Mentioned: 25 Post(s)
Tagged: 1 Thread(s)
Quoted: 379 Post(s)
Likes: 0
Liked 69 Times in 58 Posts


Wipe only in one direction...no cleanup yet paint is not dry enough!

Here is my attempt, I do not use a ruling pen, I use a pinstriping brush and either a "high" quality nail polish or "One-shot" sign painters paint.
I will lightly skim the excess while the paint is still wet...I do this in order to minimize the amount of paint I will need to clean up after its dried.
Then as already suggested above, I use just a drop (so almost dry) mineral spirits or acetone on a block that is tightly wrapped with either a paper towel or the sacrificial t-shirt. I also make sure that the surface of the towel or "t" is as flat as possible in order to only wipe the areas that need paint to be removed.
Works for me.
Ben
xiaoman1 is offline
Old 09-15-19, 07:01 PM
  #18
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 23,996

Bikes: http://www.theheadbadge.com

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 519 Post(s)
Liked 241 Times in 178 Posts
Originally Posted by P!N20 View Post
Very nice. Love early Dura-Ace. Were those cranks available with back flutes out of the factory? I'm sure I've seen them before.
No idea, I think this is my second set; first came on a Schwinn Voyageur II.

Originally Posted by repechage View Post
that is why the Leroy pen- only for the flat bottom area- the way the depression terminates on the Shimano crank you are correct, not enough definition.
I'll give the Leroy pen a try on a crank (not this one; I'm pleased with the end result) sometime.

Originally Posted by Drillium Dude View Post
Once I would've said yes, but I found out recently I don't have the precision required anymore

Oh, well - I had a brief, shining moment where I had skillz. Moving on
Methinks it's possible with some ingenuity - a jig for a drill press that'd hold a bottom bracket at a set distance. BB would be adjustable up or down to get the corresponding "helper" crankarm to rotate the chainring just right, and a degree wheel would be installed behind the crank to aid in even spacing.

What do you think?

Originally Posted by OldsCOOL View Post
Very nice! A touch of class to classic.

I did similar with a Campy crank on the Colnago...
Haven't done it with any of my NR cranks yet. I think I'd go overboard and start filling all of them

Originally Posted by xiaoman1 View Post
Here is my attempt, I do not use a ruling pen, I use a pinstriping brush and either a "high" quality nail polish or "One-shot" sign painters paint...
Ben, I've seen yours before when I was researching how to do mine. Looks great. Any color for the arm itself, or just the spider?

I used Testors paint pens on a pair of Moser shifters recently; worked great. The Dura-Ace arms were, of course, sprayed; given the large surface area. I haven't tried One Shot yet, but I've heard it's the best for this. What would you say?




-Kurt
__________________
cudak888 is offline
Old 09-15-19, 07:28 PM
  #19
P!N20
Senior Member

P!N20's Avatar

Join Date: Aug 2010
Posts: 591
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 228 Post(s)
Liked 45 Times in 39 Posts
Originally Posted by cudak888 View Post
No idea, I think this is my second set; first came on a Schwinn Voyageur II.
Velobase seems to think they were available in black: http://velobase.com/ViewComponent.aspx?ID=1C1D2C9F-A24D-4C98-9FA2-BD42116574BF&Enum=115&AbsPos=36

P!N20 is offline
Likes For P!N20:
Old 09-15-19, 07:30 PM
  #20
xiaoman1
Senior Member

xiaoman1's Avatar

Join Date: Mar 2014
Location: Weird Coast City of the Angeles
Posts: 2,263

Bikes: Paramounts, PX-10s, Mondias, Motobecane Grand Record, Specialized Allez Carbon, and Nishiki Tri-A

Mentioned: 25 Post(s)
Tagged: 1 Thread(s)
Quoted: 379 Post(s)
Likes: 0
Liked 69 Times in 58 Posts
Kurt,
"One-Shot" is the best but pricey and hard to find.
I usually get mine from sign paint suppliers, and have had some luck recently at art supply stores...it is thick and need to be reduced but flows out extremely well.
If you use a stripping brush you can go from thick to thin to fill large areas tapering down to a fine line.
Try buying primary colors and mix your own, they also have gold paint that is really nice looking...not that cheap look that a lot of golds are known for.
The arms are coming just trying to decide on the "colors"..stay tuned.
Pin stripping and detailing on regular parts is the best way to add a little individuality to stuff...
BTW nice job and the shifters
Best, Ben

Last edited by xiaoman1; 09-15-19 at 07:47 PM.
xiaoman1 is offline
Likes For xiaoman1:
Old 09-15-19, 07:30 PM
  #21
cudak888
www.theheadbadge.com
Thread Starter

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 23,996

Bikes: http://www.theheadbadge.com

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 519 Post(s)
Liked 241 Times in 178 Posts
Originally Posted by P!N20 View Post
Velobase seems to think they were available in black: VeloBase.com - Component: Shimano GA-300, Dura-Ace EX
Oh - you meant black chainrings. Interesting.

I went straight to looking for the previous generation's rings when I got these. I didn't even look at the EX rings, as I resolved to change these the moment the cranks became mine. I have no love for the heart-shaped crankset pattern that became the norm in the mid-1980s, and - personally - I think it kills the visual interest of the crank.

-Kurt
__________________
cudak888 is offline
Old 09-15-19, 07:33 PM
  #22
P!N20
Senior Member

P!N20's Avatar

Join Date: Aug 2010
Posts: 591
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 228 Post(s)
Liked 45 Times in 39 Posts
Originally Posted by cudak888 View Post
Oh - you meant black chainrings. Interesting.

I went straight to looking for the previous generation's rings when I got these. I didn't even look at the EX rings, as I resolved to change these the moment the cranks became mine. I have no love for the heart-shaped crankset pattern that became the norm in the mid-1980s, and - personally - I think it kills the visual interest of the crank.

-Kurt
Sorry I posted the wrong link - fixed that now.

Black flutes with black rings.
P!N20 is offline
Likes For P!N20:
Old 09-15-19, 07:57 PM
  #23
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,109

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 113 Post(s)
Tagged: 0 Thread(s)
Quoted: 1811 Post(s)
Liked 92 Times in 69 Posts
Originally Posted by P!N20 View Post
Velobase seems to think they were available in black: VeloBase.com - Component: Shimano GA-200, Dura-Ace (Black)

They were available. I remember them. Velobase didn't make this up. Several of the 'smaller' manufacturers did black chainring cranksets in the 70s, at least partly to differentiate themselves from Campagnolo.
Salamandrine is offline
Likes For Salamandrine:
Old 09-15-19, 08:25 PM
  #24
Ronsonic
Senior Member

Join Date: Dec 2005
Location: Sunny Tampa, Florida
Posts: 1,430
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 71 Post(s)
Liked 12 Times in 10 Posts
One-Shot is an excellent paint for this sort of thing. I dabbled at pinstriping once (I really want a box striped bike) and discovered it. Flows, adheres and stays where you want it perfectly.
Ronsonic is offline
Likes For Ronsonic:
Old 09-15-19, 09:26 PM
  #25
jbchybridrider
Senior Member

jbchybridrider's Avatar

Join Date: Feb 2011
Location: adelaide, australia
Posts: 2,636
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 160 Post(s)
Liked 75 Times in 40 Posts
Not a flute but filled this with a fine tip brush. Let it dry then buff over the top with a rag on the end of my finger.

jbchybridrider is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
