Rack build for Routens

@merziac suggested I make a thread about building the front and rear racks for a JP Routens frame. I am moving the frame on to a new forum member but wanted to build the racks before shipping it off.

The frame is a camping frame made of 531ST. It was built to take panniers front and rear and a handlebar bag. It has 3 sets of rack mounts along the seatstays on the rear, and a pair of fender eyelets. On the front there are fender eyelets and mid-fork and bottom-of-the-fork braze-ons for low riders. Front and rear have braze-on mounts for centerpulls. I've seen similar Routens' frames with the racks positioned low to the ground. I will try to emulate the design.

TenGrainBread is offline
Likes For TenGrainBread:
Old 09-15-19, 12:59 PM
  #2
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 4,466

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci x2, Gordon, Fuso/Moulton, Bornstein, Paisley, Paramounts, 3rensho, Moto TC, Raleigh Pro's, Marinoni, 1960 Cinelli SC, 1980 Bianchi SC and more

Mentioned: 111 Post(s)
Tagged: 0 Thread(s)
Quoted: 1249 Post(s)
Liked 154 Times in 127 Posts
Excellent, can't wait to see this.
merziac is offline
Old 09-15-19, 01:01 PM
  #3
TenGrainBread
Senior Member
Thread Starter

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 2,091
Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 820 Post(s)
Liked 143 Times in 109 Posts
I'm planning on using 3/8" OD seamless stainless steel tubing for both racks. I want to keep the racks relatively lightweight while still being able to carry panniers, so I am opting for 0.035" wall thickness tubing. I'll be using my TIG welder for tacking and then the joining will be done via silver brazing using Cycle Design Fillet Pro rod and flux, to keep the look traditional.

The first design choice to tackle was how the racks will be mounted. With 3/8" OD, 0.035" wall thickness tubing, the ID of my tubing is 0.305". I found some stainless eye bolts with a 5/16" thread diameter, which is 0.3125", just slightly larger than the ID of my tubing, and with the right sized bore for the M5 bolts used on the frame mounts.

TenGrainBread is offline
Old 09-15-19, 01:06 PM
  #4
TenGrainBread
Senior Member
Thread Starter

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 2,091
Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 820 Post(s)
Liked 143 Times in 109 Posts
I decided to start with the rear rack since it is somewhat simpler than the front rack. I'm starting with the horizontal elements of the rack.

I use a Ridgid manual tubing bender for stainless steel to make bends for racks like these. It mounts in a vise and has long levers for making the bends. I made the bends and trimmed the ends to the right dimension to fit around wheel/tire/fender. I then cleaned up the ends, and gave a quick grind to the threads of the eye bolts to allow them to fit snugly into the ends of the tubing. Fluxed and then torched.



Did a bit of clean up but will wait 'til the end to do final finishing.

TenGrainBread is offline
Old 09-15-19, 01:42 PM
  #5
TenGrainBread
Senior Member
Thread Starter

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 2,091
Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 820 Post(s)
Liked 143 Times in 109 Posts
I decided to put a mount for a rear light on the bottom corner of the rack. I have some nice M6 threaded stainless spacers. Put a radius into one of them with a rat tail to fit against the rack tubing, tacked with the TIG welder and then brazed it.





TenGrainBread is offline
Likes For TenGrainBread:
Old 09-15-19, 01:51 PM
  #6
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 4,466

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci x2, Gordon, Fuso/Moulton, Bornstein, Paisley, Paramounts, 3rensho, Moto TC, Raleigh Pro's, Marinoni, 1960 Cinelli SC, 1980 Bianchi SC and more

Mentioned: 111 Post(s)
Tagged: 0 Thread(s)
Quoted: 1249 Post(s)
Liked 154 Times in 127 Posts
This is so cool.
merziac is offline
Old 09-15-19, 04:57 PM
  #7
gugie
Pimp on a bike

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 7,557

Bikes: It's complicated.

Mentioned: 822 Post(s)
Tagged: 0 Thread(s)
Quoted: 2318 Post(s)
Liked 142 Times in 84 Posts
The new owner is going to be very, very happy!
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 09-15-19, 06:14 PM
  #8
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,113

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 113 Post(s)
Tagged: 0 Thread(s)
Quoted: 1814 Post(s)
Liked 93 Times in 70 Posts
I cannot wait to see this. Looks like a great start so far. Thanks for taking the time to make a thread. I love fabrication pictures.
Salamandrine is offline
Old 09-15-19, 06:27 PM
  #9
ryansu
Ride.Smile.Repeat

ryansu's Avatar

Join Date: May 2011
Location: Seattle WA
Posts: 2,126

Bikes: 2009 Handsome Devil, 1978 Motobecane Grand Touring, 1987 Nishiki Cresta GT, Former bikes; 1986 Miyata Trail Runner, 1979 Miyata 912, 2011 VO Rando, 1999 Cannondale R800, 2012 Soma Smoothie, 1986 Schwinn Passage

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 564 Post(s)
Liked 146 Times in 116 Posts
Mad Skills Sir, very cool thanks for sharing
ryansu is offline
Old 09-15-19, 07:32 PM
  #10
CV-6
If I own it, I ride it

CV-6's Avatar

Join Date: Nov 2005
Location: Cardinal Country
Posts: 4,867

Bikes: Lejeune, Raleigh, Raysport, Jan De Reus, Gazelle, Masi, B. Carré, Springfield, Motobecane, John Howard, Greg Lemond

Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 337 Post(s)
Likes: 0
Liked 50 Times in 34 Posts
I am continually amazed by the various skills displayed by our members.

Kudos to you and thanks for sharing this with us.
__________________
Please do not "like" my posts. This isn't Facebook.

Lynn Travers

Photos

CV-6 is offline
Old 09-15-19, 10:39 PM
  #11
The Thin Man
Senior Member

The Thin Man's Avatar

Join Date: Sep 2009
Location: Portland, OR
Posts: 980

Bikes: Pinarello, Davidson, Raleigh, Univega, Marinoni, Lotus, Nishiki and Schwinn. Probably others too.

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Likes: 0
Liked 5 Times in 5 Posts
Absolutely fascinating post. Great details. Step by step with photos.

Subscribed.
The Thin Man is offline
Likes For The Thin Man:
Old 09-16-19, 01:39 AM
  #12
old_dreams
Senior Member

old_dreams's Avatar

Join Date: Nov 2009
Location: Ireland
Posts: 297
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by The Thin Man View Post
Absolutely fascinating post. Great details. Step by step with photos.

Subscribed.
+1

Beautiful frame too
old_dreams is offline
Old 09-16-19, 09:53 AM
  #13
due ruote
Senior Member

due ruote's Avatar

Join Date: Dec 2006
Posts: 6,863
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 561 Post(s)
Liked 50 Times in 35 Posts
Much respect for your skills, and for your willingness to employ them so ably for a bike on its way out the door.
due ruote is offline
Old 09-16-19, 01:15 PM
  #14
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 4,466

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci x2, Gordon, Fuso/Moulton, Bornstein, Paisley, Paramounts, 3rensho, Moto TC, Raleigh Pro's, Marinoni, 1960 Cinelli SC, 1980 Bianchi SC and more

Mentioned: 111 Post(s)
Tagged: 0 Thread(s)
Quoted: 1249 Post(s)
Liked 154 Times in 127 Posts
Originally Posted by due ruote View Post
Much respect for your skills, and for your willingness to employ them so ably for a bike on its way out the door.
And it will be so much more complete with them.
merziac is offline
Old 09-16-19, 02:31 PM
  #15
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 282

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b super touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 100 Post(s)
Liked 82 Times in 55 Posts
Originally Posted by TenGrainBread View Post
The first design choice to tackle was how the racks will be mounted. With 3/8" OD, 0.035" wall thickness tubing, the ID of my tubing is 0.305". I found some stainless eye bolts with a 5/16" thread diameter, which is 0.3125", just slightly larger than the ID of my tubing, and with the right sized bore for the M5 bolts used on the frame mounts.

Where did you get those eye bolts? Just asking for a friend
scarlson is offline
Old 09-16-19, 02:41 PM
  #16
TenGrainBread
Senior Member
Thread Starter

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 2,091
Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 820 Post(s)
Liked 143 Times in 109 Posts
Originally Posted by scarlson View Post
Where did you get those eye bolts? Just asking for a friend
https://www.e-rigging.com/five-sixte...s-eye-tab-bolt

$2.61 a piece. Not super cheap but cheaper than McMaster or a framebuilder supply shop.
TenGrainBread is offline
Old 09-16-19, 03:16 PM
  #17
Sir_Name
Senior Member

Sir_Name's Avatar

Join Date: Oct 2013
Location: Connecticut
Posts: 3,058

Bikes: are fun!

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 360 Post(s)
Liked 34 Times in 23 Posts
Fantastic, this will be a fun one to watch!
Sir_Name is offline
Old 09-16-19, 03:22 PM
  #18
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 18,588
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 71 Times in 61 Posts
Originally Posted by TenGrainBread View Post
https://www.e-rigging.com/five-sixte...s-eye-tab-bolt

$2.61 a piece. Not super cheap but cheaper than McMaster or a framebuilder supply shop.
I don't think any framebuilder supply shop sells rack tabs in stainless, do they? I have only seen steel. I'm getting some laser cut.
unterhausen is offline
Old 09-18-19, 02:25 AM
  #19
ToniH.
Junior Member

Join Date: Jul 2018
Posts: 14
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Liked 11 Times in 7 Posts
Originally Posted by gugie View Post
The new owner is going to be very, very happy!
He sure will be.
ToniH. is offline
Old 09-18-19, 11:06 PM
  #20
gugie
Pimp on a bike

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 7,557

Bikes: It's complicated.

Mentioned: 822 Post(s)
Tagged: 0 Thread(s)
Quoted: 2318 Post(s)
Liked 142 Times in 84 Posts
Originally Posted by unterhausen View Post
I don't think any framebuilder supply shop sells rack tabs in stainless, do they? I have only seen steel. I'm getting some laser cut.
Mitch Pryor had some on his website for sale awhile back, but stopped doing them. Then there was the Paradise Fire, and now he appears to be out of the framebuilding gig, at least for now.

And I am pretty excited about you making some!
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 09-19-19, 09:29 AM
  #21
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 18,588
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 71 Times in 61 Posts
sorry, I'll order soon. I'm still designing things to get cut, like a crank clearance gauge for compact and grx cranks.
unterhausen is offline
Old 09-19-19, 10:49 PM
  #22
gugie
Pimp on a bike

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 7,557

Bikes: It's complicated.

Mentioned: 822 Post(s)
Tagged: 0 Thread(s)
Quoted: 2318 Post(s)
Liked 142 Times in 84 Posts
Originally Posted by unterhausen View Post
sorry, I'll order soon. I'm still designing things to get cut, like a crank clearance gauge for compact and grx cranks.
You gots the dims from the Compass gauge? I've got one of those, could measure for you if it helps.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 09-28-19, 04:21 PM
  #23
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 4,466

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci x2, Gordon, Fuso/Moulton, Bornstein, Paisley, Paramounts, 3rensho, Moto TC, Raleigh Pro's, Marinoni, 1960 Cinelli SC, 1980 Bianchi SC and more

Mentioned: 111 Post(s)
Tagged: 0 Thread(s)
Quoted: 1249 Post(s)
Liked 154 Times in 127 Posts
Originally Posted by TenGrainBread View Post
I decided to put a mount for a rear light on the bottom corner of the rack. I have some nice M6 threaded stainless spacers. Put a radius into one of them with a rat tail to fit against the rack tubing, tacked with the TIG welder and then brazed it.





How's this going?
merziac is offline
Old 09-28-19, 04:29 PM
  #24
TenGrainBread
Senior Member
Thread Starter

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 2,091
Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 820 Post(s)
Liked 143 Times in 109 Posts
Was on a work trip but back in the shop today to finish the rear rack. Been spending a lot of time thinking about the front. I want a modular design where the low riders can quickly be removed and installed. I have an idea in mind.
TenGrainBread is offline
Old 09-28-19, 04:45 PM
  #25
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 4,466

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci x2, Gordon, Fuso/Moulton, Bornstein, Paisley, Paramounts, 3rensho, Moto TC, Raleigh Pro's, Marinoni, 1960 Cinelli SC, 1980 Bianchi SC and more

Mentioned: 111 Post(s)
Tagged: 0 Thread(s)
Quoted: 1249 Post(s)
Liked 154 Times in 127 Posts
Originally Posted by TenGrainBread View Post
Was on a work trip but back in the shop today to finish the rear rack. Been spending a lot of time thinking about the front. I want a modular design where the low riders can quickly be removed and installed. I have an idea in mind.
Excellent, wish I were closer to you and could have some built for this,

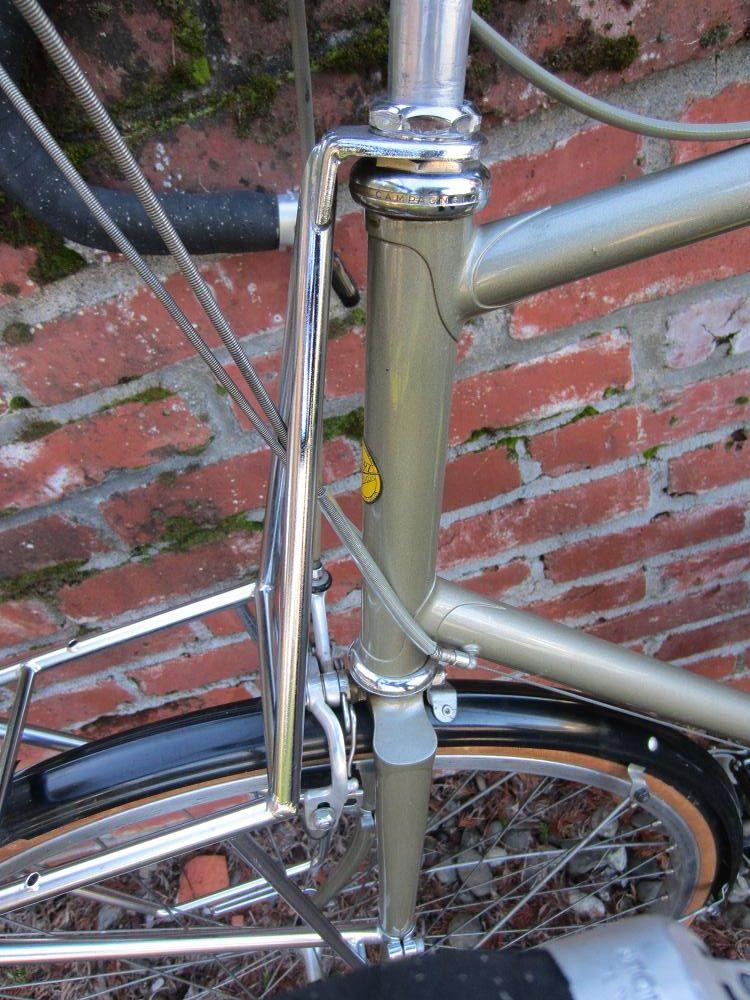

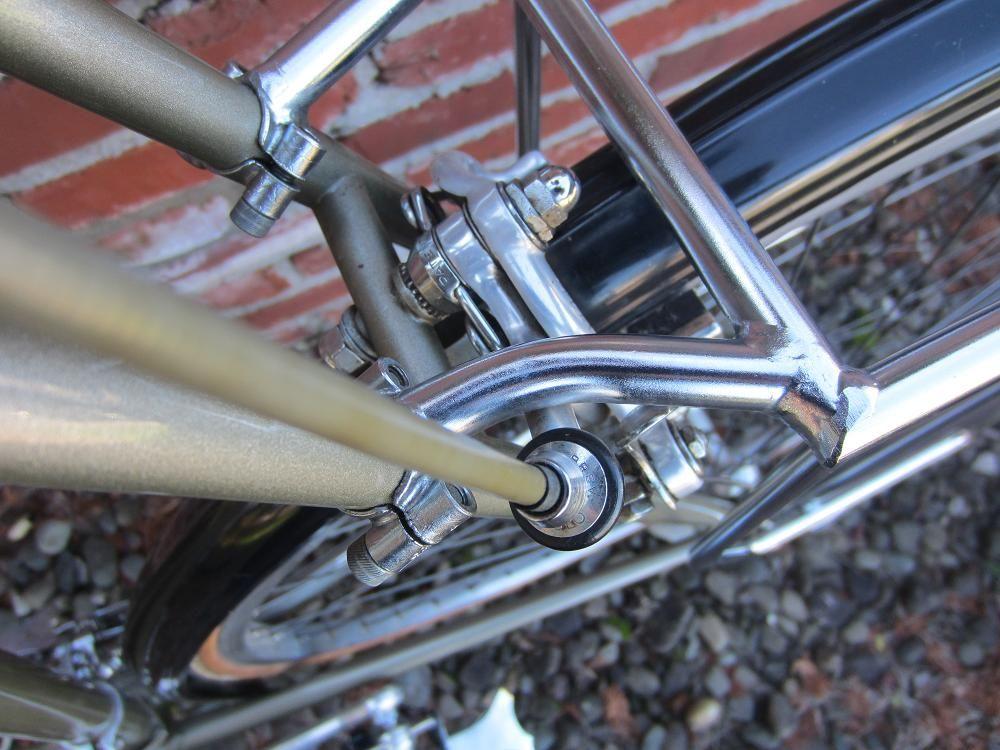

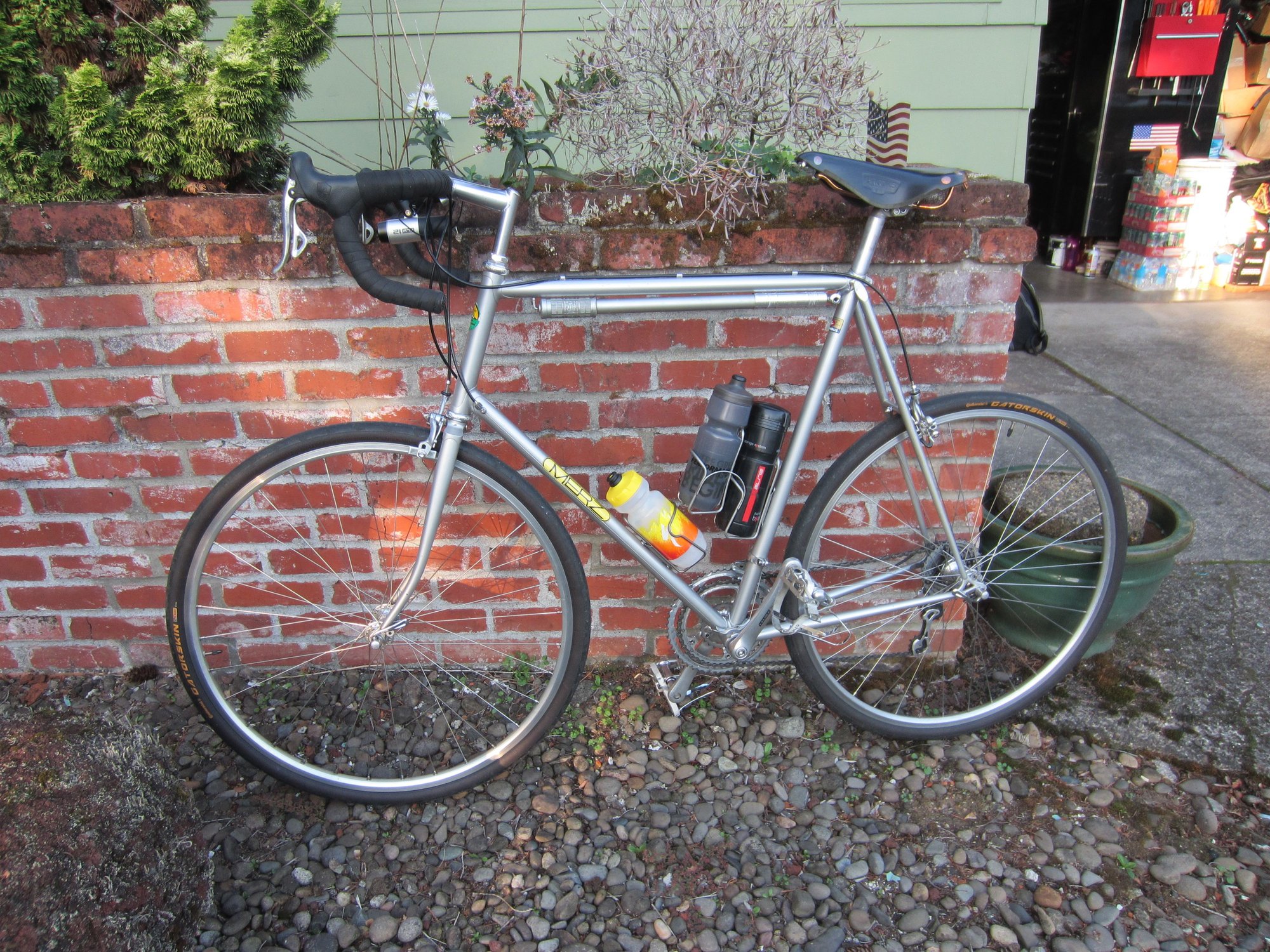

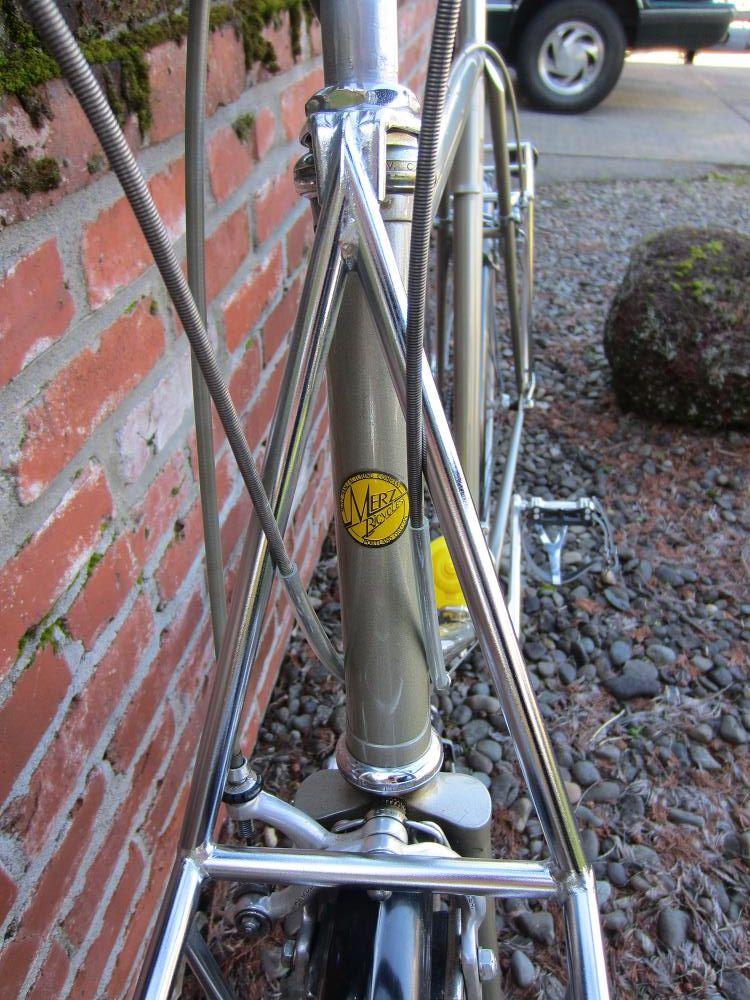

Merz RR150 built in 78 but no racks, Original owner went with blackburns on the cross country trip he had it built for.

As my go to commuter/short tourer it would be great to have similar spec customs for it although if I ever actually stepped up I would like them to have Merz style attachments, which might be a stretch.








merziac is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
