Can someone explain?

Framebuilders Thinking about a custom frame? Lugged vs Fillet Brazed. Different Frame materials? Newvex or Pacenti Lugs? why get a custom Road, Mountain, or Track Frame? Got a question about framebuilding? Lets discuss framebuilding at it's finest.

Can someone explain?

Old 04-11-19, 01:05 PM
  #1
jlafitte
Pirate/Smuggler
Thread Starter

jlafitte's Avatar

Join Date: Nov 2012
Location: Marigny/Leucadia
Posts: 1,184
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked 5 Times in 5 Posts
Can someone explain?

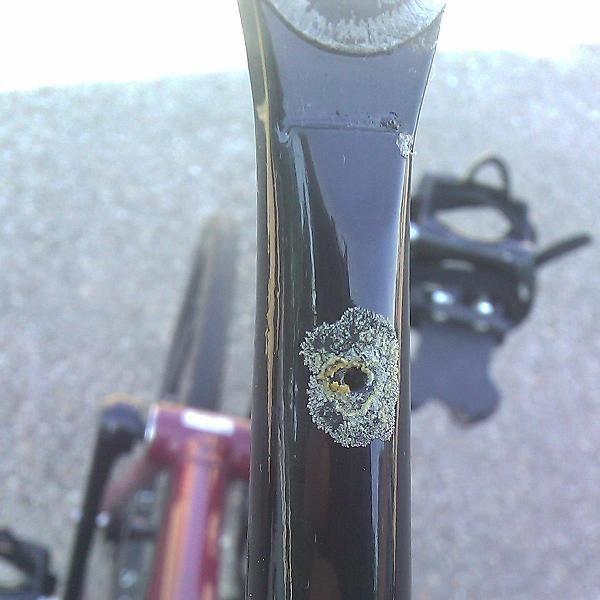

Am I going crazy or is this salt coming out of my fork??




This is a Columbus Zona frameset made to order by Colossi, shipped direct to the local shop where it was built up. I noticed this stuff leaking out of the vent holes last couple times I washed the bike. I've put around 3000 km on it. Never been ridden anywhere but south Louisiana, where there is no real winter and the roads are never salted.
jlafitte is offline
Old 04-11-19, 01:33 PM
  #2
shelgame
Member

Join Date: Oct 2015
Posts: 43
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 6 Times in 6 Posts
Flux?
shelgame is offline
Old 04-11-19, 01:39 PM
  #3
Nessism
Senior Member

Nessism's Avatar

Join Date: Jun 2004
Location: Torrance, CA
Posts: 2,719

Bikes: Homebuilt steel

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 140 Post(s)
Liked 9 Times in 9 Posts
I agree, looks like flux. You might want to get some hot water inside the fork and allow it to soak for an hour or so and then flush it out with more water. Flux is acidic and will eat up the paint.
Nessism is offline
Old 04-11-19, 03:15 PM
  #4
David Tollefson
Senior Member

Join Date: Dec 2012
Location: Puyallup, WA
Posts: 122

Bikes: Many... Up to 9 in the stable now

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Almost looks like dried linseed oil.
David Tollefson is offline
Old 04-11-19, 05:46 PM
  #5
Doug Fattic
framebuilder

Join Date: Dec 2009
Location: Niles, Michigan
Posts: 314
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 51 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by David Tollefson View Post
Almost looks like dried linseed oil.
and if so it was squirted inside to prevent rust and the excess is now draining out. I heard from a builder that used to make frames in a production environment that they had problems with forks breaking from water used to rinse out the inside that eventually created rust but never had a problem with flux left after brazing.
Doug Fattic is offline
Old 04-12-19, 04:20 AM
  #6
Canaboo
Senior Member

Join Date: Dec 2009
Posts: 410
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
What does excess frame saver look like?
Canaboo is offline
Old 04-12-19, 06:45 AM
  #7
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,616

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1734 Post(s)
Liked 47 Times in 34 Posts
IME this discharge is old flux. I've seen this a number of times on frames that have never seen a Frame Saver red hose. My assumption is that water has seeped into the vent hole and carried out some flux when the water tried to exit. Andy.
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 04-12-19, 07:14 AM
  #8
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 18,231
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 34 Times in 31 Posts
one way to tell if it's flux, heat it up and see if it turns to liquid. Not on the fork, of course. It's a bit weird that it's migrating though. And I would think that anything put in there as a frame saver would stay put as well. Flux would migrate if it got wet I suppose, but I'm not sure I see why it would be (essentially) symmetric around the hole.

I don't know how paint reacts to flux, but my experience is that it's okay on steel.
unterhausen is offline
Old 04-12-19, 08:51 AM
  #9
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,616

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1734 Post(s)
Liked 47 Times in 34 Posts
The issue with residual flux, IMO, is that it absorbs moisture out of the air. Just look at a joint that's sat after brazing w/ flux. Over time the flux will change, it softens and changes from the glassy nature it has after brazing.

It's my feeling that residual flux can speed up any rusting that might otherwise happen, so I like to remove it as best possible or seal it in so no additional moisture can reach it. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 04-13-19, 08:09 AM
  #10
Nessism
Senior Member

Nessism's Avatar

Join Date: Jun 2004
Location: Torrance, CA
Posts: 2,719

Bikes: Homebuilt steel

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 140 Post(s)
Liked 9 Times in 9 Posts
I've posted this before but it bears repeating...

On one of my early frame builds I cleaned the flux off by mechanical means on the outside and didn't do anything on the inside. Painted it up and rode the heck out of it for a good year or so until noticing corrosion on the bottom bracket around where the seat tube inserted into the shell. Looked closer and found some other corrosion in similar locations on the frame. Concluded that flux was migrating through porosity/pin holes in the brazing filler. Not good. Since then I'm a bit manic about removing flux.
Nessism is offline
Old 04-16-19, 06:44 PM
  #11
jlafitte
Pirate/Smuggler
Thread Starter

jlafitte's Avatar

Join Date: Nov 2012
Location: Marigny/Leucadia
Posts: 1,184
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked 5 Times in 5 Posts
Thanks for the answers and discussion, folks. For a minute there I was perturbed and and entertaining bizarre conspiracy theories. The stuff looks exactly like the salt that collects under a hanging wetsuit!
jlafitte is offline
Old 04-16-19, 10:38 PM
  #12
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 18,231
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 34 Times in 31 Posts
most fluxes have borax as an ingredient, which is a salt.
unterhausen is offline
