Retrofitting Added Functionality to an existing frame

Framebuilders Thinking about a custom frame? Lugged vs Fillet Brazed. Different Frame materials? Newvex or Pacenti Lugs? why get a custom Road, Mountain, or Track Frame? Got a question about framebuilding? Lets discuss framebuilding at it's finest.

Retrofitting Added Functionality to an existing frame

Old 04-26-19, 10:07 AM
  #1
prairiepedaler
Senior Member
Thread Starter

Join Date: Aug 2016
Location: Jolly 'ol Winnipeg
Posts: 633

Bikes: BRC Explorer 43lb'er, Raleigh Elkhorn, Cannondale SM600, LeeWorld Mountain Sport Frame, Maruishi MT18 Frame

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Retrofitting Added Functionality to an existing frame

I have a couple of steel frames that are suitable size and hold future potential for use. I like a kitchen sink bike with a tonne of "fastenability"; threaded braze-on laden frames for attaching stuff to. These steel frames could use a repaint so should it not be possible to walnut hull the frames, drill them in the appropriate spots then weld in pre-made threaded attachment points? I'm looking at adding more water bottle mounts, mid-fork blade mounts, seat stay mounts etc. Maybe tack on some spoke holders as well. While I'm at it, the cantilever braze-ons feature posts which are not allen key replaceable. Those too could be swapped for modern ones. Thoughts?
prairiepedaler is offline
Old 04-26-19, 10:38 AM
  #2
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 18,219
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 33 Times in 30 Posts
yes, framebuilders do this all the time
unterhausen is offline
Old 04-26-19, 11:54 AM
  #3
prairiepedaler
Senior Member
Thread Starter

Join Date: Aug 2016
Location: Jolly 'ol Winnipeg
Posts: 633

Bikes: BRC Explorer 43lb'er, Raleigh Elkhorn, Cannondale SM600, LeeWorld Mountain Sport Frame, Maruishi MT18 Frame

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Thanks Unter, glad to hear confirmation. You're into framebuilding and mods, have you any examples of this type of retrofitting work? I'm not a welder, but know how to solder and am reasonable handy. I might try my hand at the retrofitting process in the future on a pooched frame for practice. There is only one guy locally who does any sort of frame work:

https://www.cycleexif.com/lt-wiens-road-bike

https://ltwiens.com/

I'm too frugal to pay cha-ching coin for some minor additions to an old frame and if I were to spend anything substantial it would be on a complete custom one built just-so. One can buy several used bikes for the price of a little welding.
prairiepedaler is offline
Old 04-26-19, 12:43 PM
  #4
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 18,219
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 33 Times in 30 Posts
I'm bad about taking pictures. There really is no difference between adding them to an existing frame and a new frame other than removing paint. On an existing frame I use a torch to burn the paint and then sand the residue off.

Just off the top of my head, I have added cable stops, rack mount bosses, fender eyelets and water bottle bosses to existing frames.
unterhausen is offline
Old 04-26-19, 01:21 PM
  #5
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 6,127

Bikes: 90/91 De Rosa, '84 Team Miyata, '82 nishiski,

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 807 Post(s)
Liked 38 Times in 30 Posts
Think braze not weld.......ask the guys who really know, but for adding threaded brazeons like for water bottles you might be able to use a MAPP torch.....it did work for me for removing cable guides...... not sure Mapp wold work for day adding threaded eyelets to dropouts for racks and fender mounts
__________________
Looking for Team Miyata F&F 58cm
squirtdad is offline
Old 04-26-19, 02:16 PM
  #6
dsaul
Senior Member

Join Date: Jan 2013
Posts: 1,039
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 237 Post(s)
Liked 32 Times in 23 Posts
A MAPP gas torch and 56% silver will work fine for braze ons, like bottle bosses and cable guides. I still use it occasionally when my propane tank isn't hooked up to my Oxy/Propane setup.(sometimes its on the BBQ grill and I don't feel like going to get it)
dsaul is offline
Old 04-27-19, 05:06 PM
  #7
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 22,424
Mentioned: 166 Post(s)
Tagged: 0 Thread(s)
Quoted: 8522 Post(s)
Liked 79 Times in 71 Posts
Talk to @gugie. He is known for his mods.

Where are you located?
CliffordK is offline
Old 04-27-19, 06:21 PM
  #8
gugie
Crapmaster Emeritus

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 7,358

Bikes: JP Weigle'd Raleigh Competition reconstruct, 73 Raleigh Competition 650b'ed, 96 Bike Friday NWT, 83 Lotus Classique, 78 Centurion ProTour, 73 Raleigh Grand Sports

Mentioned: 776 Post(s)
Tagged: 0 Thread(s)
Quoted: 2217 Post(s)
Likes: 0
Liked 46 Times in 34 Posts
Did someone ask for pictures?
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 04-27-19, 09:17 PM
  #9
prairiepedaler
Senior Member
Thread Starter

Join Date: Aug 2016
Location: Jolly 'ol Winnipeg
Posts: 633

Bikes: BRC Explorer 43lb'er, Raleigh Elkhorn, Cannondale SM600, LeeWorld Mountain Sport Frame, Maruishi MT18 Frame

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Originally Posted by CliffordK View Post
Talk to @gugie. He is known for his mods.

Where are you located?
Hi Cliff, thanks for that reference. I'm up in Winnipeg the Windy.
prairiepedaler is offline
Old 04-29-19, 06:31 PM
  #10
prairiepedaler
Senior Member
Thread Starter

Join Date: Aug 2016
Location: Jolly 'ol Winnipeg
Posts: 633

Bikes: BRC Explorer 43lb'er, Raleigh Elkhorn, Cannondale SM600, LeeWorld Mountain Sport Frame, Maruishi MT18 Frame

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Originally Posted by gugie View Post
Wowsers! Some first rate work there, Gug. That's the spirit.
prairiepedaler is offline
Old 04-29-19, 06:45 PM
  #11
Aubergine
Bad example

Join Date: Nov 2015
Location: Seattle and Reims
Posts: 2,938
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 771 Post(s)
Liked 17 Times in 14 Posts

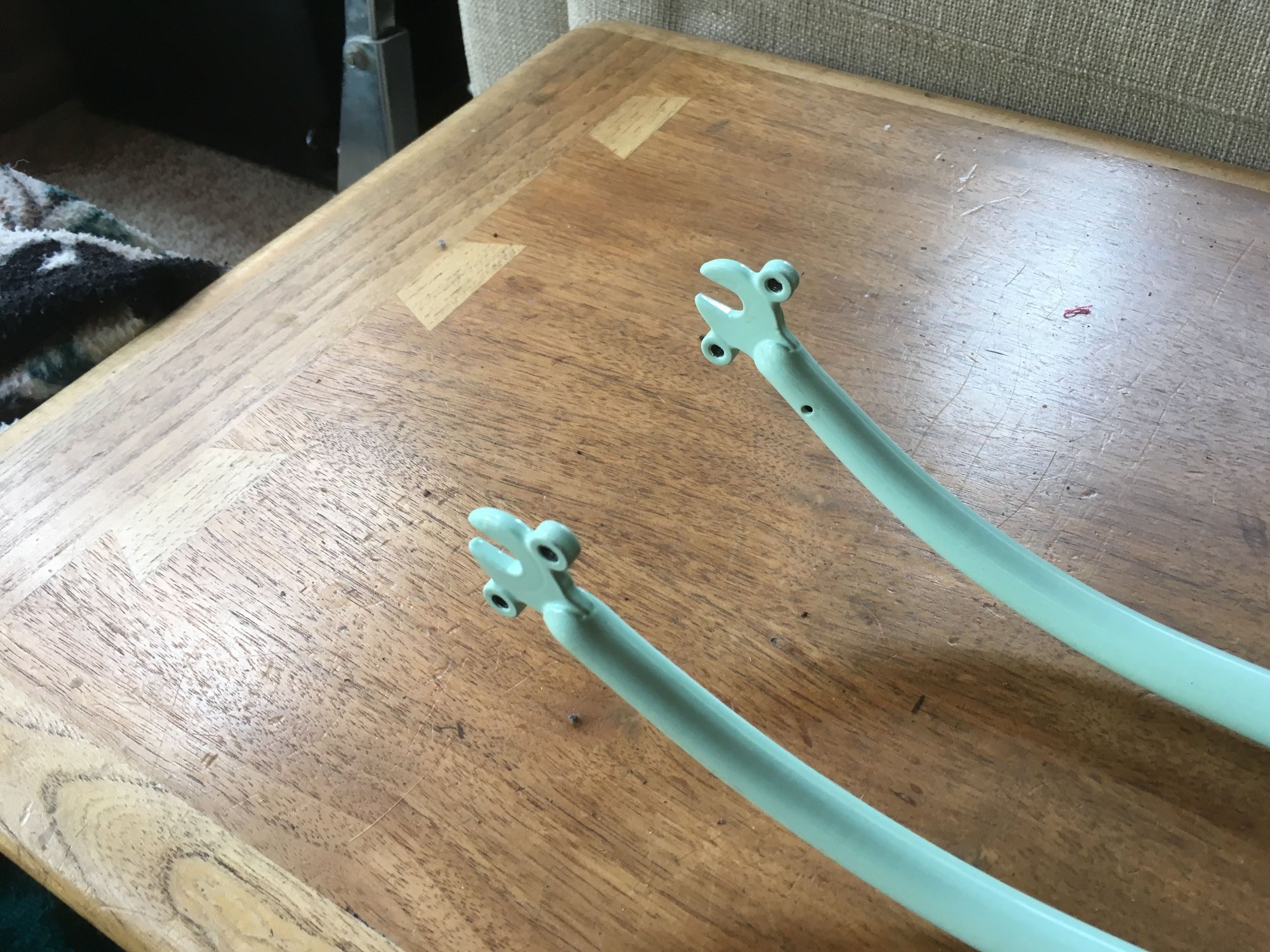

I had this done to an old Peugeot.







__________________
Keeping Seattle’s bike shops in business since 1978
Aubergine is offline
Old 04-30-19, 02:00 PM
  #12
David Tollefson
Senior Member

Join Date: Dec 2012
Location: Puyallup, WA
Posts: 122

Bikes: Many... Up to 9 in the stable now

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Likes: 0
Liked 1 Time in 1 Post
I have that same coffee table!
David Tollefson is offline
Old 04-30-19, 02:18 PM
  #13
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 22,424
Mentioned: 166 Post(s)
Tagged: 0 Thread(s)
Quoted: 8522 Post(s)
Liked 79 Times in 71 Posts
I have some mods planned shortly.

I think I'll stick to 25mm or 28mm tires, so no cantis, etc.

However, I've been wondering a bit about seat stay & fork rack mounts (and perhaps dropout mods).

A couple of questions I've been mulling over. First of all, I'd hate to be 500 miles from home and experience a critical failure. So, any solution has to be STRONG & DURABLE.

One question is whether one is better off with those spool shaped attachments like @Aubergine used, vs drilling and brazing the tubes, using water bottle bosses for the rack mounts.

Welding the dropouts?
CliffordK is offline
Old 04-30-19, 04:35 PM
  #14
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 18,219
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 33 Times in 30 Posts
spool mounts are probably stronger than water bottle bosses. I'm not convinced about braze on dropout eyelets for a heavy rack though.
unterhausen is offline
Old 05-07-19, 05:43 PM
  #15
prairiepedaler
Senior Member
Thread Starter

Join Date: Aug 2016
Location: Jolly 'ol Winnipeg
Posts: 633

Bikes: BRC Explorer 43lb'er, Raleigh Elkhorn, Cannondale SM600, LeeWorld Mountain Sport Frame, Maruishi MT18 Frame

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
I'd probably prefer to use spool mounts on a fork instead of drilling it for insert threading, although I don't like the look as much. Several mirror imaged pairs along each blade would certainly increase flexibility of attachment o' stuff. Ritchey used to offer a heavy duty rear dropout, and that's about the only thing I do remember about frame parts. If I could find pairs of those that fit, they might be a replacement option on a frame sometime.
prairiepedaler is offline
