Free frame jigs

Hi everyone,

I have 10 frame tacking jigs laying around from a batch of jigs that had some holes drilled in the wrong place. If you have a drill press it's easy to drill them in the right spot. If anybody wants one or more let me know and you can come by my house in Sausalito CA to pick them up. Otherwise I am going to drop them off at the metal recycling place.

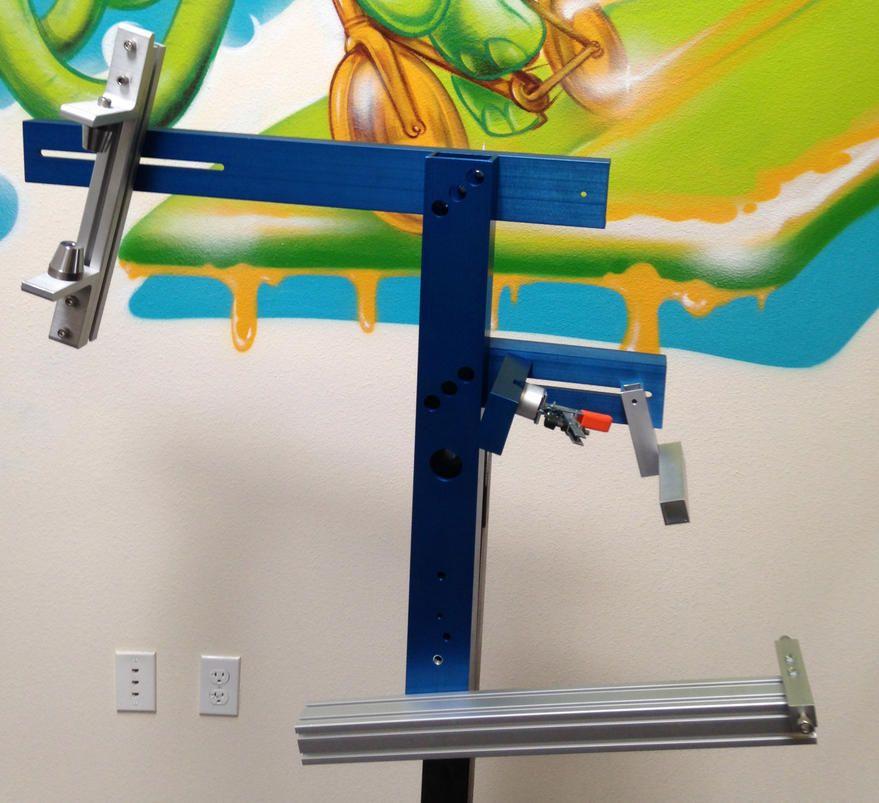

The person who took the picture didn't actually set the jig up fully, but you get the idea. These work great for building simple lugged frames. The box of 8020 extrusion, toggle clamps, and nuts and bolts went missing, but that stuff is easy to order online.

PM me if you want a jig or jigs! Again you would have to come pick them up in Sausalito, I am way too busy to ship anything unfortunately.

-Tim


sannerbikes700 is offline
Likes For sannerbikes700:
Old 05-16-19, 07:40 PM
  #2
Nessism
Senior Member

Nessism's Avatar

Join Date: Jun 2004
Location: Torrance, CA
Posts: 2,721

Bikes: Homebuilt steel

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 140 Post(s)
Liked 10 Times in 10 Posts
Good on you to offer these up to the community. If you were in my neck of the woods I'd take you up on it.
Nessism is offline
Old 05-17-19, 06:38 PM
  #3
TiHabanero
Senior Member

Join Date: Nov 2012
Posts: 2,277
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 647 Post(s)
Likes: 0
Liked 21 Times in 20 Posts
Wow, that is really nice of you to put this out there. Wish I lived in your area as I have a friend at the shop that is talking of building frames for a living (yes, his wife works a good paying job!). One of these would serve him well to get started. Sure hope they get out there in good time.
TiHabanero is offline
Old 05-18-19, 07:29 AM
  #4
Timmski
Newbie

Join Date: Nov 2013
Posts: 1
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I would like those jigs. I have a friend in your area who will pick them up but I don't have enough posts to pm you. Any other way to contact you?

Thanks
Tim
Timmski is offline
Old 05-20-19, 10:55 AM
  #5
sannerbikes700
Senior Member
Thread Starter

sannerbikes700's Avatar

Join Date: Dec 2008
Location: Palo Alto CA
Posts: 97
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Hi Tim,

Yes, feel free to email me at timsanner1@gmail.com. I am happy to give you guys some of these jigs.
sannerbikes700 is offline
Old 06-09-19, 09:21 PM
  #6
Hinter
Newbie

Join Date: Jun 2019
Posts: 3
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I would be intrested in one of still available. I live in Auburn and get be there any day. Email me at fausty11@gmail.com. Thanks
Hinter is offline
Old 06-21-19, 10:14 AM
  #7
sannerbikes700
Senior Member
Thread Starter

sannerbikes700's Avatar

Join Date: Dec 2008
Location: Palo Alto CA
Posts: 97
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 1 Time in 1 Post
I forgot to note that these jigs ONLY work for building lugged frames with a 68mm BB shell. They really don't work for building anything else.

Turns out I had about 20 more of these in storage and they have been getting claimed very quickly. There are about 10 left of the 30 I had originally.
sannerbikes700 is offline
Old 06-22-19, 07:01 PM
  #8
Abe_Froman
Senior Member

Abe_Froman's Avatar

Join Date: Aug 2016
Location: Chicago
Posts: 2,517

Bikes: Marin Four Corners, 1960's Schwinn Racer in middle of restoration, mid 70s Motobecane Grand Touring, various other heaps.

Mentioned: 75 Post(s)
Tagged: 0 Thread(s)
Quoted: 9291 Post(s)
Liked 42 Times in 36 Posts
Damn I've been thinking about getting into frame building. Wish you were closer to Chicago.
Abe_Froman is offline
Old 06-22-19, 07:13 PM
  #9
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,613

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1736 Post(s)
Liked 48 Times in 35 Posts
Originally Posted by sannerbikes700 View Post
I forgot to note that these jigs ONLY work for building lugged frames with a 68mm BB shell. They really don't work for building anything else.

Turns out I had about 20 more of these in storage and they have been getting claimed very quickly. There are about 10 left of the 30 I had originally.
Why is this the case? Is it that the jig dimensions are set for a edge of shell contact with the jig results in a 34mm centerline for the frame? If so then how do you compensate for a shell that is slightly wider to allow for after build chase and face? Andy
