Early 70s TA Cranks...Can I mod to Mid Compact?

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Early 70s TA Cranks...Can I mod to Mid Compact?

Old 06-18-19, 09:32 AM
  #1
chainwhip
Senior Member
Thread Starter

Join Date: Jun 2017
Posts: 289
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 98 Post(s)
Likes: 0
Liked 12 Times in 9 Posts
Early 70s TA Cranks...Can I mod to Mid Compact?

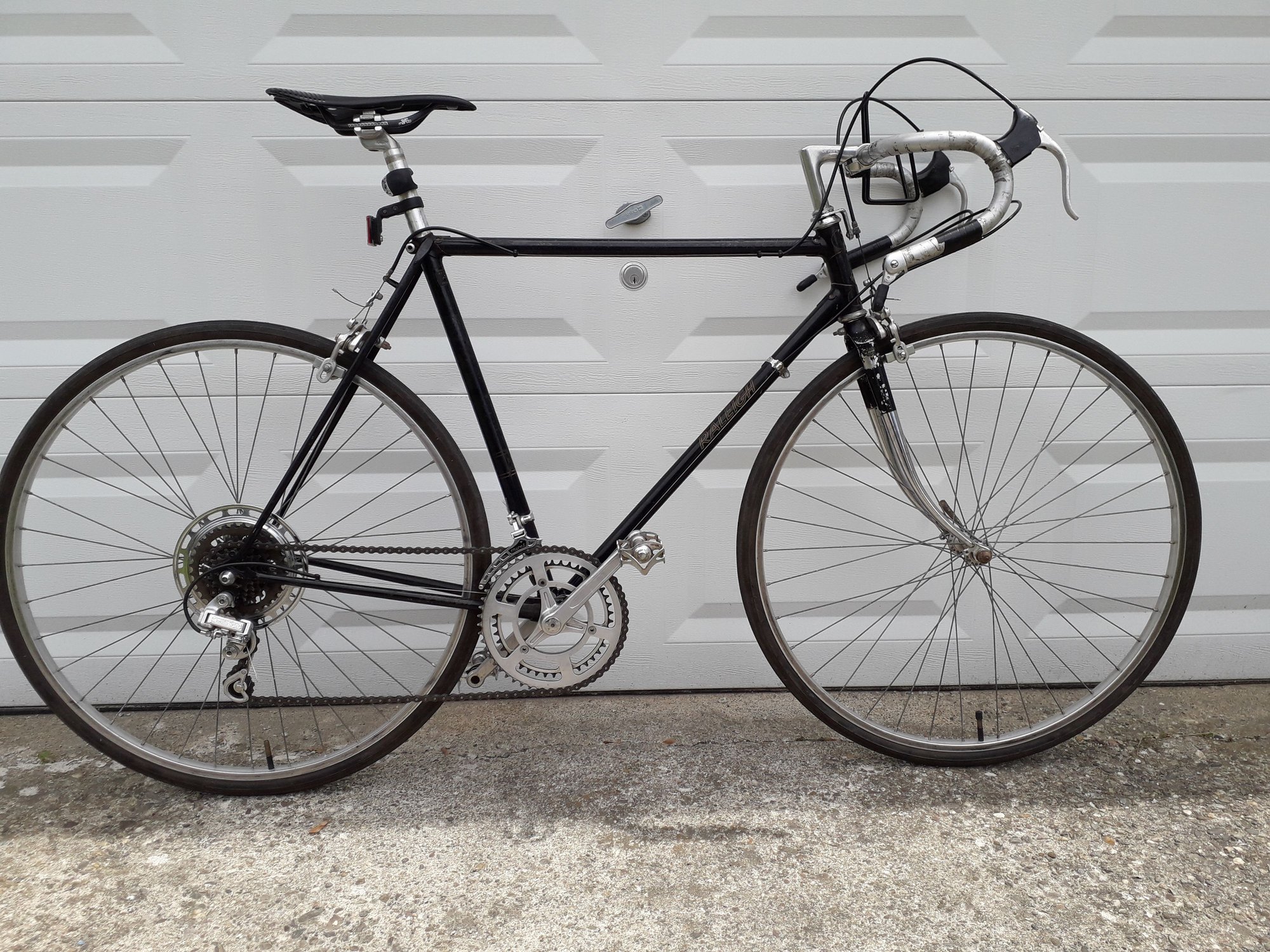

Recently bought this:
1973 Raleigh Competition
_________________________________________
Exploring if I could fit a 36T 110bcd x 5b inner ring to convert this from a 52-42 to a 52-36? :




Original TA 52-42 Crankset

_________________________________________
Thanks for input.
chainwhip is offline
Old 06-18-19, 10:48 AM
  #2
noobinsf
Senior Member

Join Date: Sep 2005
Location: Oakland, CA
Posts: 1,187

Bikes: '04 Felt SR91, '82 Univega Competizione, '72 Motobecane Grand Record, '72 Puch Bergmeister

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 317 Post(s)
Likes: 0
Liked 17 Times in 14 Posts
No, you can't -- this crank has three holes and a 116mm bcd, so it's not compatible with the chainring you mentioned. You'll need to try a different crank, unfortunately. Cool bike, by the way...

Last edited by noobinsf; 06-18-19 at 10:52 AM.
noobinsf is online now
Old 06-18-19, 11:01 AM
  #3
Ex Pres
#39

Ex Pres's Avatar

Join Date: Dec 2007
Location: Mountain Brook, AL
Posts: 7,123
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 345 Post(s)
Liked 7 Times in 6 Posts
A 116BCD will accept a 36t ring, maybe even a 35t - IF YOU COULD FIND ONE.

(You won't)
Ex Pres is offline
Old 06-18-19, 11:06 AM
  #4
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 7,736

Bikes: Yes, please.

Mentioned: 190 Post(s)
Tagged: 0 Thread(s)
Quoted: 1060 Post(s)
Liked 44 Times in 36 Posts
Well, there's this:

116 bcd rings

If you can get the price down to say $50 by ordering a batch of 35T rings, you might make a few new friends here.
__________________
Reasons to be cheerful!
non-fixie is offline
Old 06-18-19, 11:10 AM
  #5
Moe Zhoost
Half way there

Moe Zhoost's Avatar

Join Date: Sep 2015
Location: Durham, NC
Posts: 1,300

Bikes: Many, and the list changes frequently

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 347 Post(s)
Liked 44 Times in 29 Posts
Beautiful TA Crank. Sell it and buy one more suitable to your needs.
Moe Zhoost is offline
Old 06-18-19, 12:10 PM
  #6
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 2,893

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 127 Post(s)
Tagged: 0 Thread(s)
Quoted: 503 Post(s)
Likes: 0
Liked 22 Times in 20 Posts
Scarce as hen's teeth

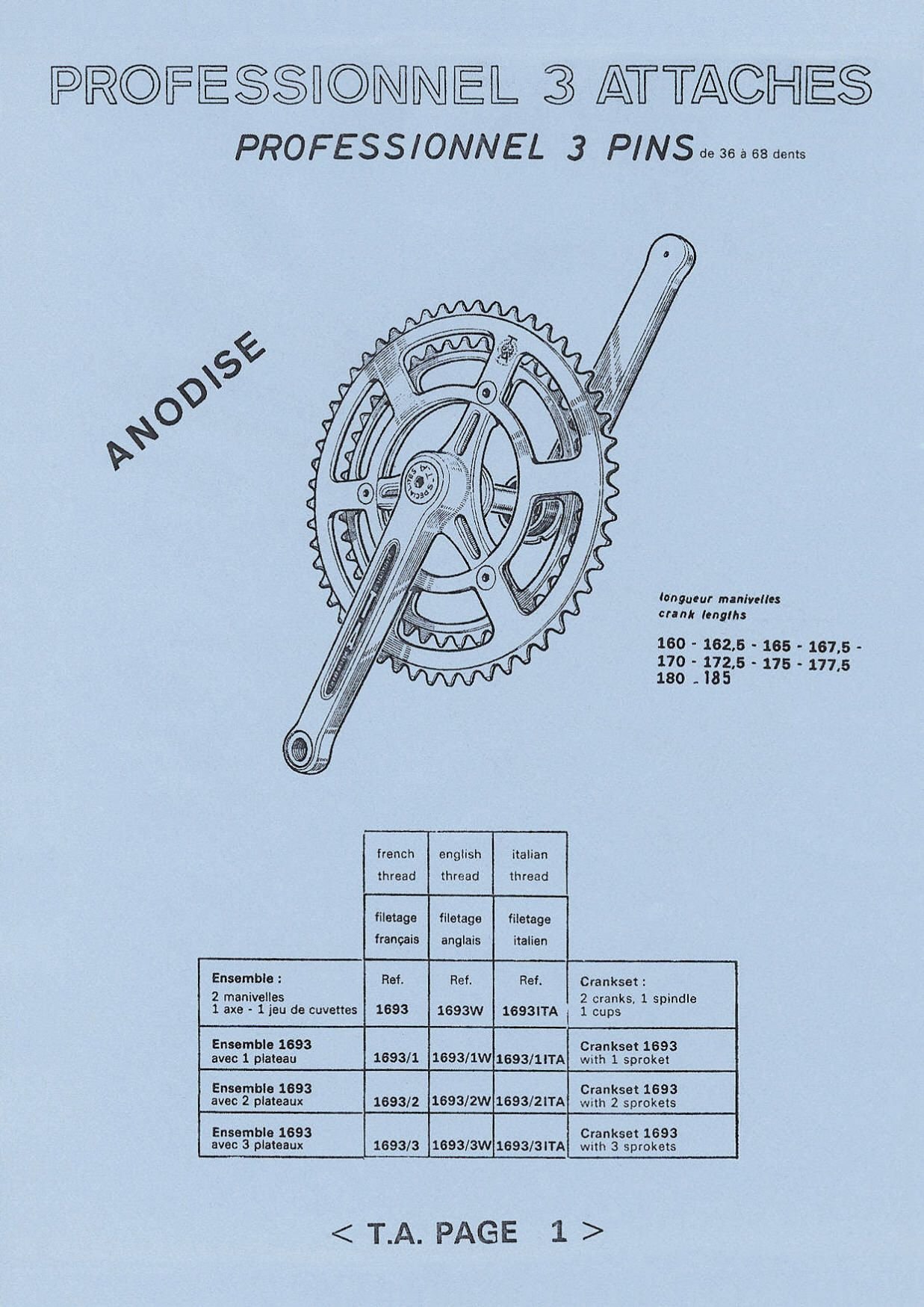

About 10 years ago, I changed the TA "Pro 3 Attaches" chainrings on my late 60's Bertin C37 from 52-42 to 50-37.



36T was the smallest chainring TA made for these cranks and after months of searching I finally came up with a 37T.



You can probably find a 36T 116mm 3 bolt chainring but it needs to be arced to fit closely on the crank web plus the holes counter bored in the rear. These cranks take special chainring bolts with a large diameter head and a smaller diameter than standard chainring bolts. They tend to be brittle.

They break EASILY if overtightened and replacements are hard to find (been there - done that). I wouldn't trust those bolts just to hold a non fitted (non arched) chainring onto the back side of the large ring.

verktyg
__________________
Things aren't always what they seem... Don't believe everything you think!

Chas. ;-)
verktyg is offline
Old 06-18-19, 12:14 PM
  #7
chainwhip
Senior Member
Thread Starter

Join Date: Jun 2017
Posts: 289
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 98 Post(s)
Likes: 0
Liked 12 Times in 9 Posts
116bcd

Originally Posted by noobinsf View Post
No, you can't -- this crank has three holes and a 116mm bcd, so it's not compatible with the chainring you mentioned. You'll need to try a different crank, unfortunately. Cool bike, by the way...
Thanks.
Didn't feel I was getting an accurate bcd measurement, but it looked larger.
Completely missed my 3 vs. 5 oversight
chainwhip is offline
Old 06-18-19, 12:25 PM
  #8
chainwhip
Senior Member
Thread Starter

Join Date: Jun 2017
Posts: 289
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 98 Post(s)
Likes: 0
Liked 12 Times in 9 Posts
Originally Posted by verktyg View Post
About 10 years ago, I changed the TA "Pro 3 Attaches" chainrings on my late 60's Bertin C37 from 52-42 to 50-37.



36T was the smallest chainring TA made for these cranks and after months of searching I finally came up with a 37T.

You can probably find a 36T 116mm 3 bolt chainring but it needs to be arced to fit closely on the crank web plus the holes counter bored in the rear. These cranks take special chainring bolts with a large diameter head and a smaller diameter than standard chainring bolts. They tend to be brittle.

They break EASILY if overtightened and replacements are hard to find (been there - done that). I wouldn't trust those bolts just to hold a non fitted (non arched) chainring onto the back side of the large ring.

verktyg
Sounds like I'd be wise to learn from your pain.
Beautiful bike!
chainwhip is offline
Old 06-18-19, 01:49 PM
  #9
jeirvine
Senior Member

jeirvine's Avatar

Join Date: Sep 2011
Location: Bethesda/Baltimore MD
Posts: 3,188

Bikes: '72 Moto Grand Record, '72 Gitane tandem, '72 Raleigh Super Course, '73 Raleigh Gran Sport, '73 and '76 Colnagos Super, '76 Fiorelli Coppi, '78 Raleigh SBDU Team Pro, '78 Trek 930, '81 Holdsworth Special 650B, '86 Masi GC, '87 Panasonic DX5000

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 428 Post(s)
Likes: 0
Liked 18 Times in 11 Posts
Originally Posted by non-fixie View Post
Well, there's this:

116 bcd rings

If you can get the price down to say $50 by ordering a batch of 35T rings, you might make a few new friends here.
Couldn't hurt to ask! 35T and of aluminum instead of titanium, and the price may be reasonable.
__________________
The man who dies with the most toys…is dead. - Rootboy
jeirvine is offline
Old 06-18-19, 01:53 PM
  #10
seypat
Senior Member

Join Date: Oct 2010
Posts: 3,938
Mentioned: 52 Post(s)
Tagged: 0 Thread(s)
Quoted: 943 Post(s)
Likes: 0
Liked 44 Times in 41 Posts
If you wanted to keep it French, you could go with a Stronglight 99. 86BCD will go down to 32T, I think. Might go to 30T. There is a 99 sitting on the Bay currently as well as some cheap rings including a 36T. Sakae/SR also made a 86BCD crank as well. Some of those might be available as well.

Last edited by seypat; 06-18-19 at 02:01 PM.
seypat is offline
Old 06-18-19, 02:18 PM
  #11
TenGrainBread
Senior Member

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 1,772
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 666 Post(s)
Liked 62 Times in 46 Posts
Search on eBay for Stronglight Touring Sport chainrings. This was another 3 arm 116bcd crank of the era and I find that smaller chainrings for this are more common. They'll fit the TA Pro cranks you have but you will have to drill the chainring holes larger to accept the TA chainring bolts. This is what I'm currently running on my Sports Tourer.
TenGrainBread is offline
Old 06-18-19, 02:19 PM
  #12
crank_addict
Senior Member

crank_addict's Avatar

Join Date: Aug 2013
Posts: 6,421
Mentioned: 80 Post(s)
Tagged: 0 Thread(s)
Quoted: 1064 Post(s)
Likes: 0
Liked 18 Times in 13 Posts
As mentioned above, 36t is the smallest to fit but a challenge finding TA branded ring. Though chances are better finding another brand 3 bolt and modify to attach. I like the minimalist style and would certainly attempt a modified ring before changing the crank.

There are adapters 3 hole to 5 (possibly 6 as well) hole but unfortunately defeats your purpose. Those adapters are for 45 tooth.

This leads why the TA Cyclotourist cranks were and still desired today.

Also consider the Stronglight 49D and others with the 50.4 BCD, plus there's adapters for other large BCD rings.. Great options and flexibility.

Last edited by crank_addict; 06-18-19 at 02:24 PM.
crank_addict is offline
Old 06-18-19, 02:59 PM
  #13
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 7,736

Bikes: Yes, please.

Mentioned: 190 Post(s)
Tagged: 0 Thread(s)
Quoted: 1060 Post(s)
Liked 44 Times in 36 Posts
Originally Posted by crank_addict View Post
As mentioned above, 36t is the smallest to fit but a challenge finding TA branded ring. Though chances are better finding another brand 3 bolt and modify to attach. I like the minimalist style and would certainly attempt a modified ring before changing the crank.

There are adapters 3 hole to 5 (possibly 6 as well) hole but unfortunately defeats your purpose. Those adapters are for 45 tooth.

This leads why the TA Cyclotourist cranks were and still desired today.

Also consider the Stronglight 49D and others with the 50.4 BCD, plus there's adapters for other large BCD rings.. Great options and flexibility.
Just for the record: Miche makes 35T rings with a 116mm BCD. I just bought a couple. €15 a piece. Five holes, so no use to the OP, but if you're going to have them made for lower gearing, one might as well go for the smaller tooth count.
__________________
Reasons to be cheerful!
non-fixie is offline
Old 06-18-19, 03:26 PM
  #14
Feldman
Senior Member

Join Date: Feb 2002
Posts: 974
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked 2 Times in 2 Posts
Five possibilities in the real world: Velo Classique in Falls Church, VA, Peter White Cycles in New Hampshire, American Cyclery in San Francisco, Bicycle Specialties in Toronto, St. Johns Street Cycles in the UK. St. Johns has a good website, others are all reachable by phone. The smallest ring you can use with that crank is 36 t. I ran one as a 36/46 for awhile. Good cranks!
Feldman is offline
Old 06-18-19, 05:17 PM
  #15
63rickert
Senior Member

Join Date: Dec 2013
Posts: 1,066
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 485 Post(s)
Likes: 0
Liked 20 Times in 17 Posts
I have two of the supposed elusive 116bcd 3 pin 36T rings. Took very little to find them. It's collecting. Work at it.

Stronglight had rings that fit. There are also steel rings to same pattern. 38T to pattern is far more plentiful if that will work.
63rickert is offline
Old 06-18-19, 05:20 PM
  #16
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 8,121
Mentioned: 213 Post(s)
Tagged: 1 Thread(s)
Quoted: 1624 Post(s)
Liked 31 Times in 28 Posts
Originally Posted by seypat View Post
If you wanted to keep it French, you could go with a Stronglight 99. 86BCD will go down to 32T, I think. Might go to 30T. There is a 99 sitting on the Bay currently as well as some cheap rings including a 36T. Sakae/SR also made a 86BCD crank as well. Some of those might be available as well.

-----

The Stronglight model 99 & 99bis chainset goes down to 28T, both early and late type.





---

Anecdote -

Years ago I would run into Howard Sutherland trundling about the streets of Berkeley on his dark blue Jack Bobson. I once inquired of him as to the T.A. Trots Attachees chainset it wore. He replied that he liked it very much. High praise coming as it did from "The Mechanic's Mechanic."

---



-----
juvela is offline
Old 06-18-19, 06:05 PM
  #17
Slowride79
Member

Join Date: Apr 2018
Posts: 44
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

The solution to your problem is not a scarce chainring or another crankset but another bike!

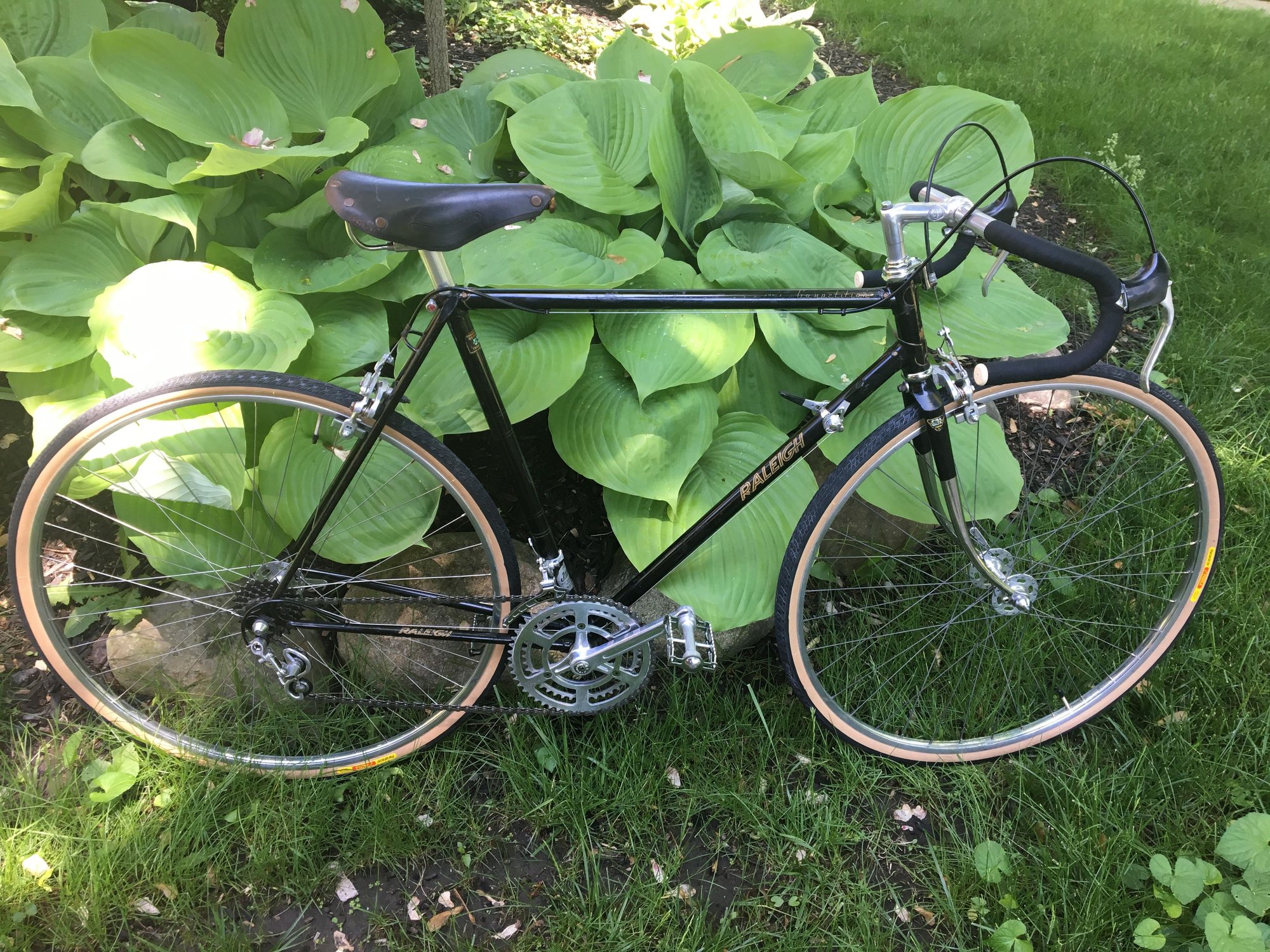

Here’s my 1973 that is almost finished (thanks Roger! &#128521
Slowride79 is offline
Old 06-18-19, 06:17 PM
  #18
SamSpade1941
Senior Member

SamSpade1941's Avatar

Join Date: Apr 2016
Posts: 638
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 359 Post(s)
Liked 13 Times in 11 Posts
OP if you get a cyclo touriste you can pretty much do any ring combination you want.
SamSpade1941 is offline
Old 06-18-19, 06:34 PM
  #19
TenGrainBread
Senior Member

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 1,772
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 666 Post(s)
Liked 62 Times in 46 Posts
Part of the reason these cranks are so loved is the Q factor is very low. The arms are almost parallel to the bike frame.
TenGrainBread is offline
Old 06-18-19, 06:50 PM
  #20
chainwhip
Senior Member
Thread Starter

Join Date: Jun 2017
Posts: 289
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 98 Post(s)
Likes: 0
Liked 12 Times in 9 Posts
Thanks for all the input so far...

I appreciate all of your leads and comments.
A lot to chew on.
chainwhip is offline
Old 06-18-19, 06:56 PM
  #21
chainwhip
Senior Member
Thread Starter

Join Date: Jun 2017
Posts: 289
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 98 Post(s)
Likes: 0
Liked 12 Times in 9 Posts
Originally Posted by Slowride79 View Post

The solution to your problem is not a scarce chainring or another crankset but another bike!

Here’s my 1973 that is almost finished (thanks Roger! &#128521
Nice Jubilee RD.
Black cloth bar tape?
22.5" frame?
Very well kept specimen.
Garage queen? j/k

I'm really enjoying the ride quality of this model Raleigh.
Just driven to tinker, I suppose.
chainwhip is offline
Old 06-18-19, 08:02 PM
  #22
Slowride79
Member

Join Date: Apr 2018
Posts: 44
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by chainwhip View Post
Nice Jubilee RD.
Black cloth bar tape?
22.5" frame?
Very well kept specimen.
Garage queen? j/k

I'm really enjoying the ride quality of this model Raleigh.
Just driven to tinker, I suppose.
I was just joking that it’s an excuse to buy another bike
i think a TA cyclo tourist would look great on your bike. Your choice but I would save the original crank in case you or next owner want to change back again.
yes mine is 22.5” , yes black Tressostar cloth tape. Found it in pretty rough shape but thanks to good people in better shape now. https://thecabe.com/forum/threads/‘7...tition.148754/
Slowride79 is offline
Old 06-18-19, 08:14 PM
  #23
Slightspeed
Senior Member

Slightspeed's Avatar

Join Date: Apr 2017
Location: Los Angeles, CA
Posts: 1,570

Bikes: 1961 Legnano Gran Premio, 1964 Legnano Roma Olympiade, 1973 Raleigh Super Course, 1978 Raleigh Super Course, 1978 Peugeot PR10, 2002 Specialized Allez, 2007 Specialized Roubaix, 2013 Culprit Croz Blade

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 494 Post(s)
Likes: 0
Liked 78 Times in 57 Posts

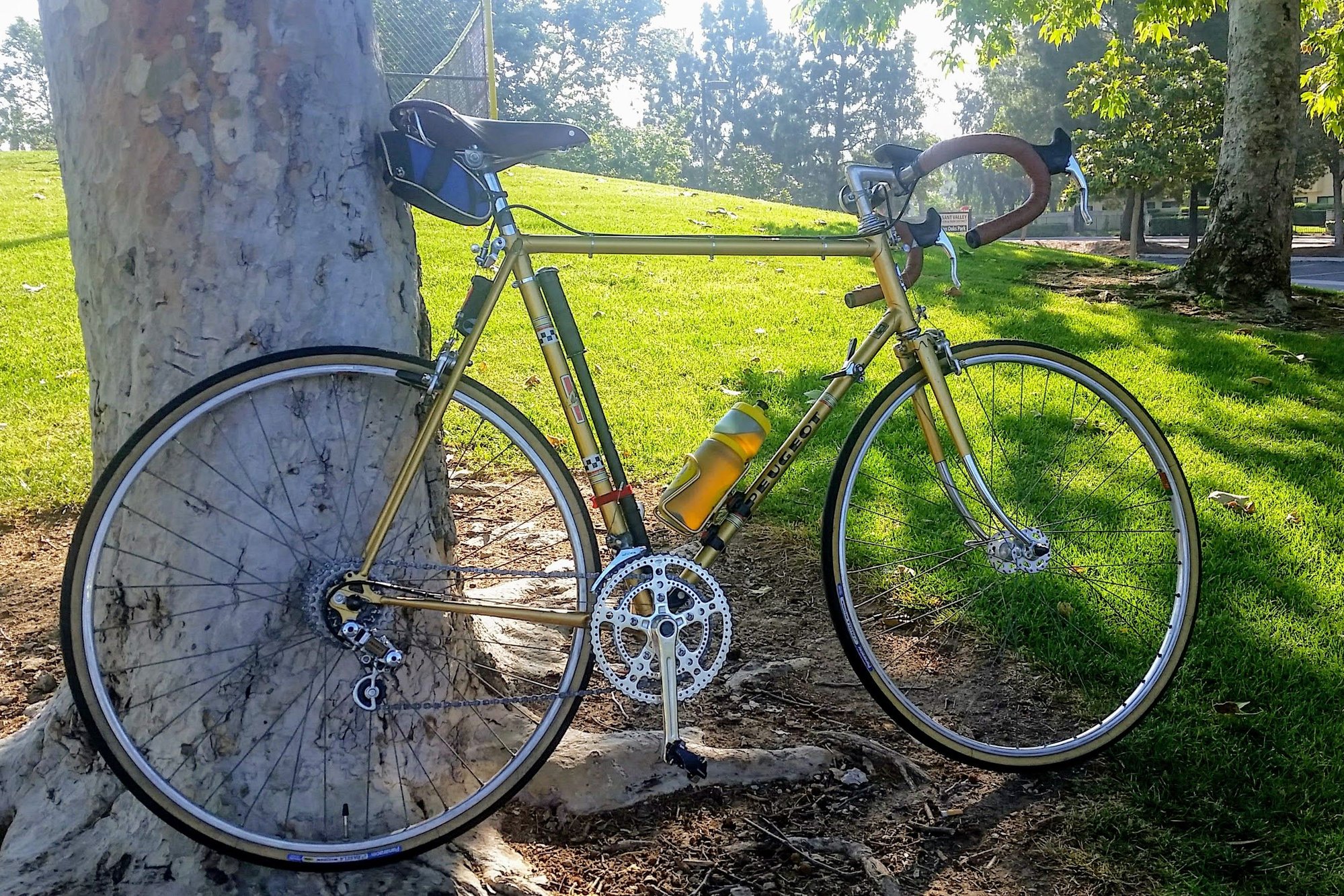

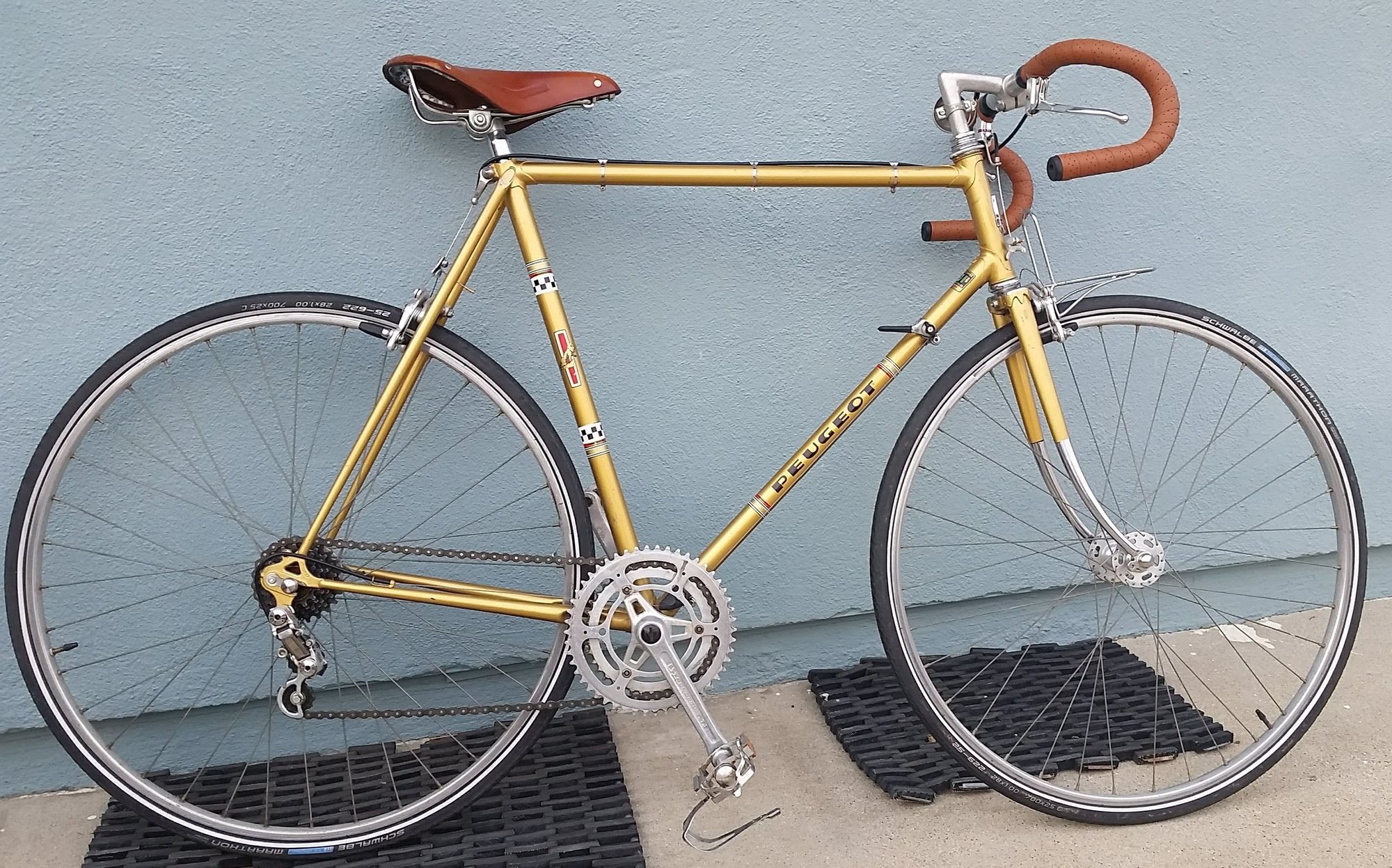

Tale of three cranks. I bought this Peugeot PR10 back in August with a Stronglight TS with a wonky pedal thread and some kind of acid etching damage on the ring (@ about 1 o'clock in below picture). I had a Sugino compact 52/34 laying around, so on it went a as an experiment. I liked the way it rode, but had several inside chain drops, even after repeatedly adjusting FD. It may have been a chain too long problem. I came across a great deal on a Stronglight 99, 52/40, which restored its Frenchness, and rides pretty well with the same 28t freewheel. I know smaller rings are available for the Stronglight 99, so I may be on the lookout for that. Lots of options, good luck with yours.

As bought, Stronglight TS (50/40 ?), broken (missing) Simplex FD, 24t freewheel.

Sugino GT compact 52/34, added Shimano Exage FD, 28t freewheel. I like the look of the Sugino crank.

Current set up, Stronglight 99, 52/40, IMO, best looking of all 3 cranks.

Last edited by Slightspeed; 06-19-19 at 09:33 AM.
Slightspeed is offline
Old 06-19-19, 06:16 AM
  #24
tiger1964
Senior Member

tiger1964's Avatar

Join Date: Apr 2011
Location: Maryland
Posts: 689

Bikes: Drysdale/Gitane/Zeus/Palo-Alto/Falcon

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 171 Post(s)
Liked 11 Times in 7 Posts
Originally Posted by Moe Zhoost View Post
Beautiful TA Crank. Sell it and buy one more suitable to your needs.
Agreed, it's a lovely design. I had always thought that perhaps, having only three arms, it would be more prone to lateral flex. My wife had a set but her bike was stolen. Any chance you can live with a somewhat taller gear?
tiger1964 is offline
Old 06-19-19, 08:19 AM
  #25
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 4,892

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 106 Post(s)
Tagged: 0 Thread(s)
Quoted: 1718 Post(s)
Likes: 0
Liked 37 Times in 25 Posts
Originally Posted by verktyg View Post
You can probably find a 36T 116mm 3 bolt chainring but it needs to be arced to fit closely on the crank web plus the holes counter bored in the rear. These cranks take special chainring bolts with a large diameter head and a smaller diameter than standard chainring bolts. They tend to be brittle.

They break EASILY if overtightened and replacements are hard to find (been there - done that). I wouldn't trust those bolts just to hold a non fitted (non arched) chainring onto the back side of the large ring.
I always loved these cranks to look at. The fact that they spec'd smaller diameter bolts on a 3 arm crank though -- that is just so very French....

I wonder if the same people making titanium chainrings for these are also making replacement bolts? It would make sense. A good machinist should be able to make them, but the cost would be pretty high.

BTW it's very cool that someone loves these enough to make Ti chainrings just for these now rare oddball cranks.
Salamandrine is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
