Clip in the middle of hubs

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Clip in the middle of hubs

Old 06-18-19, 05:13 AM
  #1
Wharf Rat
Senior Member
Thread Starter

Join Date: Jan 2017
Location: South Jersey
Posts: 83

Bikes: Cannondale ST400, Trek 750

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 28 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Clip in the middle of hubs

I see these on some older hubs. Looks like some sort of clip right in the middle. Can someone tell me what they are?
Thanks
Wharf Rat is offline
Old 06-18-19, 05:46 AM
  #2
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,829
Mentioned: 431 Post(s)
Tagged: 1 Thread(s)
Quoted: 2474 Post(s)
Likes: 0
Liked 58 Times in 54 Posts
The clips cover a small hole that was used to add oil. Grease is basically a soap-like carrier with oil added. The pre-synthetic greases would loose the oil and harden over time. You would periodically add oil through the port under the clip to "refreshen" the grease. Also, there were some cases where cyclists preferred to use oil over grease, such as track racers and time trialists. Way back in the 1890s, during the first bicycle boom, one of the hot topics of debate was whether it was better to oil or grease hubs,

Last edited by T-Mar; 06-18-19 at 05:50 AM.
T-Mar is offline
Old 06-18-19, 07:04 AM
  #3
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 20,429

Bikes: Several, mostly not name brands.

Mentioned: 110 Post(s)
Tagged: 0 Thread(s)
Quoted: 1697 Post(s)
Liked 61 Times in 41 Posts
Originally Posted by T-Mar View Post
there were some cases where cyclists preferred to use oil over grease, such as track racers and time trialists.
I've always found it curious that Campagnolo's Record road hubs had an oil port in the hub shell, but the Record track hubs did not. They both had a small port in the dustcap, so I guess that's how you were expected to add oil to the track hubs.
JohnDThompson is offline
Old 06-18-19, 07:31 AM
  #4
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 25,754
Mentioned: 32 Post(s)
Tagged: 1 Thread(s)
Quoted: 346 Post(s)
Liked 58 Times in 48 Posts
Itís where you add speed.
EVERYONE knows that....right?
RobbieTunes is offline
Likes For RobbieTunes:
Old 06-18-19, 07:32 AM
  #5
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,829
Mentioned: 431 Post(s)
Tagged: 1 Thread(s)
Quoted: 2474 Post(s)
Likes: 0
Liked 58 Times in 54 Posts
As an afterthought, I guess they should be referred to more generically as a lubrication ports, as some cyclists did use them to inject grease.
T-Mar is offline
Old 06-18-19, 07:37 AM
  #6
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,829
Mentioned: 431 Post(s)
Tagged: 1 Thread(s)
Quoted: 2474 Post(s)
Likes: 0
Liked 58 Times in 54 Posts
Originally Posted by JohnDThompson View Post
I've always found it curious that Campagnolo's Record road hubs had an oil port in the hub shell, but the Record track hubs did not. They both had a small port in the dustcap, so I guess that's how you were expected to add oil to the track hubs.
I always liked the two piece plastic dust caps that were introduced on New Dura-Ace (7400 series). The lubrication ports could be opened and closed, and they are so much easier to remove and install than metal dust caps.
T-Mar is offline
Old 06-18-19, 11:42 AM
  #7
SurferRosa
Senior Member

SurferRosa's Avatar

Join Date: Dec 2018
Posts: 891

Bikes: old school 531c & campy

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 369 Post(s)
Liked 47 Times in 33 Posts
Originally Posted by Wharf Rat View Post
I see these on some older hubs. Looks like some sort of clip right in the middle. Can someone tell me what they are?
Thanks
They're called oil clips, but they are just for aesthetics, not for oiling anymore. They look ... right. Campy hubs without them, like the nuovo tipo, look naked, like something is missing.
SurferRosa is offline
Old 06-18-19, 11:53 AM
  #8
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 2,868
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 650 Post(s)
Liked 49 Times in 42 Posts
Originally Posted by T-Mar View Post
Way back in the 1890s, during the first bicycle boom, one of the hot topics of debate was whether it was better to oil or grease hubs,
Given the content of many a thread here, the wheels of debate are among the best-lubricated and longest-running.....
madpogue is offline
Old 06-18-19, 12:00 PM
  #9
DiabloScott
It's MY mountain

DiabloScott's Avatar

Join Date: Sep 2006
Location: Mt.Diablo
Posts: 8,614

Bikes: Klein, Merckx, Trek

Mentioned: 57 Post(s)
Tagged: 0 Thread(s)
Quoted: 2195 Post(s)
Liked 31 Times in 18 Posts
Originally Posted by madpogue View Post
Given the content of many a thread here, the wheels of debate are among the best-lubricated and longest-running.....
They were reportedly so good, that some people were known to draw fake oil hole covers on plain hubs.
DiabloScott is offline
Old 06-18-19, 12:56 PM
  #10
Wharf Rat
Senior Member
Thread Starter

Join Date: Jan 2017
Location: South Jersey
Posts: 83

Bikes: Cannondale ST400, Trek 750

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 28 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I wouldíve never guessed thatís what they were for. Thanks for solving that mystery for me.
Wharf Rat is offline
Old 06-18-19, 01:08 PM
  #11
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 9,096

Bikes: Centurion Ironman, Trek 5900, Univega Via Carisma, Globe Carmel

Mentioned: 157 Post(s)
Tagged: 0 Thread(s)
Quoted: 2771 Post(s)
Liked 141 Times in 115 Posts
If you spot those on camera lenses, they're for refreshing the bokeh.
canklecat is offline
Likes For canklecat:
Old 06-18-19, 02:26 PM
  #12
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 2,868
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 650 Post(s)
Liked 49 Times in 42 Posts
^^^^ Important. Nothing worse than the smell of stale bokeh....

Who knew that, back when we used what are now "C&V" 35mm cameras (before they were C or V), that one day there would be a high-falutin' word for "the stuff that's intentionally out of focus"?

(Gets me thinking - if I mount my 45-year-old 10.5cm F2.5 full manual AI-hacked lens on my D750, can I call the out-of-focus background "bokeh"?)
madpogue is offline
Likes For madpogue:
Old 06-18-19, 03:43 PM
  #13
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 2,765
Mentioned: 89 Post(s)
Tagged: 0 Thread(s)
Quoted: 970 Post(s)
Likes: 0
Liked 5 Times in 5 Posts
Originally Posted by RobbieTunes View Post
Itís where you add speed.
EVERYONE knows that....right?
Yup!, Speed Juice Ports!
Chombi1 is offline
Old 06-18-19, 04:36 PM
  #14
robertorolfo
Senior Member

robertorolfo's Avatar

Join Date: Jul 2017
Location: Queens, NY for now...
Posts: 1,031

Bikes: 82/82 Lotus Unique, 86 Lotus Legend, 89 Basso PR

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 583 Post(s)
Liked 33 Times in 23 Posts
Originally Posted by Chombi1 View Post
Yup!, Speed Juice Ports!
Maybe also, "Intimidation Ports", because if you see someone (or better yet, their mechanic) putting some oil in on the starting line of a race, you know that guy means business.
robertorolfo is offline
Old 06-18-19, 05:00 PM
  #15
Bandera
~>~

Join Date: Mar 2013
Location: TX Hill Country
Posts: 5,808
Mentioned: 85 Post(s)
Tagged: 0 Thread(s)
Quoted: 1037 Post(s)
Liked 62 Times in 38 Posts
"Back when" there was a new guy in the club who fancied himself an Expert on the TT and endlessly slagged on and on about how we simply had no clue on how to set-up for the event.
Considering that this was in the day before dedicated funny bikes existed and the total prep for a TT was:

1) Bury stem
B) Fit straight-block on race wheels
III) Attach mechanical stopwatch holder to bars (don't forget to wind the watch)
4) Have at it

I was informed that the only way to be competitive was to replace bearing grease with Oil, which he dutifully pumped into the oil port on his Campag hubs before the start.
At "3-2-1 Go!" he slipped his rear wheel on the held start having never tested it's QR security in a big gear launch and promptly fell over in a heap to DNF while leaking oil onto the road having gone nowhere. An impressive demonstration of paying rapt attention to the less than marginal while totally ignoring the completely Essential.

I still laugh about that many years on, he is forever known as "Slippery_Sam" to us.

-Bandera
__________________
'74 Raleigh Internat'l. '77 Trek TX900 FG. '90 Vitus 979. '10 Merckx EMX3. '13 Soma Stanyan

Last edited by Bandera; 06-18-19 at 05:11 PM.
Bandera is offline
Old 06-18-19, 11:41 PM
  #16
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 9,096

Bikes: Centurion Ironman, Trek 5900, Univega Via Carisma, Globe Carmel

Mentioned: 157 Post(s)
Tagged: 0 Thread(s)
Quoted: 2771 Post(s)
Liked 141 Times in 115 Posts
Originally Posted by madpogue View Post
^^^^ Important. Nothing worse than the smell of stale bokeh....
Did Sigma include bokeh calibration with their USB Dock?

Who knew that, back when we used what are now "C&V" 35mm cameras (before they were C or V), that one day there would be a high-falutin' word for "the stuff that's intentionally out of focus"?
I blame/thank Mike Johnston for creating the bokeh craze in the US. As a writer/editor for Photo Techniques in the '90s, Mike wrote about the Japanese concept of boke, changing the spelling to bokeh to help Americans with the approximate pronunciation. For years, even to most Japanese folks, boke just referred to one's dotty, forgetful or foolish uncle ("fuzzy" headed, like fuzzy out of focus areas). Johnston basically conveyed the concept of bokeh as a description of the subjective *quality* of the out of focus areas, so there was good, bad and middling bokeh.

(Gets me thinking - if I mount my 45-year-old 10.5cm F2.5 full manual AI-hacked lens on my D750, can I call the out-of-focus background "bokeh"?)
Why not? My 105/2.5 AI Nikkor is one of the best lenses I've ever owned, sharp even wide open with generally good bokeh. But most Nikkors show what the Japanese called nisen-bokeh, with rather harsh edges, often doubled or tripled, a result of over-correction in pursuit of optimal sharpness, contrast, etc. The best Nikkor bokeh I've seen is with my old pre-AI 180/2.8 ED. The 85/2 AI-S is very good too. Most of my Nikkors show that nisen-bokeh. Older Canon FD and pre-FD lenses often had more pleasant bokeh. But if you ask Olympus fans, Zuikos were pre-injected at the factory with the best bokeh, then the bokeh injection port was sealed so only Maitani could reach it again.
canklecat is offline
Old 06-19-19, 12:45 AM
  #17
Dave Mayer
Senior Member

Join Date: Dec 2006
Posts: 1,801
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 592 Post(s)
Likes: 0
Liked 9 Times in 8 Posts
Originally Posted by Wharf Rat View Post
I see these on some older hubs. Looks like some sort of clip right in the middle. Can someone tell me what they are?
Thanks
Holes are for grease injection. Slide the cover to the side and pump the hub with grease until the old contaminated stuff shoots out both sides. Hubs are now good as overhauled.

Anticipating the concerns of fussy and pedantic C&V individuals here, I will respond in advance that yes, the extra grease in the hub shell will add 0.2 Watts of extra resistance, until the surplus oozes out over time.

And yes, purging with grease will not clean out 100% of the old. The horror. Maybe only 95% clean. Repeat the purge and now only 5% of 5% remains. Clean enough now?

The old Campagnolo Record freewheel hubs were the best wet weather hubs ever made. No seals. But since it only takes a few minutes to clean out the internals of these by grease injection, they could last forever. These are the hubs I used on my rain bike.
Dave Mayer is offline
Old 06-19-19, 04:56 AM
  #18
rootboy
Senior Member

rootboy's Avatar

Join Date: Apr 2005
Location: Wherever
Posts: 16,621
Mentioned: 75 Post(s)
Tagged: 0 Thread(s)
Quoted: 493 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
I obviously need to inject some speed juice into my bokeh ports.
If only I could find the right nozzle.
rootboy is offline
Old 06-19-19, 05:10 AM
  #19
Kabuki12
Senior Member

Kabuki12's Avatar

Join Date: Jan 2016
Location: Ventura County ,California
Posts: 414

Bikes: 1973 Windsor Profesional,1976 Kabuki diamond formula with full Campy, 1977 Raleigh Competition GS , 1971 Stella original Campy equip. 1978 Raleigh Super Grand Prix, 1972 Italvega Gran Rally ,1972 Super Mondia Special

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 96 Post(s)
Likes: 0
Liked 12 Times in 10 Posts
Originally Posted by Dave Mayer View Post
Holes are for grease injection. Slide the cover to the side and pump the hub with grease until the old contaminated stuff shoots out both sides. Hubs are now good as overhauled.

Anticipating the concerns of fussy and pedantic C&V individuals here, I will respond in advance that yes, the extra grease in the hub shell will add 0.2 Watts of extra resistance, until the surplus oozes out over time.

And yes, purging with grease will not clean out 100% of the old. The horror. Maybe only 95% clean. Repeat the purge and now only 5% of 5% remains. Clean enough now?

The old Campagnolo Record freewheel hubs were the best wet weather hubs ever made. No seals. But since it only takes a few minutes to clean out the internals of these by grease injection, they could last forever. These are the hubs I used on my rain bike.
What type of attachment would one use for use on a standard grease gun to use this method? Sounds a lot easier than taking the cones apart. Joe
Kabuki12 is offline
Old 06-19-19, 05:47 AM
  #20
top506
Death fork? Naaaah!!

top506's Avatar

Join Date: Nov 2005
Location: The other Maine, north of RT 2
Posts: 4,567

Bikes: '71 Gitane Super Corsa, '73 Atala Giro d'Italia, '73 Schwinn Super Sport, '76 Viscount Aerospace Pro, '81 Miyata 710, '84 Ross Signature 290s, '85 Miele Gara, '87 Miyata 512, '89 Centurion Ironman, many more

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 274 Post(s)
Likes: 0
Liked 5 Times in 5 Posts
Originally Posted by canklecat View Post


But most Nikkors show what the Japanese called nisen-bokeh, with rather harsh edges, often doubled or tripled, a result of over-correction in pursuit of optimal sharpness, contrast, etc. The best Nikkor bokeh I've seen is with my old pre-AI 180/2.8 ED. The 85/2 AI-S is very good too. Most of my Nikkors show that nisen-bokeh. Older Canon FD and pre-FD lenses often had more pleasant bokeh. But if you ask Olympus fans, Zuikos were pre-injected at the factory with the best bokeh, then the bokeh injection port was sealed so only Maitani could reach it again.
You want bokeh? Try the single coated pre-war Zeiss Sonnars, notably
the 80/2.

Top
__________________
You know it's going to be a good day when the stem and seatpost come right out.

(looking for a picture and not seeing it? Thank the Photobucket fiasco.PM me and I'll link it up.)
top506 is offline
Old 06-19-19, 06:21 AM
  #21
tiger1964
Senior Member

tiger1964's Avatar

Join Date: Apr 2011
Location: Maryland
Posts: 686

Bikes: Drysdale/Gitane/Zeus/Palo-Alto/Falcon

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 171 Post(s)
Liked 11 Times in 7 Posts
Originally Posted by SurferRosa View Post
They're called oil clips, but they are just for aesthetics, not for oiling anymore. They look ... right. Campy hubs without them, like the nuovo tipo, look naked, like something is missing.
Perhaps someone (VO?) should come out with a retrofit kit. Or at least a decal.
tiger1964 is offline
Old 06-19-19, 06:33 AM
  #22
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,829
Mentioned: 431 Post(s)
Tagged: 1 Thread(s)
Quoted: 2474 Post(s)
Likes: 0
Liked 58 Times in 54 Posts

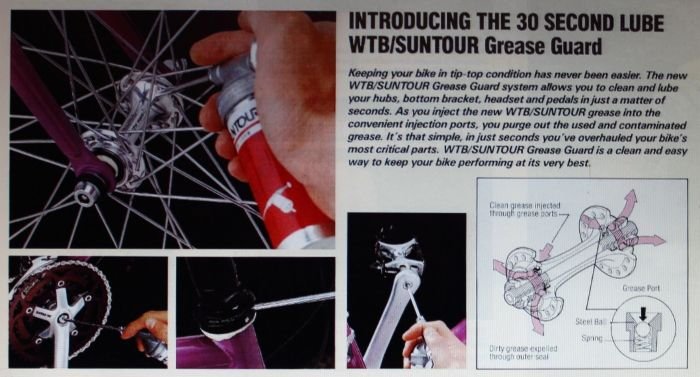

Circa 1989, SunTour licensed Wilderness trail Bikes' Grease Guard technology which used a Zerk-like fitting to inject grease into hubs, bottom brackets, pedals and headsets. It was used on their top of the line ATB group, XC Pro. Unlike the traditional hub lubrication ports, the grease Guard hubs had two ports, directly adjacent to the bearing races.
T-Mar is offline
Old 06-19-19, 07:24 AM
  #23
momoman
Junior Member

Join Date: Jul 2013
Posts: 20
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Likes: 0
Liked 3 Times in 2 Posts
Originally Posted by Dave Mayer View Post
Holes are for grease injection. Slide the cover to the side and pump the hub with grease until the old contaminated stuff shoots out both sides. Hubs are now good as overhauled.

Anticipating the concerns of fussy and pedantic C&V individuals here, I will respond in advance that yes, the extra grease in the hub shell will add 0.2 Watts of extra resistance, until the surplus oozes out over time.

And yes, purging with grease will not clean out 100% of the old. The horror. Maybe only 95% clean. Repeat the purge and now only 5% of 5% remains. Clean enough now?

The old Campagnolo Record freewheel hubs were the best wet weather hubs ever made. No seals. But since it only takes a few minutes to clean out the internals of these by grease injection, they could last forever. These are the hubs I used on my rain bike.
About 7 years ago when I got back into riding I only had my vintage Trek 760 with campy hubs hanging in my garage. It had been hanging there for 20 yrs or so. When I asked one of my old biking buddies if I could borrow his cone wrenches he told me to do exactly what you said instead. He lent me his grease gun with Phil Wood grease and told me to squirt away. I had never thought of that......
momoman is offline
Old 06-19-19, 12:28 PM
  #24
Dave Mayer
Senior Member

Join Date: Dec 2006
Posts: 1,801
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 592 Post(s)
Likes: 0
Liked 9 Times in 8 Posts
Grease injection is a major timesaver, plus avoids the risk of mis-adjustments on bearing setup.

I never disassemble pedals anymore for cleaning. Fussy setup and a million little ball bearings. If they are set up reasonably, I just blast new grease in from the outside of the pedal (usually a hole in the dustcap). The old stuff gets pushed out towards the inside for cleanup.

If the pedals do not have an injection port, then I remove the dustcap and drill one.
Dave Mayer is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
