I got nice frame. but what is it?

I made a good deal on very nice frame.
Raw steel - previous owner states it was never painted and frame is probably made in 1970's. (it could also be professionally stripped and cleaned but I can not see any at all sign of paint even in deepest darkest hole...

No serial number or any factory marks on it , only two marks on seat lug, but one is R (on the right side) and other is <F l> (on the left side so that can be just mark for sides and front of lug... ) Frame could be custom made, is quite small and has campagnolo dropouts.

I'm thinking of leave it as a raw steel (just a bit of polish). at the moment I rubbed boiled linseed oil just in case but there is no signs of rust on that frame - if its really from 70's that is quite unusual - specially in irish wet conditions...








fdx is offline
Old 09-24-18, 09:28 AM
  #2
lostarchitect
incazzare.

lostarchitect's Avatar

Join Date: Mar 2010
Location: Brooklyn, NY
Posts: 6,897

Bikes: See sig

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Likes: 0
Liked 5 Times in 4 Posts

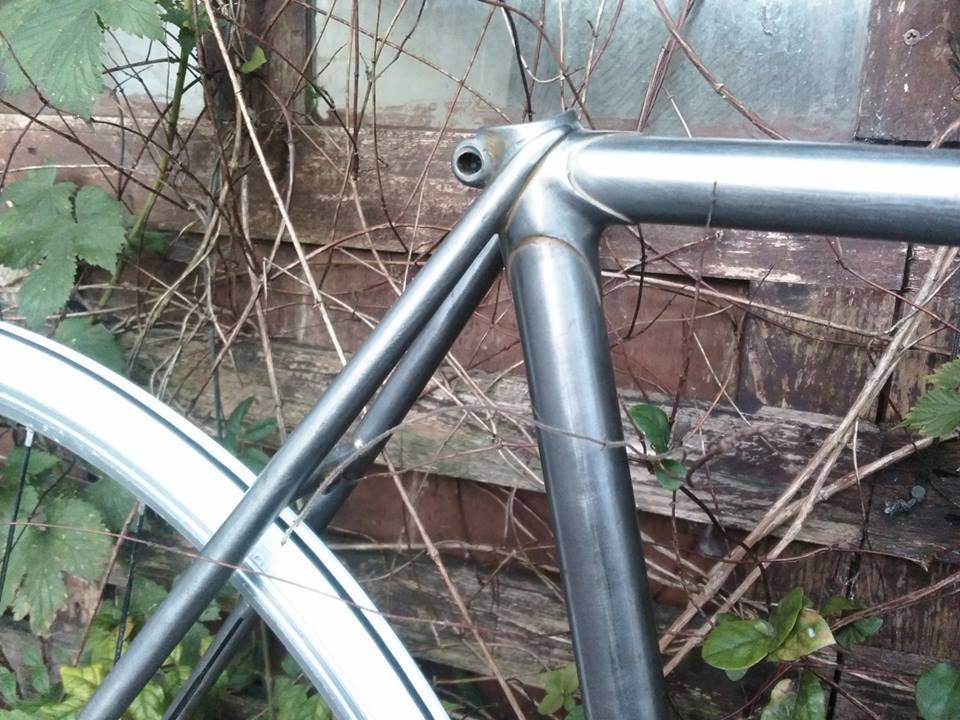

I don't know what is is, but the wraparound stay detail is often seen on English bikes. Based on the braze-ons (or lack thereof) I would guess it is mid-70's or earlier.
__________________
1964 JRJ (Bob Jackson), 1973 Wes Mason, 1974 Raleigh Gran Sport, 1986 Schwinn High Sierra, 2000ish Colian (Colin Laing), 2011 Dick Chafe, 2013 Velo Orange Pass Hunter
lostarchitect is offline
Old 09-24-18, 10:02 AM
  #3
fdx
Member
Thread Starter

Join Date: Sep 2018
Posts: 42
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Likes: 0
Liked 1 Time in 1 Post

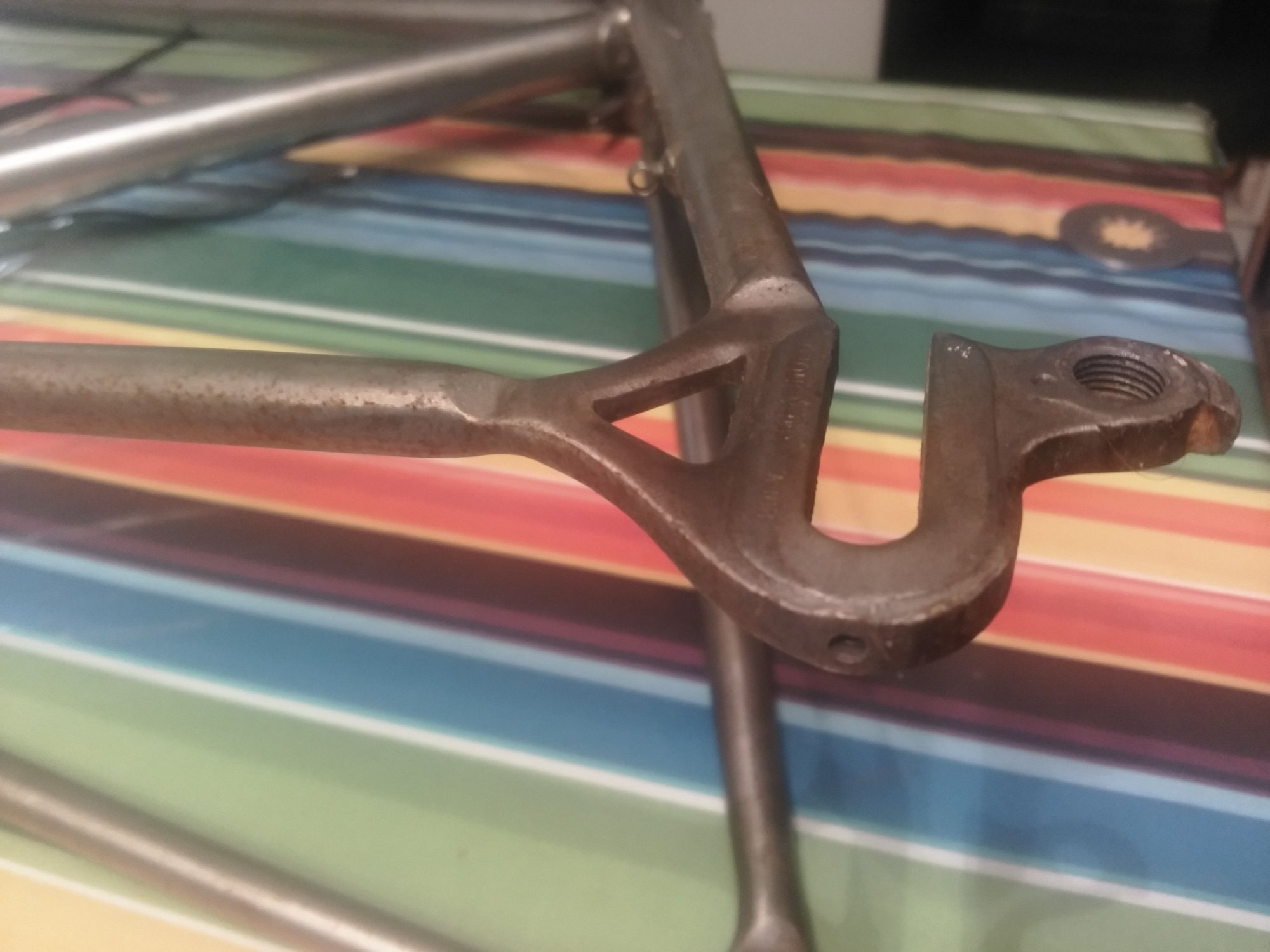

The only braze-on is that little thing on chainstay.
fdx is offline
Old 09-24-18, 12:02 PM
  #4
lostarchitect
incazzare.

lostarchitect's Avatar

Join Date: Mar 2010
Location: Brooklyn, NY
Posts: 6,897

Bikes: See sig

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Likes: 0
Liked 5 Times in 4 Posts
Originally Posted by fdx View Post
The only braze-on is that little thing on chainstay.

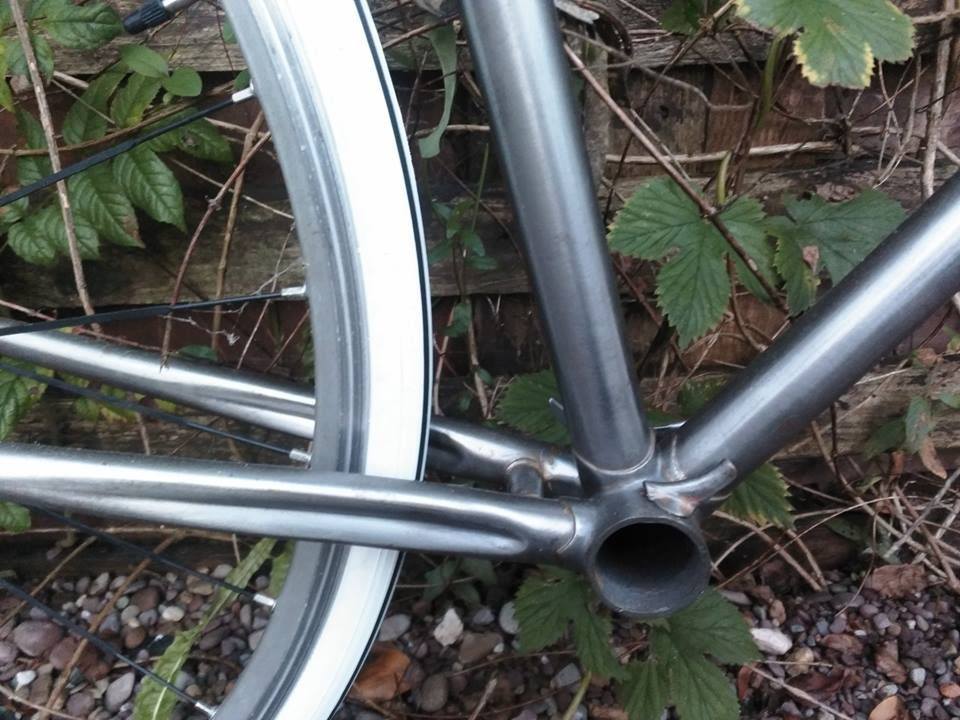

And the over the BB cable guides. That and the chainstay stop are what I was referring to.
__________________
1964 JRJ (Bob Jackson), 1973 Wes Mason, 1974 Raleigh Gran Sport, 1986 Schwinn High Sierra, 2000ish Colian (Colin Laing), 2011 Dick Chafe, 2013 Velo Orange Pass Hunter
lostarchitect is offline
Old 09-24-18, 01:46 PM
  #5
gbi
Senior Member

Join Date: Apr 2012
Posts: 277
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 64 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
The wraparound stay reminds me of Falcon, Carlton, raleigh and Urago.
But, it does not look quite right for any of them.

Last edited by gbi; 09-24-18 at 02:02 PM.
gbi is offline
Old 09-24-18, 09:07 PM
  #6
obrentharris
Senior Member

obrentharris's Avatar

Join Date: May 2012
Location: San Francisco Bay Area
Posts: 2,420

Bikes: fewer (n-1)

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 552 Post(s)
Likes: 0
Liked 11 Times in 10 Posts
I see a head badge hole. The hole pattern and distance between holes will help in identification.
Brent
obrentharris is offline
Old 09-24-18, 11:39 PM
  #7
fdx
Member
Thread Starter

Join Date: Sep 2018
Posts: 42
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by obrentharris View Post
I see a head badge hole. The hole pattern and distance between holes will help in identification.
Brent
Those holes are one inch apart, just top off the middle of head part.
I compared tubes to another bike that I know for sure it wasnt painted as I got raw frame from frame builder and I think this bike was painted before.
Someone did a really good job stripping and cleaning it (but was not sandblasted)

I usually dont really care what brand of bike I'm working on - especially that I usually got frames or whole bikes for free or very cheap. but I really wonder this time. If should I try to repaint it as it was sometime ago and try to restore it or just follow my imagination. like here:



Last edited by fdx; 09-24-18 at 11:43 PM. Reason: add some thoughts.
fdx is offline
Old 09-25-18, 06:07 AM
  #8
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 19,074

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 438 Post(s)
Tagged: 0 Thread(s)
Quoted: 1538 Post(s)
Likes: 0
Liked 10 Times in 10 Posts
What's the threading? What's the seat post size?


There is a word, of which i see only four letters --[ . . . ] R E R A -- on the left side of the seat lug, just below where the seat stay is brazed on; they are filled with brass and filed smooth, with more letters presumably lost in the glare. Can you read them? They will probably only identify the lug manufacturer, rather than the frame manufacturer, but still... a good clue. I wonder what @juvela knows about this.

The long crimp on the outside of the drive side chain stay is pretty distinctive. I can't recall ever seeing that before. Should be a clue.

The same goes for the <FI> stamp on the seat lug.

It appears to be a very nice frame, and knowing who made it would probably enhance its value. But, that said, I can't identify it.
__________________
I put new leather on ruined saddles like Brooks, etc. You can reach me by private message.

Last edited by rhm; 09-25-18 at 06:29 AM.
rhm is offline
Old 09-25-18, 06:47 AM
  #9
fdx
Member
Thread Starter

Join Date: Sep 2018
Posts: 42
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by rhm View Post
What's the threading? What's the seat post size?


There is a word, of which i see only four letters --[ . . . ] R E R A --
I'll check thread and seatpost size in the evening.

Never realize that there are letters in there... I looked at the frame closely but not close enough... Need to take some strong light and investigate whole thing once more. maybe there will be some more clues.
fdx is offline
Old 09-25-18, 07:14 AM
  #10
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 8,117
Mentioned: 213 Post(s)
Tagged: 1 Thread(s)
Quoted: 1619 Post(s)
Liked 30 Times in 27 Posts
-----

You mention that ends set is Campag.

Is it a regular 1010 or something else?

From image of whole frame I would have guessed something else...but perhaps it is just me annuated occipital receptors...

Do fork ends match dropouts? They appear to be without eyelets like the rear. You could check both the front and rear for evidence of eyelet removal. This was a minor fad amongst enthusiasts at one time in the interest of "lightening." [think "Drewing"]

Frame appears to be conceived in a "sports - recreation" geometry rather than "racing" so the absence of eyelets is slightly surprising.

In Italian the F I marking is sometimes employed to indicate Filetaggio Inglese (English thread). This is moot here since it is pretty clear we are dealing with an anglophone product.

Excellent observations @rhm. Sorry I have little to contribute.

-----

Last edited by juvela; 09-25-18 at 07:26 AM. Reason: addition
juvela is offline
Old 09-25-18, 11:56 PM
  #11
fdx
Member
Thread Starter

Join Date: Sep 2018
Posts: 42
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Seat post 28mm
Bottom bracket is slightly larger than english type. I'm unable to check what thread it is at the moment rought messure shows 35mm .

Sign on seat lug is ERRERA with possible F, H T or something on the front (there is one more line but cannot see what letter could
it be (or part of letter). google shows some results for Herrera that have something to do with bicycles. Most likely Herrera was a name of frame builder who made this frame.
(all I have to do is call all frame builders in the world asking to speak with Herrera guy...)

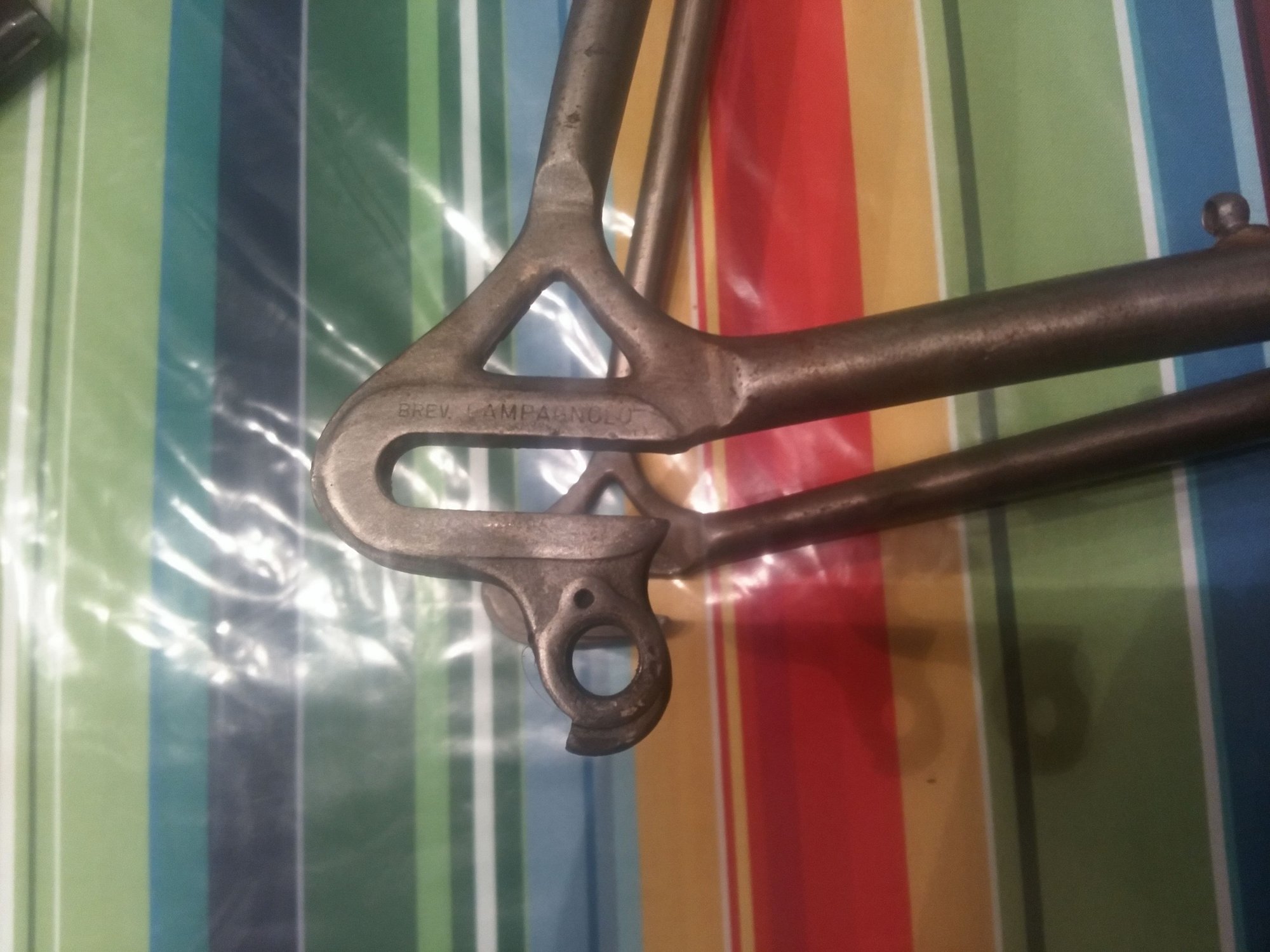

Dropouts campagnolo wth no sign of eyelets removal. front are campagnolo as well.


Last edited by fdx; 09-26-18 at 12:07 AM.
fdx is offline
Old 09-26-18, 12:13 AM
  #12
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 8,117
Mentioned: 213 Post(s)
Tagged: 1 Thread(s)
Quoted: 1619 Post(s)
Liked 30 Times in 27 Posts
-----

Thanks very much for the additional information and photos.

When @rhm asked about seat post size he was inquiring about the diameter of the seat post (saddle pillar). A size of 28.0mm would be a metric dimension seat tube outside diameter (part of frame). A frame constructed of BSC or Italian dimension tubes would have an outside diameter of the seat tube of 28.6mm. When taking measurements of this type it is prudent to check more than one spot as there can be irregularities due to brazing heat, etc.

​​​​​​​-----
juvela is offline
Old 09-26-18, 05:50 AM
  #13
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 17,823
Mentioned: 431 Post(s)
Tagged: 1 Thread(s)
Quoted: 2473 Post(s)
Likes: 0
Liked 58 Times in 54 Posts
The stamping on the seat lug may indicate Giuseppe Ferrera, an Italian framebuilder who reportedly built some of Roger de Vlaeminck's frames, along with those for many Italian amateur teams. In the mid-1980s he was recruited by Jim Miele and came to Canada, where he set up and oversaw the Guvin manufacturing operations. He also designed the top Miele models. I'm not familiar with his pre-Miele work, so I can't say if this is one of his frames but it's a possibility based on the seat lug stamping.

Given the spring mounting hole in the rear dropout, I'd place the frame no later than very early 1970s.
T-Mar is offline
Old 09-26-18, 05:52 AM
  #14
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 8,117
Mentioned: 213 Post(s)
Tagged: 1 Thread(s)
Quoted: 1619 Post(s)
Liked 30 Times in 27 Posts
-----

[mobile format software not permitting me to edit message, hence this addendum]

If tube set used to construct frame proves of metric dimension national origin possibilities are limited to BE (Walloon), CH, ES & FR.

​​​​​​​-----
juvela is offline
Old 09-26-18, 02:26 PM
  #15
MauriceMoss
Senior Member

MauriceMoss's Avatar

Join Date: Aug 2014
Location: Los Angeles, CA
Posts: 347

Bikes: None in ridable condition

Mentioned: 57 Post(s)
Tagged: 0 Thread(s)
Quoted: 56 Post(s)
Liked 22 Times in 14 Posts
This frame looks like the work of Mario Peloso (Alessandria). Even though I don't have any pics of an exact match, I'd be surprised if it didn't come out of his shop.

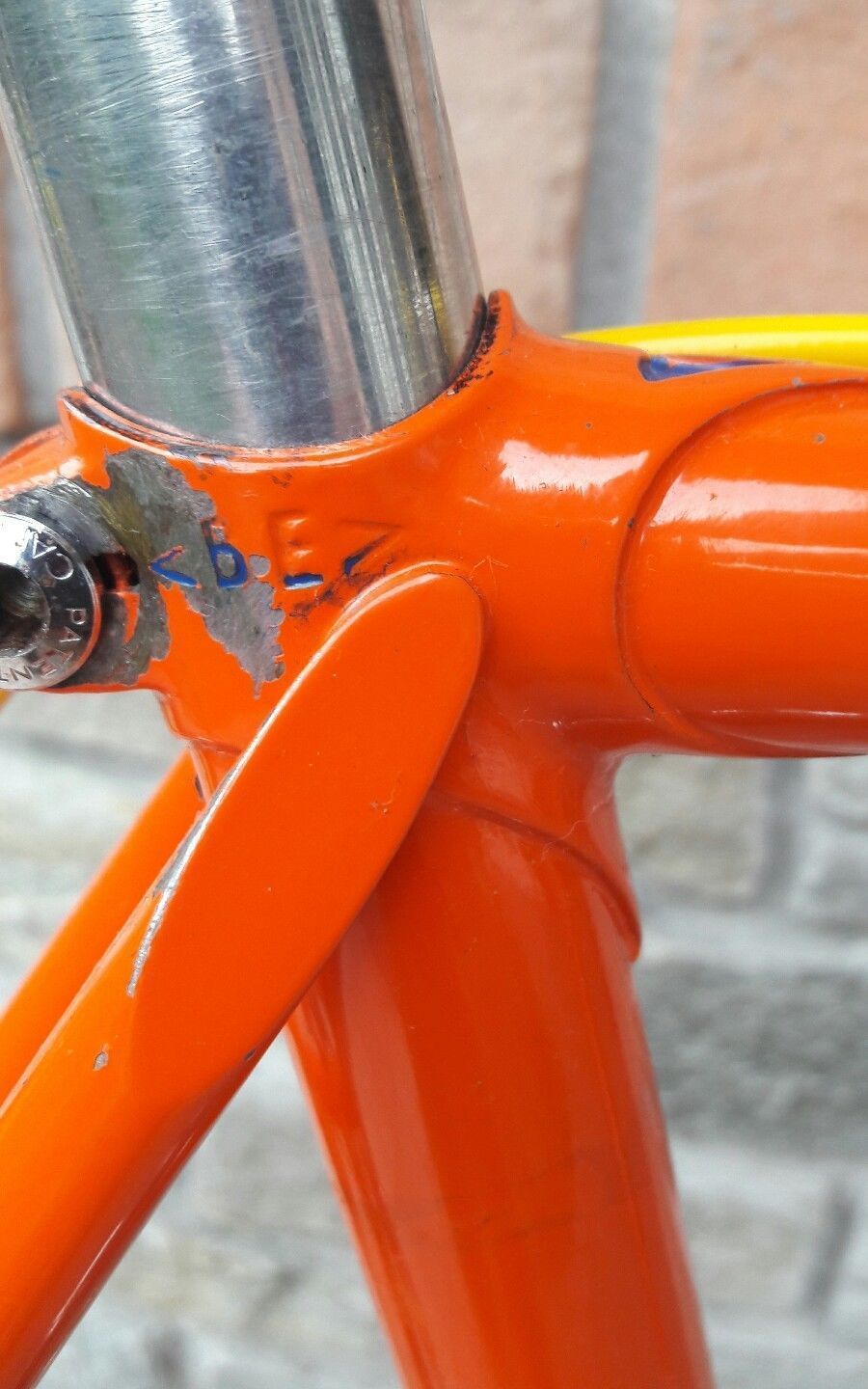

Peloso built custom frames and generally would have initials of the customer (or another shop he built for - see the Suzzi frame below) stamped on the seat lug in the format seen on your frame.

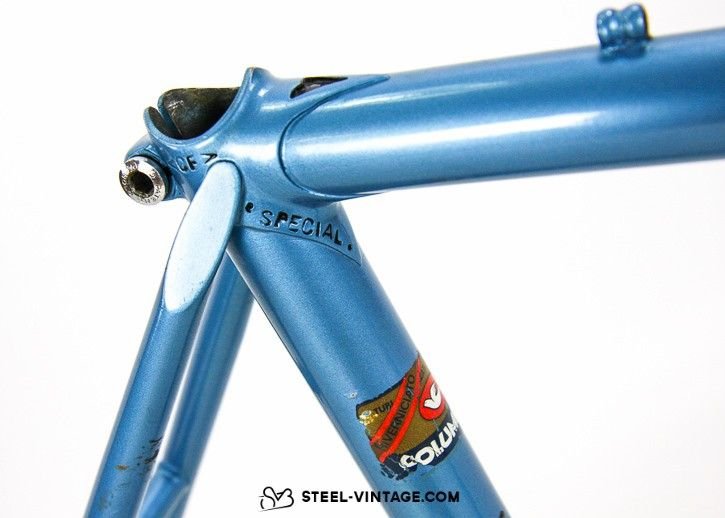

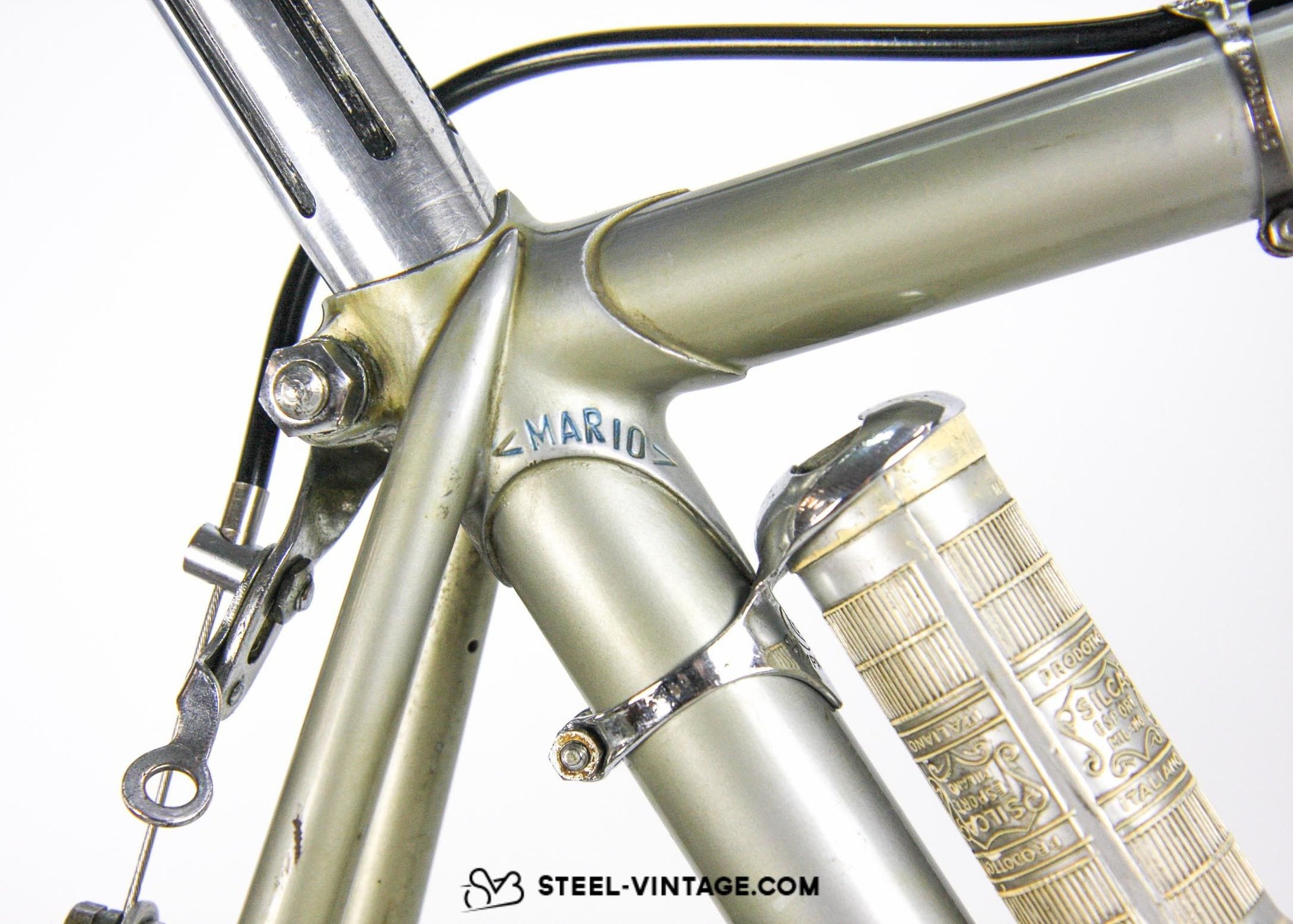

Sometimes full first or last names would be stamped, some had "Peloso" and some had words like "Special" (not sure if those indicate some sort of model).
Perhaps on your frame the word was filled in with brass because the original order didn't go through as planned? Who knows.

Peloso head badges were attached with two horizontal rivets. The little port on the underside of the bottom bracket shell was also common on Peloso frames of the era.

You can find a bit more info on Peloso in this post by Mike Barry,
and another one that dovetails with it from an Italian who knew Peloso back in the day (it's in Italian so you'll have to use Google translate - just remember that any time you see the word "hairy" it's actually "Peloso" ).

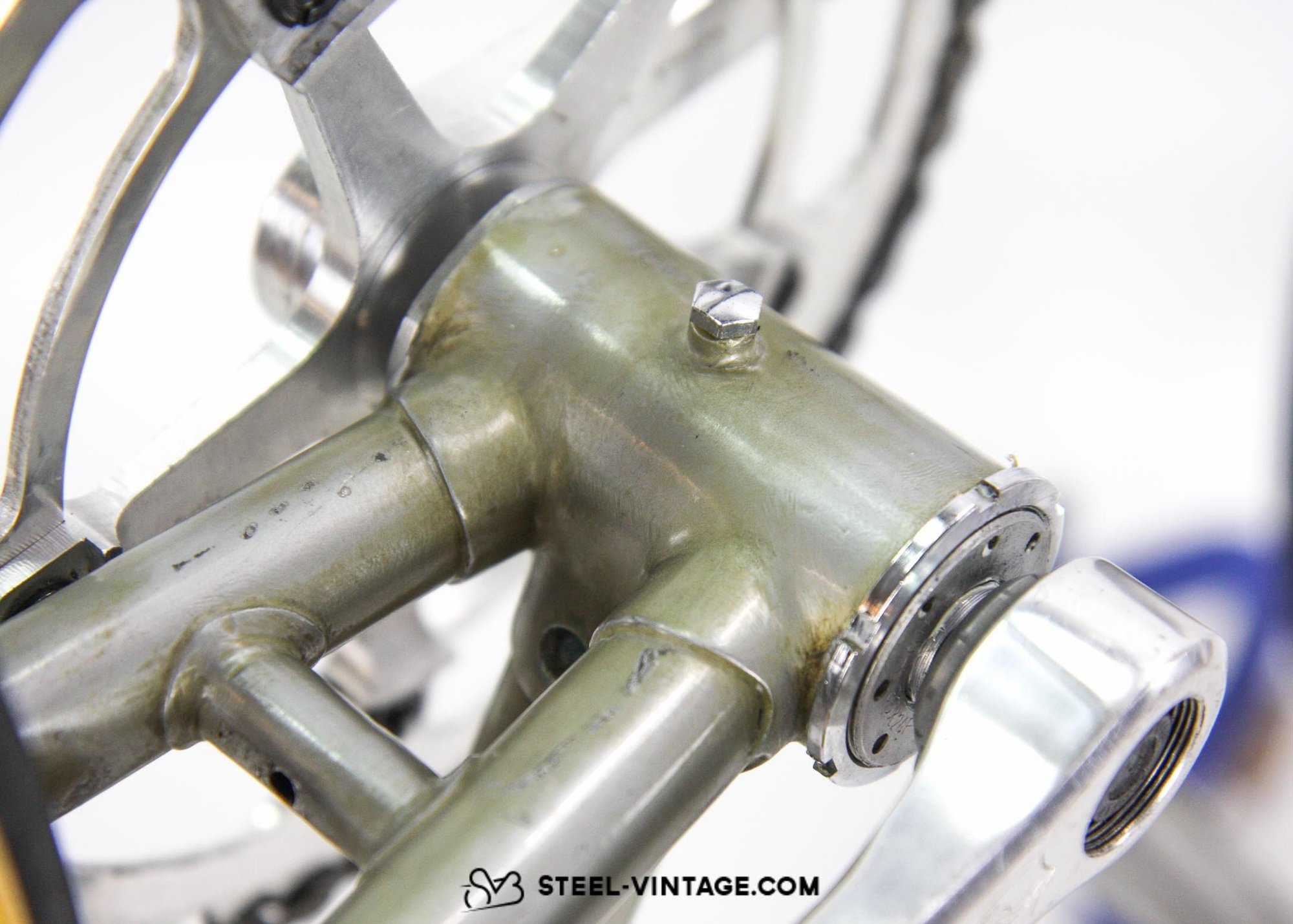

Here are some examples, starting with one that has similar seat stay treatment (which wasn't common on Peloso frames) as well as the long chainstay crimp:











Suzzi by Peloso:
MauriceMoss is offline
Old 09-26-18, 02:57 PM
  #16
lostarchitect
incazzare.

lostarchitect's Avatar

Join Date: Mar 2010
Location: Brooklyn, NY
Posts: 6,897

Bikes: See sig

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Likes: 0
Liked 5 Times in 4 Posts
Wow, MariceMoss seems like he solved it! Nice.
__________________
1964 JRJ (Bob Jackson), 1973 Wes Mason, 1974 Raleigh Gran Sport, 1986 Schwinn High Sierra, 2000ish Colian (Colin Laing), 2011 Dick Chafe, 2013 Velo Orange Pass Hunter
lostarchitect is offline
Old 09-27-18, 02:19 AM
  #17
fdx
Member
Thread Starter

Join Date: Sep 2018
Posts: 42
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Maurice. BIG BIG THANK YOU
it could be Mario Peloso work.
I'll try to investigate it a little more to confirm that if possible. or maybe someone (friends or family of Mario) would have some sort of record of his work. Maybe there is a chance to find out who was the first owner of this frame. (and how this frame end up in Cork in Ireland).

Hopefully we are now on a correct path to know the history of this frame...
fdx is offline
Old 09-28-18, 02:06 AM
  #18
fdx
Member
Thread Starter

Join Date: Sep 2018
Posts: 42
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by MauriceMoss View Post
This frame looks like the work of Mario Peloso (Alessandria).
I found someone in Alessandria on warmshowers website who will be so kind to ask around. maybe I'll find some more info about it.

Thank you again
fdx is offline
Old 10-25-18, 04:40 AM
  #19
fdx
Member
Thread Starter

Join Date: Sep 2018
Posts: 42
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Likes: 0
Liked 1 Time in 1 Post
update for research.
I got in contact with Cosimo - 70yo bicycle mechanic who has small bicycle workshop in Spinetta Marengo near Alessandria, Italy
- he was working for Mario Peloso and after looking on pictures confirm that it is style of Peloso work, he confirmed that initials mark is Peloso work. He request for more photos and there is a hope I could find out when frame was built and who was the first owner.
Anyway Thanks to all of you one more time.
fdx is offline
Old 10-26-18, 12:19 PM
  #20
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 7,725

Bikes: Yes, please.

Mentioned: 190 Post(s)
Tagged: 0 Thread(s)
Quoted: 1055 Post(s)
Liked 40 Times in 32 Posts
Wonderful thread! Thank you, guys, for educating me.
__________________
Reasons to be cheerful!
non-fixie is offline
Old 10-26-18, 12:25 PM
  #21
ridelikeaturtle
Senior Member

ridelikeaturtle's Avatar

Join Date: Nov 2015
Location: Dublin, Ireland
Posts: 663

Bikes: Bianchi Ti Megatube, M Alloy Pro, Sprint 76; Amp Research B4; Colnago Crystal; Klein Pulse; Litespeed Catalyst

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 295 Post(s)
Liked 37 Times in 24 Posts
Agreed, great thread.
@fdx , where'd you find that in Cork? Can't seem to find anything decent that isn't stupidly overpriced in Dublin - people pulling frames out of the Liffey, calling it "vintage" and asking silly money.
ridelikeaturtle is offline
Old 10-26-18, 02:54 PM
  #22
fdx
Member
Thread Starter

Join Date: Sep 2018
Posts: 42
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Likes: 0
Liked 1 Time in 1 Post
I found it on adverts. it was 150euro. expensive but it is a decent vintage frame. very light and quite small. I think made for someone not taller than 170cm
In Ireland everything is overpriced. sometimes is cheaper to buy whole bike than frame or wheels.
fdx is offline
Old 10-31-18, 04:27 PM
  #23
smoore
Senior Member

smoore's Avatar

Join Date: Sep 2003
Location: Hour north of Atlanta, Gainesville GA
Posts: 808

Bikes: Primary ride now a LOOK 585-Love it.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 45 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Great thread!
smoore is offline
Old 11-01-18, 07:46 PM
  #24
MauriceMoss
Senior Member

MauriceMoss's Avatar

Join Date: Aug 2014
Location: Los Angeles, CA
Posts: 347

Bikes: None in ridable condition

Mentioned: 57 Post(s)
Tagged: 0 Thread(s)
Quoted: 56 Post(s)
Liked 22 Times in 14 Posts
Originally Posted by fdx View Post
update for research.

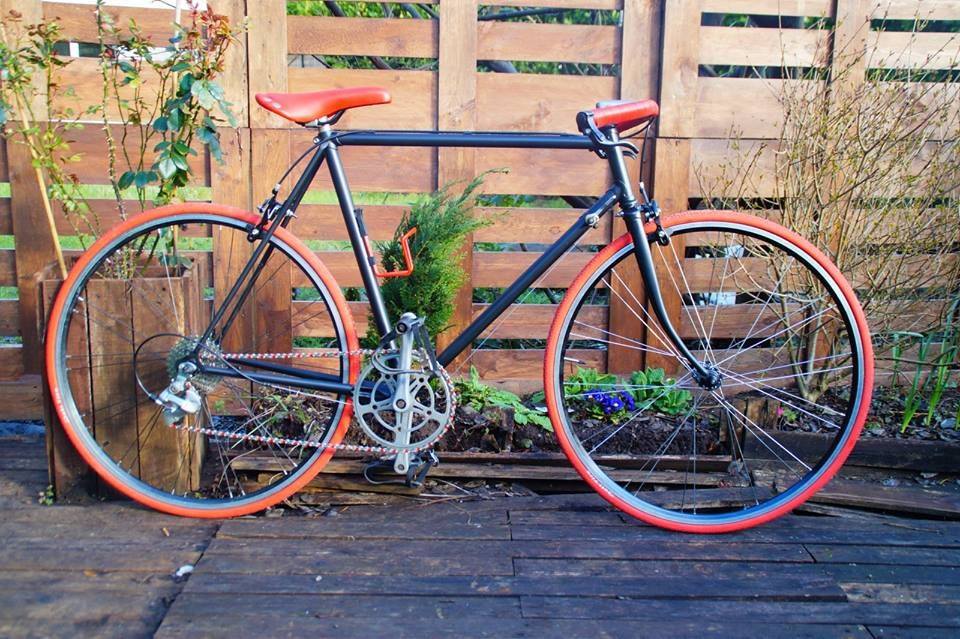

I got in contact with Cosimo - 70yo bicycle mechanic who has small bicycle workshop in Spinetta Marengo near Alessandria, Italy
- he was working for Mario Peloso and after looking on pictures confirm that it is style of Peloso work, he confirmed that initials mark is Peloso work. He request for more photos and there is a hope I could find out when frame was built and who was the first owner.
Anyway Thanks to all of you one more time.
I'm glad you got the confirmation and thank you for updating the thread!

I can think of a few dozen questions I'd like to ask Cosimo over a bottle of wine...
MauriceMoss is offline
Old 11-08-18, 12:47 PM
  #25
MiloFrance
Not riding enough

MiloFrance's Avatar

Join Date: Aug 2014
Location: Capestang, France
Posts: 1,155

Bikes: Lots of French, some British and a couple of Italian

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 171 Post(s)
Liked 2 Times in 2 Posts
Love tales from the past like this. Maurice, do you have an eidetic memory?
__________________
I'm on holiday whenever I ride my bike
MiloFrance is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
