Identifying Athena or Chorus monoplaner brakes
03-04-21, 07:33 AM
#1
Senior Member
Thread Starter
Identifying Athena or Chorus monoplaner brakes
I am pretty sure these are Athena, but not 100% sure as they seem to have changed over the years a little. Anyone know? Thanks for any help.
Likes For Ex Pres:
03-04-21, 08:12 AM
#3
Senior Member
Thread Starter
Originally Posted by Ex Pres
Not monoplaners
03-04-21, 08:17 AM
#4
Senior Member
Join Date: Feb 2020
Posts: 999
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 345 Post(s)
Likes: 0
Liked 333 Times
in
213 Posts
Originally Posted by h_curtis
I am pretty sure these are Athena, but not 100% sure as they seem to have changed over the years a little. Anyone know? Thanks for any help.
Likes For clubman:
03-04-21, 08:55 AM
#6
Senior Member
Join Date: Apr 2019
Location: Denver Metro, CO
Posts: 256
Bikes: 1982 Trek 613 | 1990 Bianchi Giro | 1999 LeMond Buenos Aires | 2002 LeMond Zurich Women's (SO's)
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 92 Post(s)
Liked 62 Times
in
51 Posts
Originally Posted by clubman
Here's what a Monoplaner looks like, see the slotted arms?
1988 Dealer Parts Catalog.
Athena
Chorus
Likes For AJI125:
03-04-21, 08:58 AM
#7
Awaiting Parole
H Curtis,
Dual Pivot vs Single Pivot ?....mono planers thus the slot.
I can't help other than that, I believe that the (some) early ones had a wider blade where the pads were connected. The difference seems to be very minor, but the Campagnolo experts will clarify.
Best, Ben
Dual Pivot vs Single Pivot ?....mono planers thus the slot.
I can't help other than that, I believe that the (some) early ones had a wider blade where the pads were connected. The difference seems to be very minor, but the Campagnolo experts will clarify.
Best, Ben
__________________
"STAND UP FOR WHAT IS RIGHT EVEN IF YOU ARE THE ONLY ONE STANDING"
"STAND UP FOR WHAT IS RIGHT EVEN IF YOU ARE THE ONLY ONE STANDING"
Last edited by xiaoman1; 03-04-21 at 11:28 AM.
Likes For xiaoman1:
03-04-21, 09:15 AM
#8
Senior Member
Thread Starter
Thanks for the last three responses. I was lazily looking at things because I didn't realize there were brakes that look that similar.
You guys saved me some coin. Thanks again.
I am actually looking for the oval pad holders and gave up. Figured I would just buy a set of brakes for spare parts and get the oval holders which are very hard to find loose.
I will keep searching.
You guys saved me some coin. Thanks again.
I am actually looking for the oval pad holders and gave up. Figured I would just buy a set of brakes for spare parts and get the oval holders which are very hard to find loose.
I will keep searching.
03-04-21, 10:20 AM
#9
Señor Member
Join Date: Dec 2018
Location: Pac NW
Posts: 3,997
Bikes: Old school lightweights
Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 1635 Post(s)
Liked 1,663 Times
in
943 Posts
Originally Posted by h_curtis
I am pretty sure these are Athena...
Likes For SurferRosa:
03-04-21, 10:51 AM
#10
Senior Member
Thread Starter
I'll say one thing, there are one heck of a lot of incorrect listings on Ebay. Wow! I am looking for a watch dial and the listings are very often false. Buyer beware out there for sure.
Likes For h_curtis:
03-04-21, 10:56 AM
#11
Senior Member
Join Date: May 2008
Location: Fredericksburg, Va
Posts: 7,708
Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8
Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 971 Post(s)
Liked 608 Times
in
386 Posts
Chorus Monoplanars - Note the sharp curve above the brake pad. Athena and a couple of others are shaped differently. Pad can be obtained form KoolStop.
P1010556 on Flickr
All are single pivot.
P1010556 on FlickrAll are single pivot.
__________________
Bikes don't stand alone. They are two tired.
Bikes don't stand alone. They are two tired.
Last edited by SJX426; 03-04-21 at 11:01 AM.
Likes For SJX426:
03-04-21, 11:14 AM
#12
Senior Member
Join Date: Oct 2005
Location: Upper Left, USA
Posts: 1,508
Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 452 Post(s)
Liked 205 Times
in
146 Posts
Originally Posted by xiaoman1
H Curtis,
Dual Pivot vs Single Pivot....thus the slot.
I can't help other than that, I believe that the (some) early ones had a wider blade where the pads were connected. The difference seem to be very minor, but the Campagnolo experts will clarify.
Best, Ben
Dual Pivot vs Single Pivot....thus the slot.
I can't help other than that, I believe that the (some) early ones had a wider blade where the pads were connected. The difference seem to be very minor, but the Campagnolo experts will clarify.
Best, Ben
I think even the Monoplanars are single pivot. Looking at that parts diagram, I can only see the single center pivot in both models. Maybe I am missing some campy wizardry, and I actually hope I am. I think monoplanars are beautiful, but I could never justify them since I only keep one road bike around these days and I prefer dual pivot on bikes that actually get ridden.
03-04-21, 11:23 AM
#13
Awaiting Parole
Originally Posted by tricky
Ben,
I think even the Monoplanars are single pivot. Looking at that parts diagram, I can only see the single center pivot in both models. Maybe I am missing some campy wizardry, and I actually hope I am. I think monoplanars are beautiful, but I could never justify them since I only keep one road bike around these days and I prefer dual pivot on bikes that actually get ridden.
I think even the Monoplanars are single pivot. Looking at that parts diagram, I can only see the single center pivot in both models. Maybe I am missing some campy wizardry, and I actually hope I am. I think monoplanars are beautiful, but I could never justify them since I only keep one road bike around these days and I prefer dual pivot on bikes that actually get ridden.
You are right, I should have been more precise with the definition, they all have a single pivot point but the way they work is slightly different....perhaps this will further clarify some questions...I edited the first post to try to clarify a bit.
https://www.bikeforums.net/classic-v...ar-brakes.html
__________________
"STAND UP FOR WHAT IS RIGHT EVEN IF YOU ARE THE ONLY ONE STANDING"
"STAND UP FOR WHAT IS RIGHT EVEN IF YOU ARE THE ONLY ONE STANDING"
Last edited by xiaoman1; 03-04-21 at 11:30 AM.
Likes For xiaoman1:
03-04-21, 11:36 AM
#14
Senior Member
Join Date: Aug 2009
Location: Berkeley, CA
Posts: 6,746
Bikes: '72 Cilo Pacer, '72 Peugeot PX10, '73 Speedwell Ti, '74 Nishiki Competition, '74 Peugeot UE-8, '75 Peugeot PR-10L, '85 De Rosa Pro, '86 Look Equipe 753, '86 Look KG86, '89 Parkpre Team, '90 Parkpre Team MTB, '90 Merlin
Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 563 Post(s)
Liked 378 Times
in
167 Posts
Originally Posted by SJX426
Chorus Monoplanars - Note the sharp curve above the brake pad. Athena and a couple of others are shaped differently. Pad can be obtained form KoolStop.
P1010556 on Flickr
All are single pivot.
P1010556 on FlickrAll are single pivot.
I'm copying a quote from member bianchigirl from this old thread which shows the earlier version (and her added cobalt nut), and some more notes on Chorus vs. Athena differences:
Originally Posted by Bianchigirll
it is very hard to tell between early Athena and the real Chorus. one way the real Chorus and very early Athena (after Athena got the Monoplanor design in '93ish) are identifable from others is the use of a thinner nut behind the cone shaped cap nut.
another difference is the use of the afore mentioned white 'O' ring and the white plastic covering on the wheel guides. the heavier pad mounting area is a Athena detail I believe.
when the rounded brake pads came into vouge I am not certain but I believe it was with Athena.
these look the most like what i would call a real chorus
FWIW these came on my '88 Super Leggera, so I know for sure these are original Chorus, well aside from the capnut
another difference is the use of the afore mentioned white 'O' ring and the white plastic covering on the wheel guides. the heavier pad mounting area is a Athena detail I believe.
when the rounded brake pads came into vouge I am not certain but I believe it was with Athena.
these look the most like what i would call a real chorus
FWIW these came on my '88 Super Leggera, so I know for sure these are original Chorus, well aside from the capnut
__________________
-Randy
'72 Cilo Pacer • '72 Peugeot PX10 • '73 Speedwell Ti • '74 Nishiki Competition • '74 Peugeot UE-8 • '86 Look Equipe 753 • '86 Look KG86 • '89 Parkpre Team Road • '90 Parkpre Team MTB • '90 Merlin Ti
Avatar photo courtesy of jeffveloart.com, contact: contact: jeffnil8 (at) gmail.com.
-Randy
'72 Cilo Pacer • '72 Peugeot PX10 • '73 Speedwell Ti • '74 Nishiki Competition • '74 Peugeot UE-8 • '86 Look Equipe 753 • '86 Look KG86 • '89 Parkpre Team Road • '90 Parkpre Team MTB • '90 Merlin Ti
Avatar photo courtesy of jeffveloart.com, contact: contact: jeffnil8 (at) gmail.com.
03-04-21, 11:37 AM
#15
Senior Member
Join Date: May 2008
Location: Fredericksburg, Va
Posts: 7,708
Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8
Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 971 Post(s)
Liked 608 Times
in
386 Posts
The operation and function is the same a s a standard side single pivot side pull. the difference is that the arms are not in two planes but one, hence monoplanar. I am not sure this is an advantage with the arms offset such that the brake pads are in the same plane with each other.
Older side pulls had one brake pad offset from the other. This design applies force on the rim in the same plane.
Older side pulls had one brake pad offset from the other. This design applies force on the rim in the same plane.
__________________
Bikes don't stand alone. They are two tired.
Bikes don't stand alone. They are two tired.
03-04-21, 01:58 PM
#16
Steel is real
Originally Posted by SJX426
Chorus Monoplanars - Note the sharp curve above the brake pad. Athena and a couple of others are shaped differently. Pad can be obtained form KoolStop.
P1010556 on Flickr
All are single pivot.
P1010556 on FlickrAll are single pivot.
OP: s brakes are Athena.
Last edited by styggno1; 03-04-21 at 02:01 PM.
03-04-21, 02:49 PM
#17
Senior Member
Join Date: May 2008
Location: Fredericksburg, Va
Posts: 7,708
Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8
Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 971 Post(s)
Liked 608 Times
in
386 Posts
WELL! I guess I will just have to get some black rings for my adjusters!
__________________
Bikes don't stand alone. They are two tired.
Bikes don't stand alone. They are two tired.
03-04-21, 03:29 PM
#18
Senior Member
One difference to tell Athena from Chorus is the anchor for the end of the spring. Only really easy to see in one picture in this thread, side view in post #16. Slotted metal cylinder on Chorus and it’s a plastic clip on Athena.
__________________
N = '96 Colnago C40, '04 Wilier Alpe D'Huez, '10 Colnago EPS, '85 Merckx Pro, '89 Merckx Century, '86 Tommasini Professional, '04 Teschner Aero FX Pro, '05 Alan Carbon Cross, '86 De Rosa Professional, '82 Colnago Super, '95 Gios Compact Pro, '95 Carrera Zeus, '84 Basso Gap, ‘89 Cinelli Supercorsa, ‘83 Bianchi Specialissima, ‘85 Pinarello Record, Ritchey Breakaway Steel, '84 Paletti Super Prestige, Heron Randonneur
N = '96 Colnago C40, '04 Wilier Alpe D'Huez, '10 Colnago EPS, '85 Merckx Pro, '89 Merckx Century, '86 Tommasini Professional, '04 Teschner Aero FX Pro, '05 Alan Carbon Cross, '86 De Rosa Professional, '82 Colnago Super, '95 Gios Compact Pro, '95 Carrera Zeus, '84 Basso Gap, ‘89 Cinelli Supercorsa, ‘83 Bianchi Specialissima, ‘85 Pinarello Record, Ritchey Breakaway Steel, '84 Paletti Super Prestige, Heron Randonneur
03-04-21, 10:29 PM
#19
Senior Member
Thread Starter

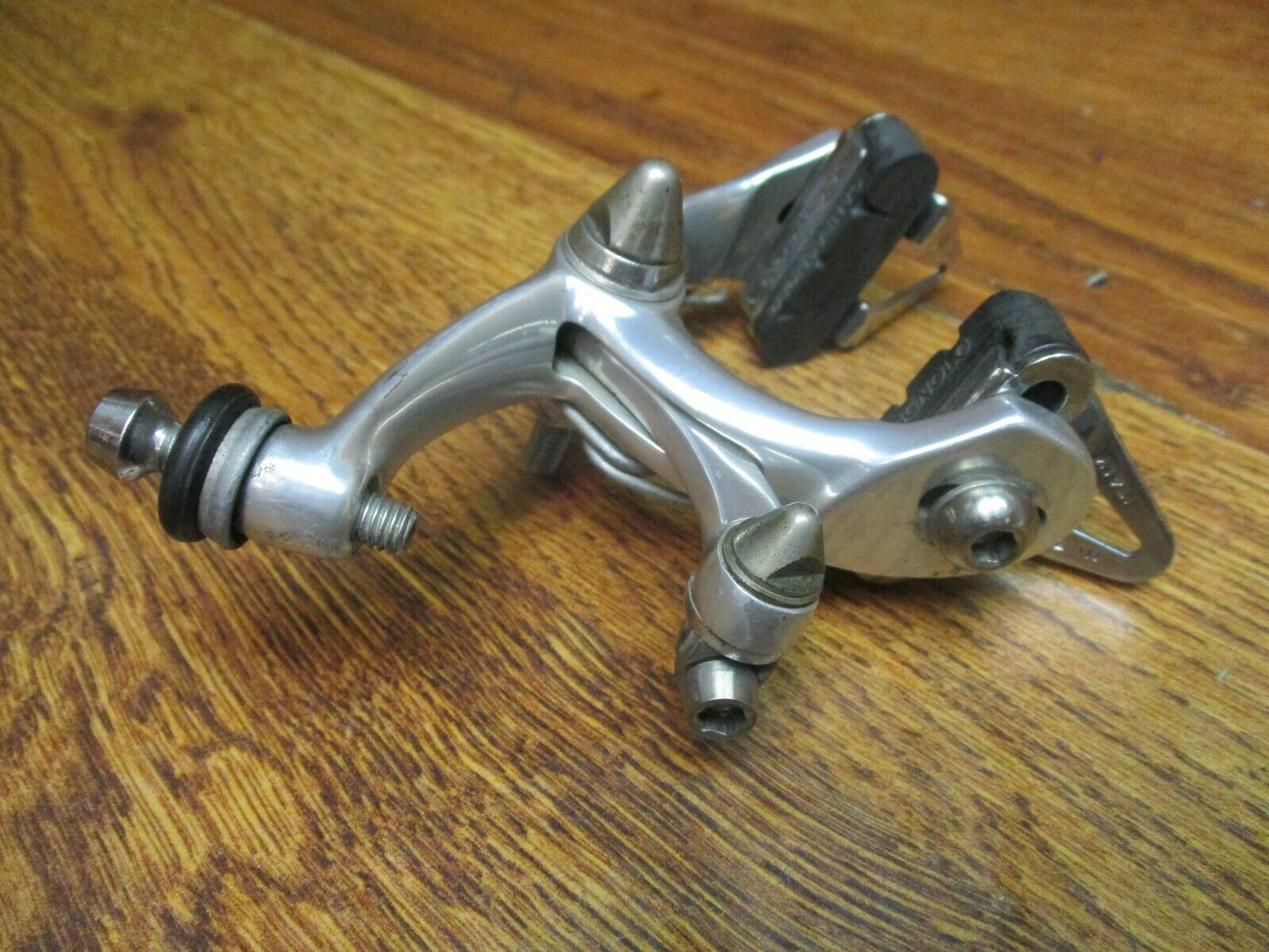

Well let's see if I now have a clue after being schooled by you folks. Here is a monoplaner picture. I am going to guess Chorus. Do I get an A, D or F. D being it is an Athena. I was thinking of buying this for some parts and the pad holders.
Likes For h_curtis:
Likes For P!N20:
03-05-21, 07:21 AM
#21
weapons-grade bolognium
Join Date: Dec 2008
Location: Across the street from Chicago
Posts: 5,450
Bikes: Battaglin Cromor, Ciocc Designer 84, Schwinn Superior 1981
Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 681 Post(s)
Liked 755 Times
in
381 Posts
Good info in this thread. That era of Campy brakes are some of the most beautiful IMO.
Likes For thinktubes:
03-05-21, 08:21 AM
#22
Junior Member

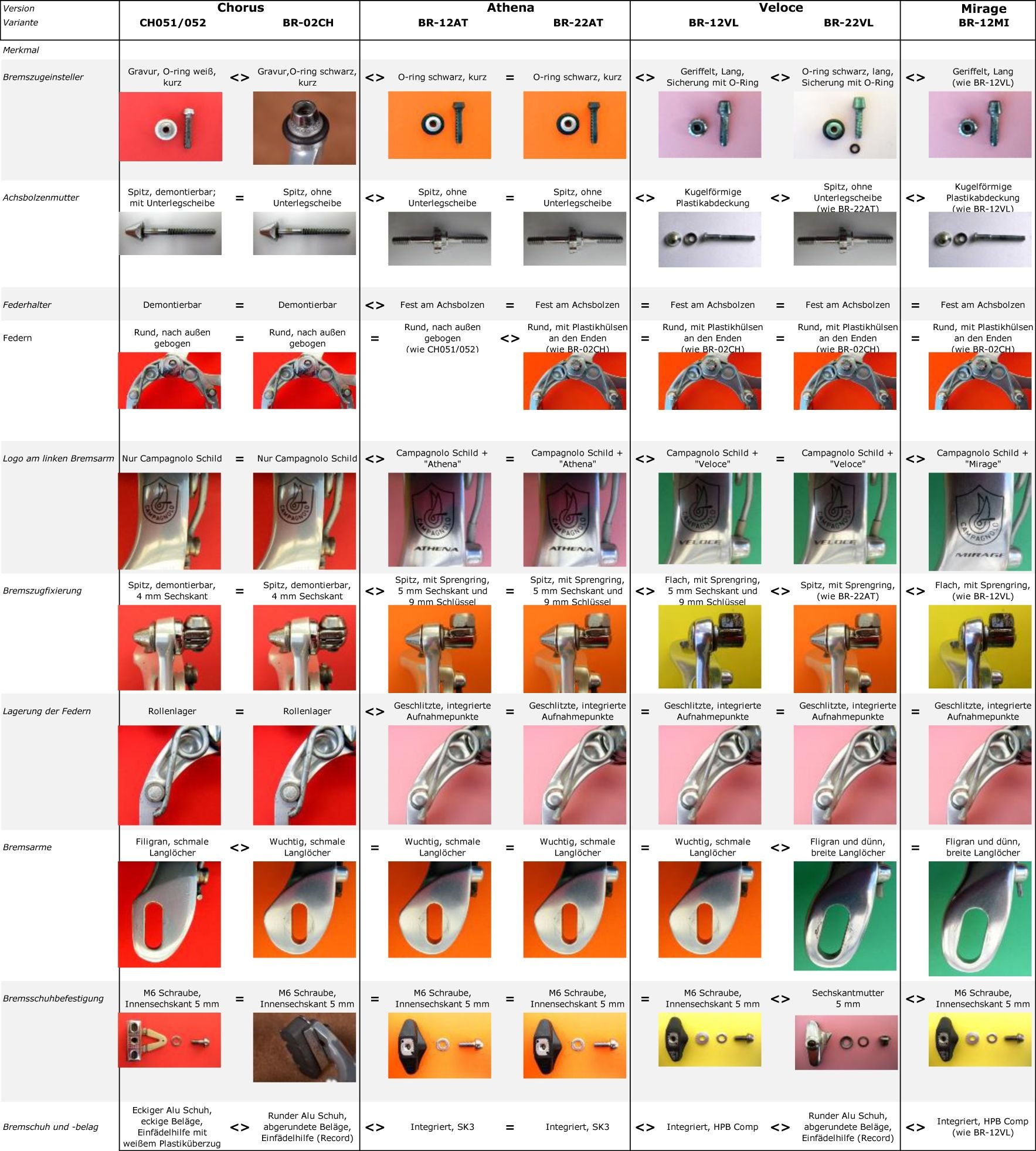

Cyclyng.com has a comprehensive survey about everything Monoplanar. Also a good opportunity to learn some technical German (or use google translate)
Compiled into one big jpg.:
Source
Compiled into one big jpg.:
Source
Likes For Vaang:
