C&V cleaning challenge

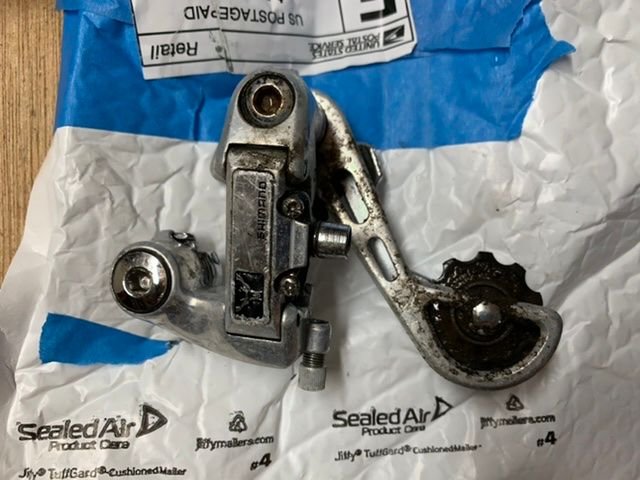

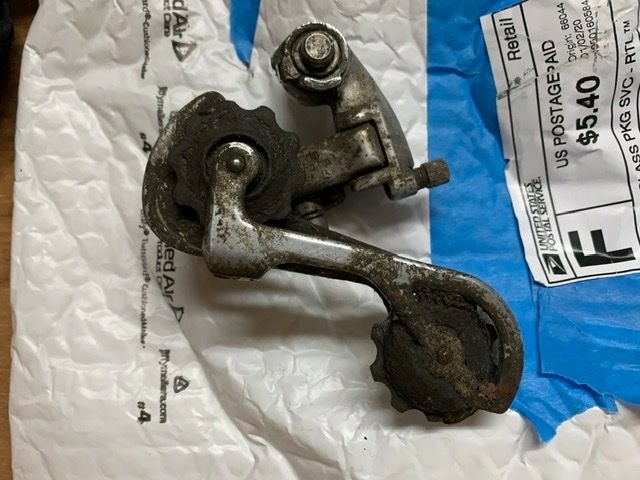

Recently, I bought a Shimano Deerhead rear derailleur from cog_nate , priced very attractively because it was a dirty mess. Here’s what it looked like upon arrival:

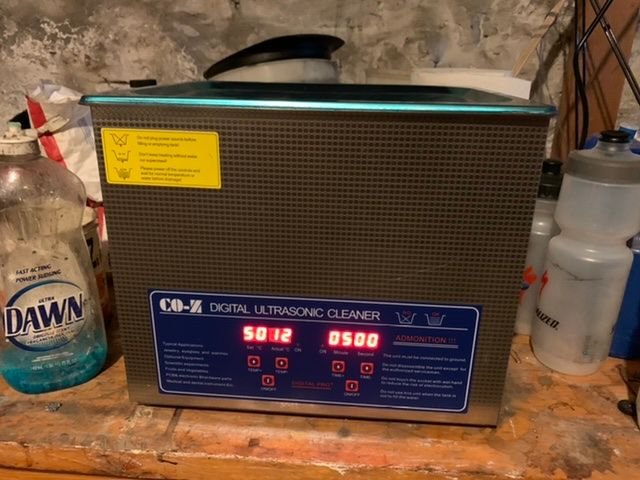

I figured this was a good challenge for my ultrasonic cleaner:
I just tossed the whole RD into the tank and let it rip for two 30-minute cycles. Here’s what it looked like when it came out:

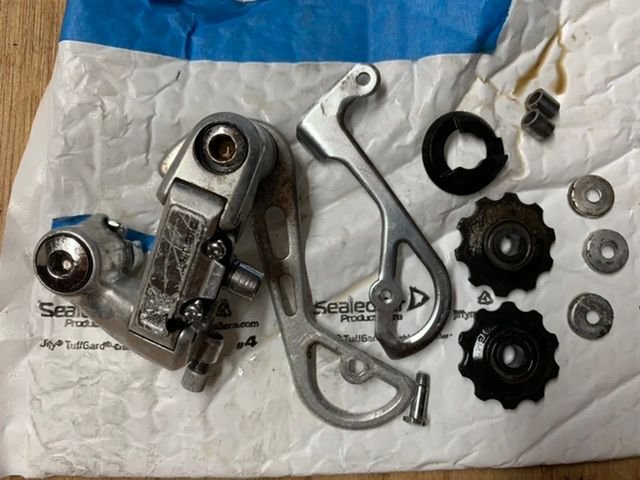

Certainly better, but still needing more Ultrasonic time. I disassembled the pulleys and gave it all another couple of 30-min rounds of cleaning:
I then reassembled, lubricated any of the threaded parts and sprayed some WD 40 into the spring housing to displace water, and ended up touching up the faceplate with some black paint as the soaking removed that finish. Then a final polish with some Simichrome:
It’s not NOS but more than acceptable to my standards, perfect in terms of functionality, and one of my favorite high-capacity friction RDs. Thanks, Nate!
I figured this was a good challenge for my ultrasonic cleaner:
I just tossed the whole RD into the tank and let it rip for two 30-minute cycles. Here’s what it looked like when it came out:
Certainly better, but still needing more Ultrasonic time. I disassembled the pulleys and gave it all another couple of 30-min rounds of cleaning:
I then reassembled, lubricated any of the threaded parts and sprayed some WD 40 into the spring housing to displace water, and ended up touching up the faceplate with some black paint as the soaking removed that finish. Then a final polish with some Simichrome:
It’s not NOS but more than acceptable to my standards, perfect in terms of functionality, and one of my favorite high-capacity friction RDs. Thanks, Nate!
Likes For nlerner:
01-11-20, 07:51 AM
#2
Freewheel Medic
Join Date: Oct 2005
Location: An Island on the Coast of GA!
Posts: 12,882
Bikes: Snazzy* Schwinns, Classy Cannondales & a Super Pro Aero Lotus (* Ed.)
Mentioned: 140 Post(s)
Tagged: 0 Thread(s)
Quoted: 1452 Post(s)
Liked 2,194 Times
in
962 Posts
I've done the same thing many times. It's amazing what a good ultrasonic cleaner can accomplish. My only suggestion is to add a small toaster oven to the work bench for drying after cleaning. Set at 200F the water evaporates away in a few minutes and I've never had an issue with the attached plastic parts. If the plastic bits are loose, just leave on top of the oven.
__________________
Bob
Enjoying the GA coast all year long!
Thanks for visiting my website: www.freewheelspa.com
Bob
Enjoying the GA coast all year long!
Thanks for visiting my website: www.freewheelspa.com
01-11-20, 09:27 AM
#3
52psi
Join Date: Aug 2013
Location: Tucson, AZ
Posts: 4,015
Bikes: Schwinn Volare ('78); Raleigh Competition GS ('79)
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 790 Post(s)
Liked 802 Times
in
391 Posts

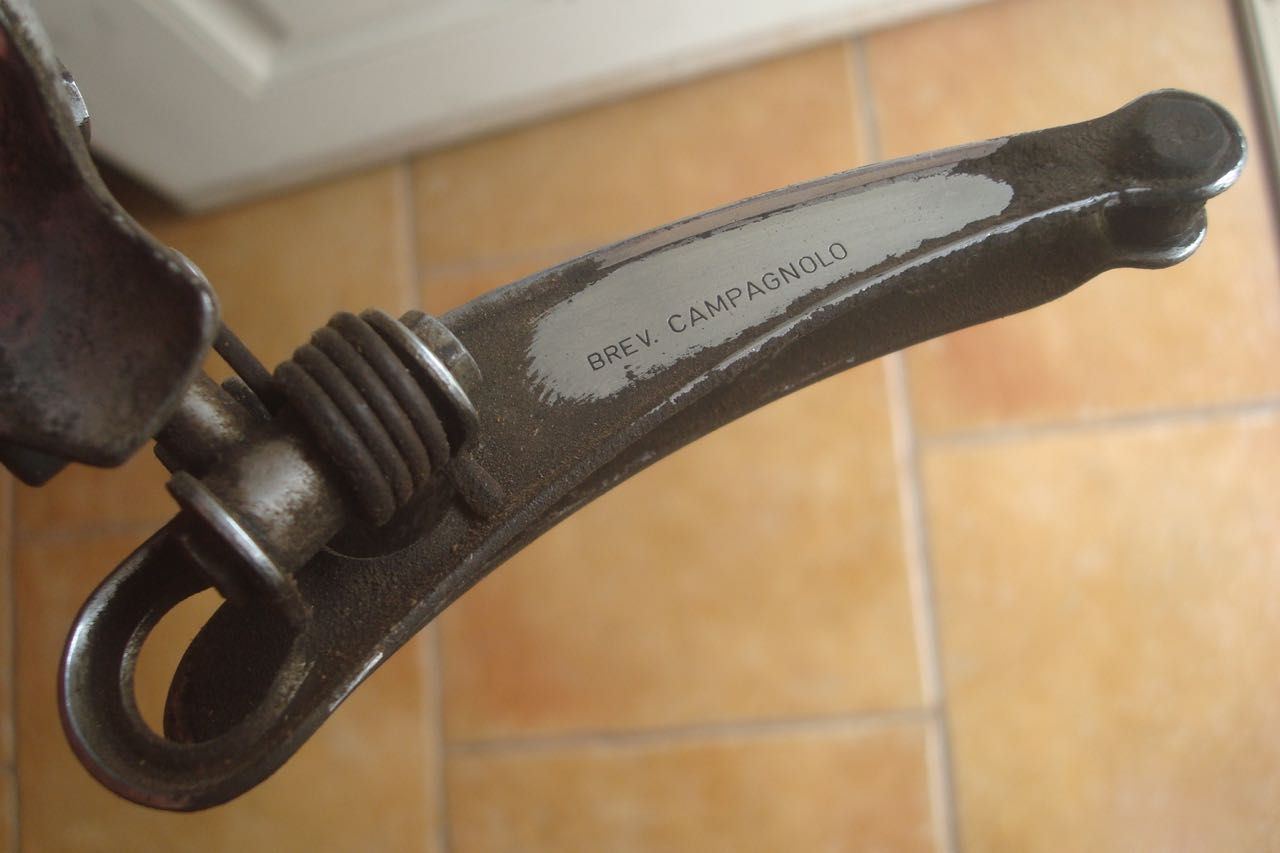

One swipe of the index finger confirmed this one would clean up nicely:
__________________
A race bike in any era is a highly personal choice that at its "best" balances the requirements of fit, weight, handling, durability and cost tempered by the willingness to toss it and oneself down the pavement at considerable speed. ~Bandera
A race bike in any era is a highly personal choice that at its "best" balances the requirements of fit, weight, handling, durability and cost tempered by the willingness to toss it and oneself down the pavement at considerable speed. ~Bandera
01-11-20, 09:58 AM
#4
Señor Member
Join Date: Dec 2007
Location: Colorado
Posts: 895
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 284 Post(s)
Liked 296 Times
in
149 Posts
What temperature are we cleaning at?
I use Dawn soap solution and set the cleaner to 60C, which seems to yield good results.
I use Dawn soap solution and set the cleaner to 60C, which seems to yield good results.
01-11-20, 07:02 PM
#6
Senior Member
Join Date: Aug 2007
Location: Evanston, IL
Posts: 5,091
Bikes: many
Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 1444 Post(s)
Liked 1,390 Times
in
759 Posts
I have a magnetic tray sitting on mine. After a soak and a rinse that's where small stuff goes to dry out.
01-11-20, 07:18 PM
#7
Mr. Anachronism
Join Date: Jan 2013
Location: Somewhere west of Tobie's
Posts: 2,087
Bikes: fillet-brazed Chicago Schwinns, and some other stuff
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 526 Post(s)
Liked 256 Times
in
165 Posts
I need more proof, Neal. Can I send ya a couple Mountechs just to verify your process?
__________________
"My only true wisdom is in knowing I have none" -Socrates
"My only true wisdom is in knowing I have none" -Socrates
01-11-20, 07:45 PM
#8
Senior Member
Join Date: Jun 2006
Posts: 20,305
Mentioned: 130 Post(s)
Tagged: 0 Thread(s)
Quoted: 3464 Post(s)
Liked 2,828 Times
in
1,995 Posts
I have used a Dawn solution recently
w/ ultrasonic and a minor amount of brush work. But in the 280 second range- with some heat.
A bottom bracket, pedals- all taken apart- worked well.
I have a cavalcade of parts that need the effort.
I misplaced my Suntour freewheel remover- those will go mineral spirits only- not ultrasonic.
I have a number of drivetrains to clean,
the patients pile up !
a bunch of Campagnolo pedals- looked at eBay for dust caps- looks like someone is reproducing some out of Italy.
w/ ultrasonic and a minor amount of brush work. But in the 280 second range- with some heat.
A bottom bracket, pedals- all taken apart- worked well.
I have a cavalcade of parts that need the effort.
I misplaced my Suntour freewheel remover- those will go mineral spirits only- not ultrasonic.
I have a number of drivetrains to clean,
the patients pile up !
a bunch of Campagnolo pedals- looked at eBay for dust caps- looks like someone is reproducing some out of Italy.
01-11-20, 07:46 PM
#9
working on my sandal tan
Join Date: Aug 2011
Location: CID
Posts: 22,629
Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)
Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 3871 Post(s)
Liked 2,568 Times
in
1,579 Posts
I'm a little surprised that more people don't spend the time to clean up gunky old freewheels before listing them. A clean and fresh-looking FW certainly makes a better impression on me.
01-11-20, 07:51 PM
#10
Bike Butcher of Portland
Join Date: Jul 2014
Location: Portland, OR
Posts: 11,634
Bikes: It's complicated.
Mentioned: 1299 Post(s)
Tagged: 0 Thread(s)
Quoted: 4678 Post(s)
Liked 5,795 Times
in
2,281 Posts
Cassettes are even easier, don't have to worry about water getting in the bearings.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
Likes For gugie:
01-11-20, 08:08 PM
#11
Mr. Anachronism
Join Date: Jan 2013
Location: Somewhere west of Tobie's
Posts: 2,087
Bikes: fillet-brazed Chicago Schwinns, and some other stuff
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 526 Post(s)
Liked 256 Times
in
165 Posts
__________________
"My only true wisdom is in knowing I have none" -Socrates
"My only true wisdom is in knowing I have none" -Socrates
01-11-20, 08:17 PM
#12
working on my sandal tan
Join Date: Aug 2011
Location: CID
Posts: 22,629
Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)
Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 3871 Post(s)
Liked 2,568 Times
in
1,579 Posts
That's how I clean metal stuff. Mineral spirits and gunky parts in a small mason jar (with the lid on), jar in water in the ultrasonic cleaner.
01-11-20, 10:20 PM
#13
Senior Member
Join Date: May 2011
Location: Seattle WA
Posts: 2,841
Bikes: 2009 Handsome Devil, 1987 Trek 520 Cirrus, 1978 Motobecane Grand Touring, 1987 Nishiki Cresta GT, 1989 Specialized Allez Former bikes; 1986 Miyata Trail Runner, 1979 Miyata 912, 2011 VO Rando, 1999 Cannondale R800, 1986 Schwinn Passage
Mentioned: 72 Post(s)
Tagged: 0 Thread(s)
Quoted: 796 Post(s)
Liked 522 Times
in
367 Posts
Love my Ultrasonic cleaner
01-12-20, 01:19 AM
#14
señor miembro
Join Date: Dec 2018
Location: Pac NW
Posts: 6,624
Bikes: '70s - '80s Campagnolo
Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 3883 Post(s)
Liked 6,476 Times
in
3,205 Posts
Got this Victory derailleur from Aerogut.
These are pretty easy to overhaul. Unlike older Campy units, these don't have a removable grub screw. So you sorta put it together a little loose before winding it and tightening it down. And they're easy to polish, too.
These are pretty easy to overhaul. Unlike older Campy units, these don't have a removable grub screw. So you sorta put it together a little loose before winding it and tightening it down. And they're easy to polish, too.
Likes For SurferRosa:
01-12-20, 06:48 AM
#15
Senior Member
Join Date: Nov 2013
Location: Near Pottstown, PA: 30 miles NW of Philadelphia
Posts: 2,186
Bikes: 2 Trek Mtn, Cannondale R600 road, 6 vintage road bikes
Mentioned: 83 Post(s)
Tagged: 0 Thread(s)
Quoted: 472 Post(s)
Liked 1,028 Times
in
404 Posts
I get much satisfaction from restoring a well done RD, or well done anything I suppose. I recently donated 5 bikes to a local co-op then rummaged in their bins a bit. Got a pair of MKS pedals and a Cyclone Mk II GT that looked like the OPs RD. Pulleys barely turned, body spring pretty stiff, very aged grime all over it. I disassembled it and used OMS on everything, especially the body tension spring. I even stepped aside to fabricate a wee wrench to install n remove that weird pulley axel nut on the guide pulley. Only time will tell how it works on a badly stuck one.
This Cyclone RD is going onto my winter project Fuji TS III so I won't know how it all works out until spring, but I high expectations.
Oh, I also grabbed two Blackburn type racks, F and R from their scrap pile. Bit of straightening and paint and they'll be back in service. F goes on my Schwinn Voyageur with the fork mid mounts.
This Cyclone RD is going onto my winter project Fuji TS III so I won't know how it all works out until spring, but I high expectations.
Oh, I also grabbed two Blackburn type racks, F and R from their scrap pile. Bit of straightening and paint and they'll be back in service. F goes on my Schwinn Voyageur with the fork mid mounts.
