About Gran Compe GC450 ??
Found this link about the 450 .
it seems that many have had problems with
https://forum.cyclinguk.org/viewtopic.php?t=76395
?? :
Zeus 2000 vs GC450 ???
it seems that many have had problems with
https://forum.cyclinguk.org/viewtopic.php?t=76395
?? :
Zeus 2000 vs GC450 ???
Last edited by brooklyn6640; 11-23-19 at 03:40 AM.
#2
Senior Member
Join Date: Feb 2012
Location: Rochester, NY
Posts: 18,003
Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Stewart 650B ATB
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4172 Post(s)
Liked 3,793 Times
in
2,272 Posts
What kind of problems? Those due to the basic twin pivot center pull design or those due to the bearinged pivots? Other? The few that I have serviced over the years have no specifically negative memories left in my memory banks. Andy
__________________
AndrewRStewart
AndrewRStewart
#3
Senior Member
Join Date: Jan 2013
Location: Llano Estacado
Posts: 3,702
Bikes: old clunker
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 684 Post(s)
Likes: 0
Liked 104 Times
in
82 Posts
Found this link about the 450 .
it seems that many have had problems with
https://forum.cyclinguk.org/viewtopic.php?t=76395
?? :
Zeus 2000 vs GC450 ???
it seems that many have had problems with
https://forum.cyclinguk.org/viewtopic.php?t=76395
?? :
Zeus 2000 vs GC450 ???
#5
Senior Member
brooklyn6640-
I had GC 450s on braze on mounts on a frameset and I do not recall issues with noise on the OEM brake pads. I didn't use them for an extended period nor under extreme conditions. They are one of the most beautiful brakesets ever made but keep in mind the following: 1. the braze on pivot posts are a unique diameter due to the ball bearing pivots; 2. no other Weinmann/Dia Compe braze-on post will work with the 450's arms; 3. No other Weinmann / Dia Compe centerpull brake arms will fit the 450 pivots; 4. the brake shoe posts are 1 mm different in diameter than normal, smooth posts and do not accept Mafac or any other post; 5. I believe the shoe/pad configuration is unique and I know of no direct replacement pad (I looked back then) and 6. the very small diameter straddle cable ends will weld themselves into the brake arm end holes unless you lube them on assembly, especially in a corroding environment. When you commit to GC 450s or their longer reach cousins, you commit totally and forever barring complete replacement of the brake caliper/pivot assembly.
I had GC 450s on braze on mounts on a frameset and I do not recall issues with noise on the OEM brake pads. I didn't use them for an extended period nor under extreme conditions. They are one of the most beautiful brakesets ever made but keep in mind the following: 1. the braze on pivot posts are a unique diameter due to the ball bearing pivots; 2. no other Weinmann/Dia Compe braze-on post will work with the 450's arms; 3. No other Weinmann / Dia Compe centerpull brake arms will fit the 450 pivots; 4. the brake shoe posts are 1 mm different in diameter than normal, smooth posts and do not accept Mafac or any other post; 5. I believe the shoe/pad configuration is unique and I know of no direct replacement pad (I looked back then) and 6. the very small diameter straddle cable ends will weld themselves into the brake arm end holes unless you lube them on assembly, especially in a corroding environment. When you commit to GC 450s or their longer reach cousins, you commit totally and forever barring complete replacement of the brake caliper/pivot assembly.
#6
Senior Member
Thread Starter
Join Date: Sep 2009
Location: Spain
Posts: 185
Bikes: Tommasini, Caad 7 , Seven, Pinarello
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 65 Post(s)
Likes: 0
Liked 14 Times
in
9 Posts
brooklyn6640-
I had GC 450s on braze on mounts on a frameset and I do not recall issues with noise on the OEM brake pads. I didn't use them for an extended period nor under extreme conditions. They are one of the most beautiful brakesets ever made but keep in mind the following: 1. the braze on pivot posts are a unique diameter due to the ball bearing pivots; 2. no other Weinmann/Dia Compe braze-on post will work with the 450's arms; 3. No other Weinmann / Dia Compe centerpull brake arms will fit the 450 pivots; 4. the brake shoe posts are 1 mm different in diameter than normal, smooth posts and do not accept Mafac or any other post; 5. I believe the shoe/pad configuration is unique and I know of no direct replacement pad (I looked back then) and 6. the very small diameter straddle cable ends will weld themselves into the brake arm end holes unless you lube them on assembly, especially in a corroding environment. When you commit to GC 450s or their longer reach cousins, you commit totally and forever barring complete replacement of the brake caliper/pivot assembly.
I had GC 450s on braze on mounts on a frameset and I do not recall issues with noise on the OEM brake pads. I didn't use them for an extended period nor under extreme conditions. They are one of the most beautiful brakesets ever made but keep in mind the following: 1. the braze on pivot posts are a unique diameter due to the ball bearing pivots; 2. no other Weinmann/Dia Compe braze-on post will work with the 450's arms; 3. No other Weinmann / Dia Compe centerpull brake arms will fit the 450 pivots; 4. the brake shoe posts are 1 mm different in diameter than normal, smooth posts and do not accept Mafac or any other post; 5. I believe the shoe/pad configuration is unique and I know of no direct replacement pad (I looked back then) and 6. the very small diameter straddle cable ends will weld themselves into the brake arm end holes unless you lube them on assembly, especially in a corroding environment. When you commit to GC 450s or their longer reach cousins, you commit totally and forever barring complete replacement of the brake caliper/pivot assembly.

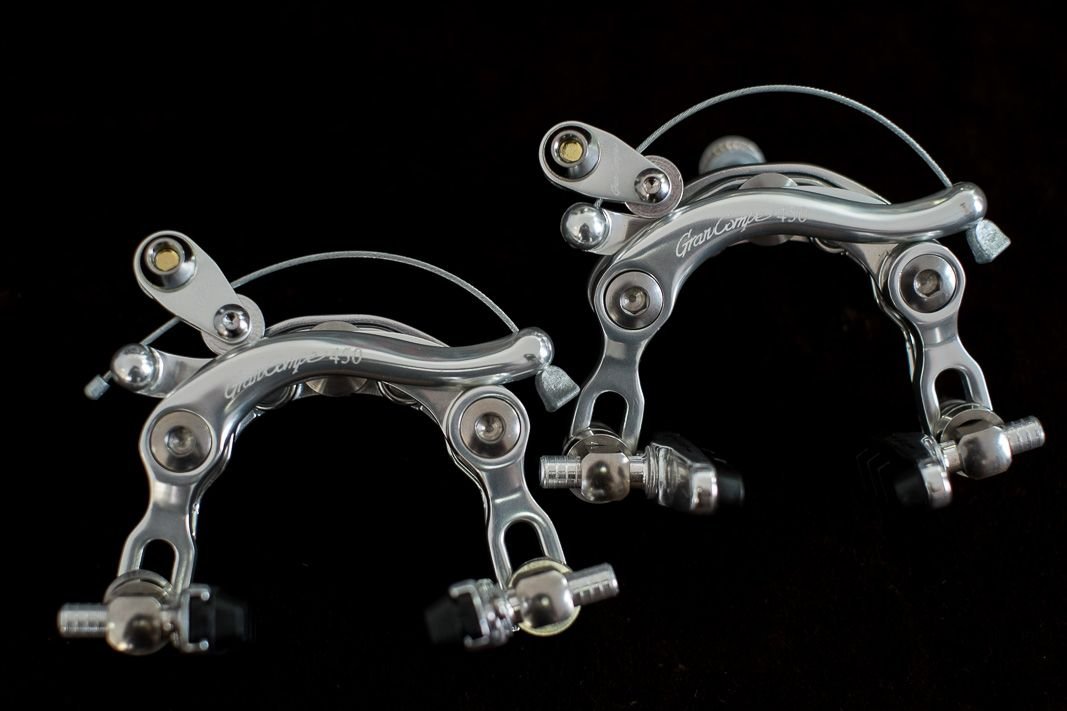

https://www.ebay.com/itm/Dia-Compe-G...ePsMvT-lp-nU_g
the pad holder and brakes pas seem to be like shimano model.
#7
Senior Member
brooklyn6640-

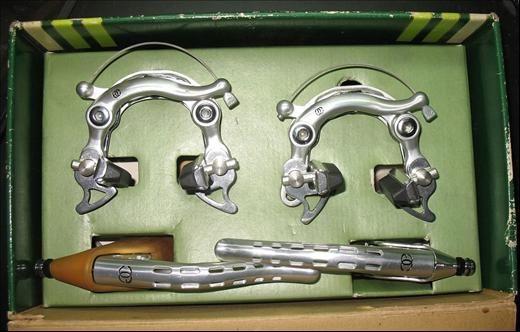

Your link looks to be a newer, reissued version of the brakeset. My experience is with the older, 1980s version shown here:
The ad you referenced is a newer version which looks similar but may be different in details like brake post diameter and brake pad size.
Your link looks to be a newer, reissued version of the brakeset. My experience is with the older, 1980s version shown here:
The ad you referenced is a newer version which looks similar but may be different in details like brake post diameter and brake pad size.
