Frankenbike?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Frankenbike?

Old 08-12-19, 09:45 AM
  #1
Sjtaylor
Senior Member
Thread Starter

Join Date: Aug 2018
Posts: 62
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Frankenbike?

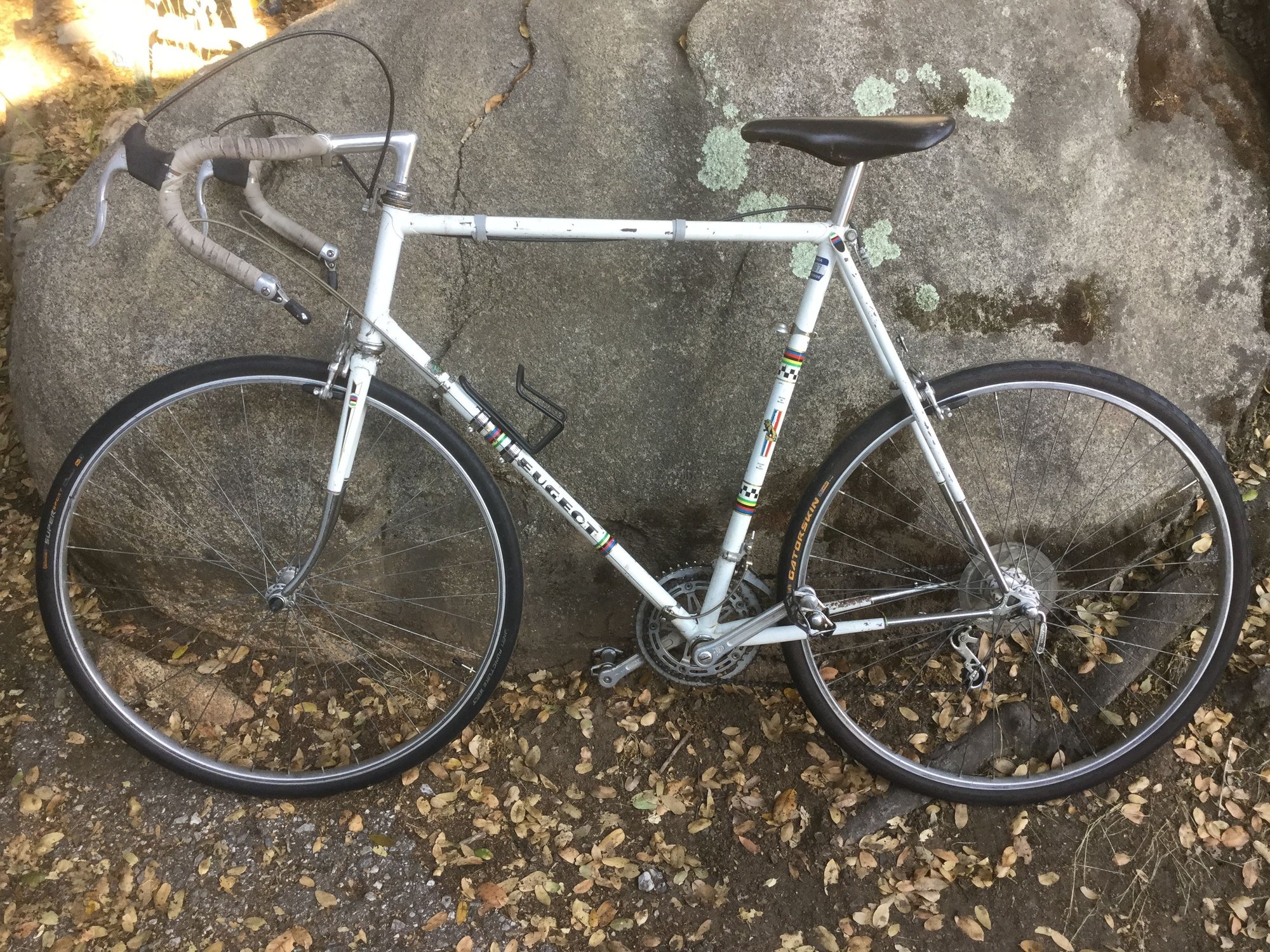

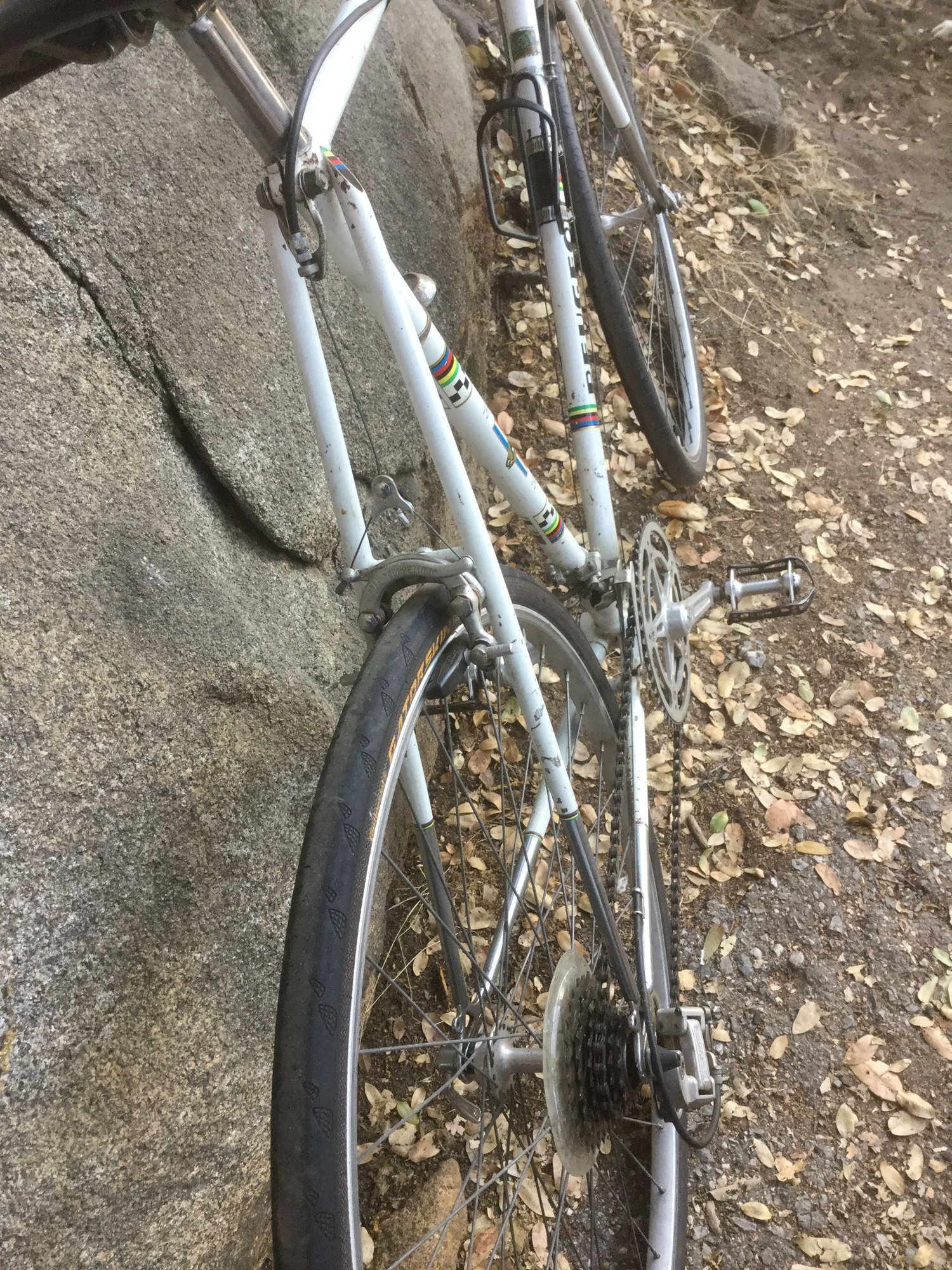

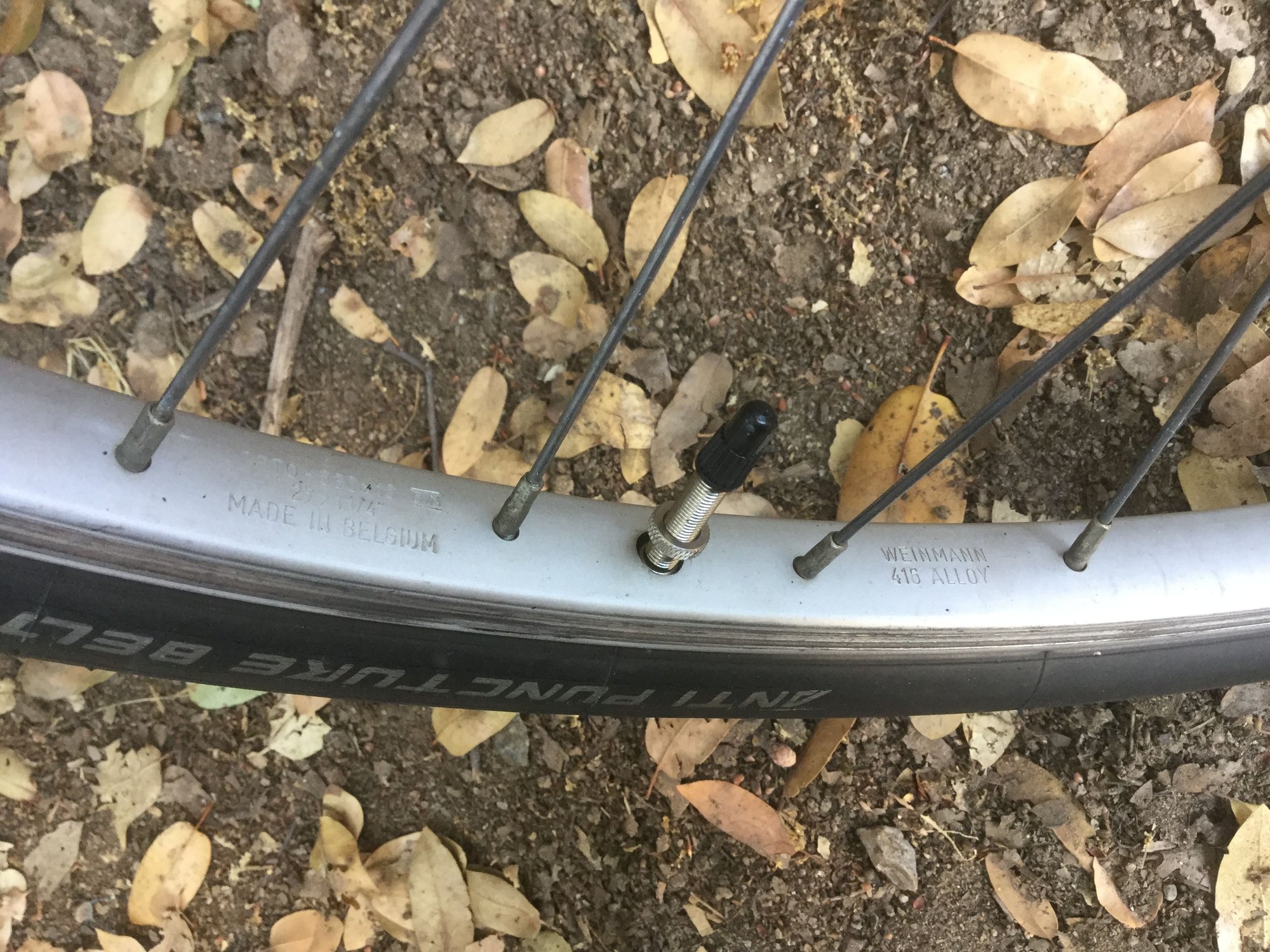

I rescued this vintage 64cm Peugeot yesterday. From the 1978 brochure the frame looks to be a PX10LE. The fork decals donít match, the fork maybe from a PRN10E of the same year. Maybe the brakes, seat post and a couple other components match the PX10LE spec sheet but nothing else seems to.

Not sure what to do with this bike. It looks pretty rough and wondering if itís worth rebuilding.
Sjtaylor is offline
Old 08-12-19, 10:30 AM
  #2
Hudson308
Mr. Anachronism

Hudson308's Avatar

Join Date: Jan 2013
Location: City of Lakes
Posts: 1,578

Bikes: fillet-brazed Chicago Schwinns, and some other stuff

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 361 Post(s)
Liked 34 Times in 25 Posts
Rebuild to flip, or rebuild to ride?
__________________
"If we don't change direction soon, we'll end up where we're going." -Irwin Corey
Hudson308 is offline
Old 08-12-19, 10:39 AM
  #3
Sjtaylor
Senior Member
Thread Starter

Join Date: Aug 2018
Posts: 62
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Once I rebuild one I want to keep it.

I ride Lemond Buenos Aires. I grabbed the Peugeot thinking the frame might be worth having.
Sjtaylor is offline
Old 08-12-19, 10:41 AM
  #4
SurferRosa
Senior Member

SurferRosa's Avatar

Join Date: Dec 2018
Posts: 1,083

Bikes: old school 531c & campy

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 460 Post(s)
Liked 118 Times in 71 Posts
First thing, make sure the derailleur hanger can support the rear mech like a normal campy-type hanger.

You needn't spend a lot. You can sell the barcons to pay for new tires. Maybe you can find some down tube shifters at your co-op. Buy top tube cable guides from china ($2). Newbaum's cotton tape is around $10. Rustines hoods may set you back, but they're probably worth it.
SurferRosa is offline
Old 08-12-19, 11:26 AM
  #5
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 20,549

Bikes: Several, mostly not name brands.

Mentioned: 114 Post(s)
Tagged: 0 Thread(s)
Quoted: 1766 Post(s)
Liked 100 Times in 76 Posts
Originally Posted by SurferRosa View Post
First thing, make sure the derailleur hanger can support the rear mech like a normal campy-type hanger.
Well, it has a SunTour V-GT Luxe currently mounted, which suggests that the Simplex dropout has been threaded for the mounting bolt. But the weird "angle of the dangle" may mean that the PO didn't file a stop for the "B-screw" to bear against to properly adjust the angle.

Remove the derailleur from the hanger and post a picture of the hanger so we can see what's going on.
JohnDThompson is offline
Old 08-12-19, 11:44 AM
  #6
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 15,541

Bikes: A bunch of old bikes and a few new ones

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 3787 Post(s)
Liked 168 Times in 135 Posts
Or just run the suntour RD on a claw. Very nice bike; this is a PX 10. You likely want to get rid of the brakes. Nothing wrong with mafac competition brakes but straddle cables for them are unobtainium unlike with the mafac racer brakes. I'd just run some cheap dia compe which as a nice match for all the other Japanese parts on this frame. Keep it a frankenbike,
bikemig is online now
Old 08-12-19, 12:27 PM
  #7
Sjtaylor
Senior Member
Thread Starter

Join Date: Aug 2018
Posts: 62
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 25 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Doesnít look so good


Photo as requested.
Sjtaylor is offline
Old 08-12-19, 12:38 PM
  #8
ryansu
Ride.Smile.Repeat

ryansu's Avatar

Join Date: May 2011
Location: Seattle WA
Posts: 1,960

Bikes: 2009 Handsome Devil, 1978 Motobecane Grand Touring, 1987 Nishiki Cresta GT, Former bikes; 1986 Miyata Trail Runner, 1979 Miyata 912, 2011 VO Rando, 1999 Cannondale R800, 2012 Soma Smoothie, 1986 Schwinn Passage

Mentioned: 57 Post(s)
Tagged: 0 Thread(s)
Quoted: 517 Post(s)
Liked 87 Times in 71 Posts
I might suggest riding it as is for a while assuming it stops and shifts, find out what you like and don't like -it might inform the path you take from here, this from Mr. I bought a bike and now I will fill an amazon cart with upgrades I'm old but I'm slow.... but sometimes I learn, sometimes after putting in some miles I even find that the bike I thought would fit doesn't or it does but the rides is only meh. Anyway cool old Pug, nice find good luck whatever path you take.
ryansu is offline
Old 08-12-19, 01:44 PM
  #9
SurferRosa
Senior Member

SurferRosa's Avatar

Join Date: Dec 2018
Posts: 1,083

Bikes: old school 531c & campy

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 460 Post(s)
Liked 118 Times in 71 Posts
Doesn't look so good.
Nope. Maybe you can cut a stop in it. Or find a Simplex rd.

In the meantime, you can use a claw hanger.
SurferRosa is offline
Old 08-12-19, 02:20 PM
  #10
rustystrings61
Senior Member

Join Date: May 2013
Location: Greenwood SC USA
Posts: 885

Bikes: 2002 Mercian Vincitore, 1982 Mercian Colorado, 1976 Puch Royal X, 1973 Raleigh Competition, 1971 Gitane Tour de France and others

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 295 Post(s)
Liked 76 Times in 52 Posts
1. It is a PX-10 and that looks like the correct fork and crown - the decals get a little strange 1975-78, but I donít recall ever seeing that crown with chrome epaulets on a PR-10.

2. Find a metal bodied Simplex rear derailleur OR a Shimano Crane (predecessor of the Dura Ace), which will provide its own stop and work correctly with no further modifications. You donít have to cut a notch with those options. The claw would work but it would look awful on that bike!
rustystrings61 is offline
Old 08-12-19, 03:01 PM
  #11
jcb3
Senior Member

jcb3's Avatar

Join Date: Sep 2014
Location: Irvine, CA
Posts: 588

Bikes: 1983 Trek 700, 1972 Peugeot PX10, 1989 Nishiki Cascade, 2014 Focus Izalco

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 132 Post(s)
Likes: 0
Liked 8 Times in 7 Posts
Originally Posted by bikemig View Post
Or just run the suntour RD on a claw. Very nice bike; this is a PX 10. You likely want to get rid of the brakes. Nothing wrong with mafac competition brakes but straddle cables for them are unobtainium unlike with the mafac racer brakes. I'd just run some cheap dia compe which as a nice match for all the other Japanese parts on this frame. Keep it a frankenbike,
Dia Compe brakes on a Peugeot? Blasphemy!

Originally Posted by SurferRosa View Post
Nope. Maybe you can cut a stop in it. Or find a Simplex rd.

In the meantime, you can use a claw hanger.
Please don't grind - keep it French - Simplex aren't that hard to find and don't scared by the plastic ones.

Bottom bracket is likely French, so both sides will be right hand thread

You will enjoy the ride!
jcb3 is offline
Old 08-12-19, 05:02 PM
  #12
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 20,549

Bikes: Several, mostly not name brands.

Mentioned: 114 Post(s)
Tagged: 0 Thread(s)
Quoted: 1766 Post(s)
Liked 100 Times in 76 Posts
Originally Posted by Sjtaylor View Post

Photo as requested.
Looks like a relatively unmodified Simplex dropout ó as I suspected, no stop tab filed in the hanger for the B-screw to bear against. I don't see threads in the mounting hole, so I wonder if it was reamed to take the SunTour's 10mm bolt and held in place by the thin nut on the back side. A Simplex derailleur ought to still work with that. One of the threaded "dropout saver" inserts from Problem Solvers would allow a threaded Shimano Crane or Titlist derailleur to mount. Derailleurs that utilize a B-screw for proper positioning would benefit from a stop tab filed into the hanger, but the purists might object to modifying the dropout in this way.
JohnDThompson is offline
