Old 04-26-20, 07:36 AM
  #26
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 20,661
Mentioned: 557 Post(s)
Tagged: 1 Thread(s)
Quoted: 3676 Post(s)
Likes: 0
Liked 1,093 Times in 814 Posts
Originally Posted by Piff View Post
Rise...Rise!

I know it's an old thread, but does anyone know the proper bottom bracket spindle length for these cranks? I bought some Suntour Road Vx cranks, and, according to an old advert, they're interchangeable with the Maxy. Which is good, because I can find hardly any info on Vx cranks.

So, anyone know a good spindle length? I'm assuming it'll be somewhere around 120mm.

Edit: I found this spindle on looses crews, 124mm Sugino Maxy spindle. Seems like the right size. I'll confirm or deny once the cranks arrive.

https://www.loosescrews.com/product/...dle-bolt-type/
​​​​​​

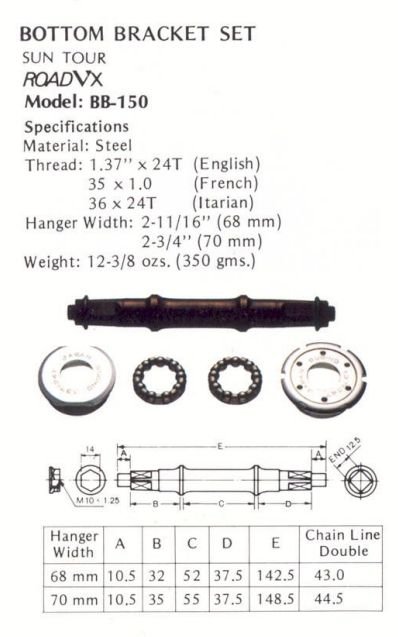

121.5mm, for English (68mm) BB shell. 127.5mm for Italian (70mm) BB shell.
T-Mar is offline
Likes For T-Mar:
Old 04-26-20, 08:55 AM
  #27
Piff
Senior Member

Piff's Avatar

Join Date: Nov 2013
Location: Southern California
Posts: 931
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 414 Post(s)
Liked 178 Times in 117 Posts
Originally Posted by T-Mar View Post
121.5mm, for English (68mm) BB shell. 127.5mm for Italian (70mm) BB shell.
Wow, that is fantastic, thank you.
Piff is offline
Old 04-26-20, 06:24 PM
  #28
dmark
Senior Member

Join Date: Oct 2017
Location: NJ
Posts: 300

Bikes: 84 Pinnarello Treviso NR, 72 PX-10, 91 Trek 930, 72 Fuji Finest, 90 Trek 750

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 89 Post(s)
Liked 59 Times in 43 Posts
Originally Posted by niliraga View Post
I've seen Arabesques both ways - although I very rarely find the swaged ones. Not sure if it was an evolution over time or from some "second tier" version of the line.
Arabesque is FC-6200 forged not swaged.
FC-6100 is the first 5 arm "600" and is swaged and preceeds 6200 by 1 year.
dmark is offline
Likes For dmark:
Old 04-26-20, 07:01 PM
  #29
niliraga
Senior Member

Join Date: Jun 2009
Location: Brooklyn, NY
Posts: 374

Bikes: 1970s Coppi/Fiorelli beater, 1973 Raleigh Competition, 1972 Bob Jackson, 1970 Cilo Sprint-X, 1985 Fuji Touring Series IV, 1969 Legnano Roma

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked 114 Times in 71 Posts
then this must have been the Jackalope of shimano cranks that year! (only close up shot i have left)




Originally Posted by dmark View Post
Arabesque is FC-6200 forged not swaged.
FC-6100 is the first 5 arm "600" and is swaged and preceeds 6200 by 1 year.
niliraga is offline
Old 04-26-20, 08:29 PM
  #30
dmark
Senior Member

Join Date: Oct 2017
Location: NJ
Posts: 300

Bikes: 84 Pinnarello Treviso NR, 72 PX-10, 91 Trek 930, 72 Fuji Finest, 90 Trek 750

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 89 Post(s)
Liked 59 Times in 43 Posts
Yes it does look different; sharp corner at crank arm & star. The one I have does not have that sharp edge.
Velobase:
Clearly swaged https://velobase.com/ViewComponent.as...m=115&AbsPos=1
Not swaged https://velobase.com/ViewComponent.as...m=115&AbsPos=0
I need to check my DX-4000 more closely; the photo is a spare set.

This turned into a thread hijack; sorry OP.


Last edited by dmark; 04-26-20 at 08:42 PM.
dmark is offline
Old 04-26-20, 08:44 PM
  #31
niliraga
Senior Member

Join Date: Jun 2009
Location: Brooklyn, NY
Posts: 374

Bikes: 1970s Coppi/Fiorelli beater, 1973 Raleigh Competition, 1972 Bob Jackson, 1970 Cilo Sprint-X, 1985 Fuji Touring Series IV, 1969 Legnano Roma

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked 114 Times in 71 Posts
also, you can see on the swaged one the spider arms are quite different - the fluting on each arm is less carefully done and shallower, and rather than taper elegantly towards each crank bolt, the arms flare out again. very odd duck, this was.


Originally Posted by dmark View Post
Yes it does look different; sharp corner at crank arm & star. The one I have does not have that sharp edge.
Velobase:
Clearly swaged VeloBase.com - Component: Shimano FC-6200, 600EX Arabesque
Not swaged VeloBase.com - Component: Shimano FC-6200, 600EX Arabesque
I need to check my DX-4000 more closely; the photo is a spare set.
niliraga is offline
Old 04-27-20, 05:25 AM
  #32
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 3,393

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1054 Post(s)
Liked 439 Times in 256 Posts

With a stronlight triplizer unswaged
although I've never had a problem with either style.
52telecaster is offline
Old 04-27-20, 06:44 AM
  #33
Hudson308
Mr. Anachronism

Hudson308's Avatar

Join Date: Jan 2013
Location: City of Lakes
Posts: 2,016

Bikes: fillet-brazed Chicago Schwinns, and some other stuff

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 504 Post(s)
Liked 185 Times in 127 Posts
Swaged Maxy was dealer-installed original on a '78 Trek TX770 (called a 912 on the original invoice) I bought from the original owner.​​​​​​​
__________________
"If we don't change direction soon, we'll end up where we're going." -Irwin Corey
Hudson308 is offline
Old 04-27-20, 06:55 AM
  #34
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 3,393

Bikes: Bob Jackson World Tour, Falcon and lots of other bikes.

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1054 Post(s)
Liked 439 Times in 256 Posts
Originally Posted by Hudson308 View Post
Swaged Maxy was dealer-installed original on a '78 Trek TX770 (called a 912 on the original invoice) I bought from the original owner.
​​​​​​​always liked the look of that crank. 110 bcd?
52telecaster is offline
Old 04-27-20, 07:03 AM
  #35
thumpism
Bikes are okay, I guess.

thumpism's Avatar

Join Date: Jan 2015
Location: Richmond, Virginia
Posts: 6,347

Bikes: Waterford Paramount Touring, Trek 510 city build, Giant CFM-2, Raleigh Sports 3-speeds in M23 & L23, Schwinn Cimarron oddball build, Marin Palisades Trail dropbar conversion, Nishiki Cresta GT

Mentioned: 52 Post(s)
Tagged: 0 Thread(s)
Quoted: 1844 Post(s)
Likes: 0
Liked 589 Times in 420 Posts
I've known one Maxy II crank to fail, the predecessor to this one. The spider, including the swaged part, was already damaged when I began working with it but I was using it as the mockup for my K-Mart Triple, a 34-45 double with a 22T freewheel cog bolted onto the spider as a granny gear and that was mostly to get the spacing right. First ride I shifted into the 22 front and 34 rear and spun the spider so I got this crank (Fuji-branded Maxy II) and have had no problems.
thumpism is offline
Old 04-27-20, 07:24 AM
  #36
Hudson308
Mr. Anachronism

Hudson308's Avatar

Join Date: Jan 2013
Location: City of Lakes
Posts: 2,016

Bikes: fillet-brazed Chicago Schwinns, and some other stuff

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 504 Post(s)
Liked 185 Times in 127 Posts
Originally Posted by 52telecaster View Post
always liked the look of that crank. 110 bcd?
Yes, according to Velobase. Looks about right, too.
__________________
"If we don't change direction soon, we'll end up where we're going." -Irwin Corey
Hudson308 is offline
Old 04-27-20, 01:04 PM
  #37
Piff
Senior Member

Piff's Avatar

Join Date: Nov 2013
Location: Southern California
Posts: 931
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 414 Post(s)
Liked 178 Times in 117 Posts
Originally Posted by dmark View Post
Yes it does look different; sharp corner at crank arm & star. The one I have does not have that sharp edge.
Velobase:
Clearly swaged VeloBase.com - Component: Shimano FC-6200, 600EX Arabesque
Not swaged VeloBase.com - Component: Shimano FC-6200, 600EX Arabesque
I need to check my DX-4000 more closely; the photo is a spare set.

This turned into a thread hijack; sorry OP.

No, no, it's just picking up the threads from those discussing it 9 years ago. Fitting to get to the bottom of the mystery

Originally Posted by thumpism View Post
I've known one Maxy II crank to fail, the predecessor to this one. The spider, including the swaged part, was already damaged when I began working with it but I was using it as the mockup for my K-Mart Triple, a 34-45 double with a 22T freewheel cog bolted onto the spider as a granny gear and that was mostly to get the spacing right. First ride I shifted into the 22 front and 34 rear and spun the spider so I got this crank (Fuji-branded Maxy II) and have had no problems.
​​​​​​
That is truly something else...and you've had no issues so far? Do you ever use the granny gear while standing up and grinding up steep hills, or is it mostly used with smooth pedaling?

Last edited by Piff; 04-27-20 at 01:08 PM.
Piff is offline
Old 04-27-20, 06:16 PM
  #38
thumpism
Bikes are okay, I guess.

thumpism's Avatar

Join Date: Jan 2015
Location: Richmond, Virginia
Posts: 6,347

Bikes: Waterford Paramount Touring, Trek 510 city build, Giant CFM-2, Raleigh Sports 3-speeds in M23 & L23, Schwinn Cimarron oddball build, Marin Palisades Trail dropbar conversion, Nishiki Cresta GT

Mentioned: 52 Post(s)
Tagged: 0 Thread(s)
Quoted: 1844 Post(s)
Likes: 0
Liked 589 Times in 420 Posts
Originally Posted by Piff View Post
​​That is truly something else...and you've had no issues so far? Do you ever use the granny gear while standing up and grinding up steep hills, or is it mostly used with smooth pedaling?
No issues but not huge miles over the years. And I'm a lightweight, not physically but muscularly, so no grinding for me. I do have a pretty smooth cadence.
thumpism is offline
Old 05-12-20, 04:33 PM
  #39
thumpism
Bikes are okay, I guess.

thumpism's Avatar

Join Date: Jan 2015
Location: Richmond, Virginia
Posts: 6,347

Bikes: Waterford Paramount Touring, Trek 510 city build, Giant CFM-2, Raleigh Sports 3-speeds in M23 & L23, Schwinn Cimarron oddball build, Marin Palisades Trail dropbar conversion, Nishiki Cresta GT

Mentioned: 52 Post(s)
Tagged: 0 Thread(s)
Quoted: 1844 Post(s)
Likes: 0
Liked 589 Times in 420 Posts
Found this thing that's been hiding in the garage, a Super Maxy of the T/A look. Just the one arm and it appears to be swaged.


thumpism is offline
Likes For thumpism:
Old 05-12-20, 09:04 PM
  #40
Hudson308
Mr. Anachronism

Hudson308's Avatar

Join Date: Jan 2013
Location: City of Lakes
Posts: 2,016

Bikes: fillet-brazed Chicago Schwinns, and some other stuff

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 504 Post(s)
Liked 185 Times in 127 Posts
Originally Posted by thumpism View Post
Found this thing that's been hiding in the garage, a Super Maxy of the T/A look. Just the one arm and it appears to be swaged.


Swaged or not, that's pretty cool!
__________________
"If we don't change direction soon, we'll end up where we're going." -Irwin Corey
Hudson308 is offline
Likes For Hudson308:
Old 01-26-21, 08:59 AM
  #41
simonab
Junior Member

Join Date: Jan 2021
Posts: 5
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
End Nut for Sugino Maxy

Hi! Im quite new here but I'm looking for what end nuts I need to attach the sugino cranks I have to the bottom bracket of the Vittorio bike I am trying to build. Any ideas?
simonab is offline
Old 01-26-21, 09:00 AM
  #42
simonab
Junior Member

Join Date: Jan 2021
Posts: 5
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by simonab View Post
Hi! Im quite new here but I'm looking for what end nuts I need to attach the sugino cranks I have to the bottom bracket of the Vittorio bike I am trying to build. Any ideas?
here are some pictures of the cranks
Attached Files
File Type: pdf
IMG_0581.pdf (1.51 MB, 2 views)
File Type: pdf
IMG_0582.pdf (1.06 MB, 1 views)
File Type: pdf
IMG_0584.pdf (1.52 MB, 0 views)
File Type: pdf
IMG_0585.pdf (1.46 MB, 0 views)
File Type: pdf
IMG_0586.pdf (1.66 MB, 0 views)
simonab is offline
Old 01-26-21, 09:01 AM
  #43
simonab
Junior Member

Join Date: Jan 2021
Posts: 5
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I found some sugino spindle nut 14mm online, would those work?
simonab is offline
Old 01-26-21, 09:10 AM
  #44
bertinjim
Senior Member

bertinjim's Avatar

Join Date: Mar 2012
Location: Niagara Region, Canada
Posts: 1,262

Bikes: 1960s Bertin C37, 1973 Carre Bertin C 37, 1970s Carlton Kermesse, 1982 Peugeot PB 12

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 264 Post(s)
Liked 98 Times in 68 Posts
simonab-

I tried to open your image files but the PDF download would not open.
bertinjim is offline
Old 01-26-21, 09:20 AM
  #45
simonab
Junior Member

Join Date: Jan 2021
Posts: 5
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I'm trying to post them as JPEG files but it won't let me because I'm a newbie and I need to have posted 10 times at least
simonab is offline
Old 01-26-21, 09:23 AM
  #46
simonab
Junior Member

Join Date: Jan 2021
Posts: 5
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
these should work!
Attached Files
File Type: pdf
1.pdf (77.3 KB, 3 views)
File Type: pdf
2.pdf (80.9 KB, 1 views)
File Type: pdf
3.pdf (93.1 KB, 1 views)
File Type: pdf
4.pdf (140.4 KB, 1 views)
File Type: pdf
5.pdf (79.8 KB, 2 views)
simonab is offline
Old 01-26-21, 09:24 AM
  #47
dmark
Senior Member

Join Date: Oct 2017
Location: NJ
Posts: 300

Bikes: 84 Pinnarello Treviso NR, 72 PX-10, 91 Trek 930, 72 Fuji Finest, 90 Trek 750

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 89 Post(s)
Liked 59 Times in 43 Posts
Originally Posted by ColonelJLloyd View Post
Not in my book. Even the 600 Arabesque cranks are swaged. I've never heard of one failing. I'm sure there have been instances, but I don't think it's something to be concerned about.
SOME early 600 Arabesque are swaged most are not.
__________________
Last new bike 1991

Last edited by dmark; 01-26-21 at 10:27 AM.
dmark is offline
Old 01-26-21, 09:51 AM
  #48
markk900
Senior Member

markk900's Avatar

Join Date: Jan 2007
Location: Ontario
Posts: 2,025
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 228 Post(s)
Liked 102 Times in 65 Posts
simonab what does the spindle look like? I can't quite see it in the picture. If it is as I suspect a normal spindle with a threaded stud then a 14mm nut should work - as far as I know it can be any brand as long as its the correct thread for the spindle. I have swapped SR, campy, and Sugino cranks on the same spindle with the same nuts.
markk900 is offline
Old 01-26-21, 10:43 AM
  #49
oneclick
Senior Member

Join Date: Feb 2020
Posts: 864
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 295 Post(s)
Likes: 0
Liked 294 Times in 186 Posts
Originally Posted by markk900 View Post
simonab what does the spindle look like? I can't quite see it in the picture. If it is as I suspect a normal spindle with a threaded stud then a 14mm nut should work - as far as I know it can be any brand as long as its the correct thread for the spindle. I have swapped SR, campy, and Sugino cranks on the same spindle with the same nuts.

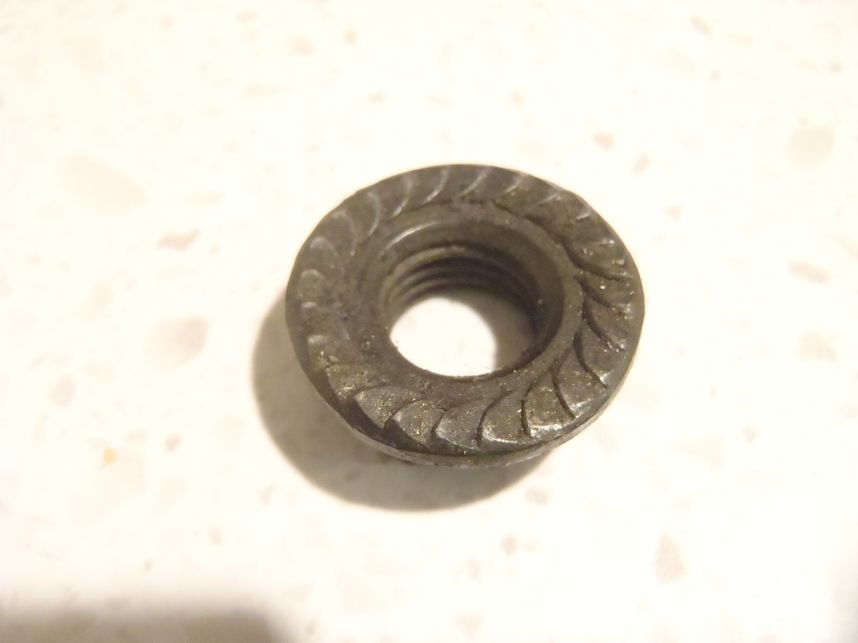

The nuts are 10mm x 1.25 and typically have a flange with a special surface:


oneclick is offline
Old 01-26-21, 11:10 AM
  #50
markk900
Senior Member

markk900's Avatar

Join Date: Jan 2007
Location: Ontario
Posts: 2,025
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 228 Post(s)
Liked 102 Times in 65 Posts
oneclick Yes I should have been more specific - 10x1.25 with a 14mm head; flanged nut. I was referring to a "standard crank nut".....
markk900 is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
