Lotus Bottom Bracket

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Lotus Bottom Bracket

Old 08-28-18, 01:47 PM
  #1
dwing
Senior Member
Thread Starter

Join Date: Apr 2015
Posts: 233
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 80 Post(s)
Likes: 0
Liked 3 Times in 2 Posts
Lotus Bottom Bracket

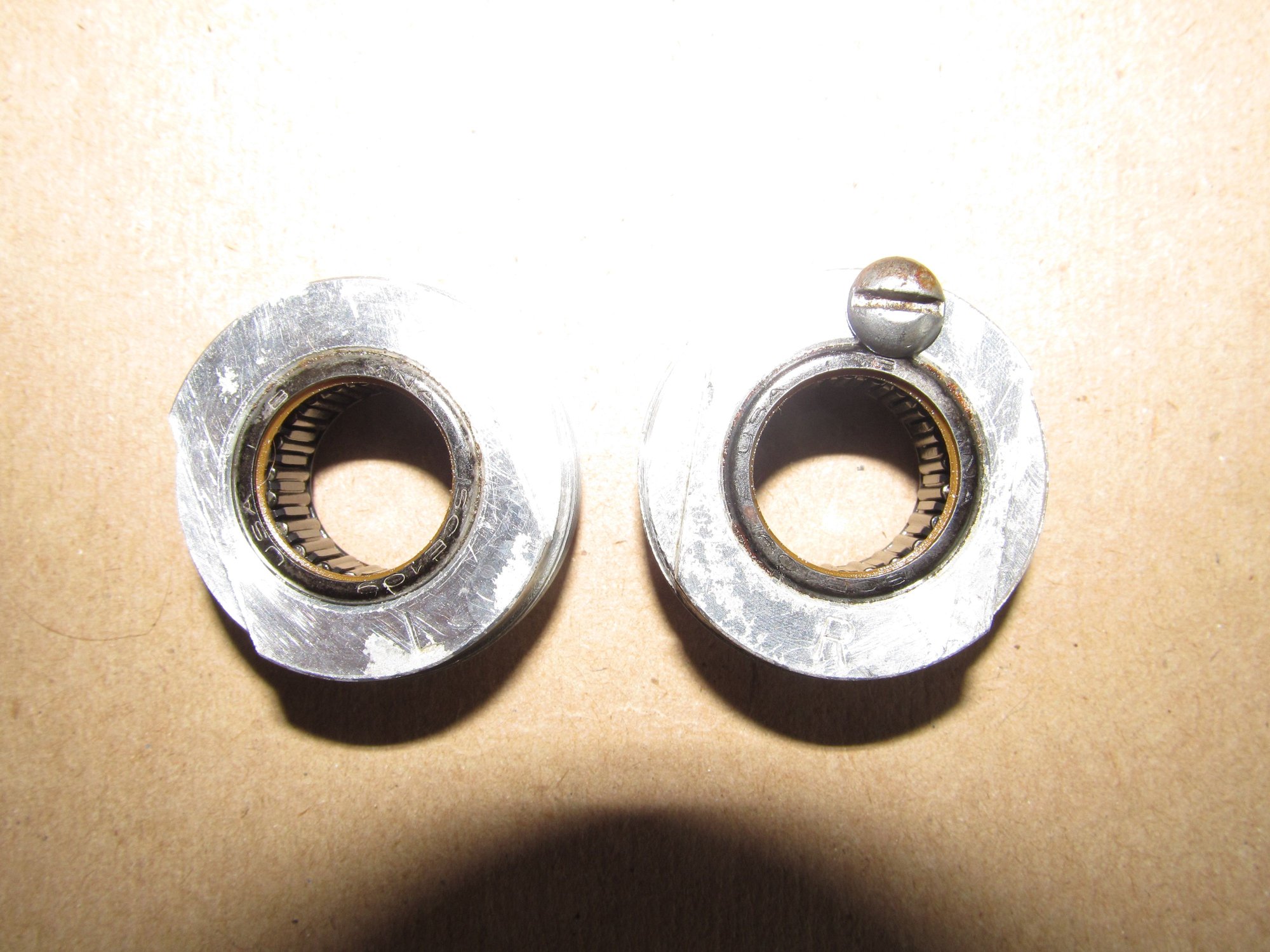

This BB came out of 1981 Lotus Odyssey I picked up off a scrap pile. There appears to be a center weight held to spindle with 2 set screws, and I was wondering what the idea is behind it? I didn't move it because I thought it was aligned to allow the longer drive side. Are the needle bearings replaceable or shouldn't I bother? I cleaned, re-greased, re-installed, cranks back on, and they spin pretty smoothly. Also, since there's no lock ring involved is there a special procedure for installing it properly? Any feedback appreciated!

dwing is offline
Old 08-28-18, 01:56 PM
  #2
dwing
Senior Member
Thread Starter

Join Date: Apr 2015
Posts: 233
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 80 Post(s)
Likes: 0
Liked 3 Times in 2 Posts
Bike came with all original parts per catalog reference I found. It was in pretty bad shape with lots of rust, but, it's cleaning up nicely overall except the drive side chrome stays are pitted, so, I'm going to leave as is and maybe only touch up the scratches and dings dings. Tange Champion 1.
dwing is offline
Old 08-28-18, 01:57 PM
  #3
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 4,432

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci x2, Gordon, Fuso/Moulton, Bornstein, Paisley, Paramounts, 3rensho, Moto TC, Raleigh Pro's, Marinoni, 1960 Cinelli SC, 1980 Bianchi SC and more

Mentioned: 110 Post(s)
Tagged: 0 Thread(s)
Quoted: 1238 Post(s)
Liked 143 Times in 117 Posts
Originally Posted by dwing View Post
This BB came out of 1981 Lotus Odyssey I picked up off a scrap pile. There appears to be a center weight held to spindle with 2 set screws, and I was wondering what the idea is behind it? I didn't move it because I thought it was aligned to allow the longer drive side. Are the needle bearings replaceable or shouldn't I bother? I cleaned, re-greased, re-installed, cranks back on, and they spin pretty smoothly. Also, since there's no lock ring involved is there a special procedure for installing it properly? Any feedback appreciated!

I would think its main job is as a spacer for the inner bearings, don't think its a weight since its the same all the way around.
merziac is online now
Old 08-28-18, 01:59 PM
  #4
DiegoFrogs
Senior Member

DiegoFrogs's Avatar

Join Date: Feb 2005
Location: Toledo, OH
Posts: 2,375

Bikes: '77 Centurion "Pro Tour"; '67 Carlton "The Flyer"; 1984 Ross MTB (in USA)

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 93 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Wow, that's really cool and I've never seen one before. It sure does look like the center piece is there to make the chainline adjustable.

So, I guess the needle bearings run directly on the spindle, and then the ball bearings run against the center piece? Pretty neat stuff, and I would think extremely durable, too.
DiegoFrogs is offline
Old 08-28-18, 02:46 PM
  #5
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: West Village, New York City
Posts: 37,572

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1973 Raleigh Twenty, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 440 Post(s)
Tagged: 0 Thread(s)
Quoted: 5677 Post(s)
Liked 246 Times in 173 Posts
Why did this never catch on?
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Old 08-28-18, 07:27 PM
  #6
thumpism
Bikes are okay, I guess.

thumpism's Avatar

Join Date: Jan 2015
Location: Richmond, Virginia
Posts: 4,799

Bikes: Waterford Paramount Touring, Bridgestone RB-T, Trek 510 city build, Giant CFM-2, Raleigh Sports 3-speeds in M23 & L23, Schwinn Cimarron oddball build

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 1290 Post(s)
Liked 72 Times in 57 Posts

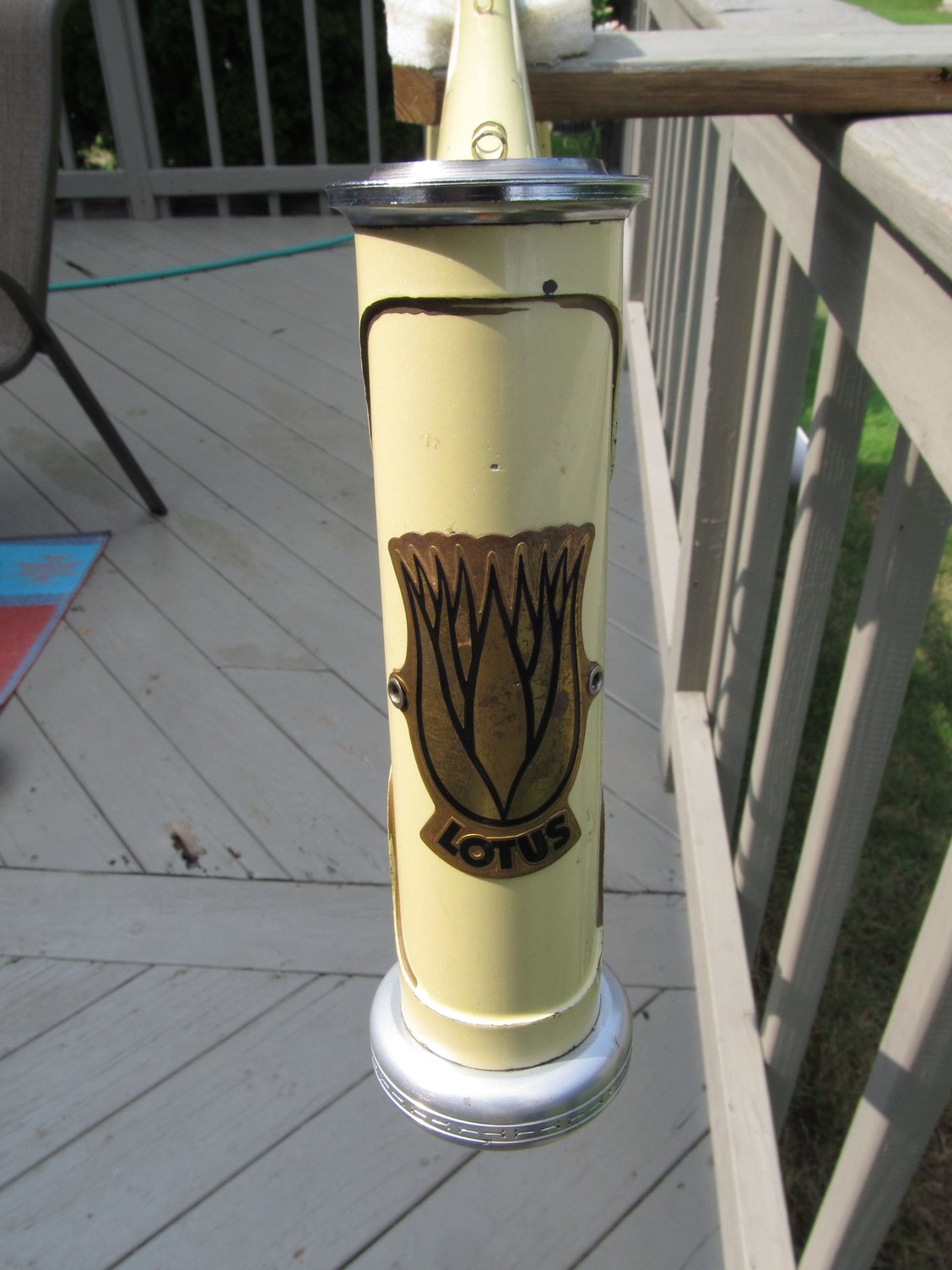

Headset looks like a Swiss-made EDCO, so maybe the BB is, too. I installed one years ago but that was an eccentric to be installed in an Italian-threaded shell and was different from this one.

Maybe Bullseye brand.

http://www.bikepro.com/products/bott...ts/bulls.shtml


Last edited by thumpism; 08-28-18 at 07:32 PM.
thumpism is offline
Old 08-28-18, 09:52 PM
  #7
dwing
Senior Member
Thread Starter

Join Date: Apr 2015
Posts: 233
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 80 Post(s)
Likes: 0
Liked 3 Times in 2 Posts
Thanks guys! The Bullseye reference describes it perfectly as "floating", and I that's what I first thought as I was reinstalling. The inside chainring touched the stay as I turned the crank and I simply adjusted both cups to move it out a few mm. I would guess that feature can be helpful when tuning the drivetrain.
dwing is offline
