Whatís inside an in-line barrel adjuster?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Whatís inside an in-line barrel adjuster?

Old 11-17-19, 12:27 PM
  #1
rcd
Senior Member
Thread Starter

Join Date: Aug 2005
Location: Calgary, Alberta
Posts: 106

Bikes: Cannondale T-800, Bridgestone RB-1, Bianche Mountain Bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Whatís inside an in-line barrel adjuster?

Tried to post a far more detailed post yesterday, but somehow failed. I have an in-line barrel adjuster on the rear brake of my 20 year old Cannondale T800 touring bike. Turning it either way does nothing, so Iíve disconnected things enough that I can see into the black plastic housing (about 5-6 cm long). On the lever end, there is a metal cup extending from the lip of the housing down inside the housing by about a cm, and a hole in the bottom of the cup allows the cable to pass through. It is more difficult to see down inside the plastic housing from the other end ó there MIGHT be a threaded metal piece that enables the lengthening/shortening of the cable (increasing/decreasing tension on the cable). I really canít see well enough to say, but that would make sense, given how more visible barrel adjusters work.
Maybe some piece has been lost? Maybe something is just seized up? But even if everything were functioning fine, I donít understand how merely rotating the housing would do ANYTHING to alter the length of the mechanism itself. Turning the plastic housing only appears the rotate the whole unit around the cable, not to turn the adjusting mechanism itself. Yes, Iím going to go buy a replacement, but Iím still curious about whatís happening with the one I have. Enlightenment would be most welcome!
rcd is offline
Old 11-17-19, 12:46 PM
  #2
DaveSSS
Senior Member

Join Date: Sep 2008
Location: Loveland, CO
Posts: 5,568

Bikes: TWO Colnago C-RS w/Chorus 12

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 274 Post(s)
Liked 75 Times in 57 Posts
Inside are threads and a spring. You have to hold on to one end and turn the other end.
DaveSSS is offline
Old 11-17-19, 01:19 PM
  #3
rcd
Senior Member
Thread Starter

Join Date: Aug 2005
Location: Calgary, Alberta
Posts: 106

Bikes: Cannondale T-800, Bridgestone RB-1, Bianche Mountain Bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thanks, Dave. Can’t see anything like a spring — maybe that’s gone missing. Still though, how does simply rotating the housing around the cable ever engage the mechanism so that it, too, will turn? It looks like rotating the plastic housing would just spin it via the ferrules, as I don’t see what would hold part of its innards stationary while rotating another part. Anyone know of any diagrams/pics/videos that might illustrate this?
rcd is offline
Old 11-17-19, 01:52 PM
  #4
DaveSSS
Senior Member

Join Date: Sep 2008
Location: Loveland, CO
Posts: 5,568

Bikes: TWO Colnago C-RS w/Chorus 12

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 274 Post(s)
Liked 75 Times in 57 Posts
There should be a larger diameter part that has internal threads, so it works like a nut. The smaller diameter part has external threads, so it's like a bolt, with a small through hole for the cable to go through. If the small diameter end is turned CCW, it unscrews and increases tension.

If there are not two diameters, it's not a cable adjuster. Does the frame have an adjuster?

Also see YouTube there are many videos.

Last edited by DaveSSS; 11-17-19 at 02:28 PM.
DaveSSS is offline
Old 11-17-19, 03:49 PM
  #5
shelbyfv
Banned.

Join Date: Jun 2007
Posts: 6,014
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 1378 Post(s)
Liked 459 Times in 290 Posts
You mentioned a "lever." Maybe what you have is a QR to facilitate wheel removal, w/o an adjuster function.
shelbyfv is offline
Old 11-17-19, 06:58 PM
  #6
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 5,699

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 910 Post(s)
Liked 253 Times in 193 Posts
Can you post a picture?
dedhed is offline
Old 11-17-19, 07:18 PM
  #7
rcd
Senior Member
Thread Starter

Join Date: Aug 2005
Location: Calgary, Alberta
Posts: 106

Bikes: Cannondale T-800, Bridgestone RB-1, Bianche Mountain Bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by shelbyfv View Post
You mentioned a "lever." Maybe what you have is a QR to facilitate wheel removal, w/o an adjuster function.
Sorry, I was just referring to the brake lever, some distance away from this in-line barrel adjuster. I wanted the reader to understand which end of the plastic housing held the metal cup. Iíll try to post a pic tomorrow, but it is simply a very common adjuster enabling you to do small adjustments on the brake (to compensate for pad wear) while riding. I say ďvery common adjusterĒ but I suppose the biking world has changed some since I got this bike 20 years ago! Maybe I should have provided a Seniors Alert! 😀
rcd is offline
Old 11-21-19, 12:47 PM
  #8
Wilfred Laurier
SeŮor Member

Wilfred Laurier's Avatar

Join Date: Feb 2013
Posts: 4,919
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 589 Post(s)
Liked 210 Times in 152 Posts
So is the adjuster part of the brake lever or is it a separate adjuster?

The in-line adjusters are basically a hollow bolt with a cable stop on one end, and a nut with a cable stop on the other end. The cable housing is split and the ends are seated in the cable stops on the 'bolt' and on the 'nut', and turning the 'nut' in relation to the 'bolt' makes the split in the cable housing wider or narrower. Pulling the two ends further apart has the effect of 'tightening' the cable, turning so the two ends are closer together 'loosens' the cable.
Wilfred Laurier is offline
Old 11-21-19, 01:20 PM
  #9
rumrunn6
Senior Member

rumrunn6's Avatar

Join Date: Jul 2008
Location: 25 miles northwest of Boston
Posts: 24,157

Bikes: Bottecchia Sprint, GT Timberline 29r

Mentioned: 99 Post(s)
Tagged: 0 Thread(s)
Quoted: 3471 Post(s)
Liked 478 Times in 352 Posts

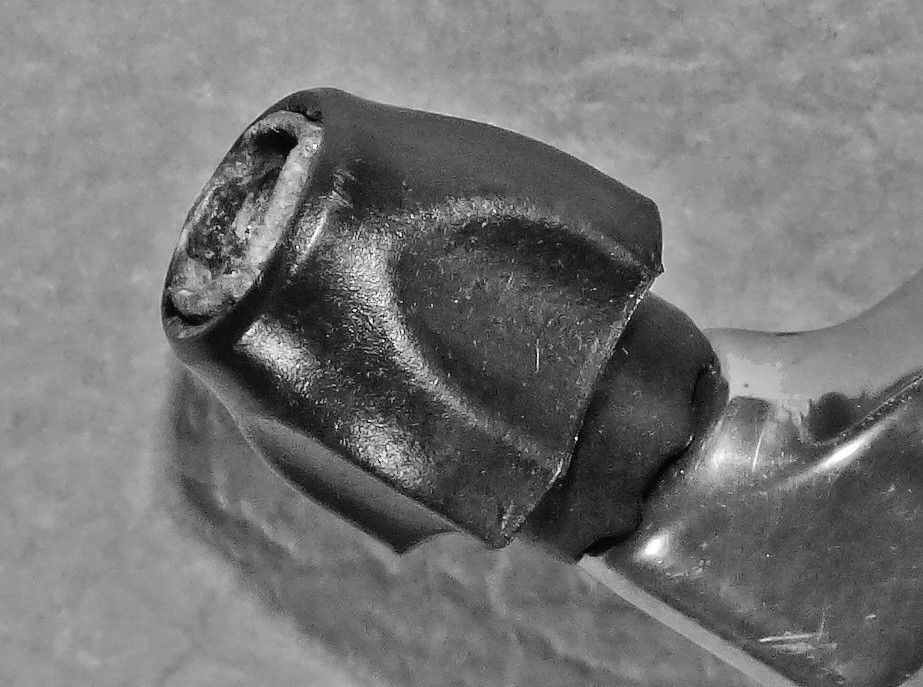

fwiw - when I changed my rear derailer cable I wound up removing the two barrel adjusters cuz I unscrewed one & it flew off the bike. Don’t know how all three of the little parts landed together on the floor next to me. That was a close call. But a good opportunity to clean & lube them. here's what they look like







rumrunn6 is offline
Old 11-24-19, 12:22 AM
  #10
Doug64
Senior Member

Doug64's Avatar

Join Date: Mar 2009
Location: Oregon
Posts: 5,611
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 809 Post(s)
Liked 73 Times in 49 Posts
Check this out; it might help. I have them on a T800, T2 and use them on my CX bike.

Doug64 is offline
