How would you outfit my 650b Trek?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.
View Poll Results: Which Shifting Option Would You Pick?
8 Speed Campy Ergos Shifting 7 Speed Shimano Cassette
2
15.38%
Sachs-Huret Rachet Downtube Friction Shifting 10 speed Shimano Cassette
11
84.62%
Voters: 13. You may not vote on this poll

How would you outfit my 650b Trek?

Old 01-20-20, 01:14 PM
  #1
abshipp
Senior Member
Thread Starter

abshipp's Avatar

Join Date: Sep 2017
Location: Rockford IL
Posts: 1,489

Bikes: 1976 Motobecane Grand Jubile, 1977 Schwinn Super Le Tour 12.2 Chrome, 1981 Trek 716, 2014 Canfield Nimble 9

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 1018 Post(s)
Liked 571 Times in 266 Posts
How would you outfit my 650b Trek?

My 1981 Trek 710 is currently under the brazing torch having 650b cantilever bosses, water bottle bosses, and downtube shift braze-ons added.

Since it's all torn apart, I've got an opportunity to re-build it in a couple different configurations. I have my own ideas on how I'm going to put it back together, but I thought it might be interesting to see what everyone else thought

I'm only looking at switching around shifting methods. Everything else I'm super happy about.

Option 1:
Campy Mirage 8 speed ergo shift/brake levers
Campy Mirage 8 speed long-cage RD
Shimano 7 speed 12-28 cassette

Option 2:
Non-aero brake levers
Sachs-Huret racheting downtube shifters
Miscellaneous Shimano or Suntour short cage RD
10 speed Shimano 12-28 cassette

This bike is my most-often-ridden out of any that I own, and is also my long-distance bike. Emphasis is definitely on comfort and versatility over speed.

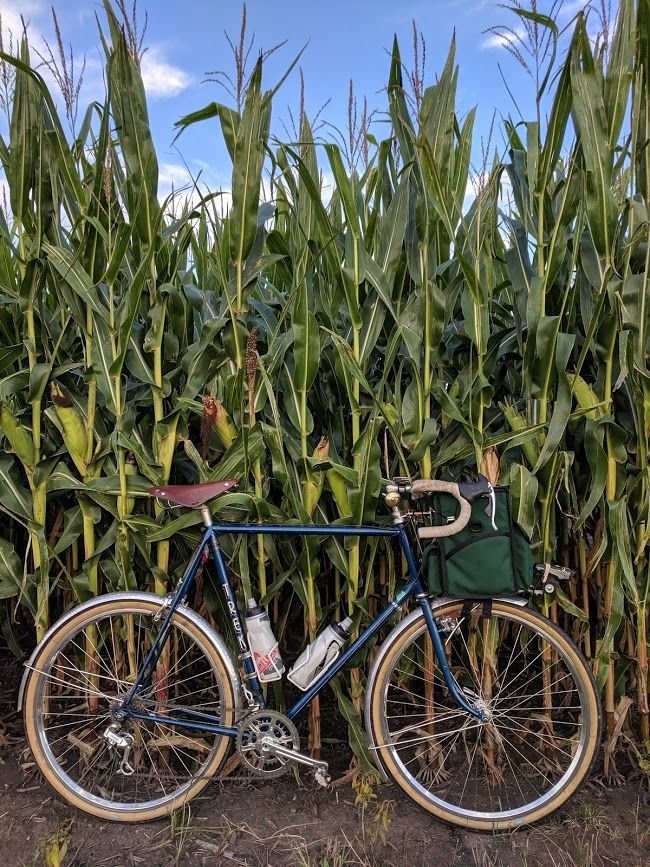

It was previously configured as option 1 with Campy ergopower levers:

abshipp is offline
Old 01-20-20, 01:31 PM
  #2
ThermionicScott
7-speed cultist

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 20,004

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 86 Post(s)
Tagged: 0 Thread(s)
Quoted: 2741 Post(s)
Liked 654 Times in 457 Posts
I know this is C&V and I typically outfit my bikes with 7-speed, but I think it would be nice to have closer spacing on the top half of the cassette in this case. A 12-27T (10-speed) would be even nicer in that regard if you can live with one less tooth on the big cog.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498

Last edited by ThermionicScott; 01-20-20 at 01:40 PM.
ThermionicScott is offline
Likes For ThermionicScott:
Old 01-20-20, 02:23 PM
  #3
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 668

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b super touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 284 Post(s)
Liked 287 Times in 177 Posts
Although you could make it work with Ergopower, it would be a lot easier to rinko with friction shifters. If you are at all interested in rinko as a thing to do with your bike, that is.

Rinko aside, the downtube setup is more robust and gives you more gears. I don't see the downside, personally, but I am a friction shifting die-hard. Have you thought about bar-end shifters as a halfway-house between Ergo and downtubes? Simplex made some retrofriction ones (hard but not impossible to find), the Rivendell/Dia Compe Silver shifter is fine, and even the old Suntour barcons work fine for me for 9 speeds.
scarlson is offline
Likes For scarlson:
Old 01-20-20, 03:58 PM
  #4
belacqua
Senior Member

Join Date: Sep 2008
Location: Kansas City
Posts: 395
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 88 Post(s)
Liked 17 Times in 15 Posts
I voted Sachs because they are a positive pleasure to use.
belacqua is offline
Likes For belacqua:
Old 01-20-20, 04:11 PM
  #5
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 16,739

Bikes: A bunch of old bikes and a few new ones

Mentioned: 138 Post(s)
Tagged: 0 Thread(s)
Quoted: 4388 Post(s)
Liked 654 Times in 481 Posts
Originally Posted by ThermionicScott View Post
I know this is C&V and I typically outfit my bikes with 7-speed, but I think it would be nice to have closer spacing on the top half of the cassette in this case. A 12-27T (10-speed) would be even nicer in that regard if you can live with one less tooth on the big cog.
I set up my long distance machines 3 x 7 but there's a lot to be said for the closer spacing you get with more gears in the rear.
bikemig is online now
Likes For bikemig:
Old 01-20-20, 07:30 PM
  #6
abshipp
Senior Member
Thread Starter

abshipp's Avatar

Join Date: Sep 2017
Location: Rockford IL
Posts: 1,489

Bikes: 1976 Motobecane Grand Jubile, 1977 Schwinn Super Le Tour 12.2 Chrome, 1981 Trek 716, 2014 Canfield Nimble 9

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 1018 Post(s)
Liked 571 Times in 266 Posts
Originally Posted by ThermionicScott View Post
I know this is C&V and I typically outfit my bikes with 7-speed, but I think it would be nice to have closer spacing on the top half of the cassette in this case. A 12-27T (10-speed) would be even nicer in that regard if you can live with one less tooth on the big cog.
1t wouldn't be too bad to drop. I run a 46/30 in the front and that has been good enough to get me over all the hills I've found so far

I think I would like the close spacing, but I know that I don't shift as much when I have downtubes as I do Ergos, so maybe I would only go to 8 speeds on the back. Reasonably close spacing, but also dirt cheap chains and cassettes!


Originally Posted by scarlson View Post
Although you could make it work with Ergopower, it would be a lot easier to rinko with friction shifters. If you are at all interested in rinko as a thing to do with your bike, that is.

Rinko aside, the downtube setup is more robust and gives you more gears. I don't see the downside, personally, but I am a friction shifting die-hard. Have you thought about bar-end shifters as a halfway-house between Ergo and downtubes? Simplex made some retrofriction ones (hard but not impossible to find), the Rivendell/Dia Compe Silver shifter is fine, and even the old Suntour barcons work fine for me for 9 speeds.
No need or plans for rinko at this time. I've got a truck with a full size bed and unfortunately no good public transportation options so there's really no need. Agreed with the robustness and simplicity, though.

I do have a set of Suntour barcons on another bike that might be used at some point on this one. I've run them before and liked them, although they weren't my absolute favorite.


Originally Posted by belacqua View Post
I voted Sachs because they are a positive pleasure to use.
Oh don't I know it! I wouldn't be thinking of switching if I didn't know how lovely they are


Originally Posted by bikemig View Post
I set up my long distance machines 3 x 7 but there's a lot to be said for the closer spacing you get with more gears in the rear.
I've run a triple before in the past, but found myself only in the middle and small rings. So I switched to a 46/30 double setup. I haven't felt myself wanting closer spacing necessarily, but if it's available I'll take it!
abshipp is offline
Old 01-23-20, 09:28 AM
  #7
abshipp
Senior Member
Thread Starter

abshipp's Avatar

Join Date: Sep 2017
Location: Rockford IL
Posts: 1,489

Bikes: 1976 Motobecane Grand Jubile, 1977 Schwinn Super Le Tour 12.2 Chrome, 1981 Trek 716, 2014 Canfield Nimble 9

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 1018 Post(s)
Liked 571 Times in 266 Posts
The frame is back from being modified!

Off to powder today!

Tuesday I broke down the cockpit and installed some non-aero levers. Looking forward to riding this with downtube shifters again!
abshipp is offline
Old 01-23-20, 10:40 AM
  #8
Ex Pres
#39

Ex Pres's Avatar

Join Date: Dec 2007
Location: Mountain Brook, AL
Posts: 7,183
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 376 Post(s)
Liked 28 Times in 21 Posts
Sachs 8s Ergo
Ex Pres is offline
Likes For Ex Pres:
Old 01-23-20, 12:59 PM
  #9
abshipp
Senior Member
Thread Starter

abshipp's Avatar

Join Date: Sep 2017
Location: Rockford IL
Posts: 1,489

Bikes: 1976 Motobecane Grand Jubile, 1977 Schwinn Super Le Tour 12.2 Chrome, 1981 Trek 716, 2014 Canfield Nimble 9

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 1018 Post(s)
Liked 571 Times in 266 Posts
I'm a happy guy:


abshipp is offline
Likes For abshipp:
Old 01-24-20, 01:12 AM
  #10
Dfrost
Senior Member

Dfrost's Avatar

Join Date: May 2013
Location: Pacific Northwest
Posts: 1,481

Bikes: ‘87 Marinoni SLX Sports Tourer, ‘79 Miyata 912 by Gugificazione

Mentioned: 128 Post(s)
Tagged: 0 Thread(s)
Quoted: 316 Post(s)
Liked 49 Times in 37 Posts
Originally Posted by Ex Pres View Post
Sachs 8s Ergo
+1
Either 7- or 8-speed Shimano cassettes are easy to disassemble, then reconfigure with the gears you want, using loose Shimano or SRAM cogs taken from alternate cassettes. Both bikes are Sachs Ergo triples with 1-tooth steps for the cogs in my “flat road” range, but wider steps above and below. Sachs New Success medium cage RD’s on both. Interestingly, one likes Shimano (4.8mm) cog spacing, the other likes Campy (5.0mm) spacing

Last edited by Dfrost; 01-24-20 at 01:16 AM.
Dfrost is offline
Likes For Dfrost:
Old 01-24-20, 01:13 PM
  #11
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 11,952

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 75 Post(s)
Tagged: 0 Thread(s)
Quoted: 1951 Post(s)
Liked 268 Times in 188 Posts
I know you've already made your decision- and of course, you can always tweak and change everything- but having tasted the forbidden fruit- 10 speed is so awesome.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 01-24-20, 01:24 PM
  #12
abshipp
Senior Member
Thread Starter

abshipp's Avatar

Join Date: Sep 2017
Location: Rockford IL
Posts: 1,489

Bikes: 1976 Motobecane Grand Jubile, 1977 Schwinn Super Le Tour 12.2 Chrome, 1981 Trek 716, 2014 Canfield Nimble 9

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 1018 Post(s)
Liked 571 Times in 266 Posts
Originally Posted by The Golden Boy View Post
I know you've already made your decision- and of course, you can always tweak and change everything- but having tasted the forbidden fruit- 10 speed is so awesome.
I'm looking forward to the additional gears, for sure. It will be interesting to see how the Huret rachet shifters do with friction shifting so many cogs. If it's a little too finicky, I might need to go down to 9 or 8.
abshipp is offline
Old 01-24-20, 10:03 PM
  #13
ryansu
Ride.Smile.Repeat

ryansu's Avatar

Join Date: May 2011
Location: Seattle WA
Posts: 2,535

Bikes: 2009 Handsome Devil, 1978 Motobecane Grand Touring, 1987 Nishiki Cresta GT, Former bikes; 1986 Miyata Trail Runner, 1979 Miyata 912, 2011 VO Rando, 1999 Cannondale R800, 2012 Soma Smoothie, 1986 Schwinn Passage

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 672 Post(s)
Liked 298 Times in 224 Posts
I can't stop thinking of children of the corn
ryansu is offline
Old 01-24-20, 11:04 PM
  #14
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 11,952

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 75 Post(s)
Tagged: 0 Thread(s)
Quoted: 1951 Post(s)
Liked 268 Times in 188 Posts
Originally Posted by abshipp View Post
I'm looking forward to the additional gears, for sure. It will be interesting to see how the Huret rachet shifters do with friction shifting so many cogs. If it's a little too finicky, I might need to go down to 9 or 8.
I love the Sachs/Huret ratcheting shifters- they're totally buttery smooth; but I would choose 10s over those shifters any day of the week.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 01-25-20, 05:06 PM
  #15
palincss
Senior Member

Join Date: May 2017
Posts: 403
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 173 Post(s)
Liked 24 Times in 12 Posts
How about "None of the Above"?
palincss is offline
Old 01-29-20, 07:31 PM
  #16
abshipp
Senior Member
Thread Starter

abshipp's Avatar

Join Date: Sep 2017
Location: Rockford IL
Posts: 1,489

Bikes: 1976 Motobecane Grand Jubile, 1977 Schwinn Super Le Tour 12.2 Chrome, 1981 Trek 716, 2014 Canfield Nimble 9

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 1018 Post(s)
Liked 571 Times in 266 Posts
Originally Posted by palincss View Post
How about "None of the Above"?
What would your preference be?
abshipp is offline
Old 01-29-20, 07:34 PM
  #17
abshipp
Senior Member
Thread Starter

abshipp's Avatar

Join Date: Sep 2017
Location: Rockford IL
Posts: 1,489

Bikes: 1976 Motobecane Grand Jubile, 1977 Schwinn Super Le Tour 12.2 Chrome, 1981 Trek 716, 2014 Canfield Nimble 9

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 1018 Post(s)
Liked 571 Times in 266 Posts
Back from powder coat!

Not the best powder coat I have ever seen, but for the low price I got color as well as clear coat. I really love the color.

Currently being frame-savered right now and should be built up by the weekend.

abshipp is offline
Old 01-29-20, 07:35 PM
  #18
natterberry
Senior Member

natterberry's Avatar

Join Date: Sep 2017
Location: Springfield, IL
Posts: 465

Bikes: ‘83/‘85 Trek 760, ‘82 Trek 614, ‘77/‘78 Trek 304, ‘80 Miyata 912

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 177 Post(s)
Liked 77 Times in 49 Posts
I have dreams of doing this to my 614. Excellent choices so far!
natterberry is offline
Likes For natterberry:
Old 01-29-20, 09:13 PM
  #19
palincss
Senior Member

Join Date: May 2017
Posts: 403
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 173 Post(s)
Liked 24 Times in 12 Posts
Originally Posted by abshipp View Post
What would your preference be?
I'm not aware of any combination that would let me use Campagnolo Ergo 8 shifters and derailleurs with a Shimano 7 speed cassette. TheJtek Shiftmate 1 would let you run Campy 8 shifters and derailleur with a Shimano 8, and for my taste in gearing ranges, I might consider that with a Shimano-compatible 8 speed 12-32 customized into a 13-32 with a 13T 1st position sprocket. I've got that cassette on my Jack Taylor Sports and I'm happy with it.
palincss is offline
Old 01-30-20, 07:07 AM
  #20
abshipp
Senior Member
Thread Starter

abshipp's Avatar

Join Date: Sep 2017
Location: Rockford IL
Posts: 1,489

Bikes: 1976 Motobecane Grand Jubile, 1977 Schwinn Super Le Tour 12.2 Chrome, 1981 Trek 716, 2014 Canfield Nimble 9

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 1018 Post(s)
Liked 571 Times in 266 Posts
Originally Posted by palincss View Post
I'm not aware of any combination that would let me use Campagnolo Ergo 8 shifters and derailleurs with a Shimano 7 speed cassette. TheJtek Shiftmate 1 would let you run Campy 8 shifters and derailleur with a Shimano 8, and for my taste in gearing ranges, I might consider that with a Shimano-compatible 8 speed 12-32 customized into a 13-32 with a 13T 1st position sprocket. I've got that cassette on my Jack Taylor Sports and I'm happy with it.
Campagnolo 8 speed and Shimano 7 speed use the same 5mm cog spacing. So you can use 8 speed Ergo shifters with an 8 speed Campagnolo derailleur and shift across a 7 speed Shimano hyperglide cassette. I was very happy with the shifting with this setup. Running 12-28 in the rear with 46/30 chainrings.
abshipp is offline
Old 01-30-20, 08:11 AM
  #21
abshipp
Senior Member
Thread Starter

abshipp's Avatar

Join Date: Sep 2017
Location: Rockford IL
Posts: 1,489

Bikes: 1976 Motobecane Grand Jubile, 1977 Schwinn Super Le Tour 12.2 Chrome, 1981 Trek 716, 2014 Canfield Nimble 9

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 1018 Post(s)
Liked 571 Times in 266 Posts
Quick question for JohnDThompson or anyone else really familiar with Treks.

The seat binder bolt is 1/4-20. Was this standard or has it been re-tapped? Kind of annoying to have to carry a single 3/16 hex when everything else is metric, but you've got to do what you've got to do.

Thanks!
abshipp is offline
Old 01-30-20, 08:46 AM
  #22
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 21,289

Bikes: Several, mostly not name brands.

Mentioned: 125 Post(s)
Tagged: 0 Thread(s)
Quoted: 2076 Post(s)
Liked 426 Times in 302 Posts
Originally Posted by abshipp View Post
Quick question for JohnDThompson or anyone else really familiar with Treks.

The seat binder bolt is 1/4-20. Was this standard or has it been re-tapped? Kind of annoying to have to carry a single 3/16 hex when everything else is metric, but you've got to do what you've got to do.

Thanks!
Early Treks did use 1/4-20 binder bolts. This changed to M6 around 1980 or 81, IIRC.
JohnDThompson is online now
Old 01-30-20, 08:52 AM
  #23
abshipp
Senior Member
Thread Starter

abshipp's Avatar

Join Date: Sep 2017
Location: Rockford IL
Posts: 1,489

Bikes: 1976 Motobecane Grand Jubile, 1977 Schwinn Super Le Tour 12.2 Chrome, 1981 Trek 716, 2014 Canfield Nimble 9

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 1018 Post(s)
Liked 571 Times in 266 Posts
Originally Posted by JohnDThompson View Post
Early Treks did use 1/4-20 binder bolts. This changed to M6 around 1980 or 81, IIRC.
Good to know! Thanks!
abshipp is offline
Old 02-04-20, 12:02 PM
  #24
StuckinPark
Junior Member

Join Date: Feb 2020
Posts: 9
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I've been dying to try a 650B conversion. Need to find the proper bike first, though.
StuckinPark is offline
Old 02-04-20, 01:46 PM
  #25
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 19,332

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 480 Post(s)
Tagged: 0 Thread(s)
Quoted: 1664 Post(s)
Liked 125 Times in 94 Posts
I've used Campy Mirage Ergo shifters. I have not used a friction downtube shifter to shift a 10 speed derailleur. So I voted for the latter. Not a strong endorsement, but I can't recommend the Mirage at all.

Originally Posted by abshipp View Post
What would your preference be?
My preferred setup is a friction shifter on the right side of the down tube to operate the front derailleur, and an indexed bar end shifter for the rear derailleur. It took me years to figure this out.
__________________
I put new leather on ruined saddles like Brooks, etc. You can reach me by private message.
rhm is offline
Likes For rhm:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
