Seat tube stamped or just a dent?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Seat tube stamped or just a dent?

Old 04-06-20, 08:13 AM
  #1
daviddavieboy
Senior Member
Thread Starter

daviddavieboy's Avatar

Join Date: Oct 2013
Location: Great White North
Posts: 756

Bikes: Yeah, I have some.

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 261 Post(s)
Liked 62 Times in 36 Posts
Seat tube stamped or just a dent?

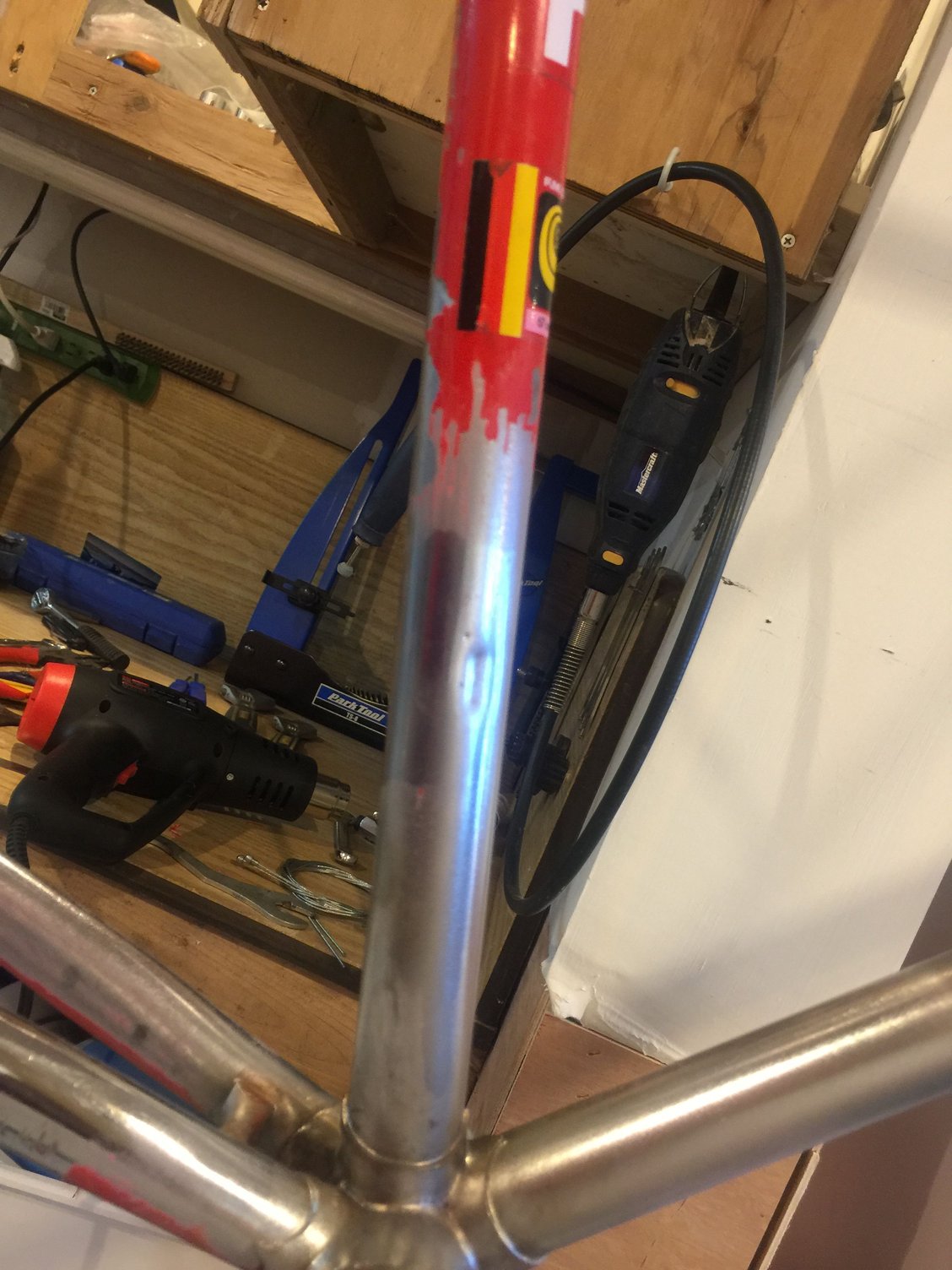

For good or bad I was very bored (too much for my own good) and decided it was time to refinish an old Moser. Any way as I stripped the paint off the seat tube and got to a dent I always knew was there, it looked a little strange to me. It has been there for the years I have had it and I always assumed it was from the front derailleur clamp. With the paint removed it looks like it was stamped and not a dent to me, possibly to place a derailleur braze on? Looking for other opinions as if it is a dent I will fill it prior to powder coating. Also what are the thoughts on the cable guide. They look a little ratty to me and thinking of changing to internal.

The bike is a Moser supersprint either 84'or 85'


Last edited by daviddavieboy; 04-06-20 at 08:16 AM.
daviddavieboy is offline
Old 04-06-20, 08:39 AM
  #2
xiaoman1
Senior Member

xiaoman1's Avatar

Join Date: Mar 2014
Location: Weird Coast City of the Angeles
Posts: 2,748

Bikes: Paramounts, PX-10s, Mondias, Motobecane Grand Record, Specialized Allez Carbon, and Nishiki Tri-A

Mentioned: 26 Post(s)
Tagged: 1 Thread(s)
Quoted: 530 Post(s)
Liked 243 Times in 173 Posts
It looks like a stamp from the factory to me...could be for a FD braze-on as you suspect.
Ben
xiaoman1 is offline
Old 04-06-20, 09:40 AM
  #3
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,130

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 765 Post(s)
Likes: 0
Liked 186 Times in 143 Posts
I've never seen a tube crimped to locate a braze-on tab, but I've seen several frames with such indentations from an over-tightened front derailer.
dddd is offline
Likes For dddd:
Old 04-06-20, 10:23 AM
  #4
daviddavieboy
Senior Member
Thread Starter

daviddavieboy's Avatar

Join Date: Oct 2013
Location: Great White North
Posts: 756

Bikes: Yeah, I have some.

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 261 Post(s)
Liked 62 Times in 36 Posts
This is another picture to show the orientation of the dent.
daviddavieboy is offline
Old 04-06-20, 10:34 AM
  #5
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,130

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 765 Post(s)
Likes: 0
Liked 186 Times in 143 Posts
It's hard for me to imagine that the frame's maker would crimp the tube for a braze-on but not braze it on.

That would appear shoddy, no?

One option would be to force it out by shoving a lubricated, correct-sized socket through the seat tube. Be sure though that there are no pins or tube overlap preventing the socket from being pushed all the way through, and that the socket is short enough to pass through at the bb shell, or might be difficult to remove.
dddd is offline
Old 04-06-20, 10:51 AM
  #6
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 6,732

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 606 Post(s)
Liked 147 Times in 96 Posts
I don't think the dent was from the factory. The two little punch marks, likely as a reference to where to place the braze on mount.

I would replace the cable guide, too far gone.
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Old 04-06-20, 11:02 AM
  #7
many408
Junior Member

Join Date: Jan 2014
Posts: 8
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by dddd View Post
It's hard for me to imagine that the frame's maker would crimp the tube for a braze-on but not braze it on.

That would appear shoddy, no?

One option would be to force it out by shoving a lubricated, correct-sized socket through the seat tube. Be sure though that there are no pins or tube overlap preventing the socket from being pushed all the way through, and that the socket is short enough to pass through at the bb shell, or might be difficult to remove.
That'll only work if the seat tube is straight-guage - the indent is above the butt if there is one.
many408 is offline
Old 04-06-20, 11:05 AM
  #8
daviddavieboy
Senior Member
Thread Starter

daviddavieboy's Avatar

Join Date: Oct 2013
Location: Great White North
Posts: 756

Bikes: Yeah, I have some.

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 261 Post(s)
Liked 62 Times in 36 Posts
I am inclined as well to think the punch marks are locating marks and the dent is well . . . Just a dent. As long as I have rode it it has had Campy SR parts but it had a Suntour AR front derailleur on it when I got it I will put the blocks on it and smooth the rest with silver. Thanks all.
