Eldi Chain Tool

All,

I am looking for a snapshot of the pin which fits inside of an Eldi chain tool.

Anybody? I've looked all over the WWW. Plenty of photos of the tool, but none of the small pin which drives out the chain pin.

Thanks in advance,

Kurt

satbuilder is offline
Old 05-02-19, 02:22 PM
  #2
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,212
Mentioned: 259 Post(s)
Tagged: 1 Thread(s)
Quoted: 2018 Post(s)
Liked 246 Times in 217 Posts
-----

Hi Kurt.

Have looked high and low for an ELDI catalogue but have never found one.

If you get some information please post!

-----
juvela is offline
Old 05-03-19, 09:39 AM
  #3
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 19,462
Mentioned: 507 Post(s)
Tagged: 1 Thread(s)
Quoted: 3131 Post(s)
Likes: 0
Liked 550 Times in 445 Posts

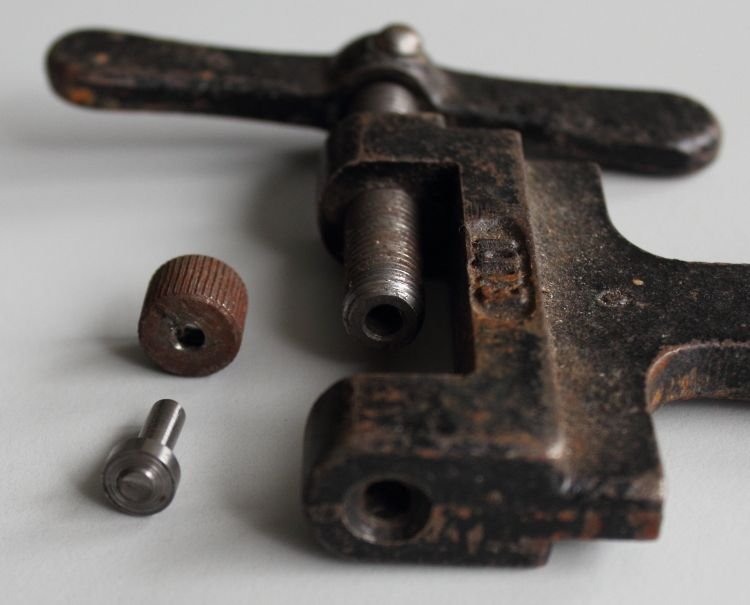

Here's a picture of one. The extractor pin has snapped off, but it shows you the configuration, with a central flange having a mounting pin on one end and the extractor pin on the other, which is fairly standard. The central flange measures 0.312" diameter x 0.125". Mounting pin section measures 0.164" diameter x 0.505".

T-Mar is offline
Old 05-03-19, 01:15 PM
  #4
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,212
Mentioned: 259 Post(s)
Tagged: 1 Thread(s)
Quoted: 2018 Post(s)
Liked 246 Times in 217 Posts
-----

Progress -

checked me files and found an ELDI print catalogue dated 1973

tool is Nr. 49

replacement pin is Nr. 49A

replacement pin listing is text only, no illustration

-----
juvela is offline
Old 04-08-20, 10:43 AM
  #5
glasspilot
'70's racer!

glasspilot's Avatar

Join Date: Dec 2009
Posts: 6
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Sorry for bringing back this older thread but it is exactly my subject.

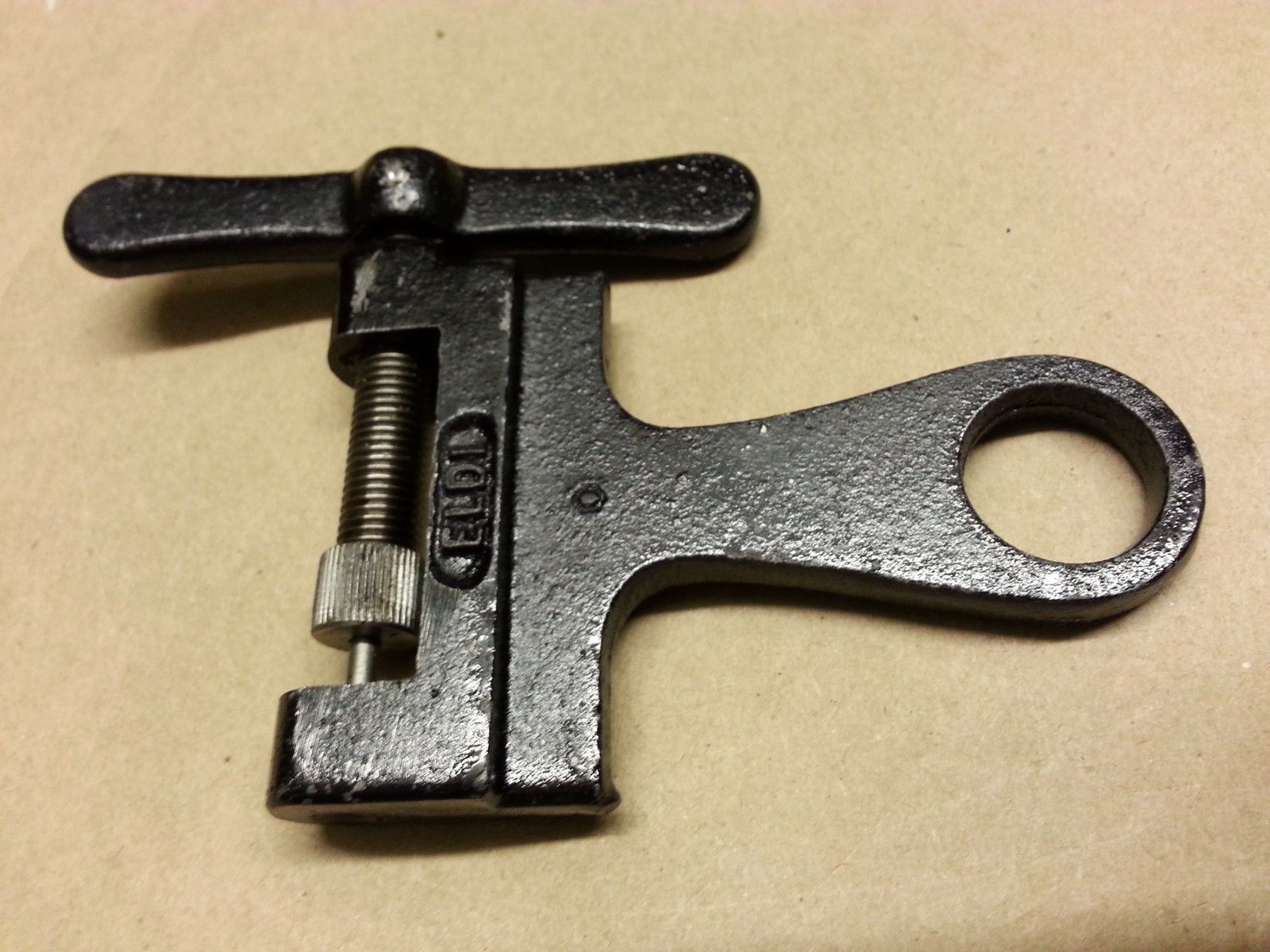

I have this exact chain breaker. I'm sure I bought it in the 1970's when I briefly raced.

I am looking for replacement pins for it and I am having trouble finding them. Is this Eldi CB too obsolete?

Last edited by glasspilot; 04-08-20 at 10:44 AM. Reason: spelling
glasspilot is offline
Old 04-08-20, 02:02 PM
  #6
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 5,714

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 126 Post(s)
Tagged: 0 Thread(s)
Quoted: 1673 Post(s)
Liked 578 Times in 422 Posts
Eldi may be one of the venerable brands of back in the day but they are a bit crude no matter how you cut it.

Very long screw for a bicycle chain tool, any slack in it creates deflection and binding when extended.

This was probably a multi use tool for motorcycles too and everything in between, easily loosing its precision needed for small chains.

You might be able to find a grade 8 screw to use or you could have a pin made but my view would be to display it for its place in history.
merziac is offline
Old 04-08-20, 05:06 PM
  #7
glasspilot
'70's racer!

glasspilot's Avatar

Join Date: Dec 2009
Posts: 6
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Merziac, thanks for the reply! I'm thinking I might be better off just buying a new, modern chain breaker.

If anybody has recommendations I'll listen!
glasspilot is offline
Likes For glasspilot:
Old 04-08-20, 06:15 PM
  #8
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 11,001

Bikes: Centurion Ironman, Trek 5900, Univega Via Carisma, Globe Carmel

Mentioned: 180 Post(s)
Tagged: 0 Thread(s)
Quoted: 3491 Post(s)
Liked 972 Times in 649 Posts
To repair an older tool you need or just happen to like, check Brownell's catalog. Yeah, they're a gunsmith's company, but some of the tools are very similar. Brownell's has the makings for hardened pins, including instructions for heat treating raw stock from pins to springs. I've done that years ago and it was easier than I'd expected and an instructive experience. At the time I had a rural home on three acres so I used my existing garden burn pile to make a pit for heat treating and hardening using traditional methods for blacksmiths and gunsmiths to fix or make new springs, pins, etc.

My chain tools include a shop grade tool that came with a Venzo tool kit from Amazon (alas, since discontinued). The Venzo kit was better -- less expensive with better tools -- than the comparable Nashbar branded kits that were popular before Nashbar was sold a couple of years ago.

Another tool I often use came with my Spin Doctor Rescue 16 multi-tool. Good small chain tool and excellent spoke wrench - I prefer it to the spoke wrench that came with my Venzo kit. Clever design. The spoke wrench serves as the wingnut handle for the chain tool. It spins off completely to use as a spoke wrench. It's a great value at $20 and a bargain for the $14 I paid at Nashbar during their closeout/blowout sales a couple of years ago before the corporate transfer. Only quirk is it doesn't fold completely flat.

The HeroKit multi-tool is similarly designed, *does* fold flat (fits in my minimalist Lezyne Road Caddy seat bag), and seems well made. I haven't used the chain tool or spoke wrench yet, but have used the various other tools and they all work fine.

Between the two for the same price -- $20 -- if conserving space isn't as important as function go for the Spin Doctor Rescue 16.
