Super Sport 3 piece

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Super Sport 3 piece

Old 03-23-20, 01:31 PM
  #1
Kdogbikes
Senior Member
Thread Starter

Join Date: Jul 2015
Location: Madison, Ohio
Posts: 639

Bikes: Gitane tdf,Schwinn 12.2,2 continentals,miyata310,univega supra soort,couple peugeots,ou8,ou10,a few mtb's and other bikes

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 136 Post(s)
Liked 48 Times in 37 Posts
Super Sport 3 piece

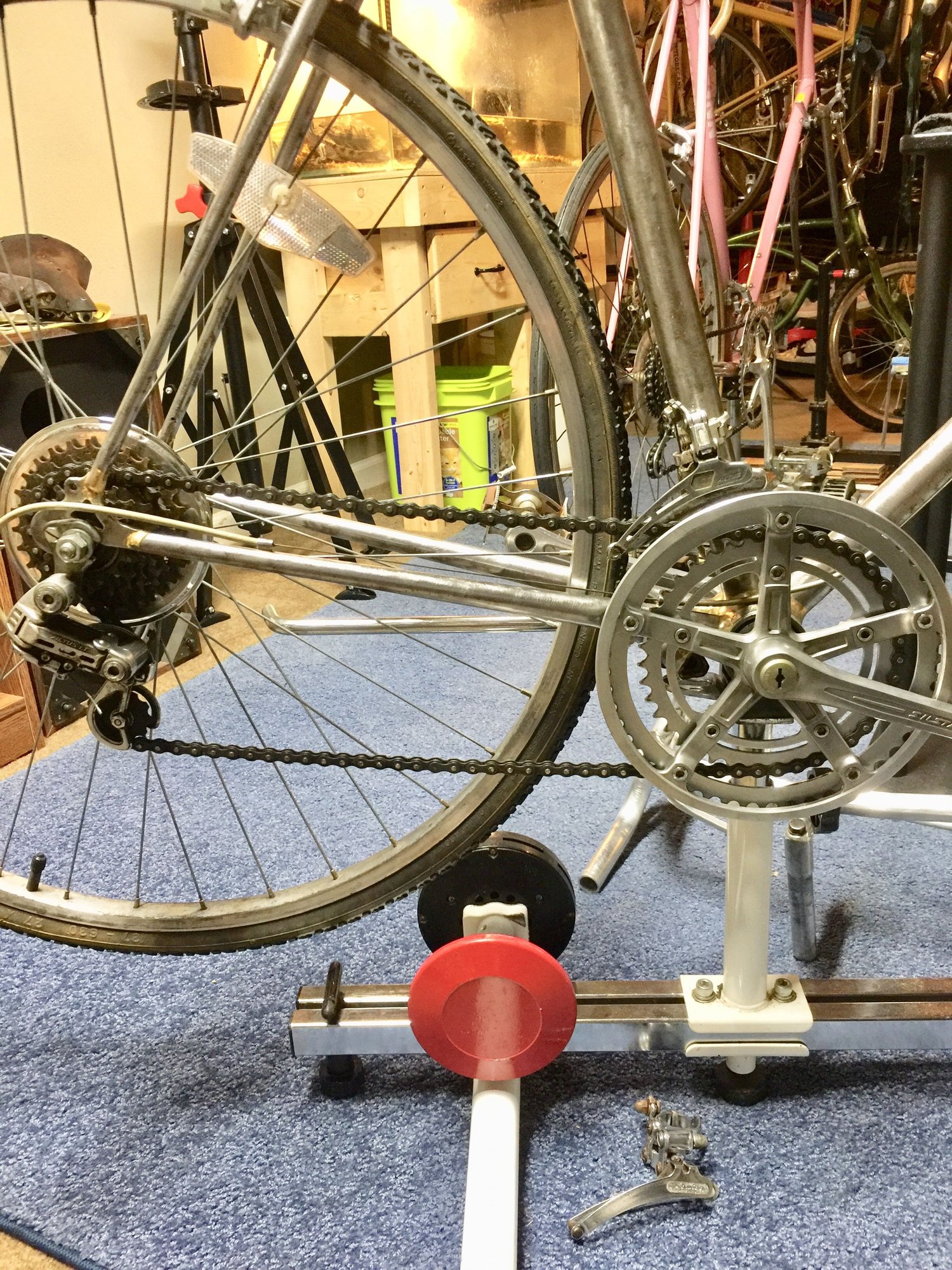

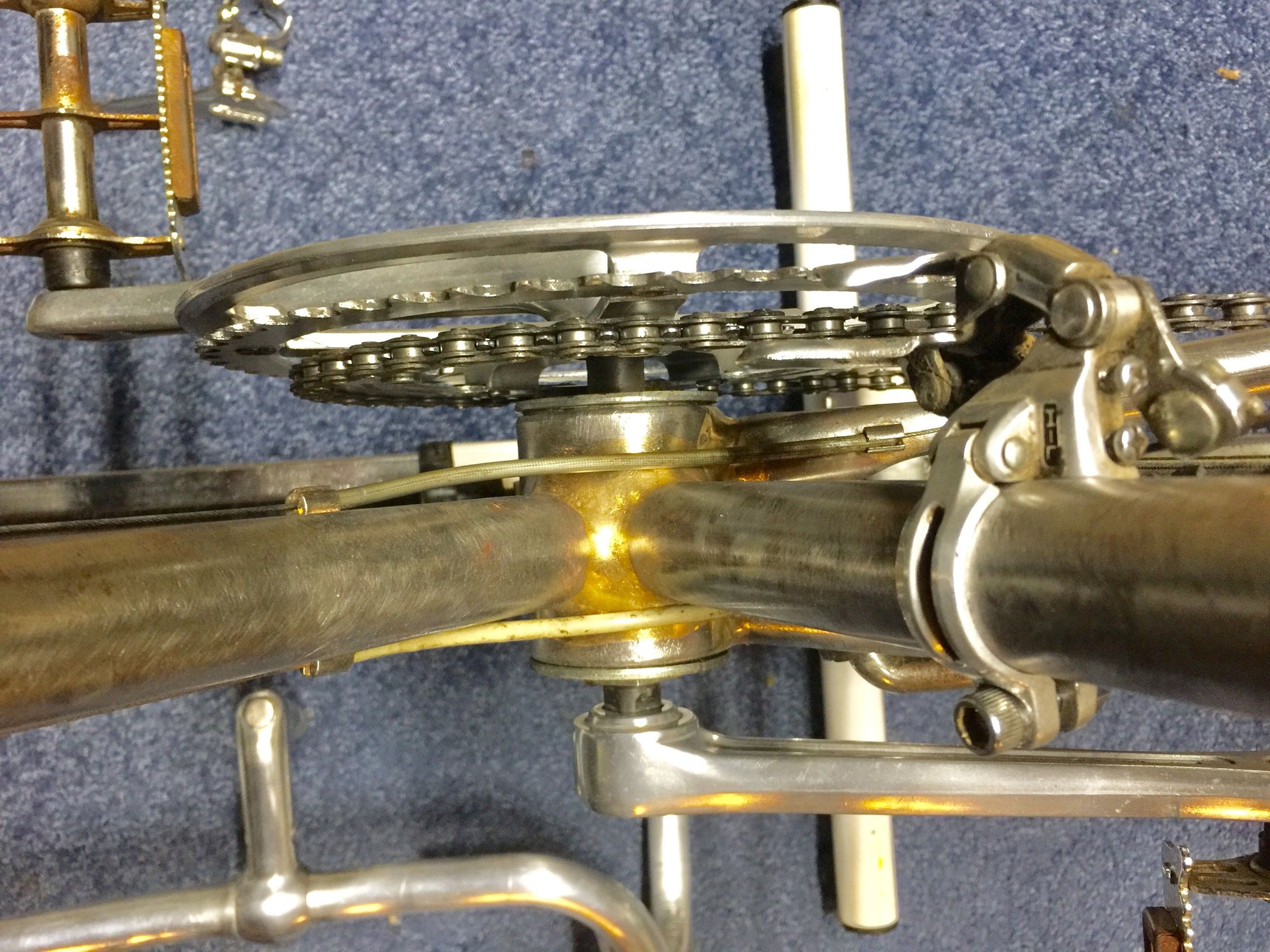

Taking some time to mock up this bike before spring repaint. Had this bmx crank and was hopeing to use on this build. Concern is the distance from bottom bracket to 1st ring. Small-big makes for quite the chain angle. On the trainer derailers hit all gears. Looking for thoughts on this chain line.




Kdogbikes is offline
Old 03-23-20, 02:10 PM
  #2
Velo Mule
Senior Member

Velo Mule's Avatar

Join Date: Dec 2016
Location: Long Island, NY
Posts: 680

Bikes: Trek 800 x 2, Schwinn Heavy Duti, Electra Cantilever, Schwinn Traveler, Schwinn Le Tour Luxe, Schwinn World

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 206 Post(s)
Liked 89 Times in 79 Posts
Thanks for the detailed pictures. It looks like it could be good. I like the bike and the components shown.

I usually put the chain on the middle cog of the freewheel and sight from the rear along the chain to see if there is an "s" bend in the chain. For a triple chain ring the chain would be on the middle chainring. For a double, I check both chainrings. The chain line may not be perfect, but it should be close.

Perhaps you you can get us that picture?

I wouldn't mind seeing more details of the frame too (unless it is already on another thread). Eye candy, a naked fillet blazed frame.
Velo Mule is offline
Old 03-23-20, 02:15 PM
  #3
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,156
Mentioned: 259 Post(s)
Tagged: 1 Thread(s)
Quoted: 1992 Post(s)
Liked 235 Times in 207 Posts
-----

drive side of spindle definitely too long

think of the Q factor as well...

-----
juvela is offline
Likes For juvela:
Old 03-23-20, 03:43 PM
  #4
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 7,915

Bikes: A few

Mentioned: 106 Post(s)
Tagged: 0 Thread(s)
Quoted: 1462 Post(s)
Liked 254 Times in 193 Posts
Measure from between the two chainrings and the middle of the seat tube. Should be be in the 42-45mm range.
3speedslow is offline
Old 03-23-20, 04:02 PM
  #5
Kdogbikes
Senior Member
Thread Starter

Join Date: Jul 2015
Location: Madison, Ohio
Posts: 639

Bikes: Gitane tdf,Schwinn 12.2,2 continentals,miyata310,univega supra soort,couple peugeots,ou8,ou10,a few mtb's and other bikes

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 136 Post(s)
Liked 48 Times in 37 Posts

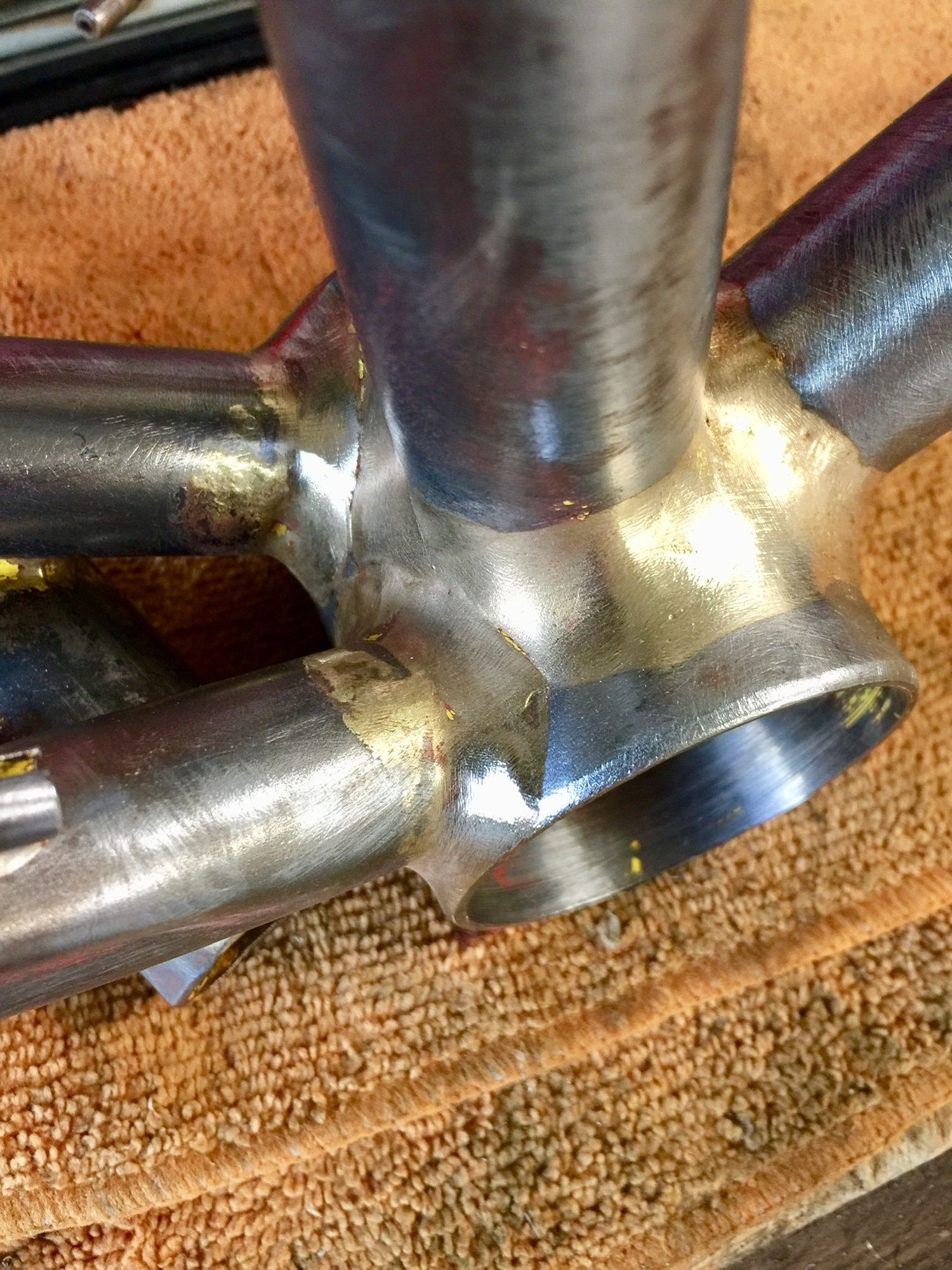

Didnít give q a thought. Hurt the knee,right? More I look at it compared to other bikes,it doesnít look right. Iím good with Ashtabula one piece,just thought this set up might have worked. Couple pics of the brazing for Velo mule.

Kdogbikes is offline
Old 03-23-20, 04:11 PM
  #6
Kdogbikes
Senior Member
Thread Starter

Join Date: Jul 2015
Location: Madison, Ohio
Posts: 639

Bikes: Gitane tdf,Schwinn 12.2,2 continentals,miyata310,univega supra soort,couple peugeots,ou8,ou10,a few mtb's and other bikes

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 136 Post(s)
Liked 48 Times in 37 Posts
Kdogbikes is offline
Old 03-23-20, 05:36 PM
  #7
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,130

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 765 Post(s)
Likes: 0
Liked 186 Times in 143 Posts
I have never had one of those Ashtabula-to-square conversion bottom brackets pass through my hands that didn't have a REALLY long (like around 135mm) spindle, so never used one.

The Takagi XT triple cranks came fitted to some unusually-long spindles, so might be the best crank choice with one of these bb's.

I usually set up vintage doubles with a 6s freewheel and try to achieve a 45mm "chainline" measured from the center of theseat tube to the center of the LARGE chainring. This just works best for the way that I ride, mostly in the big ring, but also using the small chainring with the largest four or possibly five cogs only.

I recently went to quite a bit of trouble (tested three bottom brackets) to reduce the distance to the large chainring from 48mm to 44mm, using a symmetrical 107mm JIS bottom bracket with a Sugino Mighty Tour crankset. There is now a big improvement in my ability to use the full range of six cogs while on the big ring, with an absolute minimum in of "cross-chaining" noise.
There are no drawbacks, though the chainring bolts are now close to the chainstay and the chain clinks along the big ring's inner side as a useful reminder when I ride in the (36/)15t cog (second one in).
dddd is offline
Old 03-23-20, 05:50 PM
  #8
Velo Mule
Senior Member

Velo Mule's Avatar

Join Date: Dec 2016
Location: Long Island, NY
Posts: 680

Bikes: Trek 800 x 2, Schwinn Heavy Duti, Electra Cantilever, Schwinn Traveler, Schwinn Le Tour Luxe, Schwinn World

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 206 Post(s)
Liked 89 Times in 79 Posts
2-1/8" x 24.4 = 54mm.

Thanks for the pictures of the fillets. They look nice. If I ever get a Super Sport or Sports Tourer, it would have to be in such shape that it requires a paint job, because 1. I would like to see all the fillets, filing and sanding and 2. I'm pretty good at painting. I wouldn't be wasting a good original frame just to satisfy my curiosity.
Velo Mule is offline
Old 03-24-20, 07:04 PM
  #9
oneclick
Senior Member

Join Date: Feb 2020
Posts: 140
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Likes: 0
Liked 31 Times in 21 Posts
Originally Posted by Kdogbikes View Post
Taking some time to mock up this bike before spring repaint. Had this bmx crank and was hopeing to use on this build. Concern is the distance from bottom bracket to 1st ring. Small-big makes for quite the chain angle. On the trainer derailers hit all gears. Looking for thoughts on this chain line.
The crank is out too far.

That looks like a press-fit adaptor in an ashtabula shell. Can you flip the axle end-for-end, might be a better fit. Otherwise you need a shorter axle on the crank side somehow.
oneclick is offline
Old 03-24-20, 07:27 PM
  #10
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 7,915

Bikes: A few

Mentioned: 106 Post(s)
Tagged: 0 Thread(s)
Quoted: 1462 Post(s)
Liked 254 Times in 193 Posts
It looked a little too far out. Numbers back it up for chainline friction.

Beautiful frame you have there!
3speedslow is offline
Old 03-24-20, 09:58 PM
  #11
Kdogbikes
Senior Member
Thread Starter

Join Date: Jul 2015
Location: Madison, Ohio
Posts: 639

Bikes: Gitane tdf,Schwinn 12.2,2 continentals,miyata310,univega supra soort,couple peugeots,ou8,ou10,a few mtb's and other bikes

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 136 Post(s)
Liked 48 Times in 37 Posts

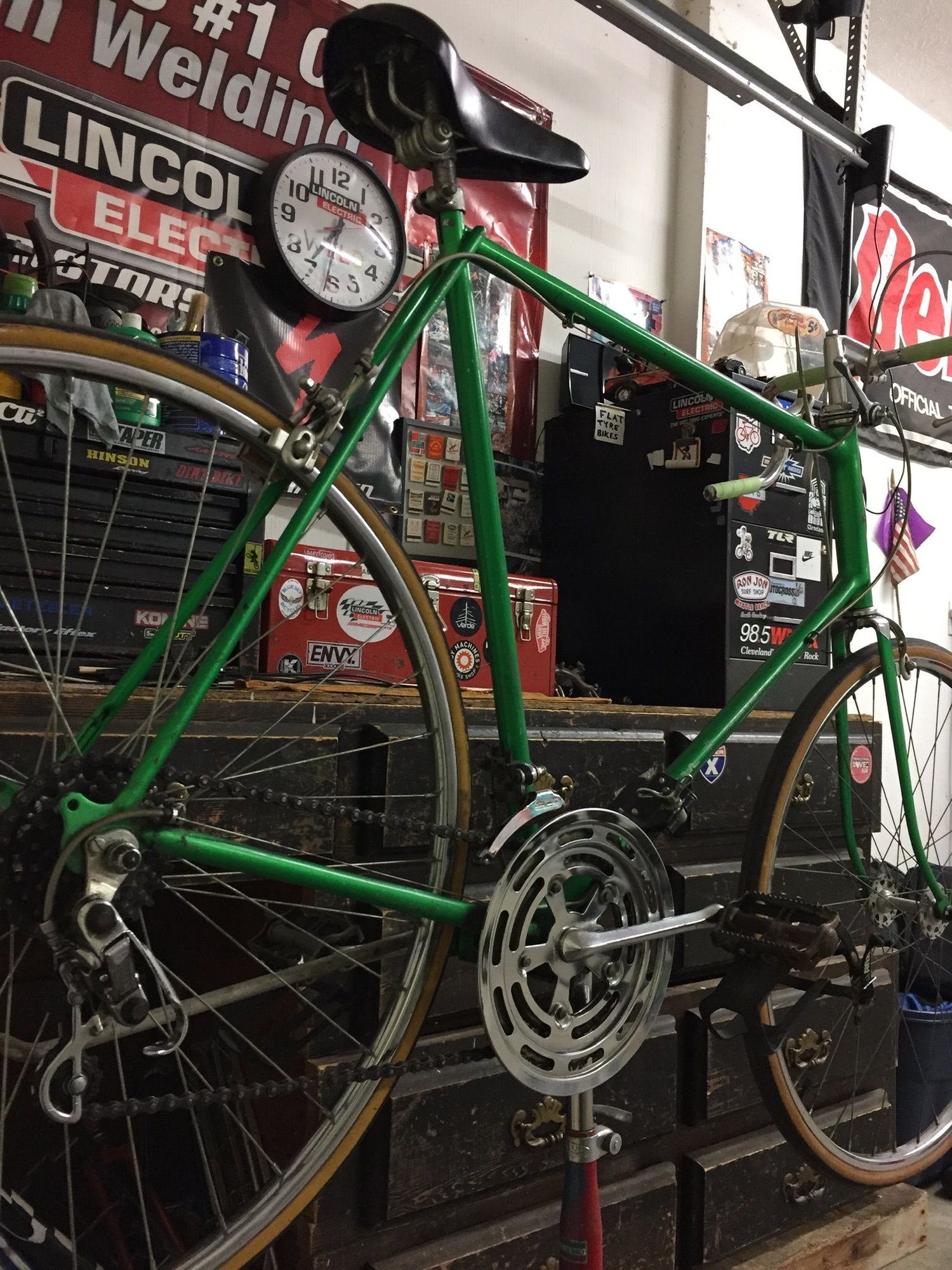

Thanks for the comments. Bummed wonít work as the Altus front derailer fits the ss seat tube! Well, with a wee bit of fileing....Bought this donor bike with nice chrome bits thatíll work just fine. Cheers, Kevin
Kdogbikes is offline
Old 03-24-20, 10:32 PM
  #12
thumpism
Bikes are okay, I guess.

thumpism's Avatar

Join Date: Jan 2015
Location: Richmond, Virginia
Posts: 5,670

Bikes: Waterford Paramount Touring, Trek 510 city build, Giant CFM-2, Raleigh Sports 3-speeds in M23 & L23, Schwinn Cimarron oddball build, Marin Palisades Trail dropbar conversion, Nishiki Cresta GT

Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 1600 Post(s)
Liked 338 Times in 243 Posts

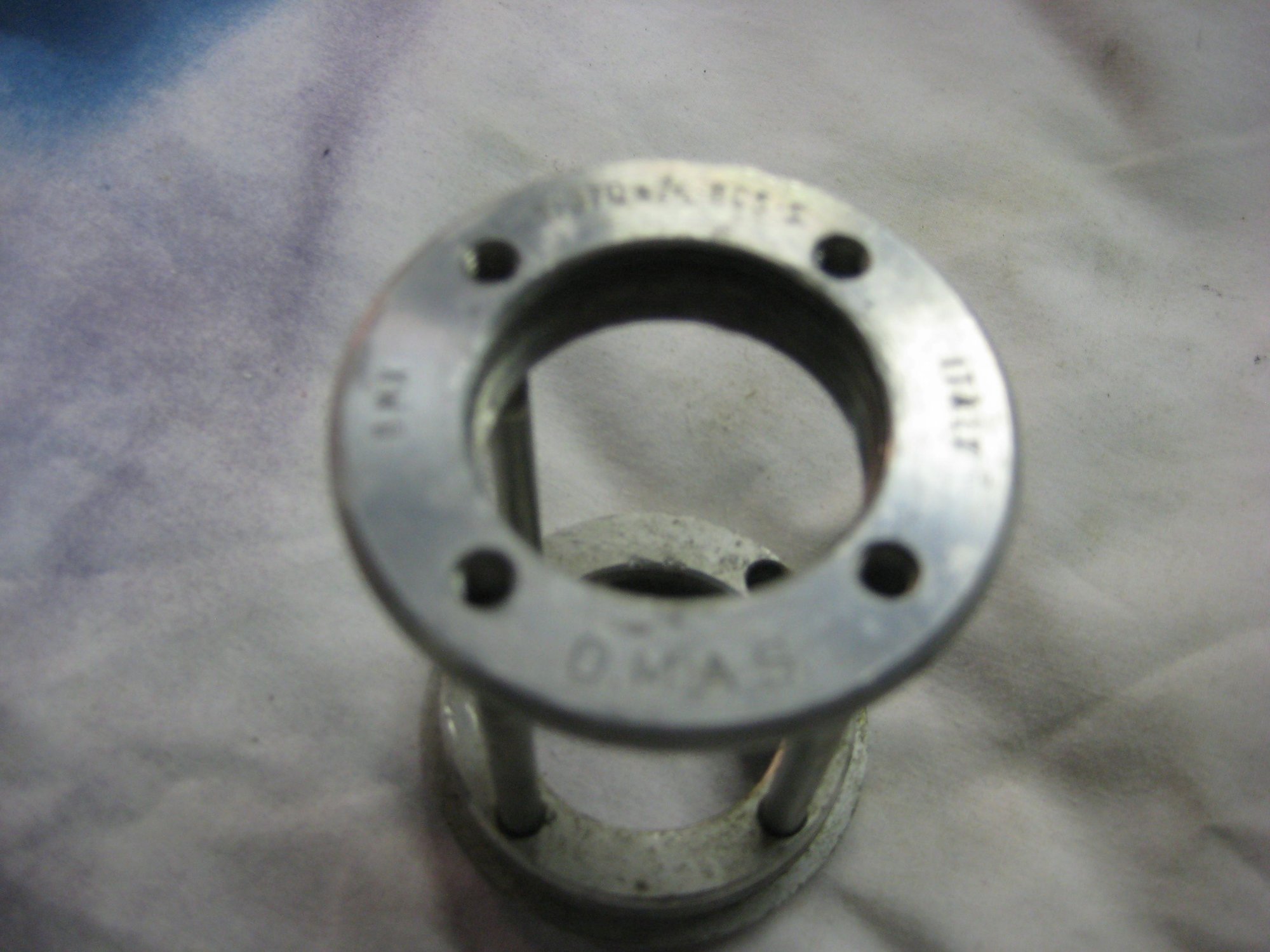

O.M.A.S. and others made bolt-in adaptors that take a conventional threaded bottom bracket, cartridge or standard. This one is missing one of the four bolts. Apologies for the focus.
thumpism is offline
Old 03-24-20, 10:35 PM
  #13
Jeff Wills
Insane Bicycle Mechanic

Jeff Wills's Avatar

Join Date: Mar 2008
Location: other Vancouver
Posts: 9,256
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 546 Post(s)
Liked 126 Times in 97 Posts
I have a Super Sport that I'll be using a 3-piece crank on. I'll be using a BMX crank adapter like this:
https://www.amazon.com/Truvativ-00-6.../dp/B000VT550K
so I can use any cartridge bottom bracket I like and set up the chainline correctly.
__________________
Jeff Wills

Comcast nuked my web page. It will return soon..
