Shimano freewheel remover - EARLY Shimano?

Old 10-23-10, 08:59 PM
  #1
Road Fan
Senior Member
Thread Starter

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 14,724

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 996 Post(s)
Liked 96 Times in 85 Posts
Shimano freewheel remover - EARLY Shimano?

I have a really old wheel with a Shimano 333 5-speed freewheel. The standard freewheel remover, the one that works for the 600 and later freewheels, is too big in diameter to fit inside of this old freewheel. What tool fits?
Road Fan is offline
Old 10-23-10, 10:32 PM
  #2
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 10,575
Mentioned: 53 Post(s)
Tagged: 0 Thread(s)
Quoted: 462 Post(s)
Liked 122 Times in 96 Posts
splined? 20mm? might take this one:
http://www.biketoolsetc.com/index.cg...item_id=BR-CT4
unworthy1 is offline
Old 10-24-10, 06:54 AM
  #3
Road Fan
Senior Member
Thread Starter

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 14,724

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 996 Post(s)
Liked 96 Times in 85 Posts
That looks right! The ID is 20, and there are 12 splines.

I have a Shimano TL-FW-30, which fits more modern Shimano, Sachs/Maillard, and Sunrace (a great tool!). I've seen on Ebay a TL-FW-20, but sellers there aren't listing much info in terms of specs and compatibility.
Road Fan is offline
Old 10-24-10, 09:29 AM
  #4
old's'cool
curmudgineer

old's'cool's Avatar

Join Date: Dec 2009
Location: Chicago SW burbs
Posts: 4,288

Bikes: 2 many 2 fit here

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 217 Post(s)
Liked 21 Times in 15 Posts
Yes, as shown in the link, this is referred to as the "Boss" style.
The pain of this freewheel style is, you have to remove the axle & bearings to use the tool.
I'm happy to leave these freewheels in the parts bin after the first removal, and replace them with something easier to work on.
__________________
Geoff
"There is no Fail without Try" - Yoda Simpson
old's'cool is offline
Old 10-24-10, 01:59 PM
  #5
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 21,295

Bikes: Several, mostly not name brands.

Mentioned: 125 Post(s)
Tagged: 0 Thread(s)
Quoted: 2077 Post(s)
Liked 428 Times in 303 Posts
Originally Posted by old's'cool View Post
Yes, as shown in the link, this is referred to as the "Boss" style.
The pain of this freewheel style is, you have to remove the axle & bearings to use the tool.
I'm happy to leave these freewheels in the parts bin after the first removal, and replace them with something easier to work on.
Not if the hub was assembled correctly. Removing only the nut and spacer will give enough clearance for the tool to fit without removing the axle.
JohnDThompson is offline
Old 10-24-10, 02:56 PM
  #6
Jeff Wills
Insane Bicycle Mechanic

Jeff Wills's Avatar

Join Date: Mar 2008
Location: other Vancouver
Posts: 9,256
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 546 Post(s)
Liked 126 Times in 97 Posts
Originally Posted by JohnDThompson View Post
Not if the hub was assembled correctly. Removing only the nut and spacer will give enough clearance for the tool to fit without removing the axle.
Well, this is necessary if the Shimano freewheel is mounted on a Phil Wood hub. Phils have no separate spacer.
__________________
Jeff Wills

Comcast nuked my web page. It will return soon..
Jeff Wills is offline
Old 10-24-10, 03:12 PM
  #7
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: High Falls, NY, USA
Posts: 38,778

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 467 Post(s)
Tagged: 0 Thread(s)
Quoted: 6308 Post(s)
Liked 840 Times in 550 Posts
No, I think it's true. You are correct when talking about the "new" Shimano spline, but the old one required removal of the axle.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Old 10-24-10, 03:17 PM
  #8
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 21,295

Bikes: Several, mostly not name brands.

Mentioned: 125 Post(s)
Tagged: 0 Thread(s)
Quoted: 2077 Post(s)
Liked 428 Times in 303 Posts
Originally Posted by Jeff Wills View Post
Originally Posted by JohnDThompson
Not if the hub was assembled correctly. Removing only the nut and spacer will give enough clearance for the tool to fit without removing the axle.


Well, this is necessary if the Shimano freewheel is mounted on a Phil Wood hub. Phils have no separate spacer.
As was often the case, Shimano designed their components to work best with other Shimano components. Shimano (and many other) rear hubs of that era used a cone, tabbed washer and thin locknut on the drive side. Then a spacer and final nut to clear the freewheel. The cone and thin locknut would be securely tightened, while the final nut tightened only enough to keep it in place. That way the final nut and spacer could be removed without affecting the axle.
JohnDThompson is offline
Likes For JohnDThompson:
Old 02-28-12, 07:24 PM
  #9
king_edward
Member

king_edward's Avatar

Join Date: Feb 2012
Location: Victoria, BC
Posts: 25

Bikes: 2014 Scott Speedster 40

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by unworthy1 View Post
splined? 20mm? might take this one:
http://www.biketoolsetc.com/index.cg...item_id=BR-CT4
Just wanted to update with a new source for that tool: http://www.bicycletool.com/shimanosp...rpre-1985.aspx

I made the mistake a buying an FR-1 with the understanding that it was universal for all shimano freewheels (as I was told at the store). Not so much.
Anyway this thread helped me find the right tool and I figured i'd pass on a new link for those looking to get off a pre 1985 shimano freewheel.

also found it on ebay here: http://www.ebay.ca/itm/Freewheel-Rem...item53e4bbb4a3
king_edward is offline
Old 04-02-20, 07:59 PM
  #10
ccardillo
Newbie

Join Date: Apr 2020
Posts: 4
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I am overhauling a 333 currently and cannot for the life of me remove the ball cup. Looks like I need the tool but also cannot locate one. Local bikes shops dont even have one.
Is there anyone out there willing to lend me theirs? I would send it back after this job is done or I can buy it if you are looking to get rid of it.
Dont know what else to do...
ccardillo is offline
Old 04-02-20, 08:38 PM
  #11
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,130

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 766 Post(s)
Likes: 0
Liked 186 Times in 143 Posts
Originally Posted by ccardillo View Post
I am overhauling a 333 currently and cannot for the life of me remove the ball cup. Looks like I need the tool but also cannot locate one. Local bikes shops dont even have one.
Is there anyone out there willing to lend me theirs? I would send it back after this job is done or I can buy it if you are looking to get rid of it.
Dont know what else to do...
Ball cup???

Do you mean the locking cone? Pin tool is what usually works for this, or a nail and a rock, found roadside (always found quickly!).
dddd is offline
Old 04-03-20, 08:22 AM
  #12
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: High Falls, NY, USA
Posts: 38,778

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 467 Post(s)
Tagged: 0 Thread(s)
Quoted: 6308 Post(s)
Liked 840 Times in 550 Posts
Originally Posted by dddd View Post
Ball cup???

Do you mean the locking cone? Pin tool is what usually works for this, or a nail and a rock, found roadside (always found quickly!).
He might be talking about a 3-speed hub, not a freewheel.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Old 04-03-20, 08:37 AM
  #13
ccardillo
Newbie

Join Date: Apr 2020
Posts: 4
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Sorry yes, the old 3 speed hub.
ccardillo is offline
Old 04-03-20, 01:58 PM
  #14
wesmamyke
Senior Member

Join Date: Nov 2009
Posts: 916
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 165 Post(s)
Liked 18 Times in 17 Posts
Originally Posted by ccardillo View Post
Sorry yes, the old 3 speed hub.
I probably have an extra ball cup tool. Send me a PM so I remember, and I'll go looking for one.
wesmamyke is online now
Old 04-03-20, 03:29 PM
  #15
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 9,704

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, Rocky Mountain Cardiac, 196? Torpado Professional

Mentioned: 166 Post(s)
Tagged: 0 Thread(s)
Quoted: 752 Post(s)
Likes: 0
Liked 255 Times in 186 Posts

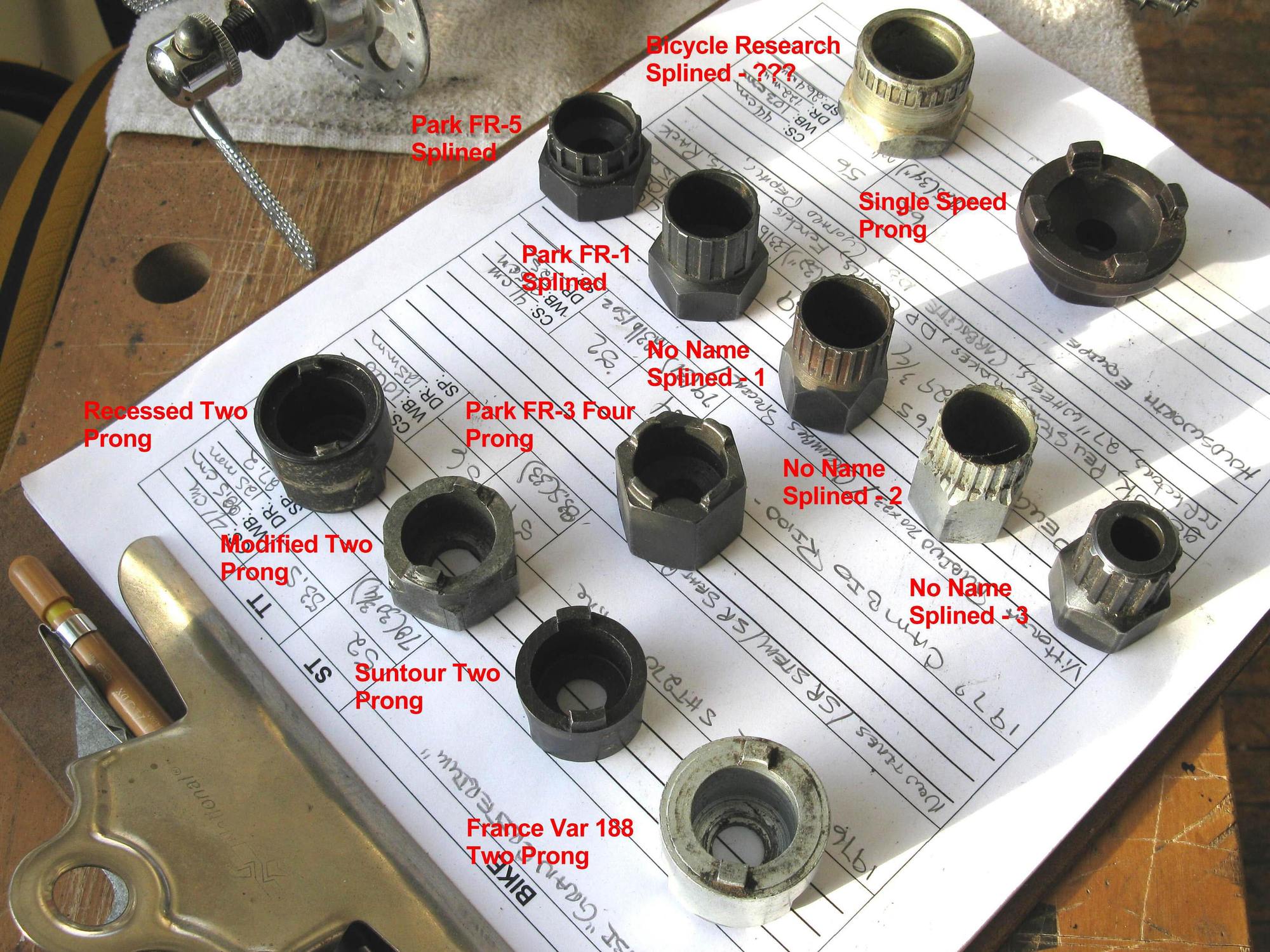

I still have most of these fw removers, Wonder which will get used again..?
__________________
"98% of the bikes I buy are projects".
randyjawa is offline
Old 04-03-20, 05:27 PM
  #16
ccardillo
Newbie

Join Date: Apr 2020
Posts: 4
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
damn apparently I cant send pms yet. I need to post more haha.
ccardillo is offline
Old 04-03-20, 09:43 PM
  #17
desconhecido
Senior Member

Join Date: Mar 2010
Posts: 1,728
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 375 Post(s)
Liked 87 Times in 65 Posts
I don't have as many as Randy, but I do have a collection. These days, most freewheels seem to come with Shimano splines, as in the Park FR-1. The later Sachs/Maillard/WhateverFrenchSubsequentConglomerate, the IRDs, use that tool. There are some oddballs that I've never encountered like Falcon, whatever that is. Then there are some French thread freewheels that take either the Regina style splined remover or the two prong that I have. I think the two prong was originally for Caimi but it's been filed to fit two-prong Suntours as well as any other two prongers I've encountered. Four prong Suntour and the Bicycle Research Maillard tool. Sooner or later, I'll use every one. And, in any event, they could be useful tools to throw at home invaders. I spend a lot of time worrying about that. I think a chain whip might come in handy in that situation. I can see a "B" movie coming together here. A revenge flick, perhaps.
desconhecido is offline
