Does anyone have an educated guess what model this Raleigh is?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Does anyone have an educated guess what model this Raleigh is?

Old 11-10-20, 07:01 PM
  #1
myz34
Member
Thread Starter

Join Date: Nov 2020
Location: Ohio
Posts: 48

Bikes: Shogun 200, Raleigh Royale, another unknown model vintage Raleigh

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 7 Times in 6 Posts
Does anyone have an educated guess what model this Raleigh is?

I added another gallery titled Unknown Raleigh, since it kept giving me an error message when attempting to upload right into this thread.
This Raleigh has Huret Allvit derailleurs, Sturmey Archer hubs, Ridgida rims, and came with the Wrights W3N saddle. After reading a couple of websites on how to determine what model came with which equipment, the best guess I have is a Record. Anyone with more knowledge have the same or a differing opinion?
myz34 is offline
Old 11-10-20, 07:03 PM
  #2
USAZorro
Señor Member

USAZorro's Avatar

Join Date: Oct 2004
Location: Hardy, VA
Posts: 16,911

Bikes: Mostly English - predominantly Raleighs

Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 1022 Post(s)
Liked 295 Times in 206 Posts
Originally Posted by myz34 View Post
I added another gallery titled Unknown Raleigh, since it kept giving me an error message when attempting to upload right into this thread.
This Raleigh has Huret Allvit derailleurs, Sturmey Archer hubs, Ridgida rims, and came with the Wrights W3N saddle. After reading a couple of websites on how to determine what model came with which equipment, the best guess I have is a Record. Anyone with more knowledge have the same or a differing opinion?
Any pictures? A serial number? Seatpost diameter? Color combination? It's really had to identify a frame based on the components, as they can be - and often are changed over the lifetime of a bicycle.
__________________
In search of what to search for.
USAZorro is offline
Likes For USAZorro:
Old 11-10-20, 07:17 PM
  #3
myz34
Member
Thread Starter

Join Date: Nov 2020
Location: Ohio
Posts: 48

Bikes: Shogun 200, Raleigh Royale, another unknown model vintage Raleigh

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 7 Times in 6 Posts
Got it this time








myz34 is offline
Old 11-10-20, 07:21 PM
  #4
myz34
Member
Thread Starter

Join Date: Nov 2020
Location: Ohio
Posts: 48

Bikes: Shogun 200, Raleigh Royale, another unknown model vintage Raleigh

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 7 Times in 6 Posts
Originally Posted by USAZorro View Post
Any pictures? A serial number? Seatpost diameter? Color combination? It's really had to identify a frame based on the components, as they can be - and often are changed over the lifetime of a bicycle.
I got the photos to upload this time.
myz34 is offline
Old 11-10-20, 07:24 PM
  #5
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 20,836
Mentioned: 560 Post(s)
Tagged: 1 Thread(s)
Quoted: 3750 Post(s)
Likes: 0
Liked 1,172 Times in 872 Posts
Boom era, Irish manufactured Raleigh Record. The serial number will provide the actual manufacturing date.
T-Mar is offline
Likes For T-Mar:
Old 11-10-20, 07:44 PM
  #6
myz34
Member
Thread Starter

Join Date: Nov 2020
Location: Ohio
Posts: 48

Bikes: Shogun 200, Raleigh Royale, another unknown model vintage Raleigh

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 7 Times in 6 Posts
Originally Posted by T-Mar View Post
Boom era, Irish manufactured Raleigh Record. The serial number will provide the actual manufacturing date.
The serial number appears to be AM00274
myz34 is offline
Old 11-10-20, 08:08 PM
  #7
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 20,836
Mentioned: 560 Post(s)
Tagged: 1 Thread(s)
Quoted: 3750 Post(s)
Likes: 0
Liked 1,172 Times in 872 Posts
Originally Posted by myz34 View Post
The serial number appears to be AM00274
That would make it the 274th frame from September 1970, which is late enough in the calendar year that it is likely a 1971 model. The curious thing is that Raleigh did not have a facility that used the 'A' prefix. The Irish factory used a 'D'.
T-Mar is offline
Likes For T-Mar:
Old 11-10-20, 08:09 PM
  #8
USAZorro
Señor Member

USAZorro's Avatar

Join Date: Oct 2004
Location: Hardy, VA
Posts: 16,911

Bikes: Mostly English - predominantly Raleighs

Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 1022 Post(s)
Liked 295 Times in 206 Posts
ok - I see pictures now. I agree with it being a Record, built in Ireland. The graphics aren't what I'd expect from a 1970 (they had different script and an oval headbadge). It's possible that it was a late 1970 build (ie. an early 1971 model). If so, this is one of the better Record models made (excepting Team Records built for continental distribution in the mid 1970's). Still, likely considered as a rather basic entry-level bicycle - though in pretty good condition.
__________________
In search of what to search for.

Last edited by USAZorro; 11-10-20 at 08:14 PM.
USAZorro is offline
Likes For USAZorro:
Old 11-10-20, 08:51 PM
  #9
daka
Senior Member

Join Date: Nov 2019
Location: SF Bay Area
Posts: 216

Bikes: Raleigh Super Course x2, Raleigh International

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 98 Post(s)
Liked 109 Times in 72 Posts
I think that seat tube decal moves the bike closer to the mid-70s.

Catalog page from 1973 looks like a good match:
https://www.jaysmarine.com/1973raleighcat_12_lg.jpg

Last edited by daka; 11-10-20 at 10:54 PM. Reason: Added catalog page
daka is offline
Likes For daka:
Old 11-11-20, 12:02 AM
  #10
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 26,074

Bikes: https://www.theheadbadge.com

Mentioned: 65 Post(s)
Tagged: 0 Thread(s)
Quoted: 1335 Post(s)
Liked 1,416 Times in 849 Posts
Originally Posted by T-Mar View Post
That would make it the 274th frame from September 1970, which is late enough in the calendar year that it is likely a 1971 model. The curious thing is that Raleigh did not have a facility that used the 'A' prefix. The Irish factory used a 'D'.
There's no way this thing was built prior to 1972. Those graphics didn't exist until 1973 - at earliest, a late 1972 may have them.

I'll bet that serial system is unique to the Irish production line.

To the OP: Can we see a photo of the serial number so we can see where it is stamped and in what manner?

-Kurt
__________________







cudak888 is offline
Likes For cudak888:
Old 11-11-20, 03:44 AM
  #11
myz34
Member
Thread Starter

Join Date: Nov 2020
Location: Ohio
Posts: 48

Bikes: Shogun 200, Raleigh Royale, another unknown model vintage Raleigh

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 7 Times in 6 Posts
Originally Posted by T-Mar View Post
That would make it the 274th frame from September 1970, which is late enough in the calendar year that it is likely a 1971 model. The curious thing is that Raleigh did not have a facility that used the 'A' prefix. The Irish factory used a 'D'.
The first character in the serial number is a little hard to read. I'll try to get a good photo after it gets light out in a couple of hours. Maybe you and/or or someone else will see it differently than I do. The number is on the left rear dropout if that makes a difference. I'm almost 100% sure it's not a D though.
myz34 is offline
Old 11-11-20, 04:11 AM
  #12
myz34
Member
Thread Starter

Join Date: Nov 2020
Location: Ohio
Posts: 48

Bikes: Shogun 200, Raleigh Royale, another unknown model vintage Raleigh

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 7 Times in 6 Posts
Originally Posted by daka View Post
I think that seat tube decal moves the bike closer to the mid-70s.

Catalog page from 1973 looks like a good match:
https://www.jaysmarine.com/1973raleighcat_12_lg.jpg
Agreed. That illustration in the ad does look like it. I'll measure the frame height in a couple of hours and see if it's either 21-1/2 or 23-1/2 to match the description in the catalog.
myz34 is offline
Old 11-11-20, 04:13 AM
  #13
myz34
Member
Thread Starter

Join Date: Nov 2020
Location: Ohio
Posts: 48

Bikes: Shogun 200, Raleigh Royale, another unknown model vintage Raleigh

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 7 Times in 6 Posts
Originally Posted by cudak888 View Post
There's no way this thing was built prior to 1972. Those graphics didn't exist until 1973 - at earliest, a late 1972 may have them.

I'll bet that serial system is unique to the Irish production line.

To the OP: Can we see a photo of the serial number so we can see where it is stamped and in what manner?

-Kurt
Yes, I'll try to get a good photo of the serial number shortly. Had I been thinking, I would have posted a photo of the serial number with all the other photos.

Last edited by myz34; 11-11-20 at 04:16 AM. Reason: more info
myz34 is offline
Old 11-11-20, 05:53 AM
  #14
myz34
Member
Thread Starter

Join Date: Nov 2020
Location: Ohio
Posts: 48

Bikes: Shogun 200, Raleigh Royale, another unknown model vintage Raleigh

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 7 Times in 6 Posts
Originally Posted by cudak888 View Post
There's no way this thing was built prior to 1972. Those graphics didn't exist until 1973 - at earliest, a late 1972 may have them.

I'll bet that serial system is unique to the Irish production line.

To the OP: Can we see a photo of the serial number so we can see where it is stamped and in what manner?

-Kurt

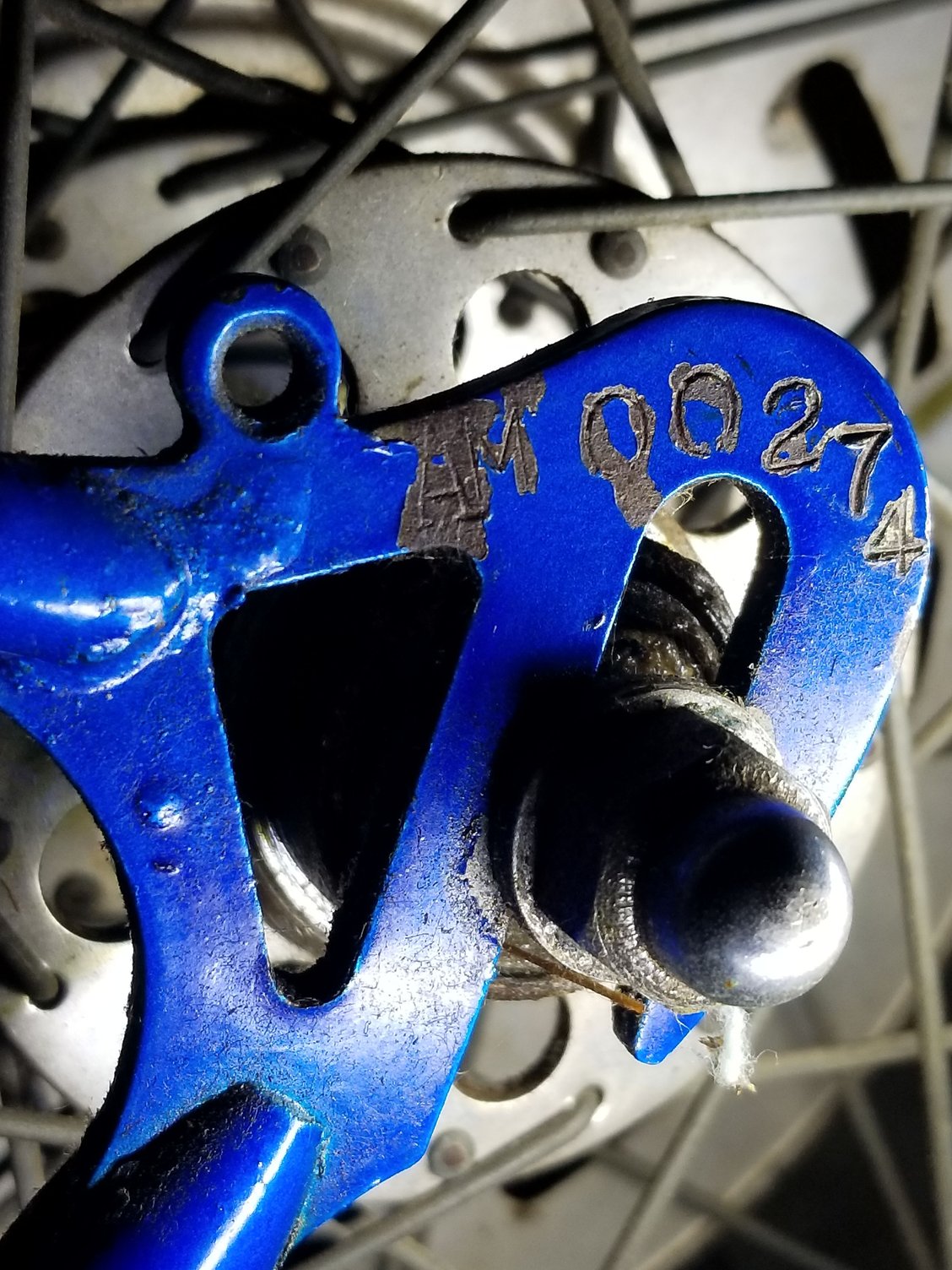

If this is illegible let me know and I'll post another.
myz34 is offline
Old 11-11-20, 07:33 AM
  #15
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 26,074

Bikes: https://www.theheadbadge.com

Mentioned: 65 Post(s)
Tagged: 0 Thread(s)
Quoted: 1335 Post(s)
Liked 1,416 Times in 849 Posts
Originally Posted by myz34 View Post
If this is illegible let me know and I'll post another.
There wouldn't happen to be another serial on the BB or any of the lugs, by chance?

-Kurt
__________________







cudak888 is offline
Old 11-11-20, 08:25 AM
  #16
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 20,836
Mentioned: 560 Post(s)
Tagged: 1 Thread(s)
Quoted: 3750 Post(s)
Likes: 0
Liked 1,172 Times in 872 Posts
If it's 1973+ and there is another serial number, shouldn't it be on the back of the upper seat tube? Also, based on the versions of the Huret Allvit rear derailleur and shift levers, it
should be no later than a 1975 model.
T-Mar is offline
Old 11-11-20, 08:26 AM
  #17
myz34
Member
Thread Starter

Join Date: Nov 2020
Location: Ohio
Posts: 48

Bikes: Shogun 200, Raleigh Royale, another unknown model vintage Raleigh

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 7 Times in 6 Posts
Originally Posted by cudak888 View Post
There wouldn't happen to be another serial on the BB or any of the lugs, by chance?

-Kurt
I just searched again and that's the only number I found on the frame.
myz34 is offline
Likes For myz34:
Old 11-11-20, 08:29 AM
  #18
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 26,074

Bikes: https://www.theheadbadge.com

Mentioned: 65 Post(s)
Tagged: 0 Thread(s)
Quoted: 1335 Post(s)
Liked 1,416 Times in 849 Posts
Originally Posted by T-Mar View Post
If it's 1973+ and there is another serial number, shouldn't it be on the back of the upper seat tube? Also, based on the versions of the Huret Allvit rear derailleur and shift levers, it
should be no later than a 1975 model.
Theoretically - or on the left side of the upper seat tube. But that's assuming the framebuilder contracted for the job was given this directive from Raleigh.

Originally Posted by myz34 View Post
I just searched again and that's the only number I found on the frame.
Can you double-check the back and left side of the seattube?



-Kurt
__________________







cudak888 is offline
Old 11-11-20, 08:55 AM
  #19
myz34
Member
Thread Starter

Join Date: Nov 2020
Location: Ohio
Posts: 48

Bikes: Shogun 200, Raleigh Royale, another unknown model vintage Raleigh

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 7 Times in 6 Posts
Originally Posted by cudak888 View Post
Theoretically - or on the left side of the upper seat tube. But that's assuming the framebuilder contracted for the job was given this directive from Raleigh.



Can you double-check the back and left side of the seattube?



-Kurt

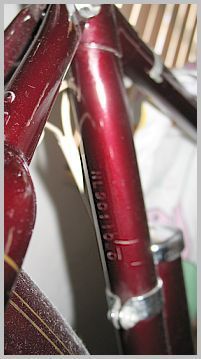

That's the only number I see on the frame. I found this on the Sheldon Brown website. Maybe I'm overthinking this?

Last edited by cb400bill; 11-11-20 at 10:07 AM.
myz34 is offline
Old 11-11-20, 09:51 AM
  #20
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 19,600

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 520 Post(s)
Tagged: 0 Thread(s)
Quoted: 1781 Post(s)
Liked 273 Times in 184 Posts
Originally Posted by myz34 View Post
That's the only number I see on the frame. I found this on the Sheldon Brown website. Maybe I'm overthinking this?
Serial numbers are great when they answer all your questions, but sometimes they don't. Let the color scheme, decals, and components be your guide.

Color scheme, decals, and components, indeed everything, points to your bike being a Record, which was Raleigh's basic entry level "ten speed" bike from the late 60's through the 70's. The above quotes refer to much more expensive bikes.

There may be a date code on the underside of your saddle, typically one letter and two digits, such as C 73 which would mean July-September 1973. I think the Record came with a cheaper saddle, so this was an upgrade; but its date may tell us something.

Incidentally, when I hit the "quote" button the quote is legible. But as soon as I post it, the link turns to ghibberish, which is what I see now.
__________________
www.rhmsaddles.com.

Last edited by cb400bill; 11-11-20 at 10:07 AM.
rhm is offline
Likes For rhm:
Old 11-11-20, 09:57 AM
  #21
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 26,074

Bikes: https://www.theheadbadge.com

Mentioned: 65 Post(s)
Tagged: 0 Thread(s)
Quoted: 1335 Post(s)
Liked 1,416 Times in 849 Posts
Originally Posted by myz34 View Post
That's the only number I see on the frame. I found this on the Sheldon Brown website. Maybe I'm overthinking this?
The picture came up as Base64 code, but I was able to see the crop you pulled from the Retro Raleigh site. I'd avoid the serial charts up they have. They're old, outdated, and part of the reason I created my own charts (which are now old, outdated, and incorrect in some regards in their own right). The Nottinghamshire documents that these serials were based on have never aligned with actual production examples.

That said, your dropout serial may or may not be original, but the simple fact is that it doesn't fit within any existing system. Given that there's very little research on the Irish-built Raleighs of the time, I'd simply accept that there isn't enough information about them out there yet. In the meantime, you can rest assured that it's a Raleigh Record from 1973, 1974, or 1975.

-Kurt
__________________








Last edited by cudak888; 11-11-20 at 10:00 AM.
cudak888 is offline
Likes For cudak888:
Old 11-11-20, 10:04 AM
  #22
myz34
Member
Thread Starter

Join Date: Nov 2020
Location: Ohio
Posts: 48

Bikes: Shogun 200, Raleigh Royale, another unknown model vintage Raleigh

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 7 Times in 6 Posts
Originally Posted by rhm View Post
Serial numbers are great when they answer all your questions, but sometimes they don't. Let the color scheme, decals, and components be your guide.

Color scheme, decals, and components, indeed everything, points to your bike being a Record, which was Raleigh's basic entry level "ten speed" bike from the late 60's through the 70's. The above quotes refer to much more expensive bikes.

There may be a date code on the underside of your saddle, typically one letter and two digits, such as C 73 which would mean July-September 1973. I think the Record came with a cheaper saddle, so this was an upgrade; but its date may tell us something.

Incidentally, when I hit the "quote" button the quote is legible. But as soon as I post it, the link turns to ghibberish, which is what I see now.
Thank you. Now I know I can't do screenshots like that any more.
myz34 is offline
Old 11-11-20, 10:05 AM
  #23
myz34
Member
Thread Starter

Join Date: Nov 2020
Location: Ohio
Posts: 48

Bikes: Shogun 200, Raleigh Royale, another unknown model vintage Raleigh

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 7 Times in 6 Posts
Originally Posted by cudak888 View Post
The picture came up as Base64 code, but I was able to see the crop you pulled from the Retro Raleigh site. I'd avoid the serial charts up they have. They're old, outdated, and part of the reason I created my own charts (which are now old, outdated, and incorrect in some regards in their own right). The Nottinghamshire documents that these serials were based on have never aligned with actual production examples.

That said, your dropout serial may or may not be original, but the simple fact is that it doesn't fit within any existing system. Given that there's very little research on the Irish-built Raleighs of the time, I'd simply accept that there isn't enough information about them out there yet. In the meantime, you can rest assured that it's a Raleigh Record from 1973, 1974, or 1975.

-Kurt
Thank you. Now I know I can't do screenshots like that any more.
myz34 is offline
Old 11-11-20, 10:08 AM
  #24
cb400bill
High Derolic Moderator

cb400bill's Avatar

Join Date: Jul 2007
Location: Kalamazoo MI
Posts: 19,005

Bikes: Fuji SL 2.1 Carbon, Cannondale Synapse Alloy, Trek 710

Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 2261 Post(s)
Liked 2,384 Times in 1,475 Posts
Edited out screenshot gibberish.
__________________
Bike Don't Lie



cb400bill is offline
Likes For cb400bill:
Old 11-11-20, 10:31 AM
  #25
myz34
Member
Thread Starter

Join Date: Nov 2020
Location: Ohio
Posts: 48

Bikes: Shogun 200, Raleigh Royale, another unknown model vintage Raleigh

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 14 Post(s)
Liked 7 Times in 6 Posts
Originally Posted by cb400bill View Post
Edited out screenshot gibberish.
Thank you. I hope I didn't break any rules. If so, rest assured I won't do it again.
myz34 is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
