Old 11-15-20, 10:52 AM
  #6926
Uclasccr7
Newbie

Join Date: Nov 2020
Location: Corona, CA
Posts: 1
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Love all the builds, inspired me to build a conversion. Will post soon. List of bikes I will be doing conversions on:

Diamond Back Topanga (completed)
Scott Tampico
Head 610
GT Tequesta
Montague/BMW folding mtb
Uclasccr7 is offline
Old 11-15-20, 12:58 PM
  #6927
Gravity Aided
Senior Member

Gravity Aided's Avatar

Join Date: Oct 2011
Location: Normal, Illinois
Posts: 2,714

Bikes: Trek 600 ,1980Raleigh Competition G.S., 1986 Schwinn Passage, Facet Biotour 2000, Falcon San Remo 531,Schwinn Sierra, Sun Seeker tricycle recumbent,1985 Bianchi Squadra

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 33 Post(s)
Liked 9 Times in 9 Posts

Panasonic MC2500 that I made into a 26"tourer to replace my Trek 950 I donated to the local co-op.
Gravity Aided is offline
Likes For Gravity Aided:
Old 11-15-20, 01:01 PM
  #6928
Gravity Aided
Senior Member

Gravity Aided's Avatar

Join Date: Oct 2011
Location: Normal, Illinois
Posts: 2,714

Bikes: Trek 600 ,1980Raleigh Competition G.S., 1986 Schwinn Passage, Facet Biotour 2000, Falcon San Remo 531,Schwinn Sierra, Sun Seeker tricycle recumbent,1985 Bianchi Squadra

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 33 Post(s)
Liked 9 Times in 9 Posts
I have yet to add racks and fenders, BTW.. I wait until i have all the gears and accessories working well, and I'm still doing some shakedown cruises.
Gravity Aided is offline
Old 11-19-20, 03:17 PM
  #6929
10speedterror
Senior Member

10speedterror's Avatar

Join Date: Jun 2010
Location: NEW HAMPSHIRE
Posts: 153
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 5 Times in 2 Posts
greetings from Philadelphia!

here’s the current iteration of my commuter/all ‘rounder/do it all machine

started out as just a nashbar 3000x frame (straight gauge tank weight tubing) i got off craigslist, caniblized the fork from my cannondale alpine series. fenders off a cheap beach cruiser at the dump (custom road side couch “leather” mud flap), mismatched wheels and tires as my front got stolen at one point, girvin-esque “flex stem” with a single thumbie mounted on it (1x7), good size crane brass bell, origin8 gary bars with vintage mafac levers (mafac whenever possible) most other bits aren’t anything special and came out of the parts bin at the co op


75E3B3A7-6B3F-491F-BA61-6EA5B8FF66A3 by kyle cotter, on Flickr



Last edited by 10speedterror; 11-19-20 at 03:40 PM.
10speedterror is offline
Likes For 10speedterror:
Old 11-20-20, 02:02 PM
  #6930
tricky
Senior Member

Join Date: Oct 2005
Location: Upper Left, USA
Posts: 1,513
Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 454 Post(s)
Liked 209 Times in 150 Posts
Originally Posted by 10speedterror View Post
greetings from Philadelphia!

here’s the current iteration of my commuter/all ‘rounder/do it all machine

started out as just a nashbar 3000x frame (straight gauge tank weight tubing) i got off craigslist, caniblized the fork from my cannondale alpine series. fenders off a cheap beach cruiser at the dump (custom road side couch “leather” mud flap), mismatched wheels and tires as my front got stolen at one point, girvin-esque “flex stem” with a single thumbie mounted on it (1x7), good size crane brass bell, origin8 gary bars with vintage mafac levers (mafac whenever possible) most other bits aren’t anything special and came out of the parts bin at the co op


75E3B3A7-6B3F-491F-BA61-6EA5B8FF66A3 by kyle cotter, on Flickr
Love this workhorse build. I am geeking out on that flex stem and now I want one. Another thing to add to the "look out for at the co-op" list.

How does that 1x7 work out for you with this being a commuter and something you would possibly load up heavy? I have no idea what the terrain is like in Philly,
tricky is offline
Old 11-20-20, 04:12 PM
  #6931
10speedterror
Senior Member

10speedterror's Avatar

Join Date: Jun 2010
Location: NEW HAMPSHIRE
Posts: 153
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 5 Times in 2 Posts
Originally Posted by tricky View Post
Love this workhorse build. I am geeking out on that flex stem and now I want one. Another thing to add to the "look out for at the co-op" list.

How does that 1x7 work out for you with this being a commuter and something you would possibly load up heavy? I have no idea what the terrain is like in Philly,
hey! thanks! it’s a fun machine. the flex stem is a neat idea, but i don’t really notice any difference in ride except when i’m really bearing down on them on a climb. i got lucky and found this one on ebay for a reasonable price and i was the only bid!

the 1x7 is great for me! i’m not trying to get anywhere too fast, it’s a 42 upfront and a fairly standard freewheel in the back. For whatever reason i feel the need to bring about 40 pounds of stuff with me to work and have no issues pushing it all up the hills on my commute
10speedterror is offline
Likes For 10speedterror:
Old 11-22-20, 12:41 PM
  #6932
squarenoise
Senior Member

squarenoise's Avatar

Join Date: Feb 2010
Location: Tucson, AZ
Posts: 114

Bikes: 80 Raleigh Competition, 83 Freschi Supreme, 84 Miyata 610, 86 Miyata 1000, 87 Schwinn Voyageur, 89 Marin Pine Mountain, 93 Specialized Stumpjumper, Soma Smoothie, Surly Cross Check

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
Liked 106 Times in 38 Posts
Here’s my 1989 Marin Pine Mountain drop bar conversion. Bought as complete bike that I believe was 100% original with full Shimano Deore XT components. It was in fairly rough/neglected shape so I did a full teardown and rebuild. Had to replace the headset and seat post (large crack), but everything else turned out great.

Conversion Parts Include:
- Velo Orange Quill Stem w/ Removable Faceplate (90mm)
- Dimension Flat Top Shallow Bar (44cm)
- Tektro RL340 Brake Levers
- Suntour 7 Speed Barcons
- Specialized Touring Pedals

I’ve read other posts were people had no problems running Suntour Barcons with Shimano cassettes, but I just couldn’t get it dialed in enough to work consistently. SO I swapped the last three (low gear) 7 speed spacers with 8 speed spacers and it works perfectly now!


1989 Marin Pine Mountain
squarenoise is offline
Old 11-22-20, 01:33 PM
  #6933
vp1337
Senior Member

vp1337's Avatar

Join Date: Jun 2016
Location: Rotterdam
Posts: 119
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 41 Post(s)
Liked 62 Times in 20 Posts
Originally Posted by squarenoise View Post
Here’s my 1989 Marin Pine Mountain drop bar conversion. Bought as complete bike that I believe was 100% original with full Shimano Deore XT components. It was in fairly rough/neglected shape so I did a full teardown and rebuild. Had to replace the headset and seat post (large crack), but everything else turned out great.

Conversion Parts Include:
- Velo Orange Quill Stem w/ Removable Faceplate (90mm)
- Dimension Flat Top Shallow Bar (44cm)
- Tektro RL340 Brake Levers
- Suntour 7 Speed Barcons
- Specialized Touring Pedals

I’ve read other posts were people had no problems running Suntour Barcons with Shimano cassettes, but I just couldn’t get it dialed in enough to work consistently. SO I swapped the last three (low gear) 7 speed spacers with 8 speed spacers and it works perfectly now!


1989 Marin Pine Mountain
This is fantastic!
vp1337 is offline
Old 11-22-20, 04:20 PM
  #6934
J.Higgins
Mentally Derailleured

J.Higgins's Avatar

Join Date: Sep 2016
Location: New Hampshire
Posts: 2,276

Bikes: Bilenky Tourlite

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1122 Post(s)
Liked 395 Times in 262 Posts
Originally Posted by squarenoise View Post
I’ve read other posts were people had no problems running Suntour Barcons with Shimano cassettes, but I just couldn’t get it dialed in enough to work consistently. SO I swapped the last three (low gear) 7 speed spacers with 8 speed spacers and it works perfectly
Brilliant! I never would have thought to do this.
__________________
Cargo Bike Build: https://www.bikeforums.net/utility-c...l#post22024218
J.Higgins is offline
Old 11-22-20, 06:45 PM
  #6935
squarenoise
Senior Member

squarenoise's Avatar

Join Date: Feb 2010
Location: Tucson, AZ
Posts: 114

Bikes: 80 Raleigh Competition, 83 Freschi Supreme, 84 Miyata 610, 86 Miyata 1000, 87 Schwinn Voyageur, 89 Marin Pine Mountain, 93 Specialized Stumpjumper, Soma Smoothie, Surly Cross Check

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
Liked 106 Times in 38 Posts
Thanks vp1337 and J.Higgins

For anyone who's interested in the science of how accurate indexing works between 7 speed Suntour Barcons and Shimano Cassettes...

Shimano HG 7 speed cogs are 1.85mm thick with 3.15mm spacers to equal 5.0mm center to center spacing. 8 speed spacers are 3.0mm.

Suntour Accushift 7 speed cogs are 2.0mm thick with 2.8mm spacers for the last three (low gear) for 4.8mm center to center spacing.

Sooooo Shimano 7 speed cog (1.85) plus 8 speed spacer (3.0) equals 4.85 center to center spacing and close enough for everything to work without fuss.

And to reiterate, you only need to use 8 speed spacers on the last 3 (low gears) of the Shimano cassette, since Suntour indexing has split spacing of 3 x 3.0 mm(H) and 3 x 2.8 mm(L).

Last edited by squarenoise; 11-22-20 at 06:51 PM.
squarenoise is offline
Likes For squarenoise:
Old 11-29-20, 10:17 AM
  #6936
Dudley789
Junior Member

Join Date: Nov 2020
Posts: 6
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked 1 Time in 1 Post
I was thinking of using a vintage road bike as a rail to trail runner next summer but this thread has me questioning everything. 😁
Dudley789 is offline
Likes For Dudley789:
Old 11-29-20, 11:09 AM
  #6937
Pompiere
Senior Member

Pompiere's Avatar

Join Date: Nov 2005
Location: NW Ohio
Posts: 2,741

Bikes: 1984 Miyata 310, 1986 Schwinn Sierra, 2011 Jamis Quest, 1980 Peugeot TH8 Tandem, 1992 Performance Parabola, 1987 Ross Mt. Hood, 1988 Schwinn LeTour, 1988 Trek 400T, 1981 Fuji S12-S LTD

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 295 Post(s)
Liked 131 Times in 101 Posts
Originally Posted by Dudley789 View Post
I was thinking of using a vintage road bike as a rail to trail runner next summer but this thread has me questioning everything. 😁
Por que no los dos? You could build one of each and see which one works better for your area. The rails-to-trails are all paved around me, so I usually ride my road bike, but I know they are not like that everywhere.
Pompiere is offline
Old 11-29-20, 03:24 PM
  #6938
Dudley789
Junior Member

Join Date: Nov 2020
Posts: 6
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked 1 Time in 1 Post
I like your thinking. They are dangerous thoughts though...it leads to having more bicycles. I do have a Kuwahara (Apollo) Shasta that I could try to put drop bars on...🤔

Edited to add that the trails I would be riding have a pea gravel top.
Dudley789 is offline
Old 11-29-20, 07:03 PM
  #6939
Taxi Rob
Senior Member

Join Date: Feb 2008
Location: Bland Diego, CA
Posts: 184
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 15 Post(s)
Liked 1 Time in 1 Post
Originally Posted by squarenoise View Post
And to reiterate, you only need to use 8 speed spacers on the last 3 (low gears) of the Shimano cassette, since Suntour indexing has split spacing of 3 x 3.0 mm(H) and 3 x 2.8 mm(L).
And don't assume the same thing for Ultra 7 freewheels, which are evenly spaced. Now, about those Campy cassettes...
Taxi Rob is offline
Old 11-29-20, 07:46 PM
  #6940
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 2,362

Bikes: CURRENT: '82 Univega Competizione, '72 Motobecane Grand Record, '74 Campania Professional, '83 Mercian KOM Touring, '91 Univega Alpina Comp PAST: '72 Puch Bergmeister, '72ish Peugeot UO-8, '86 Univega Gran Premio, '85 Univega Viva Touring

Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 741 Post(s)
Liked 503 Times in 337 Posts
Originally Posted by lneves View Post



Curious — did this bike originally have v-brakes, or did you have to swap out from cantilever brakes to make the 650b conversion work? How is clearance for fenders?
noobinsf is online now
Old 11-30-20, 07:25 AM
  #6941
sloppy12
Senior Member

Join Date: Oct 2020
Posts: 234
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Liked 152 Times in 75 Posts
Not sure how vintage this is. I am not even sure what it is I was told diamond back?

anyway stripped paint quick polish and putting back together for a winter commuter. need a seatpost and rest of parts will be coming off my rock hopper.


sloppy12 is offline
Old 11-30-20, 08:25 AM
  #6942
2cam16
Senior Member

2cam16's Avatar

Join Date: Oct 2016
Location: San Mateo,Ca.
Posts: 3,894

Bikes: TRIMMED DOWN THE HERD

Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 949 Post(s)
Liked 571 Times in 402 Posts
Unfortunately that's nowhere near vintage.
2cam16 is offline
Old 11-30-20, 10:39 AM
  #6943
Wilbur76
Senior Member

Join Date: Mar 2020
Location: California
Posts: 121

Bikes: 2020 Lynskey GR300, 2001 GT Palomar, 1994 Specialized Stumpjumper FSR, 1987 Specialized Hardrock, 1987 Cannondale SM800, 1989 Specialized Rockhopper Comp, 1989 Specialized Stumpjumper Team

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Liked 91 Times in 40 Posts
Hoping to convert this newly acquired 1994 Specialized Rockhopper FSR. Fairly mechanically sound except for some light rusting. Challenge is to address a seized seatpost and converting steerer starnut to threadless stem adapter since the cockpit is super slammed. Looking out for silver or chrome riser gravel drop bars if someone here has a source I’d appreciate it.

Wilbur76 is offline
Likes For Wilbur76:
Old 12-03-20, 10:55 PM
  #6944
Doohickie
You gonna eat that?

Doohickie's Avatar

Join Date: Sep 2008
Location: Fort Worth, Texas Church of Hopeful Uncertainty
Posts: 14,714

Bikes: 1966 Raleigh DL-1 Tourist, 1973 Schwinn Varsity, 1983 Raleigh Marathon, 1994 Nishiki Sport XRS

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 152 Post(s)
Liked 40 Times in 25 Posts
Originally Posted by Doohickie View Post
Before:

Original configuration as the bike came to me in 2008, still with the store price tags from 1994 (on the handlebars)


Early commuting setup


Current setup


The handlebar setup


The mods
Drop bar mods
. Quill Stem Adapter (bought new at LBS)
. Handlebar Stem (closeout at LBS)
. Drop Bars & Tektro Brake Levers (bought together at a swap meet)
. Suntour Barcon Shifters (bought at a swap meet)
Lighting mods
. Wheelset with Schmidt SON 28 dynohub in front wheel (bought used)
. Busch & Müller Lumotec IQ Fly Senso Plus headlight with standlight
. Busch & Müller Toplight Line Plus taillight with standlight
Comfort:
. Brooks B17 Saddle
. Cinelli cork handlebar tape (shellacked)
Seems unreal that I did this conversion over 8 years ago. Pretty much the same, just different bar tape and fenders.

__________________
I stop for people / whose right of way I honor / but not for no one.


Originally Posted by bragi "However, it's never a good idea to overgeneralize."
Doohickie is offline
Likes For Doohickie:
Old 12-04-20, 02:41 PM
  #6945
Korina
Happy banana slug

Korina's Avatar

Join Date: Sep 2015
Location: Arcata, California, U.S., North America, Earth, Saggitarius Arm, Milky Way
Posts: 2,175

Bikes: 1992 Specialized Rockhopper Sport, 2016 Giant Liv Rove Lite, 1995 Trek Singletrack 930, 1994 Trek Multitrack 750

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 805 Post(s)
Liked 463 Times in 316 Posts
Originally Posted by Dudley789 View Post
I like your thinking. They are dangerous thoughts though...it leads to having more bicycles. I do have a Kuwahara (Apollo) Shasta that I could try to put drop bars on...🤔

Edited to add that the trails I would be riding have a pea gravel top.
The nice thing about mountain bikes is they have room for big squishy tires that can eat pea gravel for breakfast.
Korina is offline
Old 12-06-20, 10:37 PM
  #6946
Doohickie
You gonna eat that?

Doohickie's Avatar

Join Date: Sep 2008
Location: Fort Worth, Texas Church of Hopeful Uncertainty
Posts: 14,714

Bikes: 1966 Raleigh DL-1 Tourist, 1973 Schwinn Varsity, 1983 Raleigh Marathon, 1994 Nishiki Sport XRS

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 152 Post(s)
Liked 40 Times in 25 Posts
45 miles today on my conversion. 35mm tires give it a smooth ride.
__________________
I stop for people / whose right of way I honor / but not for no one.


Originally Posted by bragi "However, it's never a good idea to overgeneralize."
Doohickie is offline
Likes For Doohickie:
Old 12-14-20, 10:41 AM
  #6947
montclairbobbyb
Recovering Bikeaholic

Join Date: Oct 2008
Location: Lambertville
Posts: 76

Bikes: 84 Specialized Expedition, 84/85 StumpJumpers, 86 Sequoia, 84 Nishiki Cresta, 83 Raleigh Touring 18, 80 Competition, 74 Super Course MkII, Fuji Touring Series IVs/V, 85/86 Schwinn Cimarrons, 84 Ross Mt Whitney, 84 Maruishi Mountace, 83 Bianchi Grizzl

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 23 Post(s)
Liked 41 Times in 22 Posts

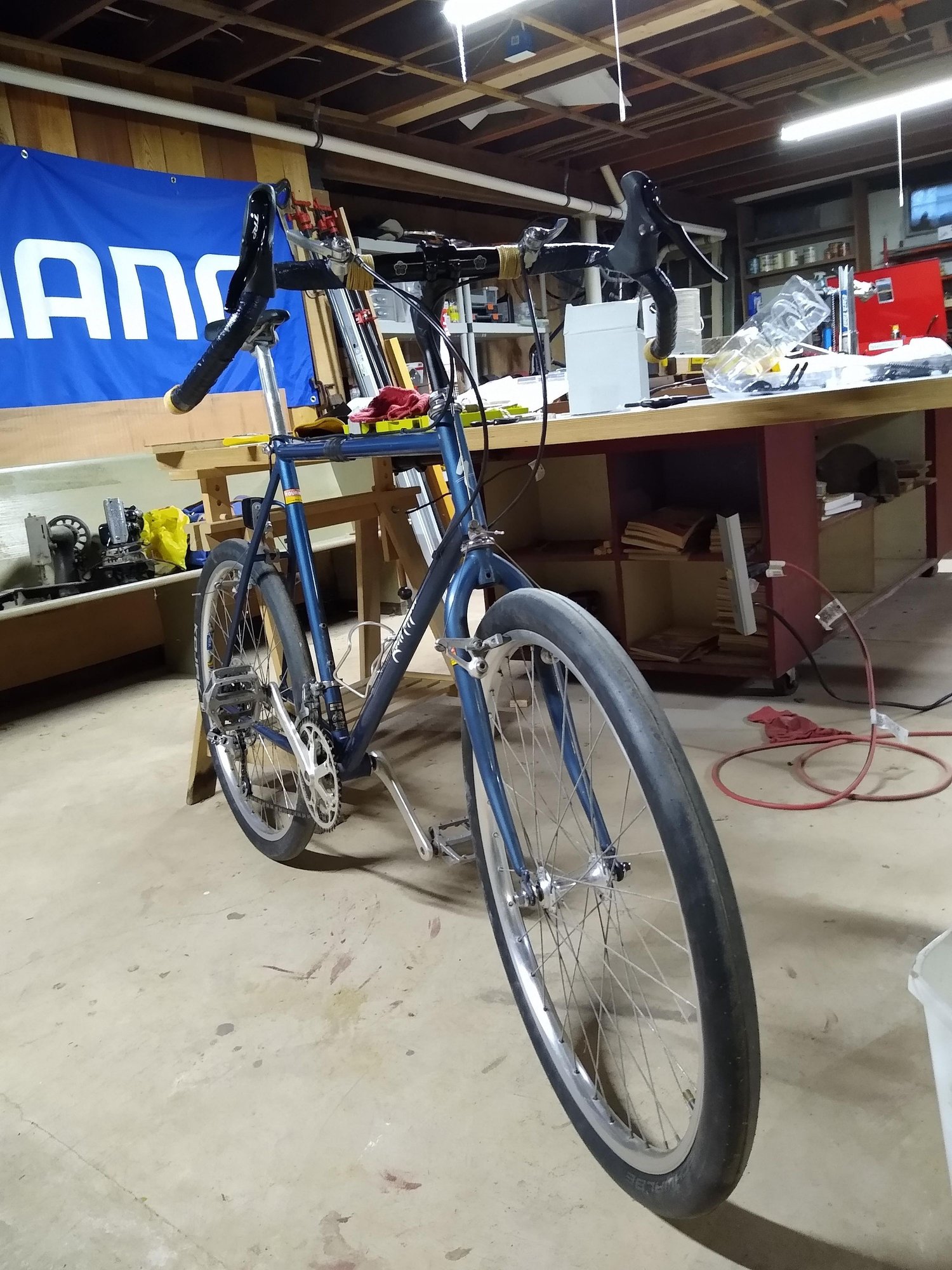

'85 Specialized "RoadHopper"

What? They DIDN'T make a RoadHopper? Well they should have, as this beast proves. Converted this 85 RockHopper

for my hipster nephew as a commuter/all-rounder. Says he gets lots of compliments.
montclairbobbyb is offline
Likes For montclairbobbyb:
Old 12-14-20, 10:45 AM
  #6948
AeroGut
Senior Member

Join Date: Jun 2019
Posts: 516
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 190 Post(s)
Likes: 0
Liked 116 Times in 91 Posts
Originally Posted by montclairbobbyb View Post
What? They DIDN'T make a RoadHopper? Well they should have, as this beast proves. Converted this 85 RockHopper

for my hipster nephew as a commuter/all-rounder. Says he gets lots of compliments.
That's pretty much the bike they sold under the name "RockCombo": I like "Roadhopper" better.
AeroGut is offline
Old 12-14-20, 10:51 AM
  #6949
sloppy12
Senior Member

Join Date: Oct 2020
Posts: 234
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 83 Post(s)
Liked 152 Times in 75 Posts
Originally Posted by AeroGut View Post
That's pretty much the bike they sold under the name "RockCombo": I like "Roadhopper" better.
they made a hybrid version to didnt they? cant recall the name
sloppy12 is offline
Old 12-14-20, 10:59 AM
  #6950
Hudson308
Mr. Anachronism

Hudson308's Avatar

Join Date: Jan 2013
Location: Somewhere west of Tobie's
Posts: 2,034

Bikes: fillet-brazed Chicago Schwinns, and some other stuff

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 506 Post(s)
Liked 199 Times in 137 Posts
Originally Posted by AeroGut View Post
That's pretty much the bike they sold under the name "RockCombo"
Interesting! Never heard of that model!
__________________
"If we don't change direction soon, we'll end up where we're going." -Irwin Corey
Hudson308 is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
