Hello everyone !

I would like to identify my Eddy Merckx bike but throughout forums and online discussion, I couldn't find any clue as the serial number does not match anything found.

The serial number is as following left side of the logo : A0 right side of the logo : 930

I should mention that the logo mentioned (bottom bracket) is the same as the one from post #252 on this thread. It is etched where you find the serial number as mentioned above It is also the sticker on the frame itself, like the bike from post #252.

I'm sure that the bike is genuine. It is in Domex-Weinmann Team's colors (Blue, yellow and white), full Campagnolo C-Records parts, Columbus fork and frame.

If anyone would help me I would be happy to know more about it's history. I unfortunately cannot post pictures for the moment, hence the description, I will gladly provide some when possible. I can answer questions about the bike if needed, although my bike knowledge is not the greatest.

Thanks in advance !

Last edited by Tim123450; 11-27-20 at 05:49 PM.
Tim123450 is offline
Old 11-28-20, 01:11 AM
  #352
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 481
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 128 Post(s)
Likes: 0
Liked 222 Times in 159 Posts
A0 930 fits very well into the early markings scheme (first "letterless" series) from 1980
If your frame has the same bottom bracket model and how to combine dropouts and stays as #252, the frame was built at the end of 1980...
The Domex Weinmann painting pattern only appeared in 1988, the frame had to be repainted.
CyclesMakaron is offline
Old 11-28-20, 05:15 PM
  #353
jeirvine
Senior Member

jeirvine's Avatar

Join Date: Sep 2011
Location: Bethesda/Baltimore MD
Posts: 3,642

Bikes: '72 Moto Grand Record, '72 Gitane tandem, '72 Raleigh Super Course, '73 Raleigh Gran Sport, '73 and '76 Colnagos Super, '76 Fiorelli Coppi, '78 Raleigh SBDU Team Pro, '78 Trek 930, '81 Holdsworth Special 650B, '86 Masi GC, '87 Panasonic DX5000

Mentioned: 57 Post(s)
Tagged: 0 Thread(s)
Quoted: 630 Post(s)
Liked 223 Times in 139 Posts
Question for owners of (and experts on) early Merckx frames (1980-1983): what's the tire clearance like? Could one run 28s? I've been keeping my eye out for a ~62cm, old-logo, flat crown specimen, but am wondering if the tire clearance is more like '70s loose or '80s tight?
Thanks,
-J
__________________
The man who dies with the most toys…is dead. - Rootboy
jeirvine is offline
Old 12-08-20, 02:44 PM
  #354
ULVANG77
Newbie

ULVANG77's Avatar

Join Date: Dec 2020
Posts: 2
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Rezzzzzuuuu

Originally Posted by jeirvine View Post
Question for owners of (and experts on) early Merckx frames (1980-1983): what's the tire clearance like? Could one run 28s? I've been keeping my eye out for a ~62cm, old-logo, flat crown specimen, but am wondering if the tire clearance is more like '70s loose or '80s tight?
Thanks,
-J
:hhhhhh
ULVANG77 is offline
Old 12-08-20, 09:00 PM
  #355
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 6,261

Bikes: Lots. Just...lots.

Mentioned: 174 Post(s)
Tagged: 0 Thread(s)
Quoted: 1448 Post(s)
Liked 615 Times in 320 Posts
Originally Posted by jeirvine View Post
Question for owners of (and experts on) early Merckx frames (1980-1983): what's the tire clearance like? Could one run 28s? I've been keeping my eye out for a ~62cm, old-logo, flat crown specimen, but am wondering if the tire clearance is more like '70s loose or '80s tight?
Thanks,
-J
It...depends. I ran 28’s on an 88-ish Corsa Extra with a flat crown fork but my 85 Pro SLX with a sloper is limited to 25’s.
Most of the early 80’s ones I’ve had my hands on are maxed out at 25’s as well.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Likes For rccardr:
Old 01-03-21, 12:10 PM
  #356
Spaghetti Legs
Senior Member

Join Date: Dec 2014
Location: Central Virginia
Posts: 4,017

Bikes: Numerous

Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 1226 Post(s)
Liked 648 Times in 310 Posts
Originally Posted by Fivethumbs View Post
I pulled the fork and took these photos. The letters look like "Go" or "Gp". German Pro perhaps?



Originally Posted by CyclesMakaron View Post
Beautifully preserved card - it can be a proof of the original painting (and only possible corrections). "Go" or "Co" - pure speculation... I have already reached "Green over" and "German overspray" In fact, we need for happiness the second frame from 1988 originally painted in Stuttgart "camo" with a preserved card or any EM with a card with an identical marking - I am afraid that only this will explain the situation. Another silly question: is EDDY MERCKX on brake bridge painted black or fuchsia?

Translated with www.DeepL.com/Translator
I am working my way through this thread and came upon this post. Maybe my own bike can help decipher. This is the steerer from my 1985-ish

55 cm Professional, Reynolds 753. Top line matches serial # on frame
Professional Reynolds 753 in Kelme colors (Thank you CM, for your other thread in which I learned of the early Kelme colors!). I wonder if the "Go" is actually a number - 60, as the same position looks like 31 on mine.
__________________
N = '96 Colnago C40, '04 Wilier Alpe D'Huez, '10 Colnago EPS, '85 Merckx Pro, '89 Merckx Century, '86 Tommasini Professional, '04 Teschner Aero FX Pro, '05 Alan Carbon Cross, '86 De Rosa Professional, '82 Colnago Super, '95 Gios Compact Pro, '95 Carrera Zeus, '84 Basso Gap, ‘89 Cinelli Supercorsa, ‘83 Bianchi Specialissima, ‘85 Pinarello Record, Ritchey Breakaway Steel, '84 Paletti Super Prestige, Heron Randonneur
Spaghetti Legs is offline
Old 01-03-21, 12:25 PM
  #357
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 481
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 128 Post(s)
Likes: 0
Liked 222 Times in 159 Posts
100% digit - thank you
I don't know how long the codes were used, I'm not even sure if it was color codes (there would be a lot of them!) or e.g. next batches of built frames (more data is needed - as usual)
It's nice to see the 55/753...
CyclesMakaron is offline
Old 01-05-21, 03:51 AM
  #358
Fivethumbs
Senior Member

Join Date: Apr 2007
Posts: 227
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Likes: 0
Liked 3 Times in 2 Posts
Originally Posted by Spaghetti Legs View Post
I am working my way through this thread and came upon this post. Maybe my own bike can help decipher. This is the steerer from my 1985-ish

55 cm Professional, Reynolds 753. Top line matches serial # on frame
Professional Reynolds 753 in Kelme colors (Thank you CM, for your other thread in which I learned of the early Kelme colors!). I wonder if the "Go" is actually a number - 60, as the same position looks like 31 on mine.
Thanks for posting that info. Mine does look more like numbers than letters. At the time I was looking for a two letter paint code and did not expect to see two numbers there. It would be nice to know what they mean.
Fivethumbs is offline
Old 01-05-21, 11:41 AM
  #359
bikemike73
Senior Member

Join Date: Mar 2016
Location: North of Boston
Posts: 304

Bikes: 1973 Schwinn Sports Tourer plus a " few" more :)

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Likes: 0
Liked 59 Times in 45 Posts
Thank you Jacek for all your efforts and help with our EM bikes !!!

It is all greatly appreciated.

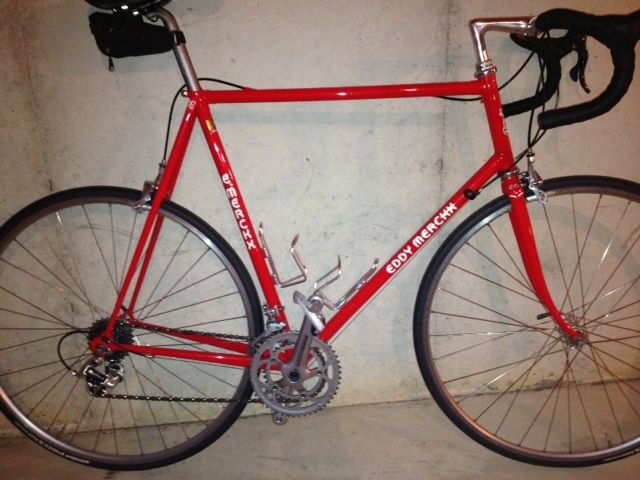

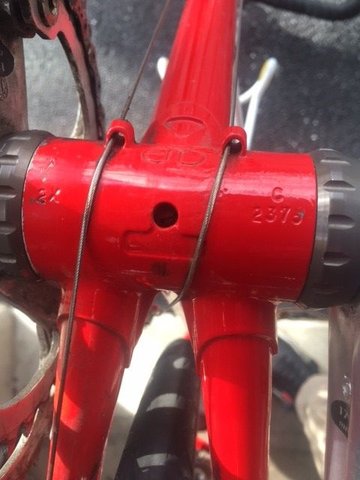

I am still trying to figure out how to determine the year. You have confirmed mine is a 1990 and not a 1985 and I thank you.

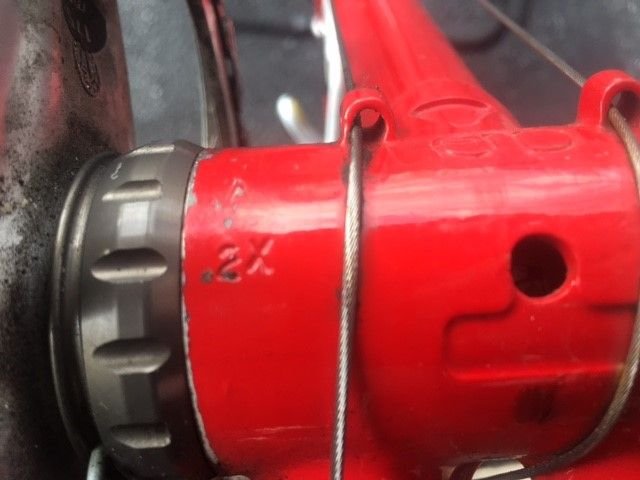

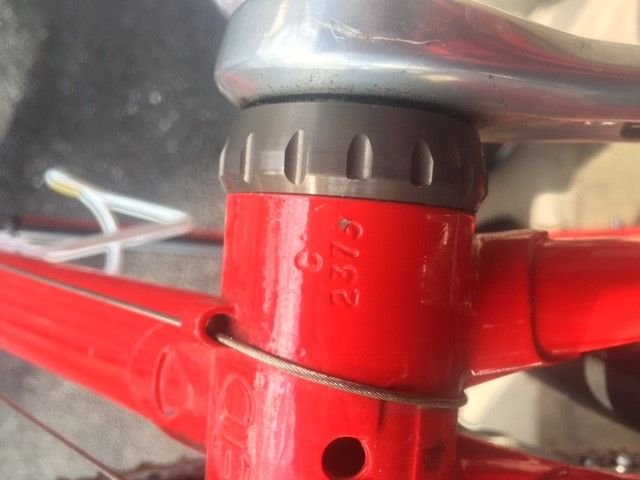

W 5TTB and C 1649
I know it's a 55 and TSX Columbus tubing and made in the summer of 1990
This I learned from CM..Jacek !!!
And what, if any....is the difference between a Century .....and a Century Geo ??

Sorry to be a bother, but my curiosity and ocd mix is getting the better of me

Thank you again

Last edited by bikemike73; 01-05-21 at 12:02 PM. Reason: More accurately describe
bikemike73 is offline
Old 01-06-21, 02:44 AM
  #360
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 481
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 128 Post(s)
Likes: 0
Liked 222 Times in 159 Posts
The Century model was to introduce the "century geo" into EMC
Century was built between 1988 and 1994, first from Reynolds 653 tubes, then from Columbus TSX; in 1995 it was replaced by the Arcobaleno model.
The 'century geo' was gradually being replaced by new models of EMC frames:
- 1990 Corsa Extra Max
- 1991 Corsa Extra and Corsa (at the same time "road racing geo" was still used)
- 1992 Mx Leader
- 1994 Titane EM, Corsa Thron
- 1995 Corsa 01, Arcobaleno, Strada OS, also alu frames.
"century geo" was used until 2003, when some modifications were made (that is why the names Team SC 3, Millennium 3 appear)
CyclesMakaron is offline
Old 01-06-21, 07:01 PM
  #361
bikemike73
Senior Member

Join Date: Mar 2016
Location: North of Boston
Posts: 304

Bikes: 1973 Schwinn Sports Tourer plus a " few" more :)

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Likes: 0
Liked 59 Times in 45 Posts








All great information !!
thank you

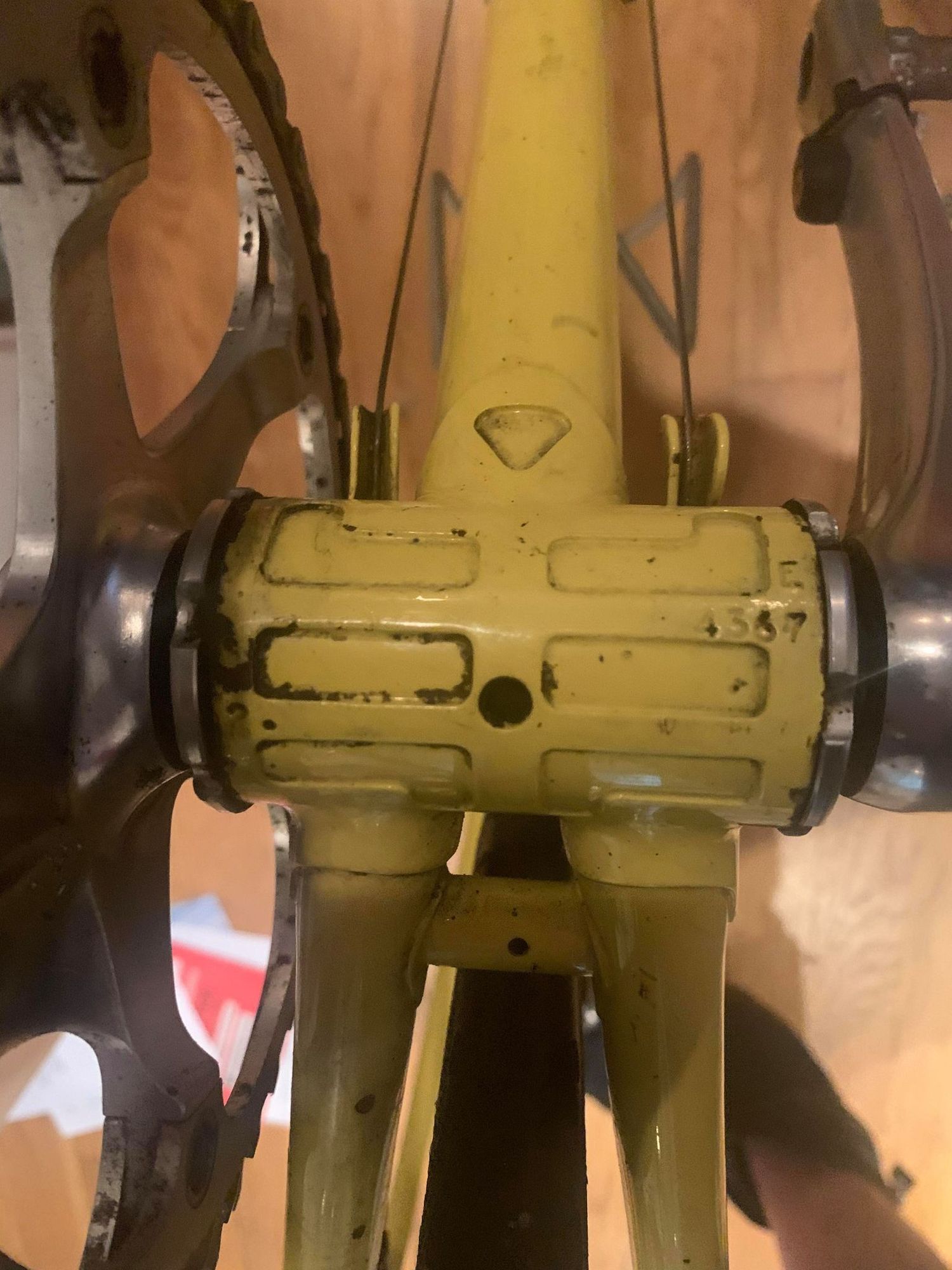

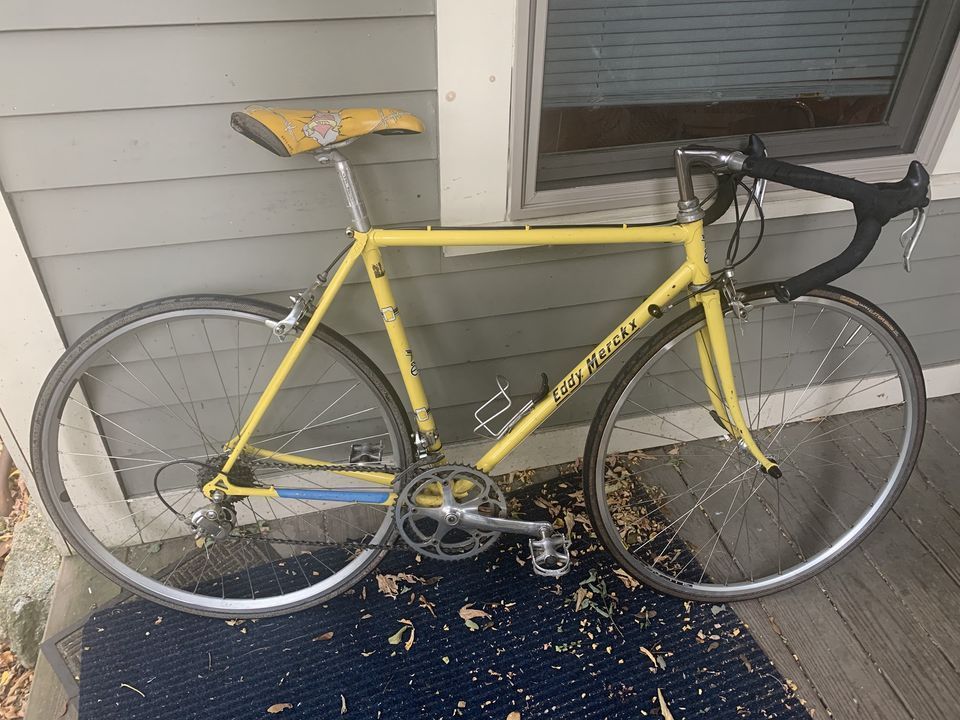

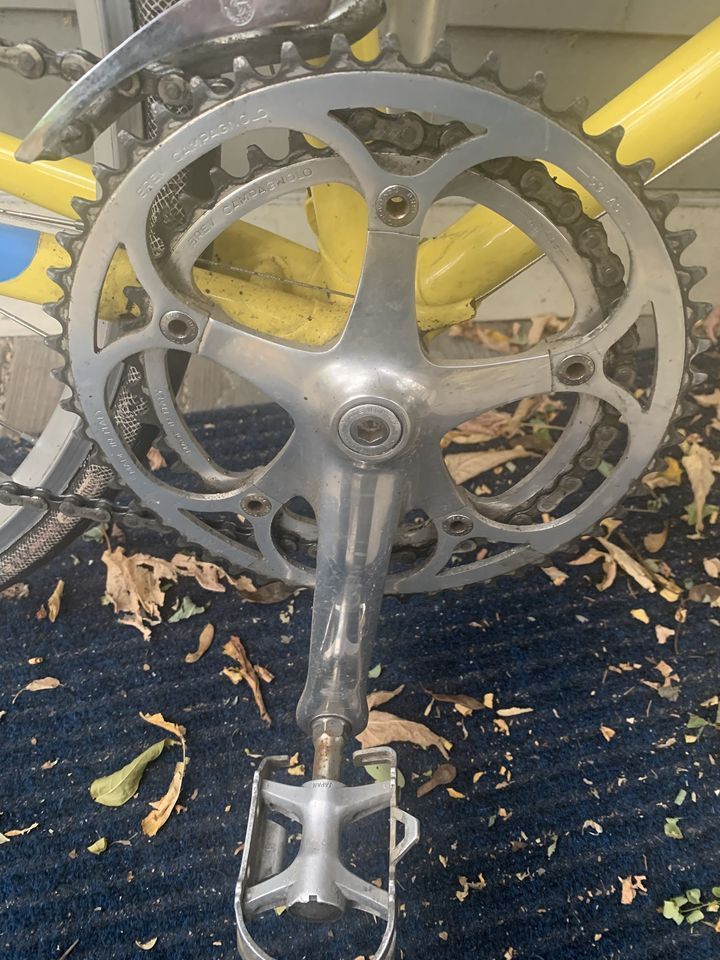

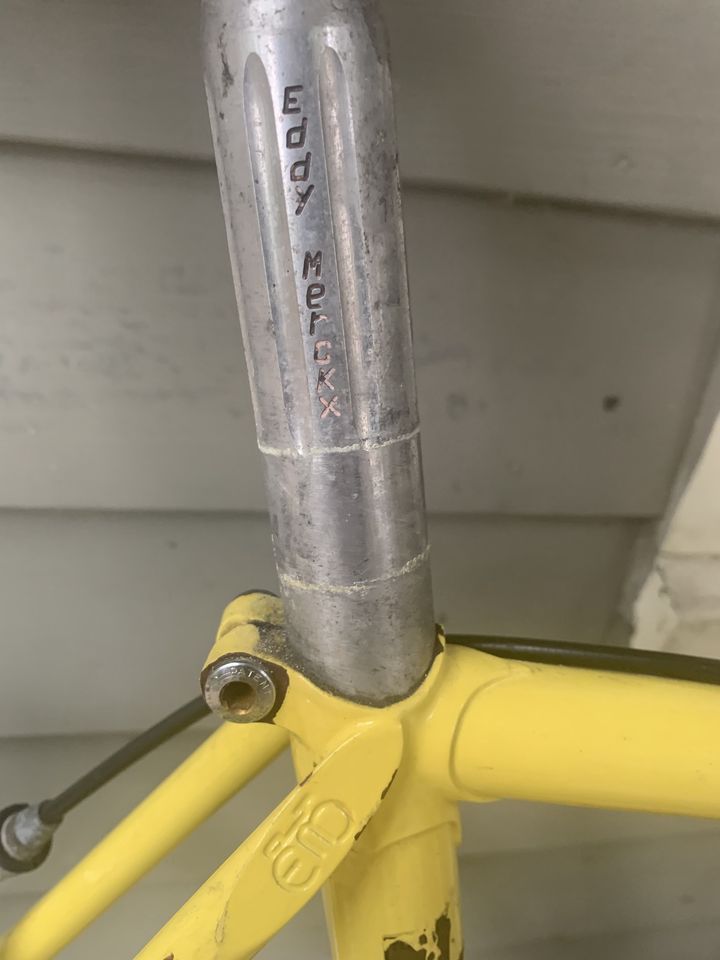

What would 2 on one side and E with 4367 below
color is yellow.

Again....all your knowledge is greatly appreciated

Last edited by bikemike73; 01-06-21 at 07:37 PM. Reason: spelling
bikemike73 is offline
Old 01-07-21, 12:04 AM
  #362
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 481
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 128 Post(s)
Likes: 0
Liked 222 Times in 159 Posts
Professional model
2 = 52 cm seat tube (c-c)
E4367 = serial number, frame built in 1982
The frame has been repainted, some stickers are inappropriate
CyclesMakaron is offline
Old 01-07-21, 08:47 AM
  #363
bikemike73
Senior Member

Join Date: Mar 2016
Location: North of Boston
Posts: 304

Bikes: 1973 Schwinn Sports Tourer plus a " few" more :)

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Likes: 0
Liked 59 Times in 45 Posts
Thank you again CM ( Jacek ) !!!!

It really is greatly appreciated
bikemike73 is offline
Old 01-19-21, 02:47 PM
  #364
allepunta
Junior Member

Join Date: Jan 2021
Posts: 15
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked 3 Times in 1 Post
Hi everyone,
new in this forum, I found a mxl in my size
The engraving in the BB
P F6459
I was told the frame was brought from Belgium. not an expert but I have never seen this paint scheme.
on the top tube says "Geant Bruno"
any idea?
allepunta is offline
Old 01-20-21, 12:38 AM
  #365
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 481
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 128 Post(s)
Likes: 0
Liked 222 Times in 159 Posts
P F6459 = 1995
for the paintwork pattern please refer to the EMC 1995 and 1996 catalogues
Bruno Geant - first proud owner of this bike (not widely known)
CyclesMakaron is offline
Old 01-20-21, 03:29 AM
  #366
styggno1
Steel is real

styggno1's Avatar

Join Date: May 2016
Location: Stockholm, Sweden
Posts: 789

Bikes: A lot - accumulated over +30 years

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 239 Post(s)
Liked 201 Times in 71 Posts
I presume the frame to be really large considering the first owners name. Otherwise it would/could be ironic...

géant
nom
  1. 1.
    Personne dont la taille dépasse anormalement la moyenne (gigantisme).
    • Les Géants de la mythologie
      nés de la Terre (Gaïa) et du Ciel (Ouranos).
    • À pas de géant
      très rapidement.
    • Les géants de l'automobile, du textile
      entreprises les plus importantes dans le domaine.
  2. 2.
    Génie, héros, surhomme.
    Les géants de l'art, du sport.

adjectif
  1. 1.
    Dont la taille dépasse de beaucoup la moyenne.
    Tortue géante.
    h
    Liknande:
    colossal

énorme
  • gigantesque
  • 2.
    Étoile géante
    de grand rayon, peu dense, très lumineuse.
styggno1 is offline
Old 01-22-21, 12:18 AM
  #367
allepunta
Junior Member

Join Date: Jan 2021
Posts: 15
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked 3 Times in 1 Post
Originally Posted by styggno1 View Post
I presume the frame to be really large considering the first owners name. Otherwise it would/could be ironic...

géant
nom
  1. 1.
    Personne dont la taille dépasse anormalement la moyenne (gigantisme).
    • Les Géants de la mythologie
      nés de la Terre (Gaïa) et du Ciel (Ouranos).
    • À pas de géant
      très rapidement.
    • Les géants de l'automobile, du textile
      entreprises les plus importantes dans le domaine.
  2. 2.
    Génie, héros, surhomme.
    Les géants de l'art, du sport.

adjectif
  1. 1.
    Dont la taille dépasse de beaucoup la moyenne.
    Tortue géante.
    h
    Liknande:
    colossal

énorme
  • gigantesque
  • 2.
    Étoile géante
    de grand rayon, peu dense, très lumineuse.
that is the irony of it, it is a 53 cm...
allepunta is offline
Old 01-22-21, 12:23 AM
  #368
allepunta
Junior Member

Join Date: Jan 2021
Posts: 15
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked 3 Times in 1 Post

here it is, P F6459
allepunta is offline
Old 01-22-21, 10:21 AM
  #369
messy11
Junior Member

Join Date: Jul 2015
Location: Jakarta
Posts: 13

Bikes: Salsa Colossal, CAAD12

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked 0 Times in 0 Posts
greetings all

I'm in the hunt of EM corsa extra, and I found this corsa extra with 90s production colorway (most likely). wanna make sure the frame is Corsa Extra and the tubing is Columbus SLX. The frame also has headtube cable guide. Greatly appreciate if anyone can help decipher the bb shell code, its L C9175 (pictures attached - error cant upload pic yet ).

thanks in advance!
messy11 is offline
Old 01-22-21, 11:56 AM
  #370
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 481
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 128 Post(s)
Likes: 0
Liked 222 Times in 159 Posts
Bruno Geant - VLP or VLB scheme painting (94-97)
L C9175 - end of 1991
There should be additional markings around L, check steering tube (card?)
CyclesMakaron is offline
Likes For CyclesMakaron:
Old 01-23-21, 06:25 PM
  #371
Paul J
Senior Member

Paul J's Avatar

Join Date: Sep 2012
Location: Lancaster County PA
Posts: 1,009

Bikes: 1980's Spectrum (Currently in a box awaiting a modern build), 1995 Eddy Merckx 10 sp Campy Centaur, Bushnell Tandem, Co-Motion Speedster

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 160 Post(s)
Liked 70 Times in 46 Posts
I've been meaning to put this up here to see what the date and info is. I've had this since 2001 when I purchased it from a fellow in South Carolina. Unfortunately it had been used on a trainer and sweat accumulated around the top tube pump and created a significant amount of rust and bubbling in the pain. Off to hot tubes for paint. I've not been a fan of chrome so had the frame fully painted covering the chrome. This is a daily rider so is showing chips and scratches but rides like a million dollars.






__________________
1980's Spectrum (Currently in a Box awaiting a modern build), 1995 Merckx Campy Centaur 10, Co-Motion Speedster, Bushnell Tandem,


Paul J is offline
Old 01-24-21, 05:38 AM
  #372
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 481
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 128 Post(s)
Likes: 0
Liked 222 Times in 159 Posts
Corsa Extra SLX/SPX 1990
CyclesMakaron is offline
Likes For CyclesMakaron:
Old 01-25-21, 12:48 AM
  #373
messy11
Junior Member

Join Date: Jul 2015
Location: Jakarta
Posts: 13

Bikes: Salsa Colossal, CAAD12

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by CyclesMakaron View Post
Bruno Geant - VLP or VLB scheme painting (94-97)
L C9175 - end of 1991
There should be additional markings around L, check steering tube (card?)
thank you for your response. Apologies, I think I made a typo previously, it should be C9715.

few images in spoiler:
Spoiler


Last edited by messy11; 01-25-21 at 01:04 AM.
messy11 is offline
Old 01-25-21, 01:26 AM
  #374
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 481
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 128 Post(s)
Likes: 0
Liked 222 Times in 159 Posts
C9715 - that changes things a bit
This is a team frame built in late 1991 for Telekom (for 1992 season), rebuilt and repainted ~94/95 (PS paint scheme - 1996 catalog)
2p.chroom - chrome paint scheme
later - frame repainted in EMC
CyclesMakaron is offline
Likes For CyclesMakaron:
Old 01-25-21, 02:53 AM
  #375
messy11
Junior Member

Join Date: Jul 2015
Location: Jakarta
Posts: 13

Bikes: Salsa Colossal, CAAD12

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by CyclesMakaron View Post
C9715 - that changes things a bit
This is a team frame built in late 1991 for Telekom (for 1992 season), rebuilt and repainted ~94/95 (PS paint scheme - 1996 catalog)
2p.chroom - chrome paint scheme
later - frame repainted in EMC
haha yes, I guess I was too excited when typing the serial number.

so is it corsa extra? SLX / TSX tubing?
messy11 is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
