Remove freewheel from unmounted hub

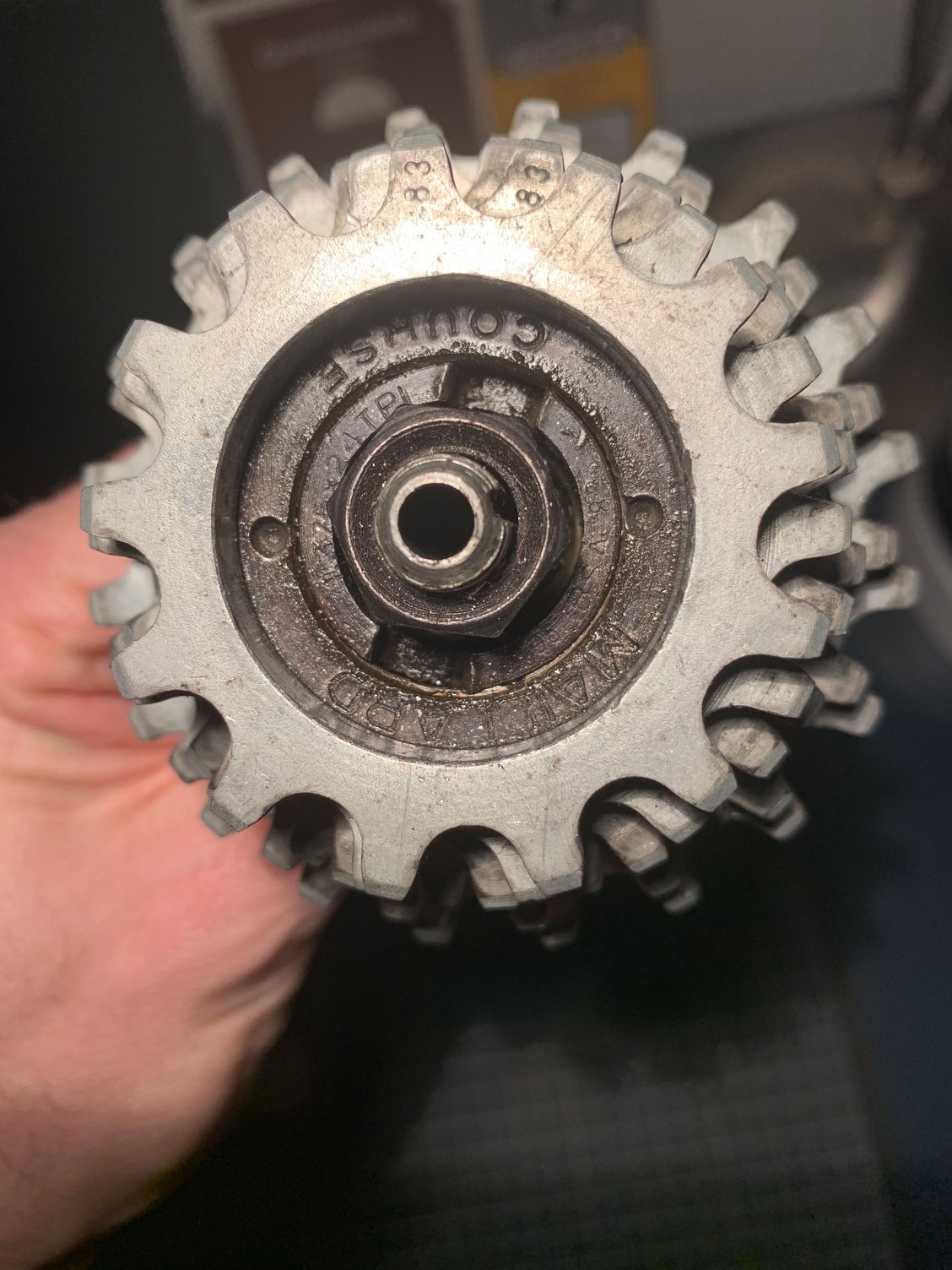

Hi there

Does anyone have an idea to best loosen a freewheel from a hub that is not mounted in a wheel.
I have tried using a chain whip but no luck. I have tried fixing the body with a bunch of cable ties, well that didnt work either
i have also tried loosening the lockring but after approx two turns the lockring seizes. Not coming off.





Any help would be grateful.
Stormy85 is offline
Old 01-19-21, 01:55 PM
  #2
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 2,290

Bikes: CURRENT: '82 Univega Competizione, '72 Motobecane Grand Record, '74 Campania Professional, '83 Mercian KOM Touring, '91 Univega Alpina Comp PAST: '72 Puch Bergmeister, '72ish Peugeot UO-8, '86 Univega Gran Premio, '85 Univega Viva Touring

Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 715 Post(s)
Liked 474 Times in 323 Posts
I have seen a technique where you use a bunch of old spokes placed through the drive-side spoke holes to build up enough material for a "handle" as you gather them all in one bunch. Google "remove freewheel bare hub" and the first results will be a couple of Youtube videos from RJ the Bike Guy. He makes good videos for basic maintenance stuff and for vexing problems like this.
noobinsf is offline
Likes For noobinsf:
Old 01-19-21, 02:22 PM
  #3
embankmentlb
Senior Member

embankmentlb's Avatar

Join Date: May 2008
Location: North, Ga.
Posts: 2,147

Bikes: 3Rensho-Aerodynamics, Bernard Hinault Look - 1986 tour winner, Guerciotti, Various Klein's & Panasonic's

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Liked 87 Times in 45 Posts
Is it possible to unscrew the smallest cog? Maybe you can remove the cogs individually and lace up the wheel to get at the hub body. All brands are different. Many have large cogs that screw of the back of the body and that is a bummer.
A guy on Facebook recently posted a frame contraption he made that allowed him to lace all the spoke holes with wire. It allowed him to release the freewheel body. Good luck!
embankmentlb is offline
Old 01-19-21, 02:29 PM
  #4
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: Ascending or Descending the NH Mountains NW of Concord!
Posts: 11,526

Bikes: Snazzy* Schwinns, Classy Cannondales, & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 652 Post(s)
Liked 255 Times in 171 Posts
Only the top two sprockets are threaded to the body, IIRC, and the remaining four are splined and slip off.

Did you turn the retaining ring clockwise to loosen? It does have reverse threads.

Is your intention to save the freewheel or the hub? Or both? Depending on your answer I have different solutions which might solve your conundrum!
__________________
Bob
Dreaming about riding in NH's summertime!

Visit my websites:
FreeWheelSpa.com orpastorbobnlnh.com
pastorbobnlnh is offline
Old 01-19-21, 02:31 PM
  #5
tyler_fred
Senior Member

tyler_fred's Avatar

Join Date: Nov 2010
Location: Magnolia State, 100 with 110% humidity
Posts: 1,167

Bikes: American, Italian, and Japanese.. in no particular order.

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 302 Post(s)
Liked 161 Times in 76 Posts
Originally Posted by noobinsf View Post
I have seen a technique where you use a bunch of old spokes placed through the drive-side spoke holes to build up enough material for a "handle" as you gather them all in one bunch.
Just to expound on this, I inserted a few old spokes through both sides of the hub. I clamped the spokes in a bench vise and also placed a wooden block under the hub to act as cushion so as not to mar or flatten the hub flange on the vise jaws.
tyler_fred is offline
Old 01-19-21, 02:42 PM
  #6
southpawboston
Senior Member

southpawboston's Avatar

Join Date: Aug 2008
Location: Somerville, MA and Catskill Mtns
Posts: 4,119
Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked 93 Times in 49 Posts
I was in just this same dilemma last week! I picked up an unlaced Maxicar hub with a Suntour NW freewheel. iBOB discussion here.

Basically the biggest recommendation was to re-lace the drive-side of the wheel, even just crudely, into a rim. In my case, this would have required removing the cogs since the large cog obstructed the spoke holes from getting fed spokes.

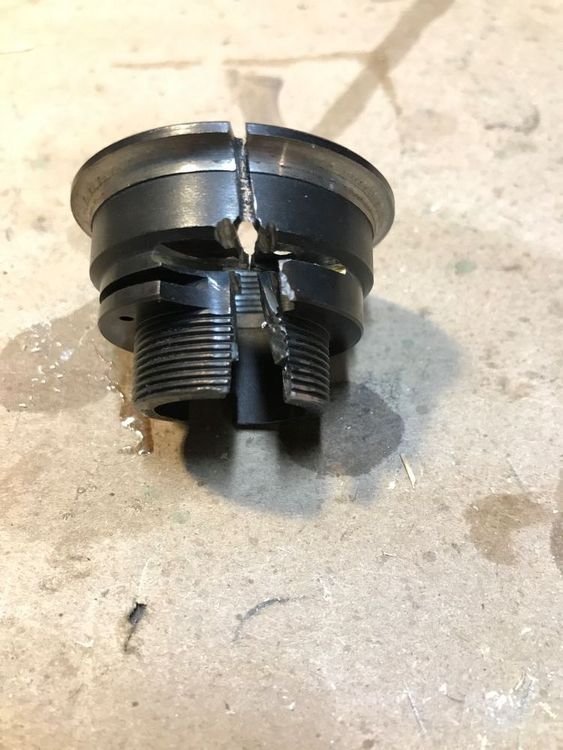

In the end, I removed the cogs, but instead of lacing the wheel I filed a channel across the inner freewheel body using a dremel with variously sized cutoff wheels, taking great care to avoid grinding into the hub threads or any other part of the hub, then "cracked" the freewheel body open with a cold chisel. Once cracked, the diameter of the body's threads increases slightly so the threads dissociate from the hub threads. I was then able to just spin it off by hand. You can see in the pics how close I came to the hub threads without actually touching them, and you can see the cracks from forcing it open with the chisel. It was like playing Operation when I was a kid! (Only the stakes were higher).

EDIT to add: after getting the cogs off, I first tried immobilizing the hub on a large block of wood using a handful of spokes laced into the hub and passing through small holes in the block, then bent 90 degrees so they sat flat against the underside of the block, and clamped them there, but no go... the torque on the freewheel body just pulled the spokes right out of the block like spaghetti!




Last edited by southpawboston; 01-19-21 at 03:00 PM.
southpawboston is offline
Likes For southpawboston:
Old 01-19-21, 03:01 PM
  #7
dabac
Senior Member

Join Date: Mar 2008
Posts: 8,419
Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 989 Post(s)
Liked 175 Times in 133 Posts
If you have a friend whos into machining, or a fabrication shop that seems friendly, ask If they can set your hub up in the chuck of a lathe for the time it takes to undo the f/w.
Ive also heard good things about using an impact wrench to break loose f/w and cassette lockrings. Supposedly it can be enough to hold the hub by hand.

Last edited by dabac; 01-19-21 at 03:10 PM.
dabac is offline
Old 01-19-21, 03:35 PM
  #8
ClydeClydeson
Senior Member

Join Date: Mar 2019
Posts: 423
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 136 Post(s)
Liked 150 Times in 110 Posts
You can take a bunch of spokes, and temporarily lace the NDS of the hub to a rim (doesn't need to be a specific size rim or in good condition). THen put the FW remover on the hub and hold it in place with the QR, put the remover in a bench vise and use the temporarily installed rim for leverage to loosen the FW as if it was a complete wheel.

NB. When doing the temporary 'lacing' of the rim to the hub, you needn't do any crosses or any other techniques required to make a rideable wheel.
ClydeClydeson is offline
Old 01-19-21, 03:39 PM
  #9
thook
Senior Member

Join Date: Aug 2009
Location: Winslow, AR
Posts: 1,581

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 342 Post(s)
Liked 199 Times in 151 Posts
i have nothing to add towards a method, but i'd like to suggest a product called "freeze off" i've used on separating dissimilar metals with mostly good results. available at o'reilly, atleast
thook is offline
Old 01-19-21, 03:51 PM
  #10
Mad Honk
Senior Member

Join Date: May 2019
Location: Bloomington, IN
Posts: 1,338

Bikes: Trek 770, Trek 760, Schwinn Paramount, Patelli Professional, Othon Ochsner

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 562 Post(s)
Liked 448 Times in 340 Posts
It appears that you can get spokes into the drive side through the free wheel. If so do that. Lacing into the non drive side risks splitting the hub in the center from the torque needed to break the free wheel. 9 spokes should be enough to get a rim laced for free wheel removal. If you can get 18 spokes in then even better. As long as all of the spokes are the same length you should get enough purchase to remove the free wheel by locking the removal tool in a vise and turning the rim. Good Luck I had to cut a body off a rather nice hub three weeks ago with not so good results. HTH, Smiles, MH
Mad Honk is offline
Old 01-19-21, 04:06 PM
  #11
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: Ascending or Descending the NH Mountains NW of Concord!
Posts: 11,526

Bikes: Snazzy* Schwinns, Classy Cannondales, & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 652 Post(s)
Liked 255 Times in 171 Posts
southpawboston Great work in saving the hub and sacrificing a PIA freewheel design! It probably helps, that in my experience, the New Winner freewheel bodies were made with very brittle steel. They tend not to deform but instead have pieces crack off.
__________________
Bob
Dreaming about riding in NH's summertime!

Visit my websites:
FreeWheelSpa.com orpastorbobnlnh.com
pastorbobnlnh is offline
Likes For pastorbobnlnh:
Old 01-19-21, 05:21 PM
  #12
oneclick
Senior Member

Join Date: Feb 2020
Posts: 865
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 295 Post(s)
Likes: 0
Liked 295 Times in 186 Posts
If you want to save both bits you'll have to re-lace it, even the drive side. Z-bend spokes are the answer; if necessary get a smaller rim, say 24", and a bunch of old spokes from a larger wheel. Figure out what length spoke fits the hub and small rim, and cut the heads off and make your Z-bend at more-or-less the right distance. It does not have to be more than close, the wheel does not have to be true. Lace the wheel, remove as usual. Save the spokes and rim for the next time.
oneclick is offline
Likes For oneclick:
Old 01-19-21, 05:34 PM
  #13
tiger1964
Senior Member

tiger1964's Avatar

Join Date: Apr 2011
Location: Maryland, USA
Posts: 1,179

Bikes: Drysdale/Gitane/Zeus/Masi/Falcon/Palo Alto

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 370 Post(s)
Liked 87 Times in 66 Posts
Photo in post #1 is a high flange hub; could a u-shaped tool be made from a bar and two bolts to project through the holes in the hub, hold that in a vise, and remove freewheel normally? Kind of a giant version of the two-pin tools used on adjustable cups for a bottom bracket.
__________________
Larry:1958 Drysdale, 1961 Gitane Gran Sport, 1974 Zeus track, 1988 Masi Gran Corsa, 1974 Falcon, 1980 Palo Alto. Susan: 1976 Windsor Profesional.
tiger1964 is offline
Old 01-19-21, 05:53 PM
  #14
repechage
Senior Member

Join Date: Jun 2006
Posts: 15,297
Mentioned: 102 Post(s)
Tagged: 0 Thread(s)
Quoted: 1663 Post(s)
Liked 573 Times in 449 Posts
Originally Posted by tiger1964 View Post
Photo in post #1 is a high flange hub; could a u-shaped tool be made from a bar and two bolts to project through the holes in the hub, hold that in a vise, and remove freewheel normally? Kind of a giant version of the two-pin tools used on adjustable cups for a bottom bracket.
depends on what is at hand and ability.
the freewheel has already suffered from an incorrect tool. In my view- it might be worth more than the hub.
The cogs look in decent shape, and it MIGHT be french threaded... (nope, English, that makes it easier)
in the old days we had a shop tool that bent a zig zag into a spoke, lace the wheel provisionally with a dented rim and remove as normal.
This all depends on the correct remover.
If you wish to save the hub, confirm threading type and confirm condition of the cones, no reason to spend energy on a bad hub.
repechage is offline
Old 01-19-21, 06:16 PM
  #15
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 7,301

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1483 Post(s)
Liked 980 Times in 663 Posts
A couple of threads dealing with freehub but gives you some ideas.

https://www.bikeforums.net/bicycle-m...b-removal.html

https://www.bikeforums.net/bicycle-m...laced-hub.html
dedhed is offline
Old 01-19-21, 06:33 PM
  #16
thook
Senior Member

Join Date: Aug 2009
Location: Winslow, AR
Posts: 1,581

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 342 Post(s)
Liked 199 Times in 151 Posts
Originally Posted by tiger1964 View Post
Photo in post #1 is a high flange hub; could a u-shaped tool be made from a bar and two bolts to project through the holes in the hub, hold that in a vise, and remove freewheel normally? Kind of a giant version of the two-pin tools used on adjustable cups for a bottom bracket.

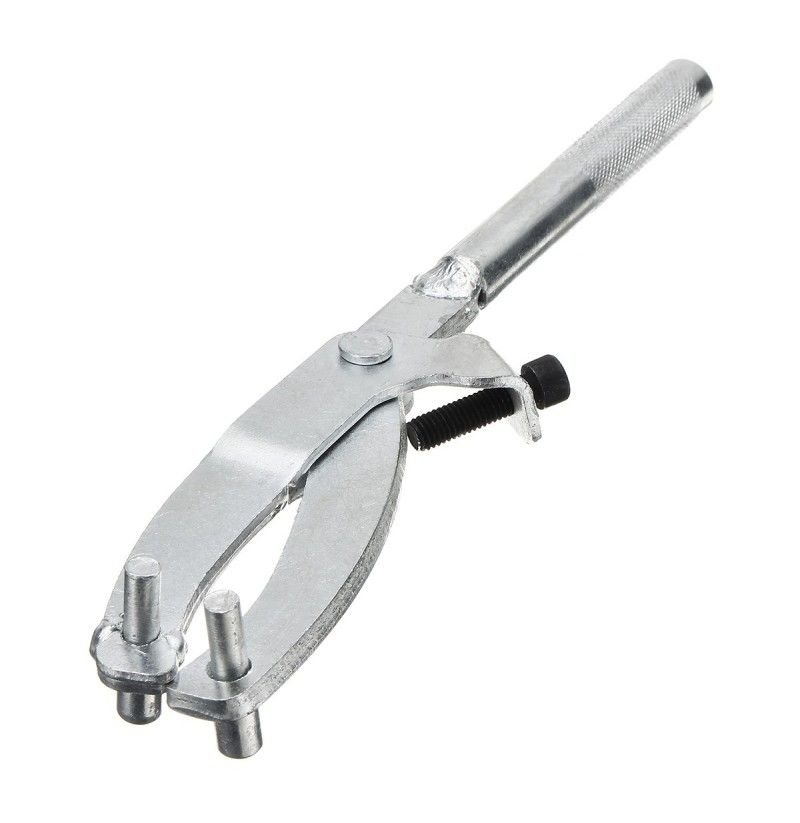

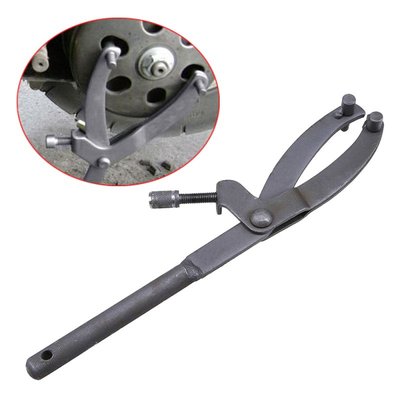

this is a good idea. there are automotive tools (rentable at auto stores) designed to hold pulleys on the front of the engine so you can remove it's mounting bolt. there's a lot of torque on those bolts sometimes, too..eg. crankshaft pulley

and, if there's not a pulley tool to fit, maybe fashion a two or three pin (using bolts) spanner to engage the flange holes behind the freewheel cluster and use a long breaker bar on the freewheel tool. that's what i'd do.

edit: yeah, shoot.....i've got a headset spanner made of flat steel about 1/8 in thick. with a spanner like that, drill some holes, put in bolts.....boom!....that would work
thook is offline
Old 01-20-21, 04:32 AM
  #17
Stormy85
Junior Member
Thread Starter

Join Date: Jul 2020
Posts: 21
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Spoiler

thanks for all your replies.

Originally Posted by noobinsf View Post
I have seen a technique where you use a bunch of old spokes placed through the drive-side spoke holes to build up enough material for a "handle" as you gather them all in one bunch. Google "remove freewheel bare hub" and the first results will be a couple of Youtube videos from RJ the Bike Guy. He makes good videos for basic maintenance stuff and for vexing problems like this.
A bit embarrassing but I was actually looking at RJ's channel to find a solution as I also find him very informative. I tried his method of creating some Z-Bend spokes and lacing the NDS. Worked really good but the damn thing is ridiculously tight. Will have to try with some leverage later on.

Is your intention to save the freewheel or the hub? Or both? Depending on your answer I have different solutions which might solve your conundrum!
I would like to save both but have a slight feeling that the freewheel will be toast as I cant remove the lockring. And yes, loosened it by going clockwise.
Stormy85 is offline
Old 01-20-21, 05:30 AM
  #18
old's'cool
curmudgineer

old's'cool's Avatar

Join Date: Dec 2009
Location: Chicago SW burbs
Posts: 4,347

Bikes: 2 many 2 fit here

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 235 Post(s)
Liked 36 Times in 27 Posts
thook is on to something. In conjunction with any/all of the above, try putting the whole works in the freezer for a while then re-attempt separation.
__________________
Geoff
"There is no Fail without Try" - Yoda Simpson
old's'cool is offline
Old 01-20-21, 08:28 AM
  #19
tiger1964
Senior Member

tiger1964's Avatar

Join Date: Apr 2011
Location: Maryland, USA
Posts: 1,179

Bikes: Drysdale/Gitane/Zeus/Masi/Falcon/Palo Alto

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 370 Post(s)
Liked 87 Times in 66 Posts
Originally Posted by thook View Post
this is a good idea.
...and we might have found yet another reason that high-flange hubs are better.
__________________
Larry:1958 Drysdale, 1961 Gitane Gran Sport, 1974 Zeus track, 1988 Masi Gran Corsa, 1974 Falcon, 1980 Palo Alto. Susan: 1976 Windsor Profesional.
tiger1964 is offline
Old 01-20-21, 10:02 AM
  #20
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: Ascending or Descending the NH Mountains NW of Concord!
Posts: 11,526

Bikes: Snazzy* Schwinns, Classy Cannondales, & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 652 Post(s)
Liked 255 Times in 171 Posts
Originally Posted by Stormy85 View Post
Spoiler

thanks for all your replies.

...I would like to save both but have a slight feeling that the freewheel will be toast as I cant remove the lockring. And yes, loosened it by going clockwise.
If you didn't remove the threaded sprockets first, the retaining ring will thread off towards the underside of the sprockets and become jammed. If this is the case, this is why it made two turns and then it would not continue to thread off. The sprockets need to be removed first.

If your preference is to save the hub, removing the sprockets and outer body will provide plenty of space to facilitate a temporary lacing of the hub to a rim for leverage. You then have a choice of using the removal tool and attempting a salvage of the freewheel or use a pipe wrench to grab the inner body. Attempting the second option could damage the inner body and thus ruin the freewheel.

Before attempting either of the above, try heating the inner body with a torch first. The expansion of the steel body from the aluminum hub threads might provide some help.

Best of luck!
__________________
Bob
Dreaming about riding in NH's summertime!

Visit my websites:
FreeWheelSpa.com orpastorbobnlnh.com
pastorbobnlnh is offline
Old 01-20-21, 11:13 AM
  #21
thook
Senior Member

Join Date: Aug 2009
Location: Winslow, AR
Posts: 1,581

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 342 Post(s)
Liked 199 Times in 151 Posts
Originally Posted by tiger1964 View Post
...and we might have found yet another reason that high-flange hubs are better.
thook is offline
Old 01-20-21, 11:22 AM
  #22
thook
Senior Member

Join Date: Aug 2009
Location: Winslow, AR
Posts: 1,581

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 342 Post(s)
Liked 199 Times in 151 Posts
Originally Posted by Stormy85 View Post
Spoiler



thanks for all your replies.


A bit embarrassing but I was actually looking at RJ's channel to find a solution as I also find him very informative. I tried his method of creating some Z-Bend spokes and lacing the NDS. Worked really good but the damn thing is ridiculously tight. Will have to try with some leverage later on.


I would like to save both but have a slight feeling that the freewheel will be toast as I cant remove the lockring. And yes, loosened it by going clockwise.
pretty darn sure with the idea of pinned spanner tiger and i posted about you can save both the hub and freewheel. i've worked on a lot of cars, dude, and the application here is not much different. i think it'd be easier than using a temp lacing of a wheel. it's up to you, though

oh, and the freezer suggestion by old's'cool....it's also a good idea. leave it in several hours/overnight. you need the expansion and contraction to relieve the surface tension on the threading. a torch, while it will very likely work, will destroy the freewheel. a freezer is also more readily available...hopefully

Last edited by thook; 01-20-21 at 11:26 AM.
thook is offline
Old 01-20-21, 12:21 PM
  #23
thook
Senior Member

Join Date: Aug 2009
Location: Winslow, AR
Posts: 1,581

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 342 Post(s)
Liked 199 Times in 151 Posts
automotive pulley spanner examples....





clutch pulley spanner/adjustable


flywheel spanner in action

you can/should be able to rent any one of these at an auto store...ie. free!!

ps. sorry for the large image files. got tedious to try and reduce the size
thook is offline
Old 01-20-21, 12:55 PM
  #24
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 7,336

Bikes: 85 team Miyata (modern 5800 105) , '84 Team Miyata,(dura ace old school) '82 nishiski,

Mentioned: 70 Post(s)
Tagged: 0 Thread(s)
Quoted: 1285 Post(s)
Liked 532 Times in 381 Posts
Originally Posted by thook View Post
i have nothing to add towards a method, but i'd like to suggest a product called "freeze off" i've used on separating dissimilar metals with mostly good results. available at o'reilly, atleast
+1 on freeze off and fastest way is to do the lace up a rim
__________________
Life is too short not to ride the best bike you have, as much as you can
squirtdad is offline
Old 01-20-21, 01:15 PM
  #25
iab
Senior Member

iab's Avatar

Join Date: Jun 2006
Location: NW Burbs, Chicago
Posts: 10,570
Mentioned: 144 Post(s)
Tagged: 0 Thread(s)
Quoted: 2100 Post(s)
Liked 1,139 Times in 538 Posts
Get a 2x4, cut in half. Cut 4" down so it fits between the flanges. Clamp pieces together, drill hole slightly larger than barrel diameter down the "seam". Screw wood together around barrel. Nail through spoke holes. Clamp wood in vice.

And Bob's yer uncle.
iab is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
