Triplize a Shimano 600 double?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Triplize a Shimano 600 double?

Old 02-17-20, 03:08 PM
  #1
Chr0m0ly
Senior Member
Thread Starter

Chr0m0ly's Avatar

Join Date: Apr 2014
Location: Hamilton Heights, Manhattan, New York, NY
Posts: 1,463

Bikes: '84 Miyata 610 '85 Miyata 710, ‘86 Miyata 710, ‘91 Cannondale ST600, ‘84 Trek 610, 520, 620, ‘91 Miyata 1000LT, a few frames, some odds and ends....

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 568 Post(s)
Liked 170 Times in 109 Posts
Triplize a Shimano 600 double?

https://www.bikeforums.net/classic-v...nk-6207-a.html



I've installed the double ring version of this crank on my wife's bike, and she needs the granny gear.

Is this something I can add on? I believe I'd need to source the granny, the longer axle, and possibly longer sleeved allen bolts to go through the third gear?
Chr0m0ly is offline
Old 02-17-20, 03:26 PM
  #2
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 11,974

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 75 Post(s)
Tagged: 0 Thread(s)
Quoted: 1962 Post(s)
Liked 275 Times in 191 Posts
The 6206 and 6207 are very different cranksets.

The 6206 is effectively the 600/XT level triple crank with the 110/74 BCD pattern.

The 6207 is a 130 BCD double crank.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 02-17-20, 11:37 PM
  #3
Chr0m0ly
Senior Member
Thread Starter

Chr0m0ly's Avatar

Join Date: Apr 2014
Location: Hamilton Heights, Manhattan, New York, NY
Posts: 1,463

Bikes: '84 Miyata 610 '85 Miyata 710, ‘86 Miyata 710, ‘91 Cannondale ST600, ‘84 Trek 610, 520, 620, ‘91 Miyata 1000LT, a few frames, some odds and ends....

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 568 Post(s)
Liked 170 Times in 109 Posts
So different crank entirely.
The original set up that came on her bike, an '88 ST400, was a suntour that had the threaded holes to accept a granny gear, but I swapped it for the shimmy 600 to use a set of 165mm cranks.

So find 165mm cranks and a granny for the suntour...

I wonder if I can find a full triple with 165's on fleabay...

I'll put up WTB post in the for sale section 👍
Chr0m0ly is offline
Old 02-18-20, 12:29 AM
  #4
ThermionicScott
7-speed cultist

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 20,033

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 87 Post(s)
Tagged: 0 Thread(s)
Quoted: 2766 Post(s)
Liked 674 Times in 470 Posts
If a 34T granny is small enough, you could get one of those dual-pattern 110/130 chainrings to use as the “triplizier.”
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 02-18-20, 01:35 AM
  #5
bulgie
blahblahblah chrome moly

bulgie's Avatar

Join Date: Apr 2009
Location: Seattle
Posts: 332
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 196 Post(s)
Liked 217 Times in 122 Posts
Not sure if I understand, is this it: OP has some 165 mm cranks with a 130 mm BCD, and he wants to put a small granny ring on?

Then a 130 BCD triplizer ring should work, no? A triplizer ring replaces the inner ring of the double and becomes the middle ring of the triple. It has holes at 130 BCD to attach to the crank, and also holes at 74 BCD to attach the granny. So you need
  • triplizer ring
  • 74 mm BCD granny ring
  • chainring bolts for the granny
  • longer spindle
Lots of companies made or still make triplizer rings for 130 BCD, such as TA, Willow, Thorn, Stronglight, FSA... some more I can't remember.

Here's a later model TA:


Here's a Thorn (from SJS Cycles in the UK):

The TA has ramps and pins to aid with front indexed shifting, if you're into that. I think the Thorn is old-school, intended for friction shifting on the front derailer. I've never actually held a Thorn version in my hands though. I know the older-version TA triplizer was without ramps and pins.

Mark B in Seattle

Last edited by bulgie; 02-18-20 at 02:05 AM.
bulgie is offline
Likes For bulgie:
Old 02-18-20, 02:02 AM
  #6
bulgie
blahblahblah chrome moly

bulgie's Avatar

Join Date: Apr 2009
Location: Seattle
Posts: 332
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 196 Post(s)
Liked 217 Times in 122 Posts

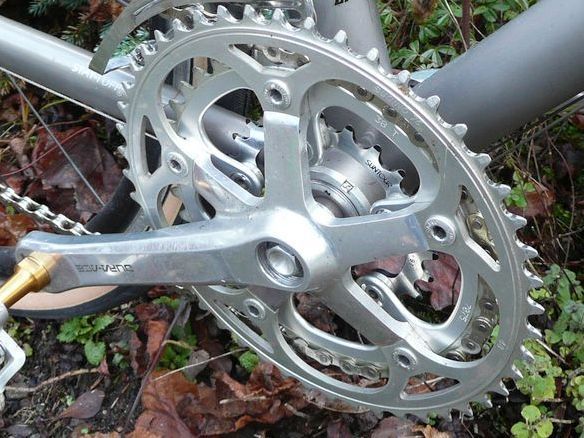

Here's my wife's Dura-Ace 7400 in 165 mm, with a Stronglight triplizer.


I like the Stronglight, but it's more work than the TA, Willow or Thorn, because it doesn't have clearance for the 5 shelves off the inside of the spider arms, so you need to saw the shelves off. Not too difficult if you're handy, and you have a vise with soft jaws, a hacksaw, and a flat file to dress down the saw marks. Takes me about 15 minutes, but most people would be reluctant to take a hacksaw to a nice crank. Especially when there are other triplizer rings that don't require any sawing/filing.

My advice is get a TA. They're very well made, out of good hard alloy, and look great. $54 plus shipping from Bike24 in Germany https://www.bike24.com/p2141592.html
or $88 plus cheaper shipping from Peter White in the USA https://www.peterwhitecycles.com/ta-...ings.php#alize (scroll down to "tripleizer" -- that's the way he spells it)
I leave it to you to decide which is a better deal once shipping is added in, but shipping from Germany will probably be slower too, a factor if you're in a hurry.

Good luck, let me know if I can answer any other questions.

If I completely misunderstood your situation, then -- never mind!

Mark B in Seattle
bulgie is offline
Likes For bulgie:
Old 02-18-20, 04:33 AM
  #7
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 3,275

Bikes: Bob Jackson World Tour, Falcon and 98 Bianchi Volpe

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1016 Post(s)
Liked 357 Times in 207 Posts
Just here to say, those triplizers work great.
52telecaster is offline
Old 02-18-20, 06:33 AM
  #8
top506
Death fork? Naaaah!!

top506's Avatar

Join Date: Nov 2005
Location: The other Maine, north of RT 2
Posts: 4,769

Bikes: Seriously downsizing.

Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 371 Post(s)
Likes: 0
Liked 76 Times in 48 Posts
Originally Posted by 52telecaster View Post
Just here to say, those triplizers work great.
+1.

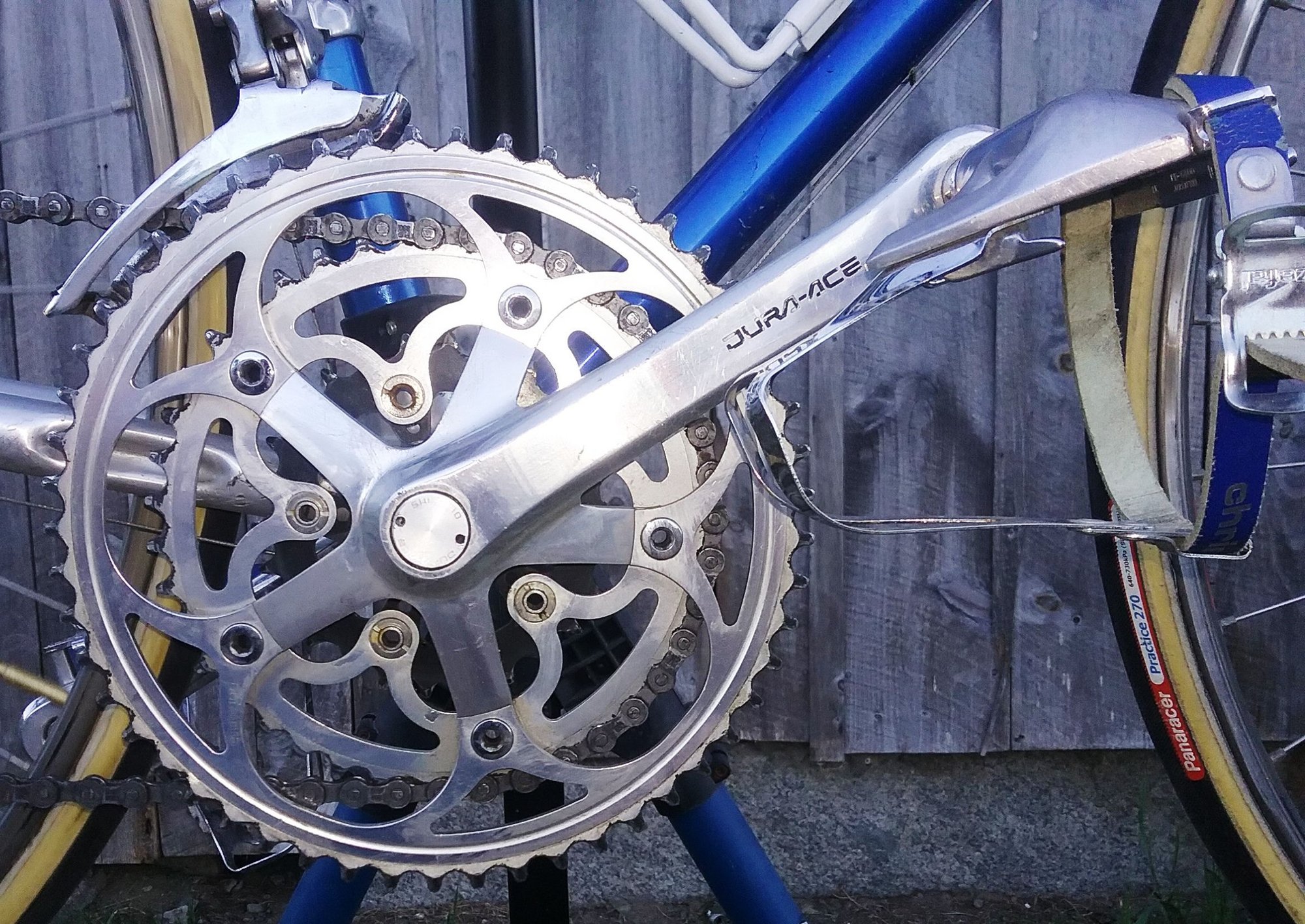

Willow triplizer on Dura Ace 7400 crank:





Top
__________________
You know it's going to be a good day when the stem and seatpost come right out.

(looking for a picture and not seeing it? Thank the Photobucket fiasco.PM me and I'll link it up.)
top506 is offline
Old 02-18-20, 07:11 AM
  #9
seypat
Senior Member

Join Date: Oct 2010
Posts: 5,078
Mentioned: 58 Post(s)
Tagged: 0 Thread(s)
Quoted: 1477 Post(s)
Liked 367 Times in 263 Posts
Spindle length for the FC-6206 is 121.5. Maybe the will help with your situation.
seypat is offline
Old 02-18-20, 07:25 AM
  #10
daverup
Senior Member

Join Date: Jun 2019
Location: Michigan USA
Posts: 48

Bikes: 86 Centurion Ironman, 83 Schwinn Le Tour, 94 Schwinn Crosscut, 95 Trek 930, 2016 Rocky Mountain Blizzard, 1994 Rans Tailwind, Couple of early 80's Mixte's, Dahon Speed 7

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked 29 Times in 15 Posts
Originally Posted by Chr0m0ly View Post
https://www.bikeforums.net/classic-v...nk-6207-a.html



I've installed the double ring version of this crank on my wife's bike, and she needs the granny gear.
Once you sort out the granny gear on the crank, you may need to go long cage on the RD if that bike has the short version.
I swapped the short cage on a shimano 600 for a longer one from another shimano sis RD. That helped a bunch with the small gear combinations.
daverup is offline
Old 02-18-20, 04:20 PM
  #11
Chr0m0ly
Senior Member
Thread Starter

Chr0m0ly's Avatar

Join Date: Apr 2014
Location: Hamilton Heights, Manhattan, New York, NY
Posts: 1,463

Bikes: '84 Miyata 610 '85 Miyata 710, ‘86 Miyata 710, ‘91 Cannondale ST600, ‘84 Trek 610, 520, 620, ‘91 Miyata 1000LT, a few frames, some odds and ends....

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 568 Post(s)
Liked 170 Times in 109 Posts
Originally Posted by Chuckk View Post
I guess you've already considered a 39 low on the front and a 32 with a long cage derailleur on the back?
A lot simpler.
no I have NOT!! I let my touring fettish get in the way! Sheesh, I like the simple answer.
We aren't going up mountain passes just the odd steep hill, and that would likely do the trick.

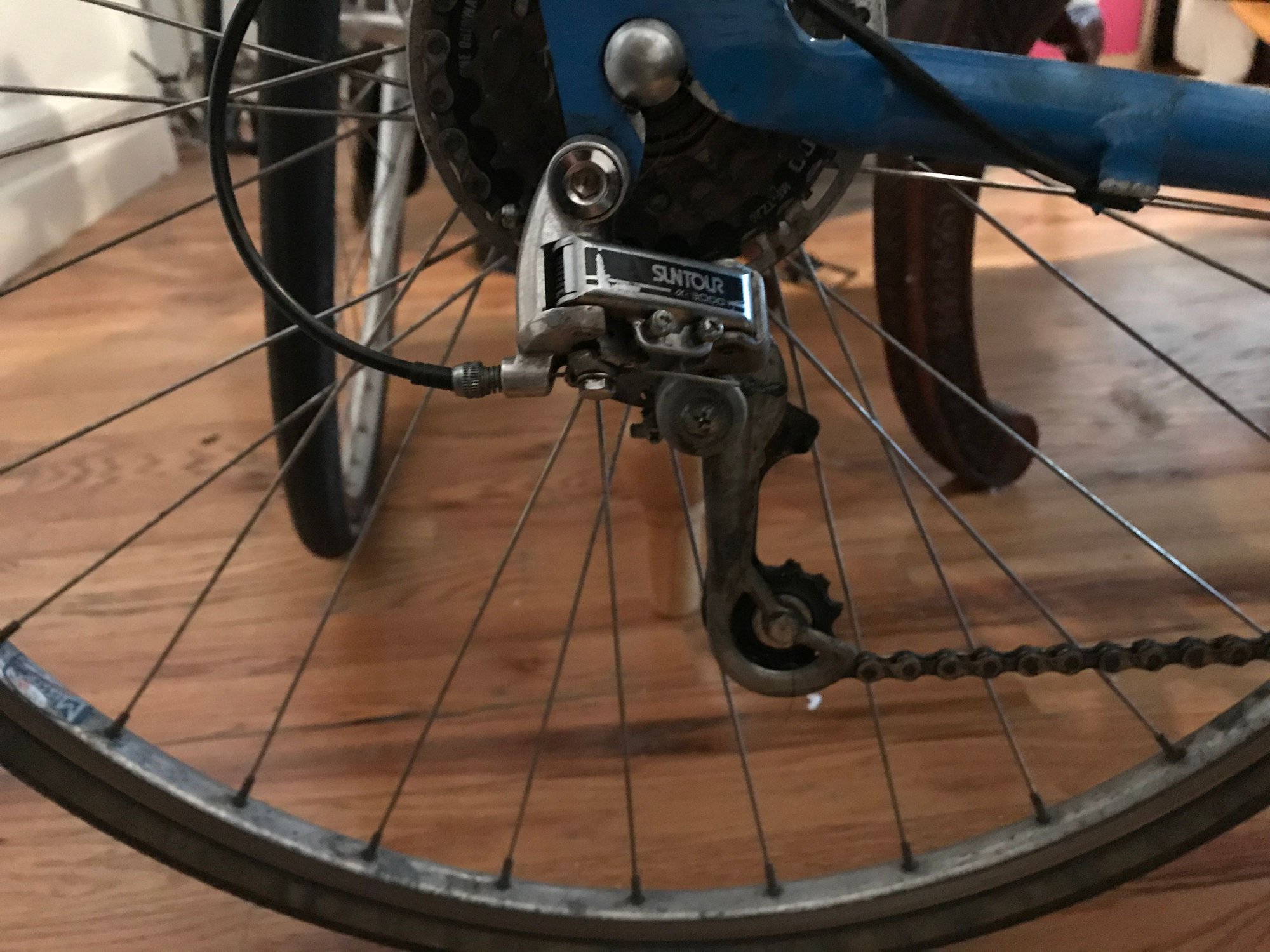

This is what I'm working with, it came with a long cage OEM, and the original crank had the spot for a granny, I just swapped it out to use the 165 crank arms for her.
Chr0m0ly is offline
