Question re: 700x28 clinchers

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Question re: 700x28 clinchers

Old 05-11-19, 06:26 PM
  #1
horatio
Hump, what hump?
Thread Starter

horatio's Avatar

Join Date: Dec 2003
Location: SC midlands
Posts: 1,638

Bikes: See signature

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 247 Post(s)
Liked 58 Times in 45 Posts
Question re: 700x28 clinchers

How wide should my rim be?
__________________
2010 AB T1X ** 2010 Cannondale SIX-5 ** 1993 Cannondale RS900 ** 1989 Bianchi Brava ** 1988 Nishiki Olympic ** 1987 Centurion Ironman Expert(2) ** 1985 DeRosa Professional SLX ** 1982 Basso Gap ** 198? Ciocc Designer '84 ** 198? Ciocc Competition SL ** 19?? Roberts Audax ** 198? Brian Rourke ** 1982 Mercian Olympic ** 1970 Raleigh Professional MK I ** 1952 Raleigh Sports
horatio is offline
Old 05-11-19, 06:47 PM
  #2
TenGrainBread
Senior Member

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 2,061
Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 804 Post(s)
Liked 135 Times in 103 Posts
I would say anything from 13 to 23mm internal width should work fine. The wider the rim the wider the actual tire width will be.
TenGrainBread is offline
Old 05-11-19, 06:52 PM
  #3
horatio
Hump, what hump?
Thread Starter

horatio's Avatar

Join Date: Dec 2003
Location: SC midlands
Posts: 1,638

Bikes: See signature

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 247 Post(s)
Liked 58 Times in 45 Posts
Originally Posted by TenGrainBread View Post
I would say anything from 13 to 23mm internal width should work fine. The wider the rim the wider the actual tire width will be.
Thanks! Itching to try some.
__________________
2010 AB T1X ** 2010 Cannondale SIX-5 ** 1993 Cannondale RS900 ** 1989 Bianchi Brava ** 1988 Nishiki Olympic ** 1987 Centurion Ironman Expert(2) ** 1985 DeRosa Professional SLX ** 1982 Basso Gap ** 198? Ciocc Designer '84 ** 198? Ciocc Competition SL ** 19?? Roberts Audax ** 198? Brian Rourke ** 1982 Mercian Olympic ** 1970 Raleigh Professional MK I ** 1952 Raleigh Sports

Last edited by horatio; 05-11-19 at 06:58 PM.
horatio is offline
Old 05-11-19, 07:03 PM
  #4
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 26,242
Mentioned: 33 Post(s)
Tagged: 1 Thread(s)
Quoted: 357 Post(s)
Liked 389 Times in 256 Posts
I'm running some on Velomax Circuit rims, and they're fine. I'm going to guess the inner width of those is about 18-19.

Not all 28's are created equal, and that's a lot of tire to be pushing around if it's a drudgeon. There is a chart with relative rolling resistances, out there somewhere. Not a bad idea to check it out first.

Says a man who couldn't fit 28 GP4000SII's and settled for Challenges LG's because they fit. Even I can tell the difference in them.
__________________
Robbie ♪♫♪...☻
I have unfinished business.


Last edited by RobbieTunes; 05-11-19 at 07:07 PM.
RobbieTunes is offline
Old 05-11-19, 07:12 PM
  #5
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 5,475

Bikes: Lots. Just...lots.

Mentioned: 156 Post(s)
Tagged: 0 Thread(s)
Quoted: 1087 Post(s)
Liked 64 Times in 48 Posts
Just be aware that not all 28's are created equal, in terms of plush vs. resistance.

A Conti 4000Sii mounts up at about 30mm on a Mavic Pro/Elite rim and at 90 psi is dreamy. Same with the Panaracer Gravel King (the file tread ones). These are fast tires. So is the Vittoria Rubino Pro III if you can find them, although they mount up at just under 27mm.

Other 28's I've tried have been heavy and slow.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 05-11-19, 07:20 PM
  #6
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 1,641

Bikes: 81 Medici, 84 Turbo, 86 IM, 2010 Milwaukee Road, 2011 RS

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 589 Post(s)
Liked 29 Times in 25 Posts
Put them on your current rims (whatever they are). I put mine on open pros and .... no sense getting special rims for 28s.
I have also raced cyclocross with 35s on open pros with probably 40 psi (higher than necessary but Id rather not punch flat).
Classtime is offline
Old 05-11-19, 07:21 PM
  #7
horatio
Hump, what hump?
Thread Starter

horatio's Avatar

Join Date: Dec 2003
Location: SC midlands
Posts: 1,638

Bikes: See signature

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 247 Post(s)
Liked 58 Times in 45 Posts
I’m looking at the Continental Ultra Sport II. I’ve been pleased with these in 23mm.
__________________
2010 AB T1X ** 2010 Cannondale SIX-5 ** 1993 Cannondale RS900 ** 1989 Bianchi Brava ** 1988 Nishiki Olympic ** 1987 Centurion Ironman Expert(2) ** 1985 DeRosa Professional SLX ** 1982 Basso Gap ** 198? Ciocc Designer '84 ** 198? Ciocc Competition SL ** 19?? Roberts Audax ** 198? Brian Rourke ** 1982 Mercian Olympic ** 1970 Raleigh Professional MK I ** 1952 Raleigh Sports
horatio is offline
Old 05-11-19, 07:21 PM
  #8
Lemond1985
Sophomore Member

Lemond1985's Avatar

Join Date: Jan 2019
Posts: 1,830
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 1068 Post(s)
Liked 379 Times in 256 Posts
From my experience, the Conti GP4000II's in 28 mm were around 30 mm on all of my rims, but Panaracer Gravel Kings when mounted on the same Mavic Ksyrium rims measure around 26 mm. See the 28 mm Gravel Kings below.



YMMV on some of the newer wide rims, but I found that the Gravel Kings run about 2 mm UNDER 28 mm, and the GP4000's run about 2 mm OVER 28 mm.
Lemond1985 is online now
Old 05-11-19, 07:56 PM
  #9
Andy_K
Senior Member

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 12,158

Bikes: Yes

Mentioned: 305 Post(s)
Tagged: 0 Thread(s)
Quoted: 1789 Post(s)
Liked 61 Times in 47 Posts
Originally Posted by horatio View Post
Im looking at the Continental Ultra Sport II. Ive been pleased with these in 23mm.
I haven't used Ultra Sports, but I'd be willing to bet that GP4000s are worth the difference in price. You can get them pretty cheap now that the 5000s are out.
__________________
My Bikes
Andy_K is offline
Old 05-11-19, 08:19 PM
  #10
phtomita
Senior Member

Join Date: Jan 2018
Location: Redmond, WA
Posts: 499

Bikes: '86 Nishiki Tri-A, '84 Centurion PT15, '87 Centurion IM Master

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 155 Post(s)
Liked 18 Times in 17 Posts
Have the GP4000SII 28mm on H+Son Archetype (17mm internal) and like that - using for commuting on my Centurion ProTour 15.
I tried to have it on Nishiki Tri-A and it will rub he side bar on seat stay where you attach the rear caliper, so max on my Tri-a is a 25mm.
phtomita is offline
Old 05-11-19, 09:20 PM
  #11
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 9,554

Bikes: Centurion Ironman, Trek 5900, Univega Via Carisma, Globe Carmel

Mentioned: 170 Post(s)
Tagged: 0 Thread(s)
Quoted: 2936 Post(s)
Liked 273 Times in 206 Posts
Worst mismatch I've tried is Continental Speed Rides (700x42 nominal, actually closer to 700x38) on 622x14 rims on my Univega hybrid. It's worked fine for months, although I was concerned at first that it would be too squirmy on fast turns.

I may eventually replace those rims with 622x19 or so, which I used to use on that bike before the rims were borked when a car hit me. But the skinny replacements are working fine for now.

My main concern, besides handling, is stress on the unsupported sidewalls. So I'll inspect them periodically.
canklecat is offline
Old 05-12-19, 05:29 AM
  #12
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,030

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 143 Post(s)
Tagged: 0 Thread(s)
Quoted: 555 Post(s)
Likes: 0
Liked 112 Times in 80 Posts
700c x 26 Gravel Kings

Originally Posted by Lemond1985 View Post
From my experience, the Conti GP4000II's in 28 mm were around 30 mm on all of my rims, but Panaracer Gravel Kings when mounted on the same Mavic Ksyrium rims measure around 26 mm.
YMMV on some of the newer wide rims, but I found that the Gravel Kings run about 2 mm UNDER 28 mm, and the GP4000's run about 2 mm OVER 28 mm.

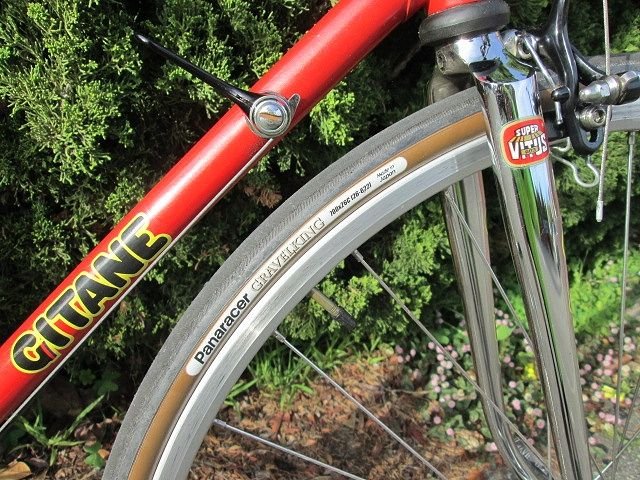

I recently tried a set of 700c x 26 Gravel Kings. Mounted them on Mavic Reflex SUP rims which are very similar to Open Pros. I'm running them at 90 psi. They originally inflated to 24mm but have "ballooned" out to 25mm after about 50 miles so your 2mm comment is close.



They have an amazing ride! They coast, accelerate and climb like heavy sewups! The sidewalls are pretty stiff due to the heavy rubber protective layer which changes the feel when cornering.

I bought them to try out because several places that I ride in the evening or at night have separations in the asphalt pavement up to 1" wide in the direction of travel. That tears up Continental side walls, even Gatorskins.

I've never had a problem with 700c x 25 Panaracer Paselas on those pavements until recently when I got a small cut right at the tread-sidewall in one of them. I changed it but I'll probably boot the tire and keep it as a spare.

Mounted these Specialized 700c x 41 Nimbus tires back in 1992 on Super Champion Mod 58 rims that are 23mm wide with a 16mm inner width. Rode them a lot in the dirt back in the 90's but not much since then. The sidewalls are getting a little dried out but the tires are still hanging in there.



verktyg

Last edited by verktyg; 05-12-19 at 05:46 AM.
verktyg is offline
Old 05-12-19, 07:09 AM
  #13
rustystrings61
Senior Member

Join Date: May 2013
Location: Greenwood SC USA
Posts: 922

Bikes: 2002 Mercian Vincitore, 1982 Mercian Colorado, 1976 Puch Royal X, 1973 Raleigh Competition, 1971 Gitane Tour de France and others

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 308 Post(s)
Liked 95 Times in 63 Posts
Ive been running Panaracer Pasela blackwall wire bead 28s for a couple of years on Mavic MA2 and MA3 rims. Theyre pretty close to a true 28mm. The MA2 is about 20mm wide externally. They are soooo much easier to remove and replace on Mavic rims than Continentals were.
rustystrings61 is offline
Old 05-12-19, 12:37 PM
  #14
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 19,511

Bikes: 1959 & 1960 Capo; 1982 Bianchi; 1988 Schwinn KOM-10;

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 722 Post(s)
Liked 47 Times in 43 Posts
A narrow rim is probably fine for something like a 700Cx28 Conti 3000 or 4000, since these tires run more like 25-26mm (1 inch). In contrast, Specialized Armadillos run large for their callout size.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324
Capo: 1960 Sieger (2), S/N 42624, 42597
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Old 05-12-19, 12:48 PM
  #15
ryansu
Ride.Smile.Repeat

ryansu's Avatar

Join Date: May 2011
Location: Seattle WA
Posts: 2,090

Bikes: 2009 Handsome Devil, 1978 Motobecane Grand Touring, 1987 Nishiki Cresta GT, Former bikes; 1986 Miyata Trail Runner, 1979 Miyata 912, 2011 VO Rando, 1999 Cannondale R800, 2012 Soma Smoothie, 1986 Schwinn Passage

Mentioned: 62 Post(s)
Tagged: 0 Thread(s)
Quoted: 551 Post(s)
Liked 139 Times in 111 Posts
OP you realize that 28s are just a gateway drug to 32s and then you'll try to cram 35s in there and start scheming to convert to 650b for the 42s. Once you go Phat you never go back. YMMV

Last edited by ryansu; 05-12-19 at 04:51 PM.
ryansu is offline
Old 05-12-19, 03:21 PM
  #16
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 9,554

Bikes: Centurion Ironman, Trek 5900, Univega Via Carisma, Globe Carmel

Mentioned: 170 Post(s)
Tagged: 0 Thread(s)
Quoted: 2936 Post(s)
Liked 273 Times in 206 Posts
"Once you Phat you never go back. YMMV"
^^This^^

Good fat tires are remarkably pleasant to ride without giving up much.

One reason I chatter too much about Continental Speed Rides is because they're such a great value in all around tires, smooth rolling and faster than I'd expected from fattish tires with diamond/file tread and lower pressure. My average speed with those tires on my 30 lb Univega Via Carisma is around 14 mph. That's not much slower than my Ironman or carbon fiber Trek 5900 with skinny high pressure tires -- I average 16 mph on the same routes with those bikes/tires, and the ride isn't nearly as comfortable.

Most of the outbound routes from my home to any direction I want to ride are chewed to pieces at the moment. A couple of weeks ago the city tore up the blacktop, leaving dangerously irregular striated concrete with ledges up to 2" high across the entire road. With the road bikes it's a chore to ride any direction to get past that mile or so of bombed out pavement. I need to add another 5 miles or so to my trip just to get around the blasted roads.

But the fatter Speed Rides handle those roads easily and don't give up much in speed. I suspect most of the difference isn't the tires but the road bikes being more aerodynamic. I use albatross bars at saddle height on the Univega, a bit more upright than riding the hoods on my road bikes.
canklecat is offline
Old 05-12-19, 04:42 PM
  #17
ThermionicScott
hungry

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 18,998

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 75 Post(s)
Tagged: 0 Thread(s)
Quoted: 2275 Post(s)
Liked 240 Times in 187 Posts
Originally Posted by ryansu View Post
OP you realize that 28s are just a gateway drug to 32s and then you'll try to cram 35s in there and start scheming to convert to 650b for the 42s. Once you Phat you never go back. YMMV
+1. I haven't ridden my skinny tire bikes in years now. It's all 38-42mm in 26"/650B wheels these days.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 05-12-19, 05:02 PM
  #18
cannonride15
Senior Member

Join Date: Sep 2015
Location: Hampton Roads
Posts: 114

Bikes: Cannondales: '85 ST400, '86 SR800, '87 SM600

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 43 Post(s)
Likes: 0
Liked 5 Times in 5 Posts
Haven't tried the 4000, but the 32mm Ultra Sport II I'm running on the front of my ST400 Canny is great! Measures true 32mm on Super Champion 19mm internal rim width. Nice supple tire run about 50psi, can't imagine running any front tire at 90psi anymore, of course I'm done with 23s and 25s!
cannonride15 is offline
Old 05-12-19, 05:45 PM
  #19
Slightspeed
Senior Member

Slightspeed's Avatar

Join Date: Apr 2017
Location: Los Angeles, CA
Posts: 1,726

Bikes: 1961 Legnano Gran Premio, 1964 Legnano Roma Olympiade, 1973 Raleigh Super Course, 1978 Raleigh Super Course, 1978 Peugeot PR10, 2002 Specialized Allez, 2007 Specialized Roubaix, 2013 Culprit Croz Blade

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 541 Post(s)
Likes: 0
Liked 180 Times in 120 Posts

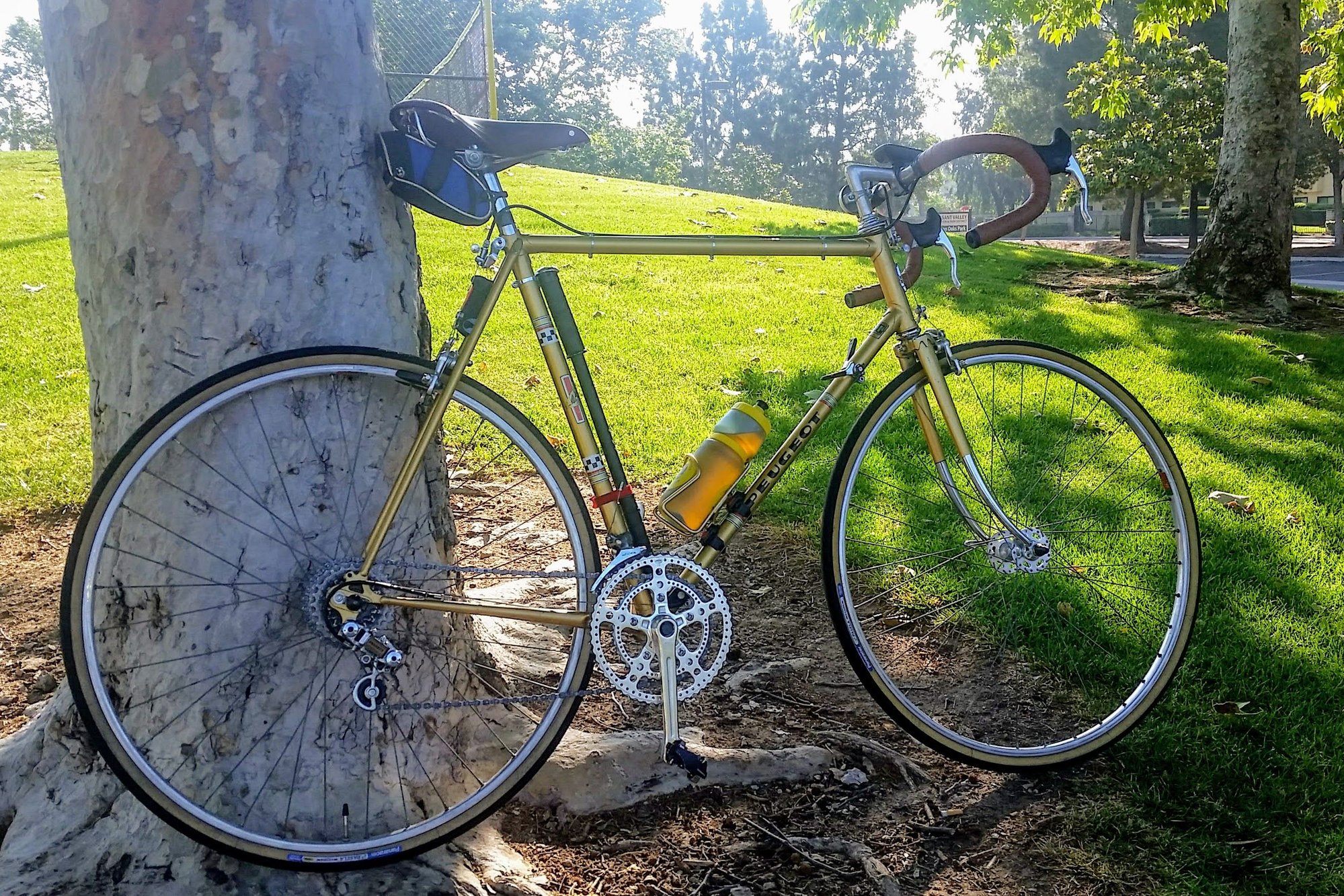

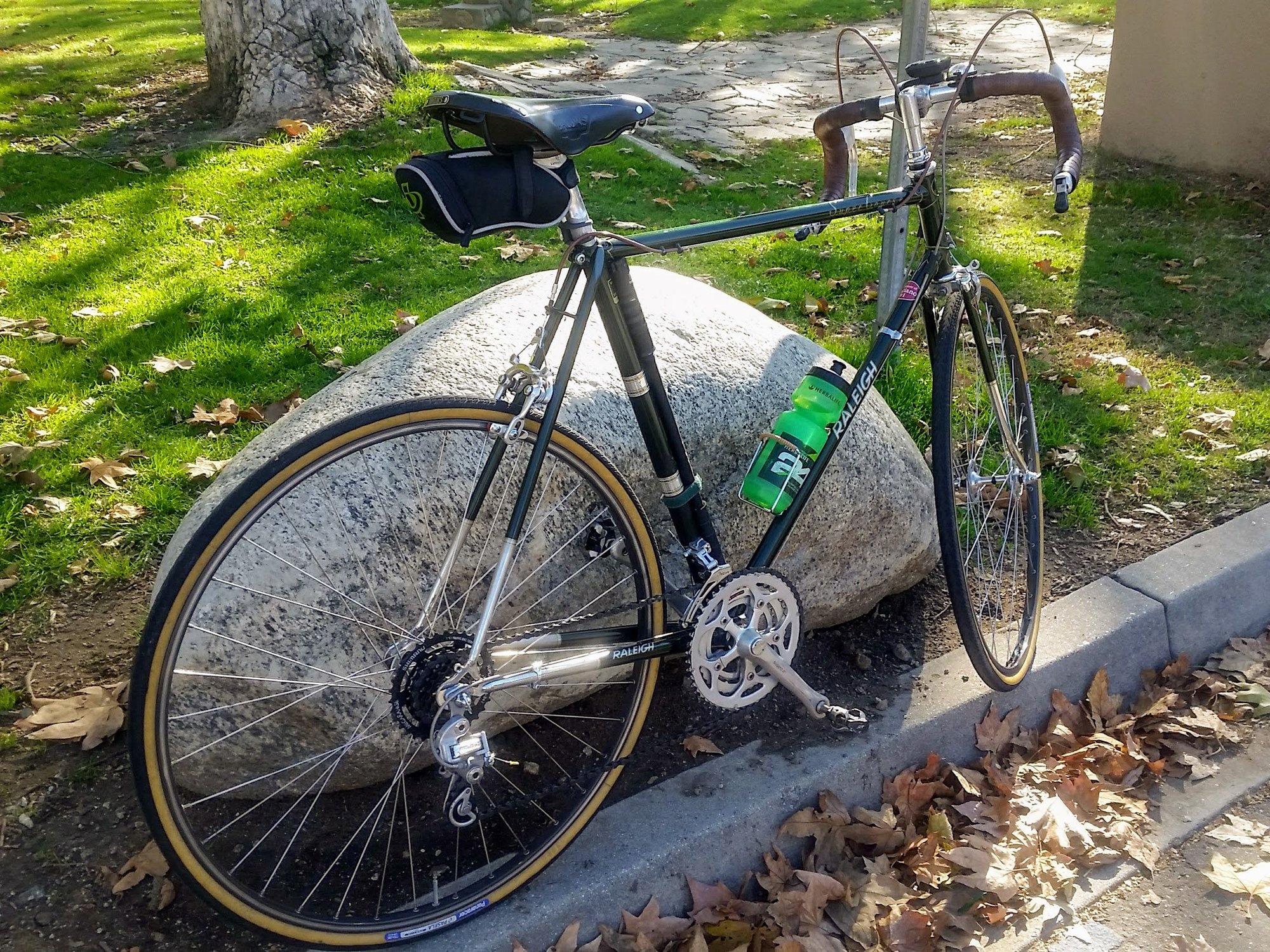

I've got Pasela 28s on narrow vintage rims, Mavic MA40s and modern wider CR18s. I can't tell the difference in comfort, speed or ride quality. I think they look kind of chunky on the wider rim, and prefer the look on the narrower vintage rims, but that's just personal preference. I've also used Gatorskin 28s on narrow vintage rims, and they worked fine.

Pasela 28s on wider CR18s. These measure 26.6mm.

Pasela 28 on vintage silver finish Mavic MA40s. These measure 26.5mm.

Pasela 28s on dark anodize MA40s. These measure 26.4mm.

Gatorskin 28s on no name narrow vintage rims. These measure 27mm.

Last edited by Slightspeed; 05-12-19 at 08:50 PM.
Slightspeed is offline
