Carbon Steerer - cut tube or spacers above stem?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Carbon Steerer - cut tube or spacers above stem?

Old 07-01-19, 09:22 PM
  #26
Wilmingtech
Senior Member

Join Date: Aug 2018
Location: Rt 12 Washington USA
Posts: 369

Bikes: 2013 Ridley Helium, 2017 Blue Pro-Secco EX, 1987 Schwinn Super Sport

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 153 Post(s)
Liked 53 Times in 37 Posts
One of the things overlooked in this thread is that Carbon manufacture and design has constantly been changing at a great pace over the years. In addition the makeup of a fork and the components that hold it all together on each manufacturer's bike will be different as well.

There is a great difference between the carbon fork on my 2013 road bike and 2017 endurance/gravel bike. The expanders are different, the carbon thickness on the forks are different and I am certain the layup of the carbon is different as well.

Best practice is to stick to the manufacturer's recommendation until you take it all apart and understand the engineering behind it. What works fine on one bike doesn't mean it's going to be the same for all bikes.

-Sean
Wilmingtech is offline
Old 07-01-19, 09:51 PM
  #27
2old
Senior Member

Join Date: Jul 2014
Posts: 1,671
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 237 Post(s)
Likes: 0
Liked 19 Times in 18 Posts
I had a carbon steerer tube cut by a good shop, then when I disassembled the bike several years (but not too many rides) later, there were filaments separating from the steerer tube. I would put spacers above the tube to prevent needing to cut it, but probably not more than two inches in height.
2old is offline
Old 07-05-19, 02:10 PM
  #28
MinnMan
Senior Member
Thread Starter

MinnMan's Avatar

Join Date: Aug 2009
Location: Minneapolis
Posts: 2,832

Bikes: 2016 Masi cxgr, 2011 Felt F3 Ltd, 2010 Trek 2.1, 2009 KHS Flite 220, 1991 Bianchi Osprey

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 506 Post(s)
Liked 32 Times in 23 Posts
Update.

I went to the LBS from which the bike was bought, which is of course, a Felt dealer. They say that a small spacer (5 mm) on top of the stem is actually necessary, so that the force of the bolt securing the stem does not crush the top of the steerer tube.

When the fork arrives, I'll be bringing it back to this LBS for installation. They do much more work with high end bikes than the first LBS.
MinnMan is offline
Old 07-10-19, 04:20 PM
  #29
reburns
Senior Member

Join Date: Apr 2012
Location: Saratoga, CA
Posts: 279

Bikes: 2005 Trek T2000; 2005 Co-motion Speedster Co-pilot; various non-tandem road and mountain bikes

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 53 Post(s)
Likes: 0
Liked 1 Time in 1 Post
After reading this thread, I posed the question to Advanced Composites, maker of the Wound Up Duo 2 all carbon fork used on one of my tandems. They have no problem with putting spacers above the stem.
reburns is offline
Old 07-10-19, 04:27 PM
  #30
DrIsotope
Non omnino gravis

DrIsotope's Avatar

Join Date: Feb 2015
Location: SoCal, USA!
Posts: 7,178

Bikes: Nekobasu, Pandicorn

Mentioned: 112 Post(s)
Tagged: 0 Thread(s)
Quoted: 3917 Post(s)
Liked 406 Times in 257 Posts
In the assembly manual for my R3, it explicitly states not to have any spacers above the stem, as well as the max amount of spacers below the stem. The top of the steerer is supposed to be ~3mm below the top of the stem. I also went full commitment and glued in the aluminum sleeve, because I've seen what an expander is capable of, if it happens to sit below the clamping area of the stem.

I imagine every mfr. has their own recommendations. I know some forks can be run with no expander/insert at all.
__________________
DrIsotope is offline
Old 07-10-19, 07:59 PM
  #31
jadocs
Senior Member

jadocs's Avatar

Join Date: Jul 2018
Location: USA
Posts: 932

Bikes: Litespeed T2 Disc, Fondirest P4 Carbon, Fuji Cross 2.0, Specialized Fatboy

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 382 Post(s)
Liked 107 Times in 83 Posts

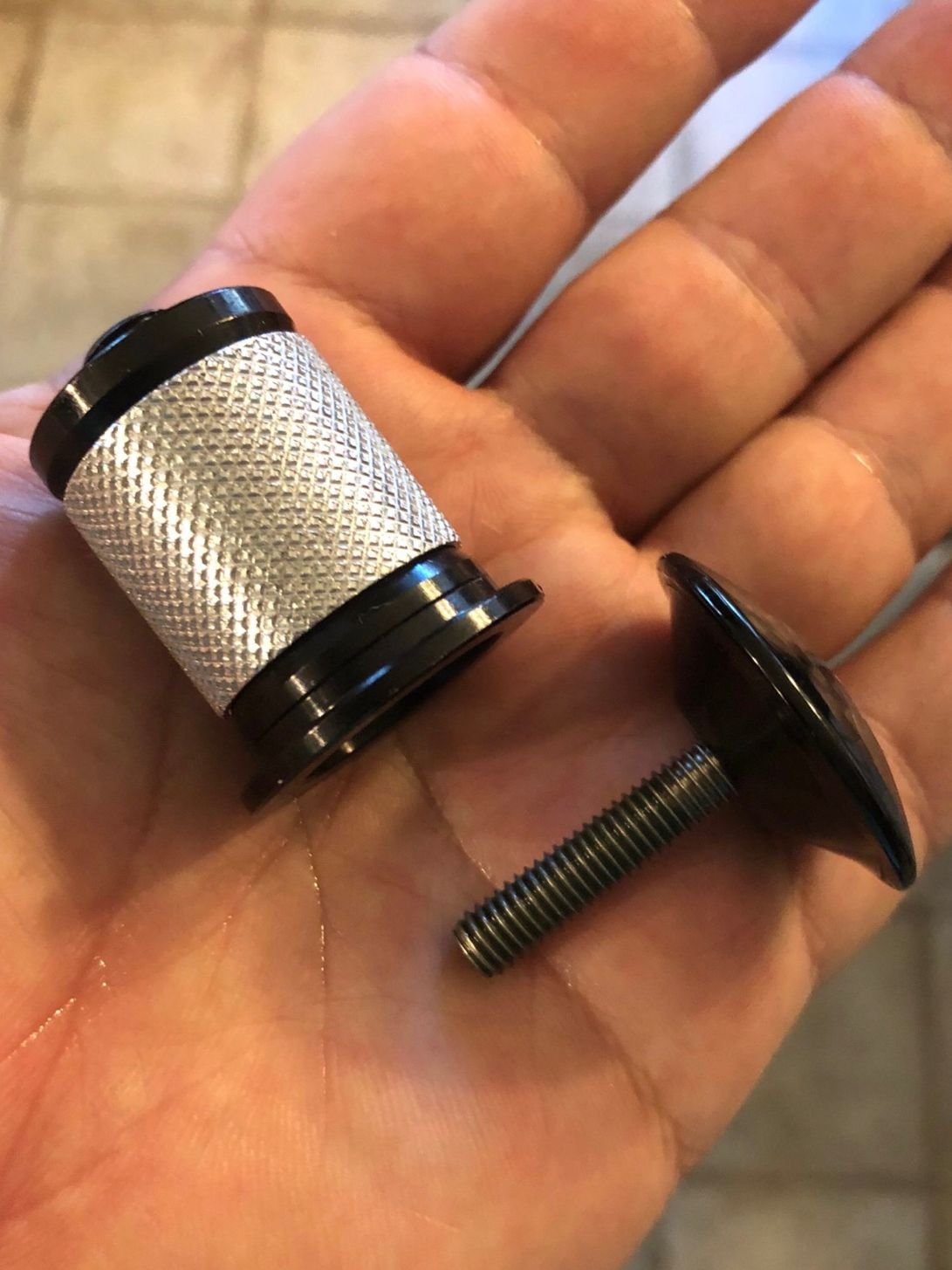

Ideally you want the compression fitting centered where the stem attaches to the steerer. So you need to know the length of the fitting. Some are shorter than others. The type of top cap and compression fitting lip determines how much you need to add to the cut on steerer. In this case it was 5mm plus an extra 2mm to the steerer.

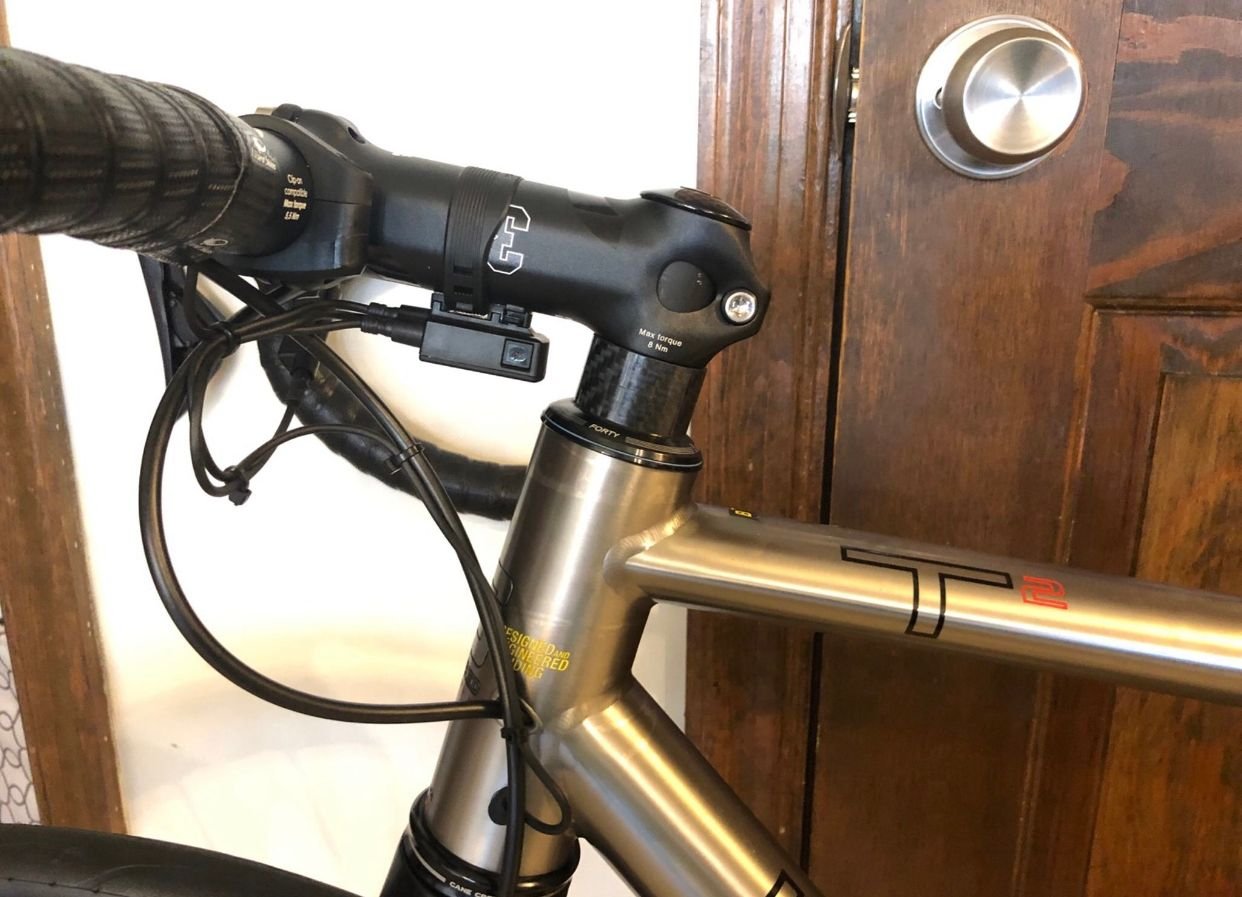

In this example you could run it without a top spacer, but using a spacer on top actually centers the compression fitting better. I will also echo the notion that your top spacer did not cause your steerer to fail.



jadocs is offline
Old 07-13-19, 02:00 PM
  #32
Sy Reene
Advocatus Diaboli

Sy Reene's Avatar

Join Date: Feb 2015
Location: Wherever I am
Posts: 4,922

Bikes: Merlin Cyrene, Nashbar steel CX

Mentioned: 11 Post(s)
Tagged: 1 Thread(s)
Quoted: 2344 Post(s)
Liked 66 Times in 59 Posts
Originally Posted by DrIsotope View Post
In the assembly manual for my R3, it explicitly states not to have any spacers above the stem, as well as the max amount of spacers below the stem. The top of the steerer is supposed to be ~3mm below the top of the stem. I also went full commitment and glued in the aluminum sleeve, because I've seen what an expander is capable of, if it happens to sit below the clamping area of the stem.

I imagine every mfr. has their own recommendations. I know some forks can be run with no expander/insert at all.
Originally Posted by MinnMan View Post
Update.

I went to the LBS from which the bike was bought, which is of course, a Felt dealer. They say that a small spacer (5 mm) on top of the stem is actually necessary, so that the force of the bolt securing the stem does not crush the top of the steerer tube.
.
Combining these 2 guidances yields what I've always thought was the 'rule'... namely steerer tube cut about 2.5mm above top of stem clamp, 5mm spacer over that 2.5mm. Steerer tube top protected by the spacer that's extending above by 2.5mm. The stem clamp is fully interfaced with the steerer tube.

FWIW, this is also what happens to be in Zinn's book as a "Pro Tip": "If the fork has a carbon steering tube, always place one spacer above the stem. That way, the entire stem clamp is clamped onto the steerer, and there is no chance for the upper part of the clamp to pinch the end of the steerer. This is a good idea for a steel or aluminum steering tube as well."
Sy Reene is offline
Old 07-13-19, 06:41 PM
  #33
jadocs
Senior Member

jadocs's Avatar

Join Date: Jul 2018
Location: USA
Posts: 932

Bikes: Litespeed T2 Disc, Fondirest P4 Carbon, Fuji Cross 2.0, Specialized Fatboy

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 382 Post(s)
Liked 107 Times in 83 Posts
Pinching is not an issue with a compression fitting that interfaces with the top of the steerer like the one I posted above. You will note there is a small rim that sits on top of the steerer. Itís impossible to pinch because it makes the top of the steerer solid. This rim is 2mm and adds to the length of the steerer. The type of cap I am using requires 5mm above the steerer to compress properly, which is where the 2mm + 5mm I referenced above comes from.... but it is still optimal to run a spacer above so the fitting is centered in between the clamping mechanism of the stem.
jadocs is offline
Old 07-23-19, 01:35 PM
  #34
78rr
Member

Join Date: Jan 2019
Posts: 30
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
The manufacturer does not have a uniform standard and I will follow the manual of the current accessory for installation.



78rr is offline
Old 07-23-19, 02:12 PM
  #35
TimothyH
- Soli Deo Gloria -

Join Date: Aug 2015
Location: Northwest Georgia
Posts: 14,784

Bikes: 2018 Rodriguez Custom Fixed Gear, 2017 Niner RLT 9 RDO, 2015 Bianchi Pista, 2002 Fuji Robaix

Mentioned: 233 Post(s)
Tagged: 0 Thread(s)
Quoted: 6822 Post(s)
Liked 651 Times in 409 Posts
The issue isn't the spacer itself above the stem but as others have said, lack of support for the stem inside the steerer when using short expansion plugs.

If the expansion plug does not extend far enough down into the steerer then the bottom of the stem can crush the steerer. Steerers are constructed with fibers running along the length of the tube. They are very resistant to bending loads but not at all resistant to crushing loads. It only takes 1 or 2 percent elongation to start cracking the fibers.

An example is below. The Specialized plug is on the left. The Enve plug is on the right. The Enve plug may not be long enough to support the inside of the steerer at the bottom of the stem.




-Tim-
TimothyH is offline
Old 07-23-19, 03:08 PM
  #36
jadocs
Senior Member

jadocs's Avatar

Join Date: Jul 2018
Location: USA
Posts: 932

Bikes: Litespeed T2 Disc, Fondirest P4 Carbon, Fuji Cross 2.0, Specialized Fatboy

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 382 Post(s)
Liked 107 Times in 83 Posts
That Enve compression fitting looks a lot like mine on my Litespeed. If it is the same that lip is 2mm not 1mm based on me physically measuring it.
jadocs is offline
Old 07-23-19, 03:16 PM
  #37
TimothyH
- Soli Deo Gloria -

Join Date: Aug 2015
Location: Northwest Georgia
Posts: 14,784

Bikes: 2018 Rodriguez Custom Fixed Gear, 2017 Niner RLT 9 RDO, 2015 Bianchi Pista, 2002 Fuji Robaix

Mentioned: 233 Post(s)
Tagged: 0 Thread(s)
Quoted: 6822 Post(s)
Liked 651 Times in 409 Posts
This video explains the issue with steerers and expansion plugs well.



-Tim-

Last edited by TimothyH; 07-23-19 at 03:38 PM.
TimothyH is offline
Likes For TimothyH:
Old 07-23-19, 03:19 PM
  #38
jadocs
Senior Member

jadocs's Avatar

Join Date: Jul 2018
Location: USA
Posts: 932

Bikes: Litespeed T2 Disc, Fondirest P4 Carbon, Fuji Cross 2.0, Specialized Fatboy

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 382 Post(s)
Liked 107 Times in 83 Posts
Originally Posted by TimothyH View Post
There are some who go so far as to remove compression plugs entirely after clamping the stem. I wouldn't. Two percent elongation is all that's required to crush the fibers. That isn't much and the steerer needs to be supported.

-Tim-
Why the heck would someone do that? I've heard people say the top cap is not necessary after adjusting the headset, but removing the compression fitting? That's kind of dumb, why would anyone remove something that contributes to structural integrity?
jadocs is offline
Old 07-23-19, 03:38 PM
  #39
TimothyH
- Soli Deo Gloria -

Join Date: Aug 2015
Location: Northwest Georgia
Posts: 14,784

Bikes: 2018 Rodriguez Custom Fixed Gear, 2017 Niner RLT 9 RDO, 2015 Bianchi Pista, 2002 Fuji Robaix

Mentioned: 233 Post(s)
Tagged: 0 Thread(s)
Quoted: 6822 Post(s)
Liked 651 Times in 409 Posts
Originally Posted by jadocs View Post
Why the heck would someone do that? I've heard people say the top cap is not necessary after adjusting the headset, but removing the compression fitting? That's kind of dumb, why would anyone remove something that contributes to structural integrity?
To save weight.


-Tim-
TimothyH is offline
