PX-10 Headset Install Question

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

PX-10 Headset Install Question

Old 01-18-20, 09:15 AM
  #1
cqlink
Senior Member
Thread Starter

cqlink's Avatar

Join Date: Sep 2015
Location: Detroit
Posts: 592

Bikes: '72 Paramount 15-9, '74 Schwinn Paramount P10-9, '73 Schwinn Super Sport, 1983 Schwinn Voyageur SP,17 Motobecane Cafe Noir, 1970 Raleigh Competition Tourist, 1999 Rans V-Rex

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 200 Post(s)
Likes: 0
Liked 60 Times in 31 Posts
PX-10 Headset Install Question

Bottom of the head tube is threaded but the lower Stronglight Competion bearing cup that fits into the headtube is not.

Simply insert the unthreaded end of the bearing cup into the head tube? If so, does anyone know why the bottom end of the head tube is threaded?

Do I have the wrong Stronglight headset. I believe it's a Competition v4.

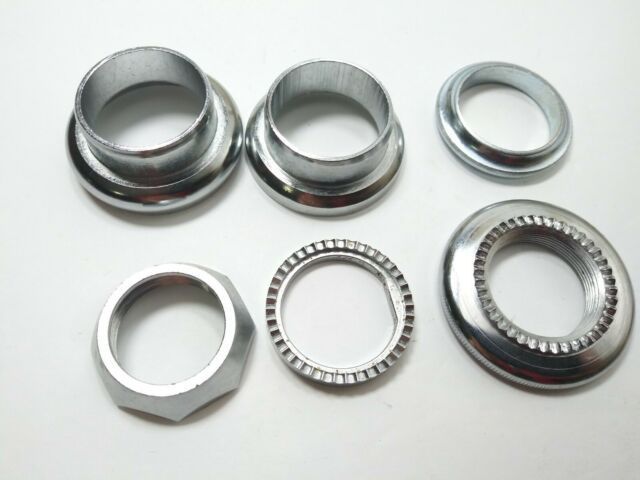

Looks like this one:

cqlink is offline
Old 01-18-20, 09:47 AM
  #2
cqlink
Senior Member
Thread Starter

cqlink's Avatar

Join Date: Sep 2015
Location: Detroit
Posts: 592

Bikes: '72 Paramount 15-9, '74 Schwinn Paramount P10-9, '73 Schwinn Super Sport, 1983 Schwinn Voyageur SP,17 Motobecane Cafe Noir, 1970 Raleigh Competition Tourist, 1999 Rans V-Rex

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 200 Post(s)
Likes: 0
Liked 60 Times in 31 Posts
Looks like I purchased the wrong headset. Need a threaded set.
cqlink is offline
Old 01-18-20, 09:57 AM
  #3
Bianchi84
Senior Member

Bianchi84's Avatar

Join Date: Feb 2017
Location: Concord, NC
Posts: 294

Bikes: 1984 Bianchi Tipo Corsa, 1985 Cannondale SM600 (24/26)

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 89 Post(s)
Liked 32 Times in 26 Posts
Originally Posted by cqlink View Post
Looks like I purchased the wrong headset. Need a threaded set.
I don't have an answer, but was the one you removed original? The lower cup was not threaded, correct? Could what looks like threading on the lower head tube be some type of machining/milling marks instead? I have never heard of threaded head tubes, but I've never had a French bike!
Bianchi84 is offline
Old 01-18-20, 10:16 AM
  #4
cqlink
Senior Member
Thread Starter

cqlink's Avatar

Join Date: Sep 2015
Location: Detroit
Posts: 592

Bikes: '72 Paramount 15-9, '74 Schwinn Paramount P10-9, '73 Schwinn Super Sport, 1983 Schwinn Voyageur SP,17 Motobecane Cafe Noir, 1970 Raleigh Competition Tourist, 1999 Rans V-Rex

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 200 Post(s)
Likes: 0
Liked 60 Times in 31 Posts
Originally Posted by Bianchi84 View Post
I don't have an answer, but was the one you removed original? The lower cup was not threaded, correct? Could what looks like threading on the lower head tube be some type of machining/milling marks instead? I have never heard of threaded head tubes, but I've never had a French bike!
My first French bike. Both ends of the head tube appear to be threaded but having said that, I could easily tap both the top and bottom bearing cups into the head tube.

I purchased the entire group from a Forum member. He took it off one of the many PX-10s he had.

Hears a pic of the headset I have (Stronglight Competition):

cqlink is offline
Old 01-18-20, 11:22 AM
  #5
nlerner
Senior Member

Join Date: Dec 2005
Posts: 12,527
Mentioned: 273 Post(s)
Tagged: 0 Thread(s)
Quoted: 1297 Post(s)
Liked 219 Times in 148 Posts
Iíve never heard of threaded head tubes. Do you mean the head tube has threads cut into it?
nlerner is offline
Old 01-18-20, 11:30 AM
  #6
alexnagui
Senior Member

alexnagui's Avatar

Join Date: Oct 2017
Location: Rotterdam, The Netherlands
Posts: 163
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 65 Post(s)
Liked 14 Times in 8 Posts
I doubt that it's threaded, it is just probably how it looks like because of the reaming of the head tube.
alexnagui is online now
Old 01-18-20, 11:42 AM
  #7
cqlink
Senior Member
Thread Starter

cqlink's Avatar

Join Date: Sep 2015
Location: Detroit
Posts: 592

Bikes: '72 Paramount 15-9, '74 Schwinn Paramount P10-9, '73 Schwinn Super Sport, 1983 Schwinn Voyageur SP,17 Motobecane Cafe Noir, 1970 Raleigh Competition Tourist, 1999 Rans V-Rex

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 200 Post(s)
Likes: 0
Liked 60 Times in 31 Posts
Originally Posted by nlerner View Post
Iíve never heard of threaded head tubes. Do you mean the head tube has threads cut into it?
Yes but perhaps intentionally machined that way to give the cups some "bite" when they pressed in?
cqlink is offline
Old 01-18-20, 11:43 AM
  #8
cqlink
Senior Member
Thread Starter

cqlink's Avatar

Join Date: Sep 2015
Location: Detroit
Posts: 592

Bikes: '72 Paramount 15-9, '74 Schwinn Paramount P10-9, '73 Schwinn Super Sport, 1983 Schwinn Voyageur SP,17 Motobecane Cafe Noir, 1970 Raleigh Competition Tourist, 1999 Rans V-Rex

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 200 Post(s)
Likes: 0
Liked 60 Times in 31 Posts
Originally Posted by alexnagui View Post
I doubt that it's threaded, it is just probably how it looks like because of the reaming of the head tube.
After digging through some online threads, beginning to look that way.
cqlink is offline
Old 01-19-20, 09:43 AM
  #9
alexnagui
Senior Member

alexnagui's Avatar

Join Date: Oct 2017
Location: Rotterdam, The Netherlands
Posts: 163
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 65 Post(s)
Liked 14 Times in 8 Posts
Originally Posted by cqlink View Post
After digging through some online threads, beginning to look that way.
This is how the head tube is reamed on my RR10. I guess it's similar to what you have on that PX10

​​​​​​
alexnagui is online now
Old 01-19-20, 11:14 AM
  #10
francophile
PM me your cotters

francophile's Avatar

Join Date: Jun 2015
Location: ATL
Posts: 2,899
Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 750 Post(s)
Liked 189 Times in 145 Posts
Already sent this directly, but here's the end-all-be-all of info you'd want on the Stronglight P3, V4 and S5 headsets: Stronglight headseta

The V4 has V-cut grooves for the races, if I recall. Easiest way to distinguish between it and what the P3 uses, and to tell if you have a mis-matched headset. I find the V-shaped races lend to a smoother experience, but that's entirely IMO.

That said, the cups here are press-in, no threads needed, just like many other headsets. It's not uncommon to find ridges like what you're seeing in the head tube, the top and bottom cups are still press-in. The only two threaded pieces in the headset are the top nut and adjustable race with "alligator teeth" which lock into the space under the top nut.

The stack you show in the 4th post above looks to be complete V4 headset (judging by the top nut) assuming there's a crown race under the bottom cup. I have no idea what that is in your 1st post, I've never seen that top nut before.
francophile is offline
Old 01-19-20, 01:20 PM
  #11
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 20,939

Bikes: Several, mostly not name brands.

Mentioned: 125 Post(s)
Tagged: 0 Thread(s)
Quoted: 1926 Post(s)
Liked 264 Times in 186 Posts
Originally Posted by francophile View Post
The V4 has V-cut grooves for the races, if I recall. Easiest way to distinguish between it and what the P3 uses, and to tell if you have a mis-matched headset. I find the V-shaped races lend to a smoother experience, but that's entirely IMO.
The V-shaped crown race was intended to be more durable than a traditional parabolic race by providing two bearing tracks in the race to spread the wear. The problem with it was that it was very fussy about alignment compared with a parabolic race. The later A-9 and B-10 roller bearing headsets addressed the alignment issue by using floating races.
JohnDThompson is offline
Likes For JohnDThompson:
Old 01-20-20, 06:30 AM
  #12
cqlink
Senior Member
Thread Starter

cqlink's Avatar

Join Date: Sep 2015
Location: Detroit
Posts: 592

Bikes: '72 Paramount 15-9, '74 Schwinn Paramount P10-9, '73 Schwinn Super Sport, 1983 Schwinn Voyageur SP,17 Motobecane Cafe Noir, 1970 Raleigh Competition Tourist, 1999 Rans V-Rex

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 200 Post(s)
Likes: 0
Liked 60 Times in 31 Posts
Originally Posted by alexnagui View Post
This is how the head tube is reamed on my RR10. I guess it's similar to what you have on that PX10

​​​​​​
Yes. Exactly.
cqlink is offline
Old 01-20-20, 06:40 AM
  #13
cqlink
Senior Member
Thread Starter

cqlink's Avatar

Join Date: Sep 2015
Location: Detroit
Posts: 592

Bikes: '72 Paramount 15-9, '74 Schwinn Paramount P10-9, '73 Schwinn Super Sport, 1983 Schwinn Voyageur SP,17 Motobecane Cafe Noir, 1970 Raleigh Competition Tourist, 1999 Rans V-Rex

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 200 Post(s)
Likes: 0
Liked 60 Times in 31 Posts
Originally Posted by francophile View Post
Already sent this directly, but here's the end-all-be-all of info you'd want on the Stronglight P3, V4 and S5 headsets: Stronglight headseta

The V4 has V-cut grooves for the races, if I recall. Easiest way to distinguish between it and what the P3 uses, and to tell if you have a mis-matched headset. I find the V-shaped races lend to a smoother experience, but that's entirely IMO.

That said, the cups here are press-in, no threads needed, just like many other headsets. It's not uncommon to find ridges like what you're seeing in the head tube, the top and bottom cups are still press-in. The only two threaded pieces in the headset are the top nut and adjustable race with "alligator teeth" which lock into the space under the top nut.

The stack you show in the 4th post above looks to be complete V4 headset (judging by the top nut) assuming there's a crown race under the bottom cup. I have no idea what that is in your 1st post, I've never seen that top nut before.
Thanks. No v-cut on the races. Top lock nut is v4, however.

​ I pressed them in without much difficulty. Just a few taps with a rubber mallet. As you noted, turns a bit stiffer than others I've had.
cqlink is offline
Old 01-20-20, 08:41 AM
  #14
francophile
PM me your cotters

francophile's Avatar

Join Date: Jun 2015
Location: ATL
Posts: 2,899
Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 750 Post(s)
Liked 189 Times in 145 Posts
Originally Posted by cqlink View Post
Thanks. No v-cut on the races. Top lock nut is v4, however.
Note: I'm not an expert on Stronglight gear. It's very possible the P3 switched to the same top nut as V4 later, but I bought a few different well-priced headsets off the big auction site over the years which arrived with mixed races, spacers and cups. It't not uncommon apparently, but in the case of top nut, I personally think negligible. I think the top nut on the V4 looks better, think it'll alter stack height a hair, possibly in your favor.

Sounds like you may be getting closer! If this thing ends up anywhere near as nice as the Circuit buildup, it'll be a treat to see!
francophile is offline
Old 01-20-20, 03:07 PM
  #15
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 20,939

Bikes: Several, mostly not name brands.

Mentioned: 125 Post(s)
Tagged: 0 Thread(s)
Quoted: 1926 Post(s)
Liked 264 Times in 186 Posts
Originally Posted by alexnagui View Post
This is how the head tube is reamed on my RR10. I guess it's similar to what you have on that PX10

​​​​​​
I suspect those gouges may be a result of not bothering to clean the swarf off the cutters between frames.
JohnDThompson is offline
Old 01-20-20, 04:33 PM
  #16
repechage
Senior Member

Join Date: Jun 2006
Posts: 14,002
Mentioned: 88 Post(s)
Tagged: 0 Thread(s)
Quoted: 1190 Post(s)
Liked 215 Times in 169 Posts
Cleaning the cutters takes time.
in a bad humor after Summer vacation?
notice very often there are labor strikes in France in early October?
cranky workers
repechage is offline
Old 01-20-20, 04:47 PM
  #17
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 506

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b super touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 205 Post(s)
Liked 184 Times in 120 Posts
Looks to me like dull tooling run aggressively at slow speeds. My Herse has the same markings on a lot of alu parts. Seems to me they didn't sharpen tools as often in those days.
scarlson is offline
Old 01-20-20, 06:22 PM
  #18
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 6,945

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 686 Post(s)
Likes: 0
Liked 125 Times in 99 Posts
Knurling of press-fit surfaces is commonly used to allow for more-relaxed manufacturing tolerances, so perhaps the texture was a deliberate thing in the headtube's bore(?).
Schwinn used a more pronounced and different style knurling on the outside of the steerer tube, where the crown race got pressed on. This was on the lower-tier bikes up to and including the Supersport, where this knurling often was a bit less than sufficient in making up for an otherwise very loose fit.

In other applications, knurling may be used to act as an assembly spacer for a liquid adhesive or sealant (to keep the adhesive layer to a more-consistent thickness), or to restore worn parts.
dddd is offline
