RD-58000 looks not right

Yesterday while lubing the chain, I noticed the cable on my RD gets a good angle from the exit of housing holder.

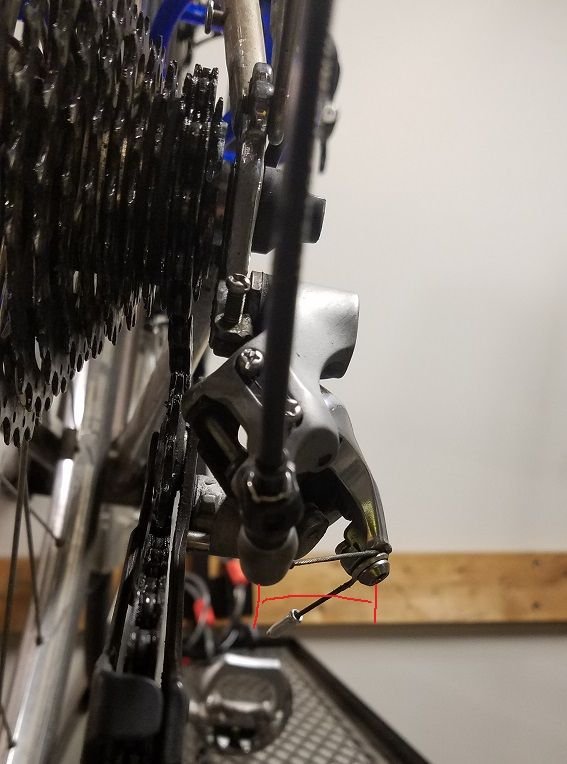

Pics below are taken on the second small cog - somehow, even switching to the small cog, it doesn't move there because the cable kind of is side pulling.
From second pic, I see I can move the cable to the inside side of the screw that will give me a bit smaller angle.
It switches fine on all cogs, up and down, except the up to the smallest cog that I need to give a hand help.

Is this something normal? The wheel is dished right (I got from Velomine) and is centered on the bike.


phtomita is offline
Old 06-05-19, 11:09 AM
  #2
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 32,184

Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 1410 Post(s)
Likes: 0
Liked 238 Times in 189 Posts
That cable angle in the smaller cogs looks pretty normal. The hesitation to go into the smallest cog my be due to excessive cable tension or a slightly tight high limit screw. Make either the cable tension adjustment barrel or limit screw changes one at a time and very small, say 1/4-turn at a time, and check after each change.
HillRider is offline
Old 06-06-19, 05:15 AM
  #3
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 7,448

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1113 Post(s)
Liked 497 Times in 362 Posts
Or excessive cable friction, or possibly the cable is fraying somewhere, worst-case inside the shifter. Best to inspect and remedy before the head breaks off inside, which is difficult and time-consuming to remedy.
dsbrantjr is offline
Old 06-06-19, 12:00 PM
  #4
KCT1986
Senior Member

Join Date: Jan 2016
Posts: 75
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 26 Post(s)
Liked 3 Times in 3 Posts
Is the model # 5800? These usually have the cable routed on the inside of the screw. Remove & see if there is a groove or an arrow mark indicating the normal routing position.

In the current position is the indexing working properly?
KCT1986 is offline
Old 06-06-19, 12:15 PM
  #5
AnkleWork
Senior Member

Join Date: Jan 2013
Location: Llano Estacado
Posts: 3,702

Bikes: old clunker

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 684 Post(s)
Likes: 0
Liked 97 Times in 75 Posts
I hope the OP gets more ride time soon.
AnkleWork is offline
Old 06-06-19, 01:22 PM
  #6
DrIsotope
Non omnino gravis

DrIsotope's Avatar

Join Date: Feb 2015
Location: SoCal, USA!
Posts: 8,349

Bikes: Nekobasu, Pandicorn, Lakitu

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 4734 Post(s)
Liked 1,405 Times in 818 Posts
Just went and looked at my RD-6800. Cable looks exactly the same in the small cogs.

Could be the limit screw. Probably the limit screw.

Lastly, while I know the angle is bad in the 1st photo, the angle of the jockey wheels to the cogs makes me think the hanger might be a little tweaked (slightly rotated ccw). A shop with a hanger alignment tool could tell you in a matter of minutes.
__________________
DrIsotope is offline
Old 06-06-19, 02:39 PM
  #7
phtomita
Senior Member
Thread Starter

Join Date: Jan 2018
Location: Redmond, WA
Posts: 670

Bikes: '86 Nishiki Tri-A, '84 Centurion PT15, '87 Centurion IM Master

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 194 Post(s)
Liked 60 Times in 47 Posts
Model is 105-5800. I am thinking on moving the cable to inside the screw.
As for the hanger, I had my 'tool' to align it and did it when I build up the bike.

It shifts both directions. The only one the doesn't shift is from 12T to 11T, It seems due to the angle, the spring is getting resistance from the cable.
phtomita is offline
Old 06-06-19, 04:31 PM
  #8
DrIsotope
Non omnino gravis

DrIsotope's Avatar

Join Date: Feb 2015
Location: SoCal, USA!
Posts: 8,349

Bikes: Nekobasu, Pandicorn, Lakitu

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 4734 Post(s)
Liked 1,405 Times in 818 Posts
Then it has to be the limit screw. As I said, the angle on my 6800 is identical, and it shifts just fine.
__________________
DrIsotope is offline
Old 06-06-19, 06:05 PM
  #9
KCT1986
Senior Member

Join Date: Jan 2016
Posts: 75
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 26 Post(s)
Liked 3 Times in 3 Posts
Standard routing for the 5800 SS/GS is inside of the bolt. 6800SS is inside also, 6800GS is outside.

If this doesn't help, disassemble the cable adjusting barrel and inspect. Notice that the x800 models have an additional piece, different from older Shimano's.
KCT1986 is offline
Old 06-09-19, 01:44 PM
  #10
phtomita
Senior Member
Thread Starter

Join Date: Jan 2018
Location: Redmond, WA
Posts: 670

Bikes: '86 Nishiki Tri-A, '84 Centurion PT15, '87 Centurion IM Master

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 194 Post(s)
Liked 60 Times in 47 Posts
Yesterday moved the cable to the inside of the bolt and although it is just some mm, the angle looks much better now when the chain is at the smallest cog.
And now I can shift without problem to the smallest cog - didn't adjust any of the limit screws.

Thanks for the tips!
