1987 Trek 400D Elance paint and cleanup advice

Old 02-19-20, 01:03 PM
  #51
SurferRosa
Senior Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 2,324

Bikes: old school 531c & Campy

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1008 Post(s)
Liked 679 Times in 410 Posts
Originally Posted by PugRider View Post
... freewheel... Park Tool FR-1, probably.
I agree.
SurferRosa is offline
Old 02-19-20, 02:01 PM
  #52
crank_addict
Senior Member

crank_addict's Avatar

Join Date: Aug 2013
Posts: 7,144
Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 1361 Post(s)
Likes: 0
Liked 369 Times in 241 Posts
This project may not make economical sense but will be a great learning process. Plan to burn up time, more than money in the clean / preservation. If creative and first go around at this, - rubber (tires, tubes) brake pads, cables, bearings, bar wrap, toss a saddle on it, + shop supplies and chemicals figure $100.

Much has already been discussed here on components and such, but getting back to the frame issues. Focus first on that. BTW: Does the frame fit you?

Suggest to go full DIY. Use chemical Klean-strip or whatever the new branding of Bix. (Its not noxious but use throw away gloves.)

Read up on the DIY threads about painting. After the strip and corrosion removal, give it a rattle can paint with Rustoleum 2X. Stash it away for a few months and let it properly chemically react and cure.

In the meantime, go through every little bit of component and parts of them. Every pivot or hinge, bearings, etc.. Don't slack off and skip any thread cleaning.

Get to that point and determine if you wish to expand upon freewheel service and wheel construction.

Once you've got your baby all fresh and ready, enjoy the assembly process. Its all yours and give yourself a pat on the back. Don't sell it, regardless. Other bikes may come and go but you have something more in whatever that first build is. Use it or as an occasional guest loaner. Good luck!

Last edited by crank_addict; 02-19-20 at 02:07 PM.
crank_addict is offline
Likes For crank_addict:
Old 02-22-20, 07:43 AM
  #53
PugRider
Senior Member

Join Date: Feb 2013
Location: Worcester, Massachusetts
Posts: 192

Bikes: Fuji Sportif 1.7C, Peugeot Paris Express, Shogun Metro AT, Jamis Durango SX, Miyata Alumicross, Fuji Special Road Racer, Mongoose ATB, Fuji SST 1.0 Team

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
Liked 26 Times in 17 Posts
Originally Posted by Kapurnicus View Post
thanks for the advice. it ended up being a cassette (based on the park tools site, I didn’t know the difference). So I think it uses the FR-5.2 from Park tools based on their images.

I didn’t see much difference between a cone wrench and a normal crecent. Is there a reason I can’t use normal wrenches? I guess I’ll find out when the cassette removal tool comes. I’ll take a look at the front too. I’ll keep posting pics. This will hopefully be interesting for someone later to watch the whole process. Oh, and if it's a six-speed cassette, you'll need two chain whips, they worked differently back in the day.





Shimano 6 speed cassette
I dunno, looks like a freewheel to me. Shimano did briefly make some six speed freewheels--I worked on one for a friend's Univega. But you don't see them much. Photos can be deceiving, though. They are cheap but super-high-quality tools, so worst case you end up buying both. If you stick around in this crazy hobby for any amount of time you'll use both, frequently. And if it does end up being a cassette, you'll need a chain whip too. Another cheap tool you'll use a lot.

But without being too forceful here, I'm pretty sure that's a freewheel. Does it say "MF" on the other side of the quick-release knob in the picture? That would be a surefire sign it's a freewheel.

Last edited by PugRider; 02-22-20 at 07:47 AM. Reason: typos
PugRider is offline
Old 02-22-20, 12:46 PM
  #54
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 12,029

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 75 Post(s)
Tagged: 0 Thread(s)
Quoted: 1993 Post(s)
Liked 302 Times in 211 Posts
Originally Posted by PugRider View Post
I dunno, looks like a freewheel to me. Shimano did briefly make some six speed freewheels--I worked on one for a friend's Univega. But you don't see them much. Photos can be deceiving, though. They are cheap but super-high-quality tools, so worst case you end up buying both. If you stick around in this crazy hobby for any amount of time you'll use both, frequently. And if it does end up being a cassette, you'll need a chain whip too. Another cheap tool you'll use a lot.

But without being too forceful here, I'm pretty sure that's a freewheel. Does it say "MF" on the other side of the quick-release knob in the picture? That would be a surefire sign it's a freewheel.
I would also say if it's got the stock wheels it's a freewheel.

Are those the stock Maillard hubs?
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jiggliní huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 02-22-20, 02:29 PM
  #55
Kapurnicus
Junior Member
Thread Starter

Join Date: Feb 2020
Location: San Jose, CA
Posts: 22

Bikes: '87 Trek 400D Elance

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
It is a freewheel, I drunkenly got the video wrong. So FR-1 is really the only option. Iím working on the bearings of the front wheel now, got a set of cone wrenches. Iíll post some pictures when Iím done playing with it.

I want new tires, whatís the thought on contential 4 seasons 700cx25? They are about $42 a piece. Should I do something that nice or go cheaper? Will I miss the 23s? Reviews say these run wide so 25s are really like 27s. Any suggestions would be nice. Was going to get 25-32 tubes to accommodate the wider tire run.

saddle suggestions?

Thanks, all!

Last edited by Kapurnicus; 02-22-20 at 03:06 PM.
Kapurnicus is offline
Old 02-22-20, 05:52 PM
  #56
Kapurnicus
Junior Member
Thread Starter

Join Date: Feb 2020
Location: San Jose, CA
Posts: 22

Bikes: '87 Trek 400D Elance

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

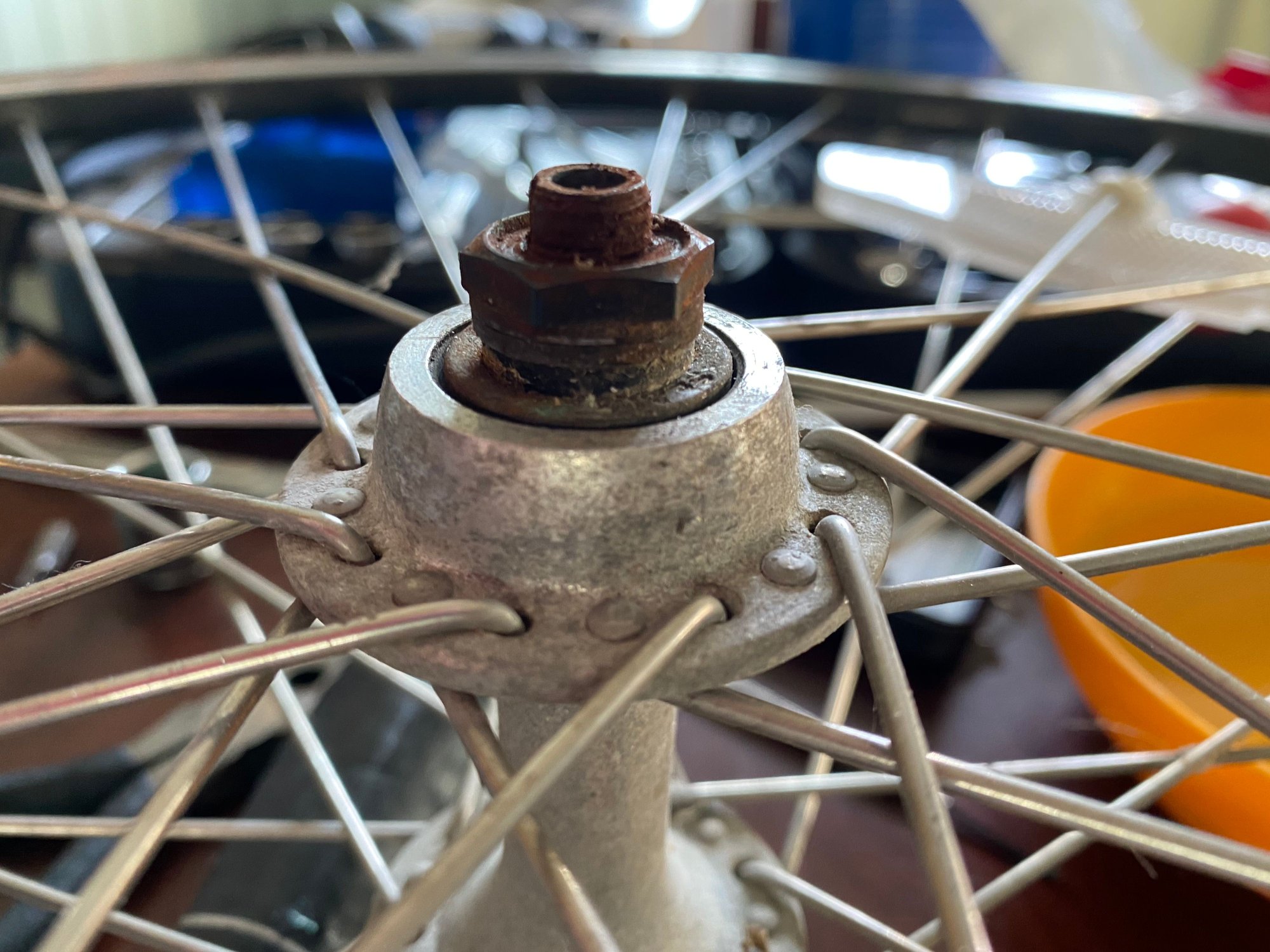

Front wheel


Feels gravely also

Maillard 500 hubs

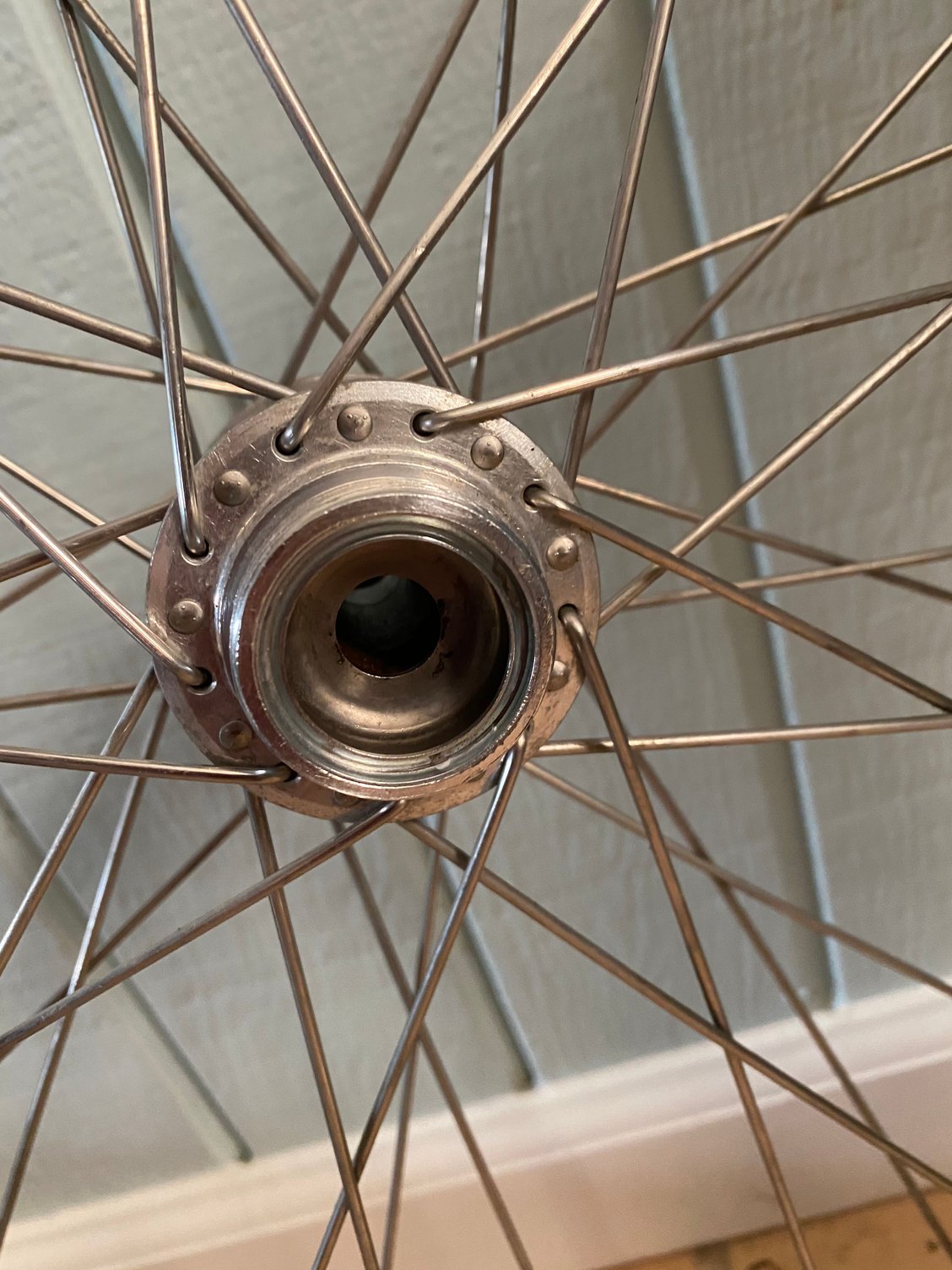

Spindle out. Needs cleaning.

Will try to clean out the races in there.

This side didnít fall apart. Will take them out. 10 each side. Looks like 3/16Ē
Kapurnicus is offline
Old 02-23-20, 02:08 PM
  #57
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 12,029

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 75 Post(s)
Tagged: 0 Thread(s)
Quoted: 1993 Post(s)
Liked 302 Times in 211 Posts
Originally Posted by Kapurnicus View Post
I want new tires, whatís the thought on contential 4 seasons 700cx25? They are about $42 a piece. Should I do something that nice or go cheaper? Will I miss the 23s? Reviews say these run wide so 25s are really like 27s. Any suggestions would be nice. Was going to get 25-32 tubes to accommodate the wider tire run.

saddle suggestions?

Thanks, all!
If the clearances are the same as the 86- you'll be able to fit 32s on there with 700c wheels; 28s and fenders.

You mentioned having a spinal fusion- I would suggest going with cushy 32s. IMO- skinny tires are for people who like to "suffer." Again, IMO- Panaracer Paselas are great tires, unless you want to throw more money at it- the Compass/Rene Herse tires are really nice.


Originally Posted by Kapurnicus View Post


Maillard 500 hubs
Interesting that it's coming with Maillard 500 hubs- my 86 came with Maillard 600s.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jiggliní huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 03-04-20, 05:32 PM
  #58
Kapurnicus
Junior Member
Thread Starter

Join Date: Feb 2020
Location: San Jose, CA
Posts: 22

Bikes: '87 Trek 400D Elance

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Still slowly working on this.

did I order the wrong freewheel? Didn’t know how that worked. Just got a Shimano 6 speed With the same tooth count as mine, but this one has different spacing between the smallest and second smallest gears, which I’m pretty sure will throw off my indexing. I bought the mf-tz500-6. [Edit: actually, I bought MF-TZ20 and they sent me the TZ500-6. Not sure the difference, but I may send it back just because it isn't what I ordered].

besides that. Going well 2 pedals and a wheel done. Working on reassembling the rear wheel (hence the freewheel question). Everything is smooth sailing so far. Have to figure out which crank and bottom bracket tools I need next.

New freewheel

Front wheel hub

Both pedals

Rear wheel hub stripped. Looks like 9 ball bearings and this one is 1/4” balls. Every bearing is different on this thing haha.

The rear hub shaft and cones/washers/nuts cleaned and partially assembled.

Last edited by Kapurnicus; 03-04-20 at 10:50 PM.
Kapurnicus is offline
Old 03-05-20, 07:59 AM
  #59
SurferRosa
Senior Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 2,324

Bikes: old school 531c & Campy

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1008 Post(s)
Liked 679 Times in 410 Posts
Originally Posted by The Golden Boy View Post
IMO- skinny tires are for people who like to "suffer."
Maybe they just like what they like and wish to avoid being told what to like based on another's "opinion."
SurferRosa is offline
Old 03-05-20, 08:05 AM
  #60
PugRider
Senior Member

Join Date: Feb 2013
Location: Worcester, Massachusetts
Posts: 192

Bikes: Fuji Sportif 1.7C, Peugeot Paris Express, Shogun Metro AT, Jamis Durango SX, Miyata Alumicross, Fuji Special Road Racer, Mongoose ATB, Fuji SST 1.0 Team

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
Liked 26 Times in 17 Posts
The new freewheel will work just fine. If your shifters are indexed for six speeds, and you have a new Shimano six speed freewheel, it will work.
PugRider is offline
Old 03-05-20, 02:34 PM
  #61
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 12,029

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 75 Post(s)
Tagged: 0 Thread(s)
Quoted: 1993 Post(s)
Liked 302 Times in 211 Posts
Originally Posted by SurferRosa View Post
Maybe they just like what they like and wish to avoid being told what to like based on another's "opinion."
Maybe they use what they know- or what they know theyíre supposed to use. Or maybe they care about other peopleís opinions and wish to avoid ridicule based on ďthe rulesĒ or other such nonsense.

Thereís really no way of knowing.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jiggliní huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 03-05-20, 03:05 PM
  #62
SurferRosa
Senior Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 2,324

Bikes: old school 531c & Campy

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1008 Post(s)
Liked 679 Times in 410 Posts
Originally Posted by The Golden Boy View Post
Maybe they use what they know- or what they know they’re supposed to use. Or maybe they care about other people’s opinions and wish to avoid ridicule based on “the rules” or other such nonsense. There’s really no way of knowing.
Or maybe they have just as much experience as you, and they still choose to ride what they like, which might be different than you.
SurferRosa is offline
Old 03-05-20, 04:41 PM
  #63
Kapurnicus
Junior Member
Thread Starter

Join Date: Feb 2020
Location: San Jose, CA
Posts: 22

Bikes: '87 Trek 400D Elance

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by PugRider View Post
The new freewheel will work just fine. If your shifters are indexed for six speeds, and you have a new Shimano six speed freewheel, it will work.
Thanks. Why are the gears not evenly spaced like my old one? What possible benefit could they have? And some of the cogs are more shaped like shark fins than the square heads of my old one. Everything about this is...odd.
Kapurnicus is offline
Old 03-05-20, 06:58 PM
  #64
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 6,392

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1162 Post(s)
Liked 572 Times in 388 Posts
Originally Posted by Kapurnicus View Post
Thanks. Why are the gears not evenly spaced like my old one? What possible benefit could they have? And some of the cogs are more shaped like shark fins than the square heads of my old one. Everything about this is...odd.
They're spaced for the movement of the RD in an indexed shifting system.

The teeth are shaped to be "ramps" to pick up the chain and assist shifting. Truly an improvement due to the advent of index shifting. You'll find it to shift faster and smoother than you're used to. One of the cheapest easiest ways to improve shifting on vintage iron.
dedhed is offline
Old 03-07-20, 07:53 AM
  #65
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 12,029

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 75 Post(s)
Tagged: 0 Thread(s)
Quoted: 1993 Post(s)
Liked 302 Times in 211 Posts
Originally Posted by SurferRosa View Post
Or maybe they have just as much experience as you, and they still choose to ride what they like, which might be different than you.
Just saying someone who has a spinal fusion, can't bend far and asks if they'll 'miss 23s' would benefit from 32s on a bike that'll fit 32s.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jiggliní huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 03-07-20, 12:17 PM
  #66
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 1,846

Bikes: CURRENT: '82 Univega Competizione, '72 Motobecane Grand Record, '74 Campania Professional, '83 Mercian KOM Touring, '91 Univega Alpina Comp PAST: '72 Puch Bergmeister, '72ish Peugeot UO-8, '86 Univega Gran Premio, '85 Univega Viva Touring

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 568 Post(s)
Liked 254 Times in 185 Posts
Originally Posted by The Golden Boy View Post
Just saying someone who has a spinal fusion, can't bend far and asks if they'll 'miss 23s' would benefit from 32s on a bike that'll fit 32s.
Neutral corners, please... Back to the Trek at hand...
noobinsf is offline
Old 03-07-20, 01:53 PM
  #67
curbtender
Senior Member

curbtender's Avatar

Join Date: Mar 2007
Location: SF Bay Area, East bay
Posts: 6,238

Bikes: Marinoni, Kestral 200 2002 Trek 5200, KHS Flite, Koga Miyata, Schwinn Spitfire 5, Schwinn Speedster, Mondia Special, Univega Alpina, Miyata team Ti, MB3

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 787 Post(s)
Liked 278 Times in 205 Posts
Originally Posted by The Golden Boy View Post
Maybe they use what they know- or what they know theyíre supposed to use. Or maybe they care about other peopleís opinions and wish to avoid ridicule based on ďthe rulesĒ or other such nonsense.

Thereís really no way of knowing.
Originally Posted by Kapurnicus View Post
thanks for the advice. it ended up being a cassette (based on the park tools site, I didnít know the difference). So I think it uses the FR-5.2 from Park tools based on their images.

I didnít see much difference between a cone wrench and a normal crecent. Is there a reason I canít use normal wrenches? I guess Iíll find out when the cassette removal tool comes. Iíll take a look at the front too. Iíll keep posting pics. This will hopefully be interesting for someone later to watch the whole process.





Shimano 6 speed cassette
You know, you can refurbish the freewheel also.
curbtender is online now
Old 03-07-20, 02:24 PM
  #68
curbtender
Senior Member

curbtender's Avatar

Join Date: Mar 2007
Location: SF Bay Area, East bay
Posts: 6,238

Bikes: Marinoni, Kestral 200 2002 Trek 5200, KHS Flite, Koga Miyata, Schwinn Spitfire 5, Schwinn Speedster, Mondia Special, Univega Alpina, Miyata team Ti, MB3

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 787 Post(s)
Liked 278 Times in 205 Posts
Just remember that everything is little, lol

curbtender is online now
Old 03-07-20, 02:43 PM
  #69
SurferRosa
Senior Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 2,324

Bikes: old school 531c & Campy

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1008 Post(s)
Liked 679 Times in 410 Posts
Originally Posted by The Golden Boy View Post
Just saying someone who has a spinal fusion, can't bend far and asks if they'll 'miss 23s' would benefit from 32s on a bike that'll fit 32s.
There seems to be a little too much three-card monte on the forums these days...
SurferRosa is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
