2x10 gearing advise.

Notices
Touring Have a dream to ride a bike across your state, across the country, or around the world? Self-contained or fully supported? Trade ideas, adventures, and more in our bicycle touring forum.

2x10 gearing advise.

Old 08-02-20, 05:23 AM
  #1
sloar
Senior Member
Thread Starter

Join Date: Sep 2008
Location: Elwood Indiana
Posts: 6,476

Bikes: they change so much I'm tired of updating this

Mentioned: 142 Post(s)
Tagged: 0 Thread(s)
Quoted: 893 Post(s)
Likes: 0
Liked 183 Times in 94 Posts
2x10 gearing advise.

In a previous thread I posted my newly acquired Disc Truck. I mentioned that I want to trade out my double crank for a triple. Someone suggested changing the chainrings. As it sits now the cranks are 170's with 50/34 110 BCD and the cassette is 11/34. What chainrings should I be looking for? My plan is to some fairly long touring and eventually coast to coast. Thanks.
sloar is offline
Old 08-02-20, 05:34 AM
  #2
headwind15
Bikeable

headwind15's Avatar

Join Date: Jan 2011
Posts: 57
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 24 Post(s)
Likes: 0
Liked 17 Times in 9 Posts
Unfortunately (I am assuming that you are looking to have lower/ easier gearing) with the 110 bcd bolt pattern, 34 is the smallest chain ring that will fit. If the (right) crank arm is drilled/ has threads it the inside of the crank arm, then you could add a third chain ring with a wider bottom bracket.
headwind15 is offline
Old 08-02-20, 05:37 AM
  #3
sloar
Senior Member
Thread Starter

Join Date: Sep 2008
Location: Elwood Indiana
Posts: 6,476

Bikes: they change so much I'm tired of updating this

Mentioned: 142 Post(s)
Tagged: 0 Thread(s)
Quoted: 893 Post(s)
Likes: 0
Liked 183 Times in 94 Posts
Yep, as soon as I posted this I did a search for chainrings, not much options for 110BCD. So If I were to buy another double crank, what chainrings should I look for? Staying with a double I wouldn't have to change shifters.
sloar is offline
Old 08-02-20, 07:30 AM
  #4
djb
Senior Member

Join Date: Jul 2010
Location: Montreal Canada
Posts: 10,459
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1667 Post(s)
Liked 291 Times in 252 Posts
I'd strongly suggest figuring out what sort of low gear you will need in gear inches. If you've never toured before this might be hard, I dont remember if youve toured before.
How low a low--that will depend on many factors, how much weight youll carry and how you are as a rider, but lets be completely honest, for a coast to coast trip, you'll want low gearing and the age old touring gearing recommendation of a 20 gear inch low gear is still a fairly good one to follow. Lower is fine too, doesnt make a hoot of a difference what speed you ride along the flats for 90% of the time if you have lower gearing available.

figure out what gearing you think you need for a low, and then get into the spaghetti bowl of dealing with technical aspects of this and that and that and this, because changing out a crankset and maybe larger cassette or rd will get into a whole slew of "the devil is in the details" stuff......

ps, refresh our memories, why is your surly disc trucker set up with a 50/34, and what shifters??
djb is offline
Old 08-02-20, 07:49 AM
  #5
djb
Senior Member

Join Date: Jul 2010
Location: Montreal Canada
Posts: 10,459
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1667 Post(s)
Liked 291 Times in 252 Posts
sorry, didnt see other thread.
Clear now.
What an odd change to do to a dt frame....(previous owner)

honestly, for a coast to coast trip, I think you should just look at switching stuff out, put on a triple and shifters of your liking--but you might be lucky and be able to find a mtb double that you'd be happy with, like a 42-26 or something, but you'll have to research this to see what is available and figure out chain line issues.

its a 26in trucker right?
djb is offline
Old 08-02-20, 08:14 AM
  #6
sloar
Senior Member
Thread Starter

Join Date: Sep 2008
Location: Elwood Indiana
Posts: 6,476

Bikes: they change so much I'm tired of updating this

Mentioned: 142 Post(s)
Tagged: 0 Thread(s)
Quoted: 893 Post(s)
Likes: 0
Liked 183 Times in 94 Posts
Originally Posted by djb View Post
sorry, didnt see other thread.
Clear now.
What an odd change to do to a dt frame....(previous owner)

honestly, for a coast to coast trip, I think you should just look at switching stuff out, put on a triple and shifters of your liking--but you might be lucky and be able to find a mtb double that you'd be happy with, like a 42-26 or something, but you'll have to research this to see what is available and figure out chain line issues.

its a 26in trucker right?
Yeah 54cm 26" wheels. The owner bought the frameset new and put his choice of components on it then never rode it. I'm pretty sure he just does it as a hobby and flips them. My first choice would be a triple and bar end shifters. I'll probably just ride as is and change later, I'm mainly riding in central Indiana which is flat as a pancake.
sloar is offline
Old 08-02-20, 08:22 AM
  #7
robow
Senior Member

robow's Avatar

Join Date: Aug 2005
Posts: 3,390
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 349 Post(s)
Liked 55 Times in 41 Posts
As stated before, you might consider a 46/30 crank and possibly change cassette to a 11-36 if needed but it really depends on your own youth, athleticism, and the terrain you need to tackle. If you want lower gearing, you'll need a mountain bike crank (might remove the largest chain ring of a triple) but may be spinning out on the high end frequently.
robow is offline
Old 08-02-20, 08:35 AM
  #8
Bob the Mech
Senior Member

Bob the Mech's Avatar

Join Date: Aug 2020
Location: South Wales
Posts: 134

Bikes: 2016 Trek Emonda S6 frameset, custom build (road). 1995 Dawes Genesis Reynolds 531 Competition frameset, custom build (road). 1996 Orange C16R frameset, custom build (retro MTB). Coyote Dual hard-tail, custom build (MTB).

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked 43 Times in 29 Posts
Sub compact chainset option for lower gearing.

Cycling Weekly (2017): The super compact chainset, otherwise known as a sub compact chainset is the latest gearing system to gain traction — especially in the world of gravel or all-road cycling. With even lower ratios than the original compact, which used a double 50/34 set-up, a super compact chainset runs 48/32 or even lower. From the likes of FSA, Rotor, Praxis, White Industries and now Shimano (GRX range of components).

TA 110 BCD Zephyr Inner Road Chainring in 33 teeth...wiggle.co.uk.

I personally run 46 - 34 rings (110 BCD) up front and a 12-36 cassette (9 speed) out back. I switch to a 11-34 cassette when I feel the need for speed unencumbered.

Last edited by Bob the Mech; 08-02-20 at 08:50 AM. Reason: Additional info added
Bob the Mech is offline
Old 08-02-20, 08:45 AM
  #9
robow
Senior Member

robow's Avatar

Join Date: Aug 2005
Posts: 3,390
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 349 Post(s)
Liked 55 Times in 41 Posts
Does anyone make a 44/28 crankset ? A while back I saw a manufacturer that claimed it was in their future but can't remember which company, Stronglight ? Sugino ?
robow is offline
Old 08-02-20, 08:49 AM
  #10
saddlesores
Senior Member

saddlesores's Avatar

Join Date: Feb 2004
Location: Bangkok...and....Hainan
Posts: 3,170

Bikes: inferior steel....and....noodly aluminium

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 817 Post(s)
Likes: 0
Liked 81 Times in 61 Posts
Originally Posted by robow View Post
As stated before, you might consider a 46/30 crank and possibly change cassette to a 11-36 if needed but it really depends on your own youth, athleticism, and the terrain you need to tackle. If you want lower gearing, you'll need a mountain bike crank (might remove the largest chain ring of a triple) but may be spinning out on the high end frequently.
i was thinking similar, mtb crank, ignore the big ring or replace with a rockring.
keep the two smaller rings, maybe 26-38 and pair with suitable cassette.
how often do you use the big ring anyways?
saddlesores is offline
Old 08-02-20, 10:42 AM
  #11
djb
Senior Member

Join Date: Jul 2010
Location: Montreal Canada
Posts: 10,459
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1667 Post(s)
Liked 291 Times in 252 Posts
Originally Posted by sloar View Post
Yeah 54cm 26" wheels. The owner bought the frameset new and put his choice of components on it then never rode it. I'm pretty sure he just does it as a hobby and flips them. My first choice would be a triple and bar end shifters. I'll probably just ride as is and change later, I'm mainly riding in central Indiana which is flat as a pancake.
ya, sounds good, and if you take the time, you should be able to find a triple that will turn the bike back into the touring it was designed for gearing wise.
djb is offline
Old 08-02-20, 11:28 AM
  #12
robow
Senior Member

robow's Avatar

Join Date: Aug 2005
Posts: 3,390
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 349 Post(s)
Liked 55 Times in 41 Posts
Btw, the choices and availability of 46/30 cranks have expanded a lot recently and hence the costs have come way down, much more affordable now.
robow is offline
Old 08-02-20, 11:35 AM
  #13
sloar
Senior Member
Thread Starter

Join Date: Sep 2008
Location: Elwood Indiana
Posts: 6,476

Bikes: they change so much I'm tired of updating this

Mentioned: 142 Post(s)
Tagged: 0 Thread(s)
Quoted: 893 Post(s)
Likes: 0
Liked 183 Times in 94 Posts
I was looking at the Shimano GRX 46-30. I wouldn’t need to change bottom bracket or shifters. But I want to make sure I can climb steep grades when the time comes.
sloar is offline
Old 08-02-20, 11:55 AM
  #14
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,598

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,277 Times in 798 Posts
well with the new one by trend , there are now cassette cogs as big as your chainring... the big one..

On my tours My low was 0.7:1

Still had a few occasions the 2 foot gear was needed ..
will other Marines shame you for pushing a loaded touring bike up a steep hill?





...

Last edited by fietsbob; 08-02-20 at 12:03 PM.
fietsbob is offline
Old 08-02-20, 12:06 PM
  #15
djb
Senior Member

Join Date: Jul 2010
Location: Montreal Canada
Posts: 10,459
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1667 Post(s)
Liked 291 Times in 252 Posts
Originally Posted by sloar View Post
I was looking at the Shimano GRX 46-30. I wouldn’t need to change bottom bracket or shifters. But I want to make sure I can climb steep grades when the time comes.
put on a 11-36 and the 46-30 and you'd have 20-104 gear inches, a pretty darn good touring range. Personally I'd find the 46 too tall and you'd mostly be in the 30 which would wear it over time, but hey. A 10 spd mtb triple would be pretty handy also, but then you get into shifter issues, and all kinds of stuff.
This chart is with 1.5in tires.
djb is offline
Old 08-02-20, 12:28 PM
  #16
sloar
Senior Member
Thread Starter

Join Date: Sep 2008
Location: Elwood Indiana
Posts: 6,476

Bikes: they change so much I'm tired of updating this

Mentioned: 142 Post(s)
Tagged: 0 Thread(s)
Quoted: 893 Post(s)
Likes: 0
Liked 183 Times in 94 Posts
Originally Posted by fietsbob View Post
well with the new one by trend , there are now cassette cogs as big as your chainring... the big one..

On my tours My low was 0.7:1

Still had a few occasions the 2 foot gear was needed ..
will other Marines shame you for pushing a loaded touring bike up a steep hill?





...

As a Marine I will shame myself for pushing my bike.
sloar is offline
Old 08-02-20, 12:43 PM
  #17
billridesbikes
Senior Member

Join Date: Nov 2019
Posts: 214
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 66 Post(s)
Liked 122 Times in 72 Posts
Originally Posted by robow View Post
Does anyone make a 44/28 crankset ? A while back I saw a manufacturer that claimed it was in their future but can't remember which company, Stronglight ? Sugino ?
René Herse (formally Compass cycles) has double and triple cranks between 52-42 (In increments of 2) and smaller rings between 44-24. You can pick the combination that works best and they’ll assemble it for you. These are good quality and look great. I put a 46/30 on my wife’s Rivendell.

Of course your wallet will be so much lighter you might not need as low gearing. Haha
billridesbikes is offline
Old 08-03-20, 10:01 PM
  #18
bwilli88
Senior Member

bwilli88's Avatar

Join Date: Jan 2013
Location: Kampong Cham, Cambodia but I have quite a few in Lancaster, PA
Posts: 2,325

Bikes: Bikes in USA; 73 Raleigh Supercourse dingle speed, 74 Raleigh Grand Prix SS, 78 Raleigh Supercourse, 83 Centurion Pro-Tour, 82 Raleigh RRA.

Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 601 Post(s)
Liked 204 Times in 142 Posts

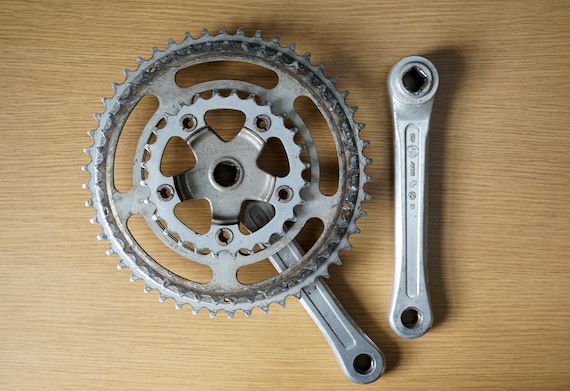

86 bcd crankarms would work. I have a couple of sets at my Lancaster home waiting for me to arrive.
Both Stronglight 80, 99, and 100 crank arms and SR Apex Cranks are 86BCD, they can go as low as 28t
bwilli88 is offline
Old 08-04-20, 07:07 AM
  #19
u235
Senior Member

u235's Avatar

Join Date: Mar 2017
Posts: 1,166
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 424 Post(s)
Liked 117 Times in 74 Posts
I've ran 50/34 with a 36 cassette using a RD592. Even using big/big on occasion and never had a problem.
I gave up on the compact and bought some 46/30 rings for some FSA Omega cranks I already had laying around and put that on. I will be at least 46/30 from this point on until I eventually need MTB gearing

Last edited by u235; 08-04-20 at 07:24 AM.
u235 is offline
Old 08-04-20, 07:46 AM
  #20
aggiegrads
Senior Member

Join Date: Oct 2009
Location: Sherwood, OR
Posts: 1,001
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 191 Post(s)
Liked 99 Times in 73 Posts
If it weren’t for the COVID supply chain problems, I would suggest a square taper Sugino triple like the xd 600.

That is what comes stock on the LHT. I have run mine 22-36-chain guard with 10 speed 105 brifters and 26-36-46 with bar ends. I can spin pretty fast, so I top out around 28mph with the current 36-11 high gear.
aggiegrads is offline
Old 08-04-20, 08:27 AM
  #21
djb
Senior Member

Join Date: Jul 2010
Location: Montreal Canada
Posts: 10,459
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1667 Post(s)
Liked 291 Times in 252 Posts
Originally Posted by aggiegrads View Post
If it weren’t for the COVID supply chain problems, I would suggest a square taper Sugino triple like the xd 600.

That is what comes stock on the LHT. I have run mine 22-36-chain guard with 10 speed 105 brifters and 26-36-46 with bar ends. I can spin pretty fast, so I top out around 28mph with the current 36-11 high gear.
Or go nuts, put on a 48\36\26 change 26 to 24 or egads even a 22, and use gevenalle 10 spd triple shifters, road or dynasys, and use a tighter cassette and it's fun fun fun til your daddy takes the T-Bird away (song reference, look it up or ask your grandma)
djb is offline
Old 08-07-20, 10:37 AM
  #22
Bob the Mech
Senior Member

Bob the Mech's Avatar

Join Date: Aug 2020
Location: South Wales
Posts: 134

Bikes: 2016 Trek Emonda S6 frameset, custom build (road). 1995 Dawes Genesis Reynolds 531 Competition frameset, custom build (road). 1996 Orange C16R frameset, custom build (retro MTB). Coyote Dual hard-tail, custom build (MTB).

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked 43 Times in 29 Posts
Some of us do remember The Beach Boys...or what's left of them

48T (Tioga) 36T (Shimano SG-X) and an Onza stainess steel 24T...on venerable Shimano Deore LX M560 Low profile cranks ('94) with an 11-28 8 speed cassette. That brings back some fond memories of rodie chasing on Sundays many moons ago.
Bob the Mech is offline
Old 08-07-20, 12:26 PM
  #23
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,598

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,277 Times in 798 Posts
Originally Posted by sloar View Post
As a Marine I will shame myself for pushing my bike.
I put in some years in the Navy .. the Marines were passengers on Navy vessels.. you guys were Cargo that Ate.

On a 1983 tour one of the people on the tour used a TA 50-28 double.. 13-28t freewheel

Now modern stuff, I think you would get a White Industries VBC crank, SQVBC ? White Industries
Or Rene Herse Cranks https://www.renehersecycles.com/




...
fietsbob is offline
Old 08-07-20, 05:37 PM
  #24
BoraxKid
Senior Member

Join Date: Jul 2020
Location: Parts Unknown
Posts: 322
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 288 Post(s)
Likes: 0
Liked 89 Times in 59 Posts
Originally Posted by djb View Post
Or go nuts, put on a 48\36\26 change 26 to 24 or egads even a 22, and use gevenalle 10 spd triple shifters, road or dynasys, and use a tighter cassette and it's fun fun fun til your daddy takes the T-Bird away (song reference, look it up or ask your grandma)
This is actually hilarious to me, because you basically nailed my setup. My touring bike came stock with 44/32/22 up front and 11-32t x 10 speed cassette, with bar-end shifters. I eventually got tired of hitting escape velocity, so I switched it to a 48/34/22 up front and kept the 11-32 in the rear. I think next time I replace the cassette I might narrow it to 11-28t, because I don't like the jump from the 12-14 cog.
BoraxKid is offline
Old 08-07-20, 06:30 PM
  #25
Chris!
Senior Member

Join Date: Oct 2009
Location: upstate NY
Posts: 100

Bikes: Surly CrossCheck

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 37 Post(s)
Likes: 0
Liked 16 Times in 10 Posts
My bike came stock with pretty similar gearing. I switched my front to an FSA adventure cranked with 46-30 chainrings. I got a new cassette in rear with a 11-36 spread. It made the world of difference. I still have the original tiagara derailer in the back so im outside of manufacturer specs but as you fool around I think you'll find shimano is pretty conservative with what they spec out. If you wanted to mix and match road shifter and newer mountain stuff you may want to look at wolftooth components. The Tanpan will adjust the pull ratios to you can use new sti shifters with mountain derailers to get larger ratios if needed.
Chris! is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
