Tapping a frame

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Tapping a frame

Old 12-14-18, 10:29 PM
  #1
kevrider
Senior Member
Thread Starter

kevrider's Avatar

Join Date: Jan 2011
Location: northern nevada
Posts: 344

Bikes: way too many

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 55 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Tapping a frame

so i bought a full suspension mtn bike for my wife. while i was doing that initial prep work, peeling stickers and tossing reflectors, etc, i noticed that there are not bottle cage mounts inside the triangle. would it be imprudent of me to have the inner side of the downtube tapped for bottle mounts? the bike in question is a Ghost from REI and the bike in the photo has cage mounts, as you would expect. i bought her a small frame, i believe the size is the issue, but there is enough space inside the triangle for a smaller bottle. the shock mount movement is mainly vertical, so if positioned properly, the bottle should not interfere with the shock. i would have to install one of those side-loading cages, i happen to have one handy. the question is, should i worry about my wife if i get the frame tapped?
kevrider is offline
Old 12-14-18, 10:39 PM
  #2
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,020

Bikes: 8

Mentioned: 183 Post(s)
Tagged: 0 Thread(s)
Quoted: 6591 Post(s)
Likes: 0
Liked 70 Times in 63 Posts
bottle cage mounts inside the triangle...
maybe you should wear a camel back?

rather than try to reach for a bottle in technical sections, you bought that bike to ride ?

Twofish .biz lets you fit bottle cages without poking holes in your frame,,



I see bottle cage mounts you dont?


Last edited by fietsbob; 12-14-18 at 10:44 PM.
fietsbob is offline
Old 12-15-18, 12:50 AM
  #3
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 22,138
Mentioned: 156 Post(s)
Tagged: 0 Thread(s)
Quoted: 8218 Post(s)
Likes: 0
Liked 18 Times in 16 Posts
Can you get your tools in there to work?

I'd probably drill a small hole in one location. Then assess the tubing wall thickness. If it seems OK, drill and tap both locations.

If the tubing is too thin, then enlarge and try a pair of rivnuts.
CliffordK is offline
Old 12-15-18, 09:36 AM
  #4
DaveSSS
Senior Member

Join Date: Sep 2008
Location: Loveland, CO
Posts: 5,197

Bikes: Look KG461, Colnago C-RS

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 65 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Rivnuts would be a must. Tapping the frame tube would not be reliable.
DaveSSS is offline
Old 12-15-18, 10:03 AM
  #5
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 22,138
Mentioned: 156 Post(s)
Tagged: 0 Thread(s)
Quoted: 8218 Post(s)
Likes: 0
Liked 18 Times in 16 Posts
Also complain to REI for the bike not having usable cage mounts. What a pain.
CliffordK is offline
Old 12-15-18, 10:46 AM
  #6
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,469

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1680 Post(s)
Likes: 0
Liked 10 Times in 9 Posts
Agreed that Rivnuts is really the only way to insure long term reliability. Take much care as to exactly where you place them. Plan to somehow remove the tubing chips from inside the tube after, like pulling the BB or fork and shaking them out a vent hole. For someone with the right tools and having the bits on hand this is a fairly quick and easy job. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 12-15-18, 10:33 PM
  #7
kevrider
Senior Member
Thread Starter

kevrider's Avatar

Join Date: Jan 2011
Location: northern nevada
Posts: 344

Bikes: way too many

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 55 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
rivnuts! thanks for the tip, gents, i've never heard of such. i'll have to see if my mechanic is familiar....

Originally Posted by fietsbob View Post
maybe you should wear a camel back?
water in the pack, gatorade in the bottle. it's easier to wash a bottle.

Originally Posted by fietsbob View Post
I see bottle cage mounts you dont?
i do not. the bike in the pic is not a small.
kevrider is offline
Old 12-16-18, 07:50 PM
  #8
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,469

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1680 Post(s)
Likes: 0
Liked 10 Times in 9 Posts
"water in the pack, gatorade in the bottle. it's easier to wash a bottle."

Do know that solutions that have an electrolyte in them and are spilled, dribbled, from a water bottle and come into contact with in frame bosses can rapidly cause corrosion between the bolt and the boss. Rivenut material is chosen for it's moldability, not it's resistance to corrosion. If you ride with this stuff in your bottles I strongly suggest periodic removal of cage bolts and relubing them. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 12-16-18, 10:48 PM
  #9
3alarmer
******

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 17,155

Bikes: old ones

Mentioned: 214 Post(s)
Tagged: 0 Thread(s)
Quoted: 13833 Post(s)
Liked 15 Times in 13 Posts
...there are some relatively cheap and workable cage mounts for the bar that would probably work, if your wife is not a real aggressive rider. If you take much air, the bottle kinda flies out the top of the cage when it's up on the bar. There are also cages that mount behind the saddle.
3alarmer is offline
Old 12-16-18, 11:20 PM
  #10
_ForceD_
Senior Member

_ForceD_'s Avatar

Join Date: Jul 2015
Location: Rhode Island
Posts: 988

Bikes: Several...from old junk to new all-carbon.

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 381 Post(s)
Liked 2 Times in 2 Posts

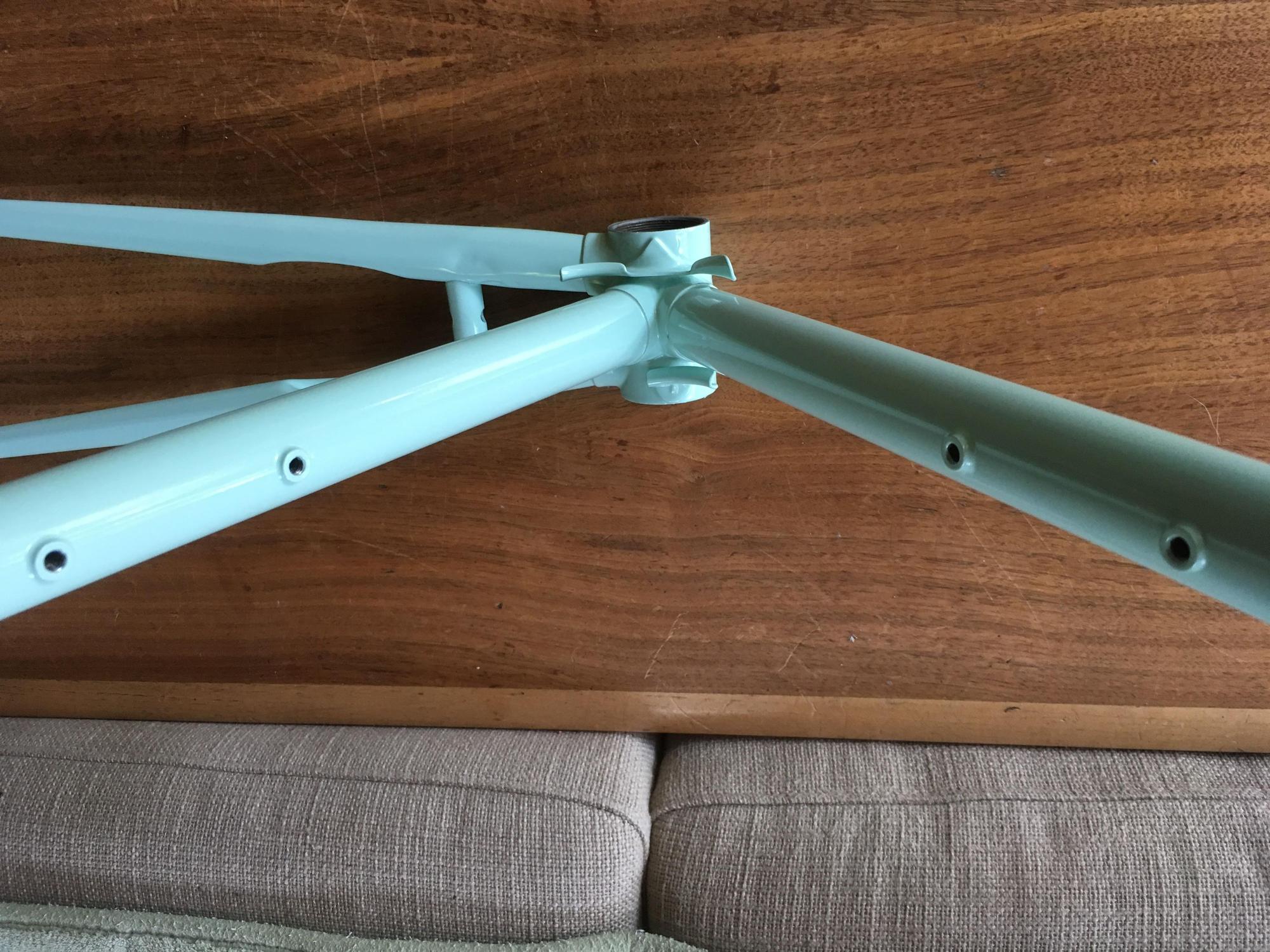

You could go this route.



Dan
_ForceD_ is offline
Old 12-16-18, 11:42 PM
  #11
ddeand
Senior Member

ddeand's Avatar

Join Date: Jul 2004
Location: Twin Cities
Posts: 675
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 115 Post(s)
Liked 2 Times in 2 Posts
I sold these bikes for quite a few years, and the problem with smaller frames is (as you mentioned) there is no room for a bottle cage. I wouldencourage you not to try to do anything to alter the frame. First, you’ll absolutely void the warranty on the bike. Second, whenever a frame is drilled or compromised, it increases the possibility of cracks and frame failure. Here’s a pic of a steel frame I bought that had been drilled for hidden cables (at the factory). When I sanded the paint away for a refinish, I found cracks at the hole. I’m not saying that would happen with aluminum, but it’s a possibility. You’d be drilling through the thinnest part of the tube. I recommend looking for an alternative. Plus . . . you’ve got a nice bike!




__________________
Some days, it's not even worth gnawing through the restraints.

Last edited by ddeand; 12-17-18 at 12:50 AM.
ddeand is offline
Old 12-17-18, 12:30 AM
  #12
Bill in VA
Senior Member

Bill in VA's Avatar

Join Date: Aug 2017
Location: Northern Virginia
Posts: 215

Bikes: 2016 Bianchi Volpe; 1973 Peugeot UO-8

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 54 Post(s)
Liked 2 Times in 2 Posts
Originally Posted by ddeand View Post
I sold thise bikes for quite a few years, and the problem with snalker frames is (as you mentioned) there is no room for a bottle cage. I wouldencourage you not to try to do anything to alter the frame. First, youíll absolutely void the warranty on the bike. Second, whenever a frame is drilled or compromised, it increases the pissibility of cracks and frame failure. Hereís a pic od a steel frame I bought that had been drilled for hidden cables (at the factory). When I sanded the paint away for a refinish, I found cracks at the hole. Iím not saying that would happen with aluminum, but itís a possibility. Youíd be drilling through the thinnest part of the tube. I recommend looking for an alternative. Plus . . . nice bike!
You beat me to it. I would absolutely never tap a frame (especially an alloy frame) myself for fear of causing stress risers. It may take years to have a problem or it may take a few days. If offroad, maybe faster. I was going to recommend a behind the seat post mount, but it appears to be a dropper post, so no room. The seat mount is workable and handlebars mounts are very handy, I used one for years. I recently saw a bike with one that attached to 2 of the four handlebar clamp screws, but the rider was not present to ask where he/she bought it, and I was not going to go real close to look for a manufacturer name.
Bill in VA is offline
Old 12-17-18, 07:16 AM
  #13
speedevil
I never finish anyth

speedevil's Avatar

Join Date: Jul 2010
Location: Western KY
Posts: 954

Bikes: 2008 Merckx LXM, 2003 Giant XTC mtb, 2001 Lemond Alpe d'Huez, 1997 Lemond Zurich, 1989 Cannondale ST, 198? Masi Nuovo Strada, 1984 Pinarello Turismo

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 222 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Before I did any irreversible frame work, I'd try the twofish bottle cage mount. Just because the bottle will fit doesn't necessarily mean that it can be removed and replaced easily while riding. Some folks can take a bottle out drink, and replace it without a bobble or any noticeable change to their line. Others wobble and can't hold a line doing the same thing. With the twofish mount, you can experiment with downtube and toptube locations to see what works best, and you may ultimately decide to use a camelbak because it's just easier to manage on the trail. Has more capacity too, and some of the models have zippered pouches you can carry snacks and/or a jacket.
__________________
Dale, NL4T
speedevil is offline
Old 12-17-18, 09:20 AM
  #14
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 1,153

Bikes: Airborne "Carpe Diem", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 499 Post(s)
Liked 6 Times in 6 Posts
Aside from the other very good reasons not to do this, do you have a drill with a right-angle chuck? That's a pretty tight area.
I second the TwoFish recommendation.
sweeks is offline
Old 01-18-19, 11:55 AM
  #15
kevrider
Senior Member
Thread Starter

kevrider's Avatar

Join Date: Jan 2011
Location: northern nevada
Posts: 344

Bikes: way too many

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 55 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
no frame tapping, then! i've had those undersaddle tri-bike type mounts on a mtn bike before, the bottles were launched quite nicely. i'll get a pair of SKS straps with bottle mounts, they came up when searching twofish. replies appreciated, glad i asked.
kevrider is offline
Old 01-18-19, 12:18 PM
  #16
wesmamyke
Senior Member

Join Date: Nov 2009
Posts: 844
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 141 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
You can get those bikepacking style snack/bottle bags from almost every company now. Not exactly cheap but they seem to strap down pretty tight on mountain bikes.

Bikepacking Stem Bags - BIKEPACKING.com
wesmamyke is offline
Old 01-18-19, 12:22 PM
  #17
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,020

Bikes: 8

Mentioned: 183 Post(s)
Tagged: 0 Thread(s)
Quoted: 6591 Post(s)
Likes: 0
Liked 70 Times in 63 Posts
bottle cage mounts inside the triangle...
maybe you should wear a camel back?

rather than try to reach for a bottle in technical sections, you bought that bike to ride ?

Twofish .biz lets you fit bottle cages without poking holes in your frame,,



I see bottle cage mounts you dont?


Last edited by fietsbob; 01-18-19 at 12:28 PM.
fietsbob is offline
Old 01-18-19, 12:35 PM
  #18
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,020

Bikes: 8

Mentioned: 183 Post(s)
Tagged: 0 Thread(s)
Quoted: 6591 Post(s)
Likes: 0
Liked 70 Times in 63 Posts
Fwiw,

Originally Posted by kevrider View Post
no frame tapping, then! i've had those undersaddle tri-bike type mounts on a mtn bike before, the bottles were launched quite nicely.
i'll get a pair of SKS straps with bottle mounts, they came up when searching twofish. replies appreciated, glad i asked.
Using a Blackburn MTB bottle cage they would not auto launch, But as a result you would have to stop to pry the bottle out of the cage..
May as well carry water bottles in your back pack then,





...
fietsbob is offline
Old 02-16-19, 04:03 PM
  #19
kevrider
Senior Member
Thread Starter

kevrider's Avatar

Join Date: Jan 2011
Location: northern nevada
Posts: 344

Bikes: way too many

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 55 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by fietsbob View Post
I see bottle cage mounts you dont?
was this post (#17) a technical error or are you asking twice?
kevrider is offline
Old 02-16-19, 04:28 PM
  #20
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,020

Bikes: 8

Mentioned: 183 Post(s)
Tagged: 0 Thread(s)
Quoted: 6591 Post(s)
Likes: 0
Liked 70 Times in 63 Posts
In that web picture , but not on your own bike , so yours is smaller Did you buy the Quick Cage Adapter: - Twofish Unlimited yet?
fietsbob is offline
Old 02-17-19, 12:49 AM
  #21
kevrider
Senior Member
Thread Starter

kevrider's Avatar

Join Date: Jan 2011
Location: northern nevada
Posts: 344

Bikes: way too many

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 55 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
there's a topeak versa mount, on the way. i went with this one because its not velcro. i stumbled across this before placing the order, several options available:
Attach Water Bottles, Add Cage Mounts to Your Bike - BIKEPACKING.com
kevrider is offline
Old 02-17-19, 11:30 AM
  #22
Aubergine
Bad example

Join Date: Nov 2015
Location: Seattle and Reims
Posts: 2,932
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 770 Post(s)
Liked 14 Times in 11 Posts
Iím glad you decided not to drill holes in your bike. I would do that only if I were prepared to add braze-on bottle stops rather than use rivnuts. These are the stops I added to my old Peugeot AO-8. As you see the holes are much stronger because of the brazed-on support.


__________________
Keeping Seattleís bike shops in business since 1978
Aubergine is offline
Old 02-17-19, 09:48 PM
  #23
Slightspeed
Senior Member

Slightspeed's Avatar

Join Date: Apr 2017
Location: Los Angeles, CA
Posts: 1,395

Bikes: 1964 Legnano Roma, 1973 Raleigh Super Course, 1978 Raleigh Super Course, 1978 Peugeot PR10, 2002 Specialized Allez, 2007 Specialized Roubaix, 2013 Culprit Croz Blade

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 434 Post(s)
Likes: 0
Liked 12 Times in 8 Posts
I got these, made by Elite from Amazon. I think they were $10 or 12. They seem pretty secure. You wrap the plastic tie around the frame, put it thru under the red screws. Tighten the screws and cut off excess strap. They work great. I put tape underneath to protect the paint.


Slightspeed is online now
Old 02-17-19, 09:54 PM
  #24
easyupbug
Senior Member

Join Date: Jan 2013
Posts: 1,102

Bikes: too many sparkly Italians, some sweet Americans and a couple interesting Japanese

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 145 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by Aubergine View Post
Iím glad you decided not to drill holes in your bike. I would do that only if I were prepared to add braze-on bottle stops rather than use rivnuts. These are the stops I added to my old Peugeot AO-8. As you see the holes are much stronger because of the brazed-on support.


Absolutely
easyupbug is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
