chainline 2x7 tourney

ok so i just got this NOS Dawes Litning from Bikeilsand. i think sumting wrong with chainline.

btw, i have measured chainline on my single speed bikes...and i get numbers consistence with Sheldon Browns...~42mm...so i know how to accurately meausre chainline.

SheldonB web says dual chainring should havr 43.5 chainline. i measured my Dawes, and it is way off. wtf!

last nite...laying in bed...out of the blue...sumting in my head tells me go to meausure the chainline.
so i jumped out and grab the caliper...its measuerd...48mm on inner chainring...56mm on outer chainring. ... so mid is 52mm...so my bike is off by almost 10mm...how can my bike be off by so much???

what am i missing? is the Tourney different from other 2 ring setup?

sumting is really not rite!!! noone could have made a huge mistake like that?!

letme know before i order a shorter UN55 BB.

Last edited by mtb_addict; 02-18-19 at 10:10 AM.
mtb_addict is online now
Old 02-18-19, 10:00 AM
  #2
mtb_addict
Senior Member
Thread Starter

mtb_addict's Avatar

Join Date: Jun 2011
Posts: 3,822
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 2833 Post(s)
Liked 8 Times in 7 Posts
the chain is noisy...so maybe thats wha trigger my brain.
mtb_addict is online now
Old 02-18-19, 10:10 AM
  #3
Iride01
Senior Member

Iride01's Avatar

Join Date: Jul 2017
Location: Mississippi
Posts: 2,151

Bikes: '91 Schwinn Paramount '78 Raleigh Competition GS

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 797 Post(s)
Likes: 0
Liked 8 Times in 8 Posts
While chain line is typically measured from the center of frame to the center of your front sprocket stack, the important thing about chain line is where it falls on the rear cassette. If you extend the centerline of your front gear stack to the rear gear stack, then it should hit somewhere near the middle. How much tolerance? Well that depends on the range of your derailler, chain flex and whether or not you'll hit your chainstays and stuff. All can be different for different makes of bikes, but bikes with similar bb's should have about the same chainline measurement.

If yours isn't causing issues, then why make yourself headaches?
Iride01 is offline
Old 02-18-19, 10:32 AM
  #4
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,009

Bikes: 8

Mentioned: 183 Post(s)
Tagged: 0 Thread(s)
Quoted: 6587 Post(s)
Likes: 0
Liked 69 Times in 62 Posts
You know how to Measure the chainline?
fietsbob is online now
Old 02-18-19, 11:19 AM
  #5
AnkleWork
Senior Member

Join Date: Jan 2013
Location: Llano Estacado
Posts: 3,245

Bikes: old clunker

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 507 Post(s)
Likes: 0
Liked 9 Times in 6 Posts
Originally Posted by mtb_addict View Post
...laying in bed...

There's the problem.



Originally Posted by mtb_addict View Post
what am i missing?
Ride time.
AnkleWork is offline
Old 02-19-19, 09:28 AM
  #6
mtb_addict
Senior Member
Thread Starter

mtb_addict's Avatar

Join Date: Jun 2011
Posts: 3,822
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 2833 Post(s)
Liked 8 Times in 7 Posts
Originally Posted by fietsbob View Post
You know how to Measure the chainline?
Yes. Double checked it again with the caliper.

Also did a visual check...indeed the chain looks very bent. Only when it is on the outer chainring and the outer rear cog at same time, does it look straight.

Now, I'm pretty sure the manufacturer used the wrong BB spindle length.

I suspect this is why the chain is noisier than my other bikes.

No big deal...I can get a Sunrace BB for $12...But check your chainline, people!

Last edited by mtb_addict; 02-19-19 at 09:31 AM.
mtb_addict is online now
Old 02-19-19, 09:59 AM
  #7
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,009

Bikes: 8

Mentioned: 183 Post(s)
Tagged: 0 Thread(s)
Quoted: 6587 Post(s)
Likes: 0
Liked 69 Times in 62 Posts
Chainline 101 parallel to bike center line

rear is middle of cog cluster (4 of 7, etc) front , middle of triple, or single or gap between 2, the spider..
fietsbob is online now
Old 02-19-19, 10:57 AM
  #8
ThermionicScott
hungry

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 18,192

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 1914 Post(s)
Liked 20 Times in 19 Posts
Originally Posted by mtb_addict View Post
Yes. Double checked it again with the caliper.

Also did a visual check...indeed the chain looks very bent. Only when it is on the outer chainring and the outer rear cog at same time, does it look straight.

Now, I'm pretty sure the manufacturer used the wrong BB spindle length.

I suspect this is why the chain is noisier than my other bikes.

No big deal...I can get a Sunrace BB for $12...But check your chainline, people!
Once again, you're complaining about a cheap bike not being a top-level bike.

Cheaper drivetrain parts tend toward a wider chainline, presumably to avoid crank/chainstay strike. (For example, note that while official track chainline is 42mm, many cheap "track/singlespeed" cranks have a 46mm chainline.)

They can get away with it because most people at that price point aren't going to notice.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 02-19-19, 11:35 AM
  #9
mtb_addict
Senior Member
Thread Starter

mtb_addict's Avatar

Join Date: Jun 2011
Posts: 3,822
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 2833 Post(s)
Liked 8 Times in 7 Posts
Originally Posted by ThermionicScott View Post
Cheaper drivetrain parts tend toward a wider chainline, presumably to avoid crank/chainstay strike. (For example, note that while official track chainline is 42mm, many cheap "track/singlespeed" cranks have a 46mm chainline.)

They can get away with it because most people at that price point aren't going to notice.
Okay...as soon as I get home...I'm check to make sure there's enough room on the chainstay.

Btw...I don't want peeple wrong idea I am unhappy...I'm luv'ing the bike so far. It is really fast, just like its name sake. Besides the chainline and the cheap tires...it's a great bike...I would call it mid-level quality bike.

Last edited by mtb_addict; 02-19-19 at 11:40 AM.
mtb_addict is online now
Old 02-19-19, 02:31 PM
  #10
mtb_addict
Senior Member
Thread Starter

mtb_addict's Avatar

Join Date: Jun 2011
Posts: 3,822
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 2833 Post(s)
Liked 8 Times in 7 Posts
Originally Posted by ThermionicScott View Post
Cheaper drivetrain parts tend toward a wider chainline, presumably to avoid crank/chainstay strike.
Okay...I just checked...plenty of clearance to use a shorter spindle. Like more than 10mm between the small chainring and chainstay.

Time to get a shorter BB. To meet the Shimano Spec below...the new BB spindle will have to be 20mm shorter. Wow that's extreme! And the small chainring will probably be very close to the chainstay.


https://sheldonbrown.com/chainline.html:
Shimano spec, measured to the midpoint between the rings.
with typical 5 mm chainring spacing, this puts the inner at 41 mm, the outer at 46 mm
mtb_addict is online now
Old 02-19-19, 05:43 PM
  #11
ThermionicScott
hungry

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 18,192

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 1914 Post(s)
Liked 20 Times in 19 Posts
That does seem like a lot. It's not a bad idea to pick up a few UN26s in a variety of lengths. Cheap way to test the fit on this and future projects.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 02-20-19, 07:59 AM
  #12
LesterOfPuppets
cowboy, steel horse, etc

LesterOfPuppets's Avatar

Join Date: Sep 2008
Location: Valley of the Sun.
Posts: 32,329

Bikes: everywhere

Mentioned: 52 Post(s)
Tagged: 1 Thread(s)
Quoted: 3770 Post(s)
Liked 15 Times in 13 Posts
It may have a 135mm rear, if so you may want a slightly higher chainline number than a typical road double.

You'll know you've gone with too short a spindle when your chain starts dragging on your big ring while you're in your little ring.
LesterOfPuppets is offline
Old 02-20-19, 08:15 AM
  #13
LesterOfPuppets
cowboy, steel horse, etc

LesterOfPuppets's Avatar

Join Date: Sep 2008
Location: Valley of the Sun.
Posts: 32,329

Bikes: everywhere

Mentioned: 52 Post(s)
Tagged: 1 Thread(s)
Quoted: 3770 Post(s)
Liked 15 Times in 13 Posts
If you have a Tourney front derailleur then Shimano specs 47.5 chainline.

If FD-A050 as the BD site says, then 43.5 is specced, for use with 130mm rear wheels. Maybe add 2 or 3 with 135mm rear.
LesterOfPuppets is offline
Old 02-20-19, 02:07 PM
  #14
Retro Grouch
Senior Member

Retro Grouch's Avatar

Join Date: Feb 2004
Location: St Peters, Missouri
Posts: 29,202

Bikes: Catrike 559 I own some others but they don't get ridden very much.

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 1117 Post(s)
Liked 9 Times in 6 Posts
Sometimes I feel like an analogue man whose been trapped in a digital world.

With a double chainring, stick a straight edge between the two chainrings. If it bisects whatever you're using for a freewheel or a cassette, you're good. Faster and more accurate than digital measurement.
__________________
My greatest fear is all of my kids standing around my coffin and talking about "how sensible" dad was.
Retro Grouch is online now
Old 02-20-19, 10:21 PM
  #15
nfmisso
Nigel

nfmisso's Avatar

Join Date: Mar 2011
Location: San Jose, CA
Posts: 3,005

Bikes: 1980s and 1990s steel: CyclePro, Nishiki, Schwinn, SR, Trek........

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 377 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
If you move your chainrings too far in, you may run out of adjustment range on your FD. Check that before making a purchase.

On less expensive bikes, manufacturers have discovered that many people run them small to small all the time and never shift.....which leads to Shimano's BB recommendations, so that the chain doesn't hit the big ring in small-small. Of course this messes things up for knowledgable bike people.
nfmisso is offline
Old 02-21-19, 10:11 AM
  #16
mtb_addict
Senior Member
Thread Starter

mtb_addict's Avatar

Join Date: Jun 2011
Posts: 3,822
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 2833 Post(s)
Liked 8 Times in 7 Posts
Originally Posted by Retro Grouch View Post
Sometimes I feel like an analogue man whose been trapped in a digital world.

With a double chainring, stick a straight edge between the two chainrings. If it bisects whatever you're using for a freewheel or a cassette, you're good. Faster and more accurate than digital measurement.
Yes, I verified my measurement and calculation with your method. And they match good.
mtb_addict is online now
Old 02-21-19, 10:23 AM
  #17
mtb_addict
Senior Member
Thread Starter

mtb_addict's Avatar

Join Date: Jun 2011
Posts: 3,822
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 2833 Post(s)
Liked 8 Times in 7 Posts

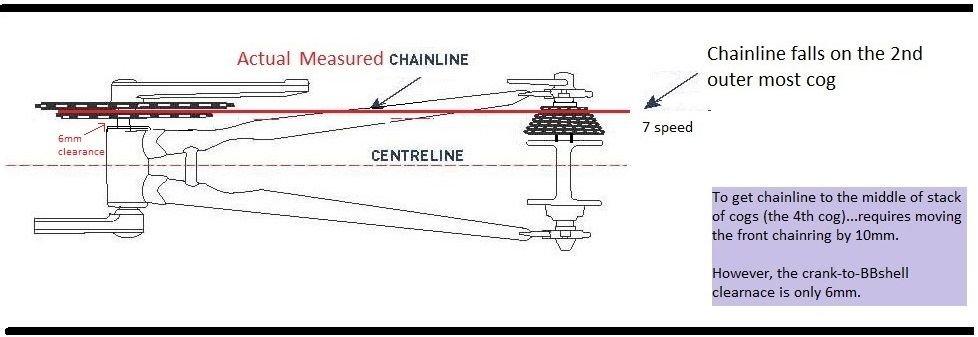

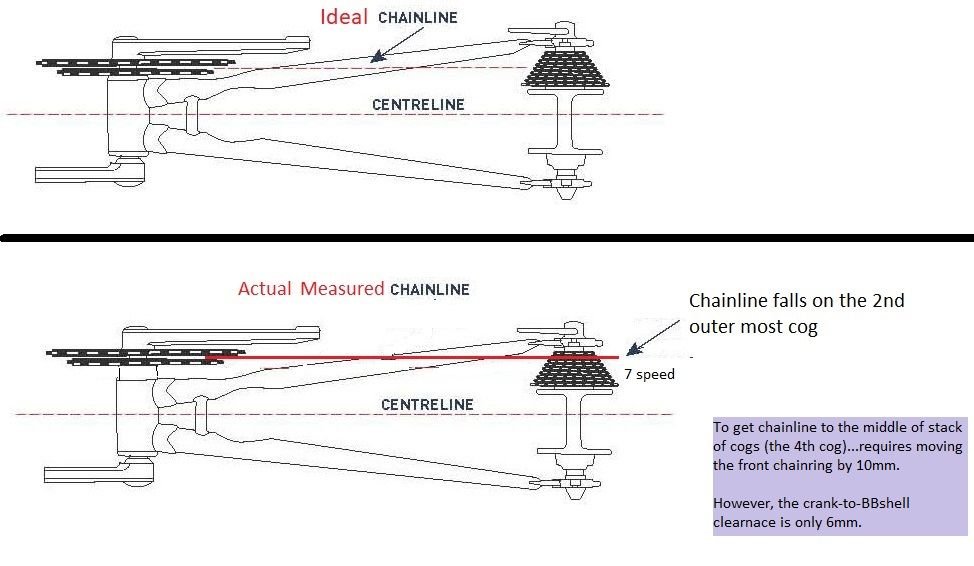

Okay...currently the measured chainline is shown in the pic below. There is a problem: the clearance between Crank and BB shell is only 6mm.
So...I believe I have 2 options:
  1. The current BB is 122mm...get a 110mm...
    122-(2x6) = 110...
    this is get the chainring to within 5mm of the ideal position...the crank will be almost touching the BB shell...
    but this is not perfection...but this is cheap and simple to do.
  2. Find a different Crank that put the chainring closer to the centerline...
    the current chainring is pressed into the Crank...
    I might find a Crank and BB combo that give me perfection...but this could be expensive and time consuming to find the right combo.

#################################################################################################### ####################







Originally Posted by nfmisso View Post
If you move your chainrings too far in, you may run out of adjustment range on your FD. Check that before making a purchase.

On less expensive bikes, manufacturers have discovered that many people run them small to small all the time and never shift.....which leads to Shimano's BB recommendations, so that the chain doesn't hit the big ring in small-small. Of course this messes things up for knowledgable bike people.
Originally Posted by LesterOfPuppets View Post
If you have a Tourney front derailleur then Shimano specs 47.5 chainline.

If FD-A050 as the BD site says, then 43.5 is specced, for use with 130mm rear wheels. Maybe add 2 or 3 with 135mm rear.
The rear spacing is 126mm.

Last edited by mtb_addict; 02-21-19 at 01:46 PM.
mtb_addict is online now
Old 02-21-19, 10:54 AM
  #18
LesterOfPuppets
cowboy, steel horse, etc

LesterOfPuppets's Avatar

Join Date: Sep 2008
Location: Valley of the Sun.
Posts: 32,329

Bikes: everywhere

Mentioned: 52 Post(s)
Tagged: 1 Thread(s)
Quoted: 3770 Post(s)
Liked 15 Times in 13 Posts
Originally Posted by mtb_addict View Post
Okay...currently the measured chainline is shown in the pic below. There is a problem: the clearance between Crank and BB shell is only 6mm.
So...I believe I have 2 options:
  1. The current BB is 122mm...get a 110mm...
    122-(2x6) = 110...
    this is get the chainring to within 5mm of the ideal position...the crank will be almost touching the BB shell...
    but this is not perfection...but this is cheap and simple to do.
  2. Find a different Crank that put the chainring closer to the centerline...
    the current chainring is pressed into the Crank...
    I might find a Crank and BB combo that give me perfection...but this could be expensive and time consuming to find the right combo.

#################################################################################################### ####################








The rear spacing is 126mm.
126??? Wow!!!!!!! '80s flashback.

When you take the rear wheel out does the space between dropouts remain 126?

Is the frame steel? Is it a lugged frame like that in the diagrams?

The rear hub may be improperly spaced. Is it a nutted axle or QR?

Having the chainline fall a cog or two outside the middle cog usually isn't a big problem.

If shifting is OK I'd be hesitant to bother doing anything. I like at least 3mm clearance between chainrings and chainstay, and crankarm and chainstay. So if a 110 BB will bring it that close Id go 113 instead.

Last edited by LesterOfPuppets; 02-21-19 at 11:03 AM.
LesterOfPuppets is offline
Old 02-21-19, 11:05 AM
  #19
mtb_addict
Senior Member
Thread Starter

mtb_addict's Avatar

Join Date: Jun 2011
Posts: 3,822
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 2833 Post(s)
Liked 8 Times in 7 Posts
Originally Posted by LesterOfPuppets View Post
126??? Wow!!!!!!! '80s flashback.

When you take the rear wheel out does the space between dropouts remain 126?

Is the frame steel? Is it a lugged frame like that in the diagrams?

Having the chainline fall a cog or two outside the middle cog usually isn't a big problem.

If shifting is OK I'd be hesitant to bother doing anything. I like at least 3mm clearance between chainrings and chainstay, and crankarm and chainstay. So if a 110 BB will bring it that close Id go 113 instead.
Regarding the Front Deraileur...there's plenty of adjustment...current the L-limit screw is all the way in, which by itself suggest the chainline is way off.

Steel Crhomoloy frame. Not lugged.

I haven't ridden the bike enough yet...but so far...the chain shifht smoothly...but there's chain noise.

I'm used to zero chain noise from a Single-speed bike with perfect chainline...so I might be jaded. Maybe multiple speed bikes are just naturally very noisy and I just need to get used to it.

Last edited by mtb_addict; 02-21-19 at 11:10 AM.
mtb_addict is online now
Old 02-21-19, 11:08 AM
  #20
LesterOfPuppets
cowboy, steel horse, etc

LesterOfPuppets's Avatar

Join Date: Sep 2008
Location: Valley of the Sun.
Posts: 32,329

Bikes: everywhere

Mentioned: 52 Post(s)
Tagged: 1 Thread(s)
Quoted: 3770 Post(s)
Liked 15 Times in 13 Posts
Originally Posted by mtb_addict View Post
Regarding the Front Deraileur...there's plenty of adjustment...current is it set in the lowest setting, which by itself suggest the chainline is way off.

Steel Crhomoloy frame. Not lugged.

I haven't ridden the bike enough yet...but so far...the chain shifht smoothly...but there's chain noise.

I'm used to zero chain noise from a Single-speed bike with perfect chainline...so I might be jaded. Maybe multiple speed bikes are just naturally very noisy.
Multispeed bikes are generally louder. Tourney equipped bikes are often noisy. Just need to see if it's unusually noisy.
LesterOfPuppets is offline
Old 02-21-19, 11:11 AM
  #21
LesterOfPuppets
cowboy, steel horse, etc

LesterOfPuppets's Avatar

Join Date: Sep 2008
Location: Valley of the Sun.
Posts: 32,329

Bikes: everywhere

Mentioned: 52 Post(s)
Tagged: 1 Thread(s)
Quoted: 3770 Post(s)
Liked 15 Times in 13 Posts
Originally Posted by mtb_addict View Post
Regarding the Front Deraileur...there's plenty of adjustment...current is it set in the lowest setting, which by itself suggest the chainline is way off.
Does "lowest setting" mean the low limit screw is screwed all the way in?

Or all the way out?
LesterOfPuppets is offline
Old 02-21-19, 11:13 AM
  #22
mtb_addict
Senior Member
Thread Starter

mtb_addict's Avatar

Join Date: Jun 2011
Posts: 3,822
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 2833 Post(s)
Liked 8 Times in 7 Posts
Originally Posted by LesterOfPuppets View Post
Multispeed bikes are generally louder. Tourney equipped bikes are often noisy. Just need to see if it's unusually noisy.
Actually, when I say noisy, I don't really mean noise as in sound. What I mean is, that I feel the chain thru my feet. Does that make sense? It's like the deraileur needs adjustment...but it does not...it is perfectly adjusted. The this feel...I attribute to chainline issue.

On my SS, I feel nothing almost...it is very smooth.
mtb_addict is online now
Old 02-21-19, 11:14 AM
  #23
mtb_addict
Senior Member
Thread Starter

mtb_addict's Avatar

Join Date: Jun 2011
Posts: 3,822
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 2833 Post(s)
Liked 8 Times in 7 Posts
Originally Posted by LesterOfPuppets View Post
Does "lowest setting" mean the low limit screw is screwed all the way in?

Or all the way out?
Yes, I meant the L-limit screw is almost all the way in.
mtb_addict is online now
Old 02-21-19, 11:17 AM
  #24
LesterOfPuppets
cowboy, steel horse, etc

LesterOfPuppets's Avatar

Join Date: Sep 2008
Location: Valley of the Sun.
Posts: 32,329

Bikes: everywhere

Mentioned: 52 Post(s)
Tagged: 1 Thread(s)
Quoted: 3770 Post(s)
Liked 15 Times in 13 Posts
Originally Posted by mtb_addict View Post
Yes, I meant the L-limit screw is almost all the way in.
Have you determined the FD model? Should be stamped on the inner plate. If it's a triple model one would expect the LL screw to be screwed in when mated with a double.
LesterOfPuppets is offline
Old 02-21-19, 01:11 PM
  #25
mtb_addict
Senior Member
Thread Starter

mtb_addict's Avatar

Join Date: Jun 2011
Posts: 3,822
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 2833 Post(s)
Liked 8 Times in 7 Posts
Originally Posted by LesterOfPuppets View Post
Have you determined the FD model? Should be stamped on the inner plate. If it's a triple model one would expect the LL screw to be screwed in when mated with a double.
I'll have to check when I get home tonite.
mtb_addict is online now

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
