Convert fat bike to drop bar..... Should I?

Cyclocross and Gravelbiking (Recreational) This has to be the most physically intense sport ever invented. It's high speed bicycle racing on a short off road course or riding the off pavement rides on gravel like :The Dirty Kanza". We also have a dedicated Racing forum for the Cyclocross Hard Core Racers.

Convert fat bike to drop bar..... Should I?

Reply

Old 02-17-19, 09:12 AM
  #1
DarKris
Senior Member
Thread Starter

DarKris's Avatar

Join Date: Dec 2015
Location: Buffalo, NY
Posts: 363

Bikes: Giant Toughroad SLR GX 1 (2018), Specialized Hellga (2017), Nashbar Cyclocross Bike (Custom)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Convert fat bike to drop bar..... Should I?

So I recently came into ownership of a fat bike and the unique thing about it is that the top tube and overall reach is short enough that I can reasonably convert to drop bars. The question is: should I?

Usually the main issue with conversions is the cost. However I scored a used pair of SRAM Rival 2x10 shifters for a little over $110 that should work with my X5 front and rear derailleurs from all the other bikes that I’ve seen running SRAM MTB derailleurs with SRAM Road shifters. I also have a pair of Specialized Hover Flare drop bars (46cm) that I was using on my Toughroad which I took off and put the stock drops back on it, and the stem on my fat bike should be short enough that the overall reach would be identical to my Toughroad. Lastly I ordered a pair of brake calipers for ~$60 that will work with road brakes, and I have all the necessary cables as well.

So I definitely can convert this bike, but I’m wondering if it would be in my best interest to do so or to just find some better flat bars like a Jones bar? This bike will basically be my winter bike and the bike I take to explore new mtb trails, however my main plan will just be riding around the city in the winter and messing around with it. I did a test ride with the flat bars and my hands were aching after finishing my 2 mile gravel loop, which is what usually happens when I ride with any flat bar bike.

TL: DR - Flat bars are uncomfortable for me and I have 90% of what I need to convert my fat bike to drop bars. Should I do it or should I get Jones Bars (and a longer stem) instead?
DarKris is offline
Reply With Quote
Old 02-17-19, 09:59 AM
  #2
Spoonrobot
Senior Member

Spoonrobot's Avatar

Join Date: Jul 2006
Posts: 3,002
Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 883 Post(s)
Drops on fat bikes look cool. Ask Hypno Toad.
Spoonrobot is offline
Reply With Quote
Old 02-17-19, 11:03 AM
  #3
mstateglfr
Sunshine

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Posts: 7,679

Bikes: '87 Miyata 912, '87 Schwinn Prelude, '90 Fuji Saratoga, Black Mountain Cycles Monstercross V4, '89 Novara/Centurion Ironman, '18 Diamondback Syncr, '18 handmade steel roadbike

Mentioned: 72 Post(s)
Tagged: 0 Thread(s)
Quoted: 2639 Post(s)
The setup you have is uncomfortable and you aren't sure if you should change it to something you like?
yeah- change it to drops.

as mentioned, @hypnotoad rocks what you describe and rides all across his state with a dropped fatty. <---- I am shamed for typing that.
mstateglfr is offline
Reply With Quote
Old 02-17-19, 05:11 PM
  #4
wheelsmcgee
Senior Member

Join Date: Jun 2014
Posts: 383
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 66 Post(s)
You should definitely do it...drop bar fatties are as awesome as they look! Plus, you seem to have the parts and/or are ordering them. Doooo-eeeeet!

I have a cheapo BD fatbike (was sold as 29x3, but itís a fatbike frame...currently running 29x2.2). I converted it to drop bar, because:
1. Aero - Iím not winning any races but I go fast on downhills and the Kansas wind is often a factor.
2. Comfort - I need to adjust hand/back position on long rides.
3. Why not?

I tried Jones bars first...they have lots of good hand positions but youíll notice as you run through each of them, your back barely budges. With the right stem, you can have upright or aero, but not both IMO.

I am also running Sram 2x10 with an x5 rear derailer. I thought about buying some apex or rival levers, but that along with new (short pull) disk calipers was more than I wanted to spend not being sure how much I would like the end product. So in the spirit of the bike i was working with, I went cheap: I bored out the flat bar shifter clamps to fit drop bar diameter (I attach them on the drops, just before the hook). I then got a pair of Tektro RL520 drop bar brake levers that work with long pull brakes.

I thought the shifting would bug me, but it actually works pretty well for what I use it for...a fun tooling around bike on some shorter rides, or for longer rides up to a couple hours when the roads suck and I need a more serious tire.
wheelsmcgee is offline
Reply With Quote
Old 02-17-19, 05:25 PM
  #5
thehammerdog
Senior Member

thehammerdog's Avatar

Join Date: Dec 2007
Location: NWNJ
Posts: 2,567

Bikes: Road bike is a Carbon Bianchi C2C & Grandis (1980's), Gary Fisher Mt Bike, Trek Tandem & Mongoose SS MTB circa 1992.

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 187 Post(s)
Originally Posted by DarKris View Post
So I recently came into ownership of a fat bike and the unique thing about it is that the top tube and overall reach is short enough that I can reasonably convert to drop bars. The question is: should I?

Usually the main issue with conversions is the cost. However I scored a used pair of SRAM Rival 2x10 shifters for a little over $110 that should work with my X5 front and rear derailleurs from all the other bikes that Iíve seen running SRAM MTB derailleurs with SRAM Road shifters. I also have a pair of Specialized Hover Flare drop bars (46cm) that I was using on my Toughroad which I took off and put the stock drops back on it, and the stem on my fat bike should be short enough that the overall reach would be identical to my Toughroad. Lastly I ordered a pair of brake calipers for ~$60 that will work with road brakes, and I have all the necessary cables as well.

So I definitely can convert this bike, but Iím wondering if it would be in my best interest to do so or to just find some better flat bars like a Jones bar? This bike will basically be my winter bike and the bike I take to explore new mtb trails, however my main plan will just be riding around the city in the winter and messing around with it. I did a test ride with the flat bars and my hands were aching after finishing my 2 mile gravel loop, which is what usually happens when I ride with any flat bar bike.

TL: DR - Flat bars are uncomfortable for me and I have 90% of what I need to convert my fat bike to drop bars. Should I do it or should I get Jones Bars (and a longer stem) instead?
Holmes do it Join the Club good times
thehammerdog is offline
Reply With Quote
Old 02-17-19, 07:48 PM
  #6
Ghazmh
Senior Member

Ghazmh's Avatar

Join Date: Jan 2014
Location: Waltham Ma
Posts: 934

Bikes: 2018 Seven Redsky XX, 2017 Trek Boon 7, 2016 Soma Smoothie, 2014 Trek 520, 2006 Gary Fisher Montare

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 267 Post(s)
I’d do it.
Ghazmh is offline
Reply With Quote
Old 02-18-19, 04:15 PM
  #7
Caliper
Senior Member

Join Date: May 2014
Location: Michigan
Posts: 678

Bikes: Many

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 199 Post(s)
As the owner of a drop bar 29er, I'd do it. I find flat bars uncomfortable as well. If you are still using this bike offroad a fair bit, I'd also consider a drop bar with some flare to it.
I've also got 2x10 SRAM Rival shifters working an X7 FD and X9 RD so I can vouch for the interchangeability of SRAM 10sp parts between road and MTB. I used Avid BB7-R calipers and Jagwire cable-disc-specific cables. The cable housing is run full length and honestly the feel is right on with the flat bar hydraulics that came off the bike originally.

Do budget for some playing around with stem length to match the drop bars, but used stems are cheap on eBay.
Caliper is offline
Reply With Quote
Old 02-18-19, 07:18 PM
  #8
DarKris
Senior Member
Thread Starter

DarKris's Avatar

Join Date: Dec 2015
Location: Buffalo, NY
Posts: 363

Bikes: Giant Toughroad SLR GX 1 (2018), Specialized Hellga (2017), Nashbar Cyclocross Bike (Custom)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Originally Posted by Caliper View Post
As the owner of a drop bar 29er, I'd do it. I find flat bars uncomfortable as well. If you are still using this bike offroad a fair bit, I'd also consider a drop bar with some flare to it.
I've also got 2x10 SRAM Rival shifters working an X7 FD and X9 RD so I can vouch for the interchangeability of SRAM 10sp parts between road and MTB. I used Avid BB7-R calipers and Jagwire cable-disc-specific cables. The cable housing is run full length and honestly the feel is right on with the flat bar hydraulics that came off the bike originally.

Do budget for some playing around with stem length to match the drop bars, but used stems are cheap on eBay.
So I came across a pair of inexpensive Mech-to-hydro road/mtb calipers on Amazon for about $60 which should be interesting to try. So for now the only thing I would need is the compressionless brake housing (already have cables) and some bar tape.

The great thing about the fat bike that I bought is that with the stem it comes with the reach that I measured from the center of the saddle to the center of the stem/bars is about identical to my Giant Toughroad GX which is also a drop bar bike. So I "shouldn't" need a new stem if all things work as intended
DarKris is offline
Reply With Quote
Old 02-19-19, 08:26 AM
  #9
Caliper
Senior Member

Join Date: May 2014
Location: Michigan
Posts: 678

Bikes: Many

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 199 Post(s)
Looking forward to pics!
Caliper is offline
Reply With Quote
Old 02-19-19, 08:47 AM
  #10
chas58
Senior Member

chas58's Avatar

Join Date: Jul 2010
Location: Michigan
Posts: 3,285

Bikes: too many of all kinds

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 609 Post(s)
Do it because it is fun, but not to fix anything.

The leverage of wider fat bars is definitely an advantage at fat bike speeds. Its what the bike was designed for. If your hands are aching with a flat bar, I would suspect something is wrong with your fit. Something swept back (like Jones) could help position your wrists at a better angle, and personally I love the comfort of Ergon grips on a flat bar.

I don't like flat bars, but I would dislike drop bars on a fat bike even more.
chas58 is offline
Reply With Quote
Old 02-19-19, 09:51 PM
  #11
DarKris
Senior Member
Thread Starter

DarKris's Avatar

Join Date: Dec 2015
Location: Buffalo, NY
Posts: 363

Bikes: Giant Toughroad SLR GX 1 (2018), Specialized Hellga (2017), Nashbar Cyclocross Bike (Custom)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
So here's the deal so far:

I just got my bike back from the shop for a tune up and my intent is to ride to bike for the rest of the winter as it, just to get a better feeling for the bike. What I will say is that fixing my bar positioning from the initial test ride did help a bit, however I haven't had a chance to do an extended ride to see how I feel comfort wise.

What I want out of this bike is to basically be my winter bike (if there's snow/ice on the ground, I'm riding this) and my trail bike in the summer. Granted I have not ridden any local mtb trails at all really so I wouldn't know what to expect. At this point however I have all the parts I'd need to pull a conversion off minus bar tape.

I was 100% going to commit, now I'm a little bit more nervous/anxious about it. I think I'll figure something out about it after giving myself more time to ride the bike.
DarKris is offline
Reply With Quote
Old 02-21-19, 11:02 PM
  #12
DarKris
Senior Member
Thread Starter

DarKris's Avatar

Join Date: Dec 2015
Location: Buffalo, NY
Posts: 363

Bikes: Giant Toughroad SLR GX 1 (2018), Specialized Hellga (2017), Nashbar Cyclocross Bike (Custom)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
So I decided to play around with my potential bar/stem setup for the conversion.








The stock stem is a 70mm 6 degree rise stem. The Giant stem is an 80mm 20 degree stem with a bit more stack compared to the stock Specialized stem so I had to remove a 10mm spacer from under the stem to fit.

I like the rise of the stem paired with the rise is the Flared Hover bars which are 46cm wide. I didnít want to change stems but I think Iíd want a 75mm stem with 24 degree rise if Iíd want to do any technical stuff with the drops. If I didnít already mention it, this bike has a 594mm effective top tube which for a MTB is short enough to where the stock stem wouldnít be too stretched out.
DarKris is offline
Reply With Quote
Old 02-22-19, 08:32 AM
  #13
valve_timing
Junior Member

Join Date: Dec 2018
Posts: 8
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
interested in this conversion keep us updated !!
valve_timing is offline
Reply With Quote
Old 02-22-19, 09:43 AM
  #14
Happy Feet
Senior Member

Happy Feet's Avatar

Join Date: Sep 2015
Posts: 2,902
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 1081 Post(s)
You probably know this but those bars on that stem really change the fit of the bike. If you bought the flat bar version sized right that may be an issue. Toggle between the two pics to see how much longer the reach is riding the hoods or drops compared to the original flats. I would try riding around with the flat bars zip tied up so you can check that out before committing. I find a long reach ruins my balance in the saddle and I put too much pressure on my hands.
Happy Feet is offline
Reply With Quote
Old 02-22-19, 10:46 AM
  #15
DarKris
Senior Member
Thread Starter

DarKris's Avatar

Join Date: Dec 2015
Location: Buffalo, NY
Posts: 363

Bikes: Giant Toughroad SLR GX 1 (2018), Specialized Hellga (2017), Nashbar Cyclocross Bike (Custom)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Originally Posted by Happy Feet View Post
You probably know this but those bars on that stem really change the fit of the bike. If you bought the flat bar version sized right that may be an issue. Toggle between the two pics to see how much longer the reach is riding the hoods or drops compared to the original flats. I would try riding around with the flat bars zip tied up so you can check that out before committing. I find a long reach ruins my balance in the saddle and I put too much pressure on my hands.
I think my plan will involve comparing the reach to my Toughroad GX with the drop bars installed. The overall reach on this bike is shorter than most other fat bikes of this size.
DarKris is offline
Reply With Quote
Old 02-22-19, 09:03 PM
  #16
DarKris
Senior Member
Thread Starter

DarKris's Avatar

Join Date: Dec 2015
Location: Buffalo, NY
Posts: 363

Bikes: Giant Toughroad SLR GX 1 (2018), Specialized Hellga (2017), Nashbar Cyclocross Bike (Custom)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)

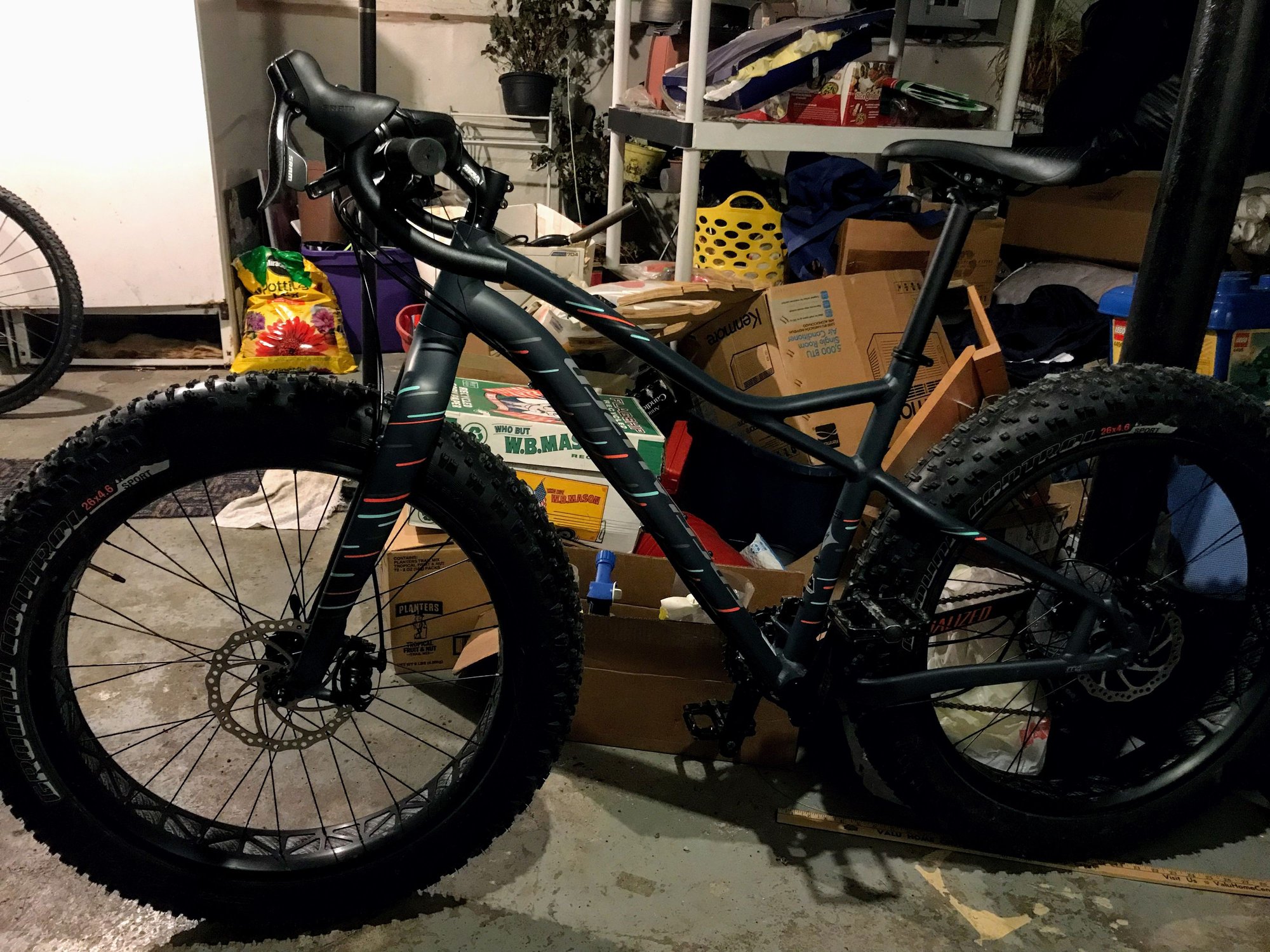

Update: Got a slightly different stem and some bar tape from the LBS. This stem has a 25mm rise and is 80mm as well however the Giant stem was, well, giant. I had to remove a spacer from my steerer tube to get it to fit. This stem works with the stock set of spacers.





The shop I believe has a Specialized stem thats 75mm and 24 degree rise, at least it said they had it in stock online and the same price as the stem I got, so if they have it I'm going to return this stem for that one. It's weird but I think it'll complete the look that I'm going for.

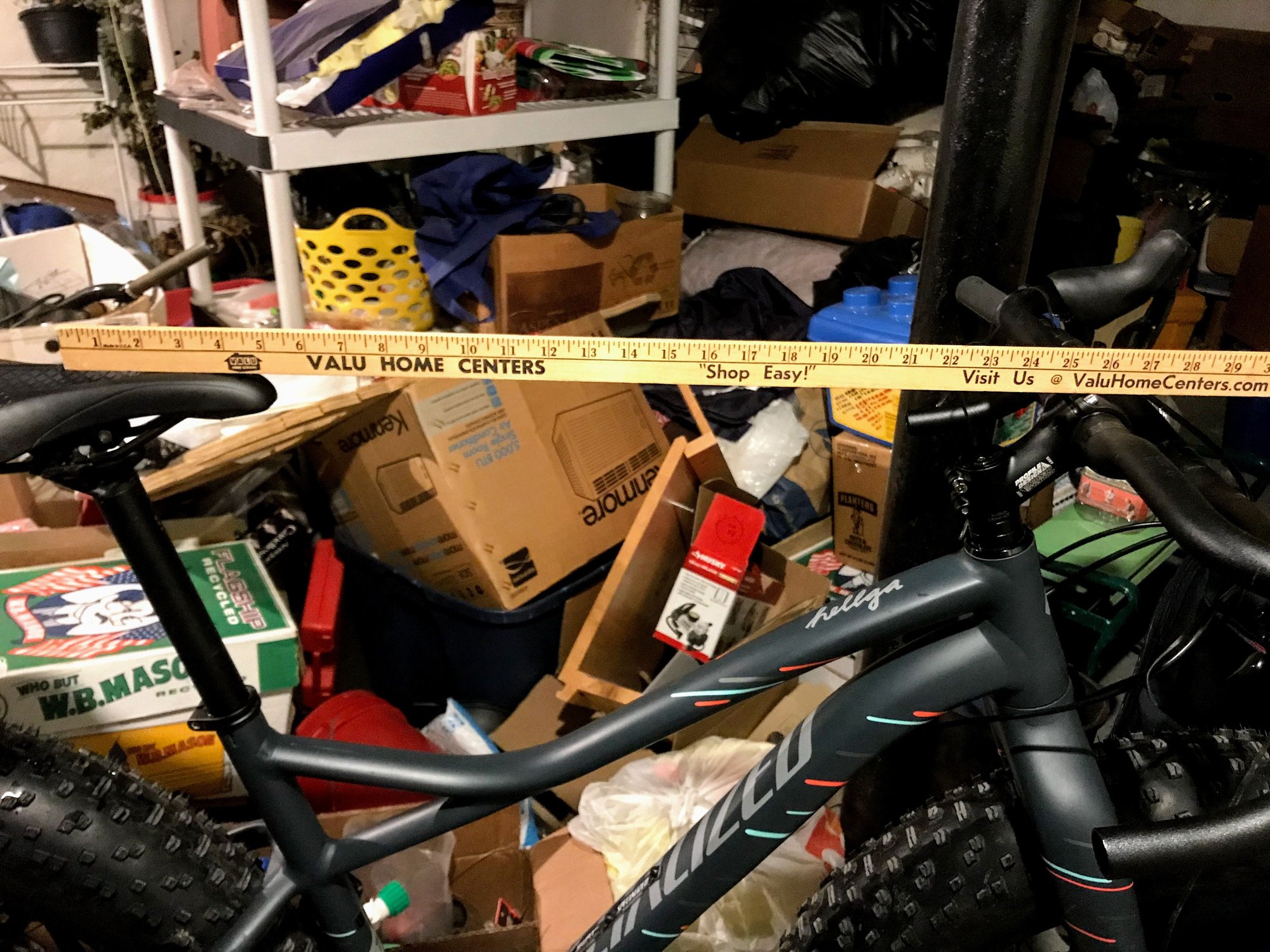

Also wanted to do some side by sides with my Toughroad to show how close they are.








Lastly one important note: I have both saddles pushed as far back on the rails as possible, however the Hellga's seatpost has a 12.5mm offset whereas the Toughroad's seatpost has no offset. I would tweak the saddle position once I had the bars fully installed.

Last part that I "need" arrives Monday so sometime next week should be the finalization of this pet project

Last edited by DarKris; 02-22-19 at 09:15 PM.
DarKris is offline
Reply With Quote
Old 02-23-19, 07:12 AM
  #17
wheelsmcgee
Senior Member

Join Date: Jun 2014
Posts: 383
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 66 Post(s)
Looks awesome! it may not break any landspeed records with those tires, but I bet itíll be a blast to ride.

Monstercross taken to a new level. Monsterboss? Monsterhoss?
wheelsmcgee is offline
Reply With Quote
Old 02-23-19, 07:35 AM
  #18
DarKris
Senior Member
Thread Starter

DarKris's Avatar

Join Date: Dec 2015
Location: Buffalo, NY
Posts: 363

Bikes: Giant Toughroad SLR GX 1 (2018), Specialized Hellga (2017), Nashbar Cyclocross Bike (Custom)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Originally Posted by wheelsmcgee View Post
Looks awesome! it may not break any landspeed records with those tires, but I bet itíll be a blast to ride.

Monstercross taken to a new level. Monsterboss? Monsterhoss?
Its my ďis there any amount of snow on the groundĒ bike whereas my Toughroad is definitely my ďgo fastĒ gravel bike in comparison.
DarKris is offline
Reply With Quote
Old 02-23-19, 07:55 AM
  #19
Lemond1985
Senior Member

Lemond1985's Avatar

Join Date: Jan 2019
Posts: 621
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 320 Post(s)
I hope you gets lots of miles off this setup. I have 2 MTB's and 2 hybrids that I tried switching from flat bars to drop bars.

I found it really super-tough project to go from flat to drop bar, not so much in the measurements, but coming up with something that's actually comfortable to ride. I ultimately gave up on all 4 projects, I just could not get myself comfortable on those bikes, they never felt right, especially when sprinting from the drops. Hopefully your mileage varies.
Lemond1985 is offline
Reply With Quote
Old 02-24-19, 03:43 PM
  #20
DarKris
Senior Member
Thread Starter

DarKris's Avatar

Join Date: Dec 2015
Location: Buffalo, NY
Posts: 363

Bikes: Giant Toughroad SLR GX 1 (2018), Specialized Hellga (2017), Nashbar Cyclocross Bike (Custom)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Originally Posted by Lemond1985 View Post
I hope you gets lots of miles off this setup. I have 2 MTB's and 2 hybrids that I tried switching from flat bars to drop bars.

I found it really super-tough project to go from flat to drop bar, not so much in the measurements, but coming up with something that's actually comfortable to ride. I ultimately gave up on all 4 projects, I just could not get myself comfortable on those bikes, they never felt right, especially when sprinting from the drops. Hopefully your mileage varies.
I'm in a pretty unique position so I think this might end up turning out very well. I'm confident that this will end up being really nice to ride
DarKris is offline
Reply With Quote
Old 02-24-19, 06:34 PM
  #21
BluesDawg
just keep riding

BluesDawg's Avatar

Join Date: Feb 2005
Location: Milledgeville, Georgia
Posts: 13,532

Bikes: 2018 Black Mountain Cycles MCD,2017 Advocate Cycles Seldom Seen Drop Bar, 2017 Niner Jet 9 Alloy, 2015 Zukas custom road, 2003 KHS Milano Tandem, 1986 Nishiki Cadence rigid MTB, 1980ish Fuji S-12S

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 161 Post(s)
Looks like a fun project and a cool bike. Don't rule out using an even higher rise stem to get those bars up a bit higher. With drop bar MTBs, most people prefer to get the drop position up to the height where the grips of a flat bar would be so the drop position becomes the home position rather than the hoods as with a road or gravel bike's drop bars. That is how I set up my Seldom Seen and it works very well.

Last edited by BluesDawg; 02-24-19 at 06:38 PM.
BluesDawg is offline
Reply With Quote
Old 02-26-19, 09:24 PM
  #22
DarKris
Senior Member
Thread Starter

DarKris's Avatar

Join Date: Dec 2015
Location: Buffalo, NY
Posts: 363

Bikes: Giant Toughroad SLR GX 1 (2018), Specialized Hellga (2017), Nashbar Cyclocross Bike (Custom)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
So today I set up the brakes to the Rival shifters and since the 22-11 gearing that it was stuck in wasnít too low of a gear I was able to test ride it to get a better feel of the bar and saddle positions.

Oooooooooo boy it was fun 😁

Last edited by DarKris; 02-27-19 at 07:37 PM.
DarKris is offline
Reply With Quote
Old 02-27-19, 07:56 PM
  #23
DarKris
Senior Member
Thread Starter

DarKris's Avatar

Join Date: Dec 2015
Location: Buffalo, NY
Posts: 363

Bikes: Giant Toughroad SLR GX 1 (2018), Specialized Hellga (2017), Nashbar Cyclocross Bike (Custom)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
So this will probably be my last update to this but I should be getting my shift cables + housing tomorrow & then it's all a mater of dialing that in & wrapping the bars. I plan on making a new thread basically going into more details with my thought process with the conversion.

Also it snowed a lot today, so I took advantage of it...

DarKris is offline
Reply With Quote

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service
