Max tire width for rim with OEM 28-622

Old 04-04-20, 01:00 AM
  #1
elcyc
Senior Member
Thread Starter

elcyc's Avatar

Join Date: Jul 2014
Location: So. California
Posts: 102

Bikes: Gary Fisher Advance (1993, heavily modded); Fuji Absolute 2.0 (2010; modded)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Liked 2 Times in 2 Posts
Max tire width for rim with OEM 28-622

My Fuji Absolute 2.0 hybrid bike came stock with size 28-622 (700x28c) tires. I measured the rim with an outer width = 23mm.
What's the maximum tire width that YOU would feel comfortable using on the same rim?
elcyc is offline
Old 04-04-20, 01:18 AM
  #2
Leisesturm
Senior Member

Join Date: Jul 2005
Posts: 4,356
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 1547 Post(s)
Liked 161 Times in 126 Posts
It's the inside width that matters with tire size. Some Googling brought up specs on your Absolute: Jalco DT21 rims (22mm outside width/16mm inside width) there is huge range of tires that will work and there is no agreement between tire makers. One brand may say nothing bigger than 35mm for that rim, and another might well say nothing bigger than 40mm. However, you may well find that nothing bigger than 32ish even fits under the brake bridge. Isn't customizing fun?
Leisesturm is offline
Likes For Leisesturm:
Old 04-04-20, 01:50 AM
  #3
base2
Random Internet Person.

base2's Avatar

Join Date: Jun 2015
Location: Pacific Northwest
Posts: 1,246

Bikes: 5 good ones, and the occasional project.

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 659 Post(s)
Liked 202 Times in 125 Posts
I'd fit whatever fits between the frame with at least/about 4 or 5 millimeters clearance for mud/rocks/debris/etc...to clear.

You don't want the "light bulb" effect though.
__________________
My lights are obscenly bright because drivers are dim.

I shouldn't have to "make myself more visible;" Drivers should just stop running people over.
base2 is offline
Likes For base2:
Old 04-04-20, 04:54 AM
  #4
elcyc
Senior Member
Thread Starter

elcyc's Avatar

Join Date: Jul 2014
Location: So. California
Posts: 102

Bikes: Gary Fisher Advance (1993, heavily modded); Fuji Absolute 2.0 (2010; modded)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Liked 2 Times in 2 Posts
RIMS: Jalco Double Wall Alloy 32H

Originally Posted by Leisesturm View Post
It's the inside width that matters with tire size. Some Googling brought up specs on your Absolute: Jalco DT21 rims (22mm outside width/16mm inside width)
Thx for your reply!
Where in Google did you find that Jalco DT21 ref. Maybe here?
Here is the official Fuji page on my 2010 model year Absolute 2.o:
https://archive.fujibikes.com/2010/Fuji/absolute-20-usa
RIMS: Jalco Double Wall Alloy 32H (nothing more specific) And I can find no printed / stamped info on my actual rims.
If they are Jalco 21's here is the "official" specs Jalco page:
DT 21 Rims for X-country, and Trekking bikes - JALCO (MADDUX) Industry Co., Ltd.
23mm out/18mm in.
My brakes are disc.
About reason to change from stock 28 to 32 tires ... want more comfort.
elcyc is offline
Old 04-04-20, 09:42 AM
  #5
smashndash
Senior Member

Join Date: Feb 2018
Posts: 828

Bikes: 2017 Specialized Allez Sprint Comp

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 489 Post(s)
Liked 112 Times in 84 Posts
I have used 2.1Ē tires on 15mm rims offroad. On 16 to 18mm rims, youíll have 0 issues with any road bike tire, so long as you inflate them high enough.

Wider rims have gotten fashionable because, in conjunction with tubeless, they allow you to run lower pressures with fewer bad consequences.
smashndash is offline
Likes For smashndash:
Old 04-04-20, 10:10 AM
  #6
elcyc
Senior Member
Thread Starter

elcyc's Avatar

Join Date: Jul 2014
Location: So. California
Posts: 102

Bikes: Gary Fisher Advance (1993, heavily modded); Fuji Absolute 2.0 (2010; modded)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Liked 2 Times in 2 Posts
Walmart tires

Originally Posted by smashndash View Post
I have used 2.1” tires on 15mm rims offroad. On 16 to 18mm rims, you’ll have 0 issues with any road bike tire, so long as you inflate them high enough.
This is useful -- thx!
One of the reason I asked was that the quickest/nearest tire resource is Walmart. Their only in-store 700 tires is:

Bell Sports Flat Defense Road Bike Tire, 700c x 32-45c, Black ($21/each)


I have no idea what 32-45c can mean ??? That's a pretty wide range.And does it mean the tire's ideal dimensions are for 45c??
elcyc is offline
Old 04-04-20, 10:34 AM
  #7
Leisesturm
Senior Member

Join Date: Jul 2005
Posts: 4,356
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 1547 Post(s)
Liked 161 Times in 126 Posts
Originally Posted by elcyc View Post
This is useful -- thx!
One of the reason I asked was that the quickest/nearest tire resource is Walmart. Their only in-store 700 tires is:

Bell Sports Flat Defense Road Bike Tire, 700c x 32-45c, Black ($21/each)


I have no idea what 32-45c can mean ??? That's a pretty wide range.And does it mean the tire's ideal dimensions are for 45c??
That sounds more like a description of an inner tube rather than a tire. In any case, you can do better than this for your Fuji. Look to Schwalbe or Bontrager for flat defense 700c tires.
Leisesturm is offline
Old 04-04-20, 10:53 AM
  #8
smashndash
Senior Member

Join Date: Feb 2018
Posts: 828

Bikes: 2017 Specialized Allez Sprint Comp

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 489 Post(s)
Liked 112 Times in 84 Posts
Originally Posted by elcyc View Post
This is useful -- thx!
One of the reason I asked was that the quickest/nearest tire resource is Walmart. Their only in-store 700 tires is:

Bell Sports Flat Defense Road Bike Tire, 700c x 32-45c, Black ($21/each)


I have no idea what 32-45c can mean ??? That's a pretty wide range.And does it mean the tire's ideal dimensions are for 45c??
So there are two sizes to deal with here. Your rim width (inner), and your tire size. Of course, your rim width is not going to change. Itís 18mm. Thatís pretty standard for a road bike.

The sizes being indicated here are tire sizes for sure. Not wheel sizes. Unfortunately, I think it was worded this way because many people donít know the difference between a wheel, rim, tube and tire.

So I think this tire probably measures something like 35c. But itís marketed to replace tires from 32c to 45c.

It doesnít seem to be a very high quality tire. If you can manage it, Iíd recommend something like this:
https://planetcyclery.com/continenta...BoCbAwQAvD_BwE
smashndash is offline
Old 04-04-20, 11:17 AM
  #9
elcyc
Senior Member
Thread Starter

elcyc's Avatar

Join Date: Jul 2014
Location: So. California
Posts: 102

Bikes: Gary Fisher Advance (1993, heavily modded); Fuji Absolute 2.0 (2010; modded)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Liked 2 Times in 2 Posts
Originally Posted by smashndash View Post

It doesnít seem to be a very high quality tire. If you can manage it, Iíd recommend something like this:
https://planetcyclery.com/continenta...BoCbAwQAvD_BwE
Yeah ..I was only toying with the idea of using Walmart. I pass by it on my regular cycle route, so if that now-twice-repaired Kenda failed me again en route, I may just give some biz to Sam Walton.
Usually, I order from Amazon. And Conti's are what I've always gotten for my other bike. It seems, however, that Conti quality has gone down a bit. I purch'd some Top Touring 2000's (26x1.175), back in Jul 2004. Those lasted until Jun. 2014 (~11k miles!!). I replaced with the equivalent Touring model in 2014, biking same routes and miles/week, and I'm starting to see much of the yellow inner tread as well as side wall cracking, and all the reflective sidewall has peeled away. In fact, I actually saved my front 2004 tire because it was not too bad. And I replaced the 2014 rear with the 2004!!
Who knows, maybe the Walmart tire may be COMPARATIVELY okay after all!
elcyc is offline
Old 04-04-20, 03:30 PM
  #10
Nyah
Senior Member

Join Date: Sep 2018
Location: Shenandoah Valley, Northern Virginia.
Posts: 172

Bikes: '99 Trek 520, Konacado ('20 Kona Sutra).

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Likes: 0
Liked 28 Times in 21 Posts
I had Conti TopTouring 2000 in 32mm back in 2000 and they got replaced with Schwalbe Marathon 35mm. The Schwalbes have a somewhat similar tread pattern but are way better. I recommend ordering them from Universal Cycles and having them shipped via USPS Priority Mail.
Nyah is offline
Old 04-04-20, 04:56 PM
  #11
elcyc
Senior Member
Thread Starter

elcyc's Avatar

Join Date: Jul 2014
Location: So. California
Posts: 102

Bikes: Gary Fisher Advance (1993, heavily modded); Fuji Absolute 2.0 (2010; modded)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Liked 2 Times in 2 Posts
About that tire width dimension ... how is that actually engineered in the industry?
It's easy to grasp the inner/outer width of a solid component like the rim. But dimensioning the width of a soft, rubbery component like a tire ... ???
In a way, the Bell's ballpark approach (32-45c) makes sense!!
elcyc is offline
Old 04-04-20, 05:05 PM
  #12
elcyc
Senior Member
Thread Starter

elcyc's Avatar

Join Date: Jul 2014
Location: So. California
Posts: 102

Bikes: Gary Fisher Advance (1993, heavily modded); Fuji Absolute 2.0 (2010; modded)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Liked 2 Times in 2 Posts
Originally Posted by Nyah View Post
I had Conti TopTouring 2000 in 32mm back in 2000 and they got replaced with Schwalbe Marathon 35mm. The Schwalbes have a somewhat similar tread pattern but are way better. I recommend ordering them from Universal Cycles and having them shipped via USPS Priority Mail.
The Schwalbe is a GREAT tire. But $84/pair is steep. And I don't like tires that are difficult to install. The Conti's are somewhat difficult to install (need extra strong levers!); Schwalbe are even more difficult ??? from what I've read.

Last edited by elcyc; 04-05-20 at 08:40 AM.
elcyc is offline
Old 04-04-20, 05:47 PM
  #13
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 21,308

Bikes: Several, mostly not name brands.

Mentioned: 125 Post(s)
Tagged: 0 Thread(s)
Quoted: 2080 Post(s)
Liked 432 Times in 306 Posts
Originally Posted by elcyc View Post
My Fuji Absolute 2.0 hybrid bike came stock with size 28-622 (700x28c) tires. I measured the rim with an outer width = 23mm.
What's the maximum tire width that YOU would feel comfortable using on the same rim?
Whatever fits through your frame and fork.
JohnDThompson is offline
Old 04-04-20, 06:06 PM
  #14
Nyah
Senior Member

Join Date: Sep 2018
Location: Shenandoah Valley, Northern Virginia.
Posts: 172

Bikes: '99 Trek 520, Konacado ('20 Kona Sutra).

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Likes: 0
Liked 28 Times in 21 Posts
Originally Posted by elcyc View Post
The Schwalbe is a GREAT tire. But $84/pair is steep. And I don't like tires that are difficult to install. The Conti's are somewhat difficult to install (need extra strong levers!); Schwalbe ever more difficult from what I've read.
Schwalbe Marathon classics aka Marathon w/Greenguard aka Marathon originals aka Marathons are priced more like $70/pair, one of Schwalbe's lesser-priced tires but rated very good on BicycleRollingResistance .com for a touring tire. It sounds like you read about some other tire because this model was very easy for me to change, even as the first tire I ever did. I just used run-o-the-mill plastic Trek-branded levers.
Nyah is offline
Old 04-04-20, 07:15 PM
  #15
Ironfish653
Senior Member

Join Date: Oct 2015
Location: Virginia Beach
Posts: 1,171

Bikes: 1997 Cannondale, 1976 Bridgestone, 1998 Softride

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 398 Post(s)
Liked 104 Times in 73 Posts
Originally Posted by elcyc View Post
About that tire width dimension ... how is that actually engineered in the industry?
It's easy to grasp the inner/outer width of a solid component like the rim. But dimensioning the width of a soft, rubbery component like a tire ... ???
In a way, the Bell's ballpark approach (32-45c) makes sense!!
Tire width is a nominal measurement, and thereís a number of things that can change the actual measured size from wheel to wheel and tire (brand) to tire.
Usually, a road tire is based on a 17mm rim, although wider rims will make the same tire measure wider, and at the extreme, not quite as tall.
Also, some tire brands and models measure more true to size than others, but really itís +/- 1~2 mm in most cases.
Thereís really no such thing as a 32-45mm tire. Tires donít stretch. I agree with the above, that it sounds a lot more like an inner tube size (tubes do stretch) unless they are offering the same tire in both 32mm and 40mm on the same listing, and you select the size when you order it.

The Bell / Wmart tires are probably rebranded CSTís (Cheng Shin) which is what you would find on a typical department store bike. Wmart doesnít really need the business, and you could do a lot better for your Fuji, for just a couple dollars more, somewhere like biketiresdirect.com
Ironfish653 is offline
Old 04-04-20, 07:56 PM
  #16
Reynolds
Passista

Reynolds's Avatar

Join Date: Jul 2005
Posts: 6,811

Bikes: 1998 Pinarello Asolo, 1992 KHS MontaŮa pro, 1980 Raleigh DL-1, IGH Hybrid, IGH Utility

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 562 Post(s)
Liked 125 Times in 87 Posts
Don't know about max width, but I use 40mm tires on 17mm inner width rims, zero problems.
Reynolds is online now
Old 04-04-20, 08:48 PM
  #17
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 1,373

Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 583 Post(s)
Liked 71 Times in 55 Posts
Originally Posted by base2 View Post
You don't want the "light bulb" effect though.
Another "theoretical" possibility with excessively wide tires on narrow rims is that tensile stress can predispose the rim to failure. I've had this happen on 3 consecutive 406-16 rims (Kinetix) on my folding commuter bike. Tires were 406-47, and this only happened on the rear wheel. The first sign of trouble was a "thumping" sensation on application of the rear brake. I initially thought this problem started with brake track wear that propagated into the center web of the rim, but one rim that failed this way had minimal brake track wear. I showed the failed rims to Bill Mould and he advised a wider rim. I took this advice and the current wheel has passed the mileage the others failed at, and appears to be trouble-free.

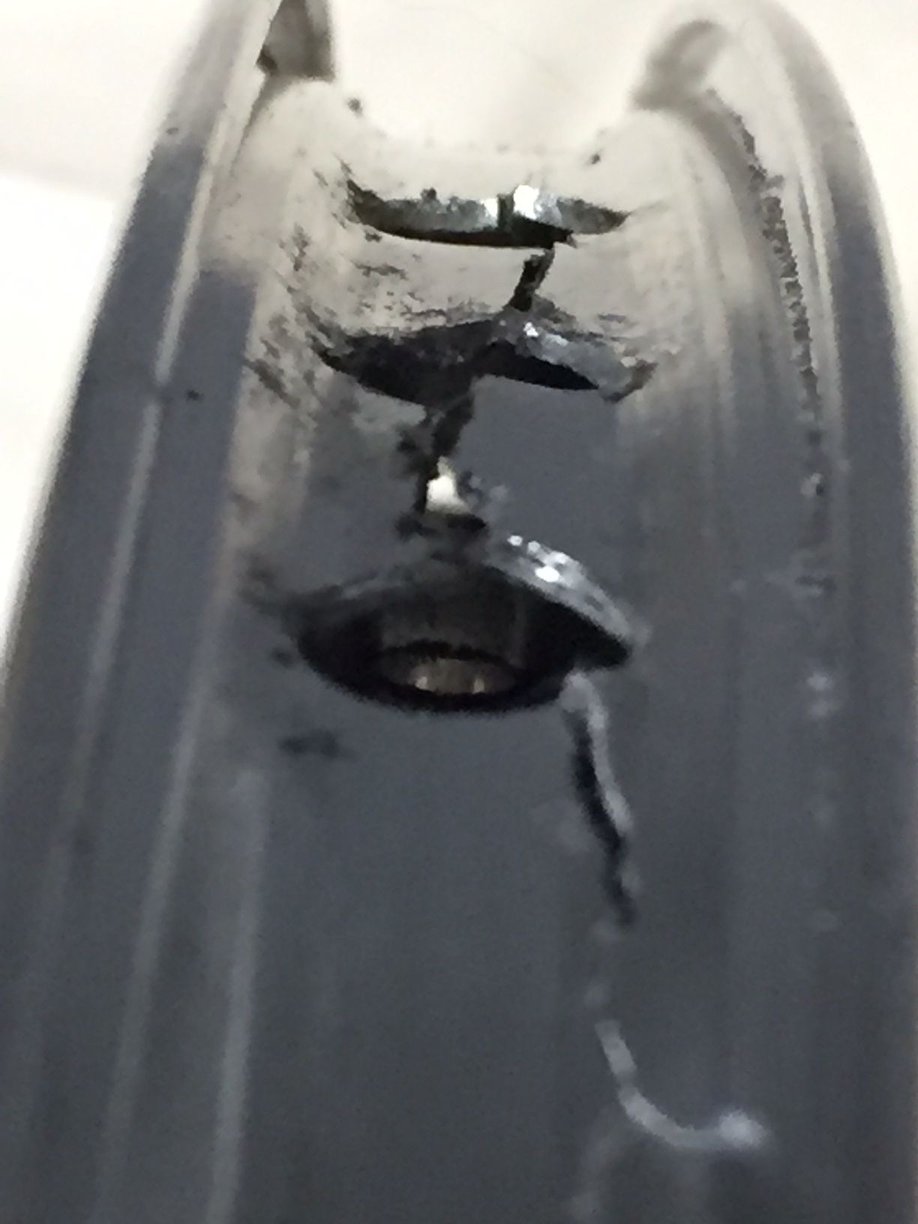

Tangential view

Radial view
sweeks is offline
Likes For sweeks:
Old 04-05-20, 02:49 PM
  #18
Leisesturm
Senior Member

Join Date: Jul 2005
Posts: 4,356
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 1547 Post(s)
Liked 161 Times in 126 Posts
Originally Posted by Ironfish653 View Post
Tire width is a nominal measurement, and thereís a number of things that can change the actual measured size from wheel to wheel and tire (brand) to tire.
Usually, a road tire is based on a 17mm rim, although wider rims will make the same tire measure wider, and at the extreme, not quite as tall.
Also, some tire brands and models measure more true to size than others, but really itís +/- 1~2 mm in most cases.
Thereís really no such thing as a 32-45mm tire. Tires donít stretch. I agree with the above, that it sounds a lot more like an inner tube size (tubes do stretch) unless they are offering the same tire in both 32mm and 40mm on the same listing, and you select the size when you order it.

The Bell / Wmart tires are probably rebranded CSTís (Cheng Shin) which is what you would find on a typical department store bike. Wmart doesnít really need the business, and you could do a lot better for your Fuji, for just a couple dollars more, somewhere like biketiresdirect.com
Exactly right. It does sound like a tube was being described. Except for the price! Still, it is hard to imagine that the same model tire could be sold in all sizes between 32mm and 45mm for the same (low) price. The larger sizes use quite a bit more of everything that goes into a tire. So nothing really can be learned from that product description. A pair of Schwalbe anythings will last for years and years. Well worth the $70 to $80 and more that they cost. But cheaper tires are available and will still be better than Bell: Kenda, Bontrager, Continental ...
Leisesturm is offline
Old 04-05-20, 03:14 PM
  #19
Ironfish653
Senior Member

Join Date: Oct 2015
Location: Virginia Beach
Posts: 1,171

Bikes: 1997 Cannondale, 1976 Bridgestone, 1998 Softride

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 398 Post(s)
Liked 104 Times in 73 Posts
Originally Posted by Leisesturm View Post
! Still, it is hard to imagine that the same model tire could be sold in all sizes between 32mm and 45mm for the same (low) price. The larger sizes use quite a bit more of everything that goes into a tire.
Seems to be pretty common practice for bike tires.
Conti TourRide comes in 28mm to 47mm (and 27 x 1-1/4" lol) Currently on sale for $19.96 for all sizes. The Michelin Protek 700c for $19.99 for a similar range of sizes.
https://www.biketiresdirect.com/prod...ride-tour-700c

Granted, these are inexpensive 'commuter' tires, although it seems to hold true for the more expensive rubber, too. Those just come in a narrower range of sizes.
Ironfish653 is offline
Old 04-06-20, 03:35 PM
  #20
smashndash
Senior Member

Join Date: Feb 2018
Posts: 828

Bikes: 2017 Specialized Allez Sprint Comp

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 489 Post(s)
Liked 112 Times in 84 Posts
Originally Posted by Ironfish653 View Post
Seems to be pretty common practice for bike tires.
Conti TourRide comes in 28mm to 47mm (and 27 x 1-1/4" lol) Currently on sale for $19.96 for all sizes. The Michelin Protek 700c for $19.99 for a similar range of sizes.
https://www.biketiresdirect.com/prod...ride-tour-700c

Granted, these are inexpensive 'commuter' tires, although it seems to hold true for the more expensive rubber, too. Those just come in a narrower range of sizes.
You misunderstood. One specific tire is actually labeled as 700 x 32c-45c
smashndash is offline
Old 04-06-20, 03:54 PM
  #21
Ironfish653
Senior Member

Join Date: Oct 2015
Location: Virginia Beach
Posts: 1,171

Bikes: 1997 Cannondale, 1976 Bridgestone, 1998 Softride

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 398 Post(s)
Liked 104 Times in 73 Posts
Originally Posted by Ironfish653 View Post
Seems to be pretty common practice for bike tires.
<snip>
Granted, these are inexpensive 'commuter' tires, although it seems to hold true for the more expensive rubber, too. Those just come in a narrower range of sizes.

Originally Posted by smashndash View Post
You misunderstood. One specific tire is actually labeled as 700 x 32c-45c
Well, you made me go to WMart.com to have a look, dang it.

You would be correct, but that's still bizzare. I noticed their 26" MTB 'Comfort tire' is also a 'Multi-fit': 1.75"-2.25"

More than likely, it's just the smallest size, ie 700x32 since, if a bike will fit 40's, it'll definitely fit 32's, but not the other way around.

Unless those tires are so cheap, that they can actually stretch 10mm when you inflate them
Ironfish653 is offline
Old 04-06-20, 04:02 PM
  #22
Miele Man
Senior Member

Join Date: Jun 2014
Location: Ontario, Canada
Posts: 3,422

Bikes: Miele Latina, Miele Suprema, Miele Uno SL, Miele MTB, Bianchi Model Unknown, Fiori Venezia, VeloSport Adamas AX

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 868 Post(s)
Liked 430 Times in 300 Posts
One thing to watch out for with really wide tires on narrow rims is what happens if the tire flats. I had 30mm Schwalbe CXPro cyclo-cross tires on narrow rims and every time a front tire went soft or punctured control was IMMEDIATELY lost.

Cheers
Miele Man is offline
Old 05-22-20, 08:44 PM
  #23
elcyc
Senior Member
Thread Starter

elcyc's Avatar

Join Date: Jul 2014
Location: So. California
Posts: 102

Bikes: Gary Fisher Advance (1993, heavily modded); Fuji Absolute 2.0 (2010; modded)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Liked 2 Times in 2 Posts
I just replaced the orig Kenda 28-622's with Continental Ride Tour City/Trekking 700x32.
Nice tire and an improved ride. However, at full inflation, I see absolutely no difference in tire width between the Kenda and new Conti's. I checked both tires printed sidewall dimensions. And, indeed, Kenda 28-622 (ie 700x28) and Conti 700x32.
What gives??
elcyc is offline
Old 05-23-20, 08:30 AM
  #24
elcyc
Senior Member
Thread Starter

elcyc's Avatar

Join Date: Jul 2014
Location: So. California
Posts: 102

Bikes: Gary Fisher Advance (1993, heavily modded); Fuji Absolute 2.0 (2010; modded)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 35 Post(s)
Liked 2 Times in 2 Posts
With a caliper, I just measured the new Conti's, fully inflated, at its widest spot. ~28mm !!!!!!!!!!!
I checked the packaging label and the tire's sidewall. Both say: 700x32.
So could it be the rim that's limiting the tire from expanding further?

The tire was purch'd from Amazon and was shipped from: Sold by: Northern Toy
elcyc is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
