Rear derailleur cable rubs tire

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Rear derailleur cable rubs tire

Old 05-17-20, 07:46 AM
  #1
Unca_Sam
The dropped
Thread Starter

Unca_Sam's Avatar

Join Date: Oct 2018
Location: Columbus, OH
Posts: 1,268

Bikes: Pake C'Mute Touring/Commuter Build, 1989 Kona Cinder Cone, 1995 Trek 5200

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 944 Post(s)
Liked 381 Times in 275 Posts
Rear derailleur cable rubs tire

I rode some gravel with the kids yesterday and noticed a rubbing sound at higher speed from the rear. I diagnosed it as the derailleur cable rubbing on the tire knobs. I have a 26x2.1 tire mounted in the frame, with plenty of space for wider, frame-wise. The bicycle sold with 2.0 tires, but has been through a wringer. I'm wondering if a different BB cable guide is the answer.

Cable is around 1 cm from chainstay centerline.

Current bottom bracket guide. Single bolt hole.
Unca_Sam is offline
Old 05-17-20, 08:13 AM
  #2
trailangel
Senior Member

trailangel's Avatar

Join Date: Feb 2014
Location: Pasadena, CA
Posts: 4,090

Bikes: Schwinn Varsity

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 1506 Post(s)
Liked 205 Times in 137 Posts
Maybe the guide can be adjusted. Loosen the bolt and see if you can push it more to the drive side. If not, take the guide off and file a slot in the plastic so you can move it over.
trailangel is offline
Old 05-17-20, 08:19 AM
  #3
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 1,647
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 270 Post(s)
Liked 72 Times in 58 Posts
Easiest possible solution is to just get a different, wider cable guide. Example here. https://blueskycycling.com/products/...yABEgKbs_D_BwE
Crankycrank is offline
Old 05-17-20, 08:46 AM
  #4
Unca_Sam
The dropped
Thread Starter

Unca_Sam's Avatar

Join Date: Oct 2018
Location: Columbus, OH
Posts: 1,268

Bikes: Pake C'Mute Touring/Commuter Build, 1989 Kona Cinder Cone, 1995 Trek 5200

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 944 Post(s)
Liked 381 Times in 275 Posts
Originally Posted by Crankycrank View Post
Easiest possible solution is to just get a different, wider cable guide. Example here. https://blueskycycling.com/products/...yABEgKbs_D_BwE
That's what I was thinking. The bike was a mishmash when I bought it, and it's possible that the original guide was lost. I'll have to see which LBS has one since I'm not interested in paying shipping for one of those.

Last edited by Unca_Sam; 05-17-20 at 08:51 AM.
Unca_Sam is offline
Old 05-17-20, 02:21 PM
  #5
Retro Grouch
Senior Member

Retro Grouch's Avatar

Join Date: Feb 2004
Location: St Peters, Missouri
Posts: 29,818

Bikes: Catrike 559 I own some others but they don't get ridden very much.

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1405 Post(s)
Liked 291 Times in 176 Posts
Probably going to be easier find a narrower tire than to find a wider cable guide that fits.
__________________
My greatest fear is all of my kids standing around my coffin and talking about "how sensible" dad was.
Retro Grouch is offline
Old 05-18-20, 06:32 AM
  #6
Moe Zhoost
Half way there

Moe Zhoost's Avatar

Join Date: Sep 2015
Location: Durham, NC
Posts: 2,007

Bikes: Many, and the list changes frequently

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 614 Post(s)
Liked 329 Times in 204 Posts
Originally Posted by Retro Grouch View Post
Probably going to be easier find a narrower tire than to find a wider cable guide that fits.
Well if you can't find a wider one, perhaps you can modify the one you have. Enlarge the slot so that you can move it a bit further to the drive side. It doesn't look like you need much. On the other hand, if you are looking for an excuse to buy a 3D printer, this may be it.
Moe Zhoost is offline
Old 05-18-20, 07:41 AM
  #7
Unca_Sam
The dropped
Thread Starter

Unca_Sam's Avatar

Join Date: Oct 2018
Location: Columbus, OH
Posts: 1,268

Bikes: Pake C'Mute Touring/Commuter Build, 1989 Kona Cinder Cone, 1995 Trek 5200

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 944 Post(s)
Liked 381 Times in 275 Posts
Originally Posted by Moe Zhoost View Post
Well if you can't find a wider one, perhaps you can modify the one you have. Enlarge the slot so that you can move it a bit further to the drive side. It doesn't look like you need much. On the other hand, if you are looking for an excuse to buy a 3D printer, this may be it.


I'm not sure it'd do much. I have the sp-17-t in my online cart, which seems like a great option. It looks like it could give me 5-10 mm to the right, which is all I need. I'd love measurements if anyone has them.



There aren't many choices for these out there. I had no idea generic BB guides were falling out of favor!
Unca_Sam is offline
Old 05-18-20, 08:10 AM
  #8
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 13,485

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2391 Post(s)
Liked 451 Times in 352 Posts
Poor cable routing on that bike. Much like our second tandem had. Until I brazed on different cable stops and guides (and then had a repaint) my solution was to make a small Al plate mounted to the chainstay bridge's boss and extended to the drive side stay. The plate had a second hole located under the stay that held a small bolt that had a through hole drilled through it. The cable went through this bolt's hole and thus took a dog leg away from the tire (in my case it was in the other direction, away from the granny ring). Here's a poor shot of this arrangement. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Old 05-18-20, 11:38 AM
  #9
grizzly59
Senior Member

Join Date: Aug 2016
Posts: 371
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 140 Post(s)
Liked 53 Times in 39 Posts
Check the cablestop on the chainstay near the RD. Angle of the cable doesn't look right.
grizzly59 is offline
Old 05-18-20, 12:15 PM
  #10
Unca_Sam
The dropped
Thread Starter

Unca_Sam's Avatar

Join Date: Oct 2018
Location: Columbus, OH
Posts: 1,268

Bikes: Pake C'Mute Touring/Commuter Build, 1989 Kona Cinder Cone, 1995 Trek 5200

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 944 Post(s)
Liked 381 Times in 275 Posts
Originally Posted by grizzly59 View Post
Check the cablestop on the chainstay near the RD. Angle of the cable doesn't look right.
As in I skipped it? It was seated properly. I took it apart this morning because I've been meaning to change the cable for the shifters to lengthen them a little.

I also wanted to measure the bolt to cable distance so if anyone chimes in with measurements of the blue one, I can estimate if it'll shift the cable far enough right. My son lost the damn thing though.
Unca_Sam is offline
Old 05-18-20, 01:26 PM
  #11
Unca_Sam
The dropped
Thread Starter

Unca_Sam's Avatar

Join Date: Oct 2018
Location: Columbus, OH
Posts: 1,268

Bikes: Pake C'Mute Touring/Commuter Build, 1989 Kona Cinder Cone, 1995 Trek 5200

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 944 Post(s)
Liked 381 Times in 275 Posts
Found it! The cable paths start 20mm apart, with the bolt hole precisely centered at about 10mm from each.
Unca_Sam is offline
Old 05-18-20, 03:42 PM
  #12
Unca_Sam
The dropped
Thread Starter

Unca_Sam's Avatar

Join Date: Oct 2018
Location: Columbus, OH
Posts: 1,268

Bikes: Pake C'Mute Touring/Commuter Build, 1989 Kona Cinder Cone, 1995 Trek 5200

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 944 Post(s)
Liked 381 Times in 275 Posts
Does anyone have the newer shimano style to measure, or adjustable like the campy anti-friction guide?

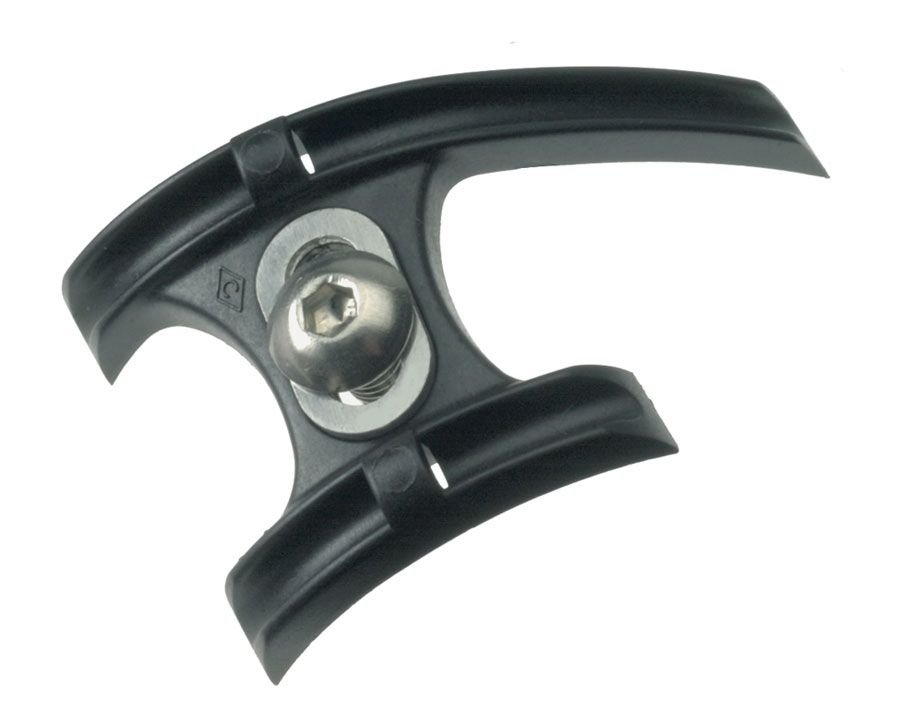

Campagnolo anti-friction bottom bracket cable guide.
Unca_Sam is offline
Old 05-19-20, 10:16 PM
  #13
Miele Man
Senior Member

Join Date: Jun 2014
Location: Ontario, Canada
Posts: 3,914

Bikes: Miele Beta, Miele Latina, Miele Suprema, Miele Uno LS, Miele MTB, Bianchi Model Unknown, Fiori Venezia, VeloSport Adamas AX

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 1030 Post(s)
Liked 579 Times in 400 Posts
Can you cut a slot in the existing cable guide so that the entire cable guide can be moved further?

Or can you drill another hole in the bottom bracket and move the existing cable guide to the new hole?

Cheers
Miele Man is offline
Old 05-20-20, 11:09 AM
  #14
bldegle2
Dangerous Old Man

Join Date: Sep 2017
Location: San Francisco
Posts: 95

Bikes: 2 custom built full Carbon road bikes, built by Moi...

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 28 Post(s)
Liked 12 Times in 10 Posts
https://www.ebay.com/itm/Shimano-SM-...IAAOSwTZhbt-aj new guide on the cheap with extra holes. If you can't afford the $5, then try and redo the one you have with some creative drilling of the guide, NOT the frame...
bldegle2 is offline
Old 05-20-20, 12:25 PM
  #15
Unca_Sam
The dropped
Thread Starter

Unca_Sam's Avatar

Join Date: Oct 2018
Location: Columbus, OH
Posts: 1,268

Bikes: Pake C'Mute Touring/Commuter Build, 1989 Kona Cinder Cone, 1995 Trek 5200

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 944 Post(s)
Liked 381 Times in 275 Posts
Originally Posted by bldegle2 View Post
https://www.ebay.com/itm/Shimano-SM-...IAAOSwTZhbt-aj new guide on the cheap with extra holes. If you can't afford the $5, then try and redo the one you have with some creative drilling of the guide, NOT the frame...
*sigh. Now there's one with "free" shipping (it's priced $3 more than other sellers that charge, still not bad).
I've already ordered the Campagnolo bracket from Modern Bike, along with other supplies. When I get it next week, I can share if it worked. FWIW, I put the old guide on and measured a full centimeter to the right, and that line would keep the cable under the chainstay.

In the meantime I'll get out the touch up paint to fix the all off the paint that wore off the bottom of the chainstay from my rear tire's sick slapp bass solo!
Unca_Sam is offline
Old 05-20-20, 01:51 PM
  #16
Amt0571
Senior Member

Join Date: Dec 2014
Location: Catalonia
Posts: 457

Bikes: Canyon Grand Canyon AL SL 8.0, Btwin Ultra 520 AF GF, Dahon Mu P27, Triban Road 7

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 172 Post(s)
Liked 66 Times in 45 Posts
Originally Posted by Unca_Sam View Post


I'm not sure it'd do much. I have the sp-17-t in my online cart, which seems like a great option. It looks like it could give me 5-10 mm to the right, which is all I need. I'd love measurements if anyone has them.



There aren't many choices for these out there. I had no idea generic BB guides were falling out of favor!
I have this blue guide on my road bike. Two of them cracked i a year. No hits or anything (it's a road bike).

Fortunately, I bought two guides at an online shop, and they sent 10 by mistake (and told me I could keep them). So at least I have spares.
Amt0571 is online now
Old 05-20-20, 01:56 PM
  #17
Unca_Sam
The dropped
Thread Starter

Unca_Sam's Avatar

Join Date: Oct 2018
Location: Columbus, OH
Posts: 1,268

Bikes: Pake C'Mute Touring/Commuter Build, 1989 Kona Cinder Cone, 1995 Trek 5200

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 944 Post(s)
Liked 381 Times in 275 Posts
Originally Posted by Amt0571 View Post
I have this blue guide on my road bike. Two of them cracked i a year. No hits or anything (it's a road bike).

Fortunately, I bought two guides at an online shop, and they sent 10 by mistake (and told me I could keep them). So at least I have spares.
Are you able to share the cable path separation at the rear of one of those guides? Shimano uses two patterns, an M5 and a plastic screw, and I'm guessing Campagnolo's oval slot version is not very dissimilar. Like I said, I'd need another 5-10mm to get the rear cable out of the tire's way, having a little assurance that the purchased guide will do the job is nice.
Unca_Sam is offline
Old 05-20-20, 02:02 PM
  #18
Amt0571
Senior Member

Join Date: Dec 2014
Location: Catalonia
Posts: 457

Bikes: Canyon Grand Canyon AL SL 8.0, Btwin Ultra 520 AF GF, Dahon Mu P27, Triban Road 7

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 172 Post(s)
Liked 66 Times in 45 Posts
Originally Posted by Unca_Sam View Post
Are you able to share the cable path separation at the rear of one of those guides? Shimano uses two patterns, an M5 and a plastic screw, and I'm guessing Campagnolo's oval slot version is not very dissimilar. Like I said, I'd need another 5-10mm to get the rear cable out of the tire's way, having a little assurance that the purchased guide will do the job is nice.
There's 2.4cm from the center of one cable to the other one.
Amt0571 is online now
Old 05-20-20, 02:40 PM
  #19
Unca_Sam
The dropped
Thread Starter

Unca_Sam's Avatar

Join Date: Oct 2018
Location: Columbus, OH
Posts: 1,268

Bikes: Pake C'Mute Touring/Commuter Build, 1989 Kona Cinder Cone, 1995 Trek 5200

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 944 Post(s)
Liked 381 Times in 275 Posts
Originally Posted by Amt0571 View Post
There's 2.4cm from the center of one cable to the other one.
That's a good bit more than the 1.7cm it looks like the guide I have is using. I like that I'll be able to fine tune the path a little using the campagnolo version with a slot instead of a set of holes.
Unca_Sam is offline
