Flat Mount disc jig

Just wondering who else is making a flat mount disc jig. I know that Anvil was, and Incepi was also, but their site is down or they're down for the count.

I'm not all that familiar with tool makers just yet.

Thanks.

Brandon
BigPoser is offline
Old 11-19-19, 04:56 PM
  #2
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 18,725
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 94 Times in 80 Posts
The Anvil only worked on rear mounts anyway. Only one I have ever seen for forks was incepi
unterhausen is offline
Old 11-19-19, 06:40 PM
  #3
wsteve464
Senior Member

Join Date: Jul 2016
Posts: 368
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Likes: 0
Liked 20 Times in 19 Posts
I looked for a flat mount jig a couple of months ago and came up with the same as you did no Anvil and no Incepi to be found. I did not find anything else.

If you have better luck please let us know.
wsteve464 is offline
Old 11-20-19, 06:01 AM
  #4
dsaul
Senior Member

Join Date: Jan 2013
Posts: 1,207
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 308 Post(s)
Liked 76 Times in 59 Posts
I'm sure someone, possibly Joe at Cobra, will step in to fill the void left by Anvil. In the meantime, I'll work on making something and post it here. My work schedule is a little hectic right now, so I don't know when that will happen.
dsaul is offline
Old 11-20-19, 07:34 AM
  #5
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 18,725
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 94 Times in 80 Posts
I know Don didn't make any money on the Anvil fixture, but I wasn't a big fan of it. It relies on some little spacers that are a pain to keep track of. Since it's an adapter, it's inelegant. I was never sure how the Incepi worked, I think you had to get it on the axle at the right place somehow that was not obvious. Could be wrong though.
unterhausen is offline
Old 11-21-19, 09:00 PM
  #6
duanedr
Senior Member

Join Date: Aug 2012
Location: Seattle
Posts: 251
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Liked 3 Times in 1 Post
Originally Posted by dsaul View Post
I'm sure someone, possibly Joe at Cobra, will step in to fill the void left by Anvil.
I recently saw somewhere that Joe is working on a frame fixture otherwise he would take on the brake fixture. I also saw that PVD is working on one with some other folks.
duanedr is offline
Old 11-22-19, 09:50 AM
  #7
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 18,725
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 94 Times in 80 Posts
Alex Meade posted a survey about this on FB today, so he's probably going to make one
unterhausen is offline
Old 11-22-19, 05:45 PM
  #8
BigPoser
Senior Member
Thread Starter

BigPoser's Avatar

Join Date: May 2016
Location: Bakersfield, CA
Posts: 522

Bikes: BAHL Giro, BAHL Uno, BAHL GVL, Cuevas

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 224 Post(s)
Liked 2 Times in 2 Posts
Originally Posted by unterhausen View Post
Alex Meade posted a survey about this on FB today, so he's probably going to make one
Thanks guys.

Yup, I saw the same poll from Alex. Verdone is working on one as well from what I saw the other day.
BigPoser is offline
Old 11-27-19, 06:39 PM
  #9
dsaul
Senior Member

Join Date: Jan 2013
Posts: 1,207
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 308 Post(s)
Liked 76 Times in 59 Posts

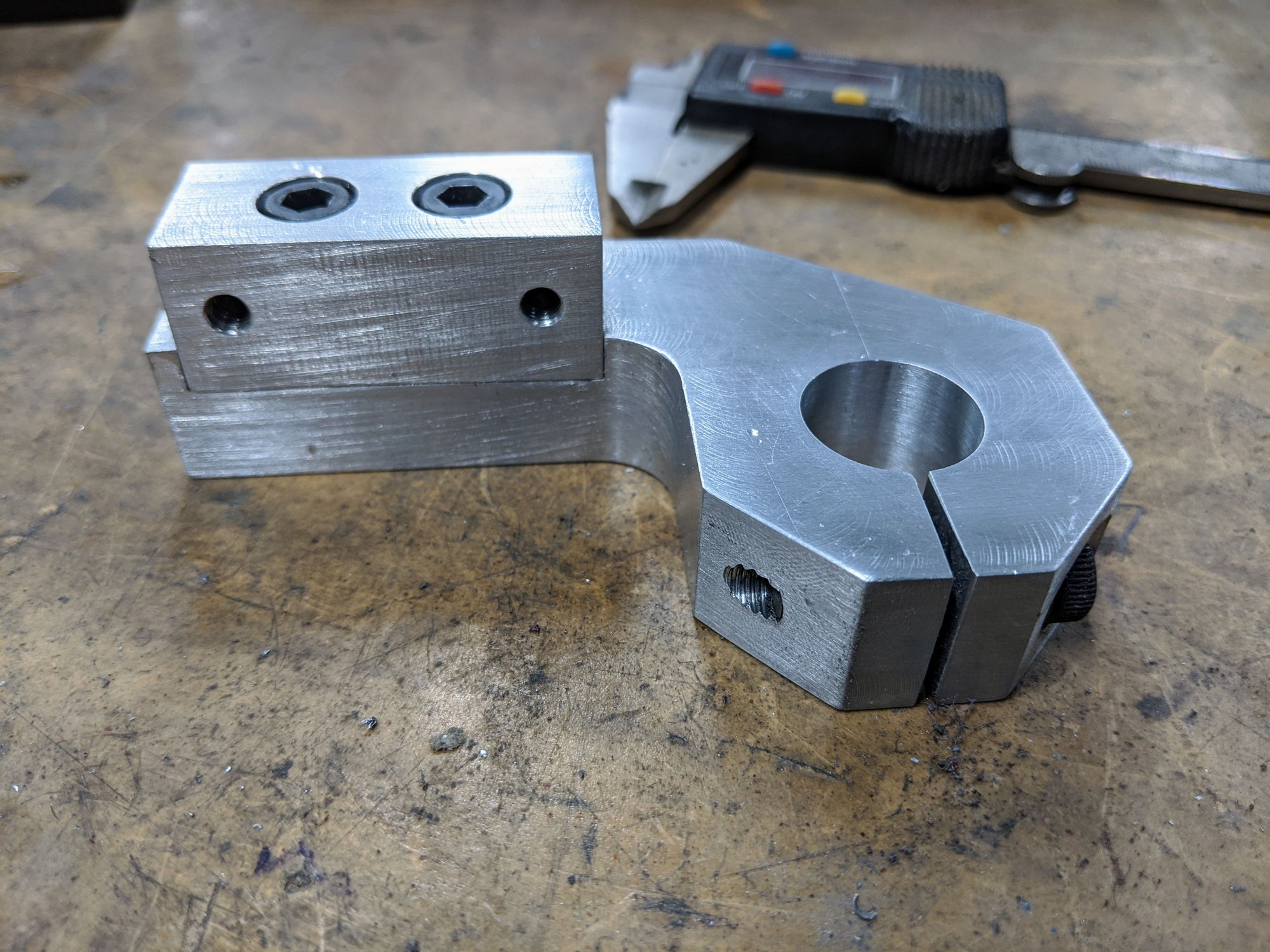

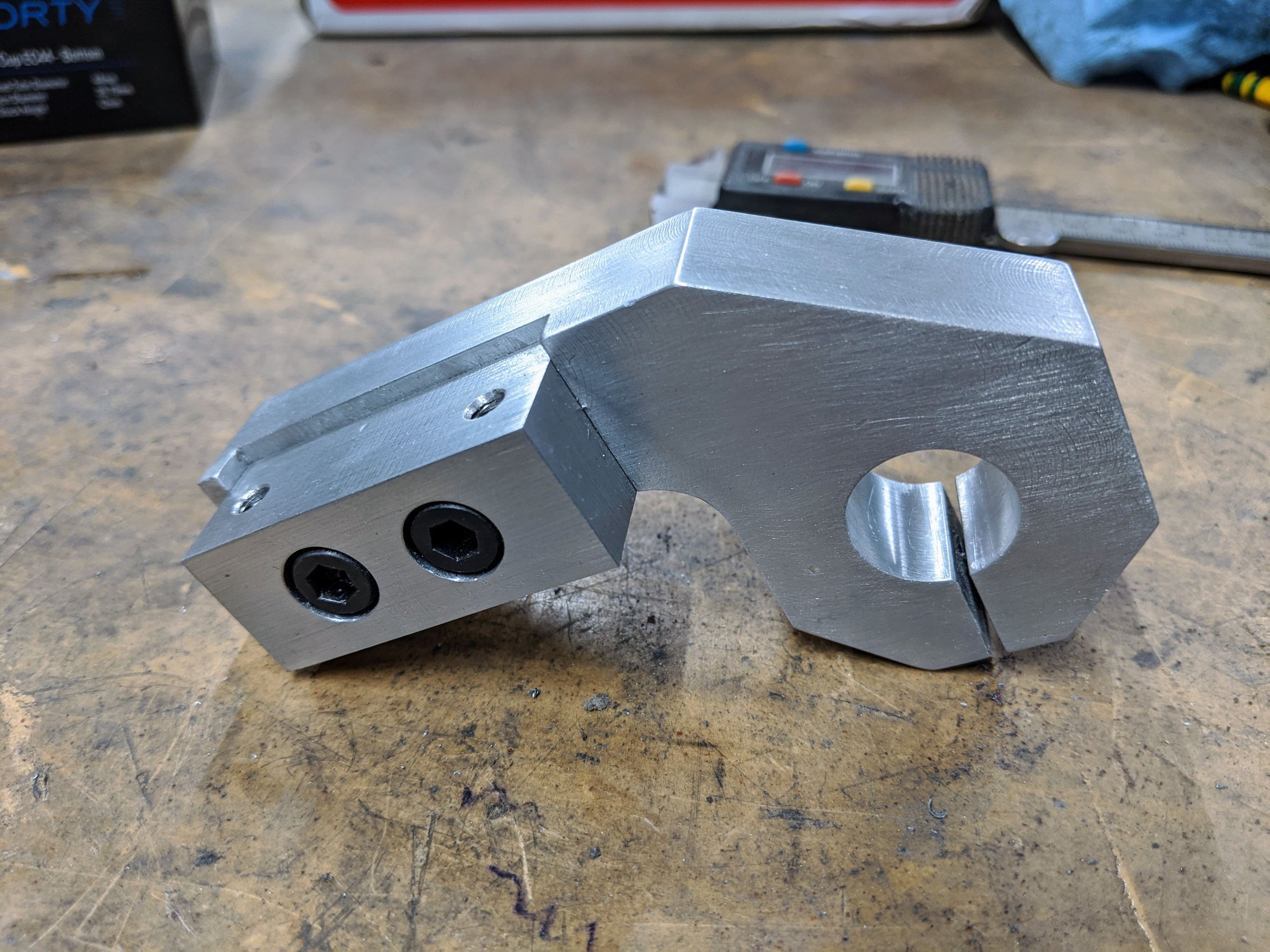

Prototype Flat Mount rear fixture. That means this one will be mine. If I make any more, they will probably be all one piece. The original idea was to make interchangeable inserts for front and rear, but they are too different to make that practical.
dsaul is offline
Old 11-27-19, 10:12 PM
  #10
niknak
Senior Member

Join Date: May 2006
Location: San Jose, CA
Posts: 730
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 66 Post(s)
Liked 3 Times in 3 Posts
Nice work on your fixture! I imagine it slides onto an Anvil dummy axle. How do you phase the flat mount bosses so their slots are parallel to each other and the rear axle? I think Anvil's fixture had oval shoulders that fit into the bosses to keep them aligned, but I could be wrong.
niknak is offline
Old 11-28-19, 05:07 AM
  #11
dsaul
Senior Member

Join Date: Jan 2013
Posts: 1,207
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 308 Post(s)
Liked 76 Times in 59 Posts
Originally Posted by niknak View Post
Nice work on your fixture! I imagine it slides onto an Anvil dummy axle. How do you phase the flat mount bosses so their slots are parallel to each other and the rear axle? I think Anvil's fixture had oval shoulders that fit into the bosses to keep them aligned, but I could be wrong.
That is something that I thought about, but I didn't want to add that level of complexity to this manual machining project. I will probably be using one piece mounts that have both slots already phased. This was designed to push the mount fully outboard when bolting it to the fixture. I don't think it will be too much of an issue to make another insert with a shoulder, if necessary. Although that shoulder will be a rectangle and not an oval.
dsaul is offline
Old 12-04-19, 10:57 AM
  #12
BigPoser
Senior Member
Thread Starter

BigPoser's Avatar

Join Date: May 2016
Location: Bakersfield, CA
Posts: 522

Bikes: BAHL Giro, BAHL Uno, BAHL GVL, Cuevas

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 224 Post(s)
Liked 2 Times in 2 Posts
Originally Posted by dsaul View Post

Prototype Flat Mount rear fixture. That means this one will be mine. If I make any more, they will probably be all one piece. The original idea was to make interchangeable inserts for front and rear, but they are too different to make that practical.

Very cool! Keep me posted on how well it works and if you make more.
BigPoser is offline
Old 12-04-19, 02:10 PM
  #13
dsaul
Senior Member

Join Date: Jan 2013
Posts: 1,207
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 308 Post(s)
Liked 76 Times in 59 Posts
Originally Posted by BigPoser View Post
Very cool! Keep me posted on how well it works and if you make more.
I actually made an adapter for my Feng Shui that should work well for the rear brake. I think the other fixture I made will work for the front with a fork mount adapter plate.

dsaul is offline
Old 12-04-19, 09:14 PM
  #14
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 18,725
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 94 Times in 80 Posts
someone posted some designs on FB, and I was impressed about how much better an adapter works on an ISO fixture than it does on a post mount fixture.
unterhausen is offline
Old 12-05-19, 05:00 AM
  #15
dsaul
Senior Member

Join Date: Jan 2013
Posts: 1,207
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 308 Post(s)
Liked 76 Times in 59 Posts
Originally Posted by unterhausen View Post
someone posted some designs on FB, and I was impressed about how much better an adapter works on an ISO fixture than it does on a post mount fixture.
Those designs are what inspired me to make the Feng Shui adapter. After making the adapter, I can tell you that the design posted for this purpose will be problematic. He has not taken the standoffs into account on the Feng Shui and therefore you would need to space the fixture about 17mm away from the dropout face to have the flat mount holes in the right place. At that distance away from the dropout face, the fixture is almost falling off the 19mm part of the dummy axle. I appreciate his sentiment in trying to find an inexpensive solution and sharing it, but he should have done some real world testing of the concept.
dsaul is offline
Old 12-05-19, 12:53 PM
  #16
BigPoser
Senior Member
Thread Starter

BigPoser's Avatar

Join Date: May 2016
Location: Bakersfield, CA
Posts: 522

Bikes: BAHL Giro, BAHL Uno, BAHL GVL, Cuevas

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 224 Post(s)
Liked 2 Times in 2 Posts
Originally Posted by dsaul View Post
I actually made an adapter for my Feng Shui that should work well for the rear brake. I think the other fixture I made will work for the front with a fork mount adapter plate.


Looking great!
