Mismatched Valve Stems! Argh! I'm fit to be tied!

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Mismatched Valve Stems! Argh! I'm fit to be tied!

Old 07-12-20, 08:48 AM
  #1
retiredguru
Senior Member
Thread Starter

retiredguru's Avatar

Join Date: Jun 2020
Location: Upstate NY, USA
Posts: 57

Bikes: '87 Miyata 112, '84 Nashbar Road LP, '89 Specialized Hard Rock

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 10 Times in 5 Posts
Mismatched Valve Stems! Argh! I'm fit to be tied!

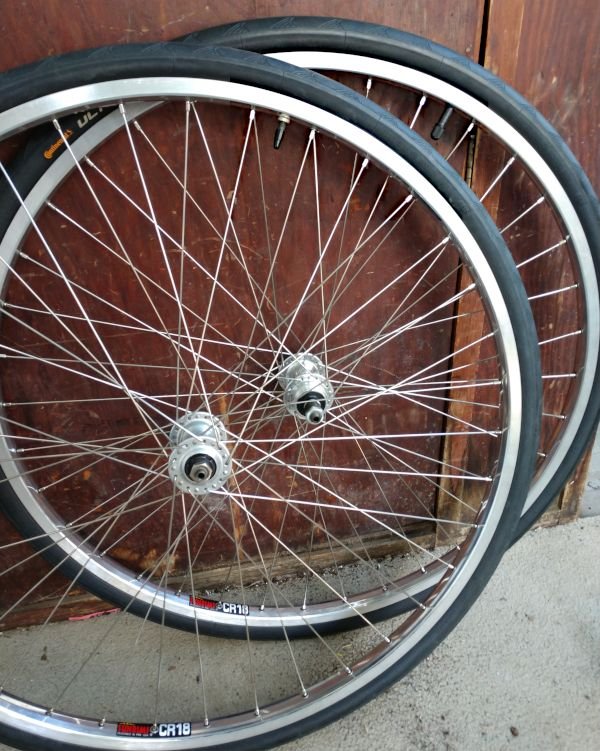

One of the most trying aspects of this pandemic for me is dealing with the difficulties in getting parts for a bike I am building. Delays in shipping are understandable, albeit frustrating to the point of pulling my hair out at times. What takes the cake is when the wrong items are shipped. Recently I returned a 32h front hub with a disc brake mount. What I ordered was a 36h rear freewheel hub. Yeah, not even close. Well, today, the first chance after months (yes, literally) of waiting for parts to come in to build both wheels, I was finally able to mount the tubes and tires. Awesome, except...WTF? Front rim Presta, rear rim Shrader? Argh! I'm fit to be tied!





The front wheel rim was ordered as one of a pair. Only one was in stock. That rim came in over a month ago and the front wheel was built up then. I ordered the second rim from another vendor, which came in more recently. Both orders specified Shrader valve holes. Obviously, the first supplier screwed up the order, but I would have been fine with a pair of rims with Presta valve holes, as I already have new tubes to fit on hand.

This whole project has been one from hell. Now that I am ready to assemble the bike, I can't wait to see what new mishaps will befall this project. COVID-19 Gremlins: I hatez you! I need a drink...
retiredguru is offline
Old 07-12-20, 08:53 AM
  #2
jackbombay
Senior Member

Join Date: Jun 2019
Location: Eastern Idaho
Posts: 785
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 364 Post(s)
Liked 329 Times in 196 Posts
That one would irk me too!

On a fresh build I would ride to the LBS and buy another tube :-)
jackbombay is offline
Likes For jackbombay:
Old 07-12-20, 09:01 AM
  #3
trailangel
Senior Member

trailangel's Avatar

Join Date: Feb 2014
Location: Pasadena, CA
Posts: 4,162

Bikes: Schwinn Varsity

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 1533 Post(s)
Liked 232 Times in 157 Posts
If you want both shrader, drill out the presta valve hole.
trailangel is online now
Likes For trailangel:
Old 07-12-20, 09:22 AM
  #4
retiredguru
Senior Member
Thread Starter

retiredguru's Avatar

Join Date: Jun 2020
Location: Upstate NY, USA
Posts: 57

Bikes: '87 Miyata 112, '84 Nashbar Road LP, '89 Specialized Hard Rock

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 10 Times in 5 Posts
Originally Posted by trailangel View Post
If you want both shrader, drill out the presta valve hole.
First thought was to do that. I might at the end of the riding season. The 26" ARAYA rims on my Specialize Hard Rock are notorious for cutting into the rubber of Shrader valves. Deburring has marginally helped as the holes are actually larger than the what the valves are on the tubes I have been getting.

It's the continual stream of problems associated with this build, from day one, accentuated by supply and shipping debacles due to the times, that has made this such a pain.
retiredguru is offline
Old 07-12-20, 09:48 AM
  #5
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 822

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 360 Post(s)
Liked 397 Times in 239 Posts
Originally Posted by retiredguru View Post
First thought was to do that. I might at the end of the riding season. The 26" ARAYA rims on my Specialize Hard Rock are notorious for cutting into the rubber of Shrader valves. Deburring has marginally helped as the holes are actually larger than the what the valves are on the tubes I have been getting.
I often like using Schrader rims with a grommet to presta to avoid this problem. The grommet takes all the abuse the rim can dish out and the tube stays perfect. Cheap or old tubes will still pull out at the valve, however. The polluted Boston air seems to do a number on them, tubes lasted forever back in Vermont.
scarlson is offline
Likes For scarlson:
Old 07-12-20, 10:06 AM
  #6
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 8,431

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 99 Post(s)
Tagged: 0 Thread(s)
Quoted: 2295 Post(s)
Likes: 0
Liked 708 Times in 493 Posts
Originally Posted by trailangel View Post
If you want both shrader, drill out the presta valve hole.
My first thought. I just approach this with care because I have never found a schraeder to presta bit in case I change my mind. (Just like I still don't have that saw to cut 2X4s longer.)
79pmooney is offline
Likes For 79pmooney:
Old 07-12-20, 10:08 AM
  #7
retiredguru
Senior Member
Thread Starter

retiredguru's Avatar

Join Date: Jun 2020
Location: Upstate NY, USA
Posts: 57

Bikes: '87 Miyata 112, '84 Nashbar Road LP, '89 Specialized Hard Rock

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 10 Times in 5 Posts
Originally Posted by scarlson View Post
I often like using Schrader rims with a grommet to presta to avoid this problem. The grommet takes all the abuse the rim can dish out and the tube stays perfect.
Do you off hand know where I can find the grommets? The last time I saw these offered was in the 70s, of course I haven't looked for them since.

Cheap or old tubes will still pull out at the valve, however.
I'm inclined to put the blame for too loose valves on the ARAYA's as a reflection of the reduction in materials used to make modern tubes. The rims were designed for off-road use; original tubes were heavier all around.

Conversely, the Shrader valves have struggle to get into the hole on the one CR-18 rim designed for it.

The polluted Boston air seems to do a number on them, tubes lasted forever back in Vermont.
Our rural setting hasn't been too bad for air quality, although, black soot from diesel-burning trucking going through our little city coat the houses along the main drag. Bleck. I can't imagine why anyone would want to live on these streets.
retiredguru is offline
Old 07-12-20, 10:10 AM
  #8
retiredguru
Senior Member
Thread Starter

retiredguru's Avatar

Join Date: Jun 2020
Location: Upstate NY, USA
Posts: 57

Bikes: '87 Miyata 112, '84 Nashbar Road LP, '89 Specialized Hard Rock

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 10 Times in 5 Posts
Originally Posted by 79pmooney View Post
My first thought. I just approach this with care because I have never found a schraeder to presta bit in case I change my mind. (Just like I still don't have that saw to cut 2X4s longer.)
Agreed.
retiredguru is offline
Old 07-12-20, 10:19 AM
  #9
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 25,214

Bikes: https://www.theheadbadge.com

Mentioned: 52 Post(s)
Tagged: 0 Thread(s)
Quoted: 990 Post(s)
Liked 827 Times in 532 Posts

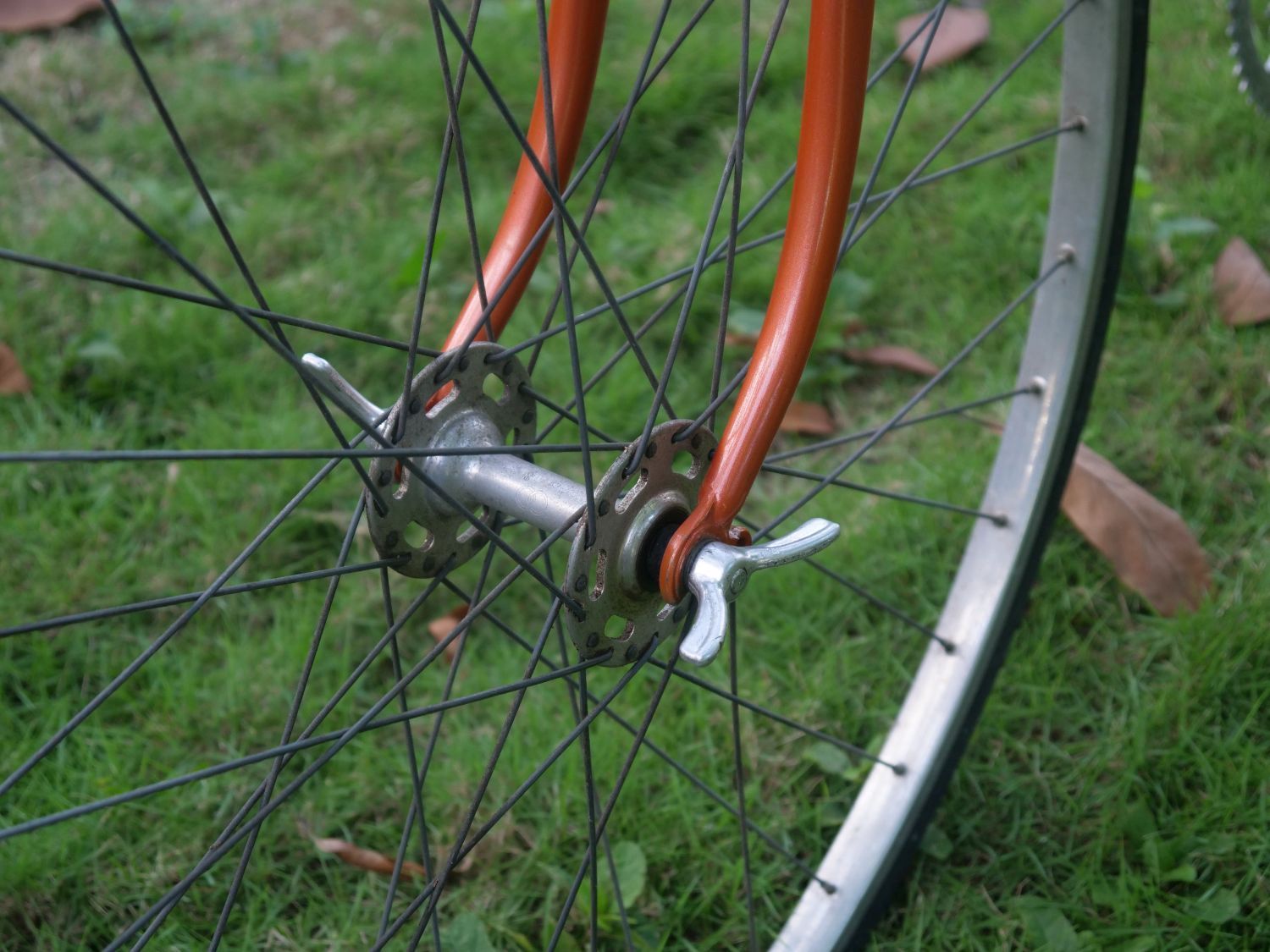

I have a beaut in this department. I picked up a 1980's city bicycle from the local scrap guy for the parts. The wheels and handlebar have found their way to my Porteur de Viande Mystère. Well, turns out that it has a set of "matching" Weinmann rims with bulged eyelet holes...except the rear is stamped with larger holes for tandem spokes and spoke nipples. They've got to be 12 or 11 gauge.

The hubs match, so I'm guessing this might have been intentional from the factory. The donor frame was a Union-badged Polycarbonex (which, to my knowledge, was made in Germany), so perhaps they expected dinking on the back? Paging JaccoW and non-fixie for info on that theory...









-Kurt
__________________








Last edited by cudak888; 07-12-20 at 10:24 AM.
cudak888 is offline
Old 07-12-20, 10:22 AM
  #10
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 6,635

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1246 Post(s)
Liked 652 Times in 447 Posts
Originally Posted by retiredguru View Post
Do you off hand know where I can find the grommets? The last time I saw these offered was in the 70s, of course I haven't looked for them since.

Metal
https://www.amazon.com/Quad-Wheels-M...4570841&sr=8-8


Rubber

https://www.greggscycles.com/product...saAu47EALw_wcB
dedhed is offline
Likes For dedhed:
Old 07-12-20, 10:26 AM
  #11
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 822

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 360 Post(s)
Liked 397 Times in 239 Posts
Originally Posted by retiredguru View Post
Do you off hand know where I can find the grommets? The last time I saw these offered was in the 70s, of course I haven't looked for them since.
Here are some nice ones on ebay, only problem is you can't get a jar of 100 of them to save on shipping:
https://www.ebay.com/itm/RUBBER-BICY...E/291958510677

In search of a bulk option, I found these from China. They fit a little too tight, but work passably as long as you're patient installing them. Order the ID 6mm/OD 8mm option:
https://www.ebay.com/itm/10Pc-Rubber...e/192923784643
scarlson is offline
Likes For scarlson:
Old 07-12-20, 10:27 AM
  #12
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 22,727

Bikes: Some silver ones, a red one, an orange one and a few titanium ones

Mentioned: 112 Post(s)
Tagged: 1 Thread(s)
Quoted: 3362 Post(s)
Liked 816 Times in 514 Posts
Originally Posted by retiredguru View Post
Do you off hand know where I can find the grommets?
You can go with a simple stepped nut . They often come on threaded presta valves. Your local LBS may even have a bunch of them hanging around. This kind also works. I have some rubber ones that never worked all that well. They are difficult to put in and tend to get pushed out when mounting the tire.

PM me and I’ll send you several different versions.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.

Last edited by cyccommute; 07-12-20 at 10:33 AM.
cyccommute is offline
Likes For cyccommute:
Old 07-12-20, 10:44 AM
  #13
retiredguru
Senior Member
Thread Starter

retiredguru's Avatar

Join Date: Jun 2020
Location: Upstate NY, USA
Posts: 57

Bikes: '87 Miyata 112, '84 Nashbar Road LP, '89 Specialized Hard Rock

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 10 Times in 5 Posts
Thanks! I like the concept of using metal--no to flexible--but I wonder if the weight added to that of the valve stem would make for a noticeable out-of-balance coming fast down a hill?
retiredguru is offline
Old 07-12-20, 10:46 AM
  #14
retiredguru
Senior Member
Thread Starter

retiredguru's Avatar

Join Date: Jun 2020
Location: Upstate NY, USA
Posts: 57

Bikes: '87 Miyata 112, '84 Nashbar Road LP, '89 Specialized Hard Rock

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 10 Times in 5 Posts
[QUOTE=scarlson;21583239]Here are some nice ones on ebay, only problem is you can't get a jar of 100 of them to save on shipping:
https://www.ebay.com/itm/RUBBER-BICY...E/291958510677

Thanks! I'm seeing free shipping regardless of the quantity ordered. Bookmarked.
retiredguru is offline
Old 07-12-20, 10:54 AM
  #15
retiredguru
Senior Member
Thread Starter

retiredguru's Avatar

Join Date: Jun 2020
Location: Upstate NY, USA
Posts: 57

Bikes: '87 Miyata 112, '84 Nashbar Road LP, '89 Specialized Hard Rock

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 10 Times in 5 Posts
Originally Posted by cyccommute View Post
You can go with a simple stepped nut . They often come on threaded presta valves.
I've had some issues on other rims designed like the CR-18s with the base of the valve stem being cut because the Shrader hole was a little too large for the Shader valve stems on a three different tubes I tried. Cut right through. I'd rather have a filler that goes all the way through the hole, as your second link shows, and a couple of others mentioned previously.

Your local LBS may even have a bunch of them hanging around. This kind also works. I have some rubber ones that never worked all that well. They are difficult to put in and tend to get pushed out when mounting the tire.
I'm thinking go with the metal sleeves. I've been eating too many tubes this season. >_>

PM me and I’ll send you several different versions.
Noted, and thanks. I think I'll order a set of the metal sleeves and see how that works.
retiredguru is offline
Old 07-12-20, 11:02 AM
  #16
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 22,727

Bikes: Some silver ones, a red one, an orange one and a few titanium ones

Mentioned: 112 Post(s)
Tagged: 1 Thread(s)
Quoted: 3362 Post(s)
Liked 816 Times in 514 Posts
Originally Posted by retiredguru View Post
Noted, and thanks. I think I'll order a set of the metal sleeves and see how that works.
I have a couple of each version discussed above that have been in my parts drawers for ages. PM your address and I'll send them to you. I'm not using them.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Likes For cyccommute:
Old 07-12-20, 11:10 AM
  #17
retiredguru
Senior Member
Thread Starter

retiredguru's Avatar

Join Date: Jun 2020
Location: Upstate NY, USA
Posts: 57

Bikes: '87 Miyata 112, '84 Nashbar Road LP, '89 Specialized Hard Rock

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 10 Times in 5 Posts
Originally Posted by cyccommute View Post
I have a couple of each version discussed above that have been in my parts drawers for ages. PM your address and I'll send them to you. I'm not using them.
Thank you!!
retiredguru is offline
Old 07-12-20, 11:28 AM
  #18
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 8,849

Bikes: Yes, please.

Mentioned: 223 Post(s)
Tagged: 0 Thread(s)
Quoted: 1410 Post(s)
Liked 768 Times in 431 Posts
Originally Posted by cudak888 View Post
I have a beaut in this department. I picked up a 1980's city bicycle from the local scrap guy for the parts. The wheels and handlebar have found their way to my Porteur de Viande Mystère. Well, turns out that it has a set of "matching" Weinmann rims with bulged eyelet holes...except the rear is stamped with larger holes for tandem spokes and spoke nipples. They've got to be 12 or 11 gauge.

The hubs match, so I'm guessing this might have been intentional from the factory. The donor frame was a Union-badged Polycarbonex (which, to my knowledge, was made in Germany), so perhaps they expected dinking on the back? Paging JaccoW and non-fixie for info on that theory...









-Kurt
Sorry, I haven't a clue.

BTW, the paging system doesn't seem to work. I stumbled across your mention by chance.

BTW 2, I love that TA Professionel crankset.
__________________
Peace!
non-fixie is offline
Likes For non-fixie:
Old 07-12-20, 07:21 PM
  #19
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 4,809
Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 1511 Post(s)
Liked 581 Times in 450 Posts
Originally Posted by 79pmooney View Post
My first thought. I just approach this with care because I have never found a schraeder to presta bit in case I change my mind. (Just like I still don't have that saw to cut 2X4s longer.)
Just use a reversing drill....
madpogue is offline
Old 07-20-20, 11:33 AM
  #20
retiredguru
Senior Member
Thread Starter

retiredguru's Avatar

Join Date: Jun 2020
Location: Upstate NY, USA
Posts: 57

Bikes: '87 Miyata 112, '84 Nashbar Road LP, '89 Specialized Hard Rock

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 10 Times in 5 Posts
I want to kickout a forum-thanks to Stuart, aka cyccommute , for his tremendously helpful C.A.R.E. package. He send me an assortment of options to reduce a Schrader valve hole to safely accommodate a Presta valve. A combination of metal spacer and locknut worked perfectly. Thanks again, Stuart.

retiredguru is offline
Likes For retiredguru:
Old 07-20-20, 03:43 PM
  #21
seedsbelize
smelling the roses

seedsbelize's Avatar

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 13,870

Bikes: 79 Trek 930, 80 Trek 414, 84 Schwinn Letour Luxe (coupled), 92 Schwinn Paramount PDG 5

Mentioned: 102 Post(s)
Tagged: 1 Thread(s)
Quoted: 6223 Post(s)
Liked 520 Times in 357 Posts
Huh!? I think I have some of those metal ones. Long ago, I bought a pair for a friend and a pair for myself. Mine immediately disappeared. But now I know where to look. They are mixed in with my "Problem Solvers" stuff. Thanks all
__________________
Well look what the cat dragged in. Such a fine addition to the thread





seedsbelize is offline
Likes For seedsbelize:
Old 07-20-20, 04:05 PM
  #22
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 6,635

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 1246 Post(s)
Liked 652 Times in 447 Posts
In a pinch I've even dug through my coffee can of caps and plugs and dug out something "close enough" and drilled it out.

https://www.caplugs.com/plugs
dedhed is offline
Likes For dedhed:
Old 07-26-20, 08:44 AM
  #23
retiredguru
Senior Member
Thread Starter

retiredguru's Avatar

Join Date: Jun 2020
Location: Upstate NY, USA
Posts: 57

Bikes: '87 Miyata 112, '84 Nashbar Road LP, '89 Specialized Hard Rock

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 10 Times in 5 Posts
UPDATE:

As posted previously, I installed the metal barrel variety 'Presta Saver' on the rear rim with the Schrader valve hole. The next day I found the top edge of the sleeve had cut into the base of the Presta valve. Yes, I had placed tape over it, but it still moved on me and that's all that tube wrote. So I removed it and tried the others given to me by Stuart cyccommute . The combination that looked like it would work is a rubber sleeve version of the metal barrel, from the inside, backed up by a locknut that recesses into the Schrader hole, from the outside.

Yesterday, on a ride, I was one mile short of my 13+ personal TT and I went flat. My first thought was that the saver had failed, that I had once again cut a valve base. I was fit to be tied. This morning I took the tube out. Not the saver this time. A small amber glass chard, picked up in the area I went flat, had cut through the casing. I had to pry it out with a pair of pliers. I've placed a rubber patch on the inside of the carcass over the spot. I don't expect it to last very long, and it really won't matter, as I've ordered a pair of Continental Gatorskin Hardshells. The county and state are terrible at managing the shoulders of our roads, and not doing all that well on the road itself. For the price, these better not only be bullet-proof, but rub my feet after a ride.

So now I have a pair of Continental Ultra Sport II's with less than a hundred miles on them, one of which has a hole through the carcass, and they'll have to be backups, unless I build up another set of wheels for this bike. Not happy about my luck with the Miyata build. Clearly showing signs of becoming a money pit.

There is a silver lining, albeit small: the Presta saver combination, rubber insert and recessed locknut, appear to be working as hoped for. Yay. I guess. (sighs in frustration)
retiredguru is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
