Interesting catalog from 1968- touring bikes, road bikes, jr road bikes, city bikes

Old 05-19-17, 09:20 PM
  #1
mstateglfr
Sunshine
Thread Starter

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Posts: 8,869

Bikes: '18 class built steel roadbike, '19 Fairlight Secan, '87 Schwinn Prelude, Black Mountain Cycles Monstercross V4, '89 Novara Trionfo, '18 Diamondback Syncr

Mentioned: 79 Post(s)
Tagged: 0 Thread(s)
Quoted: 3272 Post(s)
Liked 333 Times in 229 Posts
Interesting catalog from 1968- touring bikes, road bikes, jr road bikes, city bikes

Haven't seen this posted before, apologies if its old news.

The catalogs of Japanese vintage bicycle

A webpage dedicated to the 1968 Kenko bike catalog.
This is before Kenko merged with Zebra to become the Zebrakenko brand some here know of from the 70s and early 80s.

Interesting detail to some of these models. The touring bikes, in '68, had cantilever brakes, full set of racks, and comfortable geometry.

Between the canti brakes, insane chainring gearing, and a couple of the bikes not using traditional drop bar brake levers, i thought it was an interesting look back at what was coming out of Japan half a century ago.



mstateglfr is offline
Old 05-20-17, 06:00 AM
  #2
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 5,715

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 87 Post(s)
Tagged: 0 Thread(s)
Quoted: 1061 Post(s)
Liked 77 Times in 67 Posts
I really love the look of this one. 5 speed simplex, turkey wings only and a set of those funky hand supports that were popular in the 80's/90's with couriers. What were they called? Not bull horns but...?
Orange and chrome!
clubman is online now
Old 05-20-17, 06:26 AM
  #3
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 7,960

Bikes: Yes, please.

Mentioned: 205 Post(s)
Tagged: 0 Thread(s)
Quoted: 1132 Post(s)
Liked 120 Times in 85 Posts
One of my favorite websites. I have spent many hours in The Catalog of Reminiscence.
__________________
"I spent half my money on bikes and women. The other half I wasted."
non-fixie is offline
Old 05-20-17, 06:59 AM
  #4
markk900
Senior Member

markk900's Avatar

Join Date: Jan 2007
Location: Ontario
Posts: 1,815
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 144 Post(s)
Liked 3 Times in 3 Posts
Thanks for the links. Very cool bikes there - and the mounting of a friction shifter on the brake lever for one of the 5 speeds was very interesting!
markk900 is offline
Old 05-20-17, 07:09 AM
  #5
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 11,543

Bikes: 1977 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 1789 Post(s)
Liked 101 Times in 82 Posts
Way cool stuff!
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 05-20-17, 07:11 AM
  #6
thumpism
Bikes are okay, I guess.

thumpism's Avatar

Join Date: Jan 2015
Location: Richmond, Virginia
Posts: 4,810

Bikes: Waterford Paramount Touring, Bridgestone RB-T, Trek 510 city build, Giant CFM-2, Raleigh Sports 3-speeds in M23 & L23, Schwinn Cimarron oddball build

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 1295 Post(s)
Liked 72 Times in 57 Posts
I toured in Europe in '74 and saw setups like this one occasionally. I was on a garden-variety ten-speed with rack and bags and thought at the time that someone, somewhere had a handle on how a touring bike should be built.
thumpism is offline
Old 05-20-17, 07:18 AM
  #7
thumpism
Bikes are okay, I guess.

thumpism's Avatar

Join Date: Jan 2015
Location: Richmond, Virginia
Posts: 4,810

Bikes: Waterford Paramount Touring, Bridgestone RB-T, Trek 510 city build, Giant CFM-2, Raleigh Sports 3-speeds in M23 & L23, Schwinn Cimarron oddball build

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 1295 Post(s)
Liked 72 Times in 57 Posts
Originally Posted by clubman View Post
turkey wings only and a set of those funky hand supports that were popular in the 80's/90's with couriers. What were they called? Not bull horns but...?
Stoker levers or stoker nubs (technically Dia Compe 138 - stoker hoods), originally handrests for the rear bars of tandems. And those are not turkey wings, but guidonnet levers.

Last edited by thumpism; 05-20-17 at 07:22 AM.
thumpism is offline
Old 05-20-17, 08:37 AM
  #8
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 5,715

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 87 Post(s)
Tagged: 0 Thread(s)
Quoted: 1061 Post(s)
Liked 77 Times in 67 Posts
Ahhh...Guidonnets are much better. Couldn't see for looking.
clubman is online now
Old 05-11-19, 09:33 PM
  #9
Weresquatch
Senior Member

Join Date: May 2019
Location: Pacific NW (of the US)
Posts: 74

Bikes: Just the normal stuff, cruisers, duilies, fatbike, road bikes, single speeds...

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 12 Times in 11 Posts
I think I just bought one of these

Can anyone help me date it? I haven't been here long enough to post pics yet.
Weresquatch is offline
Old 05-11-19, 09:54 PM
  #10
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 7,960

Bikes: Yes, please.

Mentioned: 205 Post(s)
Tagged: 0 Thread(s)
Quoted: 1132 Post(s)
Liked 120 Times in 85 Posts
Pic assist:





__________________
"I spent half my money on bikes and women. The other half I wasted."
non-fixie is offline
Old 05-11-19, 10:02 PM
  #11
Weresquatch
Senior Member

Join Date: May 2019
Location: Pacific NW (of the US)
Posts: 74

Bikes: Just the normal stuff, cruisers, duilies, fatbike, road bikes, single speeds...

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 12 Times in 11 Posts
Thank you!

I can't find anything matching it (or that particular Lark derr for that matter). I also have a pic of the head badge. Thanks in advance.
Weresquatch is offline
Old 05-11-19, 11:06 PM
  #12
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 7,960

Bikes: Yes, please.

Mentioned: 205 Post(s)
Tagged: 0 Thread(s)
Quoted: 1132 Post(s)
Liked 120 Times in 85 Posts
non-fixie is offline
Old 05-11-19, 11:08 PM
  #13
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 7,960

Bikes: Yes, please.

Mentioned: 205 Post(s)
Tagged: 0 Thread(s)
Quoted: 1132 Post(s)
Liked 120 Times in 85 Posts
Nice find, BTW. Entry level, but in great shape.
non-fixie is offline
Old 05-11-19, 11:24 PM
  #14
Weresquatch
Senior Member

Join Date: May 2019
Location: Pacific NW (of the US)
Posts: 74

Bikes: Just the normal stuff, cruisers, duilies, fatbike, road bikes, single speeds...

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 12 Times in 11 Posts
Thanks..

I appreciate your help.I figured it was more low end (along with the Jupiter Beat I got today) but I'd never seen one before and I was surprised at how smooth the bike ride. It looks like plenty of room for wider tired.
Weresquatch is offline
Old 05-11-19, 11:45 PM
  #15
turtledove
Member

turtledove's Avatar

Join Date: Apr 2019
Location: Earth
Posts: 30

Bikes: 2005 Specialized Dolce Elite, 19?? Avitar Expert

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Liked 7 Times in 5 Posts
Love these things
turtledove is offline
Old 05-12-19, 12:05 AM
  #16
TenGrainBread
Senior Member

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 2,085
Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 816 Post(s)
Liked 141 Times in 107 Posts
In the 60s, Japanese cyclists were obsessed with French cyclotouring and randonneuring. Hence all the French-style camping and sport touring bikes with guidonnet levers, handlebar bags, etc...
TenGrainBread is offline
Old 05-12-19, 12:07 AM
  #17
TenGrainBread
Senior Member

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 2,085
Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 816 Post(s)
Liked 141 Times in 107 Posts
@Weresquatch Read the Disraeli Gears article on that Shimano Lark derailleur. Lots of history there.
TenGrainBread is offline
Old 05-12-19, 02:23 AM
  #18
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 7,960

Bikes: Yes, please.

Mentioned: 205 Post(s)
Tagged: 0 Thread(s)
Quoted: 1132 Post(s)
Liked 120 Times in 85 Posts
Originally Posted by Weresquatch View Post
I appreciate your help.I figured it was more low end (along with the Jupiter Beat I got today) but I'd never seen one before and I was surprised at how smooth the bike ride. It looks like plenty of room for wider tired.
Nothing wrong with "affordable" bikes as long as the geometry works. I've been pleasantly surprised before. And "smooth" is indeed a word that keeps coming to mind when riding these bikes. For touring that's a nice asset.
non-fixie is offline
Old 05-12-19, 03:59 AM
  #19
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,031

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 143 Post(s)
Tagged: 0 Thread(s)
Quoted: 555 Post(s)
Likes: 0
Liked 112 Times in 80 Posts
1964 Bridgestone Randonneur Bike

@TenGrainBread

I was stationed near Hiroshima, Japan in 1964-65. I traveled around parts of the Inland Sea and the Tokyo-Yokohama area.

Saw very few lightweight derailleur bikes except around US military bases. Most of those were probably owned by officers who may have been exposed to cycling in Europe or while they were in college.

The majority of the bikes were black 50 lb. urban single speed rod brake clunkers. Many had band rear brakes. The women sat side saddle on the wide rear rack carrying a child and groceries while the man pedaled. An amazing balancing act.

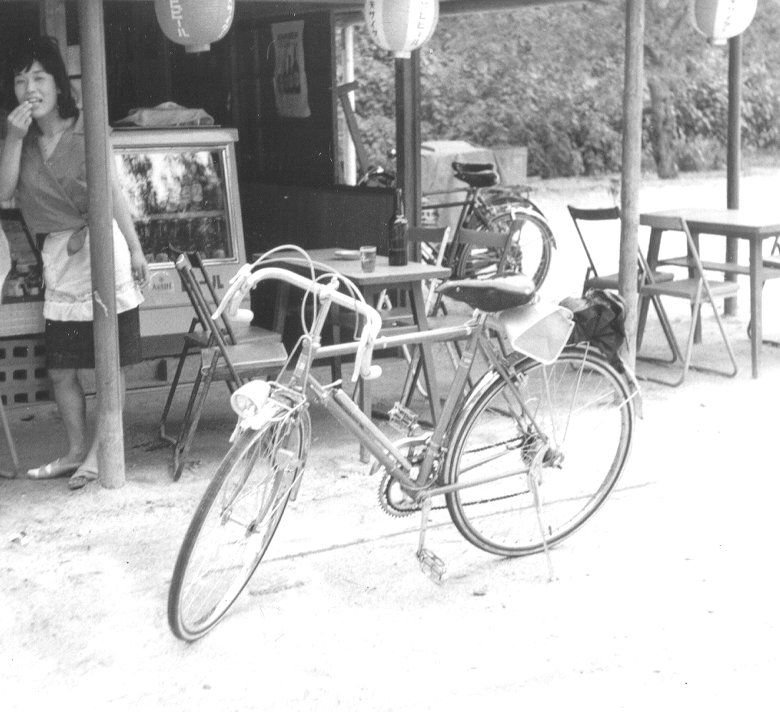

I bought this Bridgestone randonneur style bike in 1964 and rode it all over the Hiroshima area. It was fairly light weight considering it had mostly steel components, racks, fenders, generator and lights.

The derailleurs were Huret, the brakes were Weinmann 999 center pulls and it had a British made Wright leather saddle.

The gears were pretty steep with 51T-44T chainrings and a 15-16-17-19-21T freewheel. 27" x 1 1/4" tires. The frame was around 21". It was Legnano green.

Portrait of the artist as a young man in 1964.



This was probably taken when I'd just started riding the bike. The seat was WAY too low. It had a steel riser stem. Rode the plastic grips on the drops a lot.



1967 Bridgestone ad for a similar bike. ¥ 28,000 Japanese Yen was over $250 USD back then.



Sunday group ride in October, 1964 sponsored by a local bike shop that sold derailleur bikes. I was the "snuffy" with the red line pointing to me. Most of the rest of the 8 US riders were officers.

Larger size frames were very rare, notice how high they had their bars. There was a tandem near the right end. The two Japanese guys at the far left ran the shop. They were really cool, hard riders too. The 4 Japanese kids in the black schoolboy hats were fast.



Cycling in Japan in the mid 60's rekindled my love of bikes that started when I was 7 or 8 in the early 1950's

verktyg

Last edited by verktyg; 05-12-19 at 04:18 AM.
verktyg is offline
Old 05-12-19, 07:33 AM
  #20
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 8,403
Mentioned: 229 Post(s)
Tagged: 1 Thread(s)
Quoted: 1725 Post(s)
Liked 78 Times in 70 Posts
Originally Posted by TenGrainBread View Post
In the 60s, Japanese cyclists were obsessed with French cyclotouring and randonneuring. Hence all the French-style camping and sport touring bikes with guidonnet levers, handlebar bags, etc...
-----

Hiroshi at Jitensha in Berkeley, California reports that in post-war Japan there were stiff tariffs on bicycles and bicycle parts to the point that no bicycle imports were made.

Japanese cyclists would ogle the French touring & randonneuring machines from producers such as Herse & Singer shown in cycling magazines.

So they had to create their own, giving rise to badges such as Toei.

-----
juvela is online now
Old 05-13-19, 01:10 PM
  #21
Weresquatch
Senior Member

Join Date: May 2019
Location: Pacific NW (of the US)
Posts: 74

Bikes: Just the normal stuff, cruisers, duilies, fatbike, road bikes, single speeds...

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 12 Times in 11 Posts
A few replies en masse

Sorry I'm just getting back to this. As a newbie, it seems I had to wait 24 hours before posting again. So I'll try to make this post a bit longer.

I VERY much appreciate people's help. I loved the old photos of Japan. I get that this bike is lower end, but given the late 60s when it likely was made, and the PRICE of bikes in Japan at that time, I don't know that it was "department store" quality in Japan, maybe compared to Europe? Doesn't matter I suppose as I'm going to build up the Kenko.

Well, whatever the case, I carefully disassembled everything last night. The frame when measured center of BB to center of TT was 22.5" and weighed a bit under 6lbs so definitely not high-falutin' metal. The fork was 1.4lbs.

I did look at that disreailigears website and there isn't a Lark like the one that came off this bike, so the mystery continues. Both derr and shifters are Shimano just marked 333. I'll clean it all up as I go. I'd like to continue to use the supplied front and rear derr but I think the Lark can only wrap a 28T and while that is respectable, the other bike has a Suntour GT which I believe to be a bit more capable (correct me if I'm wrong, please).

As I don't plan on using the cottered crank, I'll switch probably to a sealed unit. The BB shell appears to take a 70. What are the go-to BBs for these old Japanese bikes?

I'm going to give her a good and thorough cleaning and while she's got a good amount of scratches and the like, little to no rust to speak of. I'll likely give the frame a wax to protect against more oxidation and then set to building a rough pavement/dirt tourer. Something for a good ride on the local fire-roads where I maybe wouldn't want to take my more modern road bike or taking a mountain bike or fat bike might just feel silly and slow. That's how I'm going to justify to the wife having even more bikes anyway.

Thanks again!
Weresquatch is offline
Old 05-14-19, 01:25 AM
  #22
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,031

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 143 Post(s)
Tagged: 0 Thread(s)
Quoted: 555 Post(s)
Likes: 0
Liked 112 Times in 80 Posts
Switching Cranks

Originally Posted by Weresquatch View Post
As I don't plan on using the cottered crank, I'll switch probably to a sealed unit. The BB shell appears to take a 70. What are the go-to BBs for these old Japanese bikes?
68mm and 70mm indicate the bottom bracket shell width: 68mm British and French while 70mm shells were used on Italian bikes (plus a few oddball others). 68mm and 70mm terms are sometimes misused to describe the BB spindle lengths.

Japan used British threads for most BBs, headsets and freewheels so the BB shell is probably 68mm wide but measure the shell width without the cups.

Before guessing or assuming, I suggest that you make some measurements first.

Find some cotterless cranks that you are interested in and then determine what BB spindle length you need to go with it.

Shimano sells their BB UN-55 sealed bearing BB cartridge for as low as $15.00. They come with British threads in spindle lengths from 107mm to 127.5mm. They also make 70mm BB-55 with Italian threads.

There's a cheaper model, the UN-26 but it has plastic "cups" that hold the BB in the shell.

You will also need a tool to install the UN-55 cartridge. They're not very expensive.

BTW the drive side cups on British thread BBs have left hand threads so you need to turn the cup clockwise to loosen it.

One other thing, this is very low end bike which will be reflected in the quality of the components and their durability; the wheels for instance.

I wouldn't recommend investing a lot of time and money upgrading this bike. In the end, you will still have a "Gasupaipu" (gas pipe bike). Not trying to be snobby, just realistic.

verktyg
verktyg is offline
Old 05-14-19, 01:22 PM
  #23
Weresquatch
Senior Member

Join Date: May 2019
Location: Pacific NW (of the US)
Posts: 74

Bikes: Just the normal stuff, cruisers, duilies, fatbike, road bikes, single speeds...

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 12 Times in 11 Posts
Luckily I'm new to this forum, but not new to bikes. :-) I started racing in '89 and had stints as a product tester, etc. Granted most of that experience was with MTB and cyclocross and I do not know very much at all about vintage Japanese bikes. I measured that BB shell (BB completely removed) at 70, but I guess I'll put digital calipers on it in case I screwed it up. If it's 68 thats great as I think I have a UN71 and a SuntourXCPro in the garage that would work...have to check though. I get that the frame is low end, but I love the idea that it is unusual and the whole mystery of how it got here. I'm looking forward to building it up....Oh, another weird thing, the cottered crank is 48/40T. That's really low for these bikes isn't it? Is that indicative of like a "camping" model? Thanks again for all your help!
Weresquatch is offline
Old 05-14-19, 01:46 PM
  #24
philbob57
Senior Member

Join Date: Jul 2013
Location: Chicago North Shore
Posts: 1,162

Bikes: frankenbike based on MKM frame

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 300 Post(s)
Likes: 0
Liked 54 Times in 41 Posts
Per my memory and Wikipedia, the exchange rate in 1970 - and 1967 - was 360 yen to the US dollar. The Y28,000 Bridgestone was just under $78, close to $600 today. When we visited Japan on our way to Taiwan in 1970, I loved that exchange rate, which is why it's engraved on my brain....
philbob57 is offline
Likes For philbob57:
Old 05-14-19, 02:01 PM
  #25
rando_couche
Senior Member

Join Date: Jul 2013
Posts: 1,126
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 158 Post(s)
Liked 22 Times in 19 Posts
Originally Posted by TenGrainBread View Post
In the 60s, Japanese cyclists were obsessed with French cyclotouring and randonneuring. Hence all the French-style camping and sport touring bikes with guidonnet levers, handlebar bags, etc...
And 50+ years later, the enthusiasm is still there.
rando_couche is offline
Likes For rando_couche:
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
marius.suiram
Classic and Vintage Bicycles: Whats it Worth? Appraisals.
7
04-02-15 05:29 PM
Wilfred Laurier
General Cycling Discussion
81
05-09-13 01:40 PM
radshark
General Cycling Discussion
0
08-26-11 05:33 PM
Gege-Bubu
General Cycling Discussion
0
05-28-11 06:13 AM
mijome07
Touring
43
02-07-10 07:42 AM

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
