Stuck Seatpost After "Only" 30 years.

Steel frame, aluminum seatpost. After soaking with Kroil for a while, I'm going to drill a hole in the BB shell, then get 30" of rebar, slip it through the BB up inside the seat tube to the seatpost, and pound it with a mallet. Sounds like fun !

EDIT...Seat post is Out ! See post # 41
__________________
Bikes: Old steel race bikes, old Cannondale race bikes, less old Cannondale race bike, crappy old mtn bike.

FYI: https://www.bikeforums.net/forum-sugg...ad-please.html

Last edited by Homebrew01; 03-01-20 at 02:03 PM.
Homebrew01 is offline
Old 02-23-20, 12:40 PM
  #2
cb400bill
High Derolic Moderator

cb400bill's Avatar

Join Date: Jul 2007
Location: Kalamazoo MI
Posts: 19,058

Bikes: Fuji SL 2.1 Carbon, Cannondale Synapse Alloy, Trek 710

Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 2282 Post(s)
Liked 2,451 Times in 1,518 Posts
What 'cha working on?
cb400bill is offline
Old 02-23-20, 01:01 PM
  #3
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 18,148

Bikes: A bunch of old bikes and a few new ones

Mentioned: 156 Post(s)
Tagged: 0 Thread(s)
Quoted: 4977 Post(s)
Liked 1,462 Times in 969 Posts
time for a video of the project
bikemig is offline
Old 02-23-20, 02:10 PM
  #4
smontanaro
Senior Member

Join Date: Aug 2007
Location: Evanston, IL
Posts: 4,384

Bikes: many

Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 845 Post(s)
Liked 352 Times in 230 Posts
Can't you just dissolve the seatpost with lye? Maybe less chance of damage to the frame.

Last edited by smontanaro; 02-23-20 at 03:32 PM.
smontanaro is offline
Old 02-23-20, 02:16 PM
  #5
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 26,116

Bikes: https://www.theheadbadge.com

Mentioned: 65 Post(s)
Tagged: 0 Thread(s)
Quoted: 1359 Post(s)
Liked 1,441 Times in 859 Posts
If it's a forged seatpost, don't forget RJ's options:



-Kurt
__________________







cudak888 is offline
Likes For cudak888:
Old 02-23-20, 03:45 PM
  #6
MiloFrance
Not riding enough

MiloFrance's Avatar

Join Date: Aug 2014
Location: Capestang, France
Posts: 1,338

Bikes: Lots of French, some British and a couple of Italian

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 225 Post(s)
Liked 72 Times in 45 Posts
I'd go the sodium Hydroxide route. Slow and steady not the strong violent stuff.
1 - Saw the post off close to the frame
2 - Invert frame in a bath of Sodium hydroxide (Lye) with 1" of post submerged
3 - Visit a pool shop and buy a steel or brass rubber pipe bung to fit seat tube.
4 - When the 1" has dissolved, block seat tube with bung.
5 - Work out roughly how much liquid you need to cover the rest of the seat post left inside the frame
6 - Fill from the BB or bottle cage boss.

In the dissolving stages you can listen for the bubbles. Fewer bubbles, time to change the solution. With 30% lye it should take about 10 days. You can even protect the paint to a large degree with rubber solution or neoprene glue.
__________________
I'm on holiday whenever I ride my bike
MiloFrance is offline
Old 02-23-20, 07:09 PM
  #7
Homebrew01
Super Moderator
Thread Starter

Homebrew01's Avatar

Join Date: Jul 2004
Location: Ffld Cnty Connecticut
Posts: 21,628

Bikes: Old Steelies I made, Old Cannondales

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 1049 Post(s)
Liked 455 Times in 330 Posts
Originally Posted by cb400bill View Post
What 'cha working on?

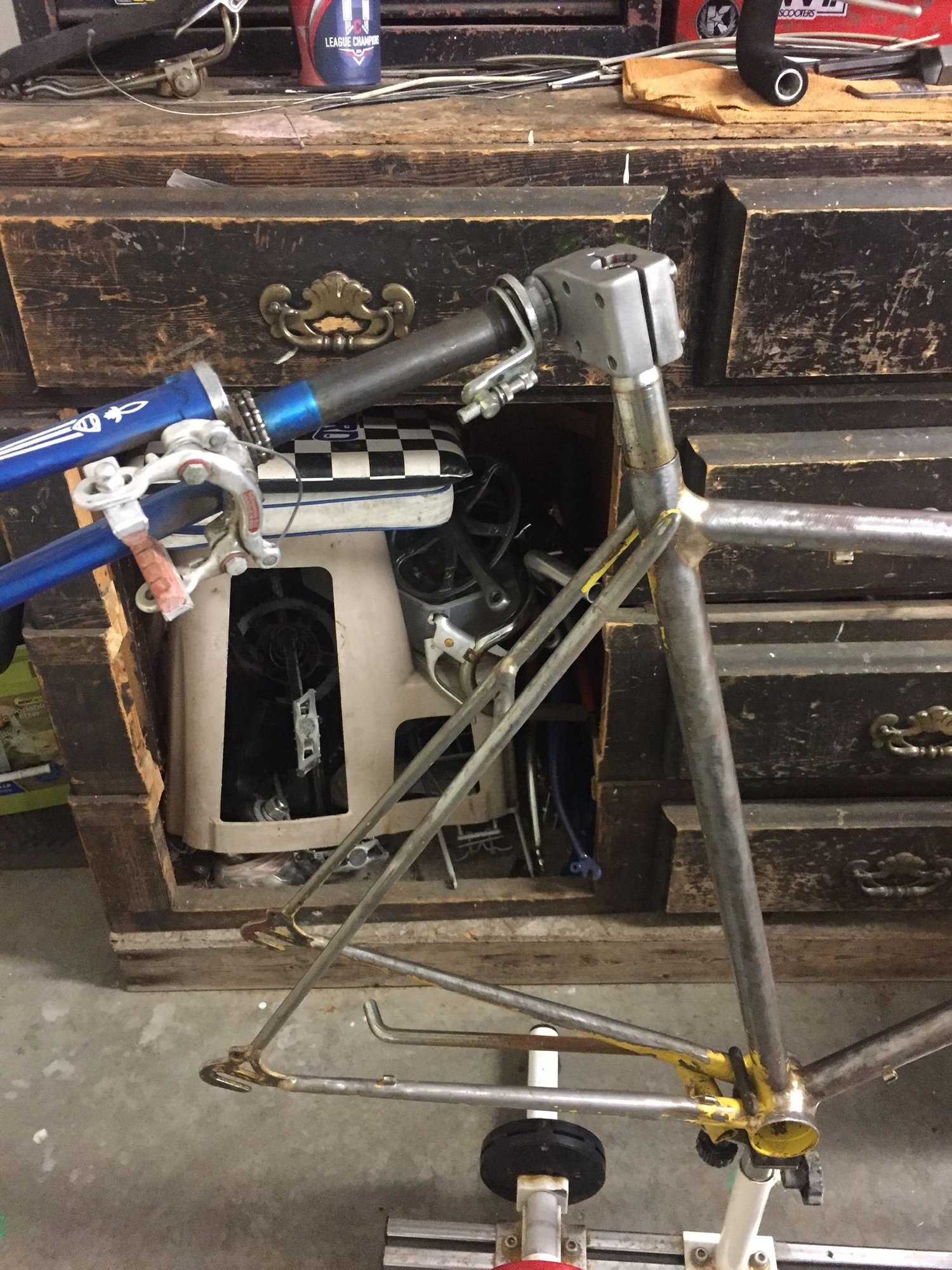

A frame I built a Loooong time ago, and forgot about.
It's a bit too big anyway, so may go back into the spiderwebs in the basement.
__________________
Bikes: Old steel race bikes, old Cannondale race bikes, less old Cannondale race bike, crappy old mtn bike.

FYI: https://www.bikeforums.net/forum-sugg...ad-please.html
Homebrew01 is offline
Old 02-23-20, 07:20 PM
  #8
Homebrew01
Super Moderator
Thread Starter

Homebrew01's Avatar

Join Date: Jul 2004
Location: Ffld Cnty Connecticut
Posts: 21,628

Bikes: Old Steelies I made, Old Cannondales

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 1049 Post(s)
Liked 455 Times in 330 Posts
I like that seatpost puller !
Originally Posted by cudak888 View Post
If it's a forged seatpost, don't forget RJ's options:

https://www.youtube.com/watch?v=P-YpmDx86d0

https://www.youtube.com/watch?v=_gAXL2FSY_A

-Kurt
__________________
Bikes: Old steel race bikes, old Cannondale race bikes, less old Cannondale race bike, crappy old mtn bike.

FYI: https://www.bikeforums.net/forum-sugg...ad-please.html
Homebrew01 is offline
Likes For Homebrew01:
Old 02-23-20, 07:45 PM
  #9
Kdogbikes
Senior Member

Join Date: Jul 2015
Location: Madison, Ohio
Posts: 655

Bikes: Gitane tdf,Schwinn 12.2,2 continentals,miyata310,univega supra soort,couple peugeots,ou8,ou10,a few mtb's and other bikes

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 139 Post(s)
Liked 65 Times in 46 Posts
Ive had good luck with this method.

Kdogbikes is offline
Old 02-23-20, 09:40 PM
  #10
SurferRosa
Seor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 4,015

Bikes: Old school lightweights

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 1639 Post(s)
Liked 1,678 Times in 952 Posts
gugie would just replace the seat tube.
SurferRosa is online now
Old 02-24-20, 07:51 AM
  #11
Moe Zhoost
Half way there

Moe Zhoost's Avatar

Join Date: Sep 2015
Location: Durham, NC
Posts: 2,404

Bikes: Many, and the list changes frequently

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 768 Post(s)
Liked 538 Times in 322 Posts
Using a piece of rebar is guaranteed to put dents in the seat tube.
Moe Zhoost is offline
Old 02-24-20, 07:55 AM
  #12
Homebrew01
Super Moderator
Thread Starter

Homebrew01's Avatar

Join Date: Jul 2004
Location: Ffld Cnty Connecticut
Posts: 21,628

Bikes: Old Steelies I made, Old Cannondales

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 1049 Post(s)
Liked 455 Times in 330 Posts
Originally Posted by Moe Zhoost View Post
Using a piece of rebar is guaranteed to put dents in the seat tube.
The rebar shouldn't touch the seat tube. The idea is it slides through a hole in the bb shell, then inside the seat post.
__________________
Bikes: Old steel race bikes, old Cannondale race bikes, less old Cannondale race bike, crappy old mtn bike.

FYI: https://www.bikeforums.net/forum-sugg...ad-please.html
Homebrew01 is offline
Old 02-24-20, 08:01 AM
  #13
Hudson308
Mr. Anachronism

Hudson308's Avatar

Join Date: Jan 2013
Location: Somewhere west of Tobie's
Posts: 2,034

Bikes: fillet-brazed Chicago Schwinns, and some other stuff

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 506 Post(s)
Liked 199 Times in 137 Posts
One man's solution.
__________________
"If we don't change direction soon, we'll end up where we're going." -Irwin Corey
Hudson308 is offline
Old 02-24-20, 08:29 AM
  #14
ridelikeaturtle
Senior Member

ridelikeaturtle's Avatar

Join Date: Nov 2015
Location: Dublin, Ireland
Posts: 1,130

Bikes: Bianchi Ti Megatube; Colnago Competition; Planet-X EC-130E; Klein Pulse; Amp Research B4; Litespeed Catalyst; Fondriest Squadra Corse; Trek Y11

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 525 Post(s)
Liked 324 Times in 194 Posts
My thoughts on these methods...

Using a chemical reaction: messy and difficult to control, this would be my last option.

Using a puller to extract the seat post straight out: very aggressive, if not straight out it could damage the frame; the video linked could damage the BB; puts a lot of pressure on the tube and risks something exploding

Drilling a hole through the BB and bashing some rebar up through it: my second-to-last option, as this is incredibly invasive (most especially to the bottom bracket!) and is a high risk of damage to the frame, especially if the seat post gets "kinked" in any way on removal.

Drilling the seat post and bolting a socket to it, then using an impact driver to rotate the seat post out: my first option, only damages the seat post, you can stop at any time, and is the fastest.

Clamping the seat post and using the frame (or some other long handle attachment to the clamp) as a lever to rotate it out: same concept as the impact driver, so would be another good option, though there is some risk to the frame. Being able to stop the process before any damage is done is a bonus.
ridelikeaturtle is offline
Likes For ridelikeaturtle:
Old 02-24-20, 08:38 AM
  #15
Moe Zhoost
Half way there

Moe Zhoost's Avatar

Join Date: Sep 2015
Location: Durham, NC
Posts: 2,404

Bikes: Many, and the list changes frequently

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 768 Post(s)
Liked 538 Times in 322 Posts
Originally Posted by Homebrew01 View Post
The rebar shouldn't touch the seat tube. The idea is it slides through a hole in the bb shell, then inside the seat post.
Ok, I get it now. I was thinking that you were going to tap on the bottom of the seat post rather than running the rebar to the top.
Moe Zhoost is offline
Likes For Moe Zhoost:
Old 02-24-20, 08:42 AM
  #16
Mr. 66
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 1,590
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 483 Post(s)
Liked 349 Times in 250 Posts
The last couple of stuck posts removed I sawzalled the top off cut lengthwise, crafted a threaded rod into a slide hammer of sort.
Mr. 66 is online now
Likes For Mr. 66:
Old 02-24-20, 09:37 AM
  #17
jdawginsc
Edumacator

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 1,538

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, Faggin Matrix thingy

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 453 Post(s)
Liked 346 Times in 230 Posts
Originally Posted by ridelikeaturtle View Post
My thoughts on these methods...
Clamping the seat post and using the frame (or some other long handle attachment to the clamp) as a lever to rotate it out: same concept as the impact driver, so would be another good option, though there is some risk to the frame. Being able to stop the process before any damage is done is a bonus.
This seems like the first option that should be used. Probably not a whole lot of space to dissolve anything with PB Blaster or the like.
__________________
1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl, 1980s Vanni Losa Cassani thingy, 1988 Faggin Matrix with not Matrix tubes, 1990ish MBK Atlantique, 1982 Rossin Record, 1987 Trek Elance

jdawginsc is online now
Likes For jdawginsc:
Old 02-24-20, 09:46 AM
  #18
TXsailor
Senior Member

Join Date: Jul 2013
Location: Bowie Texas
Posts: 681

Bikes: Origin-8 Lactic Acid Giant Escape 2 Centurian Lemans 12 Kuwahara Tandem 1989 Ironman Expert 1988 Ironman Master

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 239 Post(s)
Liked 78 Times in 55 Posts
I used the impact wrench method on my last one. It worked but not as easy as it did for RJ. The hard part was drilling the socket. I used carbide bits and a drill press but my press doesn't really run slow enough and it took a couple of bits per hole. I also cut one out but it was really corroded and I doubt the impact would have got it.

RJ the bike guy stuck seat post removal tools.

Always grease your post!
TXsailor is offline
Old 02-24-20, 10:20 AM
  #19
joeswamp
Junior Member

Join Date: Feb 2019
Posts: 17
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Freeze the post as cold as possible, as the aluminum will shrink twice as much as the steel. Consider using dry ice. Maybe after freezing it for hours put a wet boiling water washcloth on the steel around the post, to maximize the size difference just before hammering. The corrosion is very strong but also very brittle so you want to have lots of sharp blows, a large slide hammer works well (when it does).
joeswamp is offline
Old 02-24-20, 11:54 AM
  #20
TXsailor
Senior Member

Join Date: Jul 2013
Location: Bowie Texas
Posts: 681

Bikes: Origin-8 Lactic Acid Giant Escape 2 Centurian Lemans 12 Kuwahara Tandem 1989 Ironman Expert 1988 Ironman Master

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 239 Post(s)
Liked 78 Times in 55 Posts
Originally Posted by joeswamp View Post
Freeze the post as cold as possible, as the aluminum will shrink twice as much as the steel. Consider using dry ice. Maybe after freezing it for hours put a wet boiling water washcloth on the steel around the post, to maximize the size difference just before hammering. The corrosion is very strong but also very brittle so you want to have lots of sharp blows, a large slide hammer works well (when it does).
That was going to be my next attempt and I would have done it the first time along with the impact except the closest dry ice is 50 miles away. I have a tank of CO 2 that I froze things with but I don't know where to get it refilled any more. The DR Pepper guy had refilled it for me but that was 20 years ago.
TXsailor is offline
Old 02-24-20, 12:43 PM
  #21
curbtender
Senior Member

curbtender's Avatar

Join Date: Mar 2007
Location: SF Bay Area, East bay
Posts: 6,701

Bikes: Marinoni, Kestral 200 2002 Trek 5200, KHS Flite, Koga Miyata, Schwinn Spitfire 5, Schwinn Speedster, Mondia Special, Univega Alpina, Miyata team Ti, MB3

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 943 Post(s)
Liked 490 Times in 344 Posts
Originally Posted by TXsailor View Post
That was going to be my next attempt and I would have done it the first time along with the impact except the closest dry ice is 50 miles away. I have a tank of CO 2 that I froze things with but I don't know where to get it refilled any more. The DR Pepper guy had refilled it for me but that was 20 years ago.
Do you have any home brew suppliers around?
curbtender is offline
Old 02-24-20, 01:04 PM
  #22
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 21,182
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1,064 Times in 779 Posts
Originally Posted by SurferRosa View Post
gugie would just replace the seat tube.
I have done that, it's not exactly a slam dunk. Dave Moulton says the seat lug is the hardest part of a frame to repair, and I now appreciate that. Now I want to replace the chainstays, so the whole enterprise seems a bit silly. I have some spare chainstays and I think I can reuse the seat stays, so it will probably work out.

I like the modified socket and impact wrench method, I might try that next time the opportunity presents itself. I tried using a pneumatic impact hammer which someone recommended. Didn't do anything, unfortunately.

I know someone that used to do removals for everyone in town. He would either pull them out with a winch or cut them out on his lathe. Had a bad experience on an expensive Ti frame and stopped doing it. I tried his lathe technique, but it turns out it's best if you use a smaller drill bit than I did. The chips from the seatpost destroyed the tube. Oops. I have thought of chucking up a boring head in my lathe and cutting them out that way. I think it would work.

Last edited by unterhausen; 02-25-20 at 08:08 AM.
unterhausen is offline
Likes For unterhausen:
Old 02-24-20, 03:12 PM
  #23
MiloFrance
Not riding enough

MiloFrance's Avatar

Join Date: Aug 2014
Location: Capestang, France
Posts: 1,338

Bikes: Lots of French, some British and a couple of Italian

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 225 Post(s)
Liked 72 Times in 45 Posts
The only method guaranteed not to damage the frame is chemical, and although it takes a couple of weeks, the time involved is minimal. I did 2 posts and a BB last year like that and I don't think I'll ever go the violence direction on a stuck post again.
__________________
I'm on holiday whenever I ride my bike
MiloFrance is offline
Old 02-24-20, 03:14 PM
  #24
Miele Man
Senior Member

Join Date: Jun 2014
Location: Ontario, Canada
Posts: 4,288

Bikes: iele Latina, Miele Suprema, Miele Uno LS, Miele Miele Beta, MMTB, Bianchi Model Unknown, Fiori Venezia, Fiori Napoli, VeloSport Adamas AX

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1165 Post(s)
Liked 730 Times in 508 Posts
I've had good luck getting a stuck seatpost loosened by attaching a sacrificial saddle to the seatpost then strapping the saddle t o a picnic table and then using the frame as a lever to twist the seatpost until it loosened.

Cheers
Miele Man is offline
Old 02-24-20, 03:30 PM
  #25
joeswamp
Junior Member

Join Date: Feb 2019
Posts: 17
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by TXsailor View Post
That was going to be my next attempt and I would have done it the first time along with the impact except the closest dry ice is 50 miles away. I have a tank of CO 2 that I froze things with but I don't know where to get it refilled any more. The DR Pepper guy had refilled it for me but that was 20 years ago.
You can often get dry ice or CO2 at welding supply houses.
joeswamp is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
