Painting 1977 frame: remove bb and other questions??

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Painting 1977 frame: remove bb and other questions??

Old 01-06-20, 02:57 PM
  #51
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 4,778
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1503 Post(s)
Liked 575 Times in 444 Posts
Originally Posted by ts99 View Post
So you're saying I should return it?
Upshot is, they'd probably honor the warranty. Upshot of the upshot is, you'd end up with something made by robots, either from old beer cans or burnt charcoal. Wouldn't you rather have a bicycle, made by humans?
madpogue is offline
Likes For madpogue:
Old 01-06-20, 02:58 PM
  #52
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,988

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 116 Post(s)
Tagged: 0 Thread(s)
Quoted: 2171 Post(s)
Liked 389 Times in 294 Posts
Originally Posted by ts99 View Post
So you're saying I should return it?


har har...

I agree with the repaint. It's rusting and too far gone. Decals are available. If you've got an autobody guy willing to do it, that's a good way to go. Frankly a good powdercoat would be fine too. It's not like old Treks have finely filed lug tips. It is a production bike. Or take up the fellow forumite on his offer...

Spray enamels are unlikely to hold up, unless you can wrangle some old school stove-able enamel. In a way, that's what powder coat is. Stoved on at least.
Salamandrine is offline
Old 01-06-20, 04:16 PM
  #53
ts99
Member
Thread Starter

Join Date: Jan 2020
Location: Central Pennsylvania
Posts: 46

Bikes: 1977 Trek

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Likes: 0
Liked 14 Times in 6 Posts
Originally Posted by Classtime View Post
Check out Randy's site Painting a Bicycle
If funds are short, brush on might be the way to go. You have the winter to wait a week between coats etc. then when you get $$$, get it done right.
Oh, remove everything.
Did I miss where he recommended what type of paint to get?
ts99 is offline
Old 01-06-20, 06:43 PM
  #54
capnjonny
Senior Member

capnjonny's Avatar

Join Date: Nov 2014
Location: Saratoga calif.
Posts: 617

Bikes: Miyata 610(66cm), GT Vantara Hybrid (64cm), Nishiki International (64cm), Peugeot rat rod (62 cm), Trek 800 Burning Man helicopter bike, Bob Jackson frame (to be restored?) plus a never ending stream of neglected waifs from the Bike exchange.

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 199 Post(s)
Likes: 0
Liked 47 Times in 32 Posts
You can read my earlier posts detailing how to paint with Rustoleum enamel . I have done quite a few repaints using it and for the money it can't be beat. Just be sure to be careful and after painting don't hang the hardware on it for a couple months to let it dry . Store it somewhere hot while you are waiting . like the attic.

if you are going to all the trouble of painting the bike you would be crazy not to pull the bottom bracket, fork/stem, and seat post. If any of those is frozen and won't come off your bike is basically toast and no point painting it.

I just finished rehabbing an 85 Bianchi and the grease on the bottom bracket bearings was so hard I had to chip it off with a screw driver. Same with the stem. After cleaning and renewing the grease everything works beautifully.
capnjonny is offline
Old 01-06-20, 07:12 PM
  #55
Hudson308
Mr. Anachronism

Hudson308's Avatar

Join Date: Jan 2013
Location: City of Lakes
Posts: 1,944

Bikes: fillet-brazed Chicago Schwinns, and some other stuff

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 482 Post(s)
Liked 159 Times in 110 Posts
Originally Posted by The Golden Boy View Post
There was a discussion (more like I made an observation) about the ‘ice blue’ early Treks seem to ALL have had the livin’ snot ridden out of them.

I don’t know the exact provenance of my bike- but it shares that “excessively worn” look that most of all the early (read: TX series bikes) ice blue Treks seem to share.

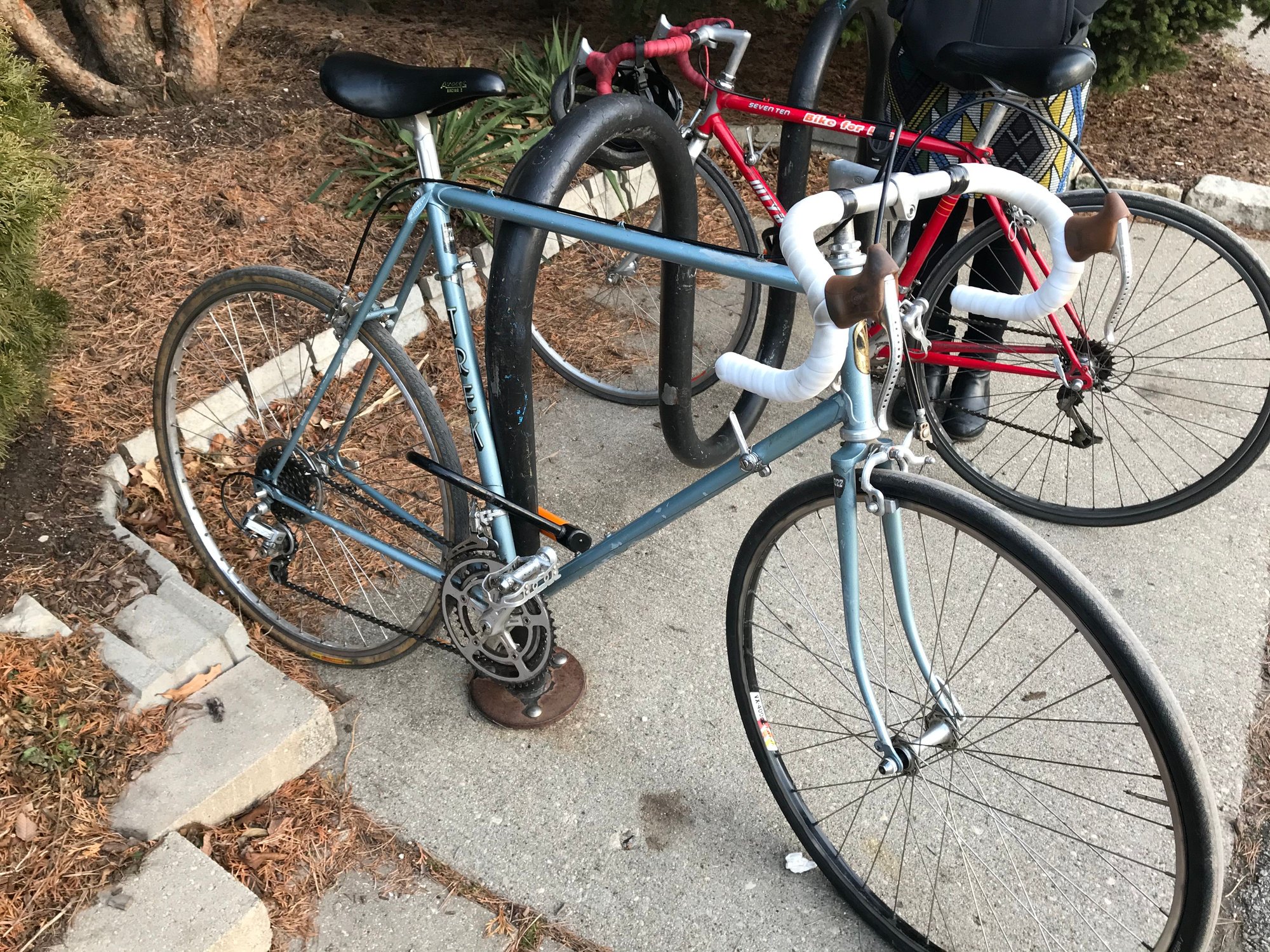

Here's another "snot-ridden" ice blue '78 (TX770). Bought it from the original owner, so I can confirm the snotty part. Saddle position is as-found.
__________________
"If we don't change direction soon, we'll end up where we're going." -Irwin Corey
Hudson308 is offline
Old 01-06-20, 07:31 PM
  #56
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 2,254

Bikes: 81 Medici, 84 Centurion Turbo, 2011 Richard Sachs, '90 Alpina Team, 85 TREK 620, 2011 Milwaukee Road

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 845 Post(s)
Liked 227 Times in 166 Posts

Originally Posted by ts99 View Post
Did I miss where he recommended what type of paint to get?

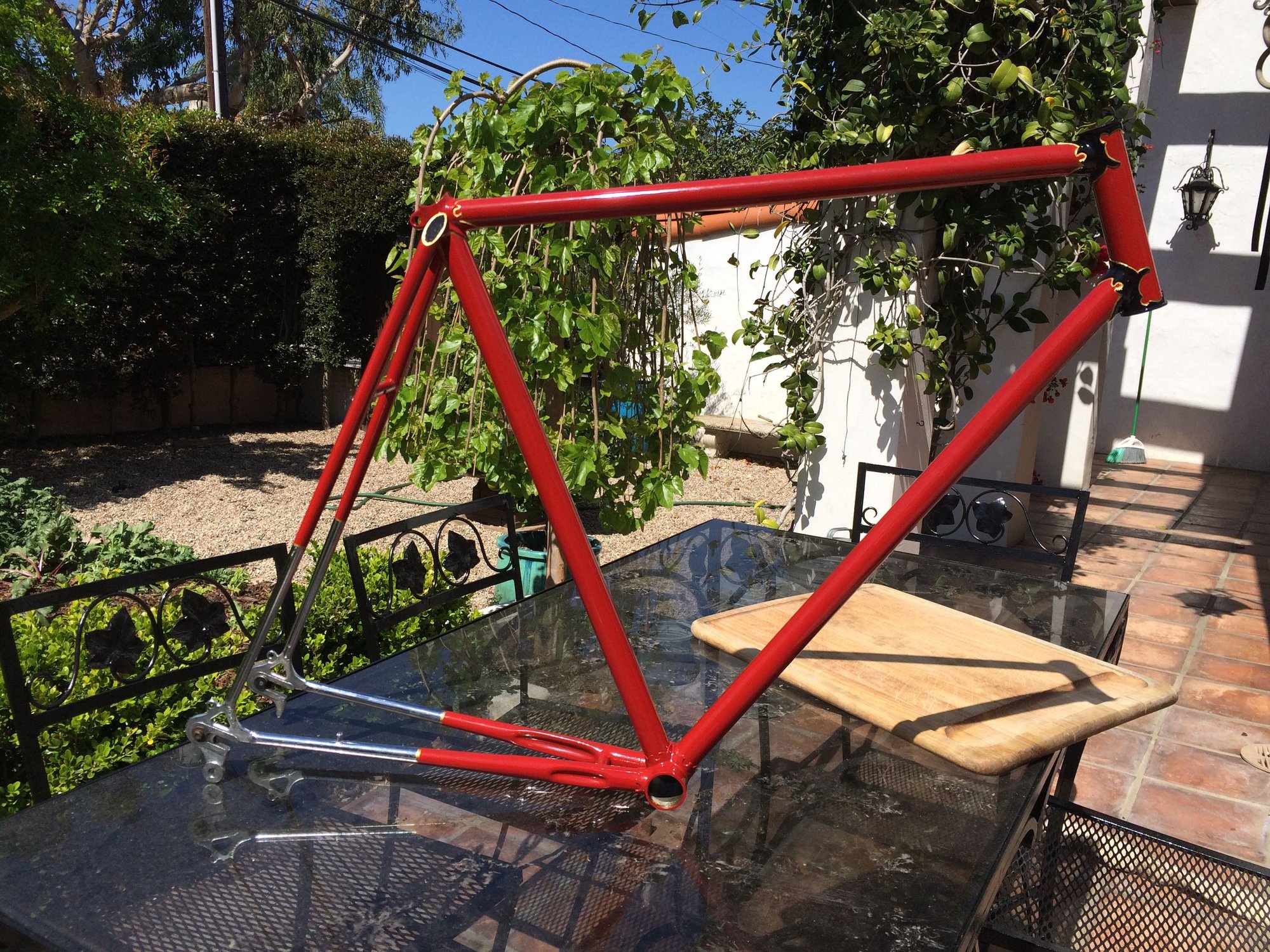

Pretty sure he used Rustoleum. That is what I used also. $13.00 total for paint and primer FTW. $20.00 for brushes which are not single use. The key is prep and wait time of at least a week to dry between coats. Colors of course are limited. I've got some safety red that is waiting for a project.
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is offline
Old 01-06-20, 10:30 PM
  #57
Doug Fattic
framebuilder

Join Date: Dec 2009
Location: Niles, Michigan
Posts: 594
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 160 Post(s)
Likes: 0
Liked 183 Times in 94 Posts

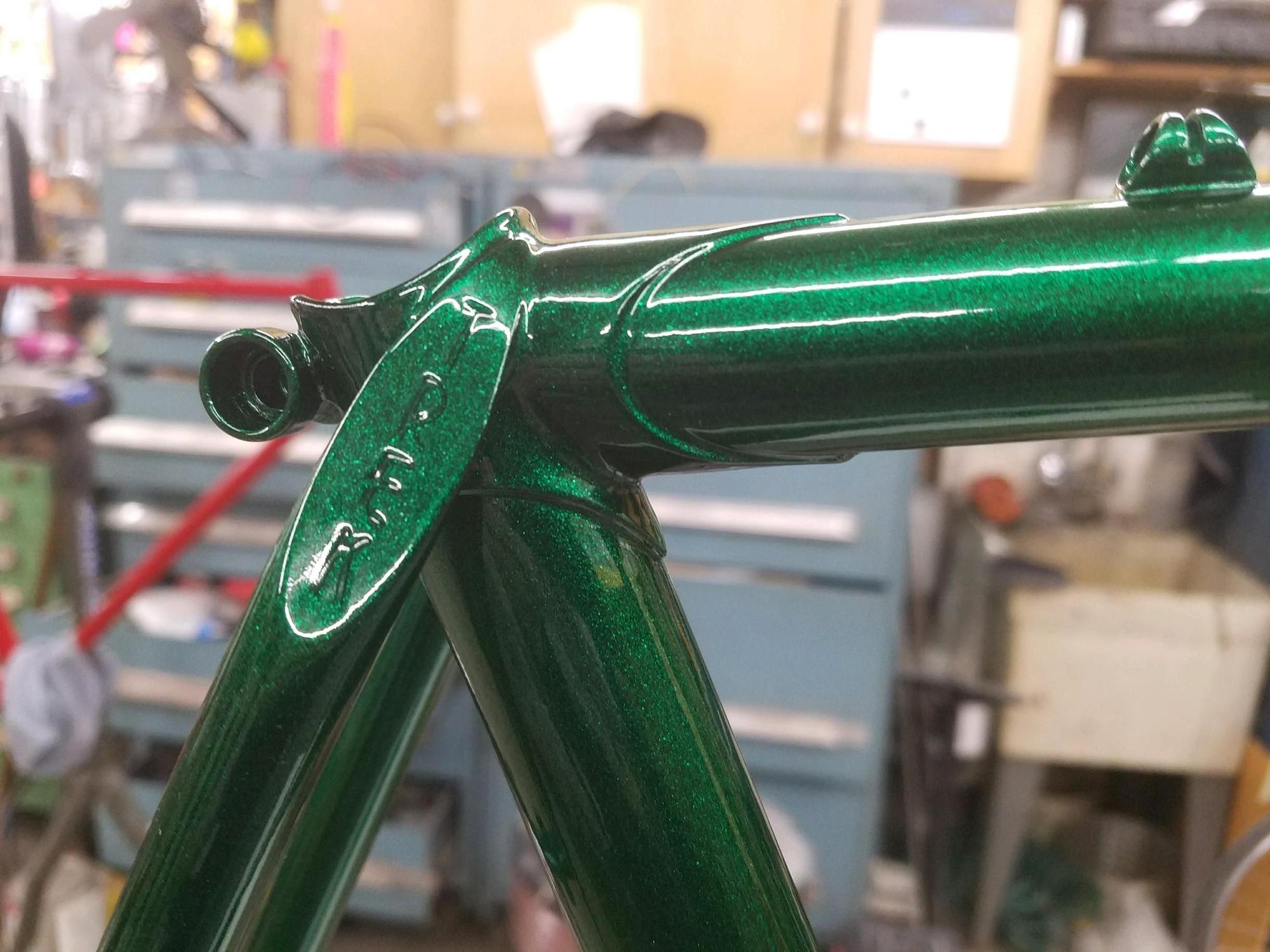

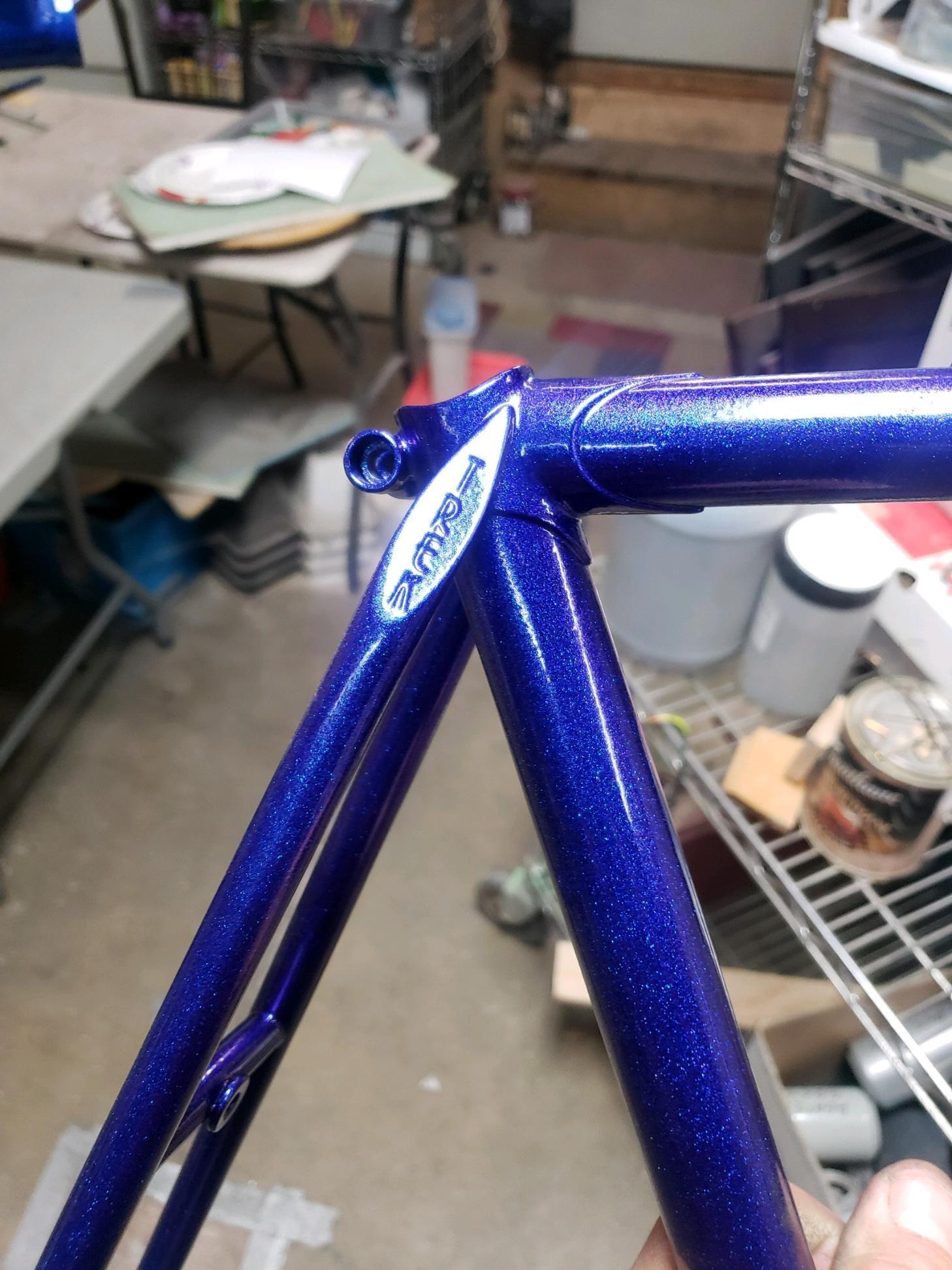

DuPont Imron is a brand name for polyurethane paint that is made by many different companies. It was designed to be used for the abuse aircraft can get flying through the air at speed. It is probably the most durable type of wet paint available. It is actually an epoxy that hardens by chemical action when the activator is added. This paint is too hard to bond to steel directly so that is why a primer is used. The primer is designed to both stick to steel and the top colors. It is also an epoxy paint that requires an activator. Both the primer and color paints need a reducer so they flow out more smoothly. This kind of paint is way more durable than paint designed to harden when left to dry in the air.

There is an experienced amateur builder in Florida that recently wanted to try painting his frames with Rustoleum.He wrote about his issues on one of the framebuilding forums.I’m too lazy to try and find that subject thread.If I remember right he eventually abandoned the idea because of the amount of time it took (even with the help of a hot attic) and the results were less durable than what he was used to.To be fair to his posts I didn’t read them carefully because it wasn’t something that interested me nor something that I would recommend to my framebuilding students.They are making something that will probably be used a lot and will want something more durable.Not only that but fair or not the paint is what will represent the quality of their entire work and there is no way you can get a frame to look as good as a professional polyurethane paint job.Having said that some of the amateur air-dried paint jobs pictured on this forum look good and are a big improvement as well as much more affordable.
Doug Fattic is offline
Likes For Doug Fattic:
Old 01-06-20, 11:56 PM
  #58
Chr0m0ly
Senior Member

Chr0m0ly's Avatar

Join Date: Apr 2014
Location: Hamilton Heights, Manhattan, New York, NY
Posts: 1,573

Bikes: '84 Miyata 610 '85 Miyata 710, ‘86 Miyata 710, ‘91 Cannondale ST600, ‘84 Trek 610, 520, 620, ‘91 Miyata 1000LT, a few frames, some odds and ends....

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 619 Post(s)
Liked 225 Times in 146 Posts
Originally Posted by Hudson308 View Post
Here's another "snot-ridden" ice blue '78 (TX770). Bought it from the original owner, so I can confirm the snotty part. Saddle position is as-found.
Well, as long as we're posting our Ice Blue's...


1979 514

It's been touched up with some brushed on flat blue paint by the PO.
Chr0m0ly is offline
Old 01-07-20, 09:47 AM
  #59
Hudson308
Mr. Anachronism

Hudson308's Avatar

Join Date: Jan 2013
Location: City of Lakes
Posts: 1,944

Bikes: fillet-brazed Chicago Schwinns, and some other stuff

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 482 Post(s)
Liked 159 Times in 110 Posts
BTW, all powdercoat is NOT created equal.

__________________
"If we don't change direction soon, we'll end up where we're going." -Irwin Corey
Hudson308 is offline
Likes For Hudson308:
Old 01-07-20, 09:52 AM
  #60
ryansu
Ride.Smile.Repeat

ryansu's Avatar

Join Date: May 2011
Location: Seattle WA
Posts: 2,581

Bikes: 2009 Handsome Devil, 1987 Trek 520 Cirrus, 1978 Motobecane Grand Touring, 1987 Nishiki Cresta GT, 1989 Specialized Allez Former bikes; 1986 Miyata Trail Runner, 1979 Miyata 912, 2011 VO Rando, 1999 Cannondale R800, 1986 Schwinn Passage

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 692 Post(s)
Liked 337 Times in 248 Posts
Glacier Blue 87 MIyata 112

ryansu is offline
Old 01-07-20, 12:09 PM
  #61
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 4,778
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1503 Post(s)
Liked 575 Times in 444 Posts
Originally Posted by Hudson308 View Post
BTW, all powdercoat is NOT created equal.

+1; this is what I was referring to earlier, about the thickness. Even on a "production" * frame, it makes a big difference visually. Thanks for the pics, they make that very clear.


* Re "production"
Originally Posted by Salamandrine View Post
It is a production bike.
"Production" meant something very different in the late '70s, in a pole shed in a small town in Wisconsin. These frames were hand built by craftsmen. In today's "production" facilities, the employee break room is probably bigger than the pole shed in which the subject bike was built.
madpogue is offline
Old 01-07-20, 12:40 PM
  #62
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 12,126

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 76 Post(s)
Tagged: 0 Thread(s)
Quoted: 2024 Post(s)
Liked 353 Times in 244 Posts
Originally Posted by Hudson308 View Post
BTW, all powdercoat is NOT created equal.

Too bad there's only a "like" button, but not a "love" button!

(yes I'm aware of the implications of that statement)
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 01-07-20, 01:01 PM
  #63
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,988

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 116 Post(s)
Tagged: 0 Thread(s)
Quoted: 2171 Post(s)
Liked 389 Times in 294 Posts
Originally Posted by madpogue View Post
+1; this is what I was referring to earlier, about the thickness. Even on a "production" * frame, it makes a big difference visually. Thanks for the pics, they make that very clear.


* Re "production" "Production" meant something very different in the late '70s, in a pole shed in a small town in Wisconsin. These frames were hand built by craftsmen. In today's "production" facilities, the employee break room is probably bigger than the pole shed in which the subject bike was built.
That's a fair point. "Production" can vary in meaning. In this case not at all comparable to say a big Japanese factory. I might have said hand built by hippies... (I don't know if they really were hippies, but they looked like it in the catalog)

I mentioned this for a practical reason. The lug points in Treks of that era would have been left more or less full thickness. By contrast, the small scale custom American framebuilders of the same period tended to file the points down very thin. Thinner was cooler and more custom, but that sort of frame detail can easily disappear under a thick powder coat job and look pretty bad. An older hand built 'production' Trek frame could potentially look very nice with a thin powder coat if it is done by someone who has experience and cares.
Salamandrine is offline
Old 01-07-20, 01:45 PM
  #64
Unca_Sam
The dropped

Unca_Sam's Avatar

Join Date: Oct 2018
Location: Columbus, OH
Posts: 1,367

Bikes: Pake C'Mute Touring/Commuter Build, 1989 Kona Cinder Cone, 1995 Trek 5200

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 1025 Post(s)
Liked 423 Times in 310 Posts
Originally Posted by Salamandrine View Post
*Snip. An older hand built 'production' Trek frame could potentially look very nice with a thin powder coat if it is done by someone who has experience and cares.
syrupy commercial saleswoman voice: "Bicycles baked by people who care!"
Unca_Sam is offline
Old 01-07-20, 02:39 PM
  #65
Hudson308
Mr. Anachronism

Hudson308's Avatar

Join Date: Jan 2013
Location: City of Lakes
Posts: 1,944

Bikes: fillet-brazed Chicago Schwinns, and some other stuff

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 482 Post(s)
Liked 159 Times in 110 Posts
Originally Posted by Unca_Sam View Post
syrupy commercial saleswoman voice: "Bicycles baked by people who care!"
__________________
"If we don't change direction soon, we'll end up where we're going." -Irwin Corey
Hudson308 is offline
Old 01-07-20, 06:25 PM
  #66
ts99
Member
Thread Starter

Join Date: Jan 2020
Location: Central Pennsylvania
Posts: 46

Bikes: 1977 Trek

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Likes: 0
Liked 14 Times in 6 Posts
Originally Posted by madpogue View Post
+1; this is what I was referring to earlier, about the thickness. Even on a "production" * frame, it makes a big difference visually. Thanks for the pics, they make that very clear.


* Re "production" "Production" meant something very different in the late '70s, in a pole shed in a small town in Wisconsin. These frames were hand built by craftsmen. In today's "production" facilities, the employee break room is probably bigger than the pole shed in which the subject bike was built.
After I got my bike, I rode it to the factory and they showed me around. It was just a little shop building with a few guys.
ts99 is offline
Likes For ts99:
Old 01-08-20, 08:45 AM
  #67
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 4,778
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1503 Post(s)
Liked 575 Times in 444 Posts
Originally Posted by Unca_Sam View Post
syrupy commercial saleswoman voice: "Bicycles baked by people who care!"
Or would that be "Bicycles cared for by people who are baked!"?

Originally Posted by ts99 View Post
After I got my bike, I rode it to the factory and they showed me around. It was just a little shop building with a few guys.
Oh that would've been cool. Were you living in southern WI then? My first "real" bike was a new '82 612, but I was living in Detroit then. And by '82, their catalog was pretty slick, with color photos of each model, so I had no idea it was such a small operation.

The shed's still there, BTW, still red. You can view it on Street View.
madpogue is offline
Old 01-08-20, 06:53 PM
  #68
ts99
Member
Thread Starter

Join Date: Jan 2020
Location: Central Pennsylvania
Posts: 46

Bikes: 1977 Trek

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Likes: 0
Liked 14 Times in 6 Posts
Originally Posted by madpogue View Post

Oh that would've been cool. Were you living in southern WI then?
Yep, western suburbs of Mwaukee. The bike makers didn't look up and I didn't bother them, but they did let me in there to look around.
ts99 is offline
Old 02-10-20, 07:01 PM
  #69
ts99
Member
Thread Starter

Join Date: Jan 2020
Location: Central Pennsylvania
Posts: 46

Bikes: 1977 Trek

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Likes: 0
Liked 14 Times in 6 Posts
Update: I'm going to have my auto body acquaintance guy do it. He seems kinda excited about it. He asked if I could get codes for the paint or something, but I don't think so. He'll sandblast it and prep it as well as paint it. I just said match it as close as possible. Several automakers have "ice blue" colors that look pretty good. I'll be happy if it's sorta close to the original.
ts99 is offline
Old 02-10-20, 08:16 PM
  #70
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 2,254

Bikes: 81 Medici, 84 Centurion Turbo, 2011 Richard Sachs, '90 Alpina Team, 85 TREK 620, 2011 Milwaukee Road

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 845 Post(s)
Liked 227 Times in 166 Posts
You will be happier if you get as close to your color as possible. Search a little. How many Imron colors could there be? Or pick a fresh new color?
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is offline
Old 02-10-20, 08:33 PM
  #71
Doug Fattic
framebuilder

Join Date: Dec 2009
Location: Niles, Michigan
Posts: 594
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 160 Post(s)
Likes: 0
Liked 183 Times in 94 Posts
Originally Posted by ts99 View Post
He asked if I could get codes for the paint or something, but I don't think so.
I'll mention again what I wrote earlier that the Dupont Imron paint code was 44437 and was described as "ice blue metallic" in their 70's paint chip chart.
Doug Fattic is offline
Old 02-11-20, 03:11 PM
  #72
ts99
Member
Thread Starter

Join Date: Jan 2020
Location: Central Pennsylvania
Posts: 46

Bikes: 1977 Trek

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Likes: 0
Liked 14 Times in 6 Posts
Originally Posted by Doug Fattic View Post
I'll mention again what I wrote earlier that the Dupont Imron paint code was 44437 and was described as "ice blue metallic" in their 70's paint chip chart.
Thanks. I didn't catch that. I'll definitely tell him.
ts99 is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
