Go Back  Bike Forums > Bike Forums > Classic & Vintage
Reload this Page >

Is it really a hundred years old?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Is it really a hundred years old?

Old 02-26-20, 11:19 PM
  #26
wschellen
Senior Member
Thread Starter

Join Date: May 2018
Posts: 60
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 24 Post(s)
Liked 44 Times in 18 Posts

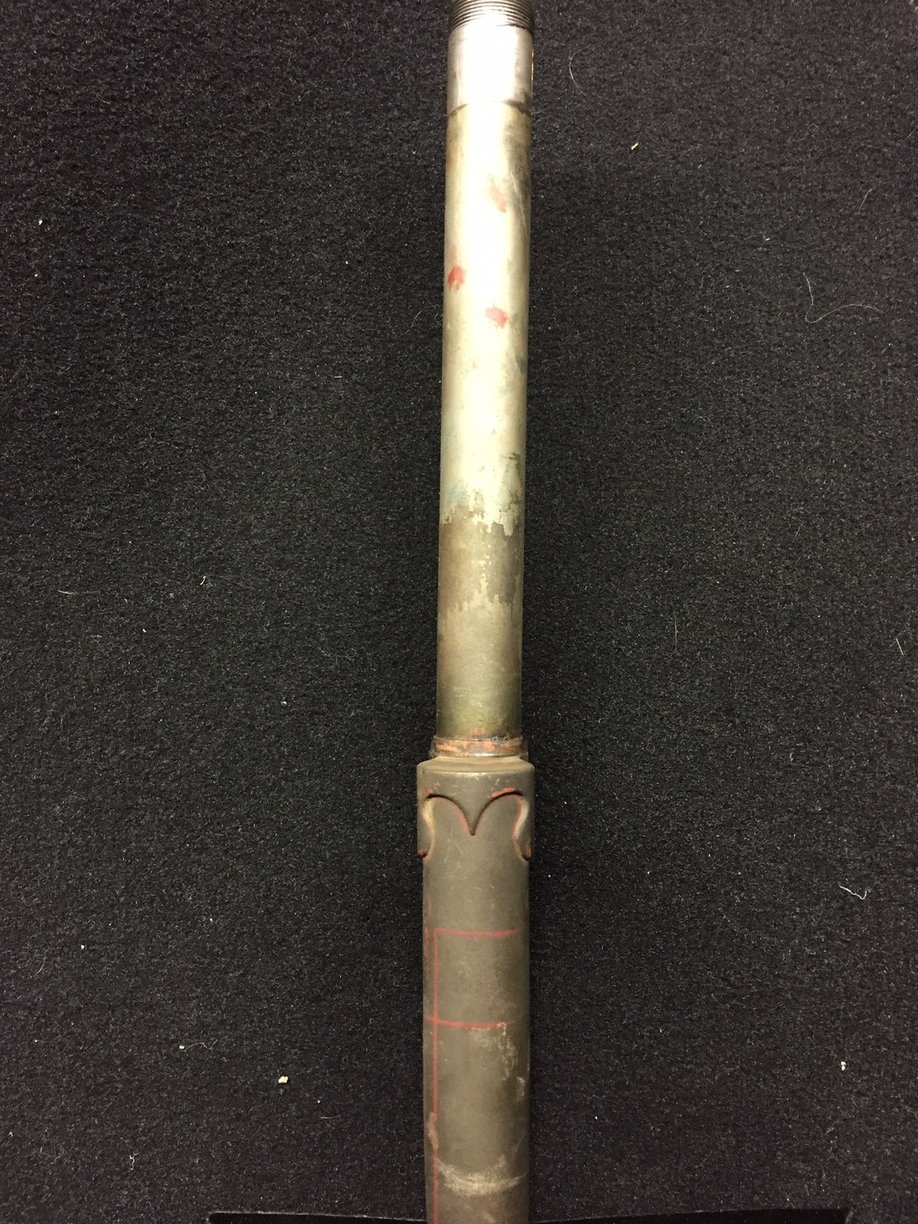

francophile dam good eye my friend. I rode the bike and thought it didn't feel as stable as the wheelbase and fork rake would indicate. I removed the fork last night and to my eye it looks like it is bent slightly back form the fork crown. Perhaps a front end impact of some sort. The fork blades are even, but it seems bent back right at the crown. The fork seems solid and I think it is worth trying to straighten, the lord knows I am not going to find a replacement. This photo is taken from the non drive side.


Last edited by wschellen; 02-26-20 at 11:26 PM.
wschellen is offline
Old 02-27-20, 06:00 AM
  #27
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 25,199

Bikes: https://www.theheadbadge.com

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 986 Post(s)
Liked 806 Times in 524 Posts
Originally Posted by wschellen View Post
francophile dam good eye my friend. I rode the bike and thought it didn't feel as stable as the wheelbase and fork rake would indicate. I removed the fork last night and to my eye it looks like it is bent slightly back form the fork crown. Perhaps a front end impact of some sort. The fork blades are even, but it seems bent back right at the crown. The fork seems solid and I think it is worth trying to straighten, the lord knows I am not going to find a replacement. This photo is taken from the non drive side.
It depends how the builder of the frame preferred to set the blades in the crown though. The blade may be aligned with the centerline or rear edge of the fork - resulting in the blade's taper appearing to angle backwards before the curvature forward. Peugeots and Motobecanes were often built like this, and it's not out of the question for some English builders.

Before trying to tweak the blades, start by putting a pair of dropout alignment adjusters in the front dropouts. It's not a guarantee to determine whether the fork is bent or not, but it'll help indicate whether there is some sort of alignment problem up front.

-Kurt
__________________







cudak888 is offline
Old 02-27-20, 07:26 AM
  #28
martl
Strong Walker

martl's Avatar

Join Date: May 2007
Location: Munich, Germany
Posts: 910

Bikes: too many

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 146 Post(s)
Liked 101 Times in 72 Posts
Originally Posted by wschellen View Post
This beautiful bike fell into my hands yesterday and I would love to know more about it. The previous owner, a man in his 70s said he remembers his father talking about courting his mother in the 20s and riding her around on it.
All collectors know such first- or secondhand background stories have to be taken with a pinch of salt because memories are blurred, dates get mixed up etc. fella in his 70ies equals to born ~1945? while not impossible and certainly common today, in 1920 it would have been very unusual to have a child 25 years after being courted so i would allow a margin of error here.

I've handled a couple of bikes from that era and i know how hard they are to date. In between ~1915 and 1940, the transition from the "older" style with stamped sheetmetal dropouts, fire-welded tubing, longer wheelbase and bolted on chainstays to lugged to mor filigrane lug style, forged dropuouts, more modern geometry took place, for some vendors earlier, others later. My 1938 "Edelweiß" Halbrenner is much more traditional in style than one of my Automotos which is in fact possibly 10-15 years older.
martl is offline
Old 02-27-20, 07:46 AM
  #29
wschellen
Senior Member
Thread Starter

Join Date: May 2018
Posts: 60
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 24 Post(s)
Liked 44 Times in 18 Posts
cudak888 Good point. I have an old Peugeot that appeared at first to have a bent fork, but after looking at several similar bikes I realized that is just how the fork looks. I will check the front dropouts with an alignment tool.
wschellen is offline
Old 02-27-20, 08:06 AM
  #30
wschellen
Senior Member
Thread Starter

Join Date: May 2018
Posts: 60
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 24 Post(s)
Liked 44 Times in 18 Posts
martl Exactly right. I myself got the story of the bicycle second hand and after questioning the person who spoke to the previous owner the story seemed a bit blurry. "Maybe they said it was when they were in the their 20s not in the twenty s". And perhaps the man was only in his 60s not 70s and so on. Anyway I have been able to gather a little more info. A guy on the other forum, CABE, recommended I look on the back of the chain ring for a date code. Using data from Classic Rendezvous page the chain ring is dated 1939. The cranks appear original so that may be close to the date of the bicycle, and would be more consistent with what other forum members think. Here is the photo and the link to the Williams brand cranks. Look closely under the Trade Mark and you can see the letters AB.
Williams serial #s

wschellen is offline
Old 03-12-20, 11:08 PM
  #31
wschellen
Senior Member
Thread Starter

Join Date: May 2018
Posts: 60
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 24 Post(s)
Liked 44 Times in 18 Posts
A few "Glamor Shots" after an overhaul and some new tires.



wschellen is offline
Old 03-14-20, 04:00 AM
  #32
bwilli88
Senior Member

bwilli88's Avatar

Join Date: Jan 2013
Location: Kampong Cham, Cambodia but I have quite a few in Lancaster, PA
Posts: 2,246

Bikes: Bikes in USA; 73 Raleigh Supercourse dingle speed, 74 Raleigh Grand Prix SS, 78 Raleigh Supercourse, 83 Centurion Pro-Tour, 82 Raleigh RRA.

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 578 Post(s)
Liked 178 Times in 124 Posts
What handlebars are they?
bwilli88 is offline
Old 03-14-20, 10:12 AM
  #33
seedsbelize
smelling the roses

seedsbelize's Avatar

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 13,766

Bikes: 79 Trek 930, 80 Trek 414, 84 Schwinn Letour Luxe (coupled), 92 Schwinn Paramount PDG 5

Mentioned: 102 Post(s)
Tagged: 1 Thread(s)
Quoted: 6157 Post(s)
Liked 500 Times in 345 Posts
Beautiful!
__________________
Well look what the cat dragged in. Such a fine addition to the thread





seedsbelize is offline
Old 03-14-20, 04:54 PM
  #34
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 25,199

Bikes: https://www.theheadbadge.com

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 986 Post(s)
Liked 806 Times in 524 Posts
This, OldsCOOL's Glennwood, and the Jack Taylor tandem have to be some of the most interesting and exciting machines to grace this forum as of recent. Fantastic stuff.

Any possibility of period fenders to grace those quick-release stay eyelets?

-Kurt
__________________







cudak888 is offline
Old 03-14-20, 09:28 PM
  #35
wschellen
Senior Member
Thread Starter

Join Date: May 2018
Posts: 60
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 24 Post(s)
Liked 44 Times in 18 Posts
bwilli88 sorry I do not know what bars they are. They are steel and it looks like they were chrome at one point. They are a really cool bend, more comfortable than they look. The stem says Reynolds on it.
cudak888 Actually it did come with some pretty cool fenders, though I think they are newer than the bike. They say Durex RBN on them and they have a very cool decorative trademark.
wschellen is offline
Likes For wschellen:
Old 03-17-20, 01:19 PM
  #36
wschellen
Senior Member
Thread Starter

Join Date: May 2018
Posts: 60
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 24 Post(s)
Liked 44 Times in 18 Posts
Thanks to all the forum members who helped me identify and understand this old bicycle. I gave it an overhaul and some new tires and you can see it now on the Classic Rendezvous web site. C. Bertrand main page I am hoping that I can ride it in the California Eroica if this dam virus allows. Thanks
wschellen is offline
Old 03-21-20, 08:48 AM
  #37
alexnagui
Senior Member

alexnagui's Avatar

Join Date: Oct 2017
Location: Rotterdam, The Netherlands
Posts: 238
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 93 Post(s)
Liked 38 Times in 26 Posts
That's an awesome bike! Well done!
alexnagui is offline
Old 03-23-20, 09:30 AM
  #38
Johno59
Senior Member

Join Date: Oct 2016
Location: Cambridge UK
Posts: 551

Bikes: 1903 24 spd Sunbeam, 1927 Humber, 3 1930 Raleighs, 2 1940s Sunbeams, 2 1940s Raleighs, Rudge, 1950s Robin Hood, 1958 Claud Butler, 2 1973 Colnago Supers, Eddie Merckx, 2 1980 Holdsworth, EG Bates funny TT bike, another 6 or so 1990s bikes

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 220 Post(s)
Liked 101 Times in 81 Posts
In need of Resilion cantilever front brake.

Originally Posted by TugaDude View Post
Great find. I love seeing old information like this. The frame in question is gorgeous, at least to me.
A bike of this era would have Resilion brakes like these


​​​​​​They fit any size wheel.
Johno59 is offline
