Tool for adjusting Mikashima pedal preload

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Tool for adjusting Mikashima pedal preload

Old 03-27-20, 10:03 PM
  #1
CO_Hoya
SeŮor Member
Thread Starter

Join Date: Dec 2007
Location: Colorado
Posts: 769

Bikes: Yes

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 184 Post(s)
Liked 89 Times in 51 Posts
Tool for adjusting Mikashima pedal preload

In the process of overhauling a mid-70s bike for the Quarantine Challenge, Iíve hit a minor snag overhauling these pedals (Mikashima Unique Road).




The cone for the pedal bearings doesnít have a flat for a wrench, but instead a pair of indents on the back face. It appears the idea is that a special tool would hold the cone at the preferred preload while the lock nut was tightened.



Anyone have an idea what sort of tool I should be looking for to get these adjusted correctly? Iíve tried the Park pin spinners but the pins on those tools are too large.

Without a firm grip on the cone, it quickly over-tightens when the lock nut is tightened.
CO_Hoya is offline
Old 03-27-20, 11:01 PM
  #2
Brad L
Senior Member

Brad L's Avatar

Join Date: Dec 2018
Location: Southeast TX
Posts: 163

Bikes: 1959 Fiorelli Campione del Mondo, 1969 Colnago Super, 1971 Peugeot PX-10, 1983 Gitane Interclub, 1990 Specialized Sirrus, 2001 Colnago Dream B-Stay, 2007 Trek 1000 SL

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 57 Post(s)
Liked 84 Times in 48 Posts
I made a tool out of an inexpensive chainring nut wrench from Amazon. It worked like a charm.

See here.
Brad L is offline
Likes For Brad L:
Old 03-28-20, 01:50 AM
  #3
bulgie
blahblahblah chrome moly

bulgie's Avatar

Join Date: Apr 2009
Location: Seattle
Posts: 346
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 206 Post(s)
Liked 223 Times in 127 Posts
Originally Posted by CO_Hoya View Post
Without a firm grip on the cone, it quickly over-tightens when the lock nut is tightened.
That means your tongue-washer has lost its tongue (maybe the cat got it?)
That way it's supposed to work is position the cone, place the tongue washer, and tighten the nut. When the tongue washer is working, turning the nut doesn't make the cone turn. It does tighten up the bearing a little by taking out the slop in the threads, but you correct for that by starting with the bearing just a little loose, so it's just right after the nut is tight. Often requires trial and error. Obviously don't overtighten the nut, which is how the tongues get torn out.

Even if you can find a new tongue washer, say by stealing it from another pedal, you may still be screwed if the tongue has mangled the thread on the axle. And even if the axle thread is fine and you have a new washer, its tongue may die the same way the first one did. It's not a great system!

Without a working tongue-washer, you're right, you would need a tool to hold the cone from turning. That will be pretty difficult.

Here's a "Plan B" idea (not tested but should work): Strip the pedal back down and thoroughly degrease the axle, cone and nut. Reassemble dry, no grease, but with strong (red) loctite on the cone and nut. (You can grease the row of bearings near the crank, as long as you're careful to keep the adjusting thread, where the cone goes, grease-free.)

Adjust the bearing and try to get the nut as tight as you can, but accept that it won't be very tight, with just a pointed stick or whatever your best tool is for holding the cone. We'll have to depend on the loctite. Then don't touch it until the loctite fully cures. Read the instructions -- a day maybe? I forget.

After the loctite is cured, install the dustcap, and pump grease into the pedal using the hole in the dustcap. You'll need a grease-gun with a needle-nose fitting on the end.

Red loctite is not easy to break loose, if you ever want to overhaul this pedal again. But honestly, most pedals never get overhauled once in their entire lives, let alone twice. But if it comes to it, you can loosen the loctite with heat, such as from a heat gun. That'll make the grease smoke, so flush as much of the grease out first, with solvent, and even then it probably needs to be done outdoors. I've used a heat gun to loosen bottom bracket cups, pedals stuck in cranks, cotter pins etc., and it's a powerful technique, so every bike mechanic should have a heat gun.

For an even more permanent fix, adjust the pedal bearing with it dry (no grease) as before, then spot-weld the nut to the axle. Requires you to have some sort of welding capacity, but any kind could work -- oxy-acetylene, stick, MIG or TIG. Then you don't have to trust that loctite to hold, but of course no one can ever overhaul it again, beyond flushing and re-greasing.

Mark B in Seattle
bulgie is offline
Old 03-28-20, 02:59 AM
  #4
alexnagui
Senior Member

alexnagui's Avatar

Join Date: Oct 2017
Location: Rotterdam, The Netherlands
Posts: 241
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 93 Post(s)
Liked 38 Times in 26 Posts
Is it possible to hold the cone with a flat skrewdriver?
alexnagui is offline
Old 03-28-20, 05:19 AM
  #5
Prowler
Senior Member

Join Date: Nov 2013
Location: Near Pottstown, PA: 30 miles NW of Philadelphia
Posts: 1,526

Bikes: 2 Trek Mtn, Cannondale R600 road, 6 vintage road bikes

Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 236 Post(s)
Liked 134 Times in 81 Posts
The DIY tool that Brad L made looks viable but in addition this is a good example of why I mod my small sockets. This nut is likely 12mm but thin. All my 1/4" drive sockets from 13mm on down have been milled/ground to eliminate the tapered leading edge. I've milled my open end wrenches too. On the various thin nuts and bolt heads on a bicycle, that taper can prevent the sockets grip on half of the nut, or more. My sockets now have a sharp leading edge - full grip on the faces of the nut or bolt head. In theory, that sharp leading edge makes engaging a socket on a fastener a bit slower. Has probably cost me 72 additional seconds over the past 10 years. I woint busy anyway.

With that sharp leading edge on your socket you could use a holding tool on the cone and still have sufficient grip on the nut to get it tight, tight without the socket cam'n off the nut. Good luck.
Prowler is offline
Old 03-28-20, 09:50 AM
  #6
CO_Hoya
SeŮor Member
Thread Starter

Join Date: Dec 2007
Location: Colorado
Posts: 769

Bikes: Yes

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 184 Post(s)
Liked 89 Times in 51 Posts
Originally Posted by Brad L View Post
I made a tool out of an inexpensive chainring nut wrench from Amazon. It worked like a charm.

See here.
This is awesome, Iíll pick up that tool and modify next time I make an Amazon purchase.

Thanks.

Originally Posted by bulgie View Post
That means your tongue-washer has lost its tongue (maybe the cat got it?)

Mark B in Seattle
Well, as you speculated the pedal had never been serviced before I opened it up, so the tongued-washer and axle slot are perfect.

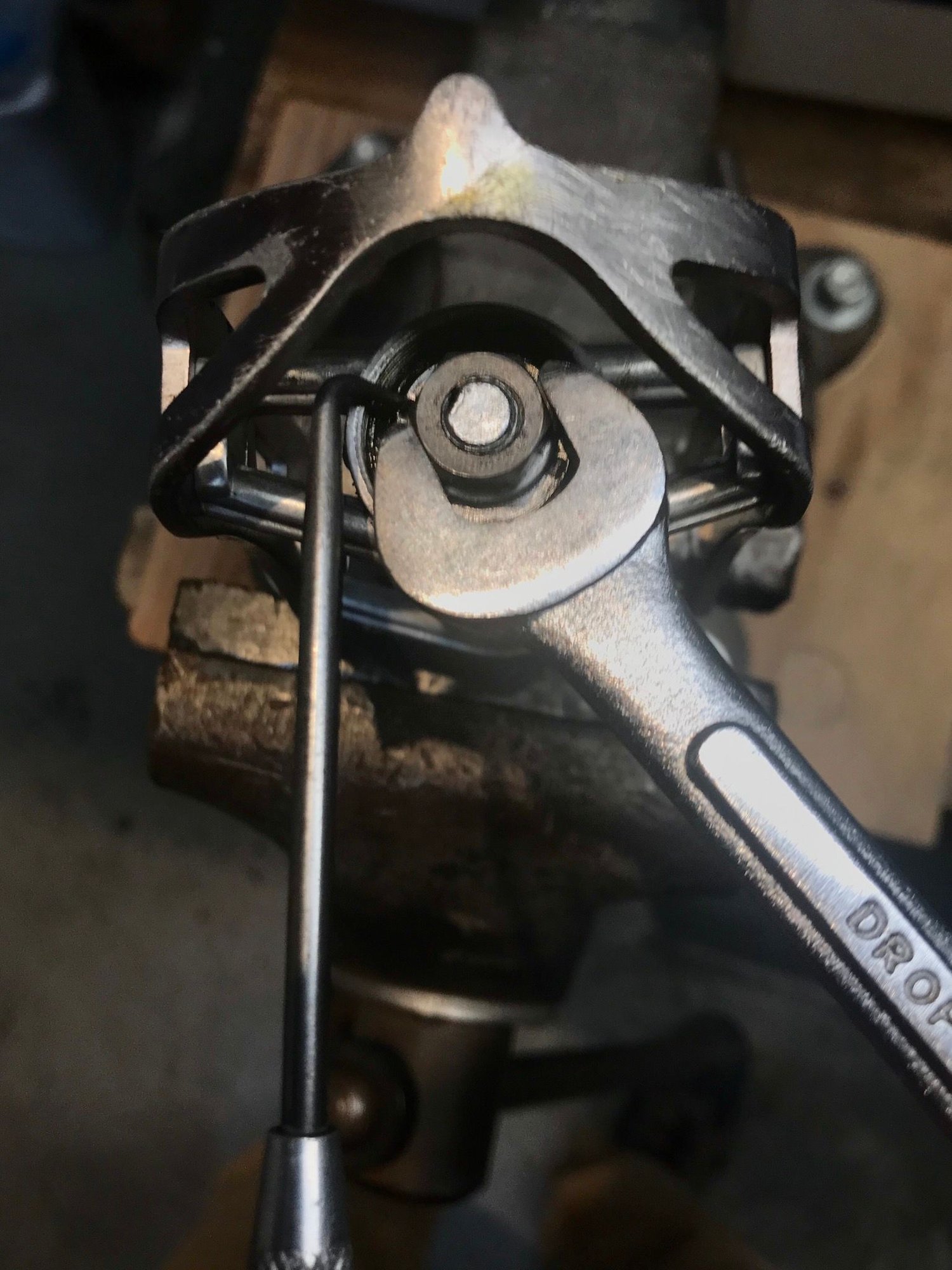

Hopefully you can see from this pic.



Originally Posted by alexnagui View Post
Is it possible to hold the cone with a flat skrewdriver?
Not really. Between the shallowness of the slot and the required clearance for the wrench, you canít quite get in there with a flathead.

However, with a clear head this morning, I was able to come up with a good enough tool using a right angle awl (dental pick). I followed Markís advice of slightly loose until the final tightening and got it dialed in.

CO_Hoya is offline
