F.B. OEM Hub photos needed

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

F.B. OEM Hub photos needed

Old 04-16-18, 06:48 PM
  #51
iab
Senior Member

iab's Avatar

Join Date: Jun 2006
Location: NW Burbs, Chicago
Posts: 10,173
Mentioned: 130 Post(s)
Tagged: 0 Thread(s)
Quoted: 1780 Post(s)
Liked 578 Times in 308 Posts
If anyone is interested, Scott at sexybikes has a set of the high flange Siamt hubs. He'd probably sell them.
iab is offline
Old 02-27-19, 09:46 AM
  #52
VeloFelo54
Junior Member

Join Date: Nov 2015
Location: Suffolk, England
Posts: 17

Bikes: 1951 Claud Butler Massed Start, ca. 1960 Holdsworth Hurricane, ca. 1948 Allin, Stan Butler Special

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 3 Times in 2 Posts
Fratelli Brivio Hubs

Originally Posted by iab View Post
If anyone is interested, Scott at sexybikes has a set of the high flange Siamt hubs. He'd probably sell them.
The main reason that FB made hubs for so many others is that they held the patent for hubs constructed of steel barrels with alloy flanges. This was granted in the UK in 1933. I have no idea if a patent was lodged elsewhere - perhaps it was not possible to do this in Italy under Il Duce. To separate / rebuild the hubs requires them to be heated. Aluminium has a higher expansion coefficient than steel which makes this possible. Simply pressing them together without heat may not be a good idea. Anyone manufacturing hubs in this construction should have paid Brivio royalties. Did British Hub Co and Bayliss Wiley pay up ? Who knows ? To the best of my knowledge all Campagnolo Gran Sport high and low flange hubs were made by FB until about 1957 (or perhaps 1958 when the patent expired after 25 years ?). Interestingly, the internals for the hubs differ between the Campagnolo hubs made by FB and the FB branded ones. FB cones are dated Campagnolo lock nuts are dated. To the best of my knowledge Gnutti made their own hubs. I do not think that they were made by FB as there are numerous differences.
FB also offered cranksets which were illustrated in a very lavish 1951 catalogue and there was also an article in 'Cycling' in December 1946 for what appears to be a splined BB axle. I have never seen one of these. FB cranks are quite scarce. I have never seen FB branded chainrings.

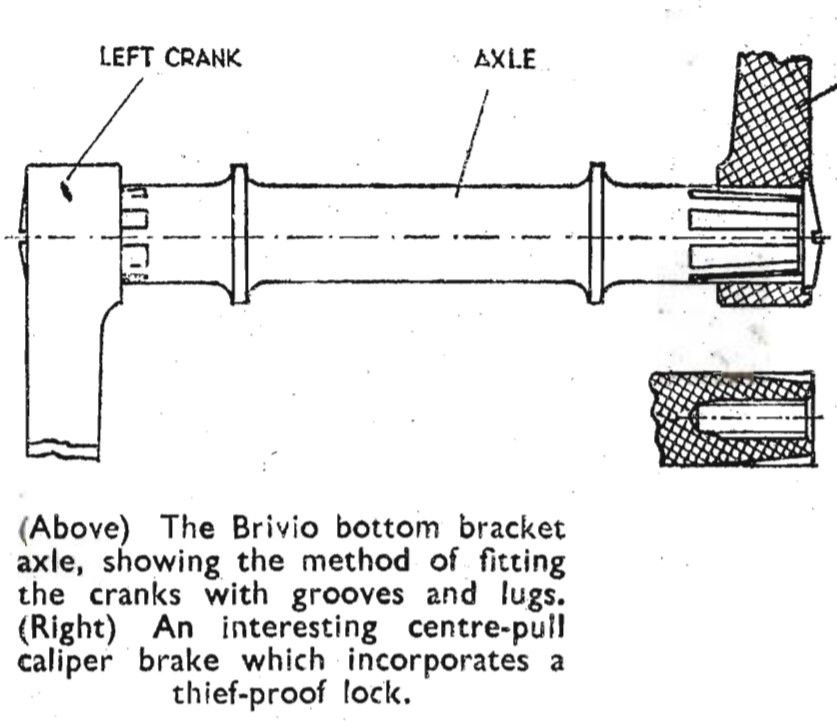

Attached copy of the patent plus images of Cycling article from 1946 and photo FB racing cranks (with TA chainring) ca.1950




VeloFelo54 is offline
Likes For VeloFelo54:
Old 03-01-19, 02:03 PM
  #53
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,497
Mentioned: 265 Post(s)
Tagged: 1 Thread(s)
Quoted: 2116 Post(s)
Liked 333 Times in 294 Posts
-----

Thanks so much for this information.

Regarding patent term -

In case they were able to file a patent in Italy - Have read that Italian patents were granted for a term of fourteen years and could be renewed once for a second term of fourteen years. So the final expiry date would be grant date plus twenty-eight years.

-----

Last edited by juvela; 03-01-19 at 02:04 PM. Reason: addition
juvela is offline
Old 08-12-19, 03:52 PM
  #54
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,497
Mentioned: 265 Post(s)
Tagged: 1 Thread(s)
Quoted: 2116 Post(s)
Liked 333 Times in 294 Posts
Date Marked FB Hub Cone

-----



-----
juvela is offline
Old 08-18-19, 10:44 PM
  #55
amirinisrael
Senior Member
Thread Starter

amirinisrael's Avatar

Join Date: Mar 2009
Location: Ramat-Gan, Israel
Posts: 106

Bikes: '27 Selbach,'38 Schwin Superior, '53 Ephgrave #2, '60 Narcisse, 60's Sauvage LeJeune, '75 Follis 572,80's Italian Mystery bike, '99 Gary Fisher Ziggurat, 2008 Brompton ...

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 10 Times in 9 Posts
Originally Posted by juvela View Post
-----



-----
What diameter? Front or rear?
BTW: Do you know of any source for Campag/FB-compatible 8mm x 26 tpi cones?
Amir
amirinisrael is offline
Old 08-18-19, 11:41 PM
  #56
VeloFelo54
Junior Member

Join Date: Nov 2015
Location: Suffolk, England
Posts: 17

Bikes: 1951 Claud Butler Massed Start, ca. 1960 Holdsworth Hurricane, ca. 1948 Allin, Stan Butler Special

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 3 Times in 2 Posts
Originally Posted by amirinisrael View Post
What diameter? Front or rear?
BTW: Do you know of any source for Campag/FB-compatible 8mm x 26 tpi cones?
Amir
I know of one supplier in the UK who actually has cones manufactured to a very nigh standard as replacements for Campagnolo and various other hubs.
Try Chris Grange at Abel Aber Cycles / Bishops Stortford / Herts / England.
Hope that this helps
VeloFelo54 is offline
Old 08-19-19, 06:49 AM
  #57
martl
Strong Walker

martl's Avatar

Join Date: May 2007
Location: Munich, Germany
Posts: 910

Bikes: too many

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 146 Post(s)
Liked 101 Times in 72 Posts
i may have some branded Girardengo and also L.Guerra, iirc
martl is offline
Old 08-25-19, 11:28 PM
  #58
amirinisrael
Senior Member
Thread Starter

amirinisrael's Avatar

Join Date: Mar 2009
Location: Ramat-Gan, Israel
Posts: 106

Bikes: '27 Selbach,'38 Schwin Superior, '53 Ephgrave #2, '60 Narcisse, 60's Sauvage LeJeune, '75 Follis 572,80's Italian Mystery bike, '99 Gary Fisher Ziggurat, 2008 Brompton ...

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 10 Times in 9 Posts
please post photos
amirinisrael is offline
Old 11-01-19, 04:44 AM
  #59
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,497
Mentioned: 265 Post(s)
Tagged: 1 Thread(s)
Quoted: 2116 Post(s)
Liked 333 Times in 294 Posts
-----

Four views of FB one-piece small flange 36 hole solid axle front hub worn by a "Cycles B.B." of Paris machine -







-----
juvela is offline
Old 11-04-19, 12:14 AM
  #60
VeloFelo54
Junior Member

Join Date: Nov 2015
Location: Suffolk, England
Posts: 17

Bikes: 1951 Claud Butler Massed Start, ca. 1960 Holdsworth Hurricane, ca. 1948 Allin, Stan Butler Special

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 3 Times in 2 Posts
Fratelli Brivio Hubs

Originally Posted by amirinisrael View Post
I am rebuilding, re-chroming & rehabilitating some 3-piece Campy G.S. hubs.
see https://www.flickr.com/photos/grande...7648665284563/


Along the way I found out that F.B. made those hubs not only for Campagnolo, but for anybody who asked.

A short list includes:

Atala √
Bartali
Bianchi √
Bob's Bikes (Bob Berghino NYC) √
Campagnolo
C.B.
Ciclo Piave
Frejus
Ganna
Legnano
Lygie
Olmo
Maino
Pinarello
Simplex √
Taurus
Umberto Dei
Viscontea
Willier
Wolsit

If anybody has photos of those branded hubs, please send them to me or post here.

Thanks
Please see my article on Fratelli Brivio on the Classic Lightweights website. It does not add to your list but may be of interest
VeloFelo54 is offline
Likes For VeloFelo54:
Old 02-05-20, 10:40 AM
  #61
amirinisrael
Senior Member
Thread Starter

amirinisrael's Avatar

Join Date: Mar 2009
Location: Ramat-Gan, Israel
Posts: 106

Bikes: '27 Selbach,'38 Schwin Superior, '53 Ephgrave #2, '60 Narcisse, 60's Sauvage LeJeune, '75 Follis 572,80's Italian Mystery bike, '99 Gary Fisher Ziggurat, 2008 Brompton ...

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 10 Times in 9 Posts

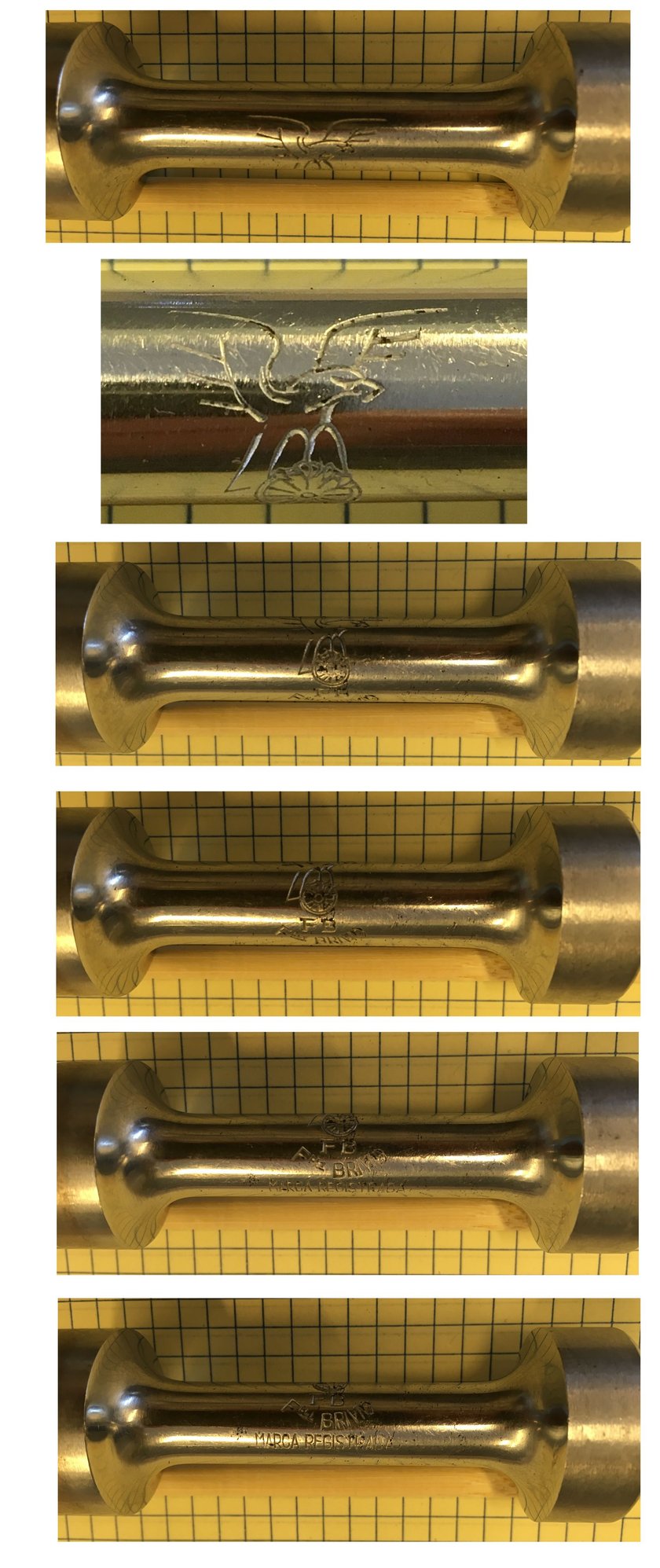

Attached are photos of an early FB hub probably destined for South America
As S.M. said: "That is not written in Italian but rather in Spanish so you can likely surmise it was made for the then-wealthy South American market."


FB FLLI BRIVIO MARCA REGISTRADA
amirinisrael is offline
Likes For amirinisrael:
Old 04-22-20, 01:01 AM
  #62
amirinisrael
Senior Member
Thread Starter

amirinisrael's Avatar

Join Date: Mar 2009
Location: Ramat-Gan, Israel
Posts: 106

Bikes: '27 Selbach,'38 Schwin Superior, '53 Ephgrave #2, '60 Narcisse, 60's Sauvage LeJeune, '75 Follis 572,80's Italian Mystery bike, '99 Gary Fisher Ziggurat, 2008 Brompton ...

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 10 Times in 9 Posts
Home-Made Flanges

Started work on these before the quarantine:

FB - Gran Sport - Baldini Hour Record templates
amirinisrael is offline
Likes For amirinisrael:
Old 04-22-20, 01:09 AM
  #63
amirinisrael
Senior Member
Thread Starter

amirinisrael's Avatar

Join Date: Mar 2009
Location: Ramat-Gan, Israel
Posts: 106

Bikes: '27 Selbach,'38 Schwin Superior, '53 Ephgrave #2, '60 Narcisse, 60's Sauvage LeJeune, '75 Follis 572,80's Italian Mystery bike, '99 Gary Fisher Ziggurat, 2008 Brompton ...

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 10 Times in 9 Posts
Home-Made Hub Axle Thread Guage


Home-Made Thread Guage for Classic Brtish, French, American and Japanese axle threads
amirinisrael is offline
Likes For amirinisrael:
Old 04-22-20, 01:50 AM
  #64
amirinisrael
Senior Member
Thread Starter

amirinisrael's Avatar

Join Date: Mar 2009
Location: Ramat-Gan, Israel
Posts: 106

Bikes: '27 Selbach,'38 Schwin Superior, '53 Ephgrave #2, '60 Narcisse, 60's Sauvage LeJeune, '75 Follis 572,80's Italian Mystery bike, '99 Gary Fisher Ziggurat, 2008 Brompton ...

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 10 Times in 9 Posts
Home-Made Hub Axle Vice


Home-Made 5-15mm axle vice vs Cyclus Tools axle vice
amirinisrael is offline
Likes For amirinisrael:
Old 04-22-20, 09:27 AM
  #65
obrentharris
Senior Member

obrentharris's Avatar

Join Date: May 2012
Location: San Francisco Bay Area
Posts: 2,929

Bikes: fewer (n-1)

Mentioned: 56 Post(s)
Tagged: 0 Thread(s)
Quoted: 780 Post(s)
Likes: 0
Liked 436 Times in 216 Posts
amirinisrael You've been busy. Good stuff!
Brent
obrentharris is offline
Old 04-24-20, 12:27 PM
  #66
steve sumner
Senior Member

Join Date: Apr 2020
Posts: 209

Bikes: '68 Masi Special road, Grail bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Likes: 0
Liked 41 Times in 34 Posts
it's my understanding that Simplex hubs were made by FB and made in France
by license maybe? I chalk it up to another thing I'll never know. pre-war records
are spotty at best and the truthiness always has to be questioned!
steve sumner is offline
Old 04-24-20, 02:10 PM
  #67
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,497
Mentioned: 265 Post(s)
Tagged: 1 Thread(s)
Quoted: 2116 Post(s)
Liked 333 Times in 294 Posts
Originally Posted by steve sumner View Post
it's my understanding that Simplex hubs were made by FB and made in France
by license maybe? I chalk it up to another thing I'll never know. pre-war records
are spotty at best and the truthiness always has to be questioned!
-----

keep in mind also that Juy maintained a manufacturing facility in Italy for a time


-----
juvela is offline
Old 04-24-20, 02:15 PM
  #68
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,497
Mentioned: 265 Post(s)
Tagged: 1 Thread(s)
Quoted: 2116 Post(s)
Liked 333 Times in 294 Posts
-----

Cicli Taurea di Torino -




-----
juvela is offline
Old 05-26-20, 01:11 AM
  #69
amirinisrael
Senior Member
Thread Starter

amirinisrael's Avatar

Join Date: Mar 2009
Location: Ramat-Gan, Israel
Posts: 106

Bikes: '27 Selbach,'38 Schwin Superior, '53 Ephgrave #2, '60 Narcisse, 60's Sauvage LeJeune, '75 Follis 572,80's Italian Mystery bike, '99 Gary Fisher Ziggurat, 2008 Brompton ...

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 10 Times in 9 Posts
FB/Baldini Hr Record Hub Flange Progress - FW side of Fixed/Free Hub

[QUOTE=amirinisrael;21432460]Started work on these before the quarantine:

FB - Gran Sport - Baldini Hour Record
amirinisrael is offline
Likes For amirinisrael:
Old 05-26-20, 01:14 AM
  #70
amirinisrael
Senior Member
Thread Starter

amirinisrael's Avatar

Join Date: Mar 2009
Location: Ramat-Gan, Israel
Posts: 106

Bikes: '27 Selbach,'38 Schwin Superior, '53 Ephgrave #2, '60 Narcisse, 60's Sauvage LeJeune, '75 Follis 572,80's Italian Mystery bike, '99 Gary Fisher Ziggurat, 2008 Brompton ...

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 10 Times in 9 Posts

FW side flange for Fixed/Free FB Hub
amirinisrael is offline
Likes For amirinisrael:
Old 05-29-20, 08:48 AM
  #71
alexnagui
Senior Member

alexnagui's Avatar

Join Date: Oct 2017
Location: Rotterdam, The Netherlands
Posts: 238
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 93 Post(s)
Liked 38 Times in 26 Posts
Great job! Are you planning to manufacture those?
alexnagui is offline
Old 05-29-20, 12:43 PM
  #72
Munny
Senior Member

Join Date: May 2012
Location: Belgium, Bicycle country
Posts: 232

Bikes: 50 ? More?

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 45 Post(s)
Likes: 0
Liked 4 Times in 4 Posts
Originally Posted by juvela View Post
-----



-----
Mr Juvela, would you please STOP to use my pictures without authorization, without even letting me know !

Can you list your sources!
Munny is offline
Old 06-01-20, 11:02 AM
  #73
amirinisrael
Senior Member
Thread Starter

amirinisrael's Avatar

Join Date: Mar 2009
Location: Ramat-Gan, Israel
Posts: 106

Bikes: '27 Selbach,'38 Schwin Superior, '53 Ephgrave #2, '60 Narcisse, 60's Sauvage LeJeune, '75 Follis 572,80's Italian Mystery bike, '99 Gary Fisher Ziggurat, 2008 Brompton ...

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 10 Times in 9 Posts
Originally Posted by alexnagui View Post
Great job! Are you planning to manufacture those?
Yes, but it will take time.
amirinisrael is offline
Old 06-22-20, 12:36 AM
  #74
amirinisrael
Senior Member
Thread Starter

amirinisrael's Avatar

Join Date: Mar 2009
Location: Ramat-Gan, Israel
Posts: 106

Bikes: '27 Selbach,'38 Schwin Superior, '53 Ephgrave #2, '60 Narcisse, 60's Sauvage LeJeune, '75 Follis 572,80's Italian Mystery bike, '99 Gary Fisher Ziggurat, 2008 Brompton ...

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 10 Times in 9 Posts
Below are some reproduction Baldini Hour Record pattern F.B. hub flanges (front & rear) after polish.
Still have some bugs to work out ... but almost there.

FB.Baldini Hour Record pattern Rear Hub Flanges -Fixed/Free (Not Quite Ready - But Very Close)


FB/Baldini Hour Record Pattern Front Hub Flanges (NQR-BVC)
amirinisrael is offline
Old 06-30-20, 08:28 AM
  #75
amirinisrael
Senior Member
Thread Starter

amirinisrael's Avatar

Join Date: Mar 2009
Location: Ramat-Gan, Israel
Posts: 106

Bikes: '27 Selbach,'38 Schwin Superior, '53 Ephgrave #2, '60 Narcisse, 60's Sauvage LeJeune, '75 Follis 572,80's Italian Mystery bike, '99 Gary Fisher Ziggurat, 2008 Brompton ...

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 10 Times in 9 Posts
Baldini Replica Hub(shell) set


Baldini Replica Hub Set (shells only for now)
amirinisrael is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
